| PRODUCT SPECIFICATIONS | |
|---|---|
| Model | CVD 30 |
| Catalog Number | 91430 |
| MACHINE DIMENSIONS | |
| Dimensions (L x W x H) | 12.75" x 12" x 45" |
| Net Weight | 17.4 lbs. |
| Shipping Weight | 18 lbs. |
| Recovery Bag Capacity | 5.51 liter / 1.72 gal |
| DESIGN CHARACTERISTICS | |
| Cord Type | 40', 18 gauge, 3-wire SJT, safety yellow, extension cord |
| Cord Strain Relief | Yes |
| Body Construction | Polypropylene |
| Handle Design | Ergonomic |
| Housing Bumper | Non-Marking |
| Easy Debris Access | Yes |
| Belt Type / Design | Non-slip toothed |
| Standard Bag Type | CleanBreeze |
| CLEANING SYSTEM | |
| CFM | 102 |
| Water Lift | 81.5" |
| Cleaning Productivity | 2,239 ft/hr |
| Sound Level | 66 dB |
| Cleaning Path | 12" |
| Brush Design | Dusting Brush |
| Filtration System | 3-Stage System |
| On Board Tools | Yes |
| MOTORS | |
| Vacuum Motor | 9 amps |

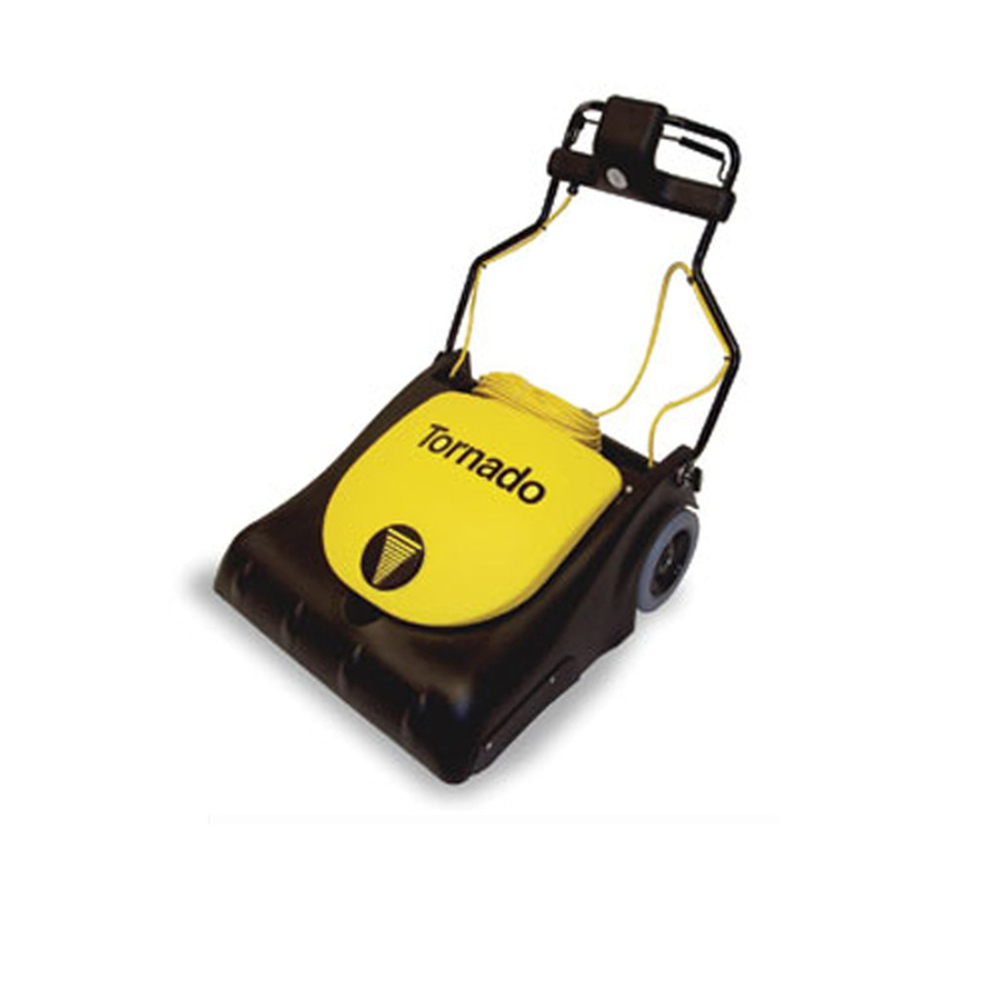

New Tornado Carpet CK 3030 Wide Area Vacuum
Our Take (from the SES Sales Team)
“When you have a big carpeted floor and a crew pushing 14 in uprights across it, the CK 3030 is the machine that changes the math. Tornado says its 30 in path does the work of three upright vacuums, and rates it at up to 10,000 sq ft per hour. Two 1 hp vac motors pull 224 cfm, and a separate brush motor spins the 28 in brush at 1,800 rpm to lift compressed pile in traffic lanes. A foot pedal sets five brush heights, so going from low-pile office carpet to a thicker hotel corridor takes a second. The 75 ft cord keeps outlet changes to a minimum on long runs in airports, convention centers, malls and ballrooms. Four stages of filtration, starting with a paper bag inside a cloth bag, keep the exhaust clean. The handle folds and the machine stands on end, which helps in a crowded storage closet. At 95 lb it rides on 10 in rear wheels, so it moves easily. For small rooms and tight spaces, a standard upright is still the better tool.”
Wide-area carpet vacuuming for big open spaces
The Tornado CK 3030 Wide Area Vacuum is a 115 V commercial carpet vacuum for large carpeted areas such as malls, airports, hotels, convention centers, department stores and hospitals. Tornado says it delivers the performance of three upright vacuums, at up to 10,000 sq ft per hour.
Two 1 hp vacuum motors provide 224 cfm and 63 in of waterlift, and a separate 0.5 hp brush motor drives a 28 in nylon brush at 1,800 rpm. The housing and lid are rotationally molded plastic, and the brush shoe is stainless steel.
Condition: New.

What you get
Filters and bags in the box
Four-stage clean-air filtration
Features
Built for long runs
- ✓30 in wide-area design for big open carpeted areas
- ✓Five-position brush height adjustment by foot pedal
- ✓Stainless steel brush shoe and a deadman safety switch
- ✓Adjustable, cushioned handle that folds down so the unit stands on end for storage
- ✓10 in non-marking rear wheels and front swivel casters for easy steering

Specifications
Tornado CK 3030 at a glance
| Models | CK 3030 |
|---|---|
| Cleaning width | 30 in (762 mm) |
| Productivity | Up to 10,000 sq ft/hr (929 m²/hr) |
| Vacuum motors | 2 x 1 hp, 115 V |
| Airflow / static waterlift | 224 cfm (6.3 m³/min) / 63 in (1,600 mm) |
| Brush | Nylon bristle with plastic core, 28 x 3 in (711 x 76 mm) |
| Brush speed / brush motor | 1,800 rpm / 0.5 hp PMDC |
| Brush height adjustment | 5 pile settings |
| Drive belt | 6-groove poly-V |
| Filtration / filter capacity | 4-stage clean-air / 1.6 bushels (2 cu ft, 56 L) |
| Overload protection | 15 A reset breaker |
| Wheels | 10 in (25 cm) non-marking rear, non-marking front swivel casters |
| Sound level | 70 dB to operator |
| Power cord / power | 75 ft (23 m), 14/3 / 115 V, 60 Hz |
| Base dimensions (H x W x D) | 20 x 30 x 36 in (51 x 76 x 91 cm) |
| Weight (net / shipping) | 95 lb (43 kg) / 113 lb (51 kg) |
| Model Numbers | 93030 (CK 3030) |
Technical specs may include optional equipment that is not included with all units.
Questions
Tornado CK 3030: common questions
How much area can it vacuum?
Tornado rates the CK 3030 at up to 10,000 sq ft per hour and says it does the work of three upright vacuums.
How do I change the brush height?
Use the foot pedal to pick one of five pile height settings.
What filters and bags come with it?
The unit comes standard with disposable paper filter bags (90701), an outer cloth filter bag (19816), two vac motor exhaust filters (19834) and a clean-air exhaust filter (19855).
How long is the cord?
It has a 75 ft, 14/3 power cord and runs on 115 V, 60 Hz.
How do I store it?
The handle folds down and the unit can stand on end, so it takes less floor space.
Not sure the CK 3030 fits your building?
Tell our team how much carpet you vacuum, the layout and the pile type, and we will help you decide if a wide-area vacuum is the right move.
