New Square Scrub EBG-28 PIVOT w/ Removable Handle
Our Take (from the SES Sales Team)
“The EBG-28 PIVOT is Square Scrub's widest oscillating machine, and this version adds the two-piece removable handle. That matters more than it sounds: at 197 lb assembled, the 28 in PIVOT is a big machine to load, and a handle that comes off makes it a shorter, easier piece to get into a van or truck and through the back door of a job. On the floor it is the same EBG-28. The 14 x 28 in pad is about 40 percent larger than the EBG-20/C, a 1.5 hp motor drives it at 3,450 oscillations per minute, and the square pad works in straight lines right up to walls and into corners. With the slotted weights on, Square Scrub rates it for chemical stripping, dry prep of VCT, stone and concrete care, wood sanding and gym floor prep, and with them off it handles tile and grout or LVT cleaning. The pivoting head keeps the base balanced no matter where the handle sits. For mostly small rooms, the EBG-20/C PIVOT is the lighter choice.”
A wide oscillating floor machine for big prep jobs
The Square Scrub EBG-28 PIVOT is a 28 in oscillating floor machine for stripping, prepping, scrubbing and sanding large floors. Its 14 x 28 in pad is about 40 percent larger than the EBG-20/C, and a 1.5 hp motor drives it at 3,450 oscillations per minute.
It weighs 197 lb assembled, with removable slotted weights you can add for heavy work and take off for lighter cleaning. This version comes with the two-piece removable handle, Square Scrub model EBG-28 PVT 2PC.
Condition: New.
What you get
Built to work wall to wall
What the pivoting head does
Features
Built for heavy prep
- ✓14 x 28 in pad covers about 40 percent more area than the EBG-20/C
- ✓Removable, slotted weights for stone polishing and wood sanding
- ✓Eight isolators, a vibration-reducing handle and noise-reducing weight spacers
- ✓Two-piece handle that removes for loading and transport
- ✓Dual-seal sealed bearing system
The Square Scrub lineup
How the EBG-28 compares
| Machine | Pad size | Assembled weight | Oscillations | Amp draw |
|---|---|---|---|---|
| Doodle Scrub (EBG-9) | 5.25 x 10.5 in | 21 lb | 4,100/min | 1.2 A |
| Square Lite (EBG-18 SQ LT) | 12 x 18 in | 92 lb | 3,450/min | 6.9 A |
| EBG-20/C PIVOT | 14 x 20 in | 156 lb | 3,450/min | 7 A |
| EBG-28 PIVOT, 2-piece handle (this unit) | 14 x 28 in | 197 lb | 3,450/min | 9.6 A |
Choose the EBG-28 for large open areas, and the EBG-20/C or Square Lite for smaller rooms and lighter work.
Specifications
Square Scrub EBG-28 PIVOT with removable handle at a glance
| Models | EBG-28 PIVOT, 2-piece removable handle |
|---|---|
| Pad size | 14 x 28 in |
| Motor | 1.5 hp, 3,450 rpm |
| Oscillations | 3,450 per minute |
| Voltage | 115 V |
| Amp draw | 9.6 A |
| Power cord | 50 ft, 14 gauge, lighted plug |
| Base weight without weights | 117 lb |
| Total assembled weight | 197 lb |
| Frame / base | 10 gauge steel frame, 7 gauge stainless steel base |
| Axle / wheels | 3/4 in solid steel axle, 6 x 2 in non-marking wheels |
| Isolators | 8 |
| Operating sound | 69 dB |
| Removable weights | Yes, slotted |
| Two-piece handle | Yes, removable |
| Certifications | UL, CSA, CE |
| Model Numbers | SS EBG-28 PVT 2PC (EBG-28 PIVOT with removable handle) |
Technical specs may include optional equipment that is not included with all units.
Questions
Square Scrub EBG-28 PIVOT with removable handle: common questions
What jobs is the EBG-28 PIVOT built for?
Square Scrub lists tile and grout cleaning, LVT cleaning, chemical stripping and dry prep of VCT, stone, concrete and terrazzo care, wood floor sanding and prep, and dry prep of gym floors.
How much bigger is it than the EBG-20/C?
The EBG-28 runs a 14 x 28 in pad, about 40 percent larger than the 14 x 20 in pad on the EBG-20/C, so it covers more floor per pass.
Can I take the weights off?
Yes. The slotted weights are removable. Add them for stone polishing or wood sanding, and take them off for other surfaces.
Is there a dust-control version?

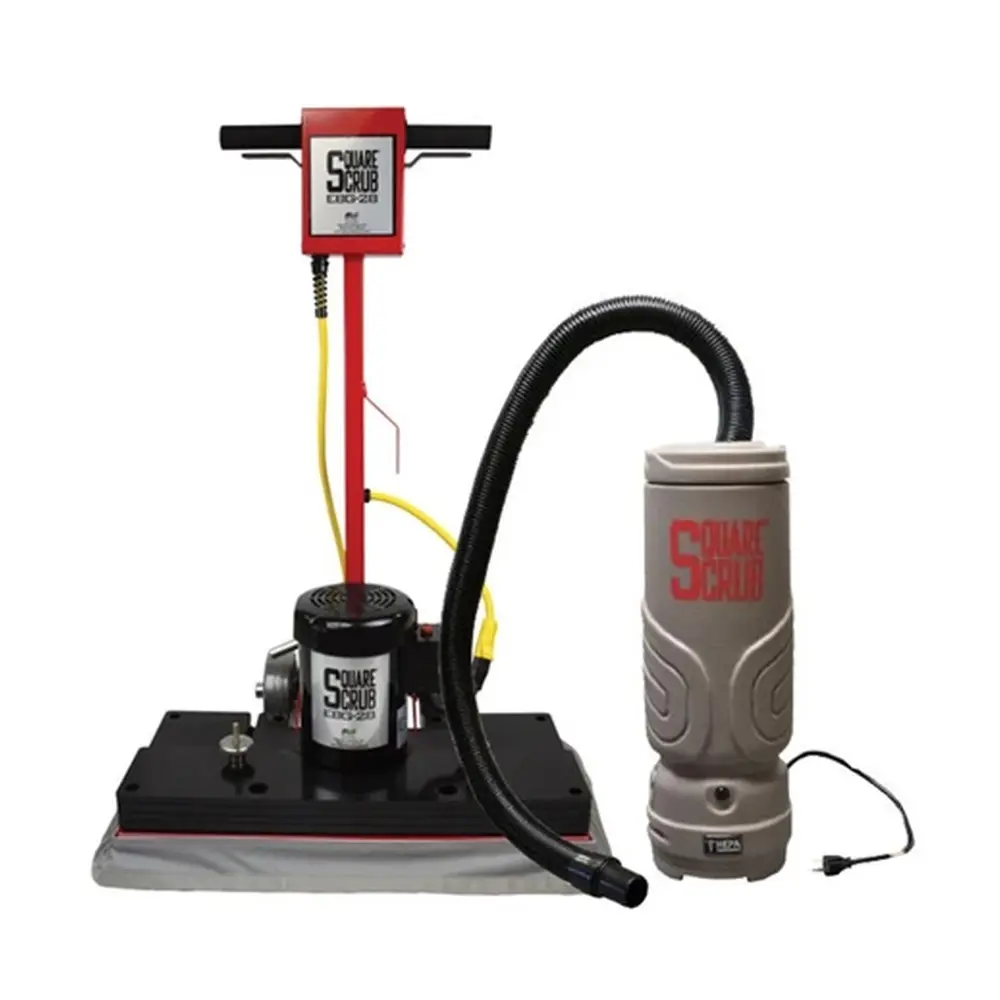

Yes. Square Scrub also offers the EBG-28V PIVOT with a HEPA dry vac kit. This page is for the EBG-28 PIVOT with the two-piece removable handle, without the HEPA vac.
What is different about the 2PC version?
It is the standard EBG-28 PIVOT with Square Scrub’s two-piece handle, which removes from the machine to make loading and transport easier. The base, motor and pad are the same.
Not sure the EBG-28 PIVOT fits your floors?
Tell our team about the floor, the building and the job, and we will help you decide if this is the right machine.
