| UL/CSA/CE Certified | Yes |
| Base Weight w/o Weights | 117 lbs |
| Total Assembled Weights | 197 lbs |
| Maximum Weight Capacity | 197 lbs |
| Powder Coated Steel Frame | 10 gauge |
| Stainless Steel Base | 7 gauge |
| 3/4" Solid Steel Axle | Yes |
| Adjustable Handle | Yes |
| 6"x2" Non-Marking Wheels | Yes |
| Motor | 3450 1.5 hp |
| Operating Sound Output | 69 db |
| Power Cord | 50 ft/14 gauge |
| Lighted Plug | Yes |
| Amp Draw | 9.6 amps |
| Pad Size | 14x28 |
| Number of Isolators | 8 |
| Oscillations | 3450/minute |
| Removable Weights | Yes |
| Slotted Weights | Yes |
| Vibration Reducing Handle | Yes |
| Noise Reducing Weight Spacers | Yes |
| Stone Care Capable | Yes |
| Carpet & Rug Institute Certified | Yes |
| Dust Containment Kit | Included |
| Built-in Hour Meter | Optional |
| Two-Piece Handle | Optional |
Technical specs may include optional equipment that is not included with all units.

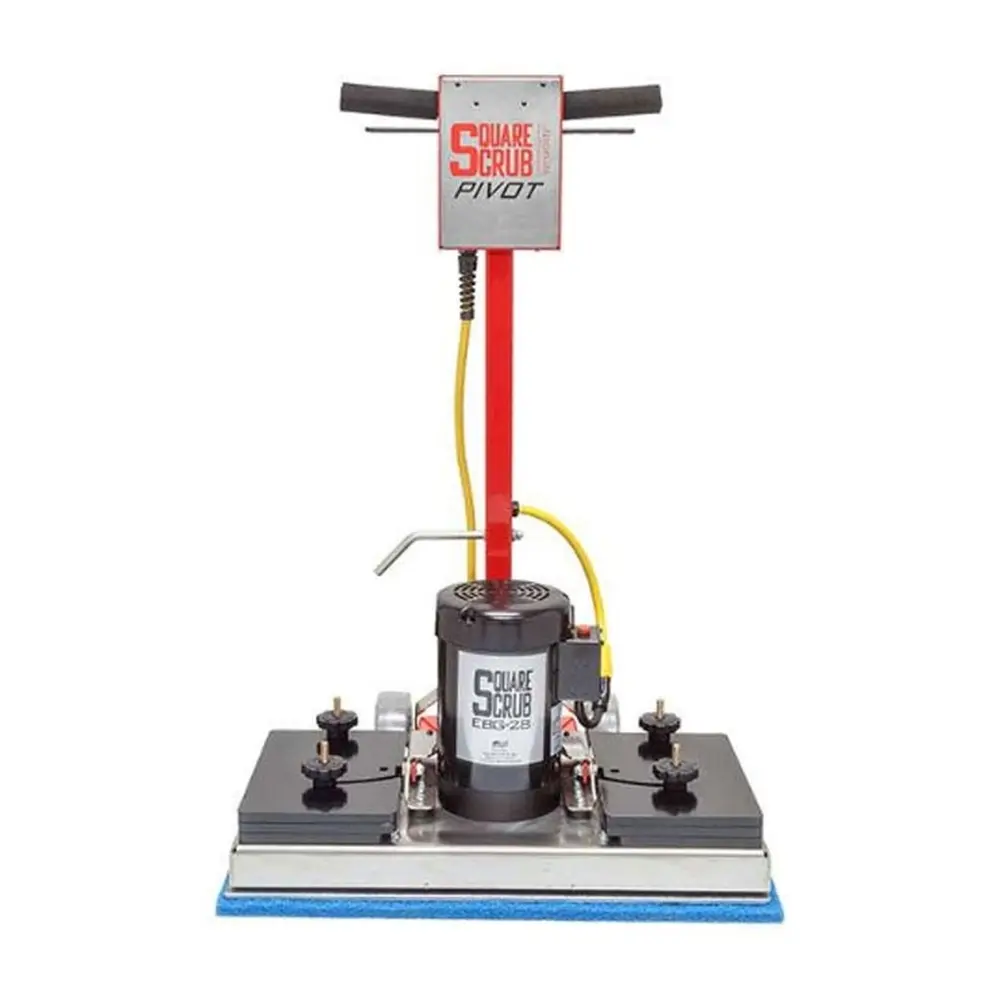

New Square Scrub EBG-28 PIVOT
Our Take (from the SES Sales Team)
“If your crew preps large areas, the EBG-28 PIVOT is the Square Scrub to look at. Its 14 x 28 in pad is about 40 percent larger than the EBG-20/C, so each pass covers more floor, and because it is an oscillating square machine it works in straight lines right up to walls and into corners without swinging the way a round rotary does. At 197 lb assembled with its removable weights, it has the mass to get through finish and prep floors for recoating, and Square Scrub rates it for stone care, wood sanding and screening gym floors as well. Pull the slotted weights off for lighter work like tile and grout or LVT cleaning. The pivoting head releases the handle from the base, so the machine stays balanced and easy to steer, and eight isolators keep vibration down for the operator. It runs a 1.5 hp motor at 3,450 oscillations per minute on standard 115 V power. If you mostly work in smaller rooms and hallways, the EBG-20/C PIVOT is the easier machine to move between jobs.”
A wide oscillating floor machine for big prep jobs
The Square Scrub EBG-28 PIVOT is a 28 in oscillating floor machine for stripping, prepping, scrubbing and sanding large floors. Its 14 x 28 in pad is about 40 percent larger than the EBG-20/C, and a 1.5 hp motor drives it at 3,450 oscillations per minute.
It weighs 197 lb assembled, with removable slotted weights you can add for heavy work and take off for lighter cleaning. This is Square Scrub model EBG-28 PIVOT.
Condition: New.
What you get
Built to work wall to wall
What the pivoting head does
Features
Built for heavy prep
- ✓14 x 28 in pad covers about 40 percent more area than the EBG-20/C
- ✓Removable, slotted weights for stone polishing and wood sanding
- ✓Eight isolators, a vibration-reducing handle and noise-reducing weight spacers
- ✓Quick-twist cord wrap and a fully welded solid steel handle
- ✓Dual-seal sealed bearing system
The Square Scrub lineup
How the EBG-28 compares
| Machine | Pad size | Assembled weight | Oscillations | Amp draw |
|---|---|---|---|---|
| Doodle Scrub (EBG-9) | 5.25 x 10.5 in | 21 lb | 4,100/min | 1.2 A |
| Square Lite (EBG-18 SQ LT) | 12 x 18 in | 92 lb | 3,450/min | 6.9 A |
| EBG-20/C PIVOT | 14 x 20 in | 156 lb | 3,450/min | 7 A |
| EBG-28 PIVOT (this unit) | 14 x 28 in | 197 lb | 3,450/min | 9.6 A |
Choose the EBG-28 for large open areas, and the EBG-20/C or Square Lite for smaller rooms and lighter work.
Specifications
Square Scrub EBG-28 PIVOT at a glance
| Models | EBG-28 PIVOT |
|---|---|
| Pad size | 14 x 28 in |
| Motor | 1.5 hp, 3,450 rpm |
| Oscillations | 3,450 per minute |
| Voltage | 115 V |
| Amp draw | 9.6 A |
| Power cord | 50 ft, 14 gauge, lighted plug |
| Base weight without weights | 117 lb |
| Total assembled weight | 197 lb |
| Frame / base | 10 gauge steel frame, 7 gauge stainless steel base |
| Axle / wheels | 3/4 in solid steel axle, 6 x 2 in non-marking wheels |
| Isolators | 8 |
| Operating sound | 69 dB |
| Removable weights | Yes, slotted |
| Two-piece handle | Optional |
| Certifications | UL, CSA, CE |
| Model Numbers | EBG-28 PIVOT |
Technical specs may include optional equipment that is not included with all units.
Questions
Square Scrub EBG-28 PIVOT: common questions
What jobs is the EBG-28 PIVOT built for?
Square Scrub lists tile and grout cleaning, LVT cleaning, chemical stripping and dry prep of VCT, stone, concrete and terrazzo care, wood floor sanding and prep, and dry prep of gym floors.
How much bigger is it than the EBG-20/C?
The EBG-28 runs a 14 x 28 in pad, about 40 percent larger than the 14 x 20 in pad on the EBG-20/C, so it covers more floor per pass.
Can I take the weights off?
Yes. The slotted weights are removable. Add them for stone polishing or wood sanding, and take them off for other surfaces.
Is there a dust-control version?
Yes. Square Scrub also offers the EBG-28V PIVOT with a HEPA dry vac kit. This page is for the standard EBG-28 PIVOT.
Not sure the EBG-28 PIVOT fits your floors?
Tell our team about the floor, the building and the job, and we will help you decide if this is the right machine.
