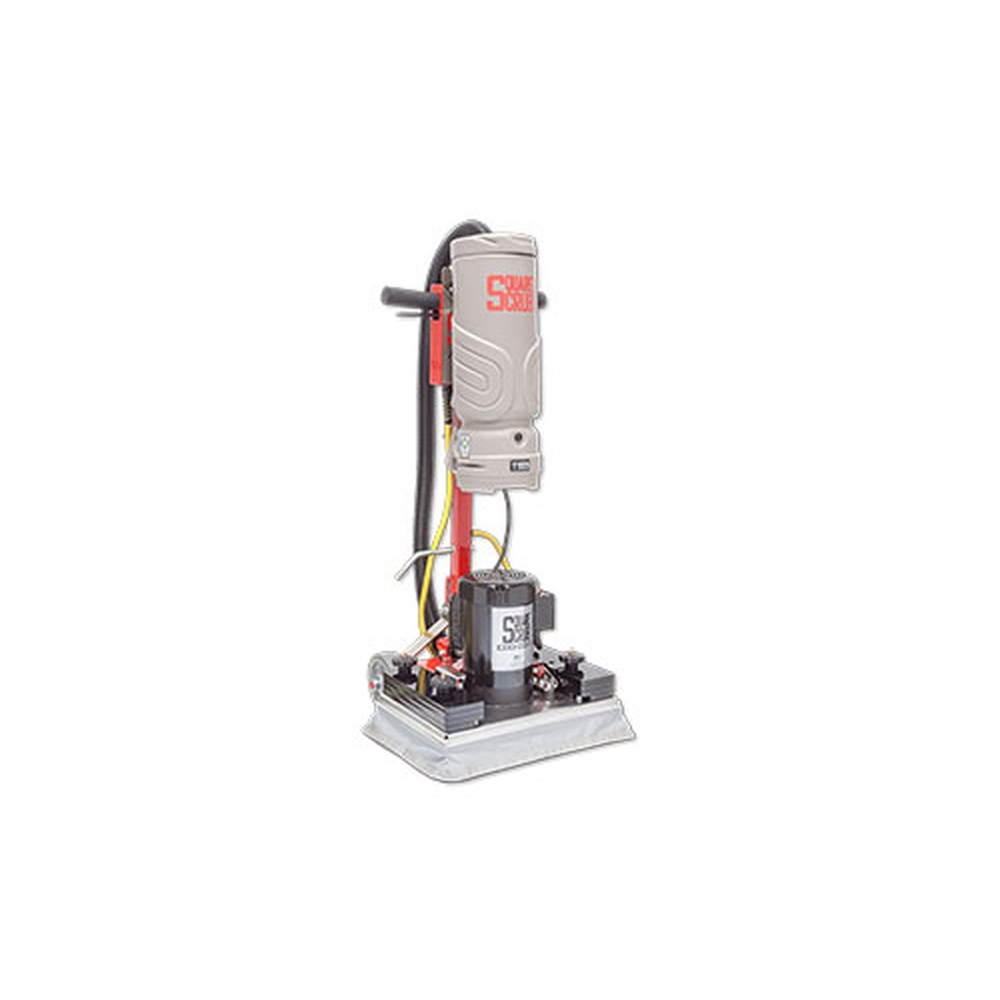

New Square Scrub EBG-20/C Pivot Floor Preparation Machine w/ HEPA Vac
Our Take (from the SES Sales Team)
“The EBG-20/CV is the EBG-20/C Pivot with Square Scrub's HEPA Dry Vac Kit already installed. Pick this version when the work makes dust: dry finish removal with SQP pads or sandscreens, sanding wood and gym floors, or abrading old coatings, especially in schools, offices or healthcare spaces that stay occupied. The vac kit is HEPA rated and CRI Gold certified. It is made to capture airborne particulates at the pad, not to pick up debris from the floor, so you still sweep or dust mop first.
Underneath it is the same 14 x 20 in orbital machine: 1.5 hp, 3,450 oscillations per minute, and slotted weights that take it from 156 lb up to 232 lb for stone polishing or sanding. Choose the standard handle for a machine that stays on one site. The two-piece handle makes sense if it travels between sites.”
A 20-inch orbital floor prep machine with HEPA dust control
The Square Scrub EBG-20/CV Pivot is a 115 V corded orbital floor preparation machine with a 14 x 20 in rectangular pad and the Square Scrub HEPA Dry Vac Kit installed. It strips, scrubs, sands and polishes tile and grout, VCT (wet or dry), LVT and resilient floors, wood and gym floors, concrete, terrazzo and stone. The vac kit captures airborne particulates while you dry-strip or sand. The Pivot base floats under a side-mounted handle for balanced pad contact and easier control.
Choose your configuration
Standard or two-piece handle
| Standard handle | Two-piece handle | |
|---|---|---|
| Handle | Adjustable handle | Adjustable two-piece handle (Square Scrub option) |
| Machine | EBG-20/C Pivot with HEPA Dry Vac Kit | EBG-20/C Pivot with HEPA Dry Vac Kit |
| Best for | A machine that stays in one building | A machine that travels between sites or stores in tight spaces |
| Packages here | EBG-20/CV PIVOT | EBG-20/CV PIVOT with optional two-piece handle |
Features:
- HEPA Dry Vac Kit is installed: it mounts with a face plate, runs off the machine's power through an adapter, and pulls airborne particulates away from the pad
- Pivoting head floats the base for even, full-pad contact and easier control
- Removable, slotted weights with noise-reducing spacers take the machine from 156 lb up to 232 lb
- Tuned isolators and a vibration-reducing handle cut the vibration the operator feels
- 7-gauge stainless steel base, 10-gauge powder-coated steel frame and a 50 ft, 14-gauge lighted cord
EBG-20/CV Pivot
Specifications
| Models | Standard handle | Two-piece handle |
| Cleaning Path | 20 in (51 cm) | |
| Pad Size | 14 x 20 in (36 x 51 cm) | |
| Motor | 1.5 hp, 3,450 RPM | |
| Oscillations | 3,450 per minute | |
| Power | 115 V, 7 A | |
| Power Cord | 50 ft (15 m), 14 gauge, lighted plug | |
| Base Weight Without Weights | 106 lb (48 kg) | |
| Total Assembled Weight | 156 lb (71 kg) | |
| Maximum Weight Capacity | 232 lb (105 kg) | |
| Base / Frame | 7-gauge stainless steel base, 10-gauge powder-coated steel frame | |
| Isolators | 4 | |
| Sound Level | 69 dB | |
| Wheels | 6 x 2 in non-marking, 3/4 in solid steel axle | |
| Handle | Adjustable | Adjustable, two-piece |
| Vacuum | Square Scrub HEPA Dry Vac Kit installed (HEPA rated, CRI Gold certified, powered from the machine) | |
| Dust Containment Kit | Included | |
| Included Pad | 1/4 in white driver pad | |
| Hour Meter | Optional | |
| Certifications | UL / CSA / CE | |
| Model Numbers | EBG-20/CV PIVOT | EBG-20/CV PIVOT with optional two-piece handle |
Technical specs may include optional equipment that is not included with all units.
