| Machine Type | Canister Vacuum |
|---|---|
| Power Source | Corded Electric |
| Application | Dry pickup |

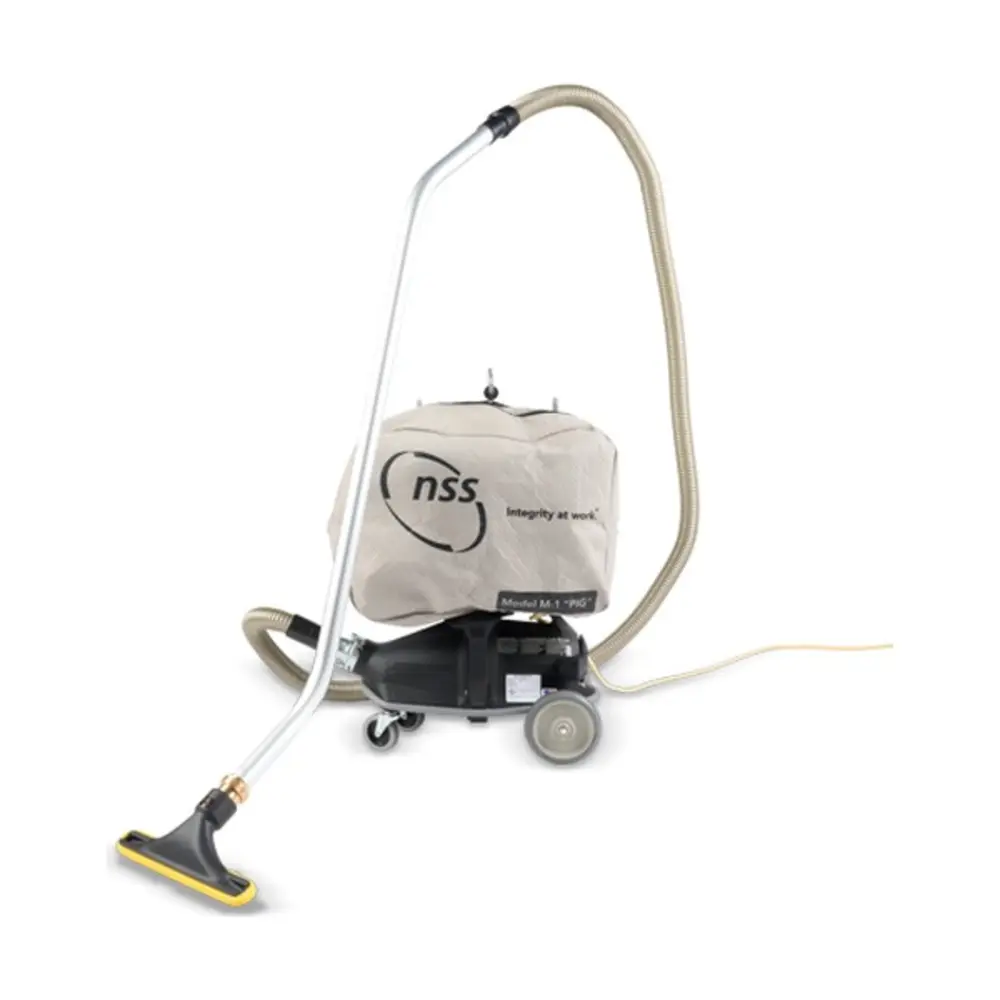

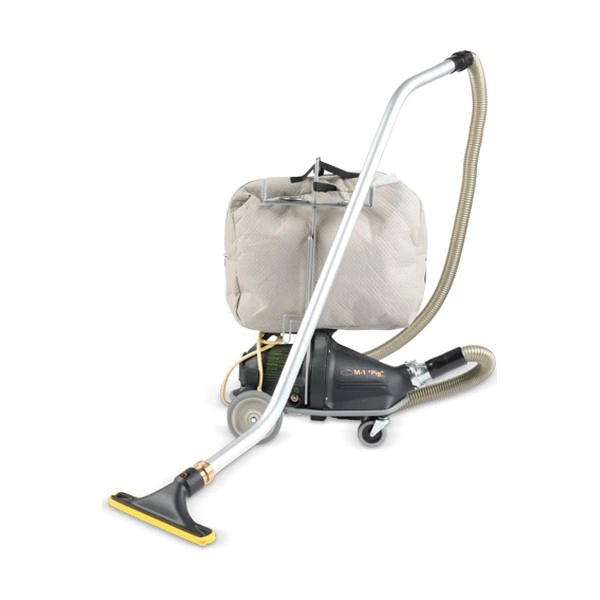

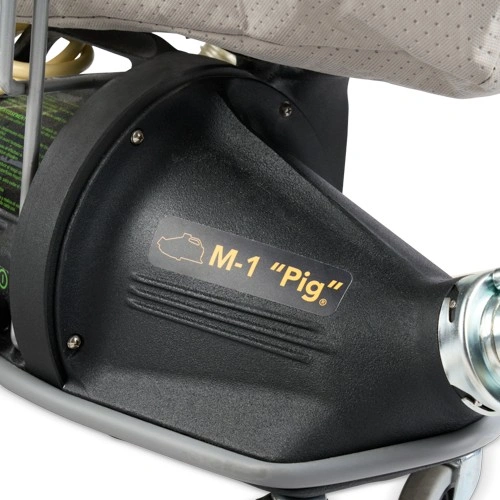

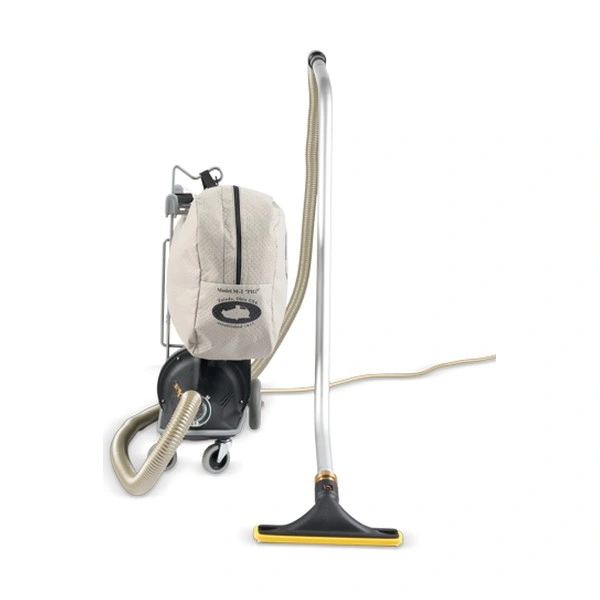

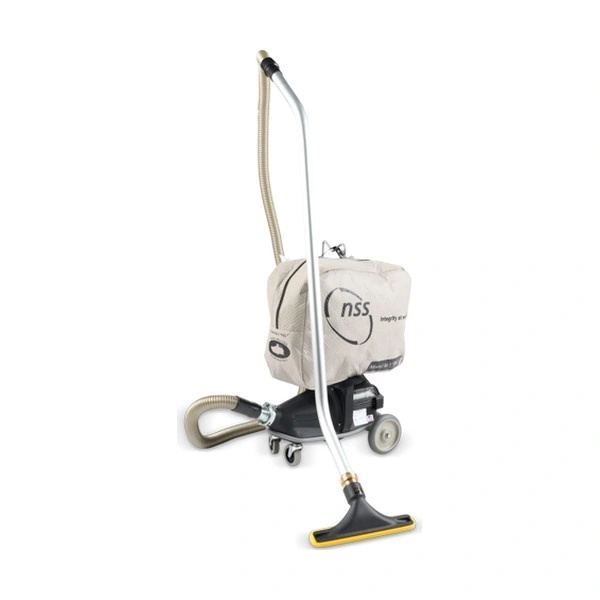

New NSS M-1 Canister Vacuum
Our Take (from the SES Sales Team)
“The M-1 PIG is the vacuum facilities buy when they need to clean everything from the floor to the rafters with one machine. Theaters, churches, gyms, warehouses and schools use it for high ledges, pipes, light fixtures, HVAC vents and banners, as well as floors. The 1.5 hp motor spins the fan at 10,000 rpm for 146 CFM of airflow, and the Automatic Variable Suction design lets air recirculate when the tool seals against a surface, so the tool will not stick to curtains or overhead pipes. A Scrap Trap in the front chamber catches heavy objects before they reach the fan. The housing is cast aluminum, and the whole machine weighs 35 lb. Pull the filter bag, attach the hose, and it becomes a blower. This listing is the machine only, with the universal filter bag and swivel coupling, which makes sense if you already own M-1 tools or want to build your own kit. NSS offers a high dusting kit that reaches up to 20 ft without a ladder, plus floor and carpet tools.”
The floor-to-ceiling canister vacuum, machine only
The NSS Model M-1 PIG is a heavy-duty canister vacuum that cleans hard floors, carpet, furniture, fixtures, curtains, HVAC vents, walls, ceilings and skylights. Its 1.5 hp motor turns a large suction fan at 10,000 rpm for 146 CFM of airflow and 37 in of water lift.
This package is the machine only, with the universal filter bag and a swivel coupling. Hoses, wands and cleaning tools are sold separately, so you can add the kit that fits your work or use M-1 tools you already have.
Condition: New.
What you get
A machine ready for your tools
Automatic Variable Suction
Features
One vacuum for the whole building
- ✓Automatic Variable Suction keeps tools from sticking to overhead surfaces
- ✓Scrap Trap catches heavy objects in the front chamber to protect the fan
- ✓Converts to a blower by replacing the filter bag with the hose
- ✓Cast aluminum construction for long service life with low maintenance
- ✓With the optional high dusting kit, cleans up to 20 ft above the floor without a ladder
Specifications
NSS Model M-1 PIG at a glance
| Models | Model M-1 PIG (machine only) |
|---|---|
| Vacuum motor | 1.5 hp, 10,000 rpm |
| Airflow | 146 CFM |
| Water lift | 37 in |
| Filter capacity | 48 qt (12 gal) |
| Filtration efficiency | 99.4% at 0.3 micron |
| Filter area | 1,200 sq in (0.8 m²) |
| Cleaning path (with optional tools) | Carpet: 12 or 16 in (30 or 41 cm); hard floor: 14 or 18 in (36 or 46 cm) |
| Productivity (with optional tools) | 6,600 to 7,300 sq ft/hr, depending on the tool |
| Input voltage | 120 V |
| Power cord | 35 ft (10.7 m), 16-3 ST |
| Construction | Cast aluminum |
| Dimensions (L x W x H) | 17 x 12 x 32 in (43 x 30 x 81 cm) |
| Machine weight | 35 lb (16 kg) |
| Shipping weight | 42 lb |
| Model Numbers | 1001042 (M-1 with universal bag and swivel coupling, machine only) |
Technical specs may include optional equipment that is not included with all units.
Questions
NSS M-1 PIG: common questions
Does this package include a hose or tools?
No. This is the machine only, with the universal filter bag and swivel coupling. Hoses, wands and tools are sold separately, so you can match them to your work.
How high can it clean?
With the optional NSS high dusting kit of stackable wands, extenders and dusting brushes, the M-1 cleans up to 20 ft above the floor without a ladder.
Why does it not stick to curtains or pipes?
Automatic Variable Suction lets air recirculate inside the front chamber when the tool opening is sealed, so suction eases off instead of grabbing the surface.
Can it be used as a blower?
Yes. Replace the filter bag with the hose and the M-1 becomes a blower.
Not sure the M-1 PIG fits your building?
Tell our team what you need to clean and how high you need to reach, and we will help you put together the right machine and tools.
