| Models | Rider-M v2 26" Cylindrical |
| Cleaning Path | 26 in (660 mm) |
| Scrub Deck | Cylindrical, with debris hopper |
| Scrub Motors | (2) 0.75 hp (559 W) |
| Down Pressure | 120 lb (54 kg) |
| Squeegee Width | 37 in (94 cm) |
| Solution Tank | 45 gal (170 L) |
| Recovery Tank | 46 gal (174 L) |
| Demisting Chamber | 1.25 gal (4 L) |
| Vacuum | 0.8 hp (640 W), 24 V, 3-stage; 70 in (178 cm) water lift, 70 cfm |
| Batteries | 24 V DC; 240 Ah wet standard; AGM and lithium optional |
| Run Time | Up to 4 hr (continuous scrubbing, standard batteries, low down pressure) |
| Charger | Onboard, 27 A |
| Drive | 0.75 hp (559 W) front-wheel drive, all gear, sealed |
| Speed | 0-3.3 mph (0-5.3 km/h) |
| Productivity, Theoretical | 35,750 sq ft/hr (3,321 m²/hr) |
| Step-Up Height | 17 in (43 cm) |
| Dimensions (L x W x H) | 63 x 35.8 x 52.5 in |
| Weight | 1,012 lb (459 kg) with batteries; 762 lb (346 kg) without |
| Solution Flow | 0-0.6 gal/min (0-2.3 L/min) |
| Chassis / Tanks | 3/16 in (4.8 mm) powder-coated steel; 5/16 in (7.9 mm) poly tanks |
| Model Numbers | XLRV2-26C |
Technical specs may include optional equipment that is not included with all units.

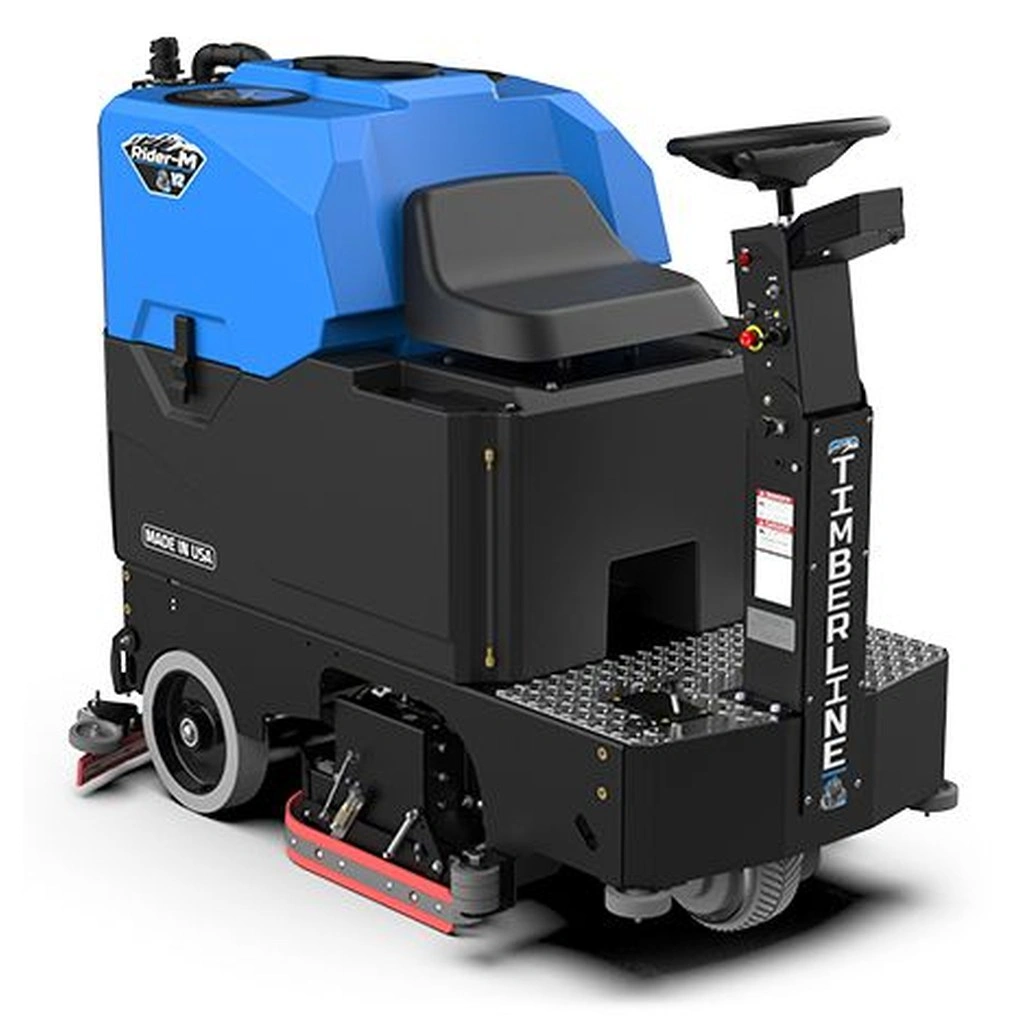

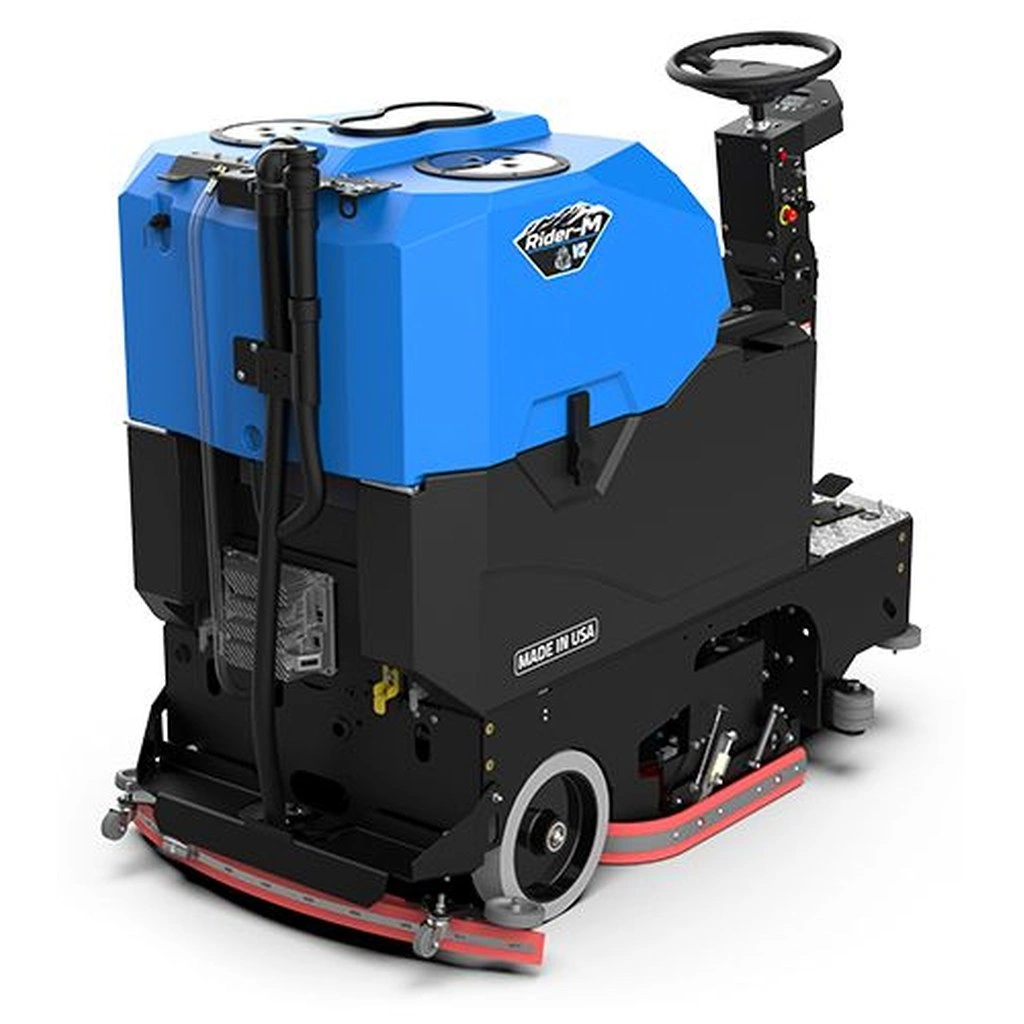

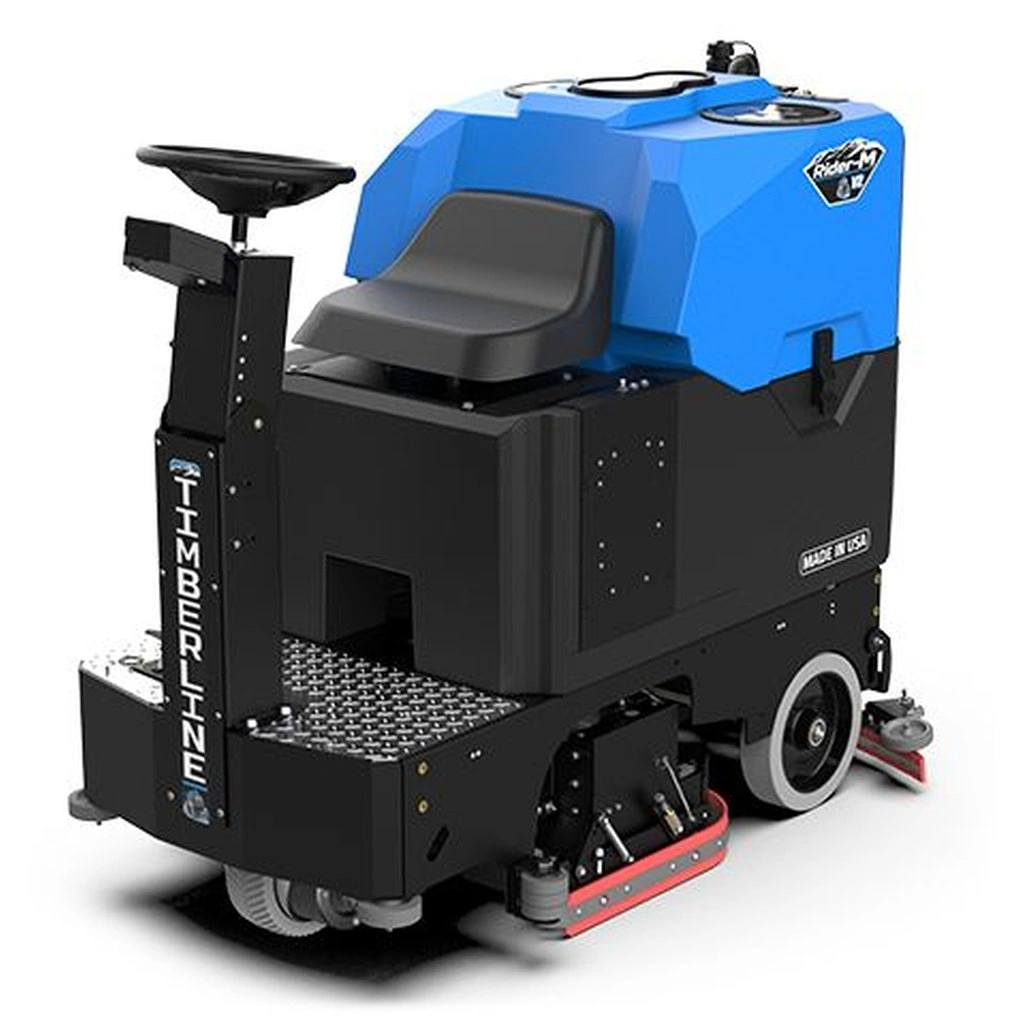

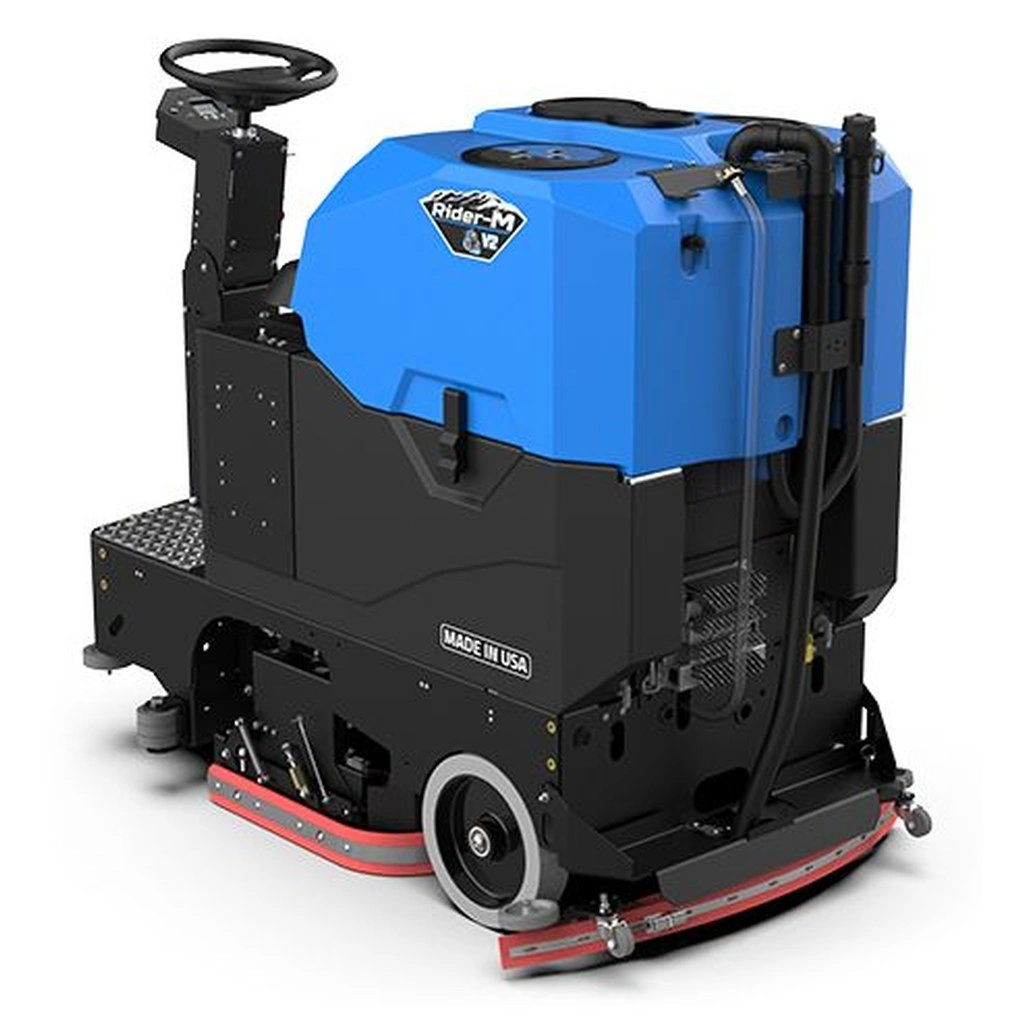

New Timberline Rider-M v2 26" Cylindrical Rider Floor Scrubber
Our Take (from the SES Sales Team)
“The Rider-M v2 26C is Timberline's mid-size ride-on scrubber with a cylindrical deck, sized for schools, hospitals, grocery and retail floors that have outgrown a walk-behind. The cylindrical brush deck scrubs a 26-inch path and sweeps loose debris into a hopper at the same time, so there's no separate dust-mopping pass.
What stands out is the tank size for a 26-inch machine: 45 gallons of solution and 46 of recovery, plus a demisting chamber. Timberline points the cylindrical deck at grouted tile, rubber flooring and light warehouse debris. Controls stay simple, with an easy-scrub button, three water and three pressure settings and an eco mode. The frame is all steel with an aluminum floor plate.
The trade-off is footprint. At 63 x 35.8 inches and 1,012 lb with batteries, it's a machine for open areas, and the standard wet batteries need regular watering. On smooth floors with little debris, the 28-inch disk version covers more ground per hour.”
“Since purchasing our floor scrubber from Southeastern Equipment and Supply Darren has been AWESOME. He is very knowledgeable, caring and intentional about ensuring our questions were answered and our needs met.” — Facilities Manager, Google review
A 26-inch cylindrical rider scrubber that sweeps and scrubs in one pass.
The Timberline Rider-M v2 26C is a battery-powered ride-on scrubber with a 26-inch (660 mm) cylindrical scrub deck. The cylindrical brushes scrub and sweep at the same time, collecting loose debris in a deck hopper, with two 0.75 hp scrub motors and 120 lb (54 kg) of down pressure. A 37-inch breakaway squeegee and a 3-stage, 0.8 hp vacuum with 70 in of water lift recover the water.
It carries 45 gal (170 L) of solution and 46 gal (174 L) of recovery, with a 1.25 gal demisting chamber. The standard 24 V, 240 Ah wet battery pack gives up to 4 hours of run time and charges from the onboard charger; AGM and lithium packs are options. Front-wheel drive moves it at up to 3.3 mph, and Timberline rates theoretical productivity at 35,750 sq ft per hour.
Ready to work out of the box
What's included
- ✓24 V, 240 Ah wet battery pack
- ✓Onboard 27 A charger
- ✓37 in squeegee
- ✓Debris hopper
Features
- ✓Cylindrical deck scrubs and sweeps in one pass
- ✓45 gal solution and 46 gal recovery tanks
- ✓Up to 4 hours of run time on standard wet batteries
- ✓Easy-scrub button, three water and three pressure settings, eco mode
- ✓All-steel frame with breakaway squeegee and flip-up bumper
Timberline Rider-M v2 26" Cylindrical Rider Floor Scrubber
Specifications
| Models | Rider-M v2 26" Cylindrical |
| Cleaning Path | 26 in (660 mm) |
| Down Pressure | 120 lb (54 kg) |
| Squeegee Width | 37 in (94 cm) |
| Solution Tank | 45 gal (170 L) |
| Recovery Tank | 46 gal (174 L) |
| Run Time | Up to 4 hr (continuous scrubbing, standard batteries, low down pressure) |
| Productivity, Theoretical | 35,750 sq ft/hr (3,321 m²/hr) |
| Weight | 1,012 lb (459 kg) with batteries; 762 lb (346 kg) without |
| Solution Flow | 0-0.6 gal/min (0-2.3 L/min) |
| Chassis / Tanks | 3/16 in (4.8 mm) powder-coated steel; 5/16 in (7.9 mm) poly tanks |
| Model Numbers | XLRV2-26C |
Technical specs may include optional equipment that is not included with all units.
