| Models | Sweeper-L |
| Sweeping Path | 46 in (117 cm) |
| Sweeping System | Direct throw |
| Main Broom (Dia. x Length) | 10 x 32 in (25 x 81 cm) |
| Side Brooms | (2) 17 in (43 cm), retractable |
| Broom Motor | 1.0 hp (746 W), 435 rpm |
| Hopper Capacity | 4.2 cu ft (116 L) |
| Filter | Polymer baghouse, 4,431 sq in |
| Filter Rating | 25 micron standard, 1 micron optional |
| Vacuum Airflow | 280 cfm |
| System Voltage / Standard Batteries | 24 V DC, 240 Ah |
| Optional Batteries | Up to 420 Ah wet, 390 Ah AGM or 270 Ah lithium |
| Run Time | Up to 5 hr (continuous sweeping) |
| Drive Motor | 1.0 hp (745 W), all gear, sealed |
| Speed | 0-3.5 mph (0-5.6 km/h) |
| Productivity, Theoretical | Up to 71,000 sq ft/hr (6,581 m²/hr) |
| Productivity, Practical | Up to 53,130 sq ft/hr (4,936 m²/hr) |
| Sound Level | 65 dB (ISO 11201) |
| Dimensions (L x W x H) | 64 x 37 x 50 in (163 x 94 x 140 cm) |
| Weight with Standard Batteries | 1,115-1,165 lb (506-528 kg) |
| Chassis | 3/16 in (5 mm) powder-coated steel |
| Model Numbers | TSWL |
Technical specs may include optional equipment that is not included with all units.
New Timberline Sweeper-L 46" Rider Floor Sweeper
Our Take (from the SES Sales Team)
“The Sweeper-L is Timberline's ride-on sweeper for warehouses, plants and other large hard floors where loose debris and dust are the problem. It sweeps a 46-inch path with a direct-throw main broom and two 17-inch side brooms, and drives at up to 3.5 mph.
What stands out is how conventional it is, in a good way. Timberline calls it tried-and-true technology: manual broom lift levers, off-the-shelf gauges and toggles, a roll-out hopper and a heavy steel frame and door. The polymer baghouse filter is large at 4,431 sq in, rated 25 micron, with a 1-micron option for finer dust. The standard 24 V, 240 Ah battery pack gives up to 5 hours of continuous sweeping, with larger wet, AGM and lithium packs available.
The trade-off: it's a sweeper only. It picks up debris and dust but won't scrub, so floors that also need wet cleaning need a scrubber too. The hopper holds 4.2 cu ft, so heavy debris loads mean more trips to empty it.”
“This was our first ride on powered sweeper for our company and we were recommended a ROS1300 sweeper. Great recommendation and the unit has worked up to expectations. There is no comparison in the performance of cleaning with a powered sweeper like this and a push broom/dust mop.” — Ryan J., Google review

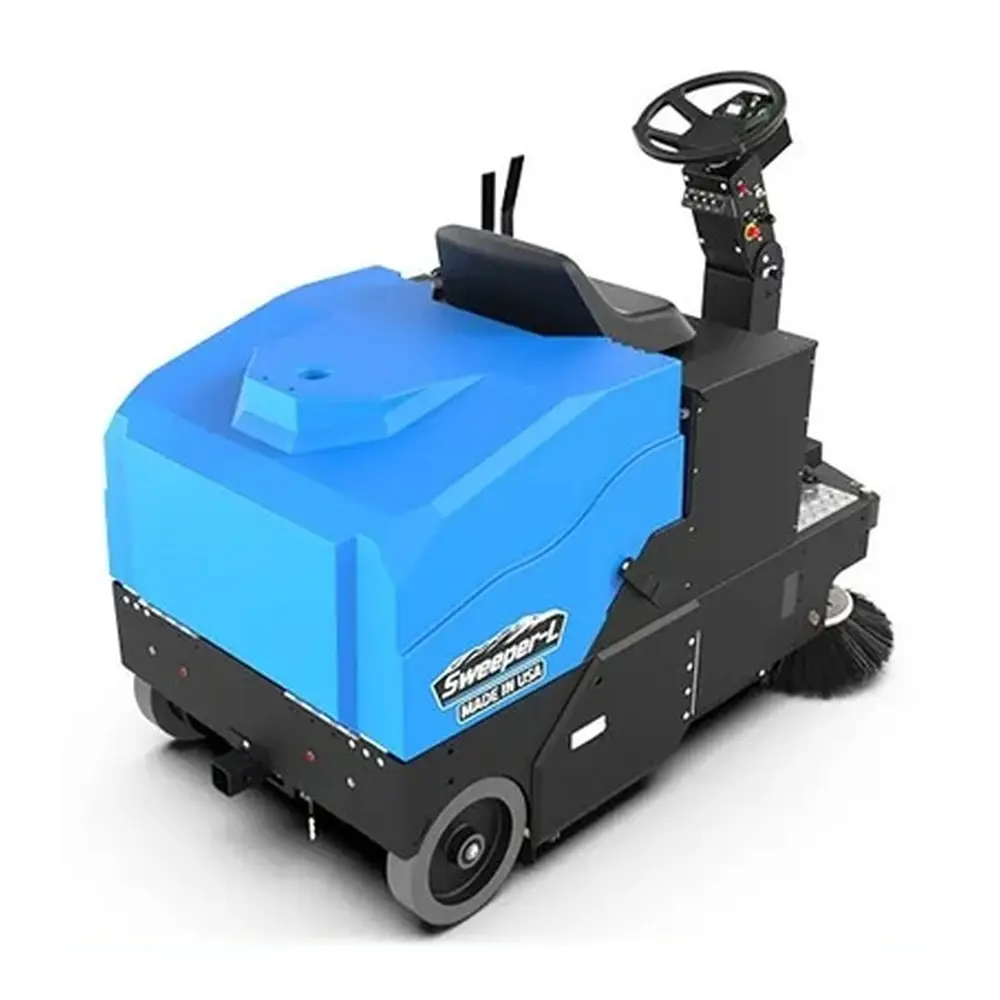

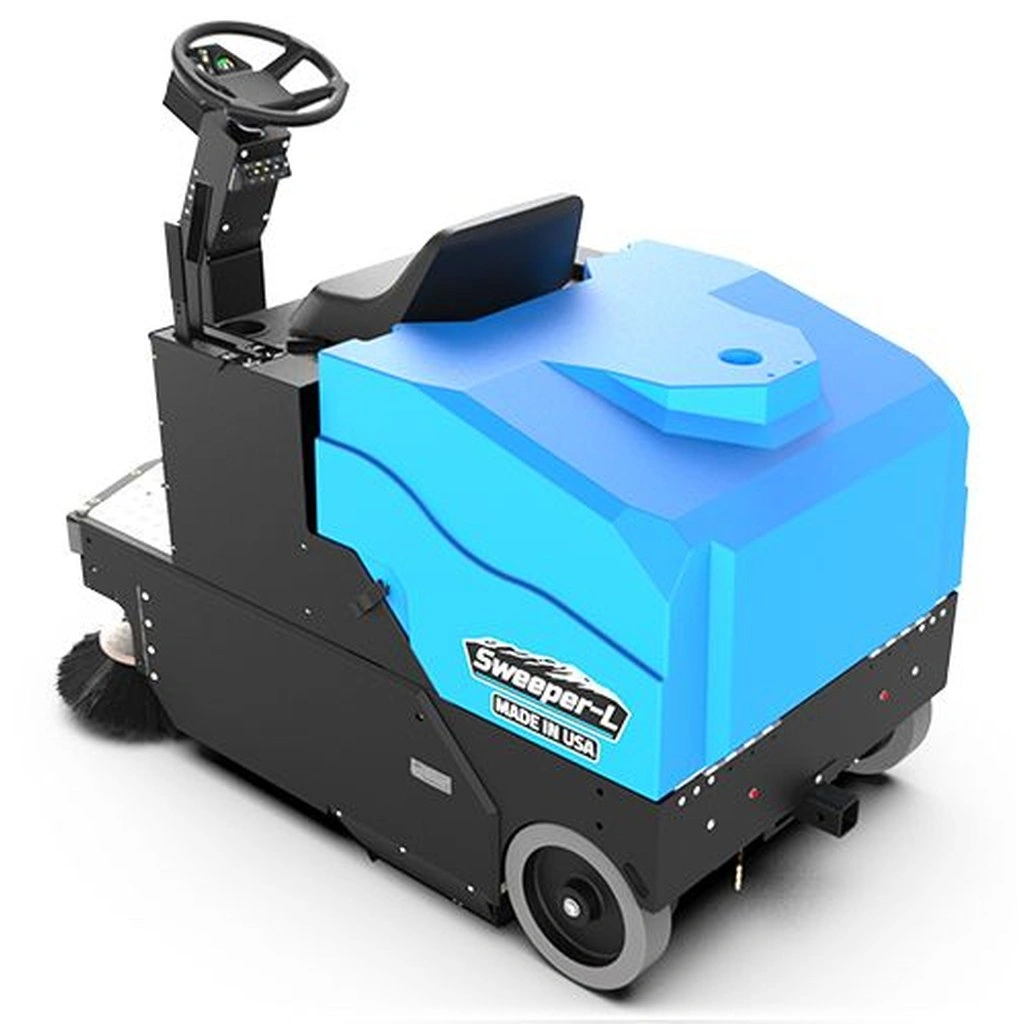

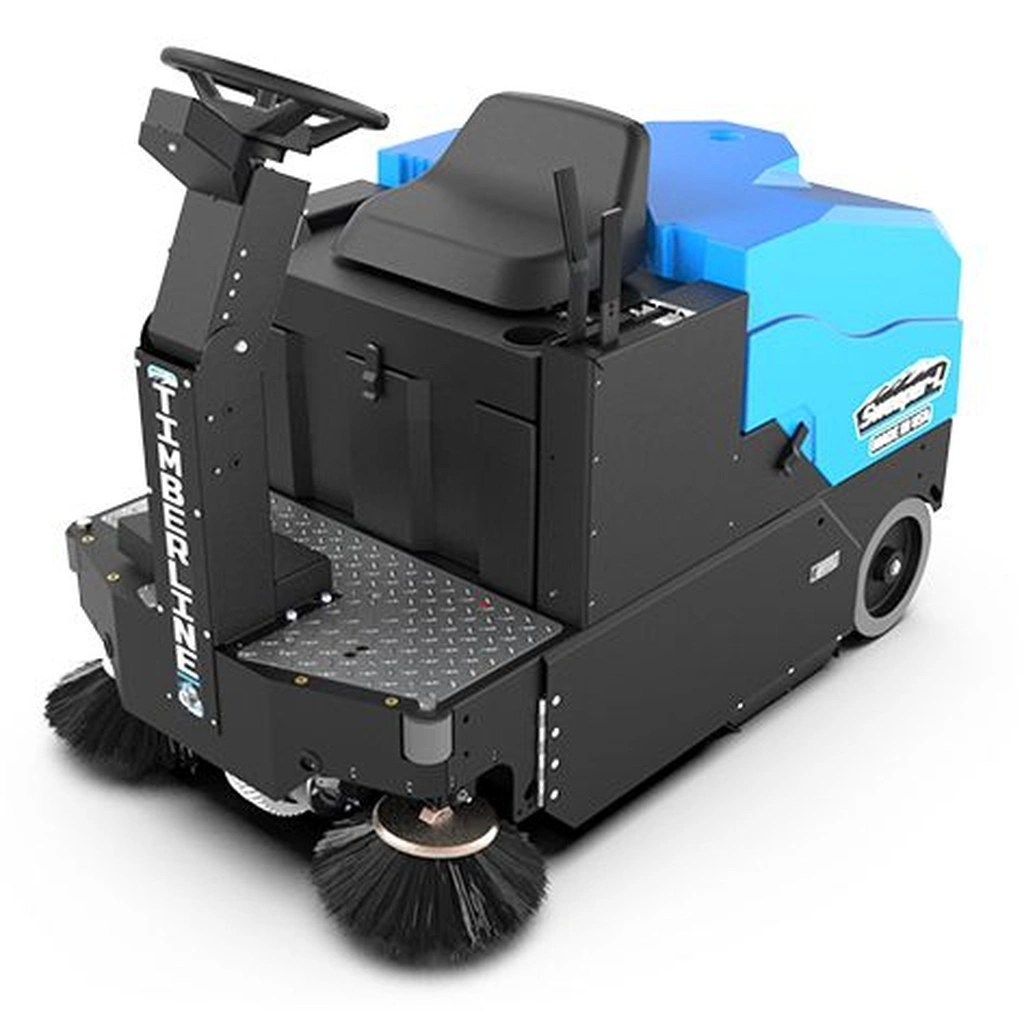

A 46-inch battery rider sweeper with a direct-throw broom and baghouse filter.
The Timberline Sweeper-L is a battery-powered ride-on sweeper with a 46-inch (117 cm) sweeping path. A 10 x 32 in direct-throw main broom, driven by a 1.0 hp motor at 435 rpm, works with two retractable 17-inch side brooms to move debris into a 4.2 cu ft (116 L) roll-out hopper. A polymer baghouse filter with 280 cfm of airflow controls dust while sweeping.
The standard 24 V, 240 Ah battery system provides up to 5 hours of continuous sweeping, with optional upgrades to 420 Ah wet, 390 Ah AGM or 270 Ah lithium. A 1.0 hp sealed gear drive moves the machine at up to 3.5 mph. Timberline rates it at 65 dB and up to 53,130 sq ft per hour of practical productivity. Options include broom types, lights and battery upgrades.
Includes:
- Direct-throw main broom, 10 x 32 in
- Two 17 in side brooms
- Polymer baghouse filter, 25 micron
- 24 V, 240 Ah standard battery pack
- Automatic battery charger
Features:
- 46 in sweeping path with direct-throw main broom
- Two retractable 17 in side brooms
- Polymer baghouse filter, 25 micron standard, 1 micron optional
- Up to 5 hours of continuous sweeping on standard batteries
- Roll-out hopper and heavy-duty steel frame
