| Models | ISO Orbitz 20" (ORBITZ 20) 220V G-Plug |
| Cleaning Width | 20 in (50.8 cm) |
| Pad Size | 20 x 14 in (50.8 x 35.6 cm) |
| Scrub Head | Orbital, 7-gauge stainless steel (4.8 mm) |
| Motor | 1.5 hp (1,119 W) |
| Motor Speed | 3,450 rpm at 60 Hz (2,850 rpm at 50 Hz) |
| Voltage | 220 V, 50-60 Hz, G-plug |
| Power Cord | 50 ft (15.2 m), 14 gauge |
| Weight | 144 lb (65.3 kg) assembled |
| Max Weight with Optional Weights | 232 lb (105.2 kg) |
| Sound Level | 69 dBA |
| Wheels | 6 x 2 in, non-marking |
| Handlebar | 37.25 x 1.5 in dia. (94.6 x 3.8 cm), padded grips |
| Deck Isolators | 4 lower (1.5 x 2.25 in), 10 upper (1.0 x 0.5 in) |
| Chassis | 10-gauge steel (2.6 mm) |
| Dust Skirt | Standard |
| Model Numbers | TF20R-G |
Technical specs may include optional equipment that is not included with all units.
New Timberline ISO Orbitz 20" Orbital Floor Buffer - 220V G-Plug
Our Take (from the SES Sales Team)
“This is the 220 V, 50-60 Hz version of Timberline's ISO Orbitz 20, fitted with a G-plug. It's a full-size orbital floor machine for stripping, scrubbing and floor prep without chemical stripper: instead of spinning a round disk, its 1.5 hp motor oscillates a rectangular 20 x 14 in pad on gym wood, VCT, concrete, stone and tile.
What stands out is how adaptable it is. The machine weighs 144 lb as built and takes add-on weights up to 232 lb total, so down pressure can be matched to the pad and the job, from sand screens and black strip pads to microfiber. Isolators above and below the deck cut vibration before it reaches the operator's hands, and a dust skirt comes standard to keep slurry and dust contained.
The trade-offs are size and power supply. With a 50 ft cord and at least 144 lb of machine, it belongs on open floors, and it needs a 220 V outlet that takes a G-plug. For 120 V sites, choose the standard 120 V model; for stairwells and restrooms, Timberline's 10-inch NANO Orbitz is the better fit.”

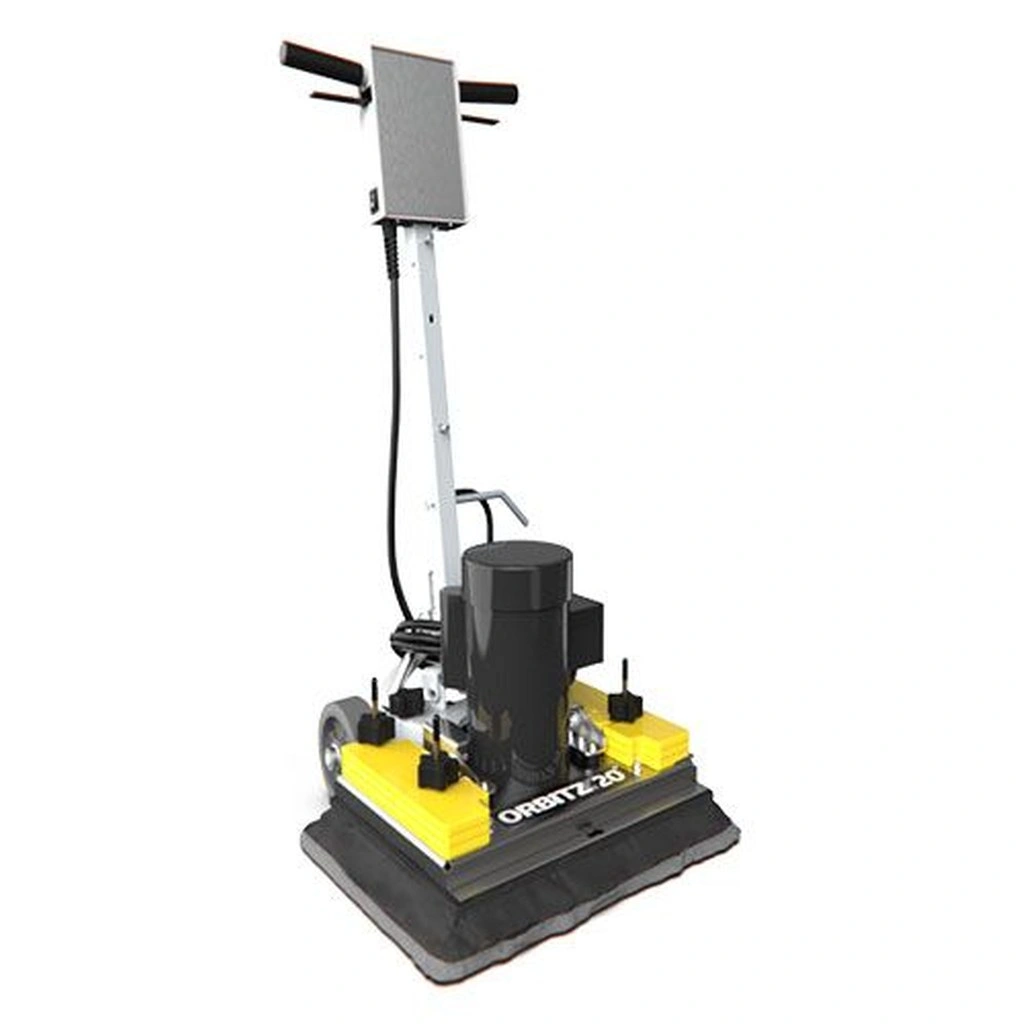

The ISO Orbitz 20 orbital floor machine, wired for 220 V with a G-plug.
The Timberline ISO Orbitz 20 is a corded orbital floor machine with a 20-inch (50.8 cm) cleaning width. A 1.5 hp (1,119 W) motor drives a 20 x 14 in (50.8 x 35.6 cm) pad on a 7-gauge stainless steel scrub head. Timberline says the orbital head strips floors without chemical stripper while cutting water use by up to 70%, and that removing stripper from the process reduces slip-and-fall potential.
This version runs on 220 V, 50-60 Hz power and comes with a G-plug; motor speed is 3,450 rpm at 60 Hz and 2,850 rpm at 50 Hz. The machine weighs 144 lb (65.3 kg) assembled and accepts optional weights up to 232 lb (105.2 kg) total. Deck isolators reduce handle vibration, and it has a 50 ft cord, 6 x 2 in non-marking wheels, a standard dust skirt and a 69 dBA rating.
Includes:
- Dust skirt
- 50 ft, 14-gauge power cord with G-plug
Not included: Optional add-on weights, sold separately
Features:
- Orbital scrub head for chemical-free stripping and floor prep
- 1.5 hp motor driving a 20 x 14 in pad
- Optional weights raise machine weight to 232 lb
- Upper and lower deck isolators reduce handle vibration
- Wired for 220 V, 50-60 Hz with G-plug
