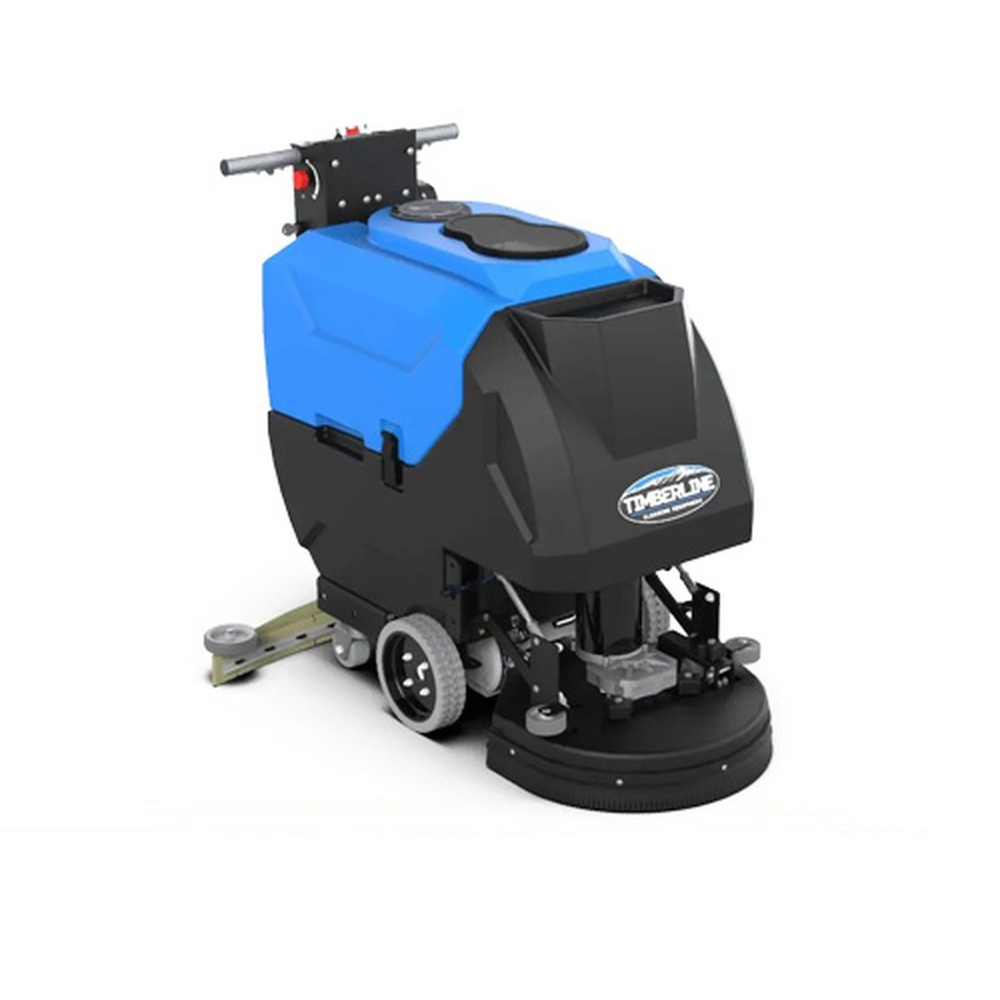

New Timberline S-Series Walk Behind Floor Scrubber
Our Take (from the SES Sales Team)
"If you want an affordable cleaning machine that you can rely on, we recommend the Timberline S series of floor scrubbers. Clean in hard-to-reach areas with this small-footprint walk behind machine. Applications like convenience stores, auto and truck dealers and fitness centers love machines that are easy to maneuver around valuable merchandise, vehicles and equipment. And you can tailor the scrubber to your exact needs with your choice of a disk, grout, or orbital scrub decks. A wide variety of battery/charger options and brush options further enhance the ability to clean more productively. All Timberline products are proudly assembled in Racine, Wisconsin by hand with over 95% of American sourced suppliers. So give us a call today to get your Timberline S series scrubber configured and ordered."
A compact, rebuildable walk-behind scrubber with three deck styles
The Timberline S-Series covers floors under about 25,000 square feet in convenience stores, auto dealerships, fitness centers, kitchens, hospital rooms, senior living and school locker rooms. It handles concrete, epoxy, grout and VCT.
Choose your configuration
Choose your deck
Pad assist or traction?
Features:
- Tool-free brush, pad and squeegee changes; squeegee blades flip or rotate without tools
- Deck, wheels, squeegee linkage and tanks through-bolt to a powder-coated steel frame
- Five-barrier vacuum motor protection with a vacuum discharge funnel that alerts the operator
- Choose the Membrane controller (color display, ECO mode) or the Legacy controller with standard breakers and switches
- Non-proprietary parts any battery-equipment technician can service

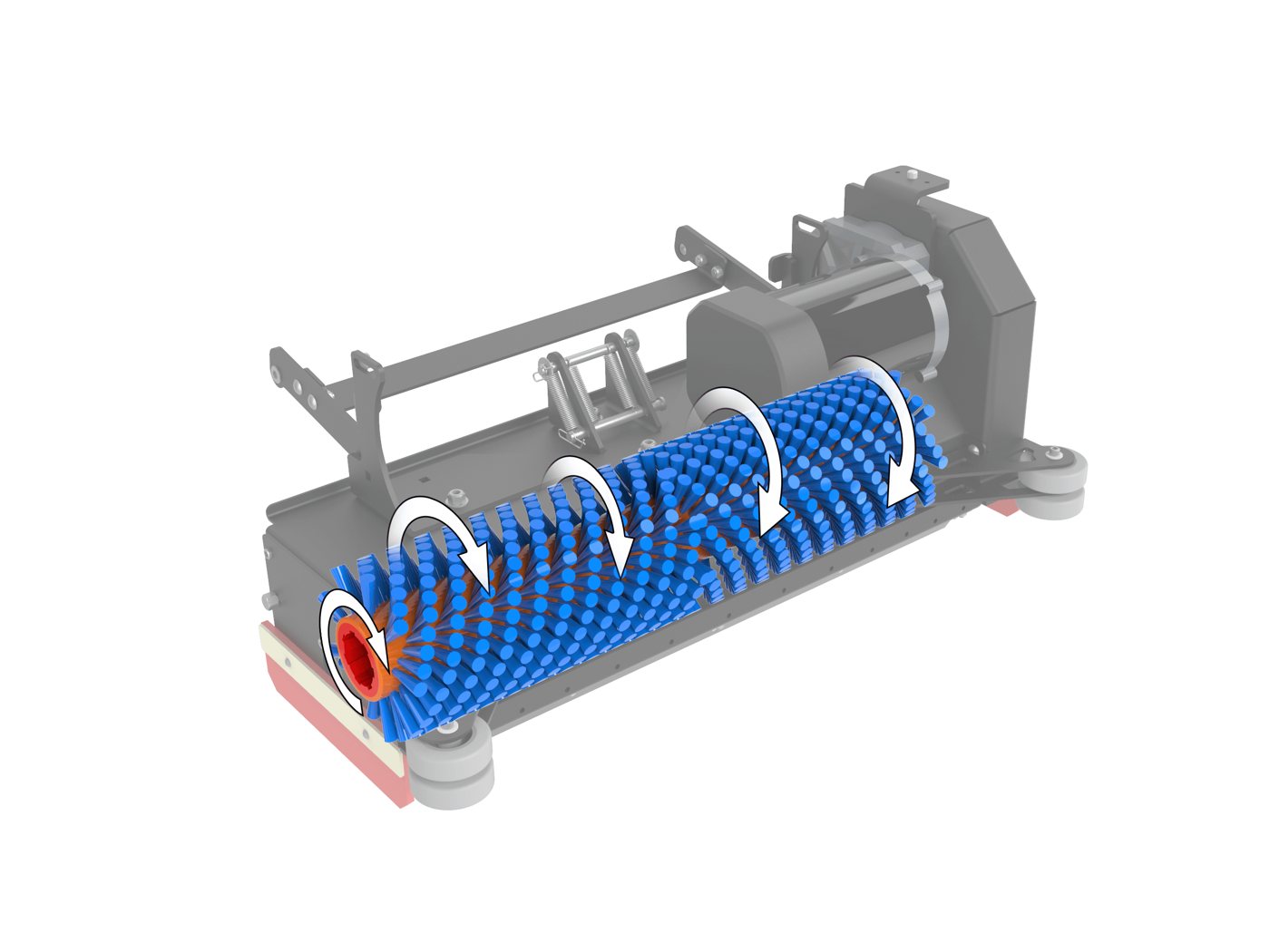

Grout deck: a single roller brush works into grout lines.
Options
- Wet, AGM or lithium batteries
- Onboard charger
- Nanorade, urethane or Linatex® squeegee blades
- 60 in retractable fill hose that attaches to a standard faucet
- ZerO3 on-demand aqueous ozone for chemical-free cleaning (disk and orbital, Membrane controller)
S-Series
Specifications

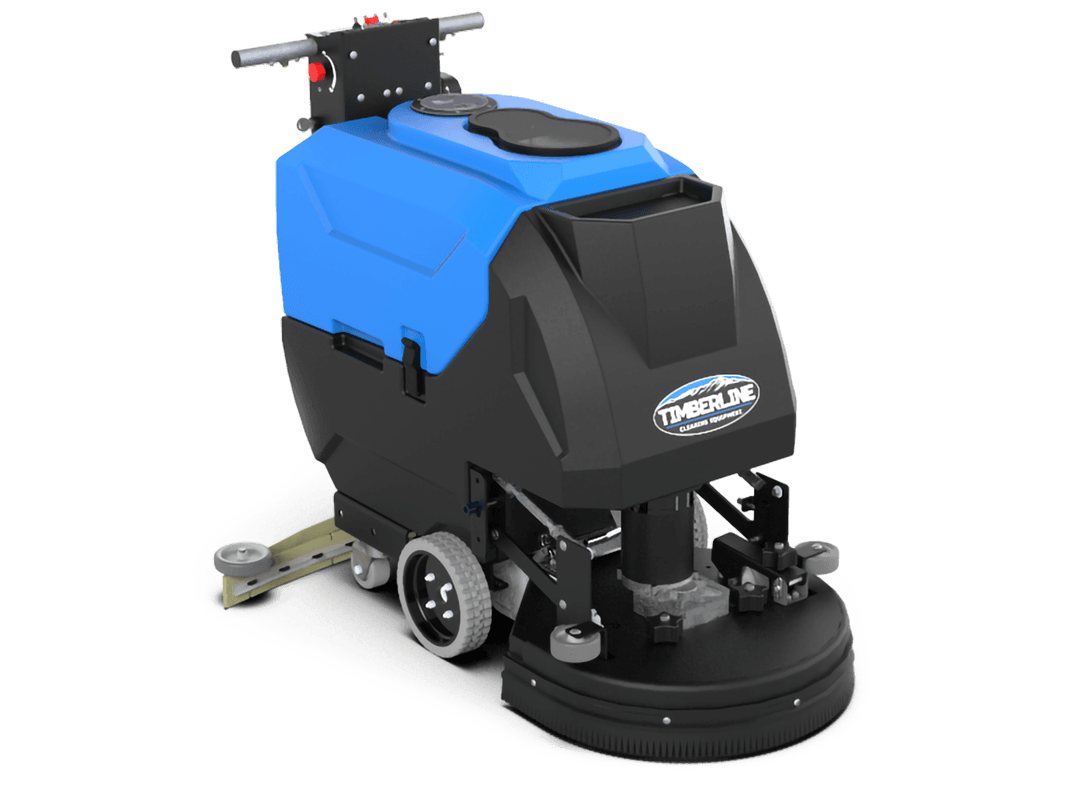

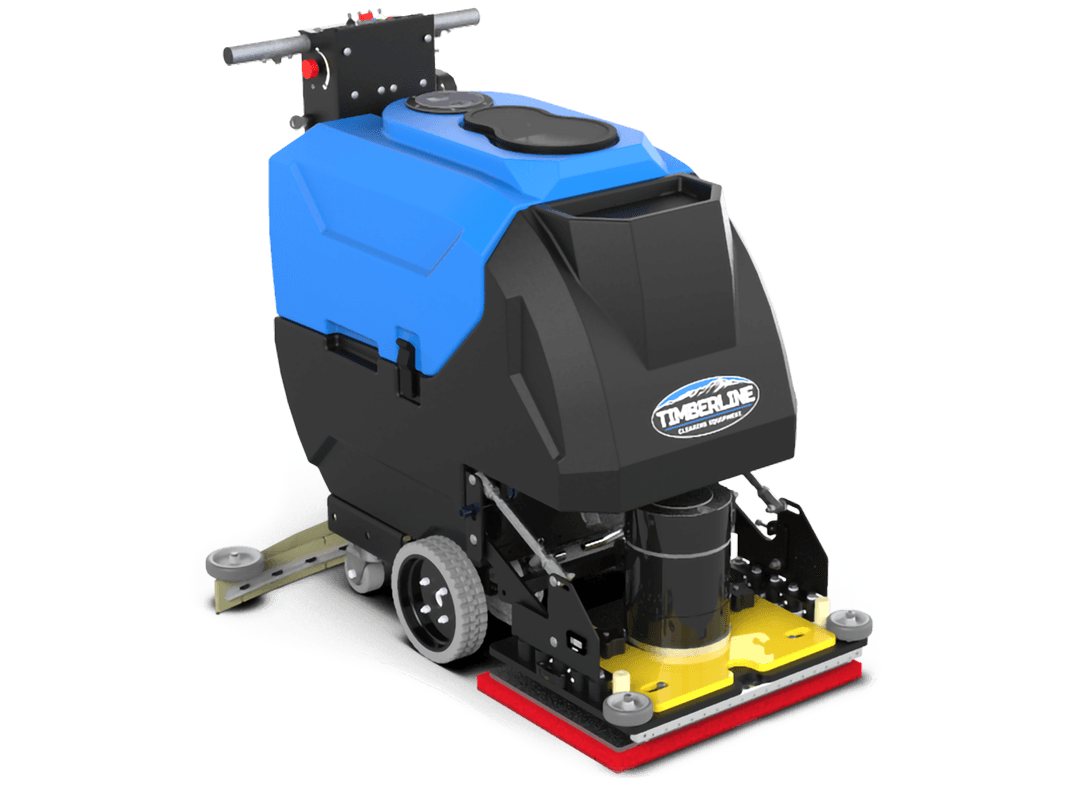

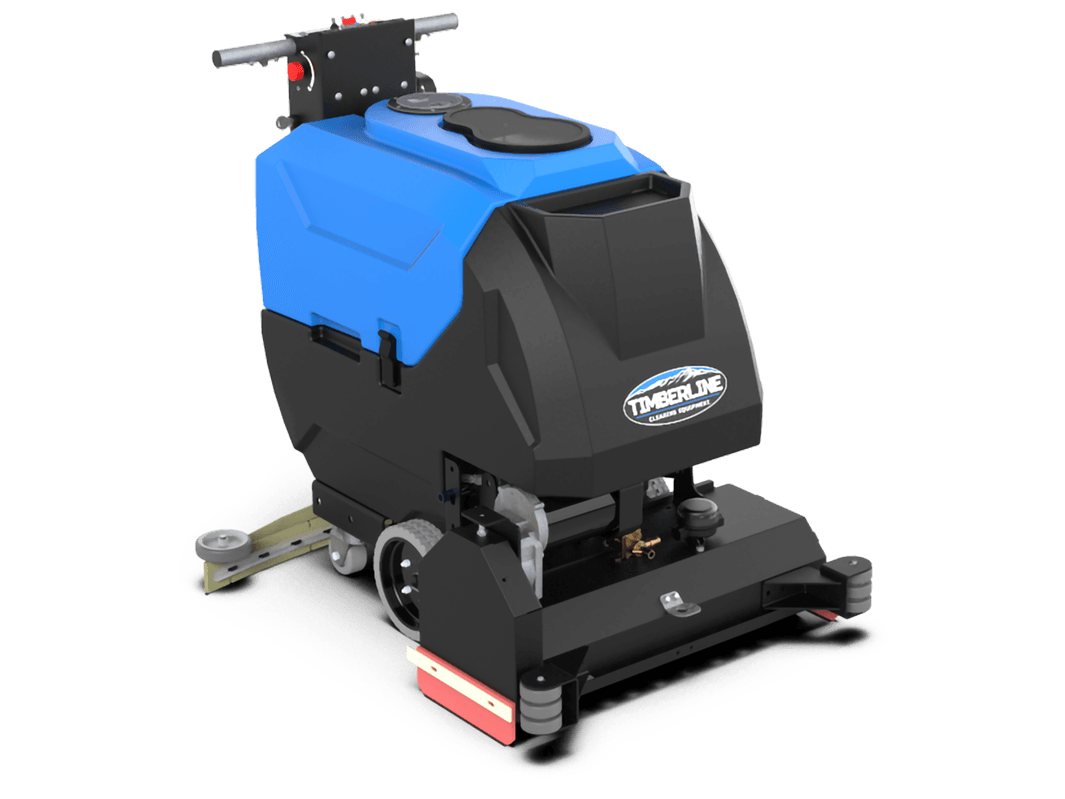

| Models | S17 Disk | S20 Disk | S20 Orbital | S24 Orbital | S24 Grout |
| Cleaning Path | 17 in (430 mm) | 20 in (510 mm) | 20 in (510 mm) | 24 in (610 mm) | 24 in (610 mm) |
| Scrub Motor | 0.75 hp (559 W) | 0.75 hp (559 W) | 1.5 hp (1,100 W) | 1.5 hp (1,100 W) | 0.75 hp (559 W) |
| Brush Speed | 180 RPM | 180 RPM | 2,500 RPM | 2,500 RPM | 270 RPM |
| Down Pressure | 60 lb | 60 lb | 85 lb | 85 lb | 75 lb |
| Squeegee | 31 in (79 cm) | 33 in (84 cm) | 33 in (84 cm) | 37 in (94 cm) | 37 in (94 cm) |
| Solution / Recovery Tank | 12 gal (45 L) / 15 gal (57 L), 1 gal demisting chamber | ||||
| System Voltage | 24 VDC | ||||
| Traction Drive | 0.5 hp (373 W) all-gear sealed (traction models) | ||||
| Solution Flow | 0-0.5 GPM (0-1.9 LPM) | ||||
| Vacuum Motor | 0.8 hp, 3-stage, 640 W; 50 in (127 cm) water lift, 45 cfm | ||||
| Charger | 120 VAC input, 24 VDC / 8 A output; onboard optional | ||||
| Sound Level | 71 dBA | ||||
| Dimensions (L x W x H) | 49.5 x 22.5 x 38 in (125 x 64 x 96 cm), largest deck, squeegee removed | ||||
| Model Numbers | TS17PA, TS17D | TS20D | TS20R | TS24R | TS24C |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Shipping Designation | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Timberline S17 Disk Traction Walk-Behind Scrubber
ENRPTS17D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 6,924.00 | Equipment | Timberline | 6,924.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$6,924.00/EA
|
||
|
New Timberline S24 Orbital, Traction Walk-Behind Scrubber
ENRPTS24R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 8,163.00 | Equipment | Timberline | 8,163.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$8,163.00/EA
|
||
|
New Timberline S20 Disk Traction Walk-Behind Scrubber
ENRPTS20D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 7,146.00 | Equipment | Timberline | 7,146.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$7,146.00/EA
|
||
|
New Timberline S17 Disk Pad Assist Walk Behind Floor Scrubber
ENRPTS17PA
|
Usually Ships in 3 to 5 Weeks | New | Walk-Behind Scrubbers | 5,488.00 | Equipment | Timberline | 5,488.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$5,488.00/EA
|
||
|
New Timberline S20 Orbital Traction Walk-Behind Scrubber
ENRPTS20R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 7,190.00 | Equipment | Timberline | 7,190.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$7,190.00/EA
|
||
|
New Timberline S24 Single Grout Brush Traction Walk-Behind Scrubber
ENRPTS24C
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 7,921.00 | Equipment | Timberline | 7,921.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$7,921.00/EA
|
