New Timberline S-Series Rider Floor Scrubber
Our Take (from the SES Sales Team)
"This small rider floor scrubber is affordable, dependable, and built in the USA. Built in Wisconsin by the family-owned RPS Corporation, you cannot go wrong with this machine. They come in 20" or 26" in Disk and 20", 24" or 28" with orbital technology. Built on a solid steel frame with solid-state switching this scrubber is built to last and perform. RPS buys most of its components from the US and has one of the fastest parts departments in the business. Large enough to be productive, but small enough to maneuver in and out of small spaces. Let's get them to build your machine now."
A compact ride-on scrubber that fits through 31-inch doorways
The Timberline Rider-S is a battery-powered ride-on floor scrubber built by RPS Corporation in Racine, Wisconsin, for healthcare facilities, grocery stores, retail, hotels and schools. It fits through 31 in entryways, has an 11 in step-up height and carries a 22-gallon solution tank and a 23-gallon recovery tank. On standard 240 Ah wet batteries it runs up to 4 hours and covers up to 154,000 sq ft per charge. Choose a 20 or 26 in disk deck for everyday scrubbing on a variety of hard floors, or a 24 or 28 in orbital deck for chemical-free floor finish removal with no swirl marks.
Choose your configuration
Pick the Rider-S deck
| 20 in Disk | 26 in Disk | 24 in Orbital | 28 in Orbital | |
|---|---|---|---|---|
| Deck | Single disk | Dual disk | Rectangular orbital pad | Rectangular orbital pad |
| Down pressure | 80 lb | 100 lb | 105 lb | 110 lb |
| Theoretical productivity | 27,600 sq ft/hr | 35,750 sq ft/hr | 31,135 sq ft/hr | 38,500 sq ft/hr |
| Best for | Daily scrubbing in smaller open areas | Daily scrubbing of larger open areas | Chemical-free stripping and VCT prep | Largest areas; chemical-free stripping and VCT prep |
| Packages here | SR20D | SR26D | SR24R | SR28R |
Reading the model numbers: In these Timberline part numbers, SR is the Rider-S, the number is the cleaning path in inches and the letter is the deck: D for disk or R for orbital. All four share the same chassis, tanks, onboard charger and 240 Ah wet standard batteries.
Features:
- Fits through 31 in entryways, with an 11 in step-up height
- Orbital decks remove floor finish without chemicals, cut water use by up to 70% and leave no swirl marks
- Membrane and LCD controls with an easy scrub button, Eco mode, three scrub pressure settings, three water settings and three hour meters
- Recovery tank tips back for battery access; breakaway squeegee, aluminum floor plate and all-steel frame
- Options include an auxiliary tank with a 100 psi spray gun, lights, and wet, AGM or lithium batteries

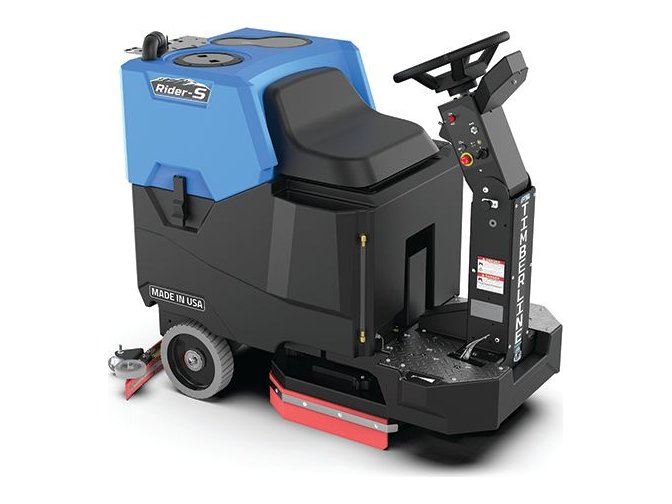

Rider-S 20 Disk

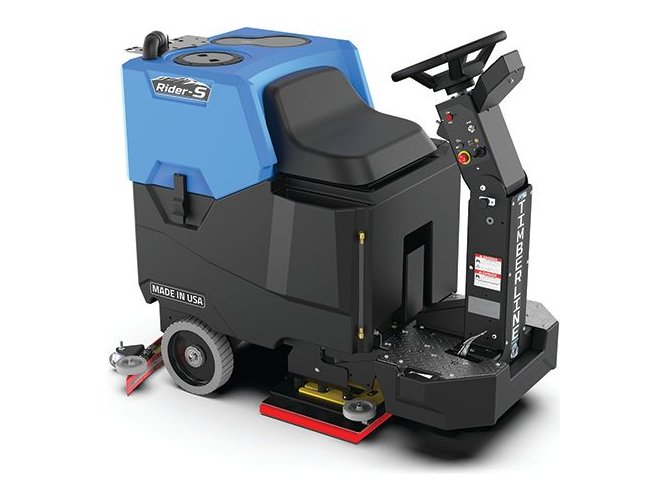

Rider-S Orbital

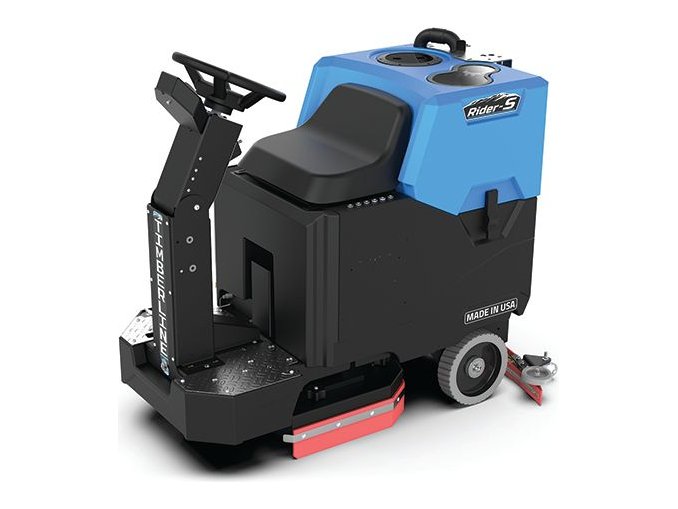

Rider-S 20 Disk, rear view

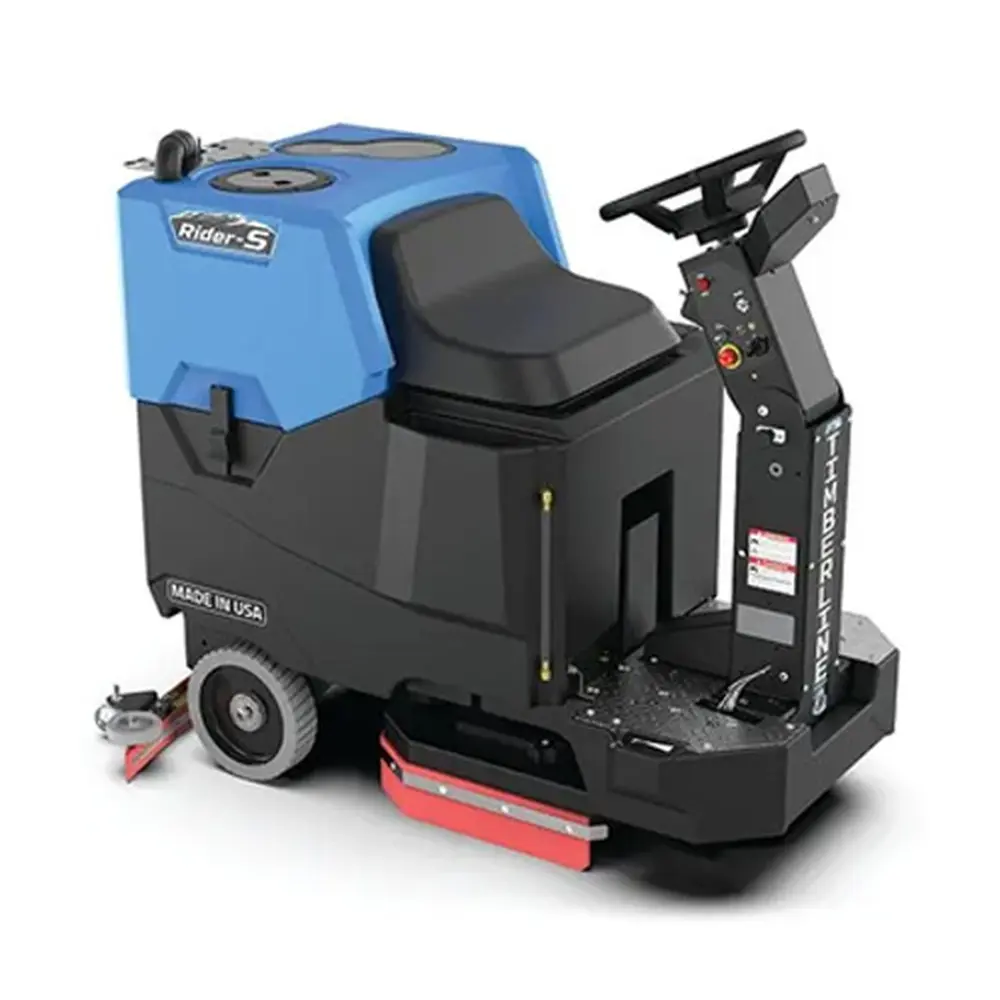

Rider-S
Specifications
| Models | 20 in Disk | 26 in Disk | 24 in Orbital | 28 in Orbital |
| Cleaning Path | 20 in (51 cm) | 26 in (66 cm) | 24 in (61 cm) | 28 in (71 cm) |
| Down Pressure | 80 lb (36 kg) | 100 lb (45 kg) | 105 lb (48 kg) | 110 lb (50 kg) |
| Squeegee Width | 28 in (71 cm) | 31 in (79 cm) | 31 in (79 cm) | 33 in (84 cm) |
| Theoretical Productivity | 27,600 sq ft/hr (2,564 m²/hr) | 35,750 sq ft/hr (3,321 m²/hr) | 31,135 sq ft/hr (2,893 m²/hr) | 38,500 sq ft/hr (3,577 m²/hr) |
| Practical Productivity | 12,000 sq ft/hr (1,115 m²/hr) | 16,000 sq ft/hr (1,486 m²/hr) | 15,400 sq ft/hr (1,431 m²/hr) | 18,000 sq ft/hr (1,672 m²/hr) |
| Solution / Recovery Tank | 22 gal (83 L) / 23 gal (87 L) | |||
| Solution Flow | 0–0.6 gpm (0–2.3 L/min), stainless inline filter | |||
| Vacuum Motor | 0.8 hp (640 W), 3-stage; 70 in (178 cm) water lift, 70 CFM | |||
| Batteries | 24 V system, 240 Ah wet standard | |||
| Run Time | Up to 4 hours (standard batteries, low down pressure, options off) | |||
| Charger | Onboard | |||
| Traction Drive | 0.75 hp (559 W), all-gear, sealed | |||
| Sound Level | 73 dBA | |||
| Step-Up Height | 11 in (28 cm) | |||
| Dimensions (L x W x H) | 54 x 27 x 40 in (137 x 69 x 102 cm) | |||
| Construction | 3/16 in (4.8 mm) powder-coated steel frame; 5/16 in (7.9 mm) poly tanks | |||
| Model Numbers | SR20D | SR26D | SR24R | SR28R |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Timberline Rider S 24in Orbital Rider Scrubber
ENRPSR24R
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 12,802.00 | Equipment | Timberline | 12,802.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$12,802.00/EA
|
||||||
|
New Timberline S-Series Rider Floor Scrubber
ENRPSR20D
|
Usually Ships in 3 to 5 Weeks | New | Rider Scrubbers | 11,731.00 | Equipment | Timberline | 11,731.00 | Battery | Rider | 23 | Qualifies for Free/Flat Rate Shipping | 22 | Full Factory Warranty |
$11,731.00/EA
|
||
|
New Timberline Rider S 26in Disk Rider Scrubber
ENRPSR26D
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 12,079.00 | Equipment | Timberline | 12,079.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$12,079.00/EA
|
||||||
|
New Timberline Rider S 28in Orbital Rider Scrubber
ENRPSR28R
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 13,016.00 | Equipment | Timberline | 13,016.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$13,016.00/EA
|
