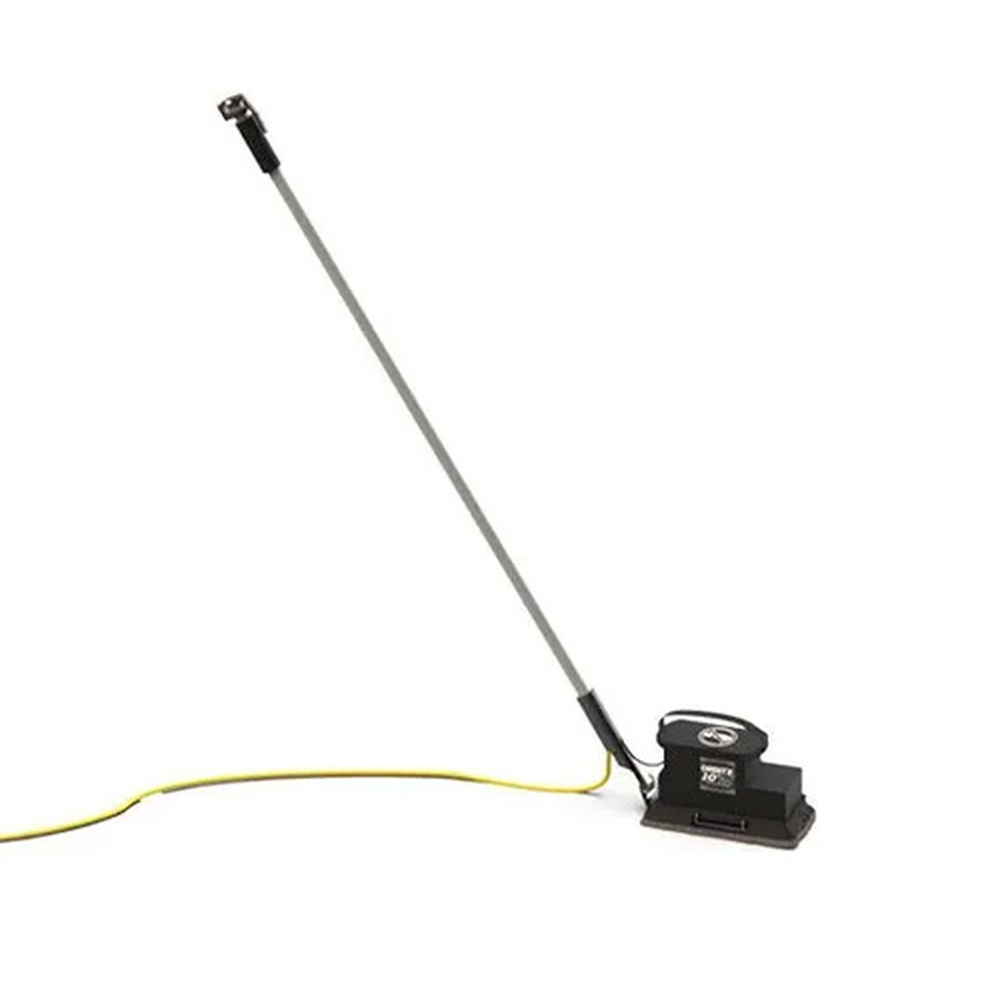

New Timberline 10" NANO Orbitz Floor Machine
Our Take (from the SES Sales Team)
“The NANO Orbitz is the tool for the jobs a scrubber can't get to: stair treads, the floor behind and around toilets, bleacher rows, corners and small rooms. It weighs 22 pounds, so one person can carry it up a stairwell, and the rectangular orbital pad reaches into corners that a round pad leaves behind.
Most of what it can do comes down to the pad. Run a strip pad or sand screen to take off finish without chemical stripper, a scrub pad for tile and grout or concrete, or a polishing or microfiber pad for lighter cleaning. Timberline says the orbital head cuts water use by up to 70%, which helps on stairs and in restrooms where standing water is a problem. Pick the 120-volt model for standard US outlets; the E-plug and G-plug versions are for sites wired for those plugs.”
A 10-inch orbital floor machine for stairs, restrooms and tight spots
The Timberline NANO Orbitz is a compact corded orbital floor machine built by RPS Corporation for small areas that traditional scrubbers can't reach, such as stairwells, the floor around toilets in restrooms, bleachers and corners. Its 10.5 x 5.25 in rectangular pad is driven by a 0.33 hp motor, and even at 22 lb it puts a lot of pressure on the floor for deep cleaning. Change the pad to scrub tile and grout, VCT, concrete and stone, or gym and wood floors, or to strip finish without chemical stripper. Heavy-duty isolators reduce vibration at the handle, and a dust skirt is standard.
Choose your configuration
Pick the NANO Orbitz power supply
| 120 V AC | 240 V AC, Type E plug | 240 V AC, Type G plug | |
|---|---|---|---|
| Power | 120 VAC, 50–60 Hz | 240 VAC, 50–60 Hz | 240 VAC, 50–60 Hz |
| Best for | Sites on standard 120 V outlets | Sites with 240 V Type E outlets | Sites with 240 V Type G outlets |
| Packages here | TF10R | TF10R-E | TF10R-G |
Reading the model numbers: TF10R is the 10 in NANO Orbitz on 120 V AC. The -E and -G versions are the higher-voltage AC models with Type E or Type G plugs. Timberline lists a motor speed of 4,100 rpm on 60 Hz power and 3,410 rpm on 50 Hz.
Features:
- Orbital scrub head strips floor finish without chemicals while cutting water use by up to 70%
- Rectangular pad reaches into corners, onto stair treads and around toilets
- Works with a wide range of pads, including sand screen, strip, scrub, polishing, microfiber, melamine and tile-and-grout pads
- Heavy-duty isolators reduce vibration at the handle for operator comfort
- 10-gauge (2.6 mm) steel chassis and scrub head, with a dust skirt standard

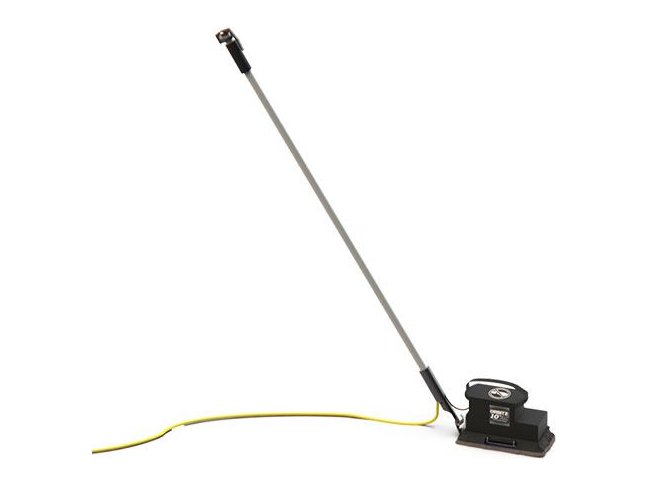

NANO Orbitz 10 in, corded
NANO Orbitz 10 in
Specifications
| Models | 120 V AC | 240 V AC (E and G plug) |
| Cleaning Width | 10.5 in (27 cm) | |
| Pad Size | 10.5 x 5.25 in (26.7 x 13.3 cm) | |
| Scrub Head (L x W x H) | 9.75 x 4 x 6.25 in (24.8 x 10.2 x 15.9 cm) | |
| Motor | 0.33 hp (246 W) | |
| Motor Speed | 4,100 rpm at 60 Hz; 3,410 rpm at 50 Hz | |
| Power | 120 VAC, 50–60 Hz | 240 VAC, 50–60 Hz |
| Current Draw | 1.2 A at 120 VAC | Not listed |
| Power Cord | 30 ft (9 m), 18 gauge | |
| Handlebar | 51.25 in (130.2 cm), padded grips | |
| Chassis / Scrub Head | 10-gauge (2.6 mm) steel | |
| Isolators | Four lower-deck isolators | |
| Dust Skirt | Standard | |
| Sound Level | Under 57 dBA | |
| Weight | 22 lb (10 kg) | |
| Model Numbers | TF10R | TF10R-E, TF10R-G |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Cleaning Path (inches) | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Shipping Designation | Specialty Category | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Timberline 10" NANO Orbitz Floor Machine
ENRPTF10R
|
Usually Ships in 3 to 5 Weeks | 10 | New | Buffers/Burnishers | 1,214.00 | Equipment | Timberline | 1,214.00 | Qualifies for Free/Flat Rate Shipping | Low Speed Corded | Full Factory Warranty |
$1,214.00/EA
|
||
|
New Timberline Orbitz Nano 220 Vac Corded / G-Plug Buffer
ENRPTF10R-G
|
Ships from Supplier - Availability May Vary | New | Buffers/Burnishers | 1,238.00 | Equipment | Timberline | 1,238.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$1,238.00/EA
|
||||
|
New Timberline Orbitz Nano 220 Vac Corded / E-Plug Buffer
ENRPTF10R-E
|
Ships from Supplier - Availability May Vary | New | Buffers/Burnishers | 1,299.00 | Equipment | Timberline | 1,299.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$1,299.00/EA
|
