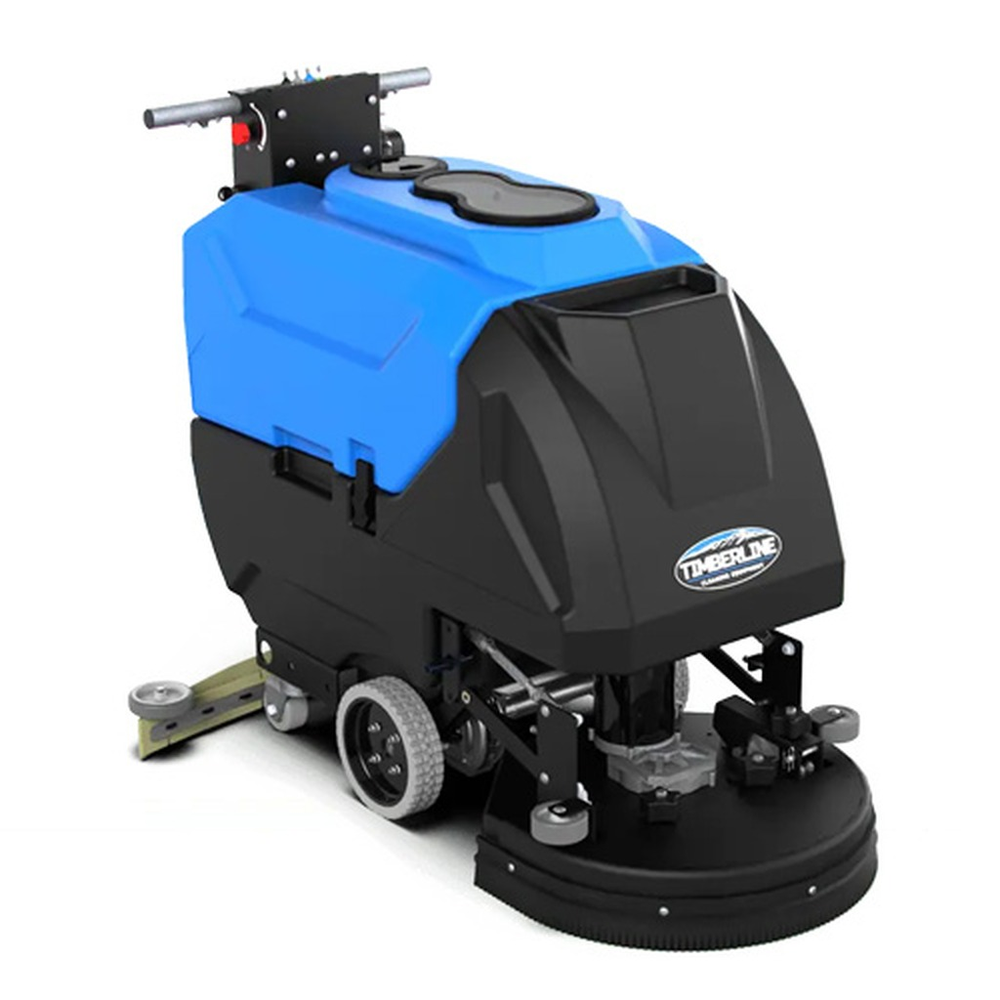

New Timberline M-Series Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
“The M-Series is the middle of Timberline's walk-behind line and a size most schools and hospitals can use almost everywhere. It is big enough to cover classrooms, cafeterias, gyms and hallways with 16-gallon tanks, yet compact enough to roll through small doorways and onto elevators. Timberline sizes it for areas under 50,000 square feet, with up to 2.5 hours of run time and up to 70,000 square feet per charge.
Choose the deck for the floor. The disk models (20, 26 or 28 inch) are the everyday scrubbers with the lowest maintenance cost. The orbital models (24 or 28 inch) strip finish without chemicals and leave no swirl marks, which makes VCT refinishing in a hospital or school hallway quicker. The 26-inch cylindrical sweeps and scrubs in one pass for grouted tile and rubber floors. Like every Timberline, it is hand-built in Wisconsin on a steel frame with non-proprietary parts.”
A mid-size walk-behind scrubber with disk, orbital or cylindrical decks
The Timberline M-Series is a battery-powered walk-behind floor scrubber with a medium footprint, built by RPS Corporation in Racine, Wisconsin. Timberline sizes it for classrooms, cafeterias, gyms, hospital hallways and other areas under 50,000 sq ft, and it passes easily through small doorways and onto elevators. It carries 16-gallon solution and recovery tanks, runs up to 2.5 hours on standard 175 Ah wet batteries and covers up to 70,000 sq ft per charge. Disk, orbital and cylindrical decks match it to daily scrubbing, chemical-free finish removal or grouted tile.
Choose your configuration
Disk, orbital or cylindrical?
| Disk | Orbital | Cylindrical | |
|---|---|---|---|
| Sizes here | 20 in single disk; 26 in with two 13 in brushes; 28 in with two 14 in brushes | 24 in or 28 in rectangular pad | 26 in cylindrical roller brushes |
| Scrub motor / speed | 0.75 hp (559 W), 270 rpm (26 and 28 in) | 1.5 hp (1,100 W), 2,500 rpm | 0.75 hp (559 W), 270 rpm |
| Down pressure | 80 lb (26 and 28 in) | 80 lb (24 in), 90 lb (28 in) | 120 lb |
| Best for | Daily scrubbing with brushes or pads; lowest maintenance cost; irregular floors | Chemical-free finish removal, VCT prep and recoat, no swirl marks, less water | Grouted tile, rubber floors and indoor tracks; sweeps and scrubs in one pass |
| Packages here | TM20D, TM20PA, TM26D, TM28D | TM24R, TM28R | TM26C |
Reading the model numbers: In these Timberline part numbers, TM is the M-Series, the number is the cleaning path in inches and the letter is the deck: D for disk, R for orbital and C for cylindrical. The M-Series models share the same steel chassis, 16-gallon tanks and vacuum system.
Features:
- RPS through-bolts the scrub deck, battery support, wheels, squeegee linkage and tanks to a 3/16 in powder-coated steel frame, not to the tanks
- Five protective barriers in the recovery tank keep moisture out of the vacuum motor
- Brushes and pads install and remove without tools, and squeegee blades rotate or flip without tools
- Soft corners and wall rollers come standard to protect walls, fixtures and goods
- Non-proprietary parts, so any technician with basic knowledge of battery-powered equipment can make repairs

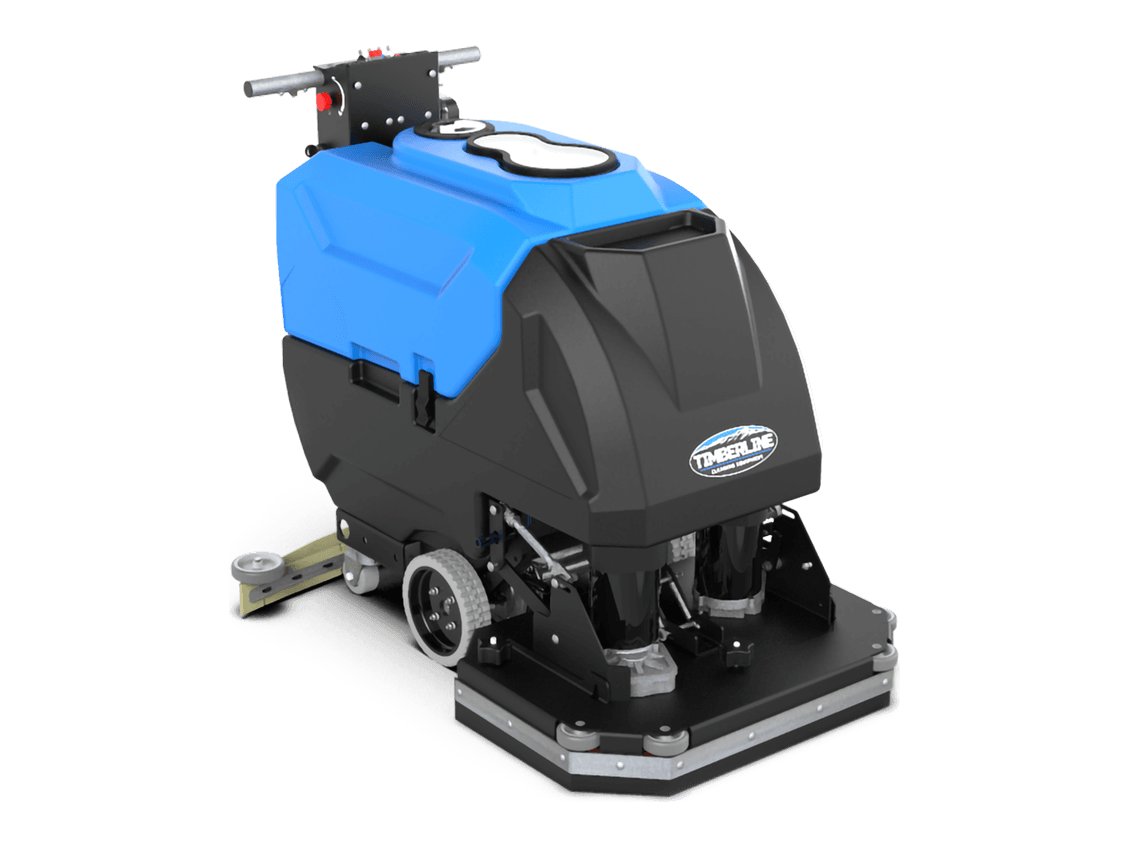

M28 Disk

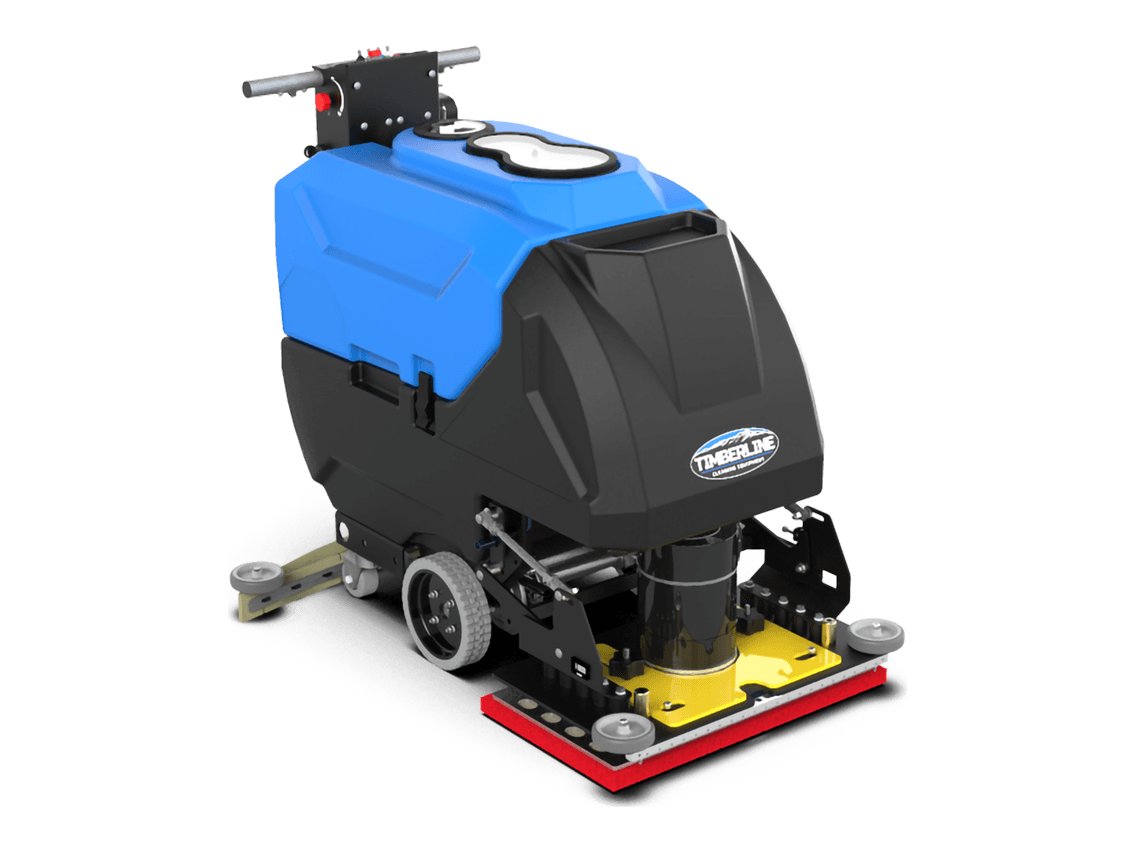

M24 Orbital deck

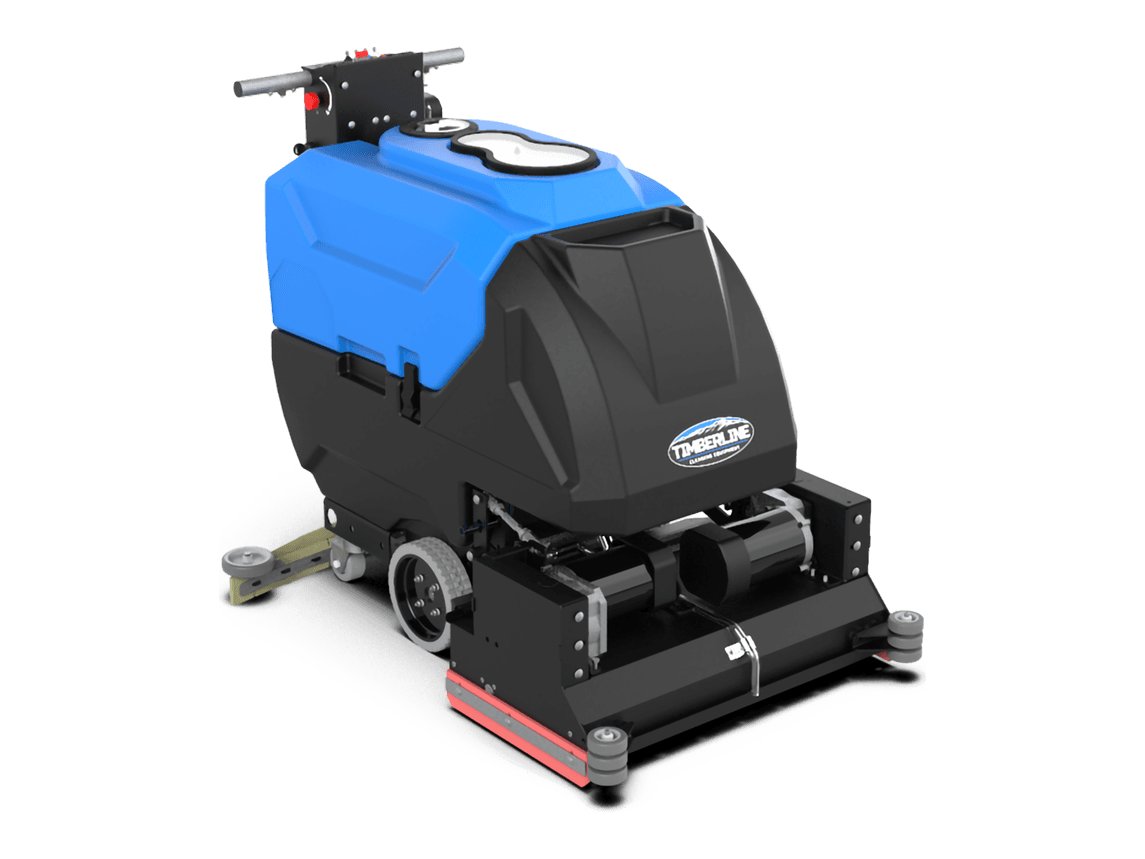

M26 Cylindrical deck
Timberline M-Series
Specifications
| Models | M20 Disk | M26 Disk | M28 Disk | M24 Orbital | M28 Orbital | M26 Cylindrical |
| Cleaning Path | 20 in (51 cm) | 26 in (66 cm) | 28 in (71 cm) | 24 in (61 cm) | 28 in (71 cm) | 26 in (66 cm) |
| Scrub Head | One 20 in (51 cm) disk | Two 13 in (33 cm) disk brushes | Two 14 in (36 cm) disk brushes | 24 in rectangular pad | 28 in rectangular pad | Two cylindrical roller brushes |
| Scrub Motor | Not listed | 0.75 hp (559 W) | 0.75 hp (559 W) | 1.5 hp (1,100 W) | 1.5 hp (1,100 W) | 0.75 hp (559 W) |
| Brush / Pad Speed | Not listed | 270 rpm | 270 rpm | 2,500 rpm | 2,500 rpm | 270 rpm |
| Down Pressure | Not listed | 80 lb (36 kg) | 80 lb (36 kg) | 80 lb (36 kg) | 90 lb (41 kg) | 120 lb (54 kg) |
| Squeegee Width | Not listed | 37 in (94 cm) | 37 in (94 cm) | 37 in (94 cm) | 37 in (94 cm) | 37 in (94 cm) |
| Theoretical Productivity | Not listed | 25,979 sq ft/hr (2,414 m²/hr) | 28,000 sq ft/hr (2,601 m²/hr) | 24,000 sq ft/hr (2,230 m²/hr) | 28,000 sq ft/hr (2,601 m²/hr) | 25,979 sq ft/hr (2,414 m²/hr) |
| Practical Productivity | Not listed | 12,061 sq ft/hr (1,121 m²/hr) | 13,000 sq ft/hr (1,208 m²/hr) | 11,132 sq ft/hr (1,034 m²/hr) | 13,000 sq ft/hr (1,208 m²/hr) | 12,061 sq ft/hr (1,121 m²/hr) |
| Solution / Recovery Tank | 16 gal (60 L) / 16 gal (60 L) | |||||
| Solution Flow | 0–0.6 gpm (0–2.3 L/min), stainless inline filter | |||||
| Batteries | 24 V system, 175 Ah wet standard | |||||
| Run Time | Up to 2.5 hours (standard batteries, low down pressure, options off) | |||||
| Charger | 120 VAC input, 24 VDC / 12 A output | |||||
| Traction Drive | 0.5 hp (373 W), all-gear, sealed (M-Series spec sheet) | |||||
| Vacuum Motor | 0.8 hp (640 W), 3-stage | |||||
| Sound Level | 72 dBA | |||||
| Dimensions (L x W x H) | 53 x 29 x 38.5 in (135 x 74 x 98 cm), largest deck, squeegee removed | |||||
| Construction | 3/16 in (4.8 mm) powder-coated steel frame; 5/16 in (7.9 mm) poly tanks | |||||
| Model Numbers | TM20D, TM20PA | TM26D | TM28D | TM24R | TM28R | TM26C |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Shipping Designation | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Timberline M-Series Walk-Behind Floor Scrubber
ENRPTM20PA
|
Usually Ships in 3 to 5 Weeks | New | Walk-Behind Scrubbers | 6,628.00 | Equipment | Timberline | 6,628.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$6,628.00/EA
|
||
|
New Timberline M28 Disk Traction Walk-Behind Scrubber
ENRPTM28D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 9,381.00 | Equipment | Timberline | 9,381.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$9,381.00/EA
|
||
|
New Timberline M26 Disk Traction Walk-Behind Scrubber
ENRPTM26D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 8,986.00 | Equipment | Timberline | 8,986.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$8,986.00/EA
|
||
|
New Timberline M24 Orbital Traction Walk-Behind Scrubber
ENRPTM24R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 9,603.00 | Equipment | Timberline | 9,603.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$9,603.00/EA
|
||
|
New Timberline M28 Orbital Traction Walk-Behind Scrubber
ENRPTM28R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 10,252.00 | Equipment | Timberline | 10,252.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$10,252.00/EA
|
