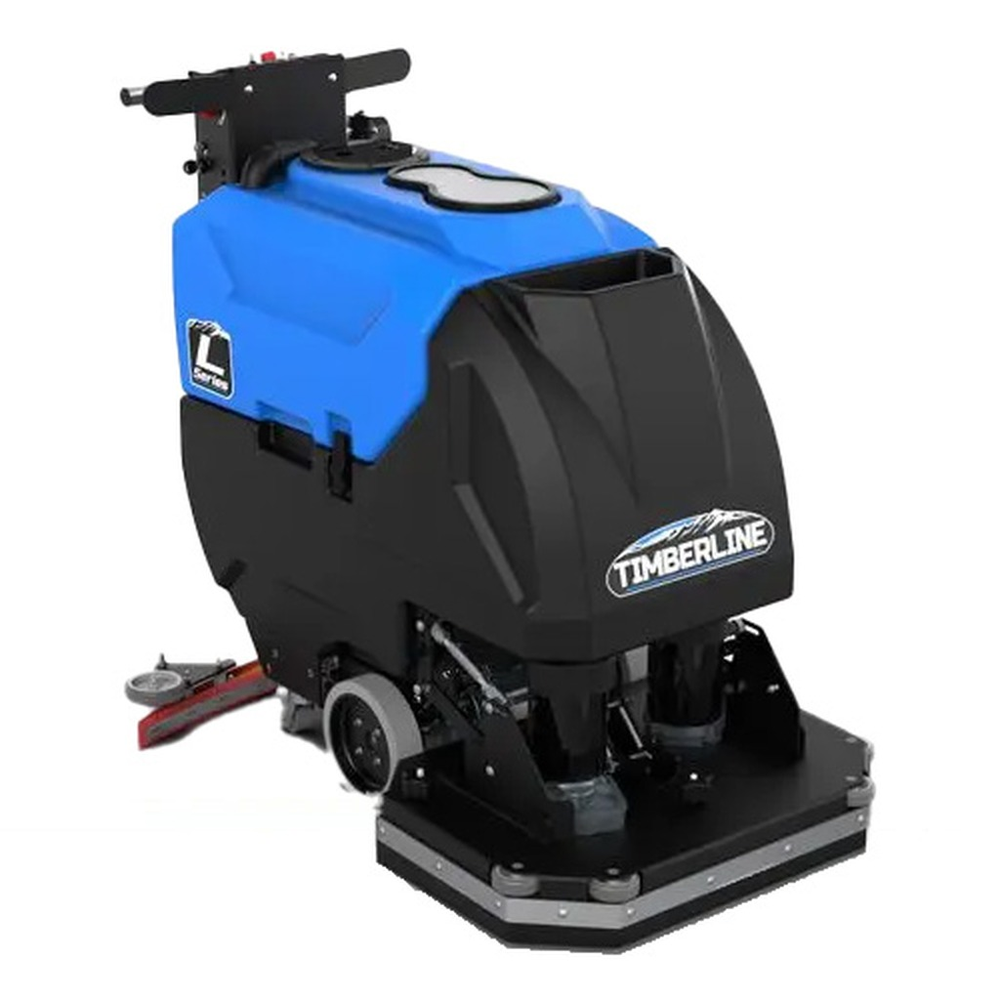

New Timberline L-Series Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
“The L-Series is the walk-behind to look at when the floor is big and open but a rider is more machine than the building needs. Nineteen-gallon tanks and up to 3.5 hours of run time let one operator cover a lot of hallway, cafeteria or sales floor before refilling, and Timberline rates it at up to 110,000 square feet per charge.
The real decision is the deck. The disk decks (26 or 28 inch) are the everyday choice and the lowest-maintenance option. The orbital decks (24 or 28 inch) are for facilities that strip and recoat VCT, because they remove finish without chemical stripper and leave no swirl marks. The cylindrical decks (26 or 30 inch) sweep and scrub at the same time, which helps on grouted tile, rubber flooring and floors with small debris. RPS hand-builds these in Wisconsin on a bolted steel frame and uses non-proprietary parts, so any qualified battery-equipment tech can work on one.”
A large walk-behind scrubber with disk, orbital or cylindrical decks
The Timberline L-Series is a battery-powered, traction-drive walk-behind floor scrubber built by RPS Corporation in Racine, Wisconsin, for large, open areas such as schools, hospitals, grocery stores, shopping centers and airports. It carries 19-gallon solution and recovery tanks, runs up to 3.5 hours on standard 175 Ah wet batteries and covers up to 110,000 sq ft per charge. Choose a disk deck for daily scrubbing of most hard floors, an orbital deck for chemical-free floor finish removal and VCT prep, or a cylindrical deck to sweep and scrub grouted tile and rubber floors in one pass.
Choose your configuration
Disk, orbital or cylindrical?
| Disk | Orbital | Cylindrical | |
|---|---|---|---|
| Sizes here | 26 in or 28 in, two 14 in disk brushes | 24 in or 28 in rectangular pad | 26 in or 30 in cylindrical roller brushes |
| Scrub motor / speed | 0.75 hp (559 W), 270 rpm | 1.5 hp (1,100 W), 2,500 rpm | 0.75 hp (559 W), 270 rpm |
| Down pressure | 80 lb | 80 lb (24 in), 90 lb (28 in) | 120 lb (26 in) |
| Best for | Daily scrubbing with brushes or pads; lowest maintenance cost; irregular floors | Chemical-free finish removal, VCT prep and recoat, no swirl marks, less water | Grouted tile, rubber floors and indoor tracks; sweeps and scrubs in one pass |
| Packages here | TL26D, TL28D | TL24R, TL28R | TL26C, TL30C |
Reading the model numbers: In these Timberline part numbers, TL is the L-Series, the number is the cleaning path in inches and the letter is the deck: D for disk, R for orbital and C for cylindrical. Every L-Series model shares the same steel chassis, 19-gallon tanks, traction drive and vacuum system.
Features:
- RPS through-bolts the scrub deck, battery support, wheels, squeegee linkage and tanks to a 3/16 in powder-coated steel frame, not to the tanks
- Five protective barriers in the recovery tank keep moisture out of the vacuum motor
- Brushes and pads install and remove without tools, and squeegee blades rotate or flip without tools
- Soft corners and wall rollers come standard to protect walls, fixtures and goods
- Non-proprietary parts, so any technician with basic knowledge of battery-powered equipment can make repairs

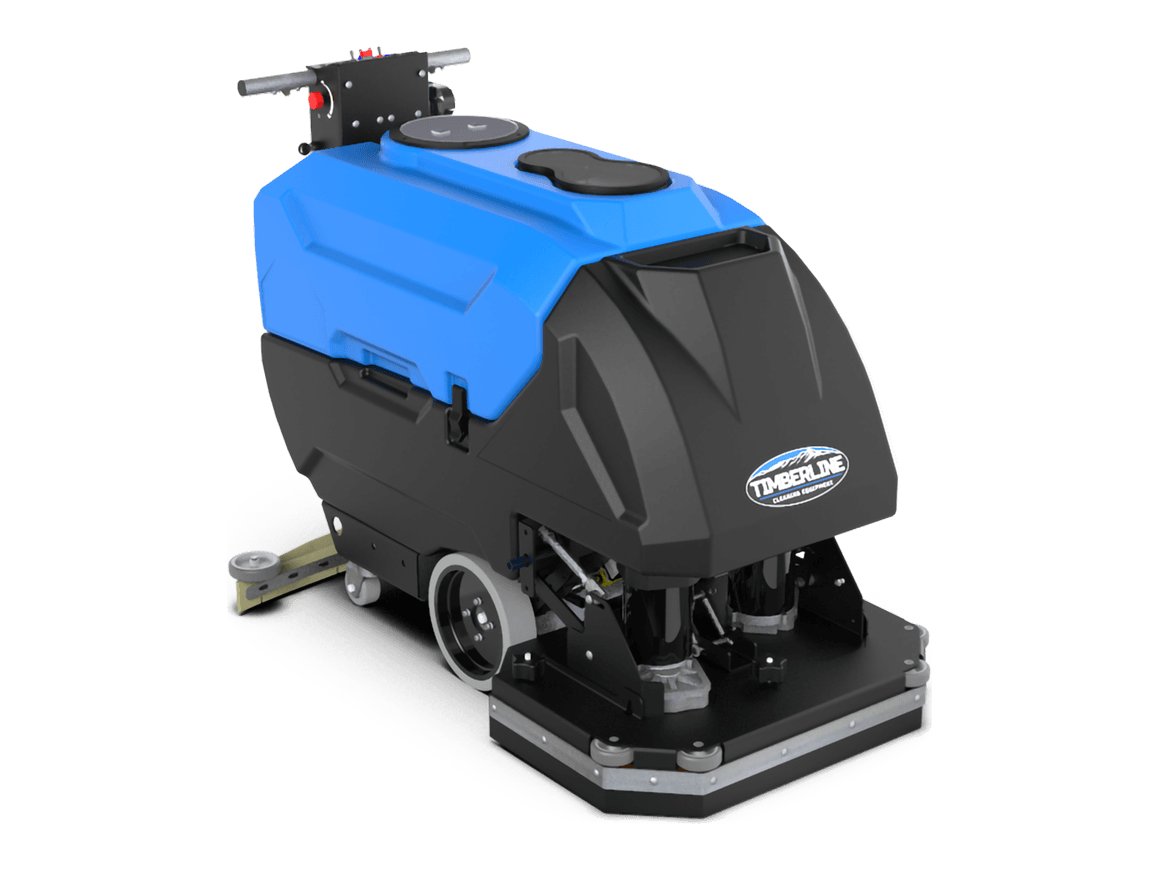

L28 Disk

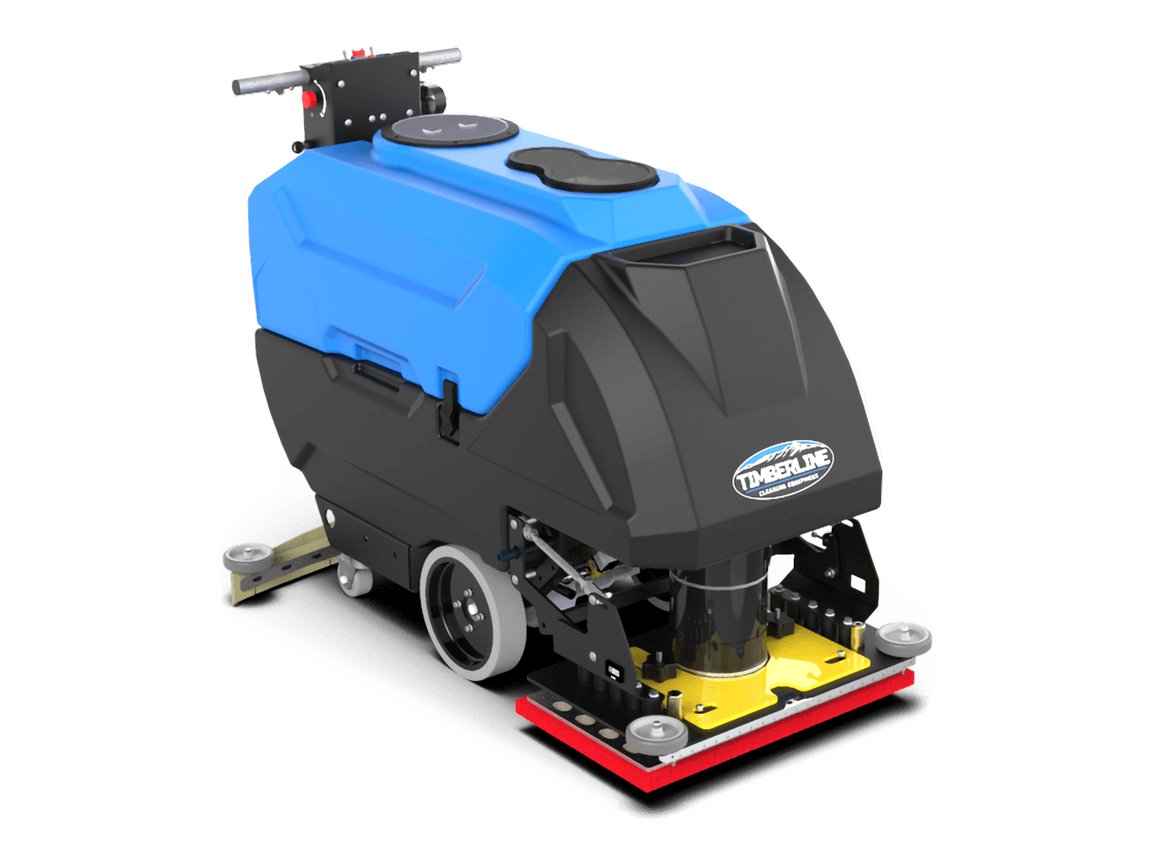

L24 Orbital deck

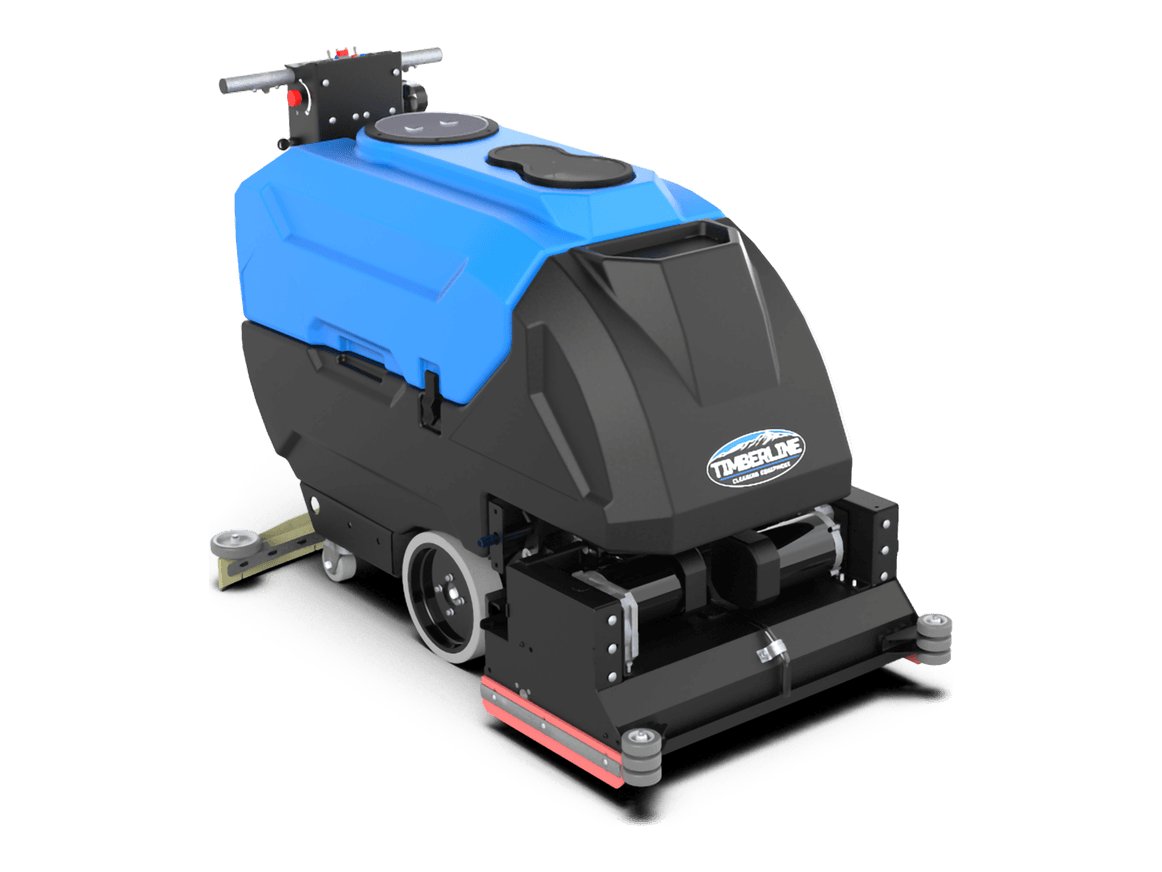

L26 Cylindrical deck
Timberline L-Series
Specifications
| Models | L24 Orbital | L28 Orbital | L26 Disk | L28 Disk | L26 Cylindrical | L30 Cylindrical |
| Cleaning Path | 24 in (61 cm) | 28 in (71 cm) | 26 in (66 cm) | 28 in (71 cm) | 26 in (66 cm) | 30 in (76 cm) |
| Scrub Head | 24 in rectangular pad | 28 in rectangular pad | Two 14 in (36 cm) disk brushes | Two 14 in (36 cm) disk brushes | Two cylindrical roller brushes | Two cylindrical roller brushes |
| Scrub Motor | 1.5 hp (1,100 W) | 1.5 hp (1,100 W) | 0.75 hp (559 W) | 0.75 hp (559 W) | 0.75 hp (559 W) | Not listed |
| Brush / Pad Speed | 2,500 rpm | 2,500 rpm | 270 rpm | 270 rpm | 270 rpm | Not listed |
| Down Pressure | 80 lb (36 kg) | 90 lb (41 kg) | 80 lb (36 kg) | 80 lb (36 kg) | 120 lb (54 kg) | Not listed |
| Squeegee Width | 37 in (94 cm) | 37 in (94 cm) | 37 in (94 cm) | 41 in (104 cm) | 37 in (94 cm) | Not listed |
| Theoretical Productivity | 24,000 sq ft/hr (2,230 m²/hr) | 28,000 sq ft/hr (2,601 m²/hr) | 25,979 sq ft/hr (2,414 m²/hr) | 28,000 sq ft/hr (2,601 m²/hr) | 25,979 sq ft/hr (2,414 m²/hr) | Not listed |
| Practical Productivity | 11,132 sq ft/hr (1,034 m²/hr) | 13,000 sq ft/hr (1,208 m²/hr) | 12,061 sq ft/hr (1,121 m²/hr) | 13,000 sq ft/hr (1,208 m²/hr) | 12,061 sq ft/hr (1,121 m²/hr) | Not listed |
| Solution / Recovery Tank | 19 gal (72 L) / 19 gal (72 L) | |||||
| Solution Flow | 0–0.6 gpm (0–2.3 L/min), stainless inline filter | |||||
| Batteries | 24 V system, 175 Ah wet standard | |||||
| Run Time | Up to 3.5 hours (standard batteries, low down pressure, options off) | |||||
| Charger | 120 VAC input, 24 VDC / 12 A output | |||||
| Traction Drive | 0.5 hp (373 W), all-gear, sealed | |||||
| Vacuum Motor | 0.8 hp (640 W), 3-stage; 70 in (178 cm) water lift, 70 CFM | |||||
| Sound Level | 72 dBA | |||||
| Dimensions (L x W x H) | 53 x 29 x 38.5 in (135 x 74 x 98 cm), largest deck, squeegee removed | |||||
| Construction | 3/16 in (4.8 mm) powder-coated steel frame; 5/16 in (7.9 mm) poly tanks | |||||
| Model Numbers | TL24R | TL28R | TL26D | TL28D | TL26C | TL30C |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Shipping Designation | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Timberline L-Series Walk-Behind Floor Scrubber
ENRPTL26D
|
Usually Ships in 3 to 5 Weeks | New | Walk-Behind Scrubbers | 9,909.00 | Equipment | Timberline | 9,909.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$9,909.00/EA
|
||
|
New Timberline L30 Cylindrical Traction Walk-Behind Scrubber
ENRPTL30C
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 11,875.00 | Equipment | Timberline | 11,875.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$11,875.00/EA
|
||
|
New Timberline L24 Orbital Traction Walk-Behind Scrubber
ENRPTL24R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 10,632.00 | Equipment | Timberline | 10,632.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$10,632.00/EA
|
||
|
New Timberline L28 Disk Traction Walk-Behind Scrubber
ENRPTL28D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 10,306.00 | Equipment | Timberline | 10,306.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$10,306.00/EA
|
||
|
New Timberline L26 Cylindrical Traction Walk-Behind Scrubber
ENRPTL26C
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 11,714.00 | Equipment | Timberline | 11,714.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$11,714.00/EA
|
||
|
New Timberline L28 Orbital Traction Walk-Behind Scrubber
ENRPTL28R
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 11,172.00 | Equipment | Timberline | 11,172.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$11,172.00/EA
|
