| Category | Specifications |
|---|---|
| Integrated Cleaning System | |
| Cleaning Path | 45 in |
| With Scrubbing Side Brush | 60 in |
| With Sweeping Side Brush | 62 in |
| Cylindrical Main Brushes | |
| Brush Speed | 425 rpm |
| Brush Down Pressure (up to) | 400 lbs |
| Brush Diameter (2) | 12 in |
| Side Brush Speed | 200 rpm |
| Side Brush Diameter | 16 in |
| Scrubbing Brush Diameter | 20 in |
| Sweeping Brush Diameter | - |
| Tanks | |
| Solution Tank | 90 gal |
| Recovery Tank | 90 gal |
| Demisting Chamber | 15 gal |
| Debris Hopper | |
| Volume Capacity | 3.89 cu ft / 29 gal |
| Dump Height (variable to) | 60 in |
| Vacuum Fan | |
| Scrubbing Fan Speed | 11,500 rpm |
| Scrubbing Fan Water Lift | 35 in |
| Propelling System | |
| Engine - Gasoline | 1.5L Kubota WG1605G |
| Gross Intermittent Power | 57 HP @ 3600 rpm |
| Governed Power | 40.5 HP @ 2400 rpm |
| Engine - LPG | 1.5L Kubota WG1605L |
| Gross Intermittent Power | 55 HP @ 3600 rpm |
| Governed Power | 39.4 HP @ 2400 rpm |
| Engine - Diesel | 1.5L Kubota V1505 |
| Gross/ Governed Power | 24.8 HP @ 2300 rpm |
| Gradeability (Transport) | 10 (17.45%) |
| Gradeability (Working) | 8 (14%) |
| Ground Clearance (Transport) | 3 in |
| Machine Dimensions | |
| Length | 95 in |
| Width (Frame) | 55 in |
| Width (Rear Squeegee) | 56 in |
| Width (With Side Brush) | 65.5 in |
| Height (Without Guard) | 60.5 in |
| Height (With Guard) | 83.5 in |
| Weight (Empty) | 3,250 lbs |
| Weight (GVW) | 4,800 lbs |
| Minimum Aisle Turn | 107.7 in |

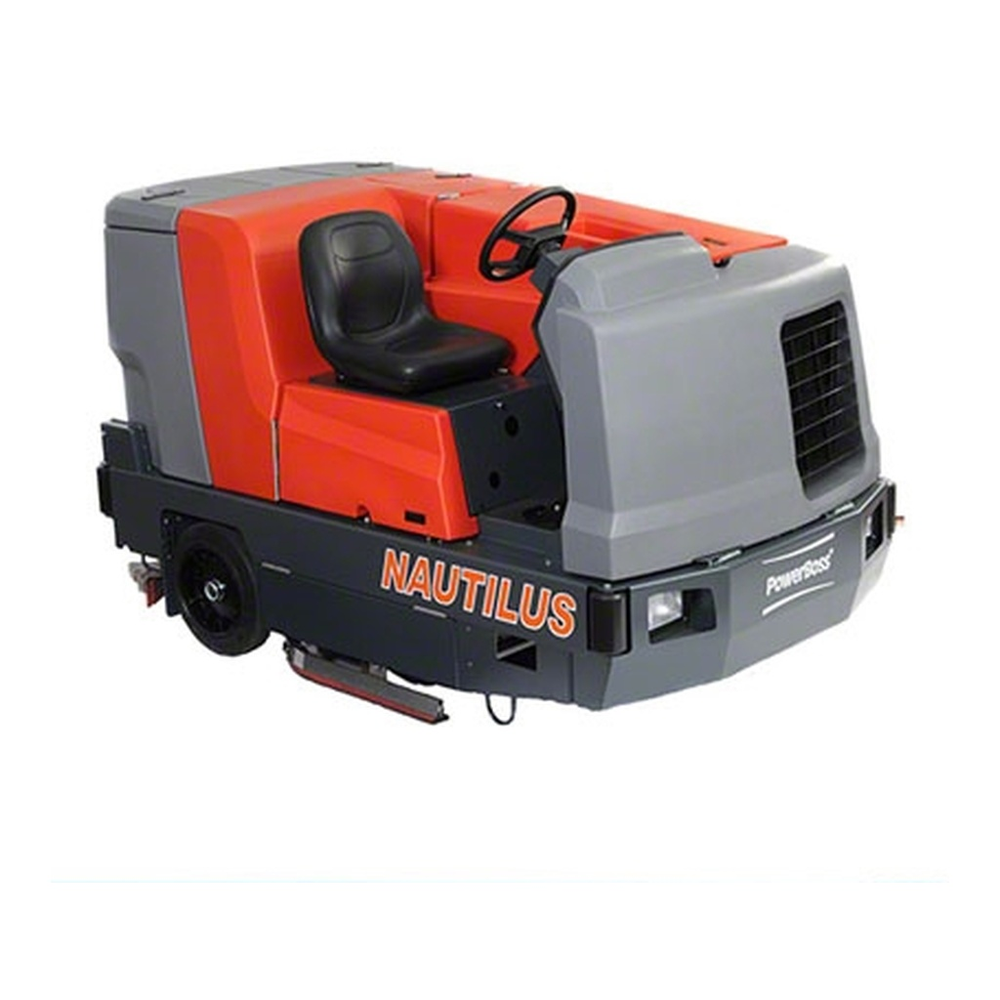

New Powerboss Nautilus HD GAS
Our Take (from the SES Sales Team)
“The Nautilus HD is a sweeper-scrubber for floors that are dirty in every sense: plants, warehouses with dock traffic, stadium concourses and outdoor areas. It scrubs a 45 in path with two 12 in cylindrical brushes and up to 400 lb of down pressure, and with the optional side brushes the path grows to 60 in scrubbing or 62 in sweeping. The brushes throw debris into a 3.89 cu ft stainless steel hopper, and the HD is the high-dump version, so the hopper lifts hydraulically and dumps hands-free at variable heights up to 60 in, right into a dumpster. The 90 gal solution and recovery tanks keep it working through big areas. This unit runs on a 1.5 L Kubota gasoline engine, a good fit for outdoor work and sites where charging a big battery machine is not practical. It is a big machine at 95 in long and 3,250 lb empty, so measure aisles and check floor loading before you commit.”
A heavy-duty sweeper-scrubber with a high-dump hopper
The PowerBoss Nautilus HD is a ride-on combination sweeper-scrubber for industrial plants, warehouses, stadiums and outdoor areas. Two 12 in cylindrical brushes scrub and sweep a 45 in path in a single pass, with up to 400 lb of down pressure, and optional side brushes widen the path to 60 in for scrubbing or 62 in for sweeping.
The stainless steel hopper holds 3.89 cu ft and dumps hydraulically at variable heights up to 60 in. This unit is powered by a 1.5 L Kubota gasoline engine.
Condition: New.
What you get
Built for single-pass cleaning
Single-pass cleaning
Features
Built for rough floors
- ✓Stainless steel scrubbing deck and hopper
- ✓One-touch scrubbing operation
- ✓Independent lift for the squeegee and the debris hopper
- ✓No-tool brush and squeegee changes, with a brush wear indicator
- ✓Agricultural-grade steel frame
Choosing options
Nautilus HD options
| Option | What it adds |
|---|---|
| Side scrub or side sweep brush | Widens the path to 60 in scrubbing or 62 in sweeping |
| TGT onboard hot water | Uses engine heat to raise solution temperature 70 or more degrees above its starting point |
| Overhead guard with blue spotlight | Operator protection and pedestrian warning |
| LCD back-up camera | Rear visibility |
| Suspension seat | Operator comfort on long shifts |
Specifications
PowerBoss Nautilus HD at a glance
| Models | Nautilus HD, Gasoline |
|---|---|
| Cleaning path | 45 in (1,143 mm); 60 in (1,524 mm) with side scrub; 62 in (1,575 mm) with side sweep |
| Main brushes | Two 12 in (300 mm) cylindrical, 425 rpm |
| Down pressure | Up to 400 lb (181 kg) |
| Solution / recovery tanks | 90 gal (341 L) / 90 gal (341 L), plus 15 gal (57 L) demisting chamber |
| Debris hopper | 3.89 cu ft (29 gal), stainless steel, hydraulic high dump |
| Dump height | Variable, up to 60 in (1,524 mm) |
| Vacuum fan | 11,500 rpm, 35 in (889 mm) water lift |
| Engine | Kubota WG1605G 1.5 L gasoline; 57 hp gross intermittent at 3,600 rpm, 40.5 hp governed at 2,400 rpm |
| Gradeability | 8° (14%) working; 10° (17.45%) transport at gross weight |
| Minimum aisle turn | 107.7 in (2,736 mm) |
| Dimensions | 95 in (2,413 mm) long; 55 in (1,397 mm) frame width, 56 in (1,422 mm) at the squeegee, 65.5 in (1,664 mm) with side brush; 60.5 in (1,537 mm) high, 83.5 in (2,121 mm) with overhead guard |
| Weight | 3,250 lb (1,474 kg) empty; 4,800 lb (2,177 kg) gross |
| Model Numbers | PowerBoss PB45HGAS (Nautilus HD, gasoline) |
Technical specs may include optional equipment that is not included with all units.
Questions
PowerBoss Nautilus HD: common questions
What does HD mean on the Nautilus?
HD is the high-dump version. Its 3.89 cu ft stainless steel hopper lifts hydraulically and dumps hands-free at variable heights up to 60 in.
Does it sweep and scrub at the same time?
Yes. The two cylindrical brushes lift debris into the hopper while the machine scrubs and the squeegee recovers the water.
What engine does it use?
This unit has a 1.5 L Kubota WG1605G gasoline engine. PowerBoss also builds the Nautilus HD with LPG and diesel engines.
How big is it?
It is 95 in long and 55 in wide at the frame, weighs 3,250 lb empty and needs a 107.7 in aisle to turn.
Can it heat the cleaning water?
Yes, with the optional TGT system, which uses engine heat to raise the solution temperature 70 or more degrees above its starting point.
Not sure the Nautilus HD fits your site?
Tell our team about the floor, the building and the shift, and we will help you decide if this is the right machine.
