| Specifications | Value |
|---|---|
| Cleaning Path | 20 in |
| Theoretical Productivity (Manual Mode) | 24,500 ft/hr |
| Brush RPM | 175 rpm |
| Solution Tank Capacity | 16 gal |
| Recovery Tank (with Demising Chamber) | 16 gal |
| System Voltage | 24 volts |
| Battery Run Time | Up to 4 hours |
| Battery Type | 230 Ah AGM |
| Weight (Empty) | 343 lbs |
| Weight (With Batteries) | 615 lbs |
| Length | 55.5 in |
| Width | 26 in |
| Height | 47.5 in |

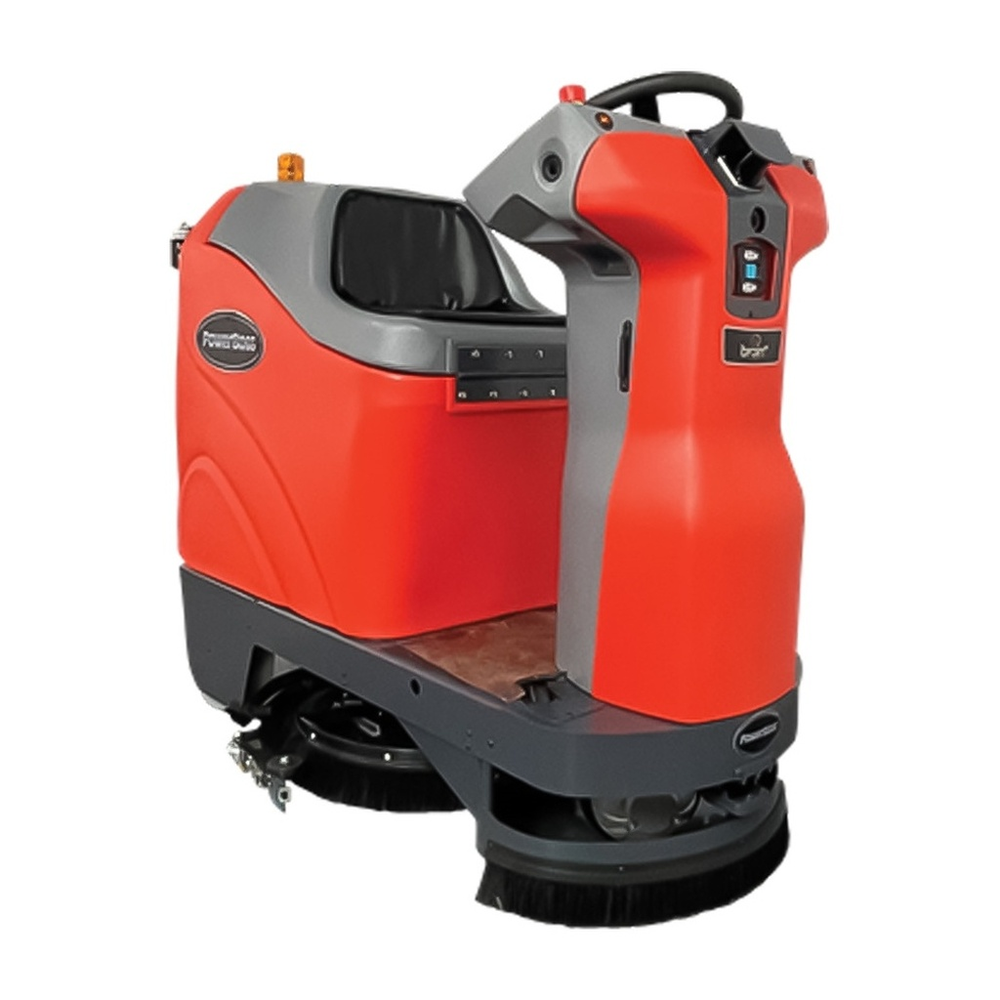

New Powerboss MAX RIDE 20 ECO, AI, PB, LIO
Our Take (from the SES Sales Team)
“The Max Ride 20 is a robotic scrubber for buildings where the same floor gets scrubbed every day: retail stores, schools, healthcare buildings and warehouses. It runs on BrainOS, so you teach it a route once, by driving it or by outlining an area to fill, and after that an operator picks the route and starts it. It can store up to 60 routes, selected with QR codes, and it steers around obstacles that were not there when the route was taught. The 20 in deck and 16 gal tanks suit aisles and mid-size floors, and it fits through a 36 in doorway. When a spill needs attention right now, the green one-touch button lets anyone drive it like a normal rider. Safety is handled with redundant sensors, two stop buttons, anti-joyride detection, a horn, blinkers and a flashing light. This package runs on lithium-ion batteries, which means no watering and no battery maintenance. If you are weighing a robot against adding hours, this is a good size to start with.”
An autonomous rider scrubber for everyday floors
The PowerBoss Max Ride 20, also called the Scrubmaster AMR, is a ride-on floor scrubber that runs autonomously on BrainOS or manually with an operator on board. Routes are taught by driving them (teach and repeat) or by outlining an area to fill, and up to 60 routes can be stored and selected with QR codes.
A 20 in deck with brushes at 175 rpm, 16 gal solution and recovery tanks and a Primothane tracking squeegee suit retail, schools, healthcare and warehouse floors. This package runs on a 24 V lithium-ion battery system.
Condition: New.
What you get
Autonomous and manual in one machine
How routes work
Features
Built to run safely around people
- ✓Redundant sensors detect and avoid people and obstacles
- ✓Two auto-stop buttons, a horn and anti-joyride detection
- ✓Turn blinkers and a flashing light for visibility in busy or dark aisles
- ✓Fits through a 36 in doorway, with a 7 ft 9 in minimum aisle turn
- ✓Primothane tracking squeegee resists chemicals
Specifications
PowerBoss Max Ride 20 at a glance
| Models | Max Ride 20 ECO AI, lithium-ion |
|---|---|
| Cleaning path | 20 in (50.8 cm) |
| Brush speed | 175 rpm |
| Productivity | 24,500 sq ft/hr theoretical max, manual mode |
| Solution / recovery tanks | 16 gal (60.5 L) / 16 gal (60.5 L), recovery including demisting chamber |
| System voltage | 24 V |
| Battery | Lithium-ion |
| Navigation | BrainOS; teach and repeat or area fill; up to 60 routes selected by QR code |
| Operator interface | Tablet touchscreen with passcode; green manual and blue autonomous start buttons |
| Minimum aisle turn | 7 ft 9 in (2.36 m) |
| Doorway | Cleans or transports through a 36 in (91 cm) doorway |
| Dimensions (L x W x H) | 55.5 x 26 x 47.5 in (140.9 x 66 x 120.6 cm) |
| Weight empty | 343 lb (155.5 kg) without batteries |
| Model Numbers | PowerBoss MR20-AIQPPBLIM (Max Ride 20 ECO, AI, lithium-ion) |
Technical specs may include optional equipment that is not included with all units.
Questions
PowerBoss Max Ride 20: common questions
Does someone have to be with it while it cleans?
An operator teaches the routes and starts each run. Once it is running autonomously, the machine follows the route on its own and steers around obstacles it detects.
How do I set up a cleaning route?
Drive the route once in teach and repeat mode, or outline an area for it to fill. Each saved route gets a QR code, and the machine can store up to 60.
Can it be driven manually?
Yes. Press the green one-touch button and it runs like a conventional ride-on scrubber.
Will it fit my building?
It is 26 in wide and 55.5 in long, fits through a 36 in doorway and needs a 7 ft 9 in aisle to turn around.
Not sure a robotic scrubber fits your building?
Tell our team about the floor, the building and how often you clean it, and we will help you decide if this is the right machine.
