| Models | TX1 |
| Working Width | 21 in (53.3 cm), HDPE splash guard floating skirt |
| Productivity | Up to 8,000 sq ft/hr (743 m²/hr) |
| Engine | 708cc, 19 hp, LPG fuel system, EPA certified |
| Brush/Pad Speed | 540-1,080 rpm |
| Brush/Pad | 21 in (53.3 cm) strip brush included; pad driver optional |
| Water Tank | 8 gal (30.3 L), gravity feed |
| Fuel Tank | 20 lb (9.1 kg) steel, overfill protection device installed |
| Run Time | 6 hours per 20 lb cylinder |
| Ignition | 12 V electric start |
| Emissions Monitoring | On-board SAM Safe Air Monitor |
| Sound Level | 87 dBA |
| Frame | Powder-coated reinforced steel, industrial grade bearings |
| Dimensions (W x L x H) | 21 x 53 x 40-48 in, adjustable (53 x 135 x 102-122 cm) |
| Weight | 450 lb (204 kg) |
| Shipping Weight | 480 lb (218 kg) |
| Model Numbers | TX1-700 |
Technical specs may include optional equipment that is not included with all units.

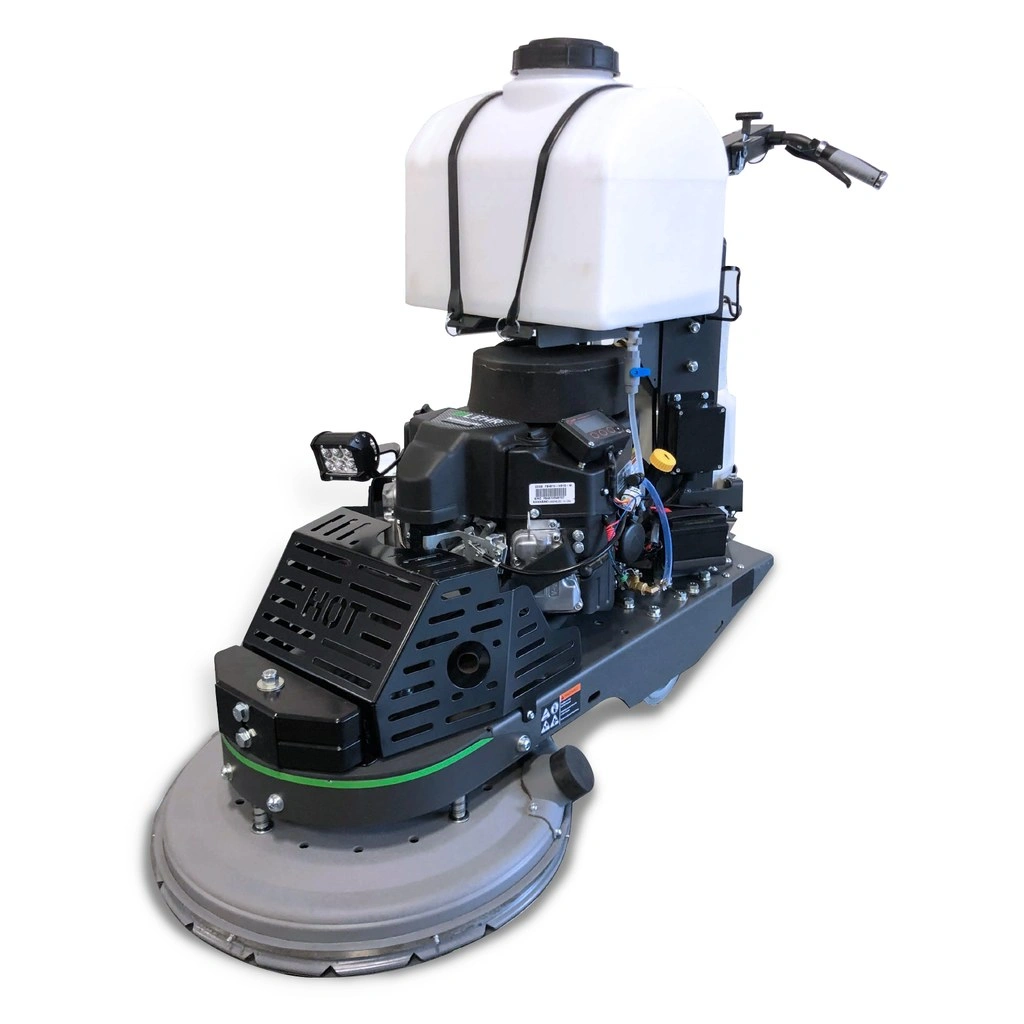

New Onyx TX1 21" Propane Stripping Floor Machine
Our Take (from the SES Sales Team)
“The TX1 is Onyx's single-head propane stripping machine for crews that strip large areas of finished floor and don't want to manage cords. Its 21-inch head and 708cc, 19 hp engine turn a strip brush at 540 to 1,080 rpm, and Onyx rates it at up to 8,000 square feet per hour. The 21-inch size keeps it maneuverable around fixtures and in tighter spaces.
What stands out is the job-site setup. An on-board 8-gallon gravity-feed water tank keeps solution at the head, a headlight lights the work area, and the engine fires with a 12-volt electric start. Onyx also builds in its SAM Safe Air Monitor for real-time emissions monitoring, which matters when a propane machine runs indoors. A 20 lb cylinder runs about 6 hours.
The trade-off is noise and weight. At 87 dBA and 450 pounds, it is a tool for after-hours project work rather than cleaning around occupants, and propane equipment indoors needs ventilation and fuel handling procedures. For a wider path per pass on big open floors, look at Onyx's 27-inch TX7 planetary machine.”
A 21-inch propane stripper with an on-board water system.
The Onyx TX1 is a 21-inch (53 cm) single-head propane floor stripping machine powered by a 708cc, 19 hp LPG engine that is EPA certified. Brush and pad speed runs from 540 to 1,080 rpm, and a 21-inch strip brush is included, with a pad driver available as an option. Onyx rates the TX1 at up to 8,000 square feet per hour.
An on-board 8-gallon (30 L) gravity-feed water system supplies solution, and an HDPE splash guard floating skirt surrounds the head. The machine has a 12-volt electric start, a headlight and SAM Safe Air Monitor on-board emissions monitoring. A 20 lb steel fuel tank with an overfill protection device runs about 6 hours, and overall height adjusts from 40 to 48 inches.
Ready to work out of the box
What's included
- ✓21" strip brush
Not included: Pad driver (optional), sold separately
Features
- ✓21-in single head with HDPE splash guard floating skirt
- ✓708cc, 19 hp EPA-certified LPG engine
- ✓540-1,080 rpm brush and pad speed
- ✓On-board 8-gal gravity-feed water system
- ✓SAM Safe Air Monitor emissions monitoring
Onyx TX1 21" Propane Stripping Floor Machine
Specifications
| Models | TX1 |
| Working Width | 21 in (53.3 cm), HDPE splash guard floating skirt |
| Productivity | Up to 8,000 sq ft/hr (743 m²/hr) |
| Engine | 708cc, 19 hp, LPG fuel system, EPA certified |
| Brush/Pad Speed | 540-1,080 rpm |
| Brush/Pad | 21 in (53.3 cm) strip brush included; pad driver optional |
| Water Tank | 8 gal (30.3 L), gravity feed |
| Fuel Tank | 20 lb (9.1 kg) steel, overfill protection device installed |
| Run Time | 6 hours per 20 lb cylinder |
| Ignition | 12 V electric start |
| Emissions Monitoring | On-board SAM Safe Air Monitor |
| Sound Level | 87 dBA |
| Frame | Powder-coated reinforced steel, industrial grade bearings |
| Dimensions (W x L x H) | 21 x 53 x 40-48 in, adjustable (53 x 135 x 102-122 cm) |
| Weight | 450 lb (204 kg) |
| Shipping Weight | 480 lb (218 kg) |
| Model Numbers | TX1-700 |
Technical specs may include optional equipment that is not included with all units.
Talk it through with us
Not sure this is the right machine for your floors, building and shifts? Our equipment specialists can help you compare options. Call or chat with our team before you order.
