| Models | DX20 |
| Cleaning Width | 20 in (508 mm) |
| Brush/Pad Size | 20 in (508 mm) |
| Squeegee Width | 32 in (813 mm) |
| Brush/Pad Speed | 180 rpm |
| Head Pressure | 50-90 lb (23-41 kg), adjustable |
| Brush Motor | 500 W |
| Vacuum Motor | 500 W |
| Propulsion | Pad assist |
| Solution Tank | 14 gal (53 L) |
| Recovery Tank | 16 gal (60.6 L) |
| Batteries | 24 V, 2 x 12 V 125 Ah AGM, maintenance-free |
| Run Time | 3-4 hours |
| Productivity | Up to 24,000 sq ft/hr (2,230 m²/h) |
| Sound Level | < 63 dBA |
| Construction | Powder-coated reinforced steel frame, LDPE body |
| Weight | 290 lb (132 kg) |
| Shipping Weight | 310 lb (141 kg) |
| Dimensions (L x W x H) | 49 x 20 x 44 in (124 x 51 x 112 cm) |
| Model Numbers | DX20 |
Technical specs may include optional equipment that is not included with all units.
New Onyx DX20 20" Disk Pad-Assist Floor Scrubber
Our Take (from the SES Sales Team)
“The DX20 is the middle step in Onyx's walk-behind lineup. It is big enough for school corridors, retail sales floors, warehouse aisles and gyms, while the single 20-inch head keeps it easy to work around fixtures and into corners. It scrubs a 20-inch path, picks up with a 32-inch squeegee, and Onyx rates it at up to 24,000 square feet per hour.
What stands out is the tank and battery package on a pad-assist machine. You get 14 gallons of solution, a 16-gallon recovery tank and a 24-volt, 125 Ah AGM pack rated for 3 to 4 hours, so a normal shift does not turn into constant refilling. Head pressure adjusts from 50 to 90 lb, and both a pad driver and a scrub brush come with it.
The trade-off is that pad assist means the operator steers and does some of the pushing, and at 290 lb that shows on ramps and long runs. If that describes your building, look at the DX20T, which adds traction drive to the same 20-inch platform.”
“Darren was extremely helpful throughout the ordering process, understanding our cleaning needs and giving us floor scrubber options that could work for us. The machine is everything he said it was and more.” — Bob P., Google review
A 20-inch pad-assist battery scrubber with 14- and 16-gallon tanks.

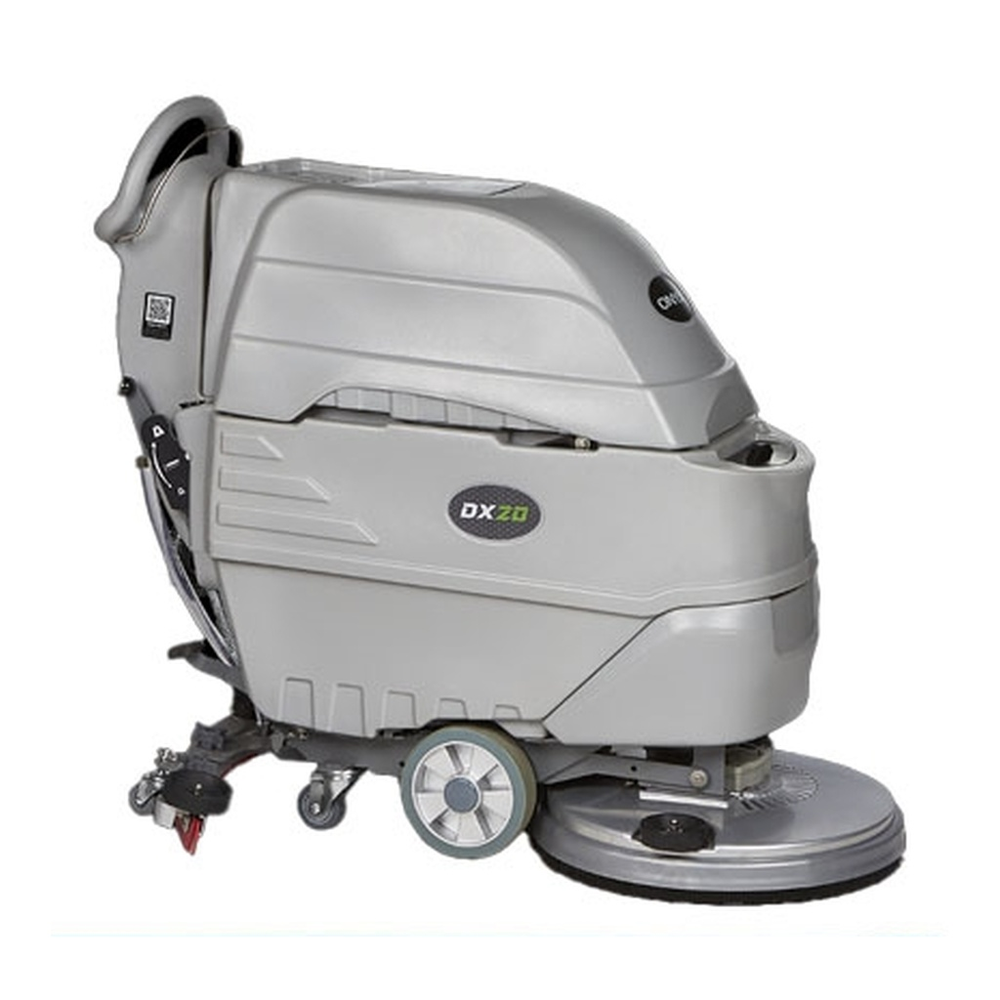

The Onyx DX20 is a 20-inch walk-behind battery autoscrubber with pad-assist drive. A single 20-inch brush or pad turns at 180 rpm under 50 to 90 lb of adjustable head pressure, driven by a 500-watt brush motor, with a water containment skirt around the head. A 500-watt vacuum motor and 32-inch squeegee recover the water, and Onyx rates productivity at up to 24,000 sq ft per hour.
A 14-gallon solution tank and 16-gallon recovery tank are paired with a 24-volt pack of two 12-volt, 125 Ah AGM maintenance-free batteries, rated for 3 to 4 hours of run time. Pads change without tools. The frame is powder-coated reinforced steel with an LDPE body and industrial-grade bearings. The DX20 weighs 290 lb, measures 49 x 20 x 44 inches and runs under 63 dBA.
Includes:
- Pad driver
- Scrub brush
- 24 V AGM battery pack (2 x 12 V, 125 Ah)
Features:
- 20-inch disk with 50-90 lb adjustable head pressure
- 14-gallon solution and 16-gallon recovery tanks
- 24 V, 125 Ah AGM maintenance-free batteries
- Pad-assist drive
- Pad driver and scrub brush included
