| Body | Roto-molded polyethylene |
| Tank | 12 gallon (approx.) |
| Vacuum | Single 3 stage low amp |
| CFM | 100 |
| H2O | 130 in |
| Pump | Diaphragm |
| PSI | 120 |
| GPM | 1.3 |
| Heater | 1200 W - 210 degree maximum |
| Rear Wheels | 10" foam-filled |
| Locking casters | 4" |
| Power cord | Single 25 foot 12/3 |
| Amp draw | Cord One: 20 amps |
| Chemical dispenser | Four bottles with hoses & adjustable nozzles - Powered by shop air source |
| Tools | 4" stainless steel upholstery tool, dry vacuum claw, dry vacuum crevice, interior and exterior drying tools |
| Hose package | 25' vacuum and solution hose combo, 25' dry vacuum hose |
| Product dimensions | 31 in x 19.5 in x 53 in |
| Shipping dimensions | 48 in x 42 in x 58 in |
Technical specs may include optional equipment that is not included with all units.

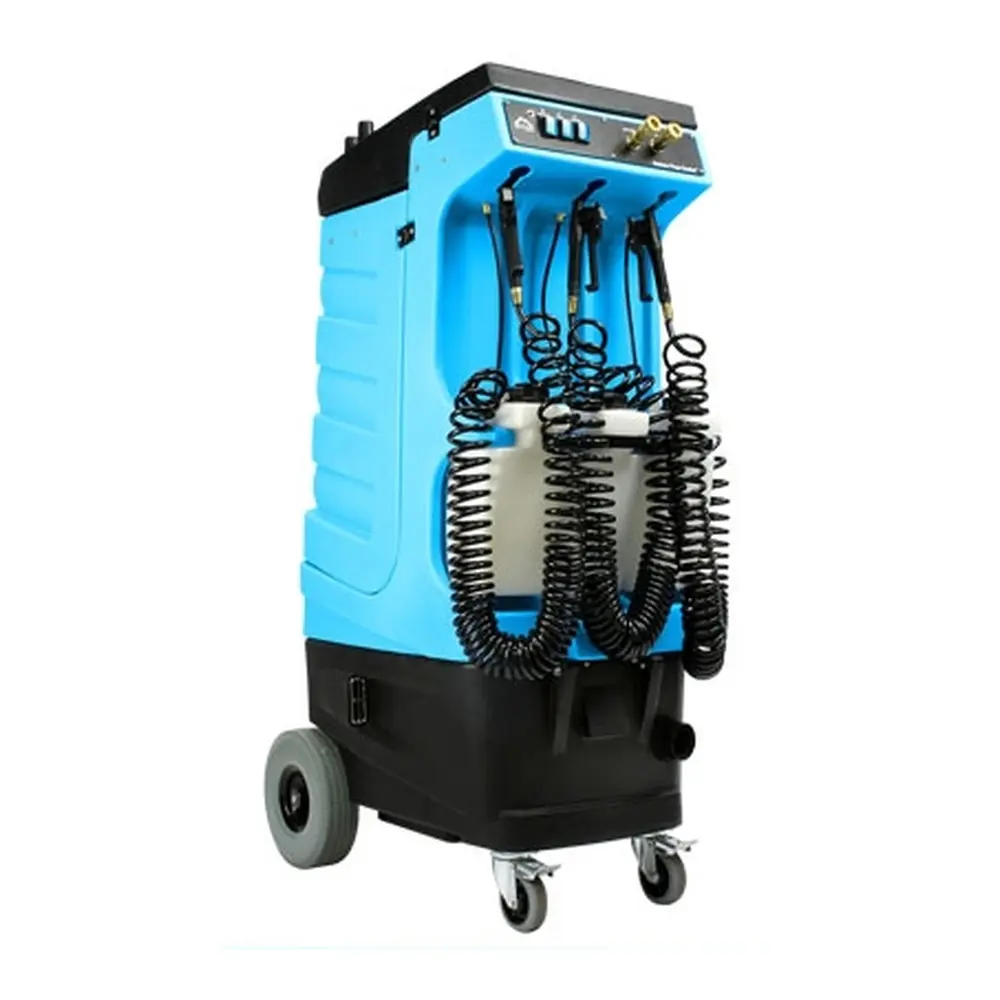

New Mytee Prep Center S All-In-One Detail Machine, 12 gal., 120 PSI
Our Take (from the SES Sales Team)
“The Prep Center S is for detail shops that are tired of rolling three or four machines up to every car. In one cart it does heated extraction, wet and dry vacuuming, interior and exterior drying with a blower, and chemical application. The extraction side matches the HP120: a 1,200 W REAL HEAT in-line heater good for 210°F, a 120 PSI viton-sealed pump and a 3-stage vacuum at 100 CFM and 130 in of water lift, but the tanks go up to 12 gal each. The chemical system is the part detailers like most. Three bottles are pressurized by your shop air, up to 30 PSI, and each has its own 25 ft coiled hose and adjustable spray gun, so you can keep your all-purpose cleaner, upholstery cleaner and dressing ready to go. Mytee even notes you can connect an air brush at the front quick connect for paint correction work. It all runs on one 25 ft cord, and a built-in tray keeps the tools organized.”
Extraction, vacuuming, drying and chemical application in one cart
The Mytee 80-120 Prep Center S is an all-in-one detail machine. It performs hot water extraction, wet and dry vacuuming, interior and exterior drying and chemical application, and with an air brush on the front quick connect it can support paint correction work.
The REAL HEAT system heats solution up to 210°F with a 1,200 W in-line heater, a 120 PSI viton-sealed pump feeds the tools, and a 3-stage low-amp vacuum provides 100 CFM and 130 in of water lift. The 12 gal tanks and a single power cord keep it simple to run.
Condition: New.
What you get
Tools for every step
Shop air required for the sprayers
Features
A full detail station on wheels
- ✓REAL HEAT system with a 1,200 W in-line heater, up to 210°F
- ✓Wet and dry vacuum capability plus interior and exterior drying
- ✓Three air-powered chemical bottles with 25 ft coiled hoses and adjustable guns
- ✓Built-in tray keeps tools organized and stored after each job
- ✓Convenient faucet fill hose and a roto-molded body on foam-filled wheels
Slim, mobile chassis
Mytee redesigned the chassis to make the Prep Center S slimmer and more mobile than earlier Prep Center models, while adding capacity.
Compare
Mytee detailing extractors
| Model | Solution / recovery | Pump | Heat | Water lift | Net weight |
|---|---|---|---|---|---|
| S-300 Tempo | 1 / 1 gal | 55 PSI | None | 85 in | 27 lb (12.2 kg) |
| HP120 Grand Prix | 10 / 10 gal | 120 PSI | 1,200 W in-line | 130 in | 109 lb (49.4 kg) |
| 80-120 Prep Center S (this unit) | 12 / 12 gal | 120 PSI | 1,200 W in-line | 130 in | 144 lb (65.3 kg) |
The Prep Center S adds dry vacuuming, a blower and three air-powered chemical sprayers to the hot water extraction of the HP120.
Specifications
Mytee 80-120 Prep Center S at a glance
| Models | 80-120 Prep Center S |
|---|---|
| Solution / recovery tanks | 12 gal (45.4 L) / 12 gal (45.4 L) |
| Vacuum motor | One 3-stage low-amp, 100 CFM |
| Water lift | 130 in |
| Solution pump | Viton-sealed diaphragm, 120 PSI, 1.3 GPM |
| Heater | REAL HEAT 1,200 W in-line, 210°F max |
| Chemical dispenser | Three bottles with hoses and adjustable nozzles, shop air powered, 30 PSI max |
| Power cord | Single 25 ft (7.6 m) 12/3 |
| Amp draw (115 V) | 20 A |
| Wheels / casters | 10 in (25.4 cm) foam-filled rear wheels / 4 in (10 cm) locking front casters |
| Body | Roto-molded polyethylene |
| Dimensions | 31 x 19 x 55 in (78.7 x 48.2 x 139.7 cm) |
| Net weight | 144 lb (65.3 kg) |
| Shipping weight | 190 lb (86.2 kg) |
| Model Numbers | 80-120 (Prep Center S all-in-one detail machine, 115 V) |
Technical specs may include optional equipment that is not included with all units.
Questions
Mytee Prep Center S: common questions
Do I need an air compressor?
Only for the three chemical sprayers, which run on shop air at up to 30 PSI. Extraction, vacuuming and heat run on the single power cord.
What power does it need?
One 25 ft cord drawing 20 A at 115 V, so plan on a 20 A circuit.
Can it dry vacuum?
Yes. It has wet and dry vacuum capability and comes with a 25 ft dry vacuum hose, a claw and a crevice tool.
How hot does the solution get?
The REAL HEAT 1,200 W in-line heater brings solution up to 210°F.
Is a 230 V version available?
Mytee builds a 230 V 50/60 Hz version. This listing is the standard 115 V model, so ask us if you need the 230 V unit.
