| Models | Ambassador 20 |
| Cleaning Path | 20 in (51 cm) |
| Solution Tank | 25 gal (95 L) |
| Recovery Tank | 25 gal (95 L) |
| Tank Construction | Rotationally molded polyethylene |
| Vacuum Motor | 2 hp (1.5 kW), 3-stage |
| Waterlift | 105 in (2,667 mm) |
| Airflow | 100 cfm (170 m³/hr) |
| Solution Pump | 100 psi (6.9 bar), 4 quick-disconnect jets |
| Brush | 4 in (10 cm) diameter |
| Brush Speed | 1,400 rpm |
| Vacuum Shoe | 20 in (51 cm), stainless steel; pivoting, spring-loaded, disengages in reverse |
| Propulsion | Self-propelled |
| Turning Radius | 43 in (109 cm) |
| Power Cord | 75 ft (23 m), 14-3 |
| Electrical | 115 V, 60 Hz, 12 A |
| Wheels and Casters | (2) 8 in (20 cm) front wheels; (2) 3 in (8 cm) rear casters |
| Dimensions (L x W x H) | 45.1 x 20.8 x 38.3 in (114.6 x 52.7 x 97.2 cm) |
| Weight (gross) | 234 lb (106 kg) |
| Options | Scrub wand, upholstery tool, ET tool, 15 ft or 25 ft hose |
| Model Numbers | C8420-115 |
Technical specs may include optional equipment that is not included with all units.
New Minuteman Ambassador 20 Self-Propelled Carpet Extractor
Our Take (from the SES Sales Team)
“The Ambassador 20 is built for big carpeted spaces where one person has to cover a lot of square footage: hotel ballrooms and corridors, office floors, schools and churches. It sprays, scrubs and extracts in one pass across a 20-inch path, and the 25-gallon solution and recovery tanks mean fewer stops to refill and dump.
Self-propulsion is the big difference from a push-style extractor. The drive moves the machine, so the operator steers instead of muscling it across carpet, and the 43-inch turning radius helps at the end of each row. The 100 psi pump and 2 hp, three-stage vacuum do the cleaning, and the pivoting, spring-loaded vac shoe disengages when you back up.
It is corded, so the 75-foot cord means no batteries to maintain but also a cord to manage and outlets to plan around. It is a large machine for open areas; for stairs, upholstery or small offices, add the optional wand and hose or look at a portable extractor instead.”
“I ordered an extractor and got exactly what was in the description. My order got to my business in Texas much sooner than anticipated.” — Sam A., Google review
Self-propelled extraction on a 75-foot cord.

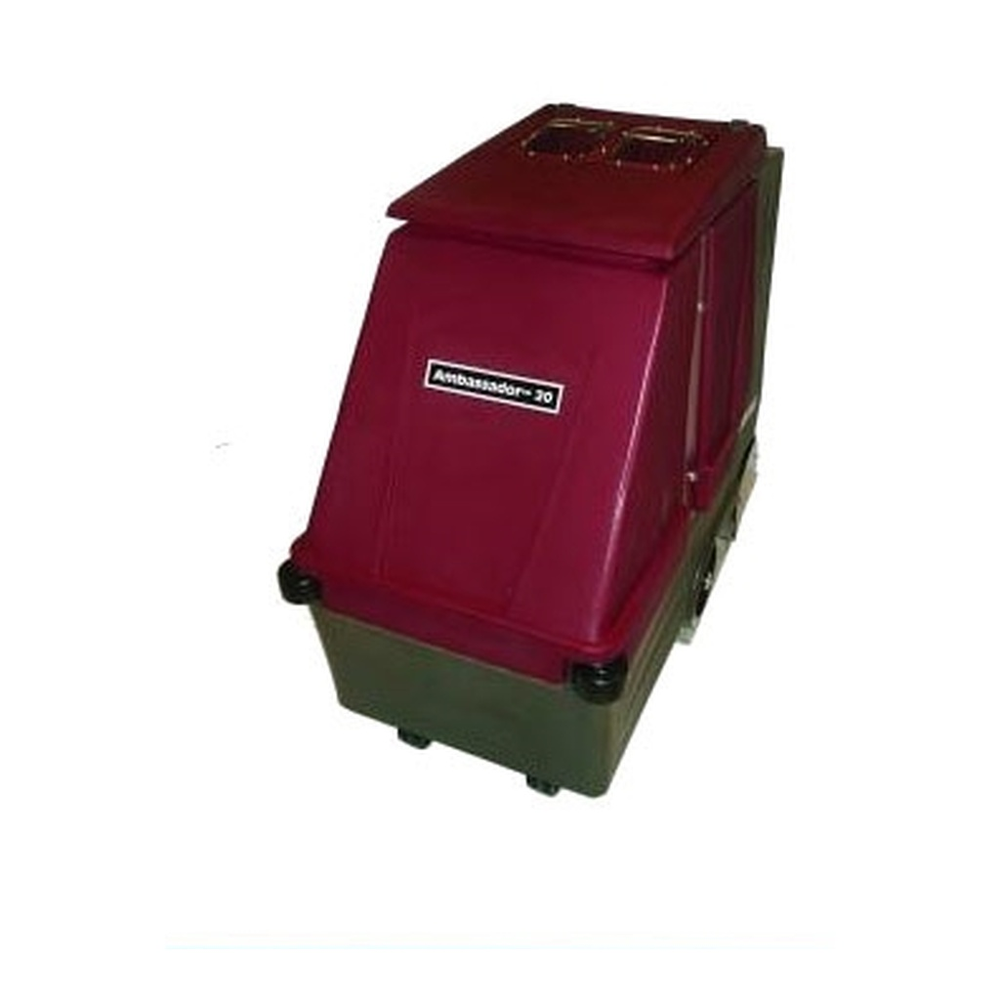

The Minuteman Ambassador 20 is a self-propelled, walk-behind carpet extractor that sprays, scrubs and extracts in one pass across a 20-inch (51 cm) cleaning path. It runs on a 75-foot (23 m) 14-3 power cord, so there are no batteries to charge or maintain. The solution and recovery tanks each hold 25 gallons (95 L) and are rotationally molded polyethylene.
A 4-inch brush agitates the carpet while a 100 psi solution pump feeds four quick-disconnect jets. A 2 hp, three-stage vacuum motor produces 105 inches of waterlift and 100 CFM through a 20-inch stainless steel vacuum shoe that pivots, is spring-loaded and disengages in reverse. Minuteman lists a 43-inch turning radius, and a scrub wand, upholstery tool, ET tool and hoses are optional.
Ready to work out of the box
What's included
- ✓4" brush (installed)
- ✓75' 14-3 power cord
Not included: Scrub wand, upholstery tool, ET tool and 15' or 25' hose are optional.
Features
- ✓Sprays, scrubs and extracts in one pass across a 20-in (51 cm) path
- ✓Self-propelled, with the operator panel within easy reach
- ✓Pivoting, spring-loaded vacuum shoe that disengages in reverse
- ✓25-gal (95 L) solution and recovery tanks
- ✓All-electric with a 75-ft (23 m) 14-3 power cord; no batteries
Minuteman Ambassador 20 Self-Propelled Carpet Extractor
Specifications
| Models | Ambassador 20 |
| Cleaning Path | 20 in (51 cm) |
| Solution Tank | 25 gal (95 L) |
| Recovery Tank | 25 gal (95 L) |
| Tank Construction | Rotationally molded polyethylene |
| Vacuum Motor | 2 hp (1.5 kW), 3-stage |
| Waterlift | 105 in (2,667 mm) |
| Airflow | 100 cfm (170 m³/hr) |
| Brush Speed | 1,400 rpm |
| Dimensions (L x W x H) | 45.1 x 20.8 x 38.3 in (114.6 x 52.7 x 97.2 cm) |
| Weight (gross) | 234 lb (106 kg) |
| Model Numbers | C8420-115 |
Technical specs may include optional equipment that is not included with all units.
