| Models | Ambassador Jr. |
| Cleaning Path | 14 in (36 cm) |
| Solution Tank | 6 gal (23 L) |
| Recovery Tank | 6 gal (23 L) |
| Pump | 50 psi (3.4 bar) |
| Spray Jets | 3, quick-disconnect |
| Brush | Cylindrical, helical design |
| Brush Speed | 1,800 rpm |
| Brush Motor | 1/8 hp (93 W) |
| Vacuum Motor | 1 hp, 2-stage |
| Water Lift | 85 in (2,159 mm) |
| Airflow | 95 cfm (2.7 m³/min) |
| Electrical | 115 V, 60 Hz, standard 15 A circuit |
| Power Cord | 50 ft (15 m) |
| Wheels | 8 in (20 cm) |
| Dimensions (L x W x H) | 36 x 14 x 34.5 in (91 x 35.5 x 88 cm) |
| Weight | 75 lb (34 kg) |
| Model Numbers | C45014-01 |
Technical specs may include optional equipment that is not included with all units.

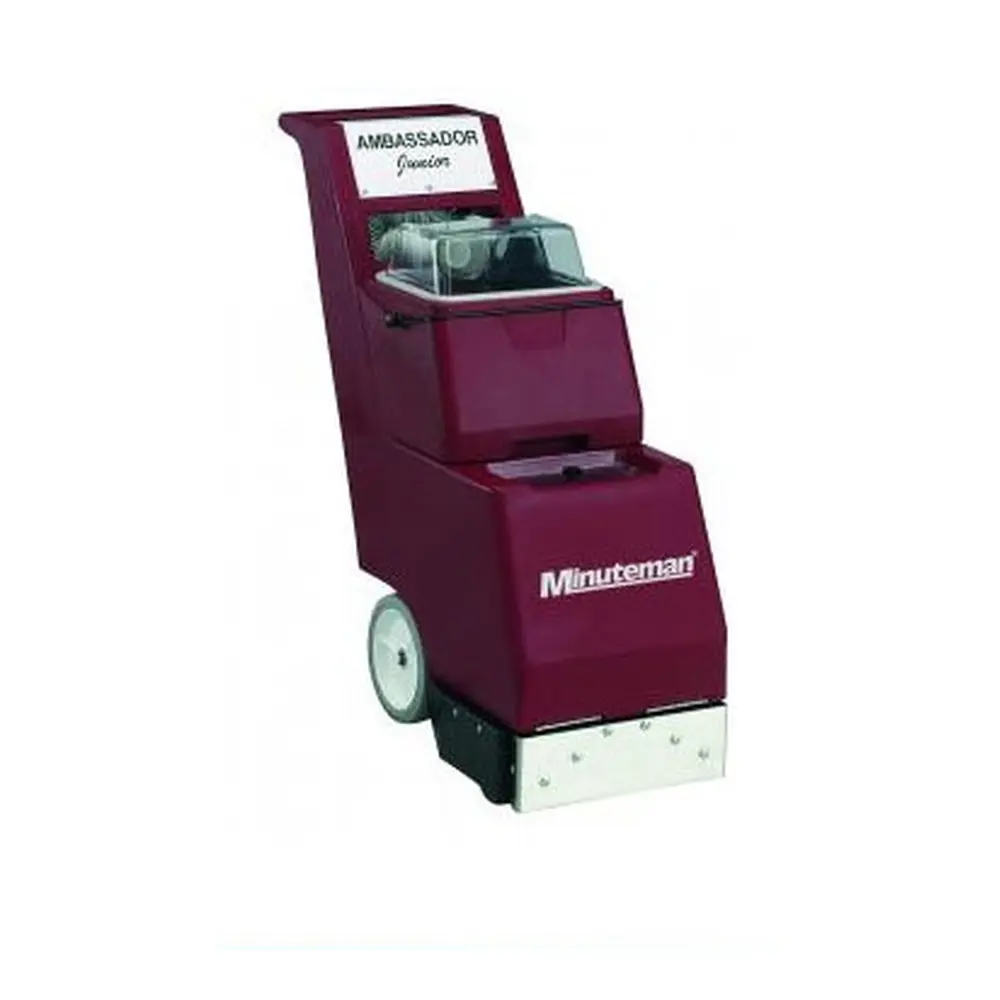

New Minuteman Ambassador Jr. 14" Self-Contained Carpet Extractor
Our Take (from the SES Sales Team)
“The Ambassador Jr. is a compact self-contained carpet extractor for hotel rooms, classrooms, healthcare corridors and offices, where a portable box unit with a wand is slow and a full-size walk-behind is too big. It sprays, brushes and extracts in one pass across a 14-inch path, with 6-gallon solution and recovery tanks and a 50 psi pump.
It is built for steady daily work. The polyethylene body won't dent or rust, the three spray jets twist off for cleaning, and a stainless steel strainer protects the pump. A 1 hp, 2-stage vacuum pulls 85 inches of water lift, the helical brush turns at 1,800 rpm, and a float shutoff protects the vacuum motor. Brush pressure adjusts at the back against a gauge, and an auxiliary pump switch runs an optional upholstery tool.
Know the trade-offs. Six gallons means frequent refills on large rooms, and the operator pulls the machine backward by hand. For bigger open carpet, Minuteman's 17-inch X17 or the self-propelled Ambassador 20 covers ground faster.”
One-pass carpet extraction across a 14-inch path.
The Minuteman Ambassador Jr. is a self-contained carpet extractor that sprays cleaning solution, agitates the carpet with a brush and vacuums the water back up in one pass. It cleans a 14-inch (36 cm) path and carries 6-gallon (23 L) solution and recovery tanks. A 50 psi pump feeds three quick-disconnect spray jets, and the helical cylindrical brush turns at 1,800 rpm.
A 1 hp, 2-stage vacuum motor delivers 85 inches (2,159 mm) of water lift, and an automatic float shutoff protects it. The non-conductive control panel has separate vacuum, brush and pump switches, a 3-way solution switch for continuous or momentary spray, and an auxiliary pump switch for accessory tools. The body is non-corrosive polyethylene, Viton seals resist newer chemicals, and the plugs are hospital grade.
Not included: Upholstery and stair tools, sold separately
Features:
- 14-inch cleaning path with 6-gal solution and recovery tanks
- 50 psi pump with three quick-disconnect spray jets
- Helical cylindrical brush at 1,800 rpm with a brush pressure gauge
- 1 hp, 2-stage vacuum with automatic float shutoff
- Non-corrosive polyethylene body and hospital-grade plugs
