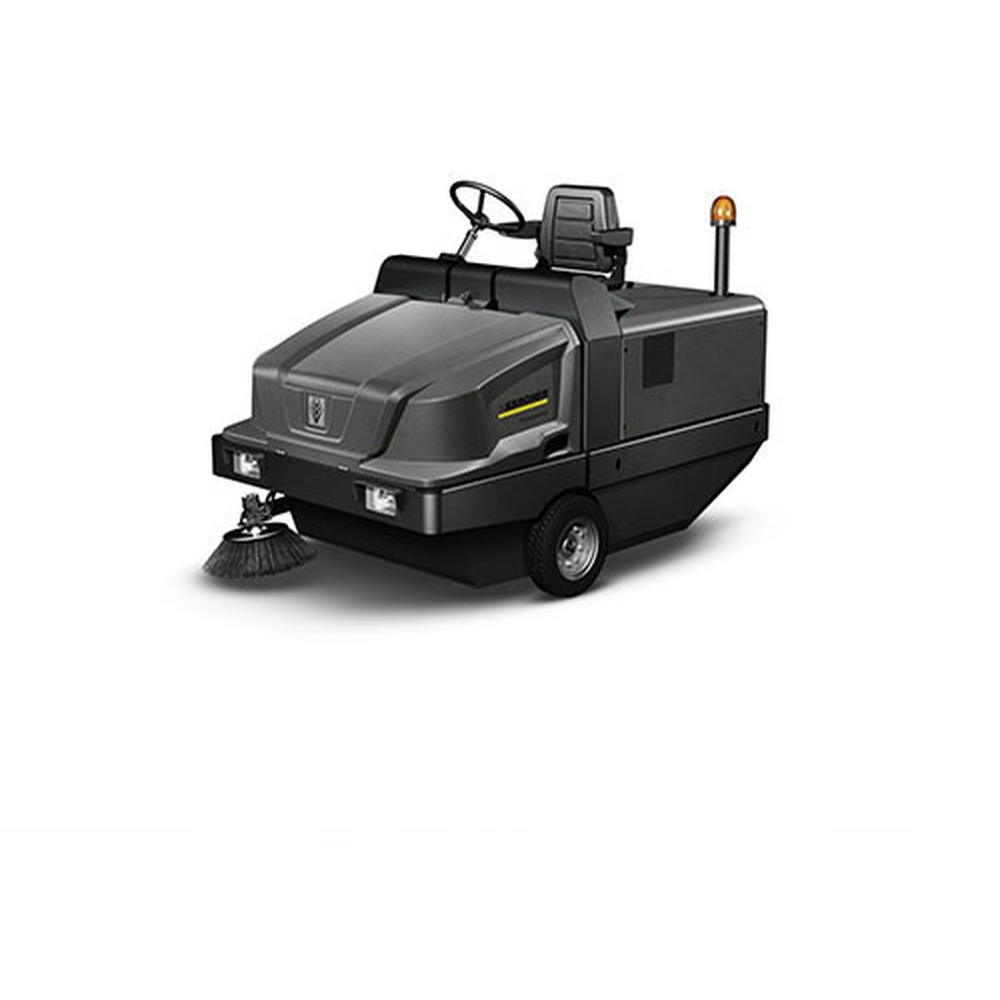

New Karcher KM 130/300 R Ride-On Floor Sweeper
Our Take (from the SES Sales Team)
“The KM 130/300 R is a true industrial sweeper for plants, warehouses, recycling and bulk-material sites, and big outdoor lots where a commercial rider would wear out. The 10.6 cu ft (300 L) container dumps hydraulically, so the operator can empty it into a dumpster without getting off and shoveling, and the filters clean at the push of a button when the dust gets heavy.
Start with power. The battery (Bp) models run emission-free on a 36 V steel-case battery, which is what you want for indoor work around people and product. The LPG models are faster, climb steeper ramps and run about four hours on a tank, which suits long shifts and outdoor yards. Then pick one side brush for about 51 inches of coverage or two for about 61 inches. Add an overhead guard where forklifts and racking are around, lights for dim areas, and on battery models a high-efficiency charger.”
A heavy-duty industrial ride-on sweeper, battery or LPG
The Kärcher KM 130/300 R is a fully hydraulic industrial ride-on vacuum sweeper for extreme cleaning jobs indoors and out. It works on the dustpan principle, so fine sweepings and coarse dirt are both picked up and vacuumed into a 300-liter (10.6 cu ft) container that lifts hydraulically to dump. The KM 130/300 R Bp runs on a 36 V steel-case battery for emission-free work indoors, and the KM 130/300 R LPG runs on a 3-cylinder Kubota LPG engine. Each comes with one or two side brushes and options for an overhead guard, lights and, on battery models, a high-efficiency charger.
Choose your configuration
Pick the power source and side brushes
| Battery, 1 side brush | Battery, 2 side brushes | LPG, 1 side brush | LPG, 2 side brushes | |
|---|---|---|---|---|
| Power | 36 V steel-case (STL) battery | 36 V steel-case (STL) battery | Kubota 3-cylinder LPG engine | Kubota 3-cylinder LPG engine |
| Working width | 51 in (1,300 mm) | 61 in (1,550 mm) | 51 in (1,300 mm) | 61 in (1,550 mm) |
| Theoretical area performance | 117,540 sq ft/hr | 139,932 sq ft/hr | 139,932 sq ft/hr | 166,842 sq ft/hr |
| Best for | Indoor sweeping with no exhaust | Wider indoor aisles and open floors | Long shifts, indoor and outdoor | The widest path and most coverage |
| Packages here | 9.841-326.0 (base), -327.0 (OHG), -328.0 (OHG + LTS), -332.0 (HE), -333.0 (OHG + HE), -334.0 (OHG + HE + LTS) | 9.841-329.0 (base), -330.0 (OHG), -331.0 (OHG + LTS), -335.0 (HE), -336.0 (OHG + HE), -337.0 (OHG + HE + LTS) | 9.841-398.0 (base), -402.0 (OHG), -403.0 (OHG + LTS) | 9.841-399.0 (base), -400.0 (OHG), -401.0 (OHG + LTS) |
Reading the model numbers: Kärcher builds each package name from options: Bp is battery powered and LPG is liquid propane, STL is the steel-case battery, 2SB is a second side brush, OHG is an overhead guard, LTS is front/rear or working lights, and HE is a high-efficiency charger. For example, 9.841-337.0 is the KM 130/300 R Bp + 2SB + STL + OHG + HE + LTS.
Features:
- Dustpan principle: fine dust and coarse debris are swept and vacuumed into the container, which closes automatically during transport
- Roller brush adjusts automatically to uneven surfaces and changes without tools
- Two horizontal flat-fold filters with push-button dual-scraper cleaning; filters change without tools
- Hydraulic container lift empties into a dumpster or onto the ground
- EASY Operation concept with self-explanatory symbols and a multi-information display in the operator's line of sight

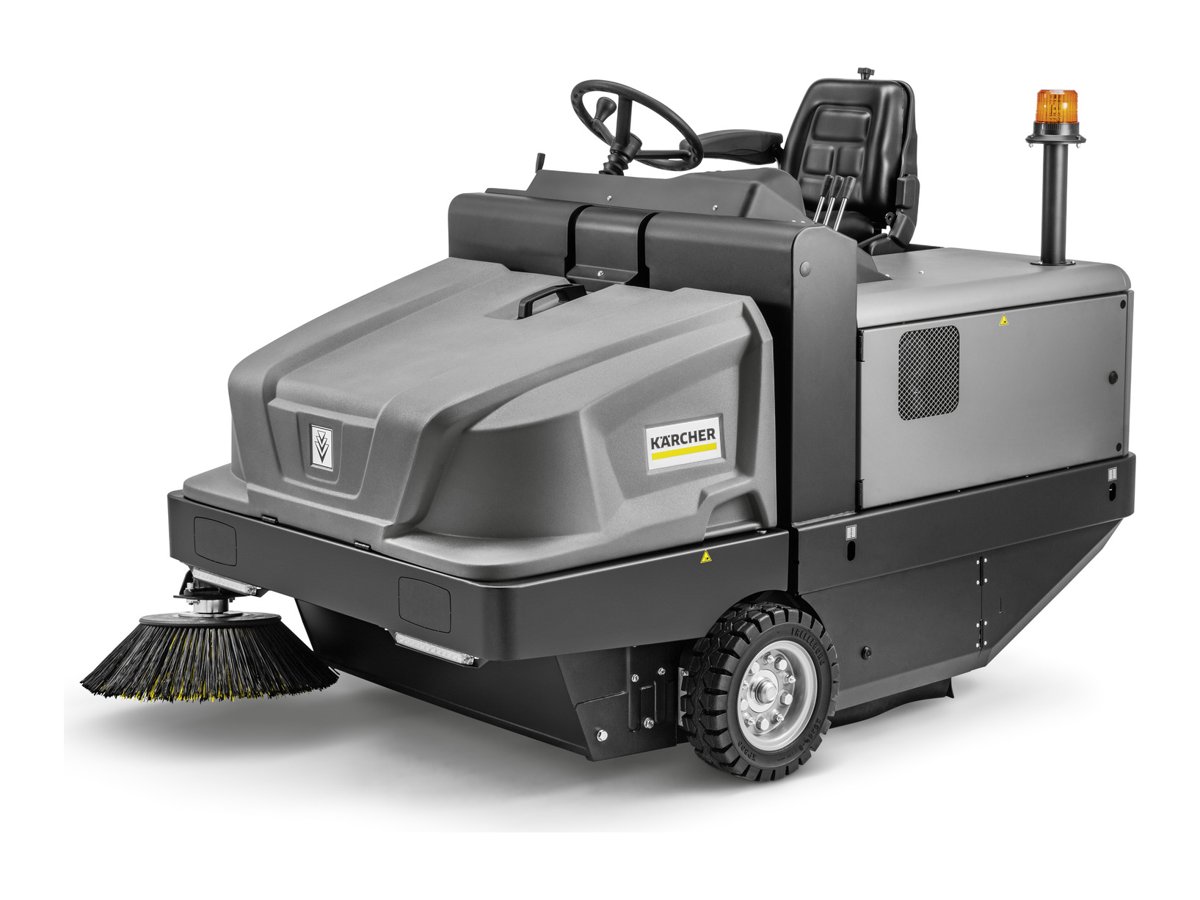

KM 130/300 R Bp

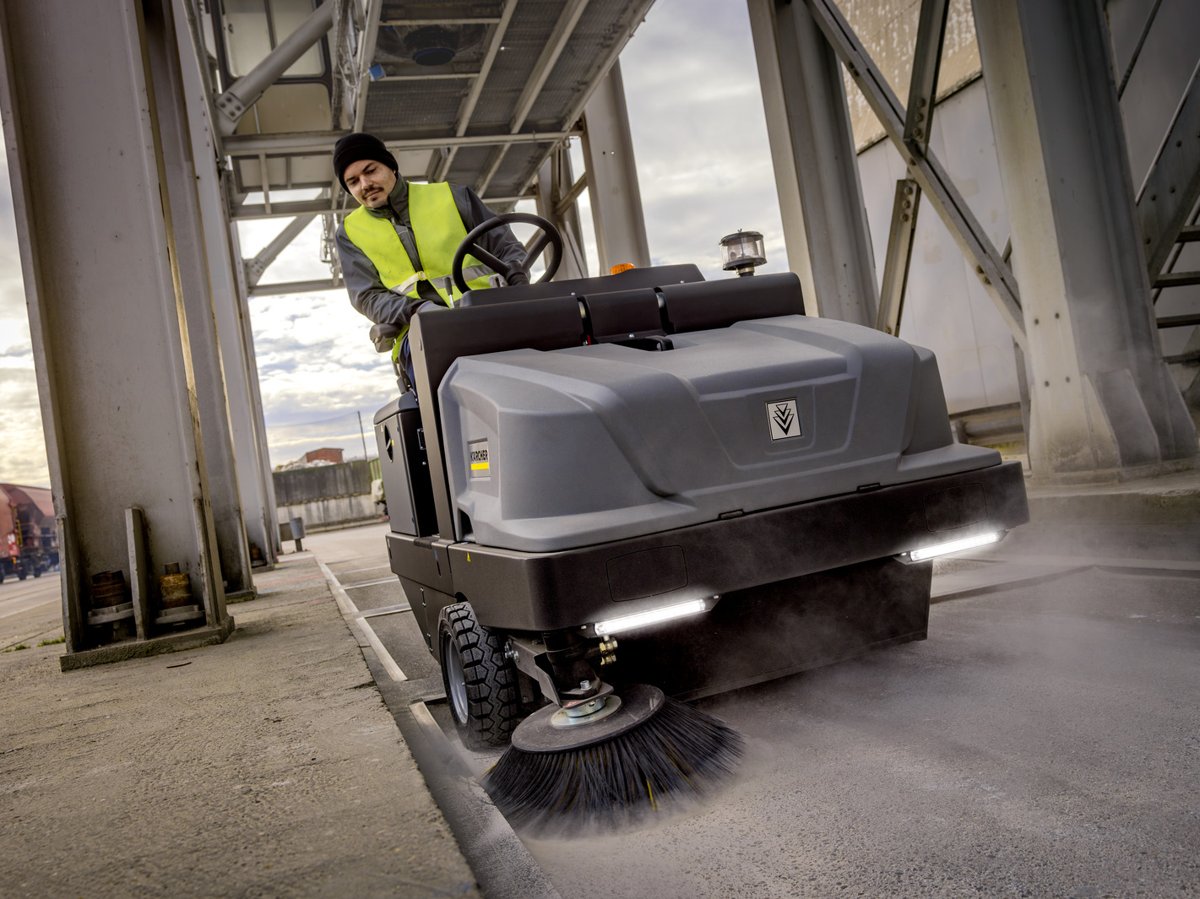

Sweeping an industrial site

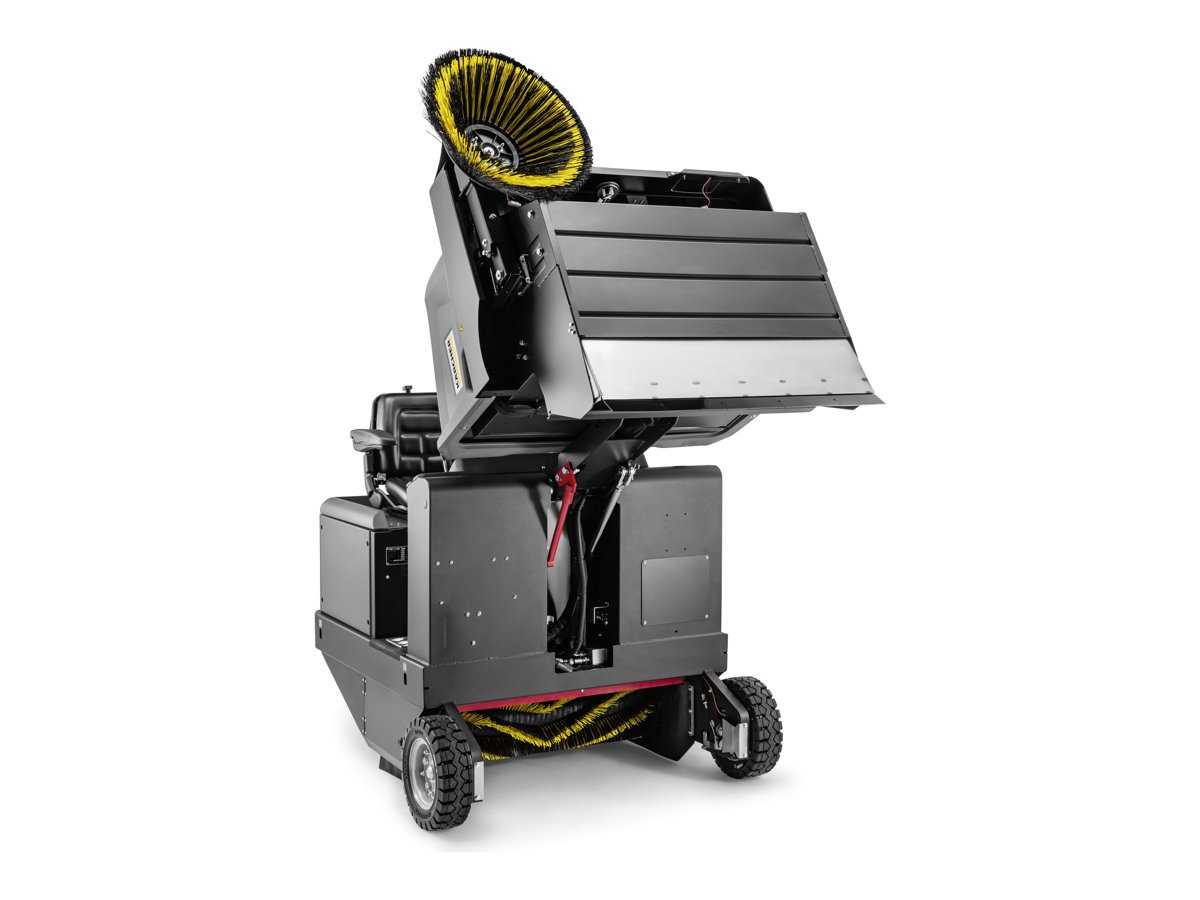

Hydraulic container lift
KM 130/300 R
Specifications
| Models | Battery, 1 side brush | Battery, 2 side brushes | LPG, 1 side brush | LPG, 2 side brushes |
| Working Width | 39.4 in (1,000 mm) main brush; 51 in (1,300 mm) with side brush | 61 in (1,550 mm) with 2 side brushes | 39.4 in (1,000 mm) main brush; 51 in (1,300 mm) with side brush | 61 in (1,550 mm) with 2 side brushes |
| Theoretical Area Performance | 117,540 sq ft/hr (10,920 m²/hr) | 139,932 sq ft/hr (13,000 m²/hr) | 139,932 sq ft/hr (13,000 m²/hr) | 166,842 sq ft/hr (15,500 m²/hr) |
| Waste Container | 10.6 cu ft (300 L), hydraulic dump up to 55 in (1,400 mm) | |||
| Main Roller Brush | 11.8 in (300 mm) diameter, 325 rpm | 11.8 in (300 mm) diameter, 325 rpm | 11.8 in (300 mm) diameter, 350 rpm | 11.8 in (300 mm) diameter, 350 rpm |
| Side Brush Diameter | 23.6 in (600 mm) | |||
| Filter | Two flat-fold filters, 56 sq ft (5.2 m²), dual-scraper cleaning | |||
| Power | 36 V steel-case battery | 36 V steel-case battery | Kubota WG 972, 3-cylinder LPG, 23.5 hp (17.5 kW) | Kubota WG 972, 3-cylinder LPG, 23.5 hp (17.5 kW) |
| Travel Speed | 4.3 mph (7 km/h) | 4.3 mph (7 km/h) | 6.2 mph (10 km/h) | 6.2 mph (10 km/h) |
| Climbing Ability | 14% | 14% | 18% | 18% |
| Turning Radius | 55 in (1,400 mm) | 55 in (1,400 mm) | 57.5 in (1,460 mm) | 57.5 in (1,460 mm) |
| Sound Level | 75 dBA | 75 dBA | 80 dBA | 80 dBA |
| Weight | 1,852 lb (840 kg) without battery | 1,852 lb (840 kg) without battery | 2,039 lb (925 kg) unladen | 2,039 lb (925 kg) unladen |
| Dimensions (L x W x H) | 81 x 52 x 56 in (2,057 x 1,321 x 1,422 mm) without overhead guard | |||
| Model Numbers | 9.841-326.0, -327.0, -328.0, -332.0, -333.0, -334.0 | 9.841-329.0, -330.0, -331.0, -335.0, -336.0, -337.0 | 9.841-398.0, -402.0, -403.0 | 9.841-399.0, -400.0, -401.0 |
Technical specs may include optional equipment that is not included with all units.
