| Models | KM 100/120 R Bp |
| Main Broom Working Width | 28.7 in (730 mm) |
| Working Width With 1 Side Broom | 39.4 in (1,000 mm) |
| Working Width With 2 Side Brooms (optional kit) | 50 in (1,270 mm) |
| Main Broom | Floating roller broom, 600 rpm |
| Waste Container | 31.7 gal (120 L), hydraulic high dump |
| Max. Dump Height | 60 in (1,520 mm) |
| Filter | Self-cleaning round filter, 64.5 sq ft (6 m²) |
| System Voltage | 24 V |
| Batteries | AGM |
| Charger | Shelf charger, 24 V, 50 A |
| Traction Drive | DC wheel-hub motor in front wheel, 780 W |
| Side Broom Motor | 80 W, 80 rpm |
| Sound Pressure Level | 74 dB(A) |
| Model Numbers | 9.899-870.0 |
Technical specs may include optional equipment that is not included with all units.

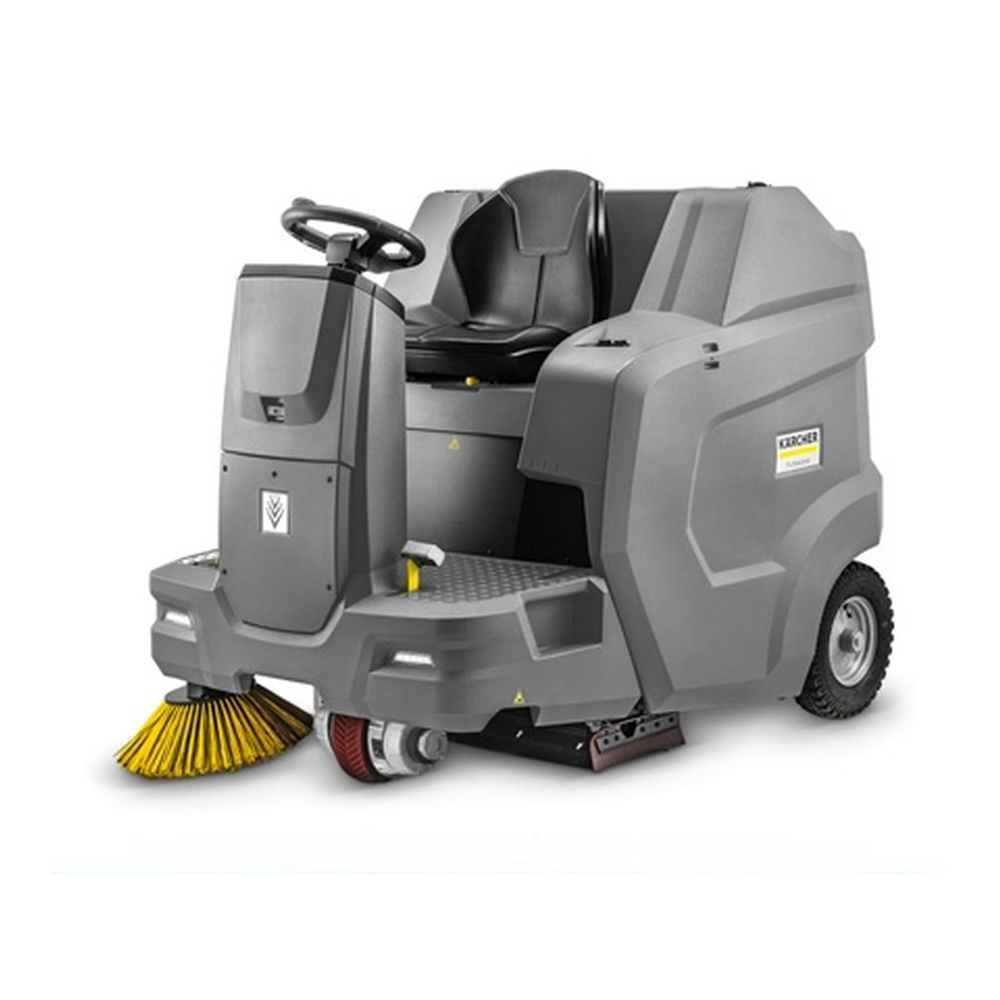

New Karcher KM 100/120 R Bp 40" Cylindrical Rider Sweeper
Our Take (from the SES Sales Team)
“The KM 100/120 R Bp is a battery ride-on sweeper for warehouses, manufacturing plants, distribution centers and parking structures where dust is heavy and the space is too big to sweep on foot. It runs on 24 V AGM batteries with no exhaust, so it can work indoors, and the floating main broom follows uneven floors.
What stands out is how it handles dust and debris. The round filter has 64.5 square feet of area and cleans itself, the side broom speed can be turned down in dusty areas, and the side broom retracts to protect itself and the building. The 31.7-gallon hopper dumps hydraulically at up to 60 inches, and the filter and main broom change without tools.
The trade-off is size. This is a large machine with a shelf charger, so it needs a charging area and room to turn, and the standard path with one side broom is 39.4 inches. For smaller areas, a walk-behind like the KM 75/40 W Bp is easier to store and move.”
“This was our first ride on powered sweeper for our company and we were recommended a ROS1300 sweeper. Great recommendation and the unit has worked up to expectations. There is no comparison in the performance of cleaning with a powered sweeper like this and a push broom/dust mop.” — Ryan J., Google review
Battery ride-on sweeping with a self-cleaning filter and hydraulic high dump.
The Kärcher KM 100/120 R Bp (9.899-870.0) is a battery-powered ride-on sweeper with a floating main roller broom. Its 28.7-inch main broom and standard side broom sweep a 39.4-inch path, and an optional second side broom kit widens it to 50 inches. A 24 V AGM battery system and a 24 V, 50 A shelf charger are standard, and the traction drive uses a DC wheel-hub motor in the front wheel.

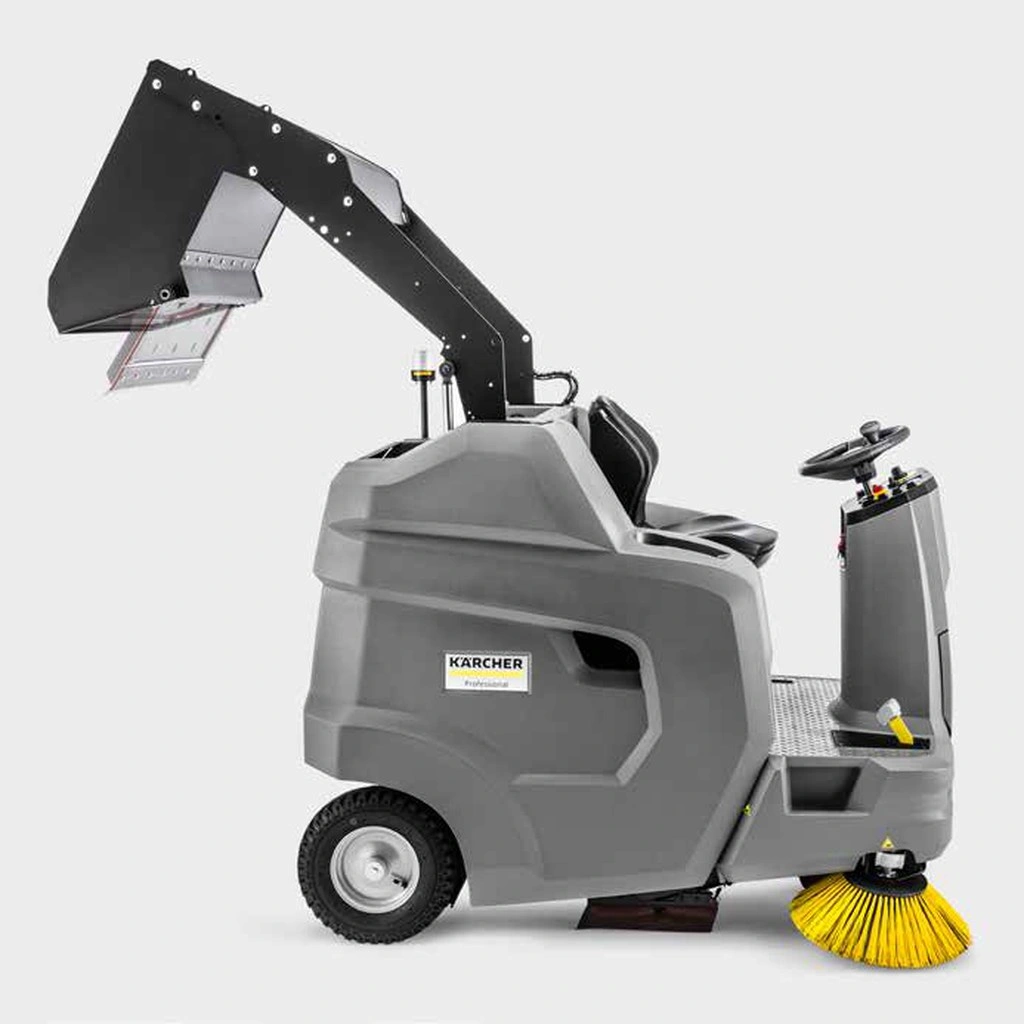

Debris goes into a 31.7-gallon container with hydraulic high dump to 60 inches. The self-cleaning round filter has 64.5 sq ft of area, and the side broom retracts to prevent damage and has adjustable speed for dusty areas. The filter and main broom change without tools, and an adjustable seat and yellow color-coded controls keep operation simple. Options include an overhead guard, lights and a vacuum kit.
Includes:
- 24 V AGM battery pack
- Shelf charger (24 V, 50 A)
- Main broom and side broom
- Round filter
Features:
- 39.4-inch path with one side broom, 50 inches with optional second
- Floating main roller broom
- Self-cleaning round filter with 64.5 sq ft of area
- 31.7-gallon hopper with hydraulic high dump to 60 inches
- Tool-free filter and main broom changes
