| Models | HD Pallet Skid with Tank |
| Water Tank | 50 gal (189 L) |
| Hose Reel | One 100 ft (30.5 m) hose reel |
| Frame Material | Mild steel |
| Compatible Pressure Washers | Kärcher HD Series Gas and Teton Series direct-drive models (sold separately) |
| Skid Feet | Included |
| Forklift Holes | Yes |
| Fits | Standard UTV / ATV bed |
| Assembly | Required |
| Shipping Weight | 185 lb (83.9 kg) |
| Shipping Dimensions (L x W x H) | 40 x 48 x 35 in (101.6 x 121.9 x 88.9 cm) |
| Factory-Installed Options | Rubber feet kit, inlet filter kit, lifting eye bolts kit, three-way valve kit |
| Model Numbers | 9.807-833.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher HD Pallet Skid with Tank for Pressure Washers
Our Take (from the SES Sales Team)
“The HD Pallet Skid with Tank turns a Kärcher direct-drive gas pressure washer into a self-contained wash station. It puts a 50-gallon water tank and a 100-foot hose reel on a mild steel pallet that fits in a standard UTV or ATV bed, so grounds crews, facility teams and contractors can wash where there is no spigot nearby.
What stands out is how simple it is. It has forklift holes for loading, skid feet are included, and it is designed around Kärcher's HD Series Gas and Teton direct-drive units, including the HD 3.0/27 G Teton. Kärcher also offers factory-installed rubber feet, an inlet filter, lifting eye bolts and a three-way valve.
Keep in mind that this is only the skid. The pressure washer is separate, it needs assembly, and 50 gallons goes quickly at 3 to 4 gpm, so it suits spot jobs and remote cleanups more than long continuous washing. If your truck or trailer already carries water, the HD Pallet Skid with two 100-foot hose reels may fit better.”
A 50-gallon tank and hose reel on a UTV-ready skid.

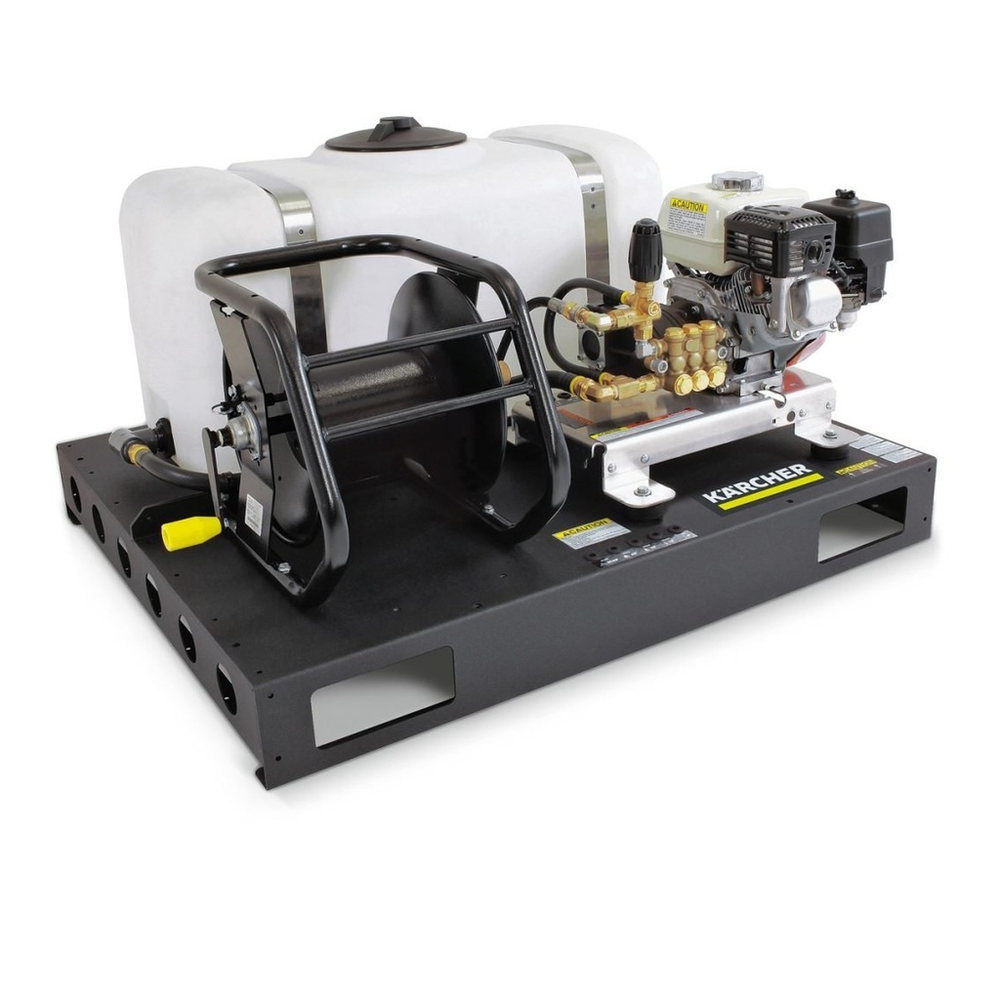

The Kärcher HD Pallet Skid with Tank (9.807-833.0) is a mild steel skid with a 50-gallon water tank and one 100-foot hose reel. It is built to carry a Kärcher HD Series Gas or Teton Series direct-drive pressure washer, which is sold separately. The skid fits within a standard UTV or ATV bed, has forklift holes for loading and comes with skid feet.
Kärcher lists the HD 3.0/27 G Teton, HD 3.5/35 G Teton, HD 4.0/40 G Teton and HD 4.0/40 Ge Teton, along with HD Series Gas direct-drive models, as compatible units. Assembly is required. Factory-installed options include a rubber feet kit, an inlet filter kit, a lifting eye bolts kit and a three-way valve kit. A version with two 100-foot hose reels and no tank is also available.
Includes:
- Mild steel pallet skid with forklift holes
- 50 gal water tank
- One 100 ft hose reel
- Skid feet
Not included: Pressure washer, sold separately.
Features:
- 50 gal water tank and one 100 ft hose reel
- Mild steel pallet skid with forklift holes
- Fits within a standard UTV or ATV bed
- Skid feet included; assembly required
- Made for Kärcher HD Series Gas and Teton direct-drive washers
