| Models | KM 170/600 R D Classic |
| Cleaning Path, Main Broom | 53 in (1,344 mm) |
| Cleaning Path with Standard Side Broom | 67 in (1,700 mm) |
| Cleaning Path with Optional Second Side Broom | 79 in (2,000 mm) |
| Sweeping Method | Direct throw, floating main broom |
| Main / Side Broom Diameter | 15.7 / 25.6 in (400 / 650 mm) |
| Debris Container | 158 gal (600 L), hydraulic high dump |
| Max. Dump Height | 60 in (1,540 mm) |
| Engine | Kubota V1505 four-cylinder diesel, 24.8 hp (18.5 kW) |
| Emissions | EPA Tier 4 Final, EU Stage V |
| Fuel Tank | 6.9 gal (26 L) |
| Run Time per Tank | 4.5 hr |
| Max. Speed | 8.7 mph (14 km/h) |
| Max. Climbing Ability | 18% |
| Minimum Turning Radius | 8.3 ft (2,525 mm) |
| Filter | Two flat pleated filters with automatic cleaning every 10 minutes |
| Sound Pressure Level | 82 dB(A) |
| Sound Power Level | 103 dB(A) |
| Unladen Weight | 3,737 lb (1,695 kg) |
| Model Numbers | 9.800-891.0 |
Technical specs may include optional equipment that is not included with all units.

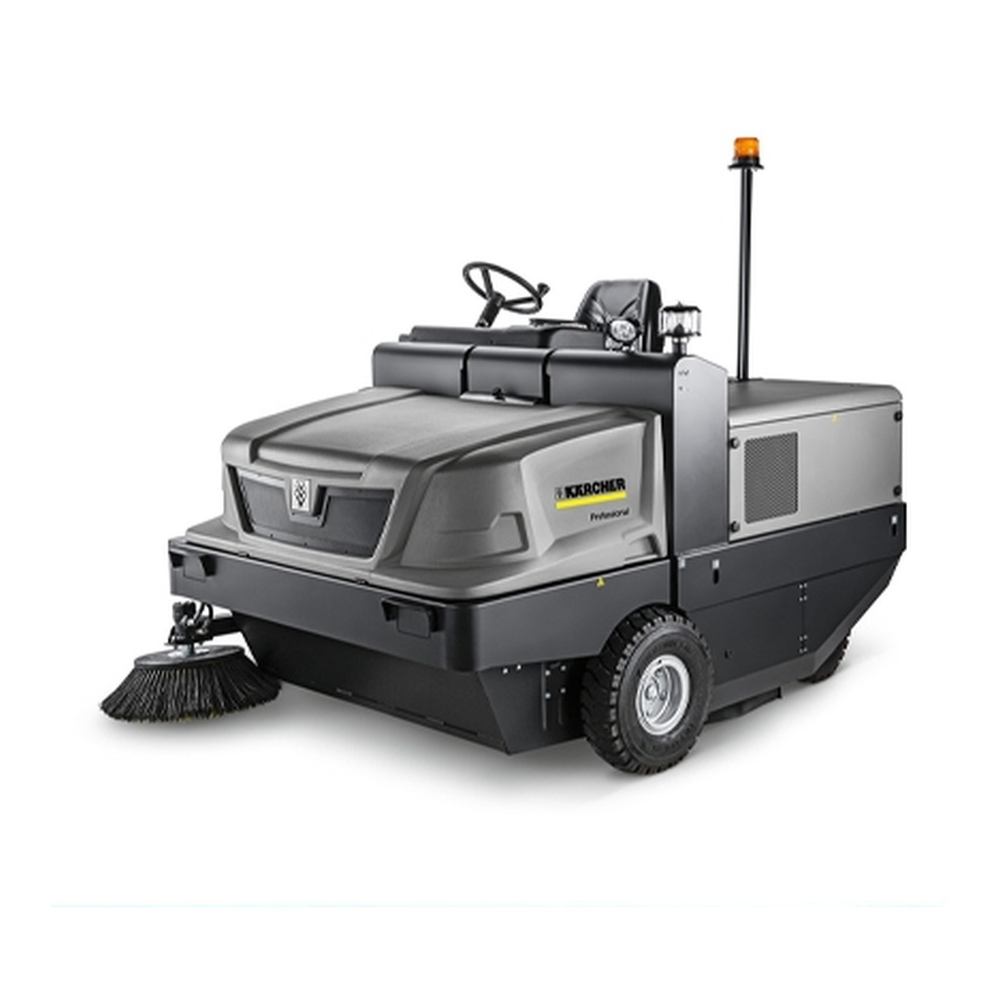

New Karcher KM 170/600 R D Classic 53" Rider Sweeper
Our Take (from the SES Sales Team)
“The KM 170/600 R D Classic is an industrial ride-on sweeper for heavy, dirty work: foundries, building materials and metalworking plants, construction sites and large yards or warehouses. It sweeps a 53 in path with the main broom and 67 in with the standard side broom, and it lifts and dumps a 158 gal hopper hydraulically from up to 60 in.
What stands out is how it handles fine dust along with coarse debris. It is a direct-throw sweeper with a floating main broom, and its two flat pleated filters clean themselves automatically every 10 minutes, which helps in heavy dust and extends filter life. The 24.8 hp Kubota diesel meets EPA Tier 4 Final, the drive is fully hydraulic, and the main broom and filters change without tools.
Keep in mind it is built for outdoor and heavy industrial use; it runs at 82 dB(A) on diesel, so it is not meant for occupied indoor spaces. The base machine has no overhead guard or cab, which are factory-installed options, so specify those up front if your site requires them.”
A diesel ride-on sweeper for heavy debris and fine dust in industrial settings.
The Kärcher KM 170/600 R D Classic (9.800-891.0) is a fully hydraulic, diesel-powered ride-on sweeper with a 53 in floating main broom and a 25.6 in side broom for a 67 in sweeping path, or 79 in with the optional left side broom. Its direct-throw system sends coarse debris and fine dust into a 158 gal container that lifts hydraulically and dumps at up to 60 in.
A Kubota V1505 four-cylinder diesel rated at 18.5 kW (24.8 hp) meets EPA Tier 4 Final and EU Stage V. The sweeper travels at up to 8.7 mph, climbs grades up to 18% and turns in an 8.3 ft radius. Two flat pleated filters are cleaned automatically every 10 minutes and change without tools, as does the main broom. Unladen weight is 3,737 lb.
Includes:
- Main broom
- Right side broom
- Two flat pleated filters
- Rear-view mirror
- Ignition key
Not included: Overhead guard, cab, lights and left side broom are factory-installed options
Features:
- Direct-throw sweeping with a floating main broom
- Automatic filter cleaning every 10 minutes
- Hydraulic high dump up to 60 in
- Tier 4 Final Kubota diesel with hydraulic drive
- Tool-free main broom and filter changes
