| Models | HD 1.8/13 C Ed |
| Operating Pressure | 1,300 psi (9.0 MPa) |
| Flow Rate | 1.8 gpm (6.8 L/min) |
| Max Operating Overpressure | 1,800 psi (12.5 MPa) |
| Water Type | Cold water |
| Power Supply | 120 V, 1 ph, 60 Hz |
| Current Draw | 14 A |
| Fuse Protection | 15 A, slow (type C) |
| Drive / Pump | Direct drive; Kärcher 3-piston axial pump with stainless steel pistons and brass cylinder head |
| Max Inlet Water Temperature | 140°F (60°C) |
| Min Water Supply | 2.5 gpm (9.5 L/min) |
| Max Inlet Water Pressure | 145 psi (1 MPa) |
| Detergent | Suction, 0-6.6 gph (0-25 L/h) |
| Nozzle Size | 032 |
| High-Pressure Hose | 33 ft (10 m), DN 6 |
| Spray Lance | 33 in (84 cm) |
| Sound Level | 72 dB(A) |
| Weight (with accessories) | 57.8 lb (26.2 kg) |
| Dimensions (L x W x H) | 15 x 14.2 x 36.6 in (38 x 36 x 93 cm) |
| Model Numbers | 1.520-916.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher HD 1.8/13 C Ed Electric Cold Water Pressure Washer
Our Take (from the SES Sales Team)
“The HD 1.8/13 C Ed is a plug-in pressure washer for crews that move from site to site: facility maintenance, property management and cleaning contractors. It runs on a standard 120-volt outlet and can be stored, moved and run upright or lying flat, so it rides in a van or truck bed either way and works where a gas engine's exhaust would be a problem.
The practical details make daily use easier. The 3-piston axial pump has stainless steel pistons and a brass cylinder head, the push handle retracts at the push of a button, and onboard storage holds the wand, nozzles and 33-foot hose, plus a mount for an optional surface cleaner. That makes it simple to arrive with everything you need for entrances, sidewalks, carts and equipment.
Compared with the Pro HD 400 ED, it adds a little flow at the same 1,300 psi. It is still a cold water electric unit, so for heavy grease or fleet washing, look at a hot water or gas pressure washer instead.”
A Compact Class washer that runs upright or flat.

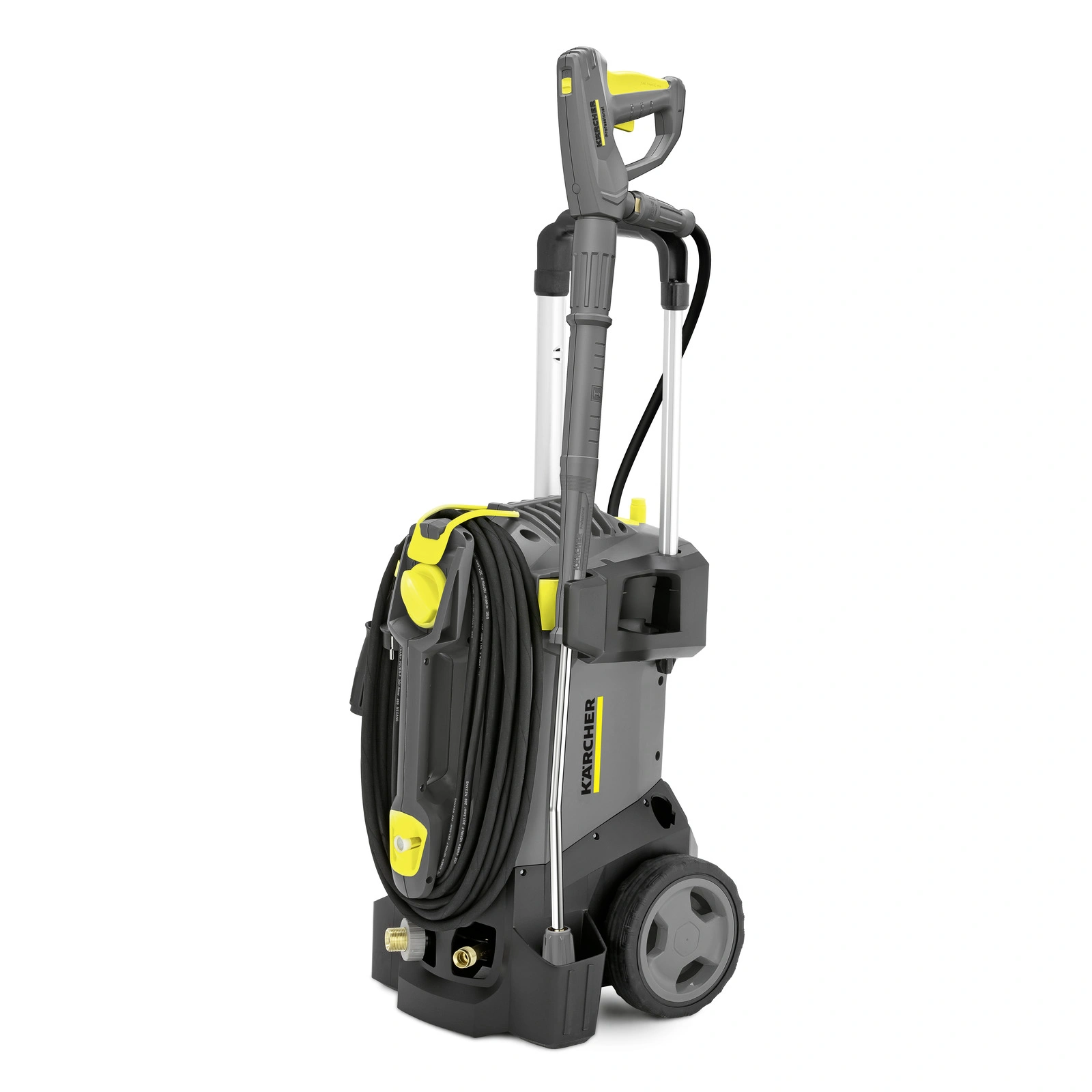

The Kärcher HD 1.8/13 C Ed (1.520-916.0) is a compact electric cold water pressure washer from Kärcher's HD Compact Class, rated at 1,300 psi and 1.8 gpm. It plugs into a standard 120 V, 60 Hz outlet, draws 14 A, and can be stored, transported and operated vertically or horizontally. In the horizontal position the wheels lift off the ground for stability.
The direct-drive Kärcher axial pump has a brass cylinder head, automatic pressure relief and a large water fine filter. A front carrying handle and a push handle that retracts at the push of a button help with loading into vehicles, and built-in storage holds the spray wand, nozzles and high-pressure hose. A screw connection lets an optional surface cleaner be stored on the machine.
Includes:
- EASY!Force spray gun
- 33' (10 m) high-pressure hose
- 33" (840 mm) spray lance
- 032 nozzle
Not included: Garden (water supply) hose and surface cleaner, sold separately.
Features:
- Operates, stores and transports upright or lying flat
- Front carrying handle and a push handle that retracts at the push of a button
- EASY!Force trigger gun and EASY!Lock quick-release couplings
- Brass cylinder head, automatic pressure relief and a large water fine filter
- Onboard storage for the wand, nozzles, hose and an optional surface cleaner
