| Models | HD 3.0/20 M Cage Ea |
| Operating Pressure | 2,000 psi (14 MPa) |
| Max. Pressure | 3,000 psi (20.7 MPa) |
| Flow Rate | 3.0 gpm (11.4 L/min) |
| Water Type | Cold water |
| Power Supply | 220-240 V, 1-phase, 60 Hz |
| Current Draw | 18 A (20 A slow-blow circuit) |
| Motor | 2-pole, air-cooled electric |
| Pump | Kärcher 3-piston axial pump, brass cylinder head, direct drive |
| Standard Nozzle | 25042 |
| Max. Inlet Water Temperature | 140°F (60°C) |
| Min. Water Supply | 4 gpm (15 L/min) |
| Max. Inlet Pressure | 145 psi (1 MPa) |
| High-Pressure Hose | 33 ft (10 m), DN 6, EASY!Lock |
| Spray Lance | 33 in (840 mm) |
| Sound Pressure Level | 78 dB(A) |
| Weight (with accessories) | 87.1 lb (39.5 kg) |
| Dimensions (L x W x H) | 15.75 x 17.9 x 27.6 in (400 x 455 x 700 mm) |
| Certification | CSA |
| Model Numbers | 1.150-939.0 |
Technical specs may include optional equipment that is not included with all units.

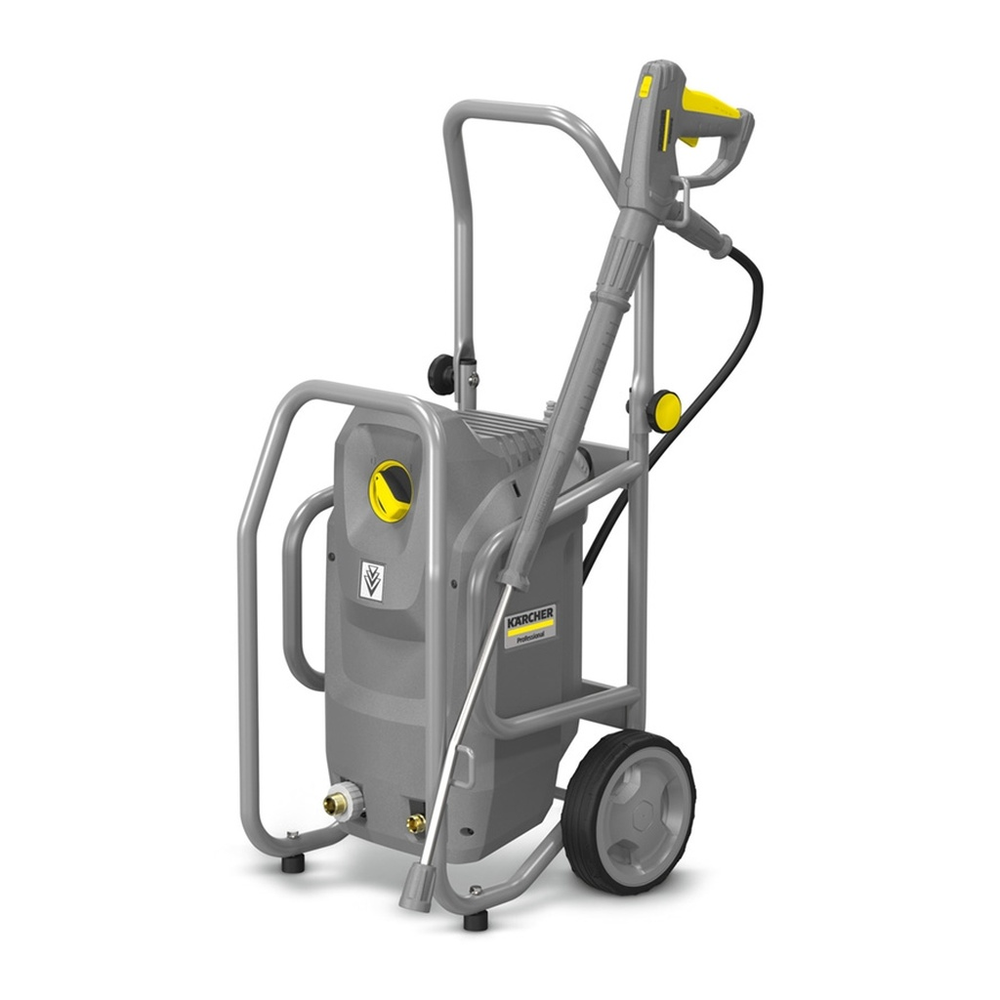

New Karcher HD 3.0/20 M Cage Ea Mid Class Electric Cold Water Pressure Washer
Our Take (from the SES Sales Team)
“The HD 3.0/20 M Cage Ea is the 230 V member of Kärcher's Mid Class Cage line, for facilities and service fleets that have a 220-240 V single-phase outlet and want more than a 120 V washer can deliver. At 2,000 psi and 3.0 gpm it rinses faster and moves heavier dirt on equipment, concrete, trailers and wash pads, with no engine exhaust to manage indoors.
The frame is what sets it apart. A powder-coated tubular steel cage surrounds the motor and pump, protects them while the machine is loaded and carried, and gives solid points to strap it down in a truck, and the washer works upright or on its side. The 3-piston axial pump has a brass cylinder head, its own inlet filter and automatic pressure relief, and the pump and electrical box are easy to reach for service.
The trade-off is power supply and duty cycle. It needs a 220-240 V circuit protected at 20 A, and Kärcher rates the Mid Class Cage for 2 to 3 hours of use per day. If only 120 V is available, the HD 2.3/15 M Cage Ed uses the same frame at 1,500 psi and 2.3 gpm.”
A 230 V cold water washer with 3.0 gpm in a tubular steel cage.
The Kärcher HD 3.0/20 M Cage Ea (1.150-939.0) is an electric cold water pressure washer from the HD Mid Class Cage Series. It runs on 220-240 V single-phase power, draws 18 A, and delivers 3.0 gpm at 2,000 psi through a direct-drive Kärcher 3-piston axial pump with a brass cylinder head and stainless steel pistons. A GFCI is built into the power cord plug.
The powder-coated tubular steel frame protects every component and can be lashed down in a service vehicle, and the washer can be used upright or lying down. Automatic pressure relief guards the high-pressure components, and a separate inlet filter protects the pump. It comes with an EASY!Force trigger gun, a 33 in lance, a 25042 power nozzle and a 33 ft EASY!Lock high-pressure hose.
Includes:
- EASY!Force trigger gun
- 33 in (840 mm) spray lance
- Power nozzle TR 25042
- 33 ft (10 m) EASY!Lock high-pressure hose, DN 6
Features:
- 2,000 psi at 3.0 gpm on a 220-240 V circuit
- 3-piston axial pump with brass cylinder head
- Tubular steel frame for upright or horizontal use
- Automatic pressure relief and pump inlet filter
- EASY!Force trigger gun and EASY!Lock connections
