| Models | HD 2.3/15 M Cage Ed |
| Operating Pressure | 1,500 psi (10.5 MPa) |
| Max. Pressure | 2,250 psi (15.5 MPa) |
| Flow Rate | 2.3 gpm (8.7 L/min) |
| Water Type | Cold water |
| Power Supply | 110-120 V, 1-phase, 60 Hz |
| Current Draw | 19 A (20 A slow-blow circuit) |
| Motor | 2-pole, air-cooled electric |
| Pump | Kärcher 3-piston axial pump, brass cylinder head, direct drive |
| Standard Nozzle | 25036 |
| Max. Inlet Water Temperature | 140°F (60°C) |
| Min. Water Supply | 4 gpm (15 L/min) |
| Max. Inlet Pressure | 145 psi (1 MPa) |
| High-Pressure Hose | 33 ft (10 m), DN 6, EASY!Lock |
| Spray Lance | 33 in (840 mm) |
| Sound Pressure Level | 78 dB(A) |
| Weight (with accessories) | 88.6 lb (40.2 kg) |
| Dimensions (L x W x H) | 15.75 x 17.9 x 27.6 in (400 x 455 x 700 mm) |
| Certification | CSA |
| Model Numbers | 1.150-936.0 |
Technical specs may include optional equipment that is not included with all units.

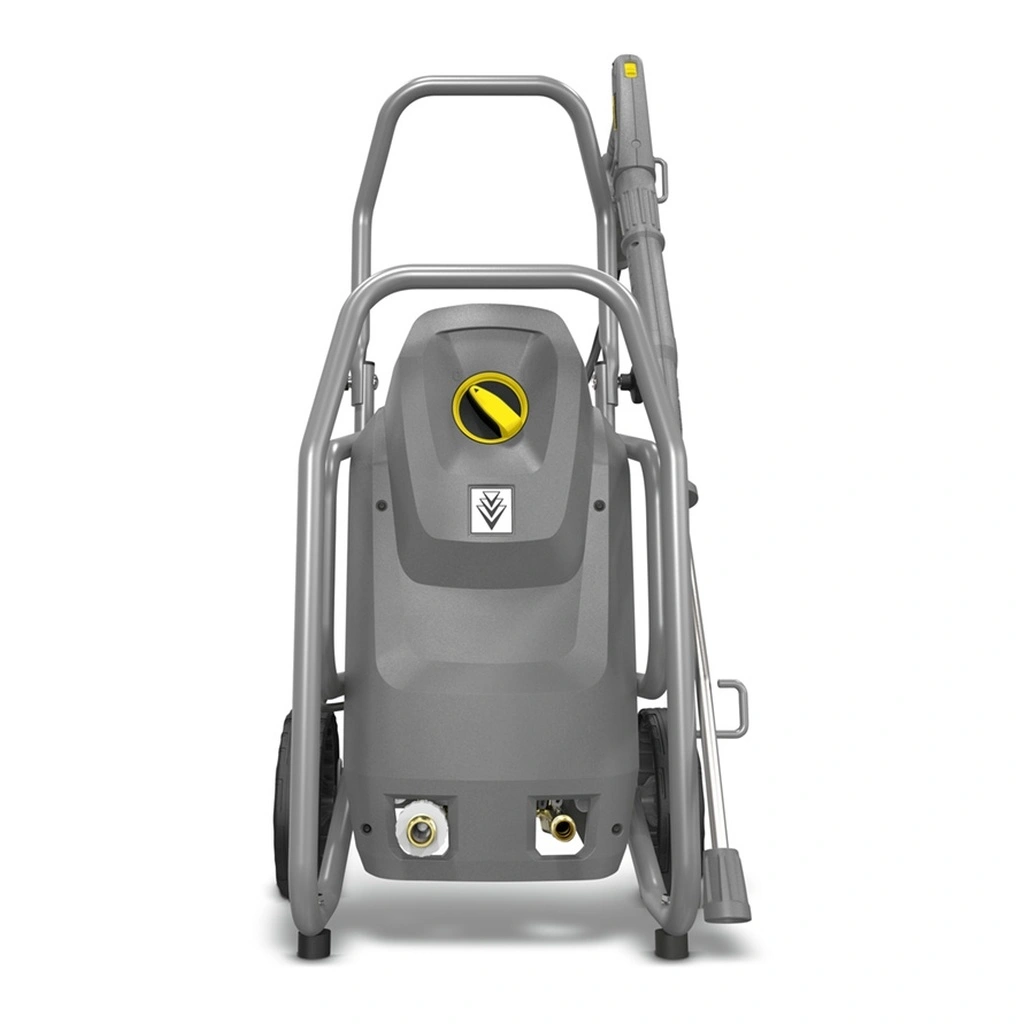

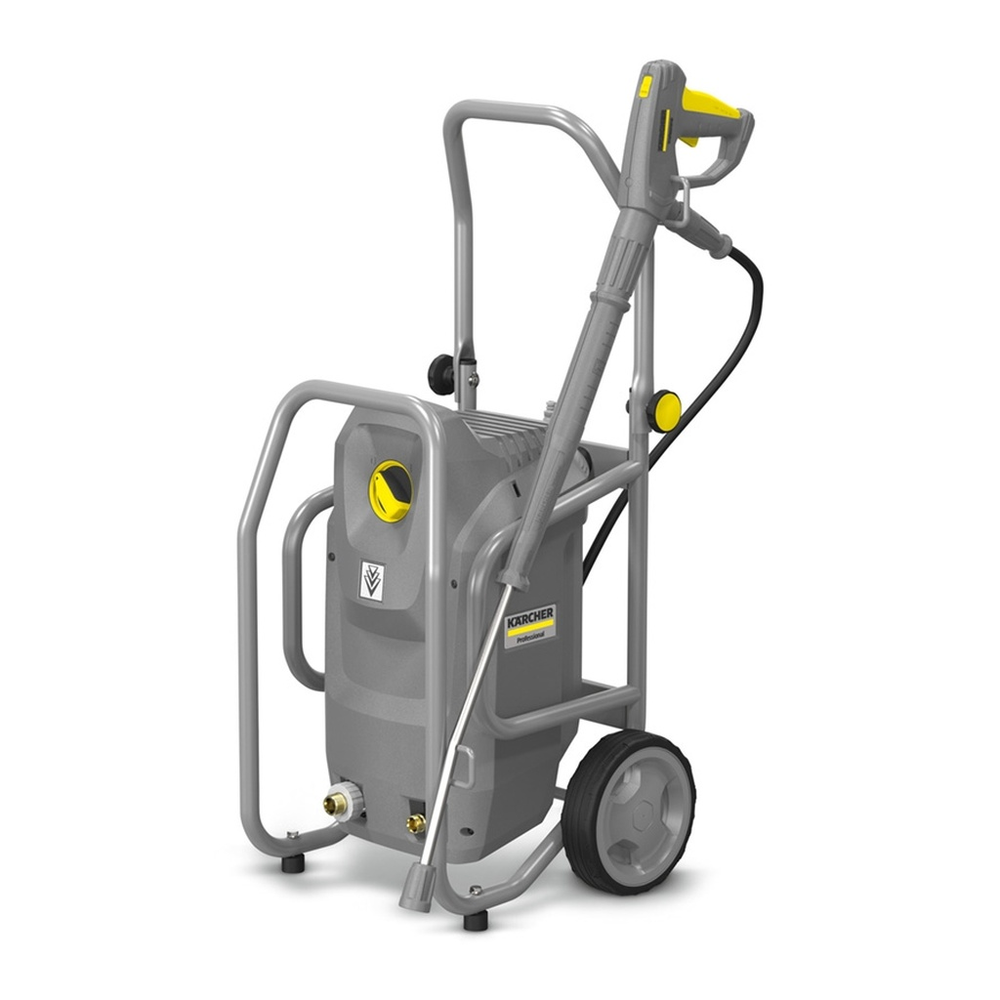

New Karcher HD 2.3/15 M Cage Ed Mid Class Electric Cold Water Pressure Washer
Our Take (from the SES Sales Team)
“The HD 2.3/15 M Cage Ed is a plug-in cold water washer for maintenance departments, restaurants, property managers and service vans that need regular wash-down without engine exhaust. It runs on a 110-120 V circuit protected at 20 A and delivers 1,500 psi at 2.3 gpm, enough for equipment, mats, carts, dumpster areas and walkways.
The cage is the point of this model. A powder-coated tubular steel frame wraps the motor and pump, protects them from knocks, and doubles as tie-down points in a van or truck bed, and the machine can run standing up or lying flat. Inside is Kärcher's 3-piston axial pump with a brass cylinder head, a separate inlet filter and automatic pressure relief. The EASY!Force gun and EASY!Lock fittings make long sessions and hose changes easier.
The trade-off is output and duty. Kärcher rates the Mid Class Cage for about 2 to 3 hours of use per day, and 1,500 psi is light for stripping or heavy grease. For more flow on a 230 V circuit, the HD 3.0/20 M Cage Ea delivers 3.0 gpm at 2,000 psi in the same frame.”
A 120 V cold water washer in a tubular steel cage frame.
The Kärcher HD 2.3/15 M Cage Ed (1.150-936.0) is an electric cold water pressure washer from the HD Mid Class Cage Series. It runs on 110-120 V single-phase power, draws 19 A, and delivers 2.3 gpm at 1,500 psi through a direct-drive Kärcher 3-piston axial pump with a brass cylinder head and stainless steel pistons. A GFCI is built into the power cord plug.
A powder-coated tubular steel frame protects all components and provides tie-down points for transport in a service vehicle, and the machine can be used upright or lying down. Automatic pressure relief protects the high-pressure components, and an inlet water filter protects the pump. It comes with an EASY!Force trigger gun, a 33 in lance, a 25036 power nozzle and a 33 ft EASY!Lock high-pressure hose.
Includes:
- EASY!Force trigger gun
- 33 in (840 mm) spray lance
- Power nozzle TR 25036
- 33 ft (10 m) EASY!Lock high-pressure hose, DN 6
Features:
- 1,500 psi at 2.3 gpm on a 110-120 V circuit
- 3-piston axial pump with brass cylinder head
- Tubular steel frame for upright or horizontal use
- Automatic pressure relief and pump inlet filter
- EASY!Force trigger gun and EASY!Lock connections
