| Models | LFT Cage 4.0/40 Ge |
| Operating Pressure | 4,000 psi (27.5 MPa) |
| Flow Rate | 4.0 gpm (15.1 L/min) |
| Max. Hot Water Temperature | 210°F (98.9°C) |
| Burner Output | 274,300 BTU/h |
| Burner Type | Downdraft, forced air, 12 V DC |
| Burner Fuel | Diesel or heating oil |
| Max. Burner Fuel Consumption | 2.14 gph (7.17 kg/h) |
| Burner Fuel Tank | 8 gal (30 L) |
| Engine | Kärcher 420 cc gasoline, electric start |
| Drive / Pump | Direct drive, crankcase pump |
| Standard Nozzle Size | 4.0 |
| High-Pressure Hose | 50 ft (15.2 m), 3/8 in |
| Spray Lance | 48 in (121.9 cm) |
| Inlet Water Supply | Min. 5 gpm (18.9 L/min) at 40–80 psi (0.27–0.55 MPa), max. 140°F (60°C) |
| Wheels | 12 in, flat-free tires |
| Machine Weight | 411.2 lb (186.5 kg) |
| Dimensions (L x W x H) | 41.3 x 31.3 x 45.7 in (104.9 x 79.5 x 116.1 cm) |
| Shipping Weight | 487 lb (220.9 kg) |
| Certification | ETL |
| Model Numbers | 1.110-136.0 |
Technical specs may include optional equipment that is not included with all units.

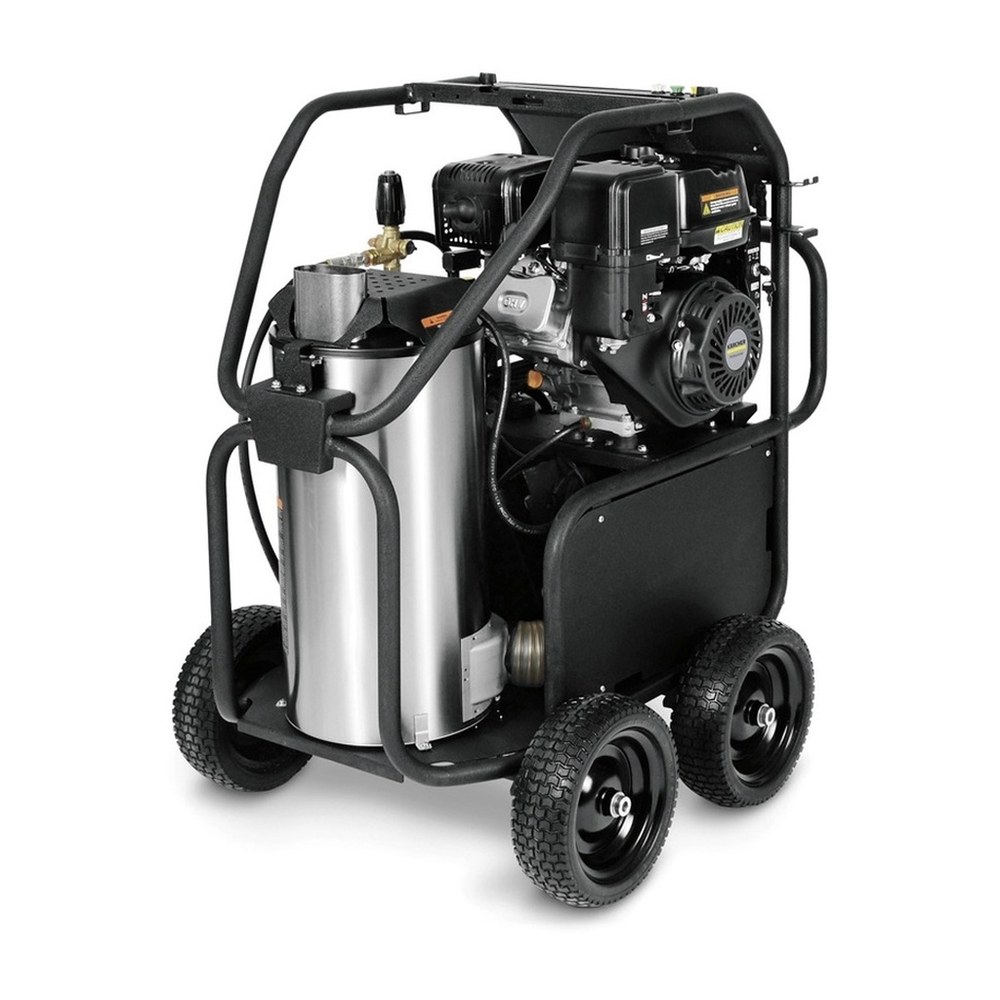

New Karcher LFT Cage 4.0/40 Ge Gas Hot Water Pressure Washer
Our Take (from the SES Sales Team)
“The LFT Cage 4.0/40 Ge is a portable hot water unit for fleet yards, equipment dealers, farms and contractors who need hot water where there is no electrical outlet. A Kärcher 420 cc gasoline engine with electric start drives the pump, and a downdraft burner fired by diesel or heating oil heats the water, so it needs no outlet at the job site.
What stands out is the output and the layout: 4,000 psi at 4.0 gpm, water up to 210°F, an hour meter, an adjustable thermostat and downstream chemical injection. Kärcher's low center of mass frame, the engine and pump isolated from the frame, and the quick-release control panel make it easier to move and to service.
The trade-offs: at more than 400 pounds, plan on a ramp, liftgate or forklift to load it, and it runs on two fuels, gasoline for the engine and diesel or heating oil for the burner. You also supply the 12-volt starting battery. If hot water is only needed in one wash bay with power available, an electric hot water unit may suit you better.”
Hot water at 4,000 psi from a gas engine and diesel burner.
The Kärcher LFT Cage 4.0/40 Ge (1.110-136.0) is a portable hot water pressure washer rated at 4,000 psi and 4.0 gpm. A Kärcher 420 cc gasoline engine with electric start drives a direct-drive crankcase pump, and a downdraft, forced-air burner fired by diesel or heating oil delivers 274,300 BTU/h for water up to 210°F. The 12 V starting battery is not included.
The powder-coated steel frame has a low center of mass, the engine and pump are isolated from the frame to reduce vibration, and a stainless steel skin covers the coil. A quick-release control panel gives easy access to components. The unit comes with a 50 ft high-pressure hose, a 48 in spray lance, four quick-connect nozzles, an hour meter, an adjustable thermostat, downstream chemical injection and flat-free tires.
Includes:
- 50 ft x 3/8 in high-pressure hose
- Spray gun
- 48 in spray lance
- Four quick-connect nozzles
- Quick-connect fittings
Not included: 12 V starting battery, water inlet filter and hose reel kits, sold separately.
Features:
- 4,000 psi at 4.0 gpm with water up to 210°F
- Downdraft forced-air diesel burner rated at 274,300 BTU/h
- Kärcher 420 cc gasoline engine with electric start
- Low center of mass frame with engine and pump isolated to reduce vibration
- Hour meter, adjustable thermostat and downstream chemical injection
