| Models | HD 5.0/50 Eb Cage |
| Operating Pressure | 5,000 psi (345 bar) |
| Flow Rate | 5.0 gpm (18.9 L/min) |
| Water Type | Cold water |
| Drive | Belt drive |
| Motor | 20 hp industrial-duty Baldor |
| Electrical | 230V / 3-phase / 60 Hz |
| Amps | 48 A |
| Pump | Kärcher KX crankcase pump |
| Pump Protection | Thermal pump protection, in-line water filter |
| High-Pressure Hose | 50 ft (15.2 m), 6,000 psi rated, 11,000 psi fittings |
| Detergent | Downstream injection |
| Power Cord | 12 ft (3.7 m) |
| Electrical Box | NEMA 4 |
| Frame | Roll cage, 4 pneumatic tires, integrated lifting beam |
| Brake | Hand-operated safety brake |
| Max. Inlet Water Temperature | 90°F (32°C) |
| Certification | ETL to UL and CSA standards |
| Dimensions (L x W x H) | 42 x 26 x 30 in (107 x 66 x 76 cm) |
| Model Numbers | 1.107-084.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher HD 5.0/50 Eb Roll Cage 230V Electric Cold Water Pressure Washer
Our Take (from the SES Sales Team)
“The HD 5.0/50 Eb Cage is a high-output electric pressure washer for sites with 230V three-phase service: concrete plants cleaning trucks, mixers and forms, boatyards cleaning hulls, and industrial maintenance crews. It delivers 5,000 psi at 5.0 gpm with no engine, so there is no fuel to manage and no exhaust indoors.
The build is what sets it apart. A 20 hp industrial-duty Baldor motor belt-drives a Kärcher KX crankcase pump, which Kärcher says gives longer life and quieter operation than gear-driven models. Everything sits in a roll cage with four pneumatic tires and an integrated lifting beam for crane moves, and a hand brake holds it in place. The electrical components are in a NEMA 4 box, and thermal pump protection and an in-line water filter guard the pump.
The trade-off is power. It needs a 230V three-phase circuit that can carry 48 amps, and the 12 ft cord means the outlet has to be close. For 460V plants, the HD 5.0/50 Ec Cage is the matching model.”
5,000 psi electric power in a crane-ready roll cage.

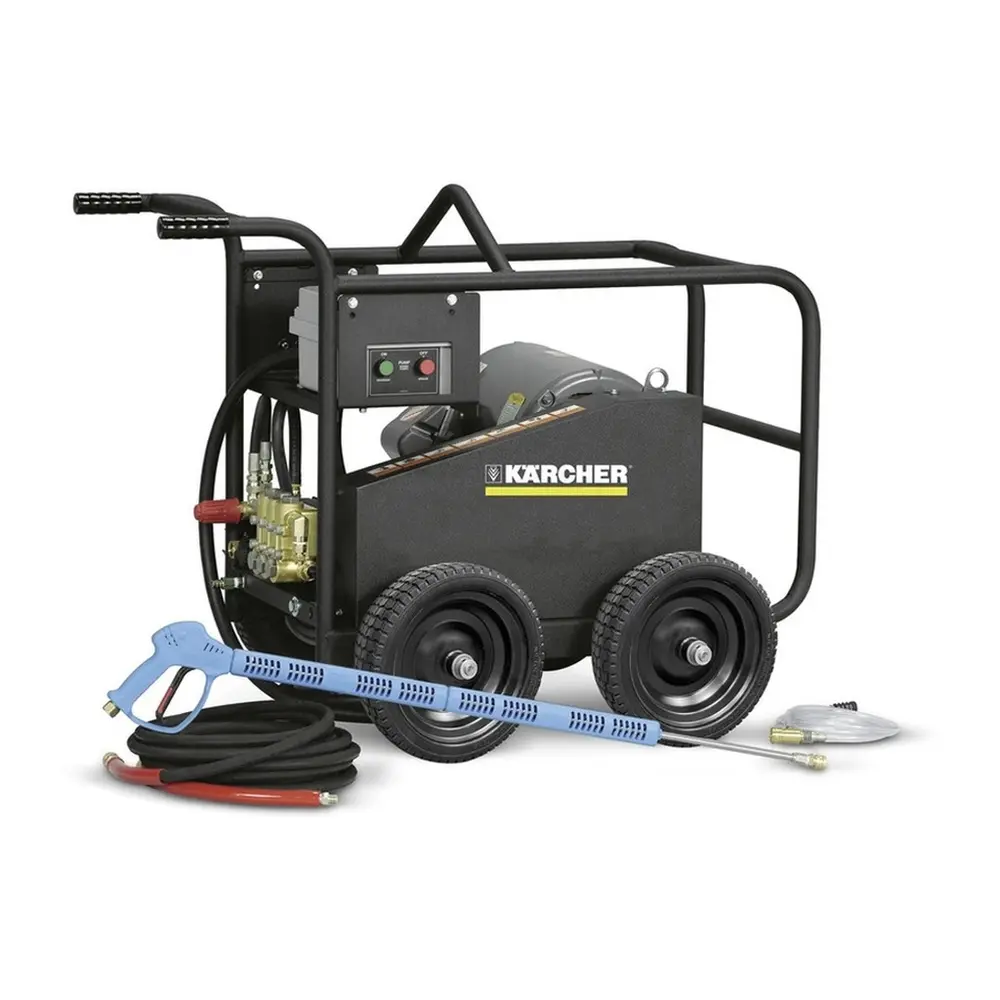

The Kärcher HD 5.0/50 Eb Cage (1.107-084.0) is a belt-drive, electric cold water pressure washer from the HD Roll Cage line. A 20 hp industrial-duty Baldor motor drives a Kärcher KX crankcase pump at 5,000 psi and 5.0 gpm. It runs on 230V three-phase power, draws 48 amps and connects through a 12 ft electrical cord. Thermal pump protection and an in-line water filter protect the pump.
Kärcher built the HD Roll Cage for specialty work such as cleaning boat bottoms and concrete trucks, mixers, forms and handling equipment. The cage rides on four pneumatic tires, has an integrated lifting beam for moving it by crane, and has a hand-operated safety brake. A NEMA 4 electrical box protects the components from overspray, and the unit is ETL certified to UL and CSA standards.
Includes:
- HD 5.0/50 Eb Cage with 20 hp Baldor motor and Kärcher KX pump
- 50 ft high-pressure hose rated 6,000 psi, with 11,000 psi fittings and couplings
- High-visibility spray gun and wand
- Downstream detergent injector
Not included: 100 ft hose reel kit (9.801-029.0), sold separately
Features:
- 20 hp industrial-duty Baldor motor, 230V three-phase
- Belt-driven Kärcher KX crankcase pump
- Roll cage with four pneumatic tires and lifting beam
- Hand-operated safety brake
- NEMA 4 electrical box and thermal pump protection
