| Models | HDS 1.7/12 U Ed |
| Flow Rate | 1.7 gpm (6.5 L/min) |
| Working Pressure | 1,200 psi (83 bar) |
| Max. Pressure (Safety Valve) | 1,700 psi (120 bar) |
| Max. Water Temperature | 176°F (80°C) |
| Heating | Fuel oil or diesel burner, 23 kW |
| Motor | 2.3 hp (1.7 kW) |
| Power Supply | 110-120 V, 1-phase, 60 Hz |
| Amperage | 12.5 A (15 A slow-blow circuit) |
| Pump | Kärcher axial pump, direct drive |
| Fuel Tank | 1.7 gal (6.5 L) |
| Detergent Suction | 0-0.13 gpm (0-0.5 L/min) |
| Water Inlet | 3/4 in |
| Min. Water Feed | 2.5 gpm (9.5 L/min), max. 86°F (30°C) |
| High-Pressure Hose | 33 ft (10 m) |
| Spray Lance | 33 in (840 mm) |
| Sound Pressure Level | 76 dB(A) |
| Protection | IPX5 |
| Weight With Accessories | 144.2 lb (65.4 kg) |
| Dimensions (L x W x H) | 24.3 x 24.3 x 39.1 in (618 x 618 x 994 mm) |
| Model Numbers | 1.064-907.0 |
Technical specs may include optional equipment that is not included with all units.

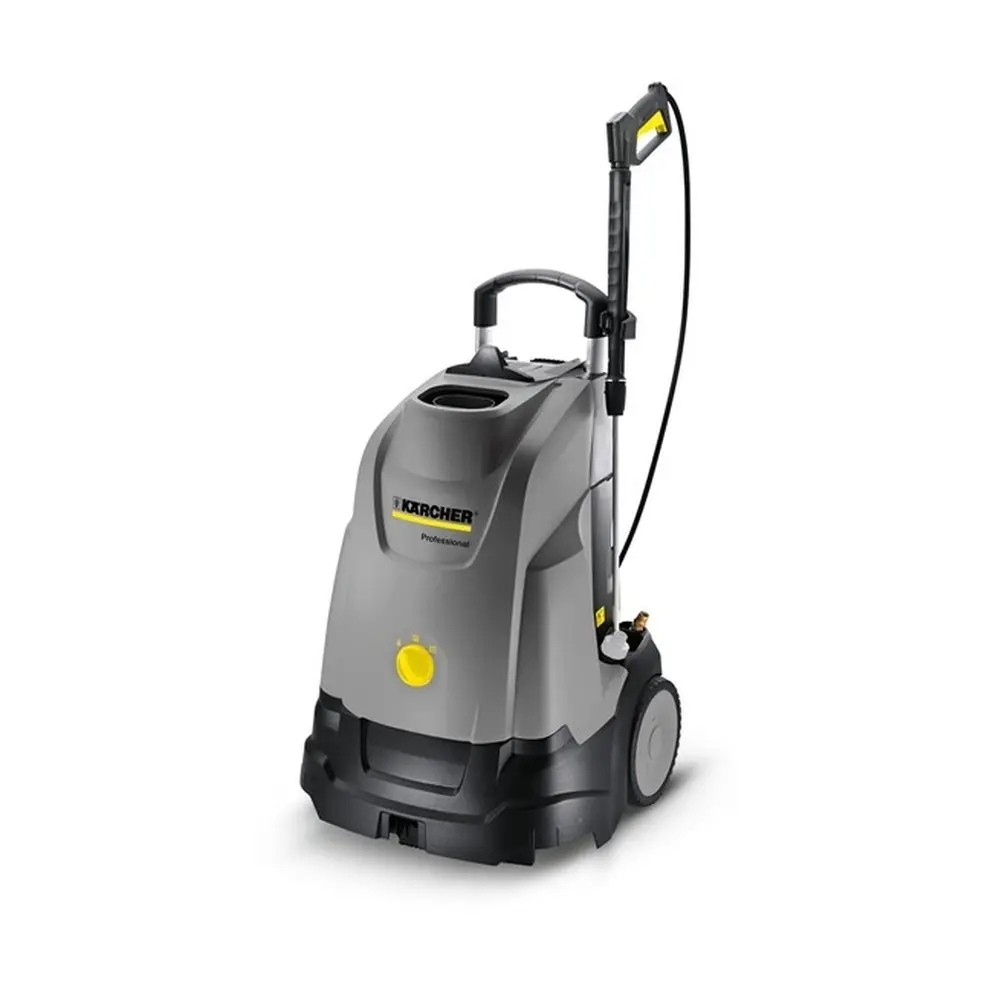

New Karcher HDS 1.7/12 U Ed Upright Hot Water Pressure Washer
Our Take (from the SES Sales Team)
“The HDS 1.7/12 U Ed is Kärcher's entry-level upright hot water pressure washer, aimed at tradesmen, maintenance crews and contract cleaners who want hot water but only have an ordinary 120 V outlet. An electric motor runs the pump and a fuel-oil or diesel burner heats the water to 176°F, which cuts grease and oil far more easily than cold water at the same pressure.
The upright layout is the selling point. It stands on a 24.3 x 24.3 in footprint, has large wheels and a tilting aid for steps and rough ground, and the pump and fuel tank are spill-proof so it can lie down in a small service van. Controls are simple, with off, cold and hot settings, and it comes with the EASY!Force trigger gun, a 33 ft hose and a 33 in lance.
The trade-off is output. At 1.7 gpm and 1,200 psi it suits light commercial work such as equipment, entryways, dumpster pads and small vehicles, not daily fleet washing. If the machine will run for hours every day, look at a larger HDS class model.”
Upright hot water pressure washer for 120 V outlets.

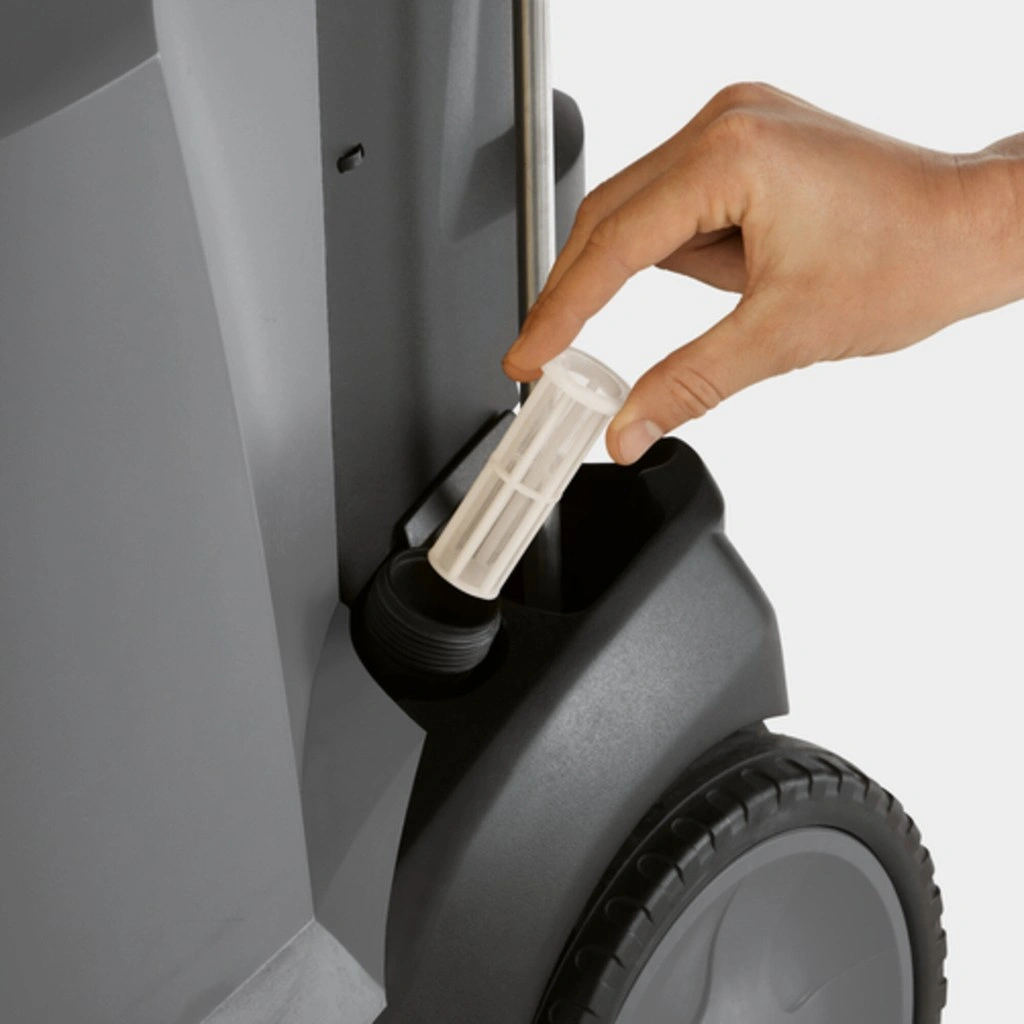

The Kärcher HDS 1.7/12 U Ed (1.064-907.0) is an HDS Upright Class hot water pressure washer with an electric motor and a fuel-oil or diesel burner. It delivers 1.7 gpm at 1,200 psi and heats water up to 176°F (80°C), running on a 110-120 V single-phase supply. A flue gas temperature monitor protects the burner, and a fine-mesh water filter protects the high-pressure pump.
The upright frame measures 24.3 x 24.3 x 39.1 in and has large wheels, a tilting aid for steps, and support points for horizontal transport, with a spill-proof pump and fuel tank. A central panel offers off, cold and hot modes. The machine has a holder for the spray lance, cord storage, a nozzle compartment, a tank lock and a 1.7 gal fuel tank with a level indicator.
Includes:
- EASY!Force trigger gun
- 33 in spray lance
- 33 ft high-pressure hose
- Triple jet nozzle 032
Not included: Water supply hose (1/2 in, at least 24.6 ft) and hose clamp, sold separately
Features:
- Electric motor with diesel or fuel-oil burner, up to 176°F
- Runs on a 110-120 V single-phase outlet
- Upright design with large wheels and tilting aid
- Spill-proof pump and fuel tank for transport lying down
- EASY!Force trigger gun with EASY!Lock connections
