| Models | HDS-E 3.3/25-4M Ec |
| Flow Rate | 1.6-3.3 gpm (360-760 L/h) |
| Operating Pressure | 465-2,520 psi |
| Max. Water Temperature | 185°F (85°C) |
| Continuous Temperature, Full Load | 113°F (45°C); 158°F (70°C) with optional Servo Control |
| eco!efficiency Mode | 140°F (60°C) |
| Heating | Electric boiler, exhaust-free |
| Heating Output | 24 kW |
| Connected Load | 30 kW |
| Motor | 7.5 hp |
| Power Supply | 460 V, 3-phase, 60 Hz |
| Pump | Kärcher axial pump, direct drive |
| Detergent Tanks | 2 |
| High-Pressure Hose | 50 ft (15 m) EASY!Lock Longlife with ANTI!Twist |
| Spray Lance | 41 in (1,050 mm) |
| Weight Without Accessories | 256 lb (116 kg) |
| Weight With Accessories | 287.3 lb (130.3 kg) |
| Dimensions (L x W x H) | 52.4 x 29.5 x 41.7 in (1,330 x 750 x 1,060 mm) |
| Safety Listing | ETL certified to UL and CSA safety standards |
| Model Numbers | 1.030-902.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher HDS-E 3.3/25-4M Ec Electric-Heated Hot Water Pressure Washer
Our Take (from the SES Sales Team)
“The HDS-E 3.3/25-4M Ec is a hot water pressure washer for places where a diesel burner is not an option: indoor wash bays, food and beverage plants, warehouses, parking structures and anywhere exhaust fumes are restricted. Instead of a fuel-fired coil it heats water in an electric boiler, so there is no exhaust, no fuel to store and no flue to plan for.
It covers a wide range. Flow runs from 1.6 to 3.3 gpm at 465 to 2,520 psi, water reaches up to 185°F, and the eco!efficiency mode runs at 140°F for everyday work with less energy. A single selector switch and service indicators keep the controls simple, two detergent tanks are on board, and the EASY!Force gun takes the strain off the operator's hand.
The trade-offs are power and recovery. It needs a 460 V three-phase supply with a 30 kW connected load, so check the electrical service first. At full load the boiler holds about 113°F in continuous use, or 158°F with the optional Servo Control, so it suits stop-and-go cleaning better than nonstop high-temperature washing.”
Exhaust-free hot water cleaning with an electric boiler.

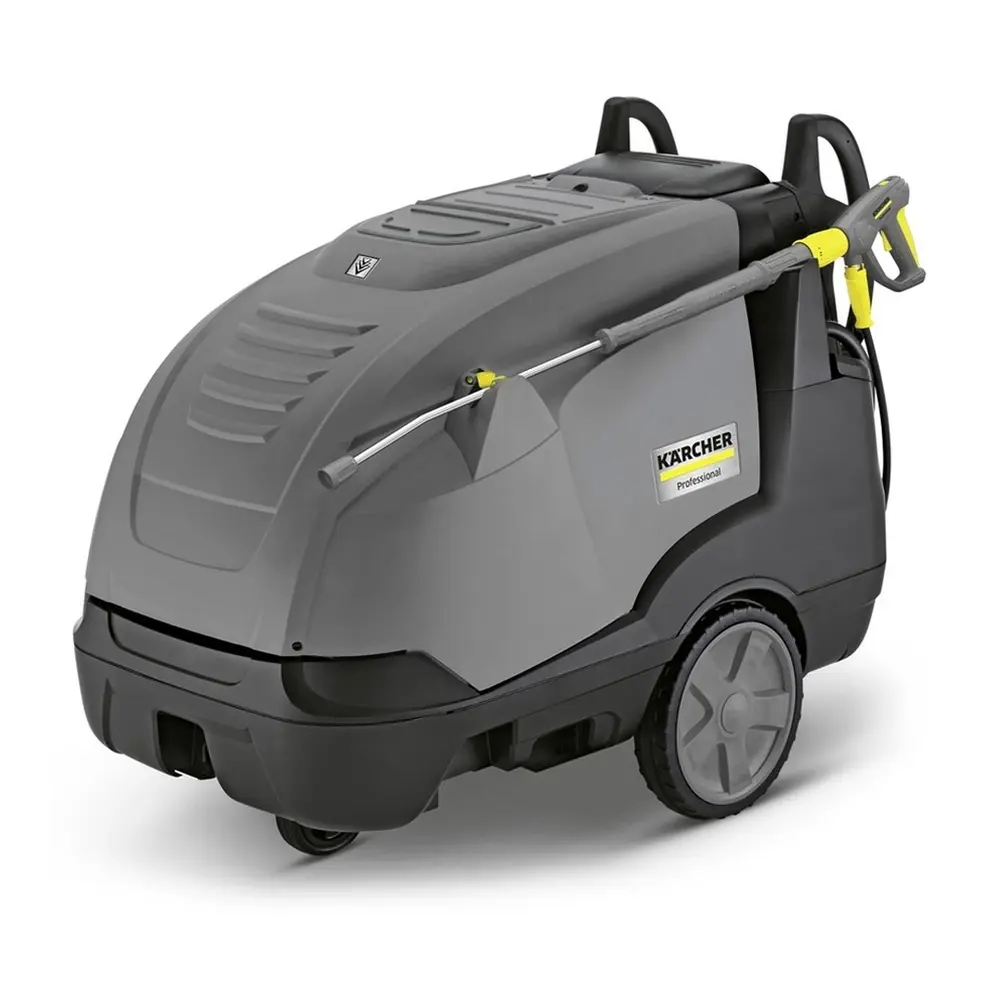

The Kärcher HDS-E 3.3/25-4M Ec (1.030-902.0) is an HDS Special Class hot water pressure washer with an electric boiler, made for sites where exhaust gases are undesirable or prohibited. A 7.5 hp motor drives a direct-drive Kärcher axial pump for 1.6 to 3.3 gpm at 465 to 2,520 psi, and the boiler heats water to a maximum of 185°F (85°C) on a 460 V three-phase supply.

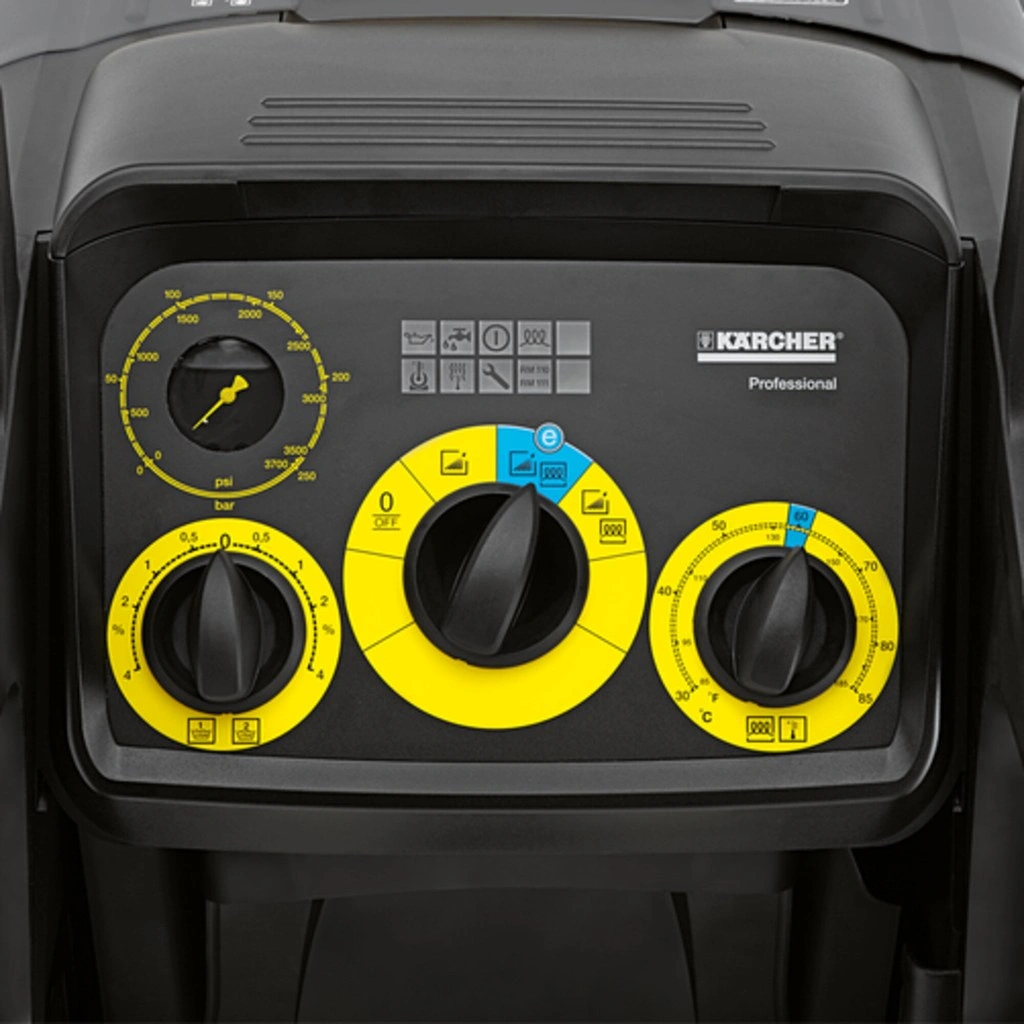

Kärcher insulates the boiler with a special foam that it says cuts standby energy use by up to 40%, and the eco!efficiency mode runs at 140°F (60°C). The machine has a central control panel with a single selector switch and service indicators, two detergent tanks, a glove box, storage hooks for the cord and hose, and large rubber wheels with a brake and a tilting aid. It is ETL certified to UL and CSA standards.
Includes:
- EASY!Force trigger gun
- 41 in spray lance
- 50 ft EASY!Lock Longlife high-pressure hose with ANTI!Twist
- Power nozzle TR 25047
Not included: Servo Control (needed for 158°F continuous operation), surface cleaner and hose reel, sold separately
Features:
- Electric boiler with no exhaust gases or fuel
- eco!efficiency mode at 140°F
- Water temperature up to 185°F
- EASY!Force trigger gun with EASY!Lock connections
- Two onboard detergent tanks
