| Motor | Base Unit: 4 HP Brush Unit: 1/10 HP @ 7,300 RPM (full load) 24 volt DC Sealed unit; no lubrication required |
| Power Supply | First: 115 Volt, 50-60 Hz, 9 amp (220 volt, 4.25 amps) Secondary: 24 Volt DC (built into base unit) |
| Controls | Rocker switch mounted on panel controls motor and power to 24-volt receptacle. Toggle switch to control polarity of 24-volt receptacle. |
| Wattage | 1035 Watts (935 Watts) |
| Power Cord | 30 feet (9.1 meters), 16 gauge, 3-wire grounded, non-marring |
| Brush Speed | Inner: 750 RPM; Outer: 375 RPM |
| Brush Construction | High density polyethylene backs with straight bristle tynex tufts. |
| Brush Diameter | Inner: 2.4375 in. (6.2 cm); Outer: 4.25 in. (10.8 cm); Bristle length 1 in. (2.5 cm) |
| Brush Unit Bearings | High speed ball type; double sealed |
| Drive Train | First Stage: Hard coat surface treated, maintenance-free metal gears. Second Stage: Spur gears, lubricated by foam detergent. |
| Control | Single, three position toggle switch permits fingertip control of brush unit drive motor and selective full/intermittent flow of foam. |
| Dimensions | Base Unit: 30 L x 18.5 W x 19.5 H (76.2 cm x 46.99 cm x 49.53 cm) Brush Unit: 10 L x 8 W x 8 H 2-channel, 15 ft. hose (25.4 cm x 11.4 cm x 20.3 cm, 4.6 m hose) |
| Weight | Base Unit: 51 lbs. (23.1 kilos) Brush Unit: 9.5 lbs. (4.3 kilos) |
| Shipping Weight | 81 lbs. (36.8 kilos) |
| Tank Size | Solution Tank: 2 gallons (7.6 liters) Recovery Tank: 1 gallon (3.8 liters) |
| Lubrication | None |
Technical specs may include optional equipment that is not included with all units.

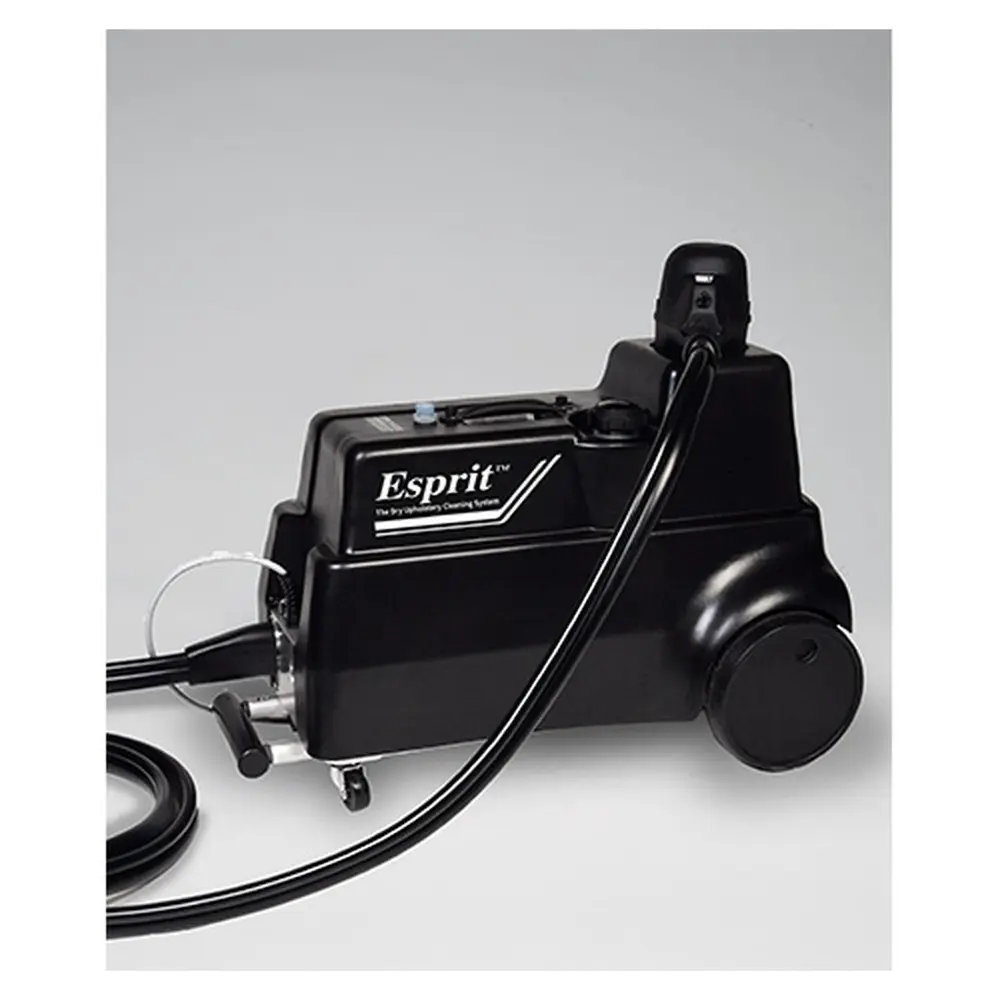

New HOST Esprit Upholstery Cleaning System
Our Take (from the SES Sales Team)
“The Esprit is HOST's dry foam upholstery cleaner with a full-size base unit and a slide-out handle that extends for travel, which makes it easy to take from job to job. It is built for professional cleaners who handle upholstery in homes and offices, movie theaters, and auto, bus, train and airplane interiors. The base unit makes a dry foam from HOST upholstery detergent and feeds it through a 15 ft two-channel hose to a handheld brush unit. Counter-rotating brushes work the foam into the fabric while stabilizing it, and the foam encapsulates the soil so it can be removed by vacuuming. Low moisture is the whole point. Upholstery is clean and dry in minutes, not hours, with no shrinkage or sticky residue, and HOST says it is safe on most upholstery fabrics and leather furniture. The brush unit weighs 9.5 lb, and a single three-position toggle gives fingertip control of the brushes and full or intermittent foam flow. If most of your work is in aircraft, buses or other narrow aisles, compare the Aridex, which uses the same brush unit on a narrower 13 in base.”
A dry foam upholstery cleaner that travels well
The HOST Esprit is a dry foam upholstery cleaning machine for professional cleaners. The machine and HOST detergent create a special dry foam, which counter-rotating brushes work into the fabric while stabilizing it. The foam encapsulates the dirt, and the residue is removed by vacuuming.
The low-moisture foam leaves upholstery clean and dry in minutes, with no shrinkage or sticky residue. A slide-out handle extends for travel, and the machine comes with a measuring gauge and fill funnel.
Condition: New.
What you get
Ready for upholstery work
How dry foam cleaning works
Features
Built for professional upholstery cleaning
- ✓Slide-out handle extends for easy transport
- ✓Low-moisture foam for extremely fast drying
- ✓Counter-rotating brushes do the work while you guide the powerhead
- ✓Safe on most upholstery fabrics and leather furniture, per HOST
- ✓Sealed 24 V DC brush motor needs no lubrication
Compare
HOST upholstery machines
| Machine | Base unit (L x W x H) | Base unit weight | Best for |
|---|---|---|---|
| Aridex (AX120) | 23.5 x 13 x 17.5 in (59.7 x 33 x 44.5 cm) | 33 lb (15 kg) | Narrow aisles in aircraft, buses and rail cars |
| Esprit (UC110) | 30 x 18.5 x 19.5 in (76.2 x 47 x 49.5 cm) | 51 lb (23.1 kg) | Homes, offices, theaters and vehicle interiors; slide-out travel handle |
Both use the same 9.5 lb (4.3 kg) brush unit, 15 ft two-channel hose, 2 gal solution tank and HOST dry foam process.
Specifications
HOST Esprit at a glance
| Models | Esprit (UC110) |
|---|---|
| Base unit motor | 4 hp |
| Brush unit motor | 1/10 hp at 7,300 rpm (full load), 24 V DC, sealed |
| Power supply | 115 V, 50 to 60 Hz, 9 A; 24 V DC secondary (built into base unit) |
| Wattage | 1,035 W |
| Brush speed | Inner 750 rpm; outer 375 rpm |
| Brush diameter | Inner 2.44 in (6.2 cm); outer 4.25 in (10.8 cm); 1 in (2.5 cm) bristles |
| Tanks | 2 gal (7.6 L) solution; 1 gal (3.8 L) recovery |
| Hose | 15 ft (4.6 m), 2-channel |
| Power cord | 30 ft (9.1 m), 16 gauge, 3-wire grounded, non-marring |
| Base unit (L x W x H) | 30 x 18.5 x 19.5 in (76.2 x 47 x 49.5 cm) |
| Brush unit (L x W x H) | 10 x 8 x 8 in (25.4 x 20.3 x 20.3 cm) |
| Weight | Base unit 51 lb (23.1 kg); brush unit 9.5 lb (4.3 kg) |
| Shipping weight | 81 lb (36.7 kg) |
| Included | Measuring gauge and fill funnel |
| Model Numbers | UC110 (Esprit) |
Technical specs may include optional equipment that is not included with all units.
Questions
HOST Esprit: common questions
How long does upholstery take to dry?
HOST says upholstery is clean and dry in minutes, not hours, because the Esprit uses low-moisture dry foam.
Is it safe on leather?
HOST says the Esprit safely cleans most upholstery fabrics and leather furniture, with no shrinkage or sticky residue. Test an inconspicuous area first.
Which detergent does it use?
The Esprit works with HOST Anti-Resoil Upholstery Detergent. HOST also offers a pre-clean, fabric protector and leather care products.
How is it different from the Aridex?
Both use the same brush unit and foam process. The Esprit has a larger base with a slide-out travel handle; the Aridex has a narrower 13 in base for aircraft and bus aisles.
Not sure the Esprit fits your upholstery work?
Tell our team about the fabrics, the vehicles or buildings you clean and how often, and we will help you decide if this is the right machine.
