New Aztec Ultra Edge w/ 18 HP Kawasaki
Our Take (from the SES Sales Team)
“Grinding the open field of a concrete floor is only half the job. The edges along walls, columns and under shelving are where a polishing project usually slows down and the hand grinders come out. The UltraEdge is Aztec's answer. It grinds and polishes within 1/4 in of walls and reaches 3 in under a shelf as low as 5.25 in, using an offset 13 in grinding head and a swiveling handle that sets to several positions. Aztec rates it at 300 to 400 linear ft per hour. It runs on the same Kawasaki 603 cc propane engine as the UltraGrind, so there are no cords or generators to manage, and its quick-change plate system is interchangeable with the UltraGrind. Weight plates let the operator set grinding pressure between 75 and 175 lb to match the job. A vacuum port connects to the UltraVac for dust control. Pair it with the UltraGrind for the open floor and the UltraVac for dust, and you have Aztec's full WorkSmart cordless grinding, polishing and edging system.”
A propane concrete and terrazzo edger for walls and shelving

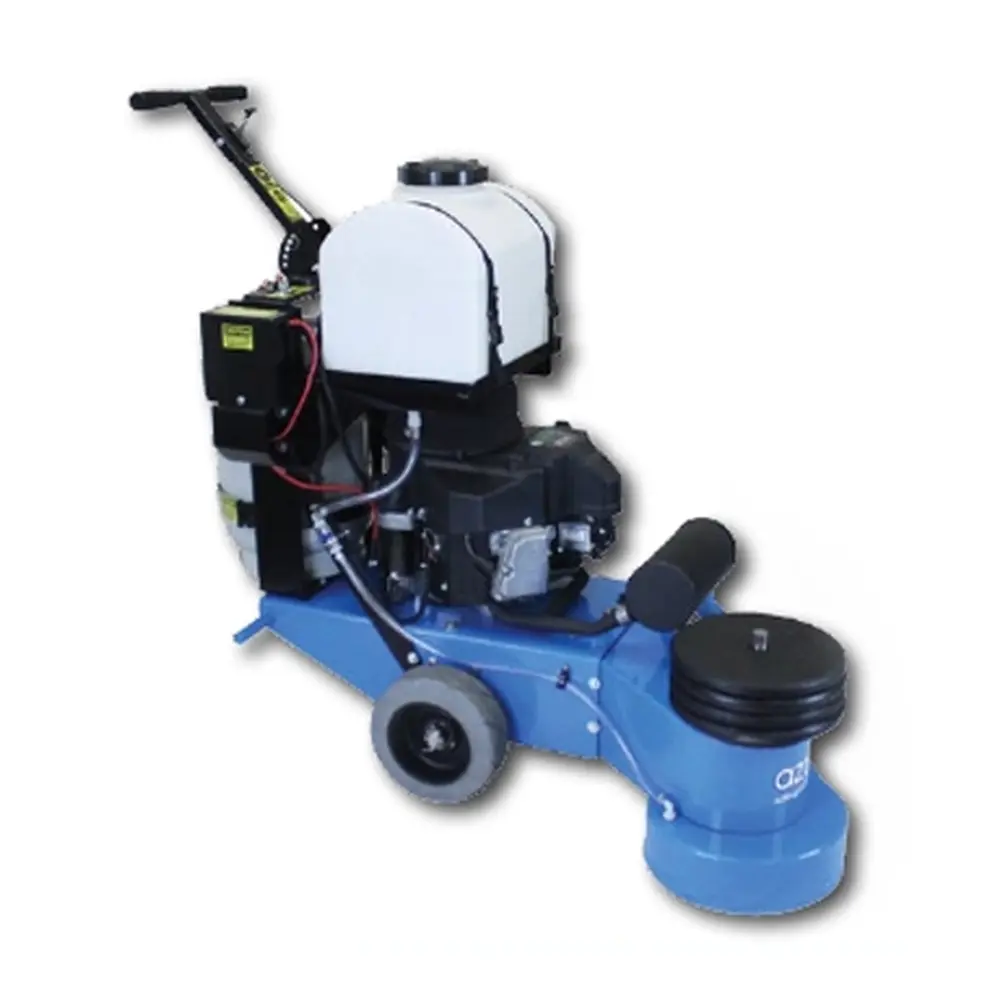

The Aztec UltraEdge is a propane-powered concrete and terrazzo edger. Its offset 13 in (33 cm) grinding head grinds and polishes within 1/4 in (0.6 cm) of walls and reaches 3 in (7.6 cm) under a shelf only 5.25 in (13.3 cm) high.
A Kawasaki 603 cc propane engine with a 12 V battery start powers it, so there are no cords or generators. It is part of Aztec’s three-piece WorkSmart system with the UltraGrind grinder and the UltraVac dust control vacuum.
Condition: New.

What you get
Ready for edge work
Why a dedicated edger
Features
Built for tight work
- ✓Reaches 3 in (7.6 cm) under a 5.25 in (13.3 cm) high shelf
- ✓Grinds and polishes within 1/4 in (0.6 cm) of walls
- ✓Swiveling multi-position handle
- ✓Vacuum port connects to the UltraVac for dust control
- ✓Steel body with a removable panel for easy cleaning
The system
Aztec WorkSmart concrete system
| Machine | Job in the system | Key spec |
|---|---|---|
| UltraGrind | Grinds and polishes the open floor | 30 in (76.2 cm) path, up to 780 lb (353.8 kg) grinding pressure |
| UltraEdge | Grinds and polishes edges, along walls and under shelving | 13 in (33 cm) head, within 1/4 in (0.6 cm) of walls |
| UltraVac | Collects grinding dust from both machines | 300 CFM, 28 sq ft (8.5 m²) MicroClean filter |
Specifications
Aztec UltraEdge at a glance
| Models | UltraEdge propane edger |
|---|---|
| Grinding width | 13 in (33 cm) |
| Work rating | 300 to 400 ft/hr (91.4 to 121.9 m/hr) |
| Grinding pressure | 75 to 175 lb (34 to 79.4 kg) |
| Head speed range | 385 to 650 rpm |
| Edge clearance | Within 1/4 in (0.6 cm) of walls; reaches 3 in (7.6 cm) under a 5.25 in (13.3 cm) shelf |
| Engine | Kawasaki 603 cc, 18 hp block |
| LPG horsepower | 17.19 hp |
| Engine speed range | 2,200 to 3,400 rpm |
| Fuel system | Custom propane carburetor |
| Propane tank | Steel tank standard; OPD steel tank optional |
| Starter | 12 V battery |
| Oil safety system | Automatic shut-off |
| Sound level | 86 to 87 dB |
| Dimensions (L x W x H) | 50 x 30 x 42 in (127 x 76.2 x 106.7 cm) |
| Machine weight | 478 lb (216.8 kg) |
| Shipping weight | 523 lb (237.2 kg) |
| Optional | Magnetic attachment system; OPD steel tank; Blue Sky certified engine |
| Green certifications | EPA, LEED, GS-42 |
| Model Numbers | 041-1 (UltraEdge) |
Technical specs may include optional equipment that is not included with all units.
Questions
Aztec UltraEdge: common questions
How close to the wall can it grind?
Aztec says the UltraEdge grinds and polishes within 1/4 in (0.6 cm) of walls.
Can it get under shelving?
Yes. It reaches 3 in (7.6 cm) under a shelf as low as 5.25 in (13.3 cm).
Does it use the same tooling as the UltraGrind?
The UltraEdge’s quick-change plate system is interchangeable with the UltraGrind’s, and it takes custom or standard abrasives.
How do I control dust?
A vacuum port on the UltraEdge connects to the Aztec UltraVac propane dust control vacuum.
How much edge can it cover in an hour?
Aztec rates the UltraEdge at 300 to 400 linear ft per hour (91.4 to 121.9 m per hour).
Not sure the UltraEdge fits your concrete work?
Tell our team about the floor, the edges and the job, and we will help you decide if this is the right machine.
