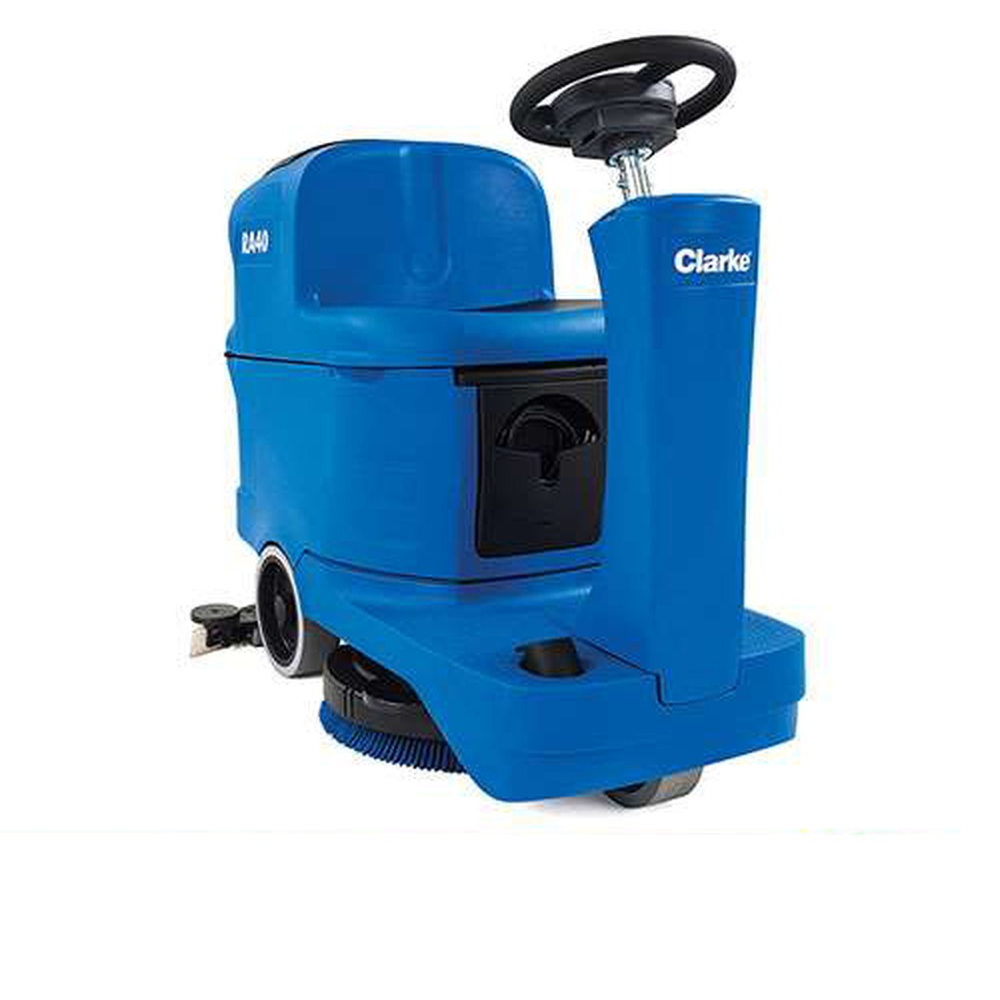

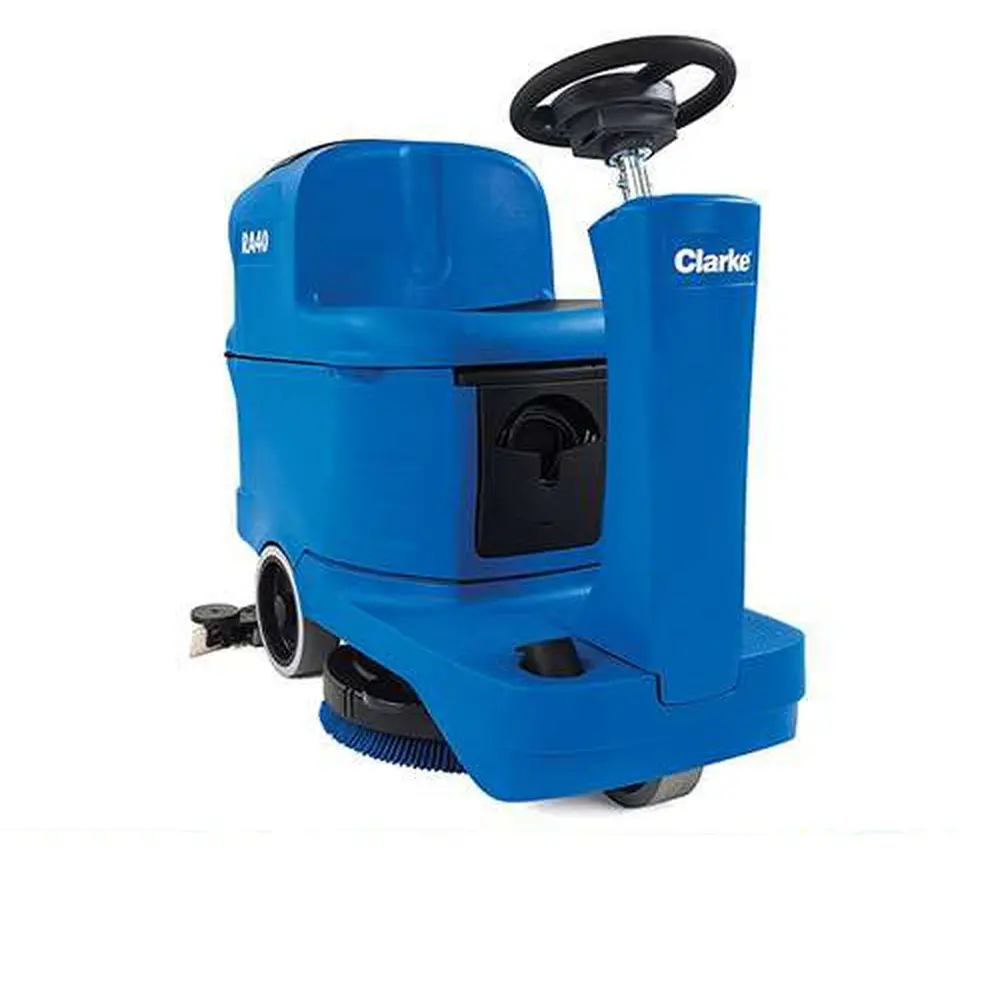

New Clarke RA40 20D Micro Rider Scrubber
Our Take (from the SES Sales Team)
“The RA40 is for floors that are too big to walk behind a scrubber all shift but too tight for a full-size rider: grocery and retail aisles, car showrooms, workshops, school hallways and warehouse aisles. The operator has a clear view all the way around, and the short turning radius gets it into places a bigger rider cannot reach. SmartFlow cuts water when you slow down for corners, so you leave less water behind and get more out of each tank, and the onboard chemical mixing means nobody has to mix detergent in the tank.
Both packages are the same machine with an onboard charger and a 20-inch pad holder. The only choice is batteries. The 130 Ah wet set suits crews that already keep up with battery watering. The 140 Ah AGM set is sealed and maintenance-free, which is the safer pick when nobody on the team owns battery care.”
A compact 20-inch micro rider scrubber for tight spaces
The Clarke RA40 20D is a compact, battery-powered micro rider floor scrubber with a 20 in (51 cm) disc deck and an 18.5 gal (70 L) tank. Its small profile gives the operator 360-degree visibility and a short turning radius, so it can clean in tight spaces where a full-size rider will not fit while still covering up to 32,560 sq ft per hour at 3.7 mph. SmartFlow™ automatically cuts solution flow when the operator slows down on turns, along edges or around obstacles, which reduces water and chemical use and water left behind, and Clarke says it increases productivity by up to 50% per tank. The onboard Chemical Mixing System lets you use detergent only when needed, and a steering-wheel control panel with a multifunction display keeps training short.
Choose your configuration
Wet or AGM batteries?
| 130 Ah wet | 140 Ah AGM | |
|---|---|---|
| Batteries | Two 12 V, 130 Ah wet (24 V) | Two 12 V, 140 Ah AGM (24 V) |
| Battery care | Regular watering | Sealed, maintenance-free |
| Charger | Onboard | Onboard |
| Best for | Crews with a battery-watering routine | Crews that would rather not water batteries |
| Packages here | 56384073 | 56384074 |
Reading the model numbers: Both packages ship with an onboard charger (OBC) and a 20 in bristle pad holder (PH). Everything else on the machine is the same.
Features:
- SmartFlow™ lowers solution flow as you slow down, increasing productivity by up to 50% per tank
- Onboard Chemical Mixing System gives full control over detergent use
- Two-level scrub pressure: 33 or 66 lb (15 or 30 kg)
- Steering-wheel control panel with multifunction display is easy to learn and customize
- Safe-T-Steering, onboard squeegee storage and no-tool brush removal

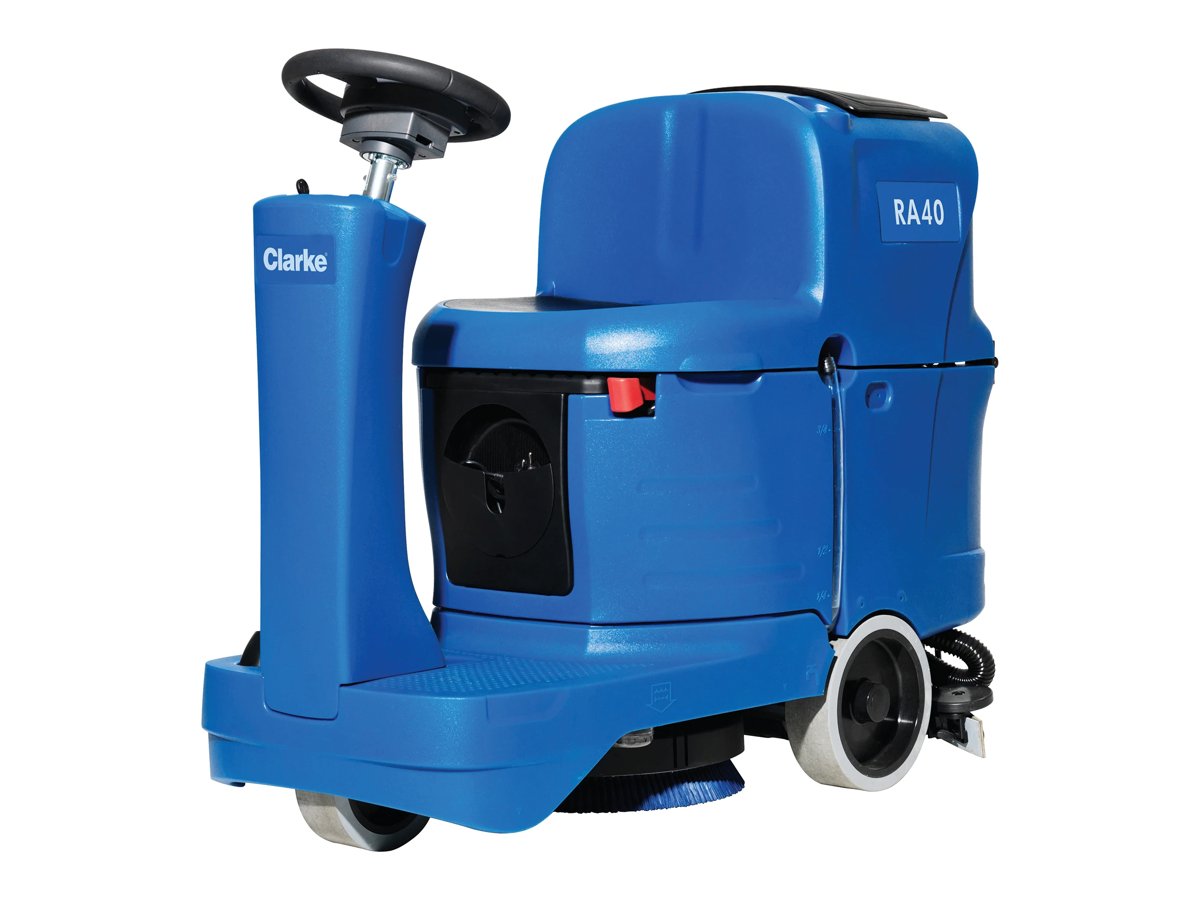

Clarke RA40 micro rider

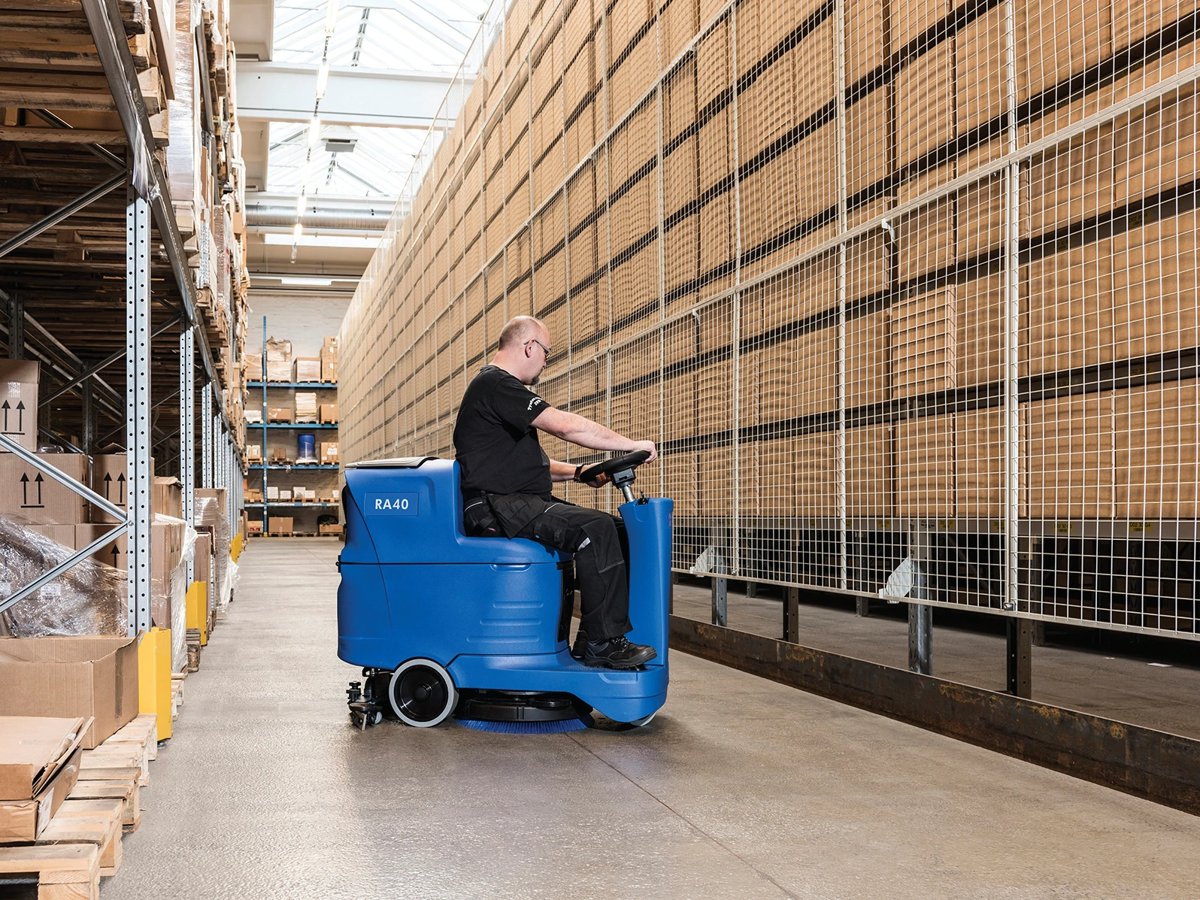

Scrubbing a warehouse aisle

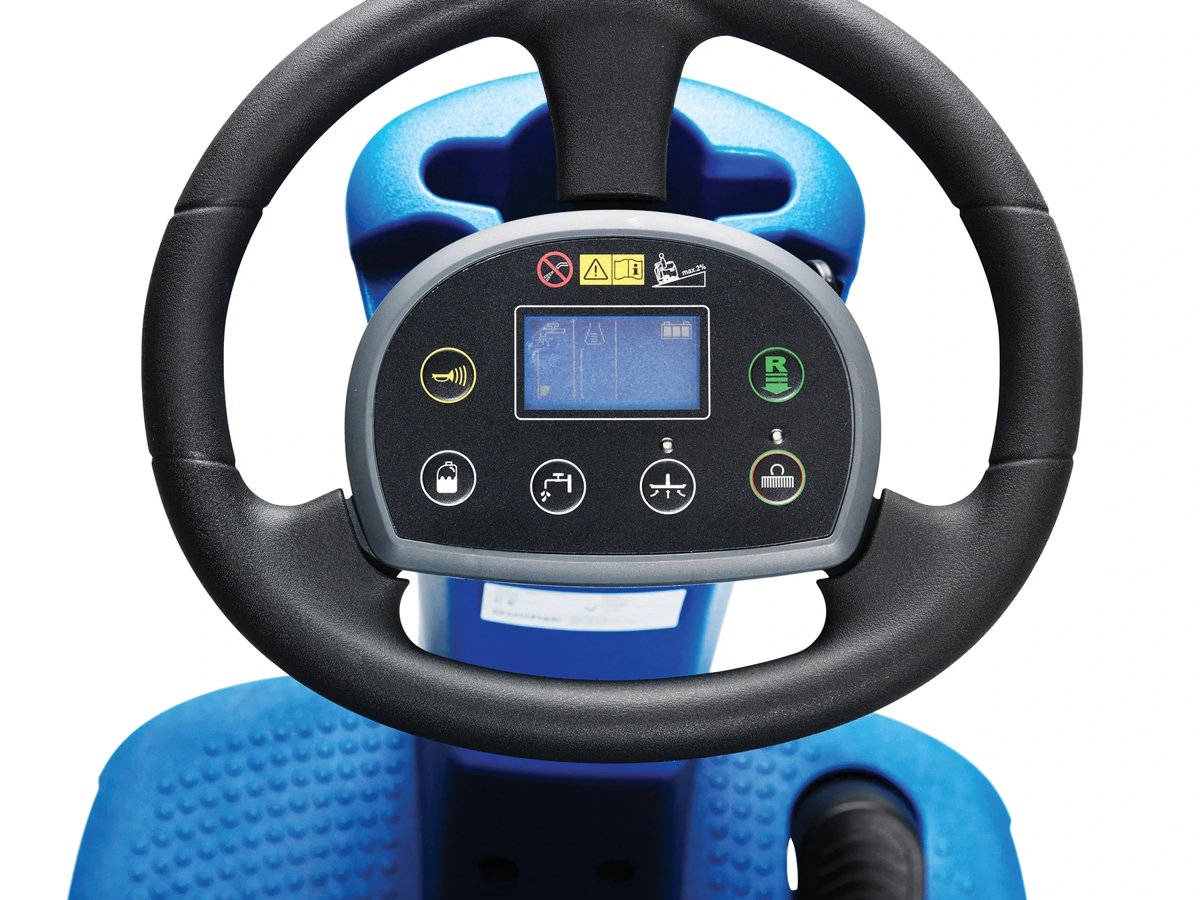

Steering-wheel control panel
Clarke RA40 20D
Specifications
| Models | 130 Ah wet | 140 Ah AGM |
| Cleaning Path | 20 in (51 cm), disc | |
| Squeegee Width | 28.3 in (72 cm) | |
| Tank Capacity | 18.5 gal (70 L) | |
| Brush Motor / Speed | 0.6 hp (450 W), 155 rpm | |
| Brush Pressure | 33 / 66 lb (15 / 30 kg) | |
| Vacuum Motor | 0.42 hp (310 W), 39 in (9.8 kPa) water lift | |
| Drive Motor | 0.6 hp (400 W) | |
| Working / Transport Speed | 3.7 mph (6 km/h) | |
| Productivity | 22,000 sq ft/hr at 2.5 mph; 32,560 sq ft/hr at 3.7 mph (2,044 / 3,025 m²/hr) | |
| Max Climbing Rate | 2% | |
| Min. Turn-Around Aisle | 70.9 in (180 cm) | |
| Voltage | 24 V | |
| Batteries | Two 12 V, 130 Ah wet | Two 12 V, 140 Ah AGM |
| Charger | Onboard | |
| Max Run Time | 2.5 hours | |
| Water Protection | IPX4 | |
| Sound Level | 68 dBA (±3) | |
| Gross Vehicle Weight | 754 lb (342 kg) | |
| Dimensions (L x W x H, without squeegee) | 50 x 22 x 40 in (127 x 55 x 102 cm) | |
| Model Numbers | 56384073 | 56384074 |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Brush Speed (RPM) | Charger Type | Cleaning Path (inches) | Condition | Equipment Type | List Price | Machine Type | Manufacturer | Minimum Advertised Price | Our Price | Power Source | Propulsion | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Clarke RA40 20D Two 140 AH maint-free batteries, onboard charger, pad holders
ENAD56384074
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 15,429.00 | Equipment | Clarke | 13886 | 13,191.70 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$15,429.00
$13,191.70/EA
15% discount
|
|||||||||
 |
New Clarke RA40 20D Two 130 AH wet batteries, onboard charger, pad holders
ENAD56384073
|
Usually Ships in 3 to 5 Weeks | 155 | On-board Available | 20 | New | Rider Scrubbers | 13,695.00 | Equipment | Clarke | 12326 | 11,709.70 | Battery | Rider | Qualifies for Free/Flat Rate Shipping | 18.5 | 68 | Full Factory Warranty |
$13,695.00
$11,709.70/EA
14% discount
|
||
