New Clarke FOCUS II 28 Disc Rider Scrubber
Our Take (from the SES Sales Team)
“The Focus II Rider 28 Disc is a full-size rider for facilities that scrub a lot of open floor, like school corridors, healthcare hallways, warehouses and big retail floors. With 31-gallon tanks, a 28-inch deck and up to 220 lb of scrub pressure, it can clean heavily soiled floors in one pass and keep going for a long time between dumps. The One-Touch controls are simple enough that new operators pick it up quickly. The 28-inch deck is the more maneuverable choice; if you have very wide open areas, look at the 34-inch model.
The real choice is batteries. The 310 Ah wet set with the onboard charger covers standard shifts. The 420 Ah wet set gives longer runs and charges from an off-board shelf charger, so plan a charging spot. The 312 Ah AGM set is sealed for crews that would rather not water batteries. Any package can come with the Chemical Mixing System if you want the machine to meter detergent.”
A 28-inch disc rider scrubber with 31-gallon tanks
The Clarke Focus II Rider 28 Disc is a battery-powered ride-on floor scrubber with a 28 in (71 cm) disc deck and 31 gal (117 L) solution and recovery tanks. It is built for large hard-floor areas that need regular scrubbing, and three scrub pressure settings up to 220 lb (96 kg) let it clean heavily soiled floors in one pass. It cleans at up to 3.12 mph for a maximum coverage of 38,438 sq ft per hour, turns in a 63 in (160 cm) radius and runs at 68.6 dBA. Universal One-Touch™ controls keep operation simple, and the open design, angled floorboard and tools-free adjustable seat give the operator a clear line of sight and a comfortable ride.
Choose your configuration
Pick the Focus II 28 Disc battery package
| 310 Ah wet | 420 Ah wet | 312 Ah AGM | |
|---|---|---|---|
| Batteries | 24 V, 310 Ah wet | 24 V, 420 Ah wet | 24 V, 312 Ah AGM |
| Charger | Onboard | Off-board shelf charger | Onboard |
| Battery care | Regular watering | Regular watering | Sealed, no watering |
| Best for | Standard daily shifts | Longer runs between charges | Crews that would rather not water batteries |
| Packages here | 56114012; 56114014 (with Chemical Mixing System) | 56114015; 56114016 (with Chemical Mixing System) | 56114017; 56114018 (with Chemical Mixing System) |
Reading the model numbers: Nilfisk names these packages FOCUS II R 28D followed by the battery and charger code. W is wet batteries, A is AGM, the number is the amp-hour rating, OBC is an onboard charger and SC is an off-board shelf charger. CH marks the packages with the optional Chemical Mixing System, and PH means the machine ships with a pad holder. The scrubbing specs are the same across every package.
Features:
- Three scrub pressure settings: 90, 150 and 220 lb (39, 65 and 96 kg)
- Three solution flow rates: 0.33, 0.60 and 0.80 gpm
- Universal One-Touch™ controls for easy operation
- Heavy-duty, fully adjustable steel side skirts maximize water pickup and protect the machine
- Optional Chemical Mixing System uses every drop of chemical exactly as directed

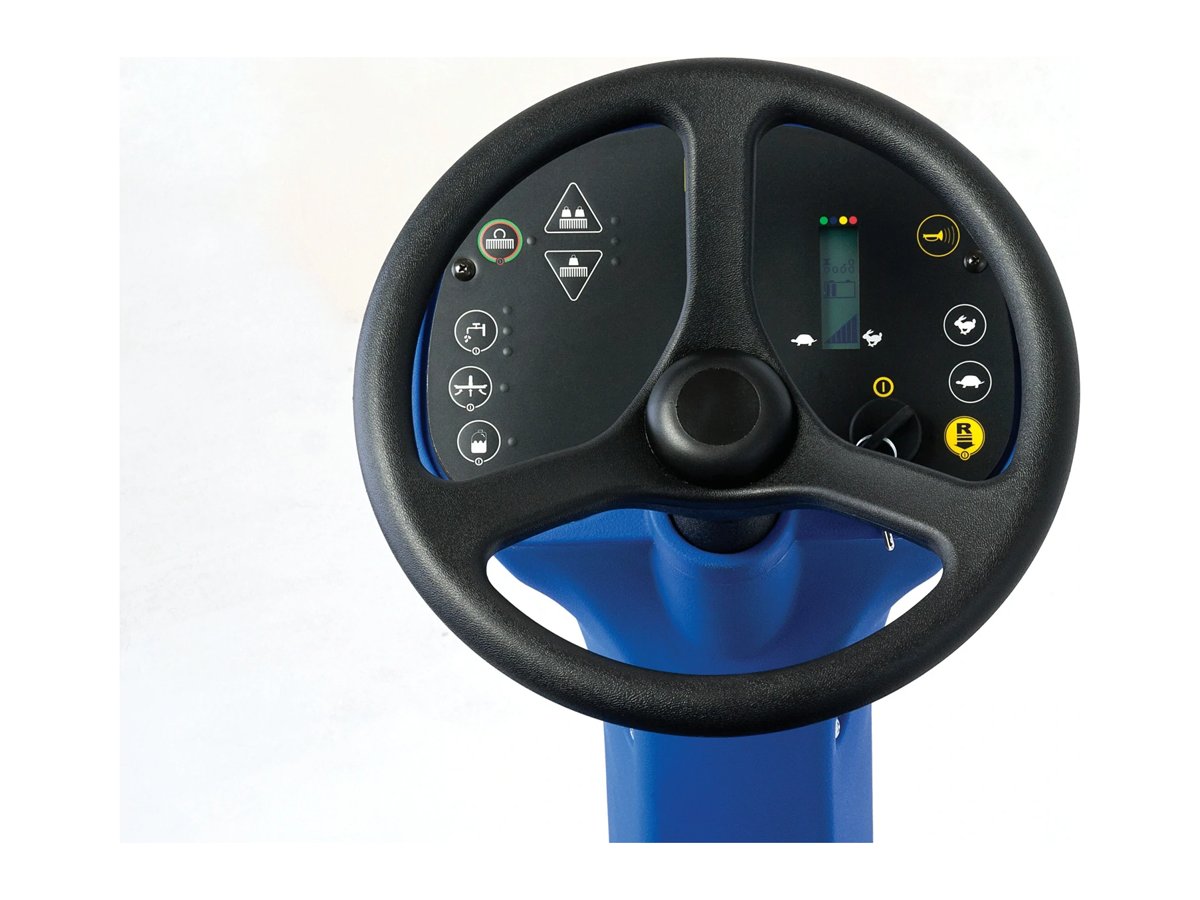

One-Touch steering-wheel controls

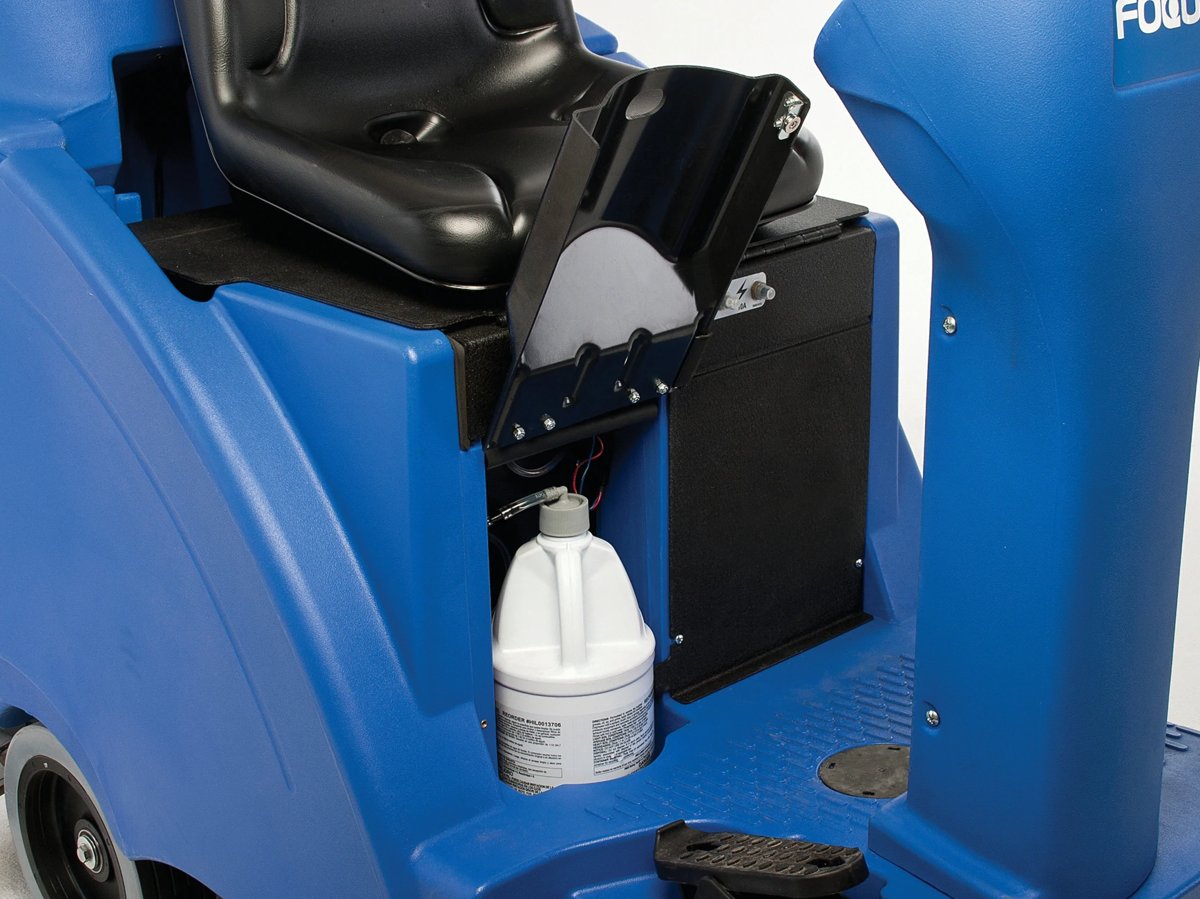

Optional Chemical Mixing System
Focus II Rider 28 Disc
Specifications
| Models | 310 Ah wet | 420 Ah wet | 312 Ah AGM |
| Cleaning Path | 28 in (71 cm), disc | ||
| Squeegee Width | 32.6 in (83 cm) | ||
| Solution / Recovery Tank | 31 gal (117 L) / 31 gal (117 L) | ||
| Scrub Pressure | 90 / 150 / 220 lb (39 / 65 / 96 kg) | ||
| Brush Motor / Speed | 0.64 hp (480 W), 260 rpm | ||
| Solution Flow | 0.33 / 0.60 / 0.80 gpm (1.25 / 2.27 / 3.03 L/min) | ||
| Vacuum Motor | 0.75 hp (560 W) | ||
| Sealed Water Lift | 46.1 in (11.48 kPa) | ||
| Airflow | 76.5 cfm (36 L/s) | ||
| Drive Motor | 1.05 hp (780 W) | ||
| Speed | 3.12 mph (4.8 km/h) cleaning; 3.91 mph (6.3 km/h) transport | ||
| Max Coverage | 38,438 sq ft/hr (3,571 m²/hr) at 3.12 mph | ||
| Gradeability | 4.5% cleaning; 7.1% transport | ||
| Minimum Turn Radius | 63 in (160 cm) | ||
| Batteries | 24 V, 310 Ah wet | 24 V, 420 Ah wet (6 V batteries) | 24 V, 312 Ah AGM |
| Charger | Onboard | Off-board shelf charger | Onboard |
| Sound Level | 68.6 dBA (IEC 60704-1) | ||
| Weight | 547 lb (248 kg) without batteries; 1,328 lb (602 kg) GVW with 310 Ah batteries, full tank and 175 lb operator | ||
| Dimensions (L x W x H) | 60 x 30 x 55 in (152 x 76 x 140 cm); 31.5 in (80 cm) max width without squeegee | ||
| Approvals | CSA, ETL (US and Canada) | ||
| Model Numbers | 56114012, 56114014 | 56114015, 56114016 | 56114017, 56114018 |
Technical specs may include optional equipment that is not included with all units.
