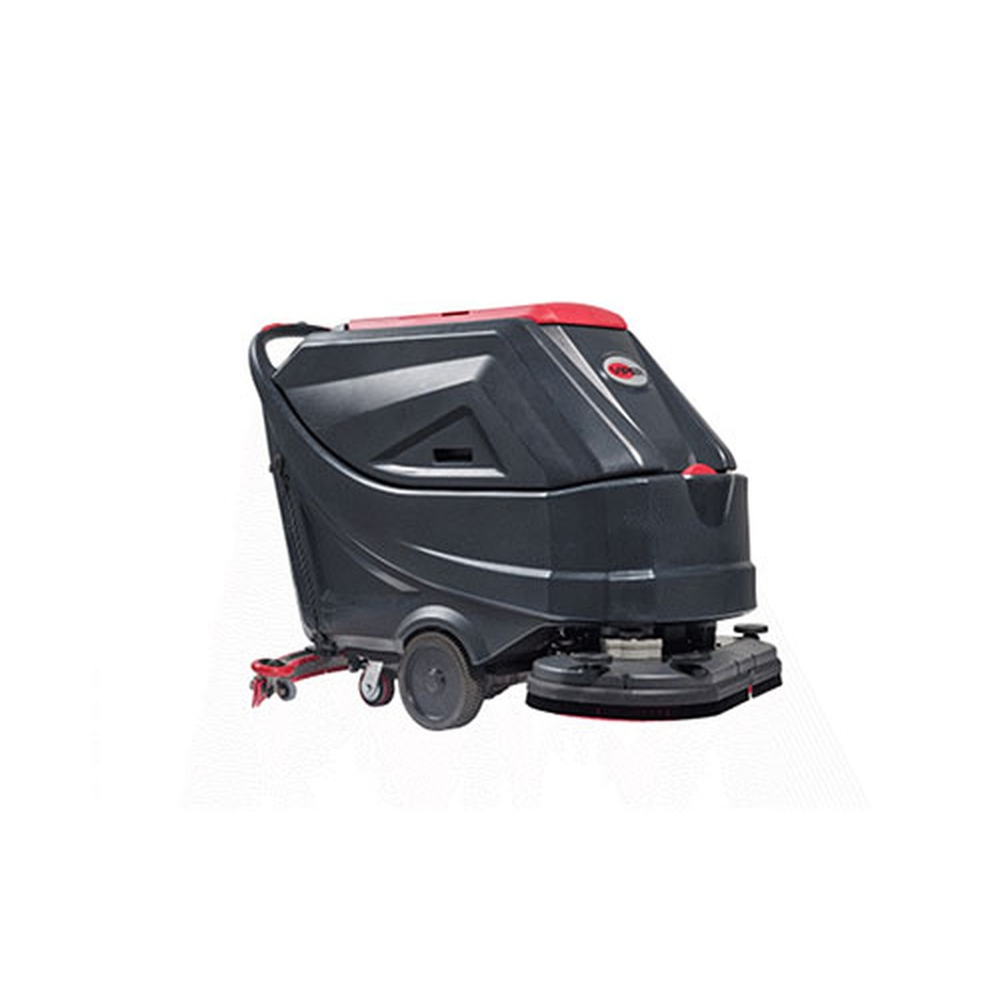

New Viper AS Series AS7690T 30" Walk Behind Scrubber
Our Take (from the SES Sales Team)
“The AS7690T is the widest walk-behind in the Viper AS line, with a 30-inch path from two 15-inch pad drivers. It is built for large open floors such as warehouses, big-box retail, gyms, school corridors and production areas, where every extra inch of path cuts passes. Viper rates it at 32,700 square feet per hour, and the 22-gallon solution and 24-gallon recovery tanks keep it scrubbing between dumps. Traction drive does the pushing, Eco mode stretches run time and Silent mode brings it down to 65 dBA.
Pick the package by batteries. The base machine is for buyers with their own batteries. Two 215 Ah wet batteries with the onboard charger are the entry package, and four 242 Ah wet add run time. Choose 312 Ah AGM to skip watering, or TPPL with the 50-amp charger for fast turnarounds between shifts.”
A 30-inch traction-drive walk-behind scrubber for medium to large areas
The Viper AS7690T is a battery-powered walk-behind automatic floor scrubber with a dual-brush 30-inch disc deck and traction drive. Nilfisk built it for medium to large hard-floor areas, for both routine daily cleaning and heavy-duty scrubbing, and it shares its chassis and tanks with the 26-inch AS6690T and the 28-inch orbital AS7190TO. It handles sealed concrete, VCT, tile and other hard floors.
Choose your configuration
Pick the AS7690T battery package
| Base machine | 215 Ah wet | 242 Ah wet | 312 Ah AGM | TPPL | |
|---|---|---|---|---|---|
| Batteries | Not included | Two 12 V, 215 Ah wet | Four 6 V, 242 Ah wet | 312 Ah AGM | 120 Ah TPPL |
| Charger | — | 25-amp onboard | 25-amp onboard | 25-amp shelf | 50-amp shelf |
| Battery care | — | Regular watering | Regular watering | Sealed, no watering | Sealed, no watering |
| Best for | Buyers supplying their own batteries | Entry battery package | Longer routes between charges | No battery watering | Fast recharging between shifts |
| Packages here | 50000573 | AS7690T-215 | AS7690T-242 | AS7690T-312 | AS7690T-TPPL |
Reading the model numbers: The suffix is the battery package: 215 and 242 are wet (flooded) batteries with an onboard charger, 312 is AGM with a shelf charger, and TPPL (thin plate pure lead) is a sealed battery that Viper rates for a 2-hour rapid recharge. 50000573 is the AS7690T without a battery package.
Features:
- Eco mode extends battery run time
- Silent mode lowers sound to 65 dBA for noise-sensitive areas and daytime cleaning
- Traction drive reduces operator fatigue
- LCD control panel with one-button start
- Tools-free daily maintenance, Click Off brush/pad removal and a standard recovery tank debris tray
AS7690T
Specifications
| Models | Base machine | 215 Ah wet | 242 Ah wet | 312 Ah AGM | TPPL |
| Cleaning Path | 30 in (76 cm) | ||||
| Brush / Pad Size | Two 15 in (38 cm) | ||||
| Squeegee Width | 38 in (95 cm) | ||||
| Solution / Recovery Tank | 22 gal (85 L) / 24 gal (90 L) | ||||
| Brush Pressure | 77 / 95 / 112 lb (35 / 43 / 51 kg) | ||||
| Brush Speed | 200 rpm / 160 rpm Eco | ||||
| Brush / Drive Motor | Two 500 W (0.66 hp) / 250 W (0.33 hp) | ||||
| Vacuum Motor | 500 W (0.66 hp), 60 in (150 cm) waterlift | ||||
| Solution Flow | 0.24 / 0.39 / 0.58 / 0.79 gpm (0.9 / 1.5 / 2.2 / 3.0 L/min) | ||||
| Travel Speed | Up to 2.5 mph (4 km/h) | ||||
| Max Theoretical Productivity | 32,700 sq ft/hr (3,040 m²/hr) | ||||
| Voltage | 24 V | ||||
| Batteries | Not included | Two 12 V, 215 Ah wet | Four 6 V, 242 Ah wet | 312 Ah AGM | 120 Ah TPPL |
| Charger | — | 25-amp onboard | 25-amp onboard | 25-amp shelf | 50-amp shelf |
| Sound Level | 69 dBA / 65 dBA Silent mode | ||||
| Minimum Aisle Turn | 65 in (165 cm) | ||||
| Weight | 451 lb (205 kg) without batteries; 772 lb (350 kg) gross with batteries and full tank | ||||
| Dimensions (L x W x H) | 61 x 33 x 40 in (155 x 83 x 102 cm) | ||||
| Model Numbers | 50000573 | AS7690T-215 | AS7690T-242 | AS7690T-312 | AS7690T-TPPL |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Battery Type | Brush Speed (RPM) | Cleaning Path (inches) | Condition | Deck Type | Equipment Type | List Price | Machine Type | Manufacturer | Minimum Advertised Price | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Viper 30", 22-gallon, traction-drive, pad drivers, 37" squeegee assembly, 25-amp on board charger, (2) 215 Ah WET batteries
ENADAS7690T-215
|
Usually Ships in 3 to 5 Weeks | AGM, Wet | 200 | 30 | New | Disk | Walk-Behind Scrubbers | 11,939.00 | Equipment | Viper | 10745 | 10,207.75 | Battery | Self-propelled | 24 | Qualifies for Free/Flat Rate Shipping | 22 | 69 | Full Factory Warranty |
$11,939.00
$10,207.75/EA
15% discount
|
||
|
New Viper 30", 22-gallon, traction-drive, pad drivers, 37" squeegee assembly, 25-amp on board charger, (4) 242 Ah WET batteries
ENADAS7690T-242
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 12,223.00 | Equipment | Viper | 11001 | 10,450.95 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$12,223.00
$10,450.95/EA
14% discount
|
|||||||||||
|
New Viper AS7690T: 30", 22-Gallon, Traction-drive, Pad Holders, 37" Squeegee Assy, 50-Amp Shelf Charger, (4) 120 Ah TPPL Batteri
ENADAS7690T-TPPL
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 16,637.00 | Equipment | Viper | 14973 | 14,224.35 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$16,637.00
$14,224.35/EA
15% discount
|
|||||||||||
|
New Viper AS7690T 30", 22-gallon, traction-drive, pad drivers, 37" squeegee assembly, 25-amp shelf charger, no batteries
ENADAS7690T
|
Ships from Supplier - Availability May Vary | AGM, Wet | 200 | 30 | New | Disk | Walk-Behind Scrubbers | 10,658.00 | Equipment | Viper | 9592 | 9,112.40 | Battery | Self-propelled | 24 | Qualifies for Free/Flat Rate Shipping | 22 | 69 | Full Factory Warranty |
$10,658.00
$9,112.40/EA
15% discount
|
||
|
New Viper 30", 22-gallon, traction-drive, pad drivers, 37" squeegee assembly, 25-amp shelf charger, (4) 312 Ah AGM batteries
ENADAS7690T-312
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 14,356.00 | Equipment | Viper | 12920 | 12,274.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$14,356.00
$12,274.00/EA
15% discount
|
