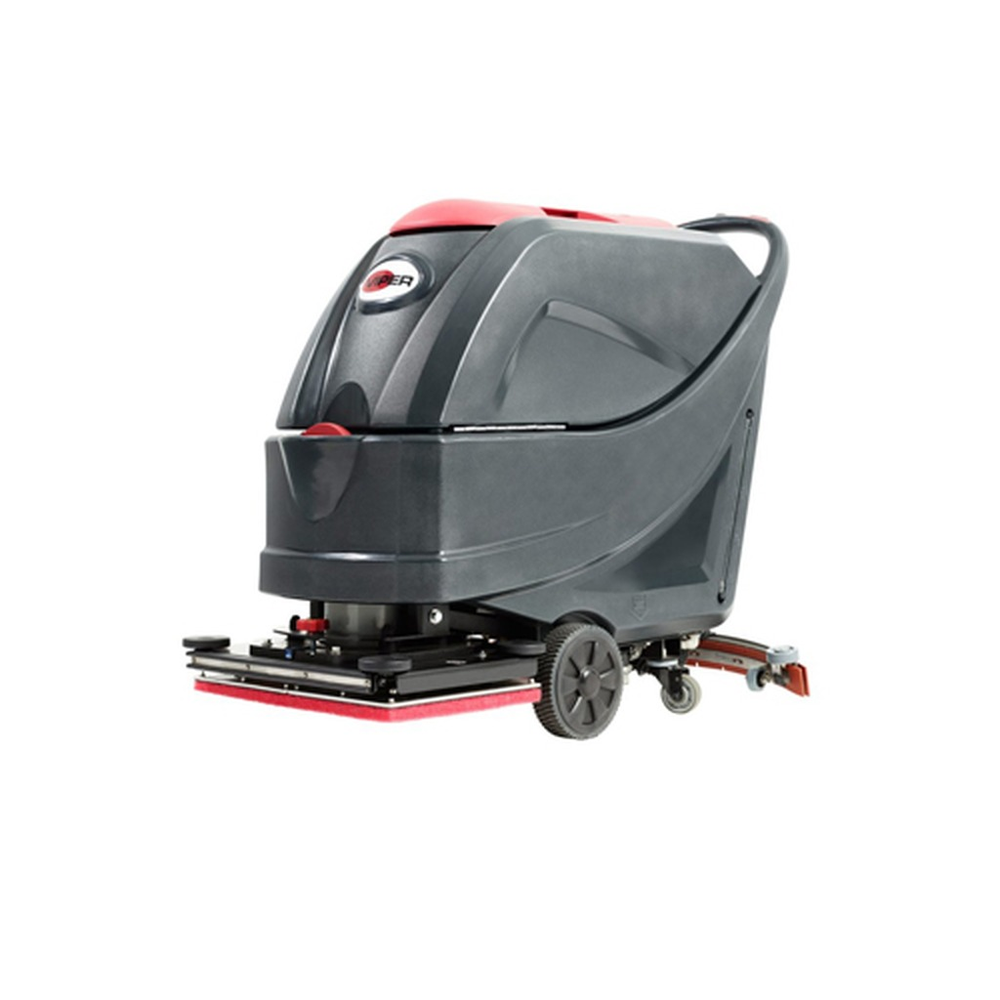

New Viper AS Series AS7190TO 28" Walk Behind Scrubber
Our Take (from the SES Sales Team)
“The AS7190TO is the orbital member of the Viper AS family. Instead of two spinning brushes, it runs one 14 by 28-inch rectangular pad in a fast orbit at 2,200 rpm, scrubbing in several directions at once. That makes it a strong daily scrubber for schools, gyms, malls and healthcare, and its finish removal mode lets crews take floor finish off without stripping chemicals. Pad pressure goes up to 143 pounds, and the 22-gallon solution and 24-gallon recovery tanks match the disc models.
All three packages are the same machine with traction drive, Eco mode and Silent mode. The 242 Ah wet package with the onboard charger is the standard choice. Choose 312 Ah AGM if nobody wants to water batteries, or TPPL for sealed batteries with a fast recharge between shifts.”
A 28-inch orbital walk-behind scrubber for deep cleaning and finish removal
The Viper AS7190TO is a battery-powered, traction-drive walk-behind automatic floor scrubber with an orbital scrub deck for intensive multidirectional floor care. Nilfisk built it for facility managers and contract cleaners who handle routine cleaning, heavy-duty scrubbing and chemical-free floor finish removal on medium to large hard-floor areas. It shares its chassis and tanks with the AS6690T and AS7690T disc models.
Choose your configuration
Pick the AS7190TO battery package
| 242 Ah wet | 312 Ah AGM | TPPL | |
|---|---|---|---|
| Batteries | Four 6 V, 242 Ah wet | 312 Ah AGM | TPPL |
| Charger | 25-amp onboard | 25-amp shelf | TPPL charger, 2-hour rapid recharge |
| Battery care | Regular watering | Sealed, no watering | Sealed, no watering |
| Best for | Standard daily shifts | No battery watering | Fast recharging between shifts |
| Packages here | AS7190TO-242 | AS7190TO-312 | AS7190TO-TPPL |
Reading the model numbers: The suffix is the battery package. 242 is wet (flooded) batteries with an onboard charger, 312 is AGM with a shelf charger, and TPPL (thin plate pure lead) is a sealed battery that Viper rates for a 2-hour rapid recharge.
Features:
- Orbital scrub deck for multidirectional cleaning
- Finish removal mode for chemical-free floor finish removal
- Three pad pressure settings: 93, 120 and 143 lb
- Eco mode extends run time and Silent mode lowers sound to 65 dBA
- LCD control panel and tools-free daily maintenance with a standard debris tray
AS7190TO
Specifications
| Models | 242 Ah wet | 312 Ah AGM | TPPL |
| Cleaning Path | 28 in (71 cm) | ||
| Scrub Head | Orbital, 14 x 28 in (36 x 71 cm) pad | ||
| Squeegee Width | 38 in (95 cm) | ||
| Solution / Recovery Tank | 22 gal (85 L) / 24 gal (90 L) | ||
| Pad Pressure | 93 / 120 / 143 lb (42 / 54 / 65 kg) | ||
| Orbit Speed | 2,200 rpm / 1,600 rpm Eco | ||
| Pad / Drive Motor | 750 W (1.0 hp) / 350 W (0.47 hp) | ||
| Vacuum Motor | 500 W (0.66 hp), 60 in (150 cm) waterlift | ||
| Solution Flow | 0.16 / 0.29 / 0.50 / 0.66 gpm (0.6 / 1.1 / 1.9 / 2.5 L/min) | ||
| Travel Speed | Up to 2.0 mph (3.2 km/h) | ||
| Max Theoretical Productivity | 24,400 sq ft/hr (2,272 m²/hr) | ||
| Estimated Run Time | Up to 4 hours | ||
| Voltage | 24 V | ||
| Batteries | Four 6 V, 242 Ah wet | 312 Ah AGM | TPPL |
| Charger | 25-amp onboard | 25-amp shelf | TPPL charger, 2-hour rapid recharge |
| Sound Level | 69 dBA / 65 dBA Silent mode | ||
| Minimum Aisle Turn | 63 in (160 cm) | ||
| Weight | 473 lb (215 kg) without batteries; 794 lb (360 kg) gross with batteries and full tank | ||
| Dimensions (L x W x H) | 59 x 30 x 40 in (149 x 75 x 102 cm) | ||
| Model Numbers | AS7190TO-242 | AS7190TO-312 | AS7190TO-TPPL |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Battery Type | Brush Speed (RPM) | Cleaning Path (inches) | Condition | Deck Type | Equipment Type | List Price | Machine Type | Manufacturer | Minimum Advertised Price | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Viper 28", orbital head, 22-gallon, traction-drive, 37" squeegee assembly, 25-amp shelf charger, (4) 312 Ah AGM batteries
ENADAS7190TO-312
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 17,714.00 | Equipment | Viper | 15943 | 15,145.85 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$17,714.00
$15,145.85/EA
14% discount
|
|||||||||||
|
New Viper 28", orbital head, 22-gallon, traction-drive, 37" squeegee assembly, 25-amp on board charger, (4) 242 Ah WET batteries
ENADAS7190TO-242
|
Usually Ships in 3 to 5 Weeks | AGM, Wet | 2200 | 28 | New | Orbital | Walk-Behind Scrubbers | 15,183.00 | Equipment | Viper | 13665 | 12,981.75 | Battery | Self-propelled | 24 | Qualifies for Free/Flat Rate Shipping | 22 | 69 | Full Factory Warranty |
$15,183.00
$12,981.75/EA
14% discount
|
||
|
New Viper AS7190TO: 28", Orbital Head, 22-Gallon, Traction-drive, 37" Squeegee Assy, 50-Amp Shelf Charger, (4) 120 Ah TPPL Batte
ENADAS7190TO-TPPL
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 20,409.00 | Equipment | Viper | 18368 | 17,449.60 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$20,409.00
$17,449.60/EA
15% discount
|
