New Viper AS530R 21" Battery Rider Scrubber
Our Take (from the SES Sales Team)
“The AS530R is for the building that has outgrown a walk-behind but doesn't need a full-size rider. It has a 21-inch path and a 19-gallon tank, and the operator sits down, so long hallways, lobbies, store aisles and school corridors go faster and with less fatigue. It is small enough to work around fixtures, and the squeegee hangs on the recovery tank when you move it through tight spots.
Every package is the same machine, so pick by batteries. The 130 Ah wet set with the onboard charger is the standard choice. The 140 Ah AGM set also charges onboard and needs no watering. The TPPL package uses sealed TPPL batteries and a separate shelf charger. If you already have a battery set, the no-battery package is available too.”
A compact micro-rider scrubber that replaces walking behind the machine
The Viper AS530R is a battery-powered mini ride-on scrubber dryer with a 21 in (53 cm) cleaning path, a single 20 in brush or pad, a 19-gallon solution tank and a 19.2-gallon recovery tank. Viper designed it for large areas in hotels, bus and train stations, supermarkets, exhibition centers, shopping malls and schools. It cleans tiled floors, vinyl, sealed wood, marble, concrete and other hard surfaces at up to 3.4 mph, climbs 10% grades and runs at 69 dBA, quiet enough for daytime cleaning. A front bumper, strong main frame and heavy-duty aluminum squeegee are built for daily commercial use.
Choose your configuration
Pick the AS530R battery package
| No batteries | 130 Ah wet | 140 Ah AGM | 120 Ah TPPL | |
|---|---|---|---|---|
| Batteries (24 V) | Not included | Two 12 V, 130 Ah wet | Two 12 V, 140 Ah AGM | 120 Ah TPPL |
| Charger | Onboard | Onboard | Onboard | 25 A shelf charger |
| Battery care | Depends on the batteries you add | Regular watering | Sealed, no watering | Sealed, no watering |
| Best for | Buyers who already have batteries | Standard daily shifts | Crews that would rather not water batteries | Sealed batteries with an external charger |
| Packages here | 50000417 | 56385072 | 56385073 | AS530R TPPL package |
Reading the model numbers: Viper lists the packages as AS530R-US Ride On Scrubber 21 inch 24V (50000417, no batteries), AS530R-US Rider 130Ah Wet (56385072) and AS530R-US Rider 140Ah AGM (56385073). The TPPL package is the same scrubber with TPPL batteries and a 25 A shelf charger.
Features:
- Integrated onboard charger plugs into any outlet on the onboard-charger packages
- Solution level indicator with the volume visible on the tank
- Large opening to the 73 L (19.2 gal) recovery tank makes clean-out easy
- Built-in squeegee hanging system on the recovery tank for moving through narrow areas
- Intuitive dashboard with a clear display and simple buttons

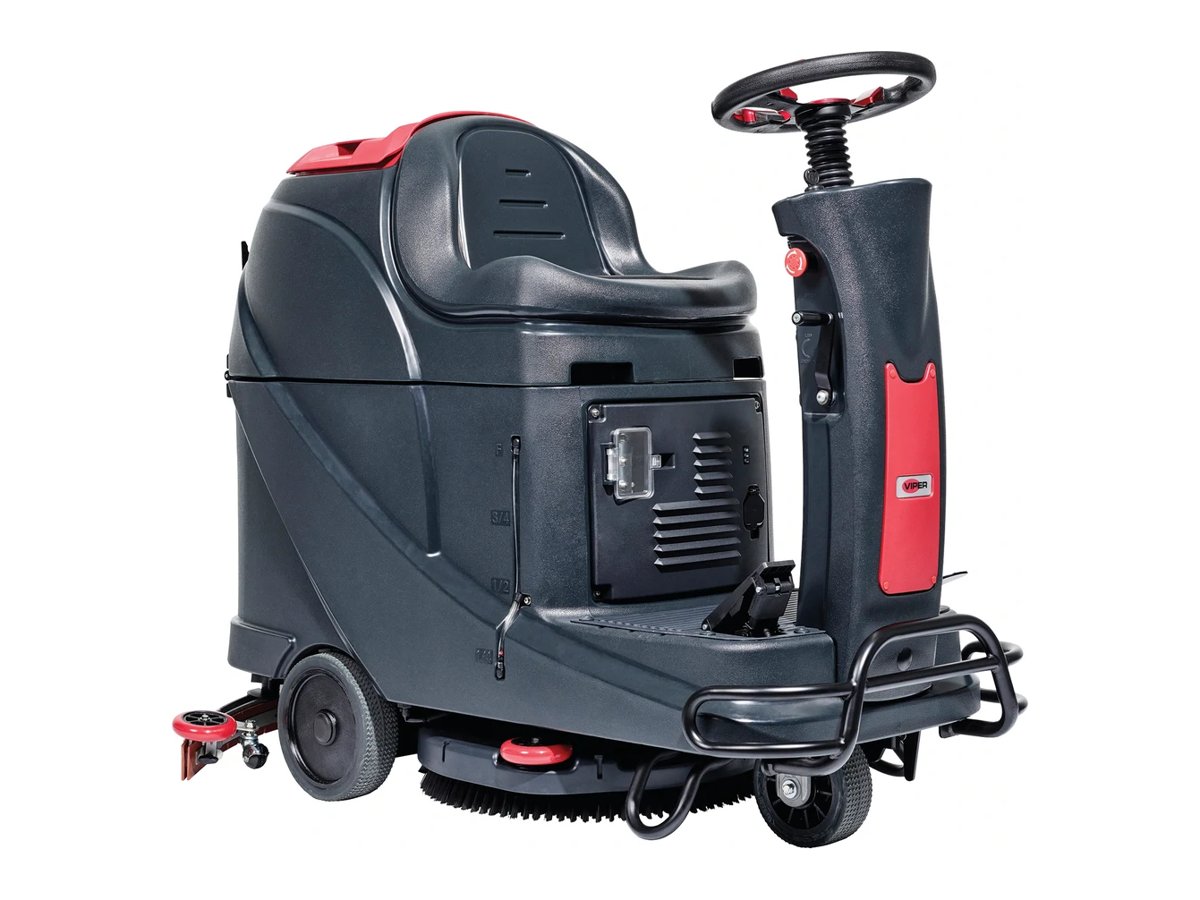

Viper AS530R mini rider

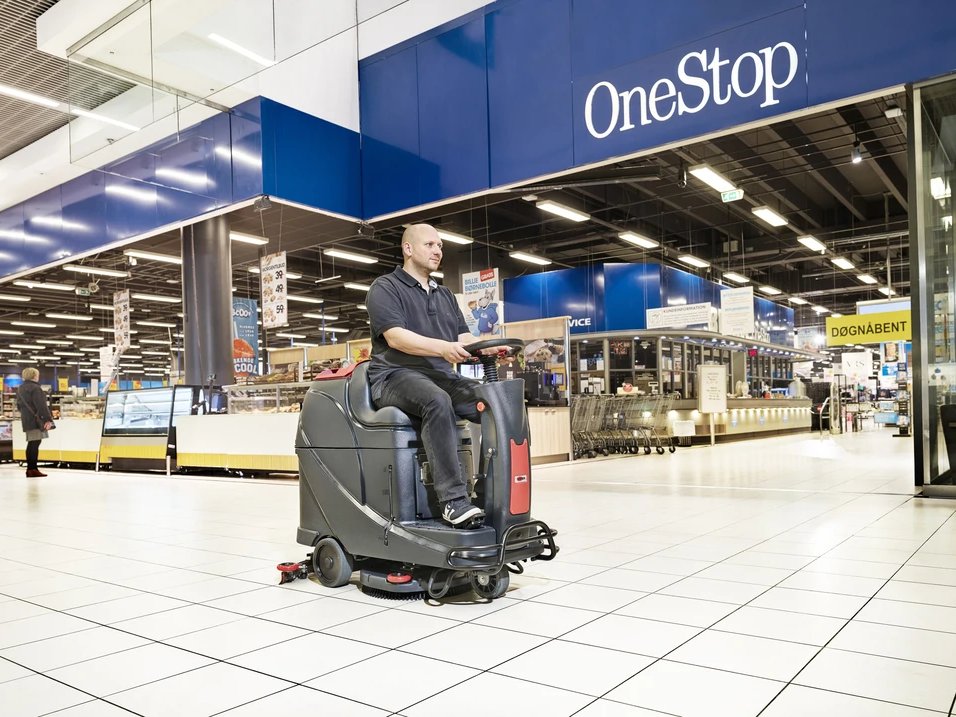

Scrubbing a supermarket

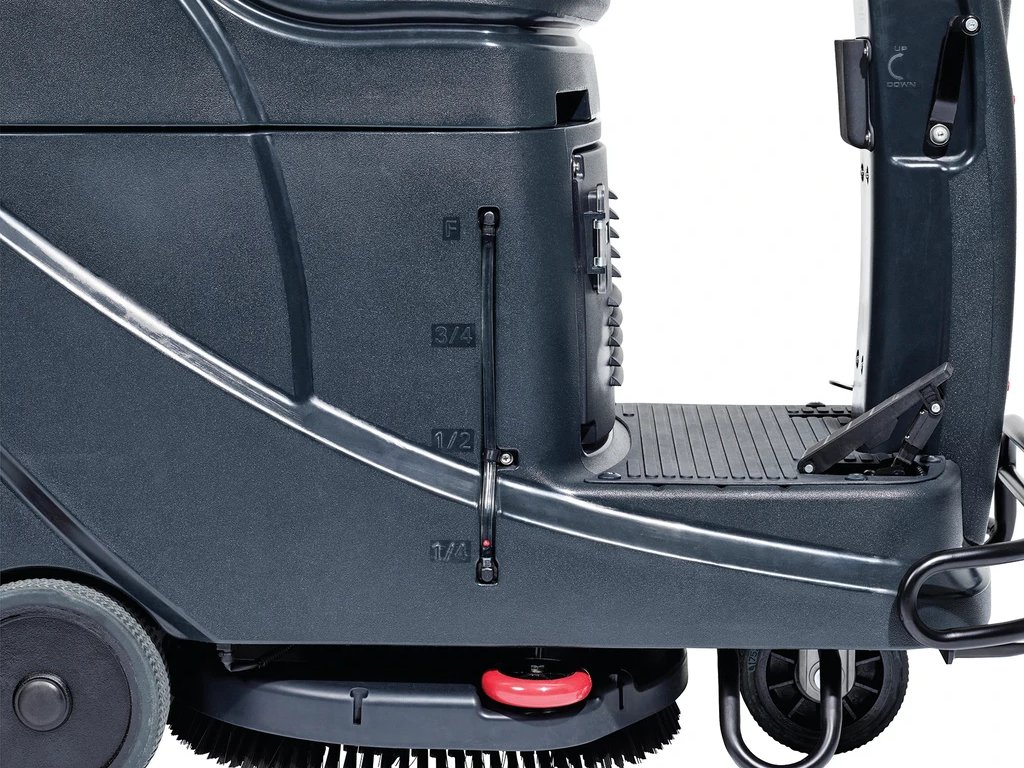

Solution level indicator
AS530R
Specifications
| Models | No batteries | 130 Ah wet | 140 Ah AGM | 120 Ah TPPL |
| Cleaning Path | 21 in (53 cm) | |||
| Brush / Pad Diameter | 20 in (51 cm) | |||
| Squeegee Width | 28.7 in (73 cm) | |||
| Solution / Recovery Tank | 19 gal (72 L) / 19.2 gal (73 L) | |||
| Brush Pressure | 51 lb (23 kg) | |||
| Brush Speed | 160 rpm | |||
| Brush Motor | 0.6 hp (0.45 kW) | |||
| Vacuum Motor | 0.5 hp (0.37 kW), 48 in (122 cm) water lift | |||
| Drive Motor | 0.4 hp (0.3 kW) | |||
| Max Speed | 3.4 mph (5.5 km/h) | |||
| Max Climbing Rate | 10% | |||
| Minimum Aisle Turn | 68.5 in (174 cm) | |||
| Batteries (24 V) | Not included | Two 12 V, 130 Ah wet | Two 12 V, 140 Ah AGM | 120 Ah TPPL |
| Charger | Onboard | Onboard | Onboard | 25 A shelf |
| Battery Compartment (L x W x H) | 13.8 x 15 x 11.8 in (35 x 38 x 30 cm) | |||
| Sound Level | 69 dBA | |||
| Net Weight | 308 lb (140 kg) | |||
| Shipping Weight | 540 lb (245 kg) | |||
| Dimensions (L x W x H) | 53.5 x 23 x 44 in (136 x 58 x 112 cm) | |||
| Model Numbers | 50000417 | 56385072 | 56385073 | AS530R TPPL package |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Brush Speed (RPM) | Cleaning Path (inches) | Condition | Deck Type | Equipment Type | List Price | Machine Type | Manufacturer | Minimum Advertised Price | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Viper AS530R: 20", 19-gallon, micro-rider scrubber, pad driver + brushes, 28" squeegee, onboard charger, 140 Ah AGM batterie
ENAD56385073
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 13,016.00 | Equipment | Viper | 11714 | 11,128.30 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$13,016.00
$11,128.30/EA
15% discount
|
||||||||||
 |
New Viper AS530R: 20", 19-gallon, micro-rider scrubber, pad driver + brushes, 28" squeegee, onboard charger, 130 Ah WET batterie
ENAD56385072
|
Usually Ships in 3 to 5 Weeks | 160 | 21 | New | Disk | Rider Scrubbers | 11,777.00 | Equipment | Viper | 10599 | 10,069.05 | Battery | Rider | 19 | Qualifies for Free/Flat Rate Shipping | 19 | 69 | Full Factory Warranty |
$11,777.00
$10,069.05/EA
15% discount
|
||
|
|
New Viper AS530R: 20", 19-gallon, micro-rider scrubber, pad driver + brushes, 28" squeegee, onboard charger, no batteries
ENAD50000417
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 10,928.00 | Equipment | Viper | 9835 | 9,343.25 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$10,928.00
$9,343.25/EA
15% discount
|
||||||||||
|
|
New Viper AS530R: 20", 19-gallon, micro-rider scrubber, pad driver + brushes, 28" squeegee, 25-amp shelf chrgr, 120 Ah TPPL batt
ENADAS530R-TPPL
|
Ships from Supplier - Availability May Vary | New | Rider Scrubbers | 14,905.00 | Equipment | Viper | 13415 | 12,744.25 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$14,905.00
$12,744.25/EA
14% discount
|
||||||||||
