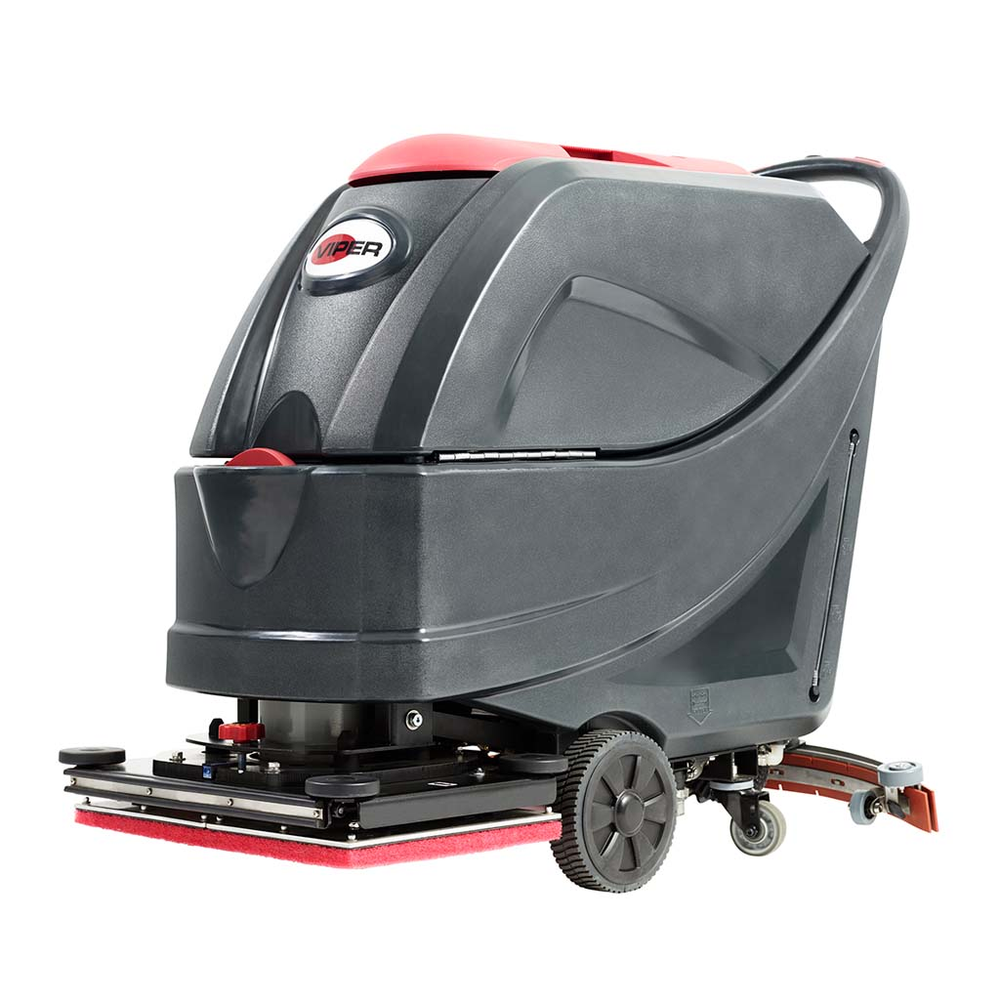

New Viper AS5160TO 20" Orbital Traction Drive Floor Scrubber
Our Take (from the SES Sales Team)
“The AS5160TO is the AS5160 with an orbital deck and a drive motor. That makes it a good fit for hotels, restaurants, lobbies and stores that scrub smooth floors every day and want to use less water and chemical doing it. The orbital pad doesn't spin like a disc, the drive does the pushing, and the deck raises and lowers on its own, so it is an easy machine to hand to a new operator.
All three packages are the same scrubber with the same 16-gallon tanks. The difference is batteries. The 130 Ah wet set is the standard choice and charges onboard. The 140 Ah AGM set also charges onboard and needs no watering. The TPPL package uses sealed TPPL batteries with a separate shelf charger.”
A 20-inch orbital walk-behind scrubber with traction drive
The Viper AS5160TO is the orbital version of Viper's AS5160 walk-behind automatic floor scrubber. Instead of a spinning disc, its 20 in (51 cm) orbital deck vibrates the pad at 2,200 rpm, and Viper says the orbital version saves water and detergent. It adds a traction drive and automatic raising and lowering of the scrub deck, and it carries the same 16-gallon (61 L) solution and recovery tanks and 31 in squeegee as the disc model. Use it for daily scrubbing of hard floors in hotels, lobbies, restaurants, cafes and supermarkets. It runs on a 24 V system of two 12 V batteries.
Choose your configuration
Pick the AS5160TO battery package
| 130 Ah wet | 140 Ah AGM | 120 Ah TPPL | |
|---|---|---|---|
| Batteries (24 V) | Two 12 V, 130 Ah wet | Two 12 V, 140 Ah AGM | 120 Ah TPPL |
| Charger | 24 V onboard | 24 V onboard | 25 A shelf charger |
| Battery care | Regular watering | Sealed, no watering | Sealed, no watering |
| Best for | Standard daily shifts | Crews that would rather not water batteries | Sealed batteries with an external charger |
| Packages here | 56394138 | 56394139 | AS5160TO TPPL package |
Reading the model numbers: Viper lists the two standard packages as AS5160TO 130 Ah Wet Batteries (56394138) and AS5160TO 140 Ah AGM Batteries (56394139). Both include a 24 V onboard charger. The TPPL package uses the same scrubber with TPPL batteries and a 25 A shelf charger.
Features:
- Orbital scrub deck saves water and detergent compared with a spinning disc
- Traction drive moves the machine, so the operator only has to steer
- Scrub deck raises and lowers automatically
- 16-gallon solution and recovery tanks for fewer refills and dumps
- Safety switches built into the handle

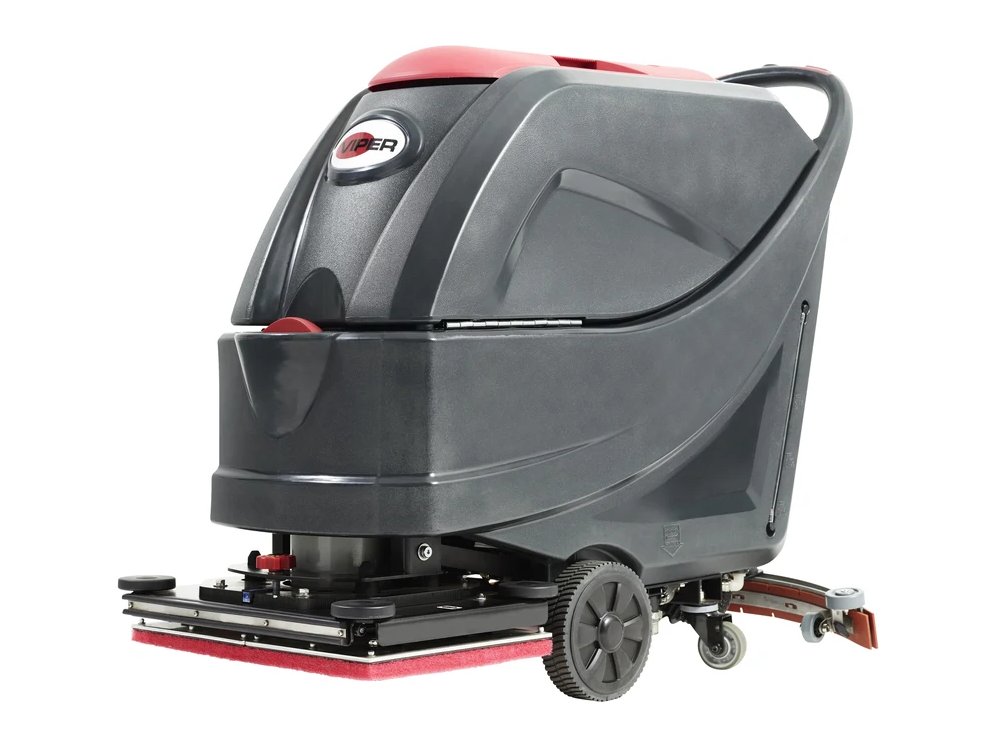

Viper AS5160TO orbital scrubber

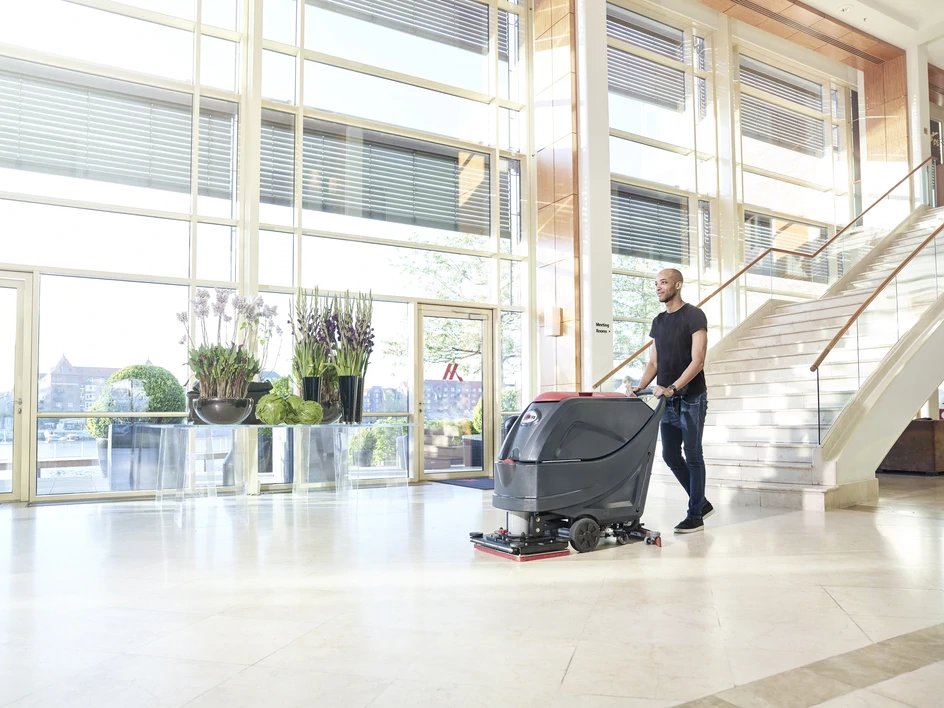

Daily scrubbing in a lobby
AS5160TO 20 in orbital
Specifications
| Models | 130 Ah wet | 140 Ah AGM | 120 Ah TPPL |
| Cleaning Path | 20 in (51 cm) orbital deck | ||
| Orbital Speed | 2,200 rpm | ||
| Pad Pressure | 50 lb (23 kg) | ||
| Squeegee Width | 31 in (79 cm) | ||
| Solution / Recovery Tank | 16 gal (61 L) / 16 gal (61 L) | ||
| Scrub Motor | 1 hp (0.75 kW) | ||
| Traction Motor | 0.33 hp (0.25 kW) | ||
| Vacuum Motor | 0.74 hp (0.55 kW), 47 in (1,200 mm) water lift | ||
| Solution Flow | 0–0.63 gpm (0–2.4 L/min) | ||
| Max Climbing Rate | 2% | ||
| Batteries (24 V) | Two 12 V, 130 Ah wet | Two 12 V, 140 Ah AGM | 120 Ah TPPL |
| Charger | 24 V onboard | 24 V onboard | 25 A shelf |
| Sound Level | 69 dBA | ||
| Weight | 205 lb (93 kg) net; 491 lb (223 kg) gross vehicle weight | ||
| Shipping Weight | 271 lb (123 kg) | ||
| Dimensions (L x W x H) | 52 x 22 x 39 in (132 x 56 x 99 cm) | ||
| Model Numbers | 56394138 | 56394139 | AS5160TO TPPL package |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Battery Type | Cleaning Path (inches) | Condition | Deck Type | Equipment Type | List Price | Machine Type | Manufacturer | Minimum Advertised Price | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Viper AS5160TO 20", orbital head, 16-gallon, traction drive, 140 Ah AGM batteries, onboard charger, 31" squeegee assembly
ENAD56394139
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 9,478.00 | Equipment | Viper | 8530 | 8,103.50 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$9,478.00
$8,103.50/EA
15% discount
|
||||||||||
|
New Viper AS5160TO 20", orbital head, 16-gallon, traction drive, 130 Ah wet batteries, onboard charger, 31" squeegee assembly
ENAD56394138
|
Usually Ships in 3 to 5 Weeks | AGM, Wet | 20 | New | Orbital | Walk-Behind Scrubbers | 8,940.00 | Equipment | Viper | 8046 | 7,643.70 | Battery | Self-propelled | 16 | Qualifies for Free/Flat Rate Shipping | 16 | 69 | Full Factory Warranty |
$8,940.00
$7,643.70/EA
15% discount
|
||
|
New Viper AS5160TO 20", orbital head, 16-gallon, traction drive, 120 Ah TPPL batteries, 25-amp shelf charger, 31" squeegee assem
ENADAS5160TO-TPPL
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 11,290.00 | Equipment | Viper | 10161 | 9,652.95 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$11,290.00
$9,652.95/EA
15% discount
|
