| Models | Spectrum 18D |
| Cleaning Path | 17.5 in (44.5 cm) |
| Vacuum Motor | 120 V, 60 Hz, 1,000 W, 9 A, 2-stage |
| Brush Motor | 120 V, 60 Hz, 350 W |
| Total Power | 1,350 W (vacuum and brush motors) |
| Water Lift | 92 in (229 mbar) |
| Airflow | 93 cfm (2.6 m³/min) |

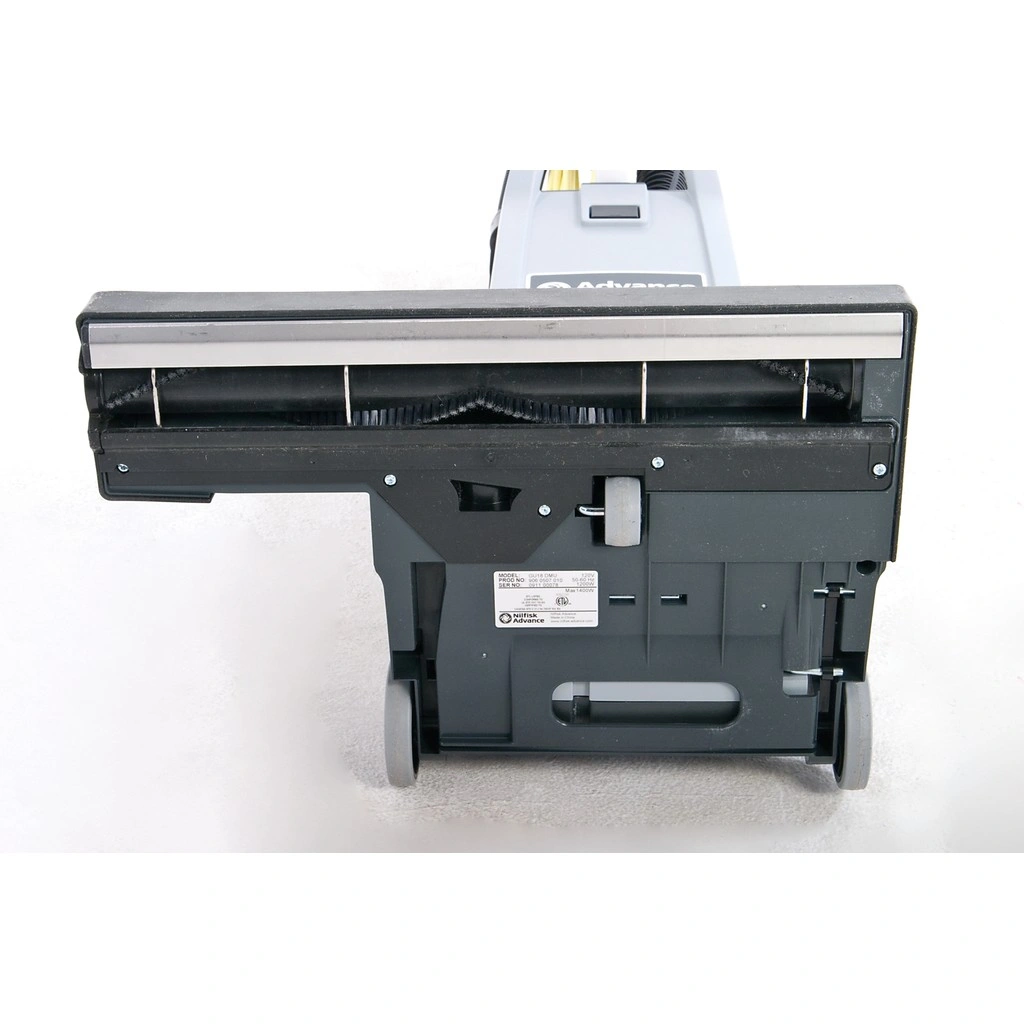

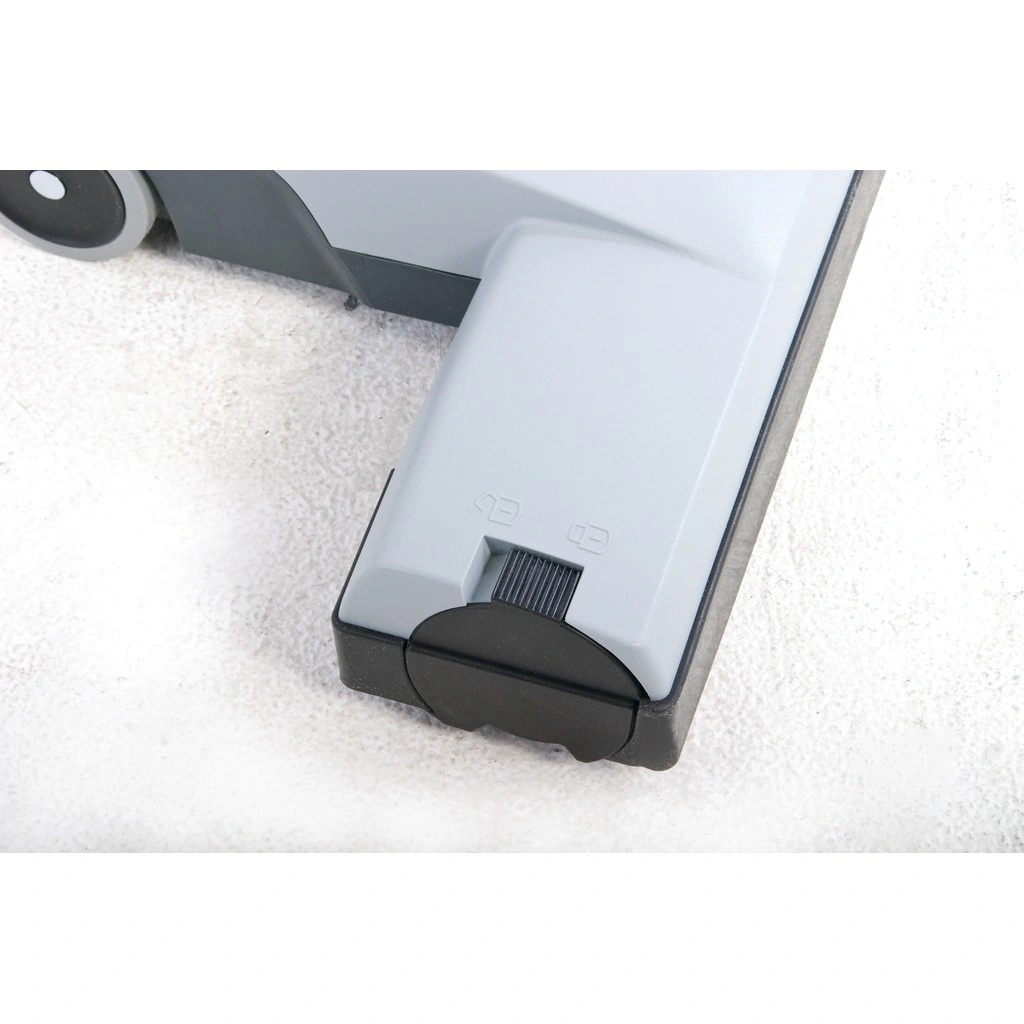

| Brush | Dual-row chevron nylon, variable manual height adjustment |
| Brush Speed | 2,800 rpm |

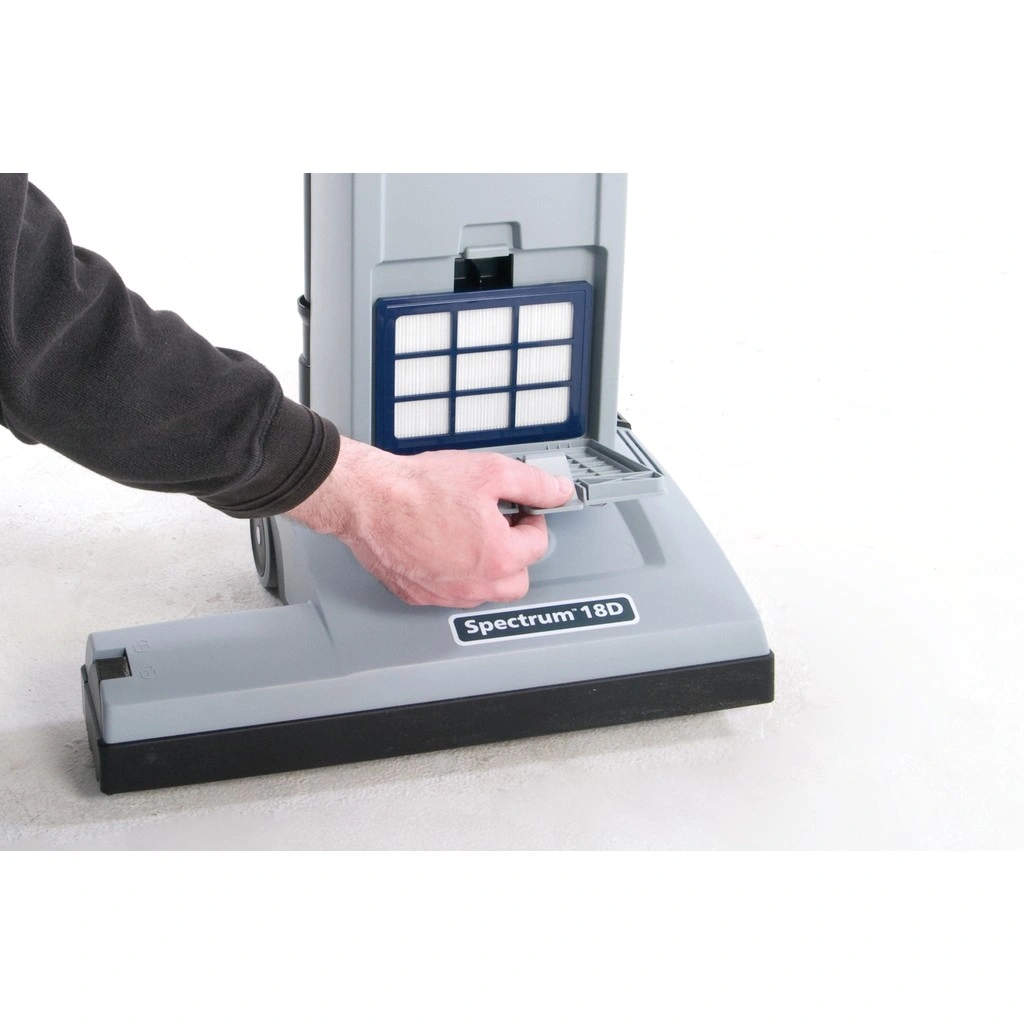

| Filtration | 2-ply paper filter bag, motor protection filter, certified HEPA exhaust filter |
| Bag Capacity | 4.2 qt (4 L) |
| Power Cord | 50 ft (15 m), 18/3, safety yellow |
| Sound Level | 69 dBA |
| On-board Tools | 4:1 stretch hose, wand, crevice tool, upholstery tool |
| Motor Protection | Airflow bypass valve and thermal overload protection |
| Dimensions (L x W x H) | 13 x 18 x 44 in (33 x 46 x 113 cm) |
| Weight (with cord) | 22 lb (10 kg) |
| Approvals | CRI Seal of Approval |
| Model Numbers | 9060507010 |
Technical specs may include optional equipment that is not included with all units.

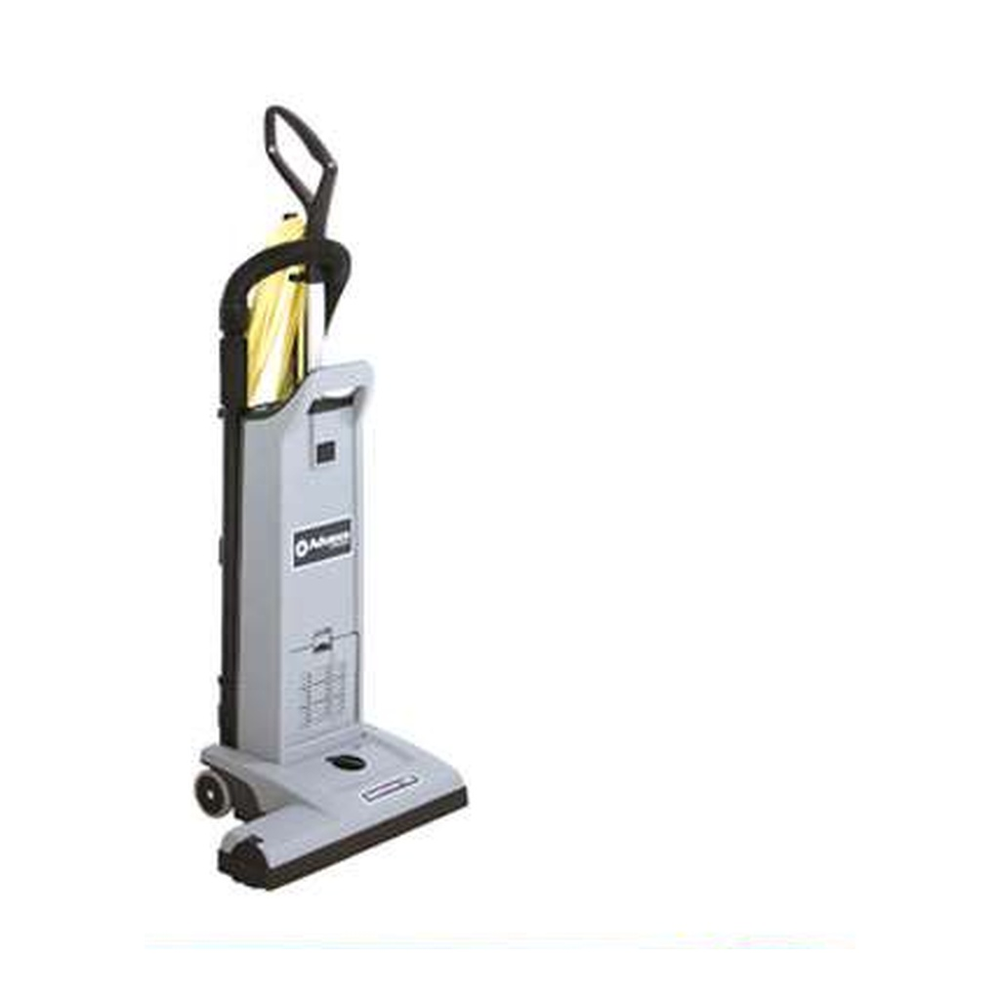

New Advance Spectrum 18D 17.5" Dual-Motor Upright Vacuum
Our Take (from the SES Sales Team)
“The Spectrum 18D is the widest Spectrum, with a 17.5-inch path for lobbies, ballrooms, corridors, open offices and classrooms where extra width means fewer passes. Like the 15D, it pairs a two-stage, 1,000-watt vacuum motor with a separate 350-watt brush motor, 1,350 watts in total, rated at 92 inches of water lift and 93 cfm.
The operator gets a foot pedal that turns the brush motor on and off in the upright position, a brush-height warning light and a bag-full/clog light. Air goes through a 2-ply paper bag, a motor protection filter and a certified HEPA exhaust filter, and the line carries the CRI Seal of Approval. Tools and a 4:1 stretch hose stay on board for edges and furniture.
The trade-off is size. The vacuum is 18 inches wide and weighs 22 pounds with its cord, so it is less handy in furnished guest rooms and tight offices. For those rooms, the 15D gives the same dual-motor setup with a 14.5-inch path.”
The 17.5-inch, dual-motor Spectrum for open carpet.
The Advance Spectrum 18D is a dual-motor commercial upright vacuum with a 17.5-inch cleaning path, the widest in the Spectrum line. Its two-stage, 1,000-watt, 9-amp vacuum motor is rated at 92 inches of water lift and 93 cfm, and a separate 350-watt brush motor brings total power to 1,350 watts. The dual-row chevron nylon brush turns at 2,800 rpm.
Filtration has three stages: a 2-ply paper filter bag with 4.2-quart capacity, a motor protection filter and a certified HEPA exhaust filter. A 4:1 stretch hose, wand, crevice tool and upholstery tool are stored on board. The 18D runs on a 50-foot 18/3 safety-yellow cord, is rated at 69 dBA, measures 13 x 18 x 44 inches and weighs 22 lb with the cord.
Includes:
- 4:1 stretch hose and quick-draw wand (on board)
- Crevice tool
- Upholstery tool
- Certified HEPA exhaust filter
- 50' safety-yellow power cord
Features:
- 17.5-inch cleaning path
- 350-watt brush motor plus a 1,000-watt two-stage vacuum motor

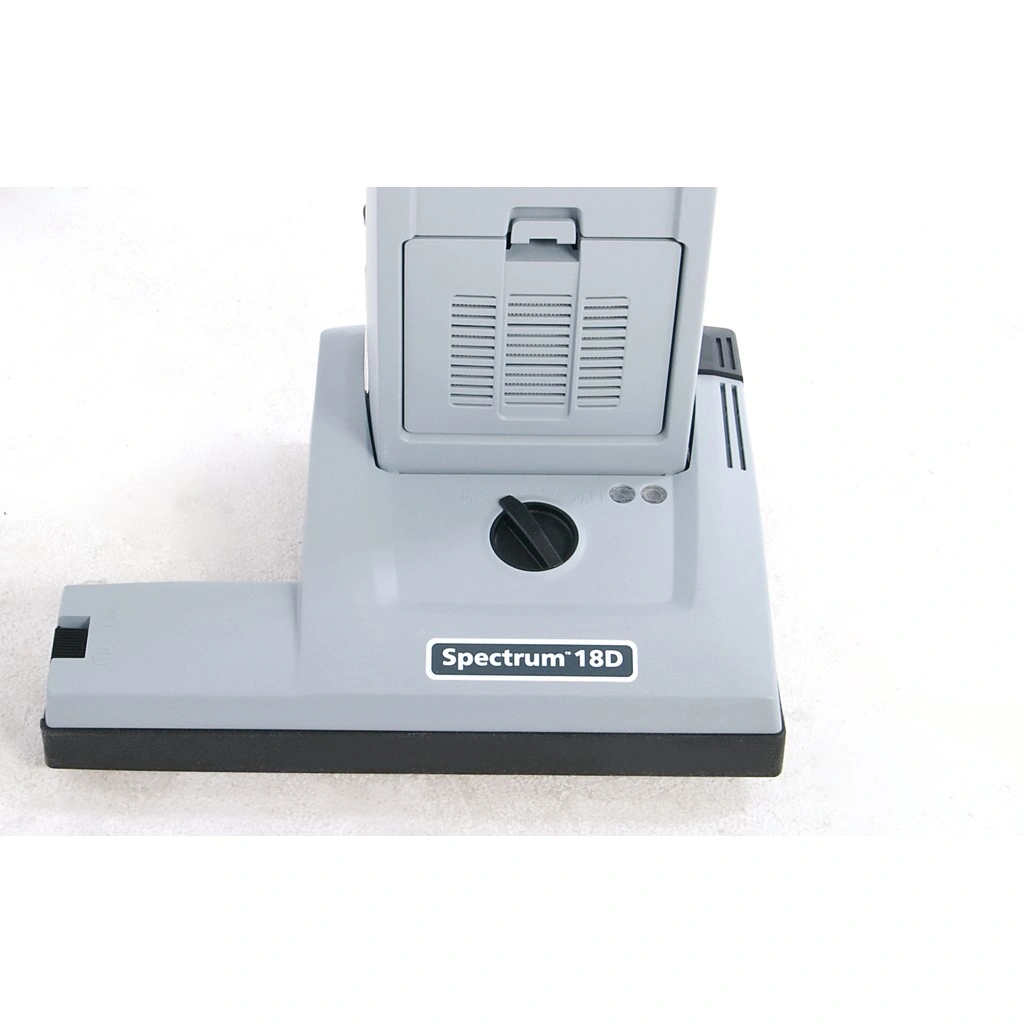

- Foot pedal switches the brush motor; brush-height warning light
- Certified HEPA exhaust filter in a three-stage filtration system
- Stretch hose, wand, crevice and upholstery tools stored on board
