| Models | FM40 LX |
| Cleaning Pad Size | 14 x 20 in |
| Motor | 1.5 hp |
| Voltage/Frequency | 120 V / 60 Hz |
| Orbit Speed | 3,540 rpm |
| Orbit Diameter | 1/4 in (6.4 mm) |
| Down Pressure | 160 lb (72.6 kg) |
| Power Cable | 50 ft (15 m), 14/3 safety yellow |
| Sound Level | 68 dB(A) |
| Machine Total Weight | 169 lb (76.7 kg) |
| Machine Without Weights | 106 lb (48 kg) |
| Weights | Three 21 lb weights, 63 lb (28.5 kg) total |
| Wheels | 6 in, wheels-up / wheels-down |
| Handle | Adjustable, detachable |
| Baseboard Cleaner | Standard |
| Dimensions (L x W x H) | 20.75 x 20.5 x 44.5 in (52.7 x 52 x 113 cm) |
| Options | Dust containment kit, solution tank kit |
| Model Numbers | 56105620 |
Technical specs may include optional equipment that is not included with all units.

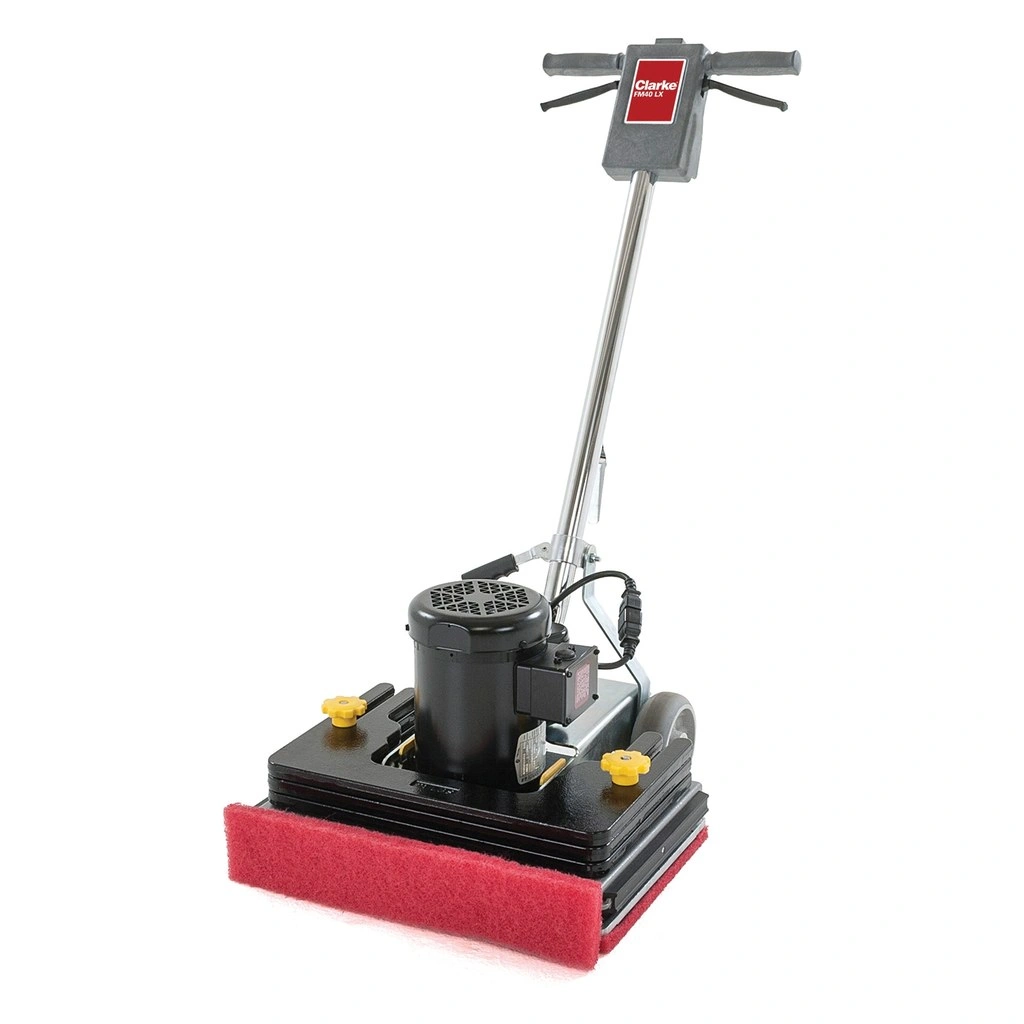

New Clarke FM40 LX 20" Orbital Floor Buffer
Our Take (from the SES Sales Team)
“The Clarke FM40 LX is the feature-rich version of the FM40 orbital floor machine, aimed at operators who move a machine between rooms, floors and job sites. It keeps the ST's 1.5 hp motor, 3,540 rpm orbital deck and 14 x 20-inch pad, so it handles corner scrubbing, chemical-free finish removal and recoat prep in the spaces where a large autoscrubber doesn't make sense.
The LX earns its keep with three additions. A baseboard cleaner attachment comes standard. Six-inch wheels drop down for forward-and-back driving like a burnisher, with control Clarke describes as balanced enough for one hand, or lift for traditional side-to-side work. And the handle detaches, so the machine comes apart without tools into yellow-marked pieces that are easier to lift into a vehicle.
The trade-off is weight and parts count: 169 lb with the weights installed, and modular pieces that need to stay together. For a machine that lives in one building and never touches baseboards, the FM40 ST does the same scrubbing with less to manage.”
“We have over 3,000 sq ft of porcelain tile in our home and needed a dependable easy to use machine to keep it clean. With over 18 years of experience, Darren in sales, knew right away the Clarke MA10 floor machine was the perfect choice. He was correct, the machine does an excellent job with cleaning, leaving the tile and grout spotlessly clean.” — Islander, Google review
The deluxe FM40 with a standard baseboard cleaner, wheels-down mode and tool-free breakdown.
The Clarke FM40 LX is a corded orbital floor machine with a 14 x 20-inch pad deck and a 1.5 hp motor that drives the deck at 3,540 rpm with a 1/4-inch orbit. The weight kit of three 21 lb weights brings down pressure to 160 lb, the 50 ft safety-yellow cord runs on 120 V, and vibration-dampening materials keep it at 68 dB(A).

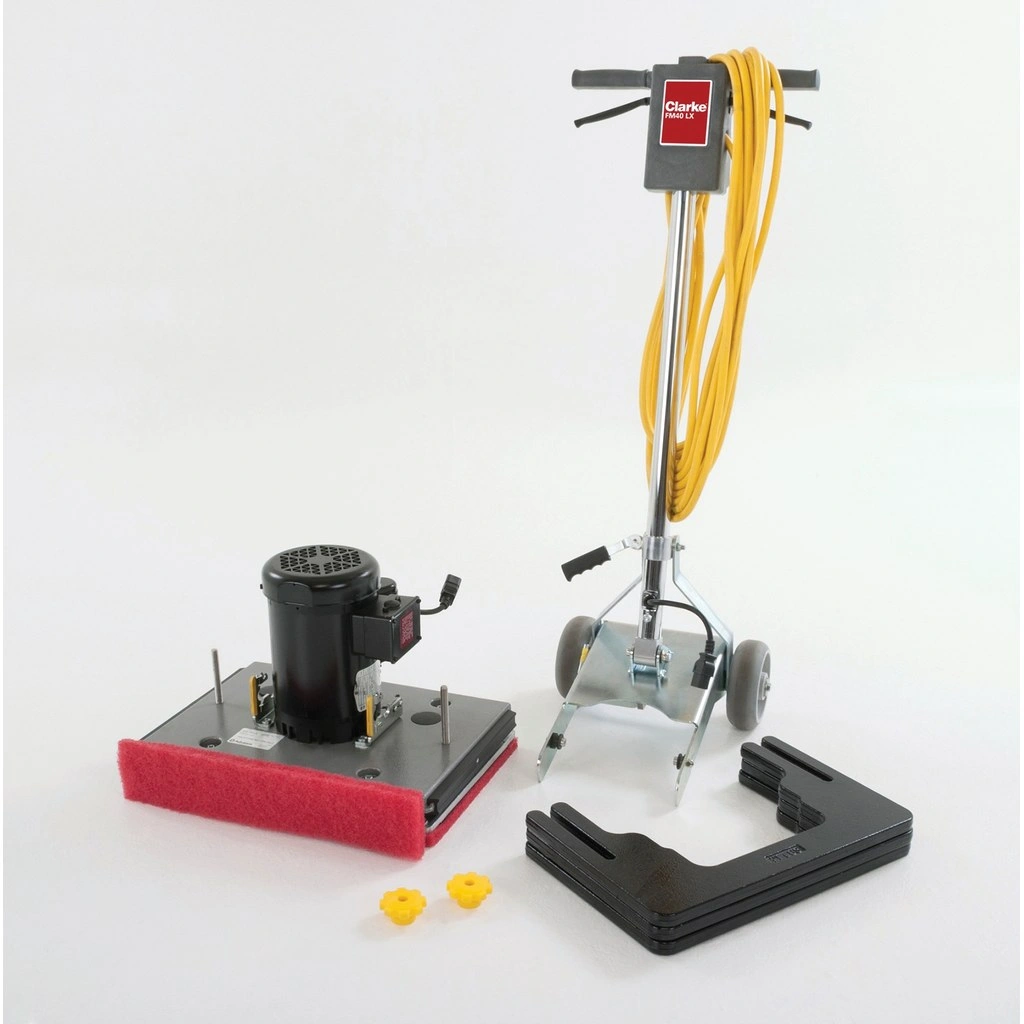

Standard LX features include a baseboard cleaner attachment, an adjustable detachable handle and 6-inch wheels that switch between wheels-up and wheels-down modes. The machine disassembles without tools, with each modular component painted bright yellow for identification. With the right pads it scrubs, strips finish without chemicals, cleans grout, bonnet cleans carpet and preps floors; dust containment and solution tank kits are optional.
Includes:
- Baseboard cleaner attachment
- Weight kit: three 21 lb weights
- 50 ft 14/3 safety-yellow power cord
Not included: Pads and screens, sold separately
Features:
- Baseboard cleaner attachment comes standard
- Wheels-up or wheels-down modes on 6-inch wheels
- Adjustable, detachable handle and tool-free breakdown
- 1.5 hp motor drives a 3,540 rpm orbital deck
- Weight kit of three 21 lb weights included
