| Models | ReliaVac 16HP |
| Cleaning Path (Intake Nozzle) | 16.5 in (41.9 cm) |
| Motor | 115 V, 60 Hz, 7 A |
| Collection Bag | 3.9 gal (14.8 L), top-fill |
| Brush Roll | Aluminum core, ball bearings, replaceable bristle strips |
| Brush Height | 6 settings (Dial-A-Nap knob) |
| Edge Cleaning | Dual side-suction ports |
| Power Cord | 50 ft (15.2 m) |
| Handle | Chrome-plated, textured grip, 3 positions |
| Base Height | 6 in (15.2 cm) |
| Overall Height | 45 in (114.2 cm) |
| Weight | 18 lb (8.2 kg) |
| Shipping Weight | 20 lb (9.1 kg) |
| Approvals | ETL, cULus |
| Model Numbers | 03005A |
Technical specs may include optional equipment that is not included with all units.

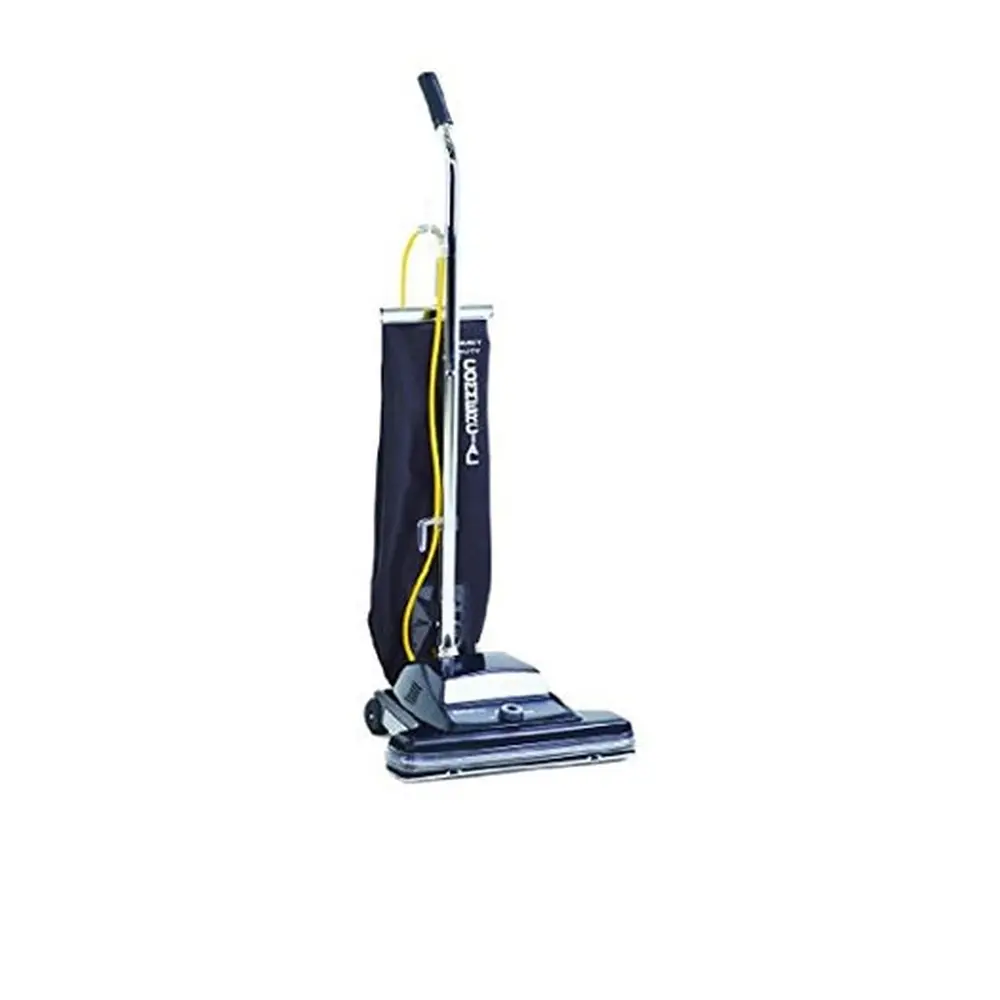

New Advance ReliaVac 16HP 16.5" Upright Vacuum
Our Take (from the SES Sales Team)
“The ReliaVac 16HP is the wide member of Advance's ReliaVac family, with a 16.5-inch intake nozzle for corridors, meeting rooms, restaurants and open office carpet where a 12-inch head means too many passes. It shares the HP package: an aluminum brush roll on ball bearings with replaceable bristle strips, driven by a 115 V, 7-amp motor.
Like every ReliaVac, it is built around easy service. The green impeller fan is made from a proprietary, ultra-durable plastic, and a clear fan cover shows a clog at a glance. A Dial-A-Nap knob sets six brush heights, dual side-suction ports help along edges, and large rear wheels roll easily over carpet. Debris goes into a 3.9-gallon top-fill bag, cloth or optional Microstat paper, and the 50-foot cord wraps on hooks.
It is a carpet machine and little else: no on-board tools, no HEPA filter, and the optional tool kit is listed for the 12-inch models only. If you need tools or HEPA exhaust, look at the Spectrum 15P or 18D instead.”
A 16.5-inch ReliaVac for wider carpeted areas.
The Advance ReliaVac 16HP is a single-motor commercial upright vacuum with a 16.5-inch intake nozzle and a 115 V, 7-amp motor. Like the 12HP, it uses a high-performance aluminum brush roll with ball bearings and replaceable strips, and a Dial-A-Nap knob adjusts the brush to six heights for different carpet piles. Dual side-suction ports help clean along edges.
Debris goes into a top-fill collection bag rated at 14.8 L (3.9 gal), using the reusable cloth bag or optional Microstat paper bags. The green impeller fan is made from a proprietary plastic, and a clear fan cover shows blockages. A chrome-plated three-position handle, clear non-marking wrap-around bumper, large rear wheels and a 50-foot cord with wrap hooks complete the 18 lb vacuum.
Includes:
- Top-fill cloth collection bag
- 50' power cord with cord-wrap hooks
Not included: Dirt cup conversion kit and paper bags, sold separately.
Features:
- 16.5-inch intake nozzle
- Aluminum brush roll with ball bearings and replaceable strips
- Dial-A-Nap knob with six brush heights
- Green impeller fan behind a clear fan cover
- Top-fill bag takes cloth or optional Microstat paper bags
