| Model | 17HD |
| Model | Pacesetter™ 17 |
| Pad / Brush Size | 17 in (43.2 cm) |
| Motor Horsepower | 1.0 hp AC |
| Frame Size | 66 |
| Motor Amps | 12.6 A |
| Capacitors | Dual, start and run |
| Motor Voltage | 120 V |
| Revolutions Per Minute | 175 rpm |
| Transmission | Dual planetary gears – all metal |
| Clutch Plate | NP 92 (industry standard) |
| Body Construction | All steel with chrome plated bell housing and handle shaft with compression style handle height adjustment. Includes rubber wheels for transportation. |
| Machine Weight | 90 lb (41 kg) |
| Power Cord | Power Cord |
| Length | 50 ft/ 15.25 m |
| Type | Safety Yellow Super-flex with hospital grade plug – ALL MODELS |
| Operator Handle | Comfortable and solid handle with safety interlock activation preventing accidental start-up |
| Noise Level | 65 dB |
| Approvals | ETL, CSA |
| Part Number | 01290A |
Technical specs may include optional equipment that is not included with all units.

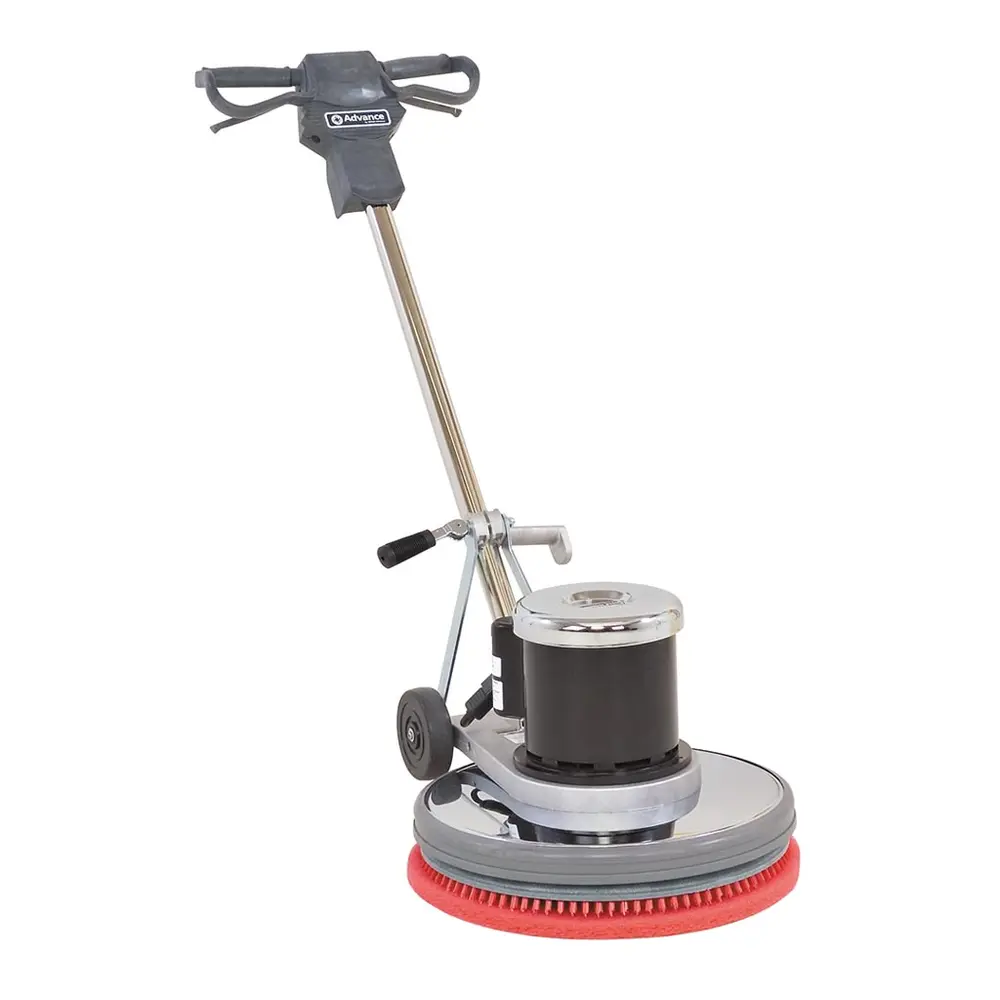

New Advance Pacesetter 17HD Pad Holder Buffer/Burnisher
Buffers vs Burnishers: Which One Do I Need?
Our Take (from the SES Sales Team)
“The Pacesetter™ is a versatile floor machine built to handle whatever job you give it. Its rugged, heavy-duty construction and lasting durability put this machine a step ahead of the competition.”
Multipurpose Floor Machine
The Advance Pacesetter HD is a dependable workhorse, ready for stripping, scrubbing, screening, or bonnet cleaning.
It's built on an all cast metal, chrome plated base, and its heavy-duty construction and durability place it above the competition. A molded ergonomic handle shields the user's hands while working along walls and around corners. A red safetylock switch gives the operator simple control over when the machine starts running. A compression style lever makes it easy to change the handle's height setting to suit any operator.
Pad holders come standard. Its yellow, super-flex cord handles easily and helps cut down on tangling. A clear plastic hospital plug lets the operator check the electrical integrity of the connection each time the machine is used.
A triple-planetary gear design outlasts other gear drives because the gears do not develop a wear pattern. The sealed gear box needs no maintenance.
Includes Pad HOLDER-17 NP92 clutch, NP92 clutch plate
Features:
- Long-lasting triple-planetary gear design
- All-cast metal frame
- Chrome-plated base
- Ergonomic molded handle
- Safety activation switch
- Clear hospital grade plug
- Easy-to-use height adjustment
- Super-flex cord for easy handling and reduced tangling
