| Air Capacity | 1850 C.F.M. High Speed 1200 C.F.M. Low Speed |
| Motor | 1 H.P. Two-Speed |
| Dimensions | 33" Length 18" Width 26" Height |
| Weight | 115 lbs |
| Casters | 4 |
| Handles | 4 |
| Exhaust | 12" |
| Filters | 1st Stage: 24" x 16" Pre-Filter 2nd Stage: 24" x 16" x 1" Ring Panel 3rd Stage: 24" x 16" x 11 7/8th" H. E. P. A. Filter |

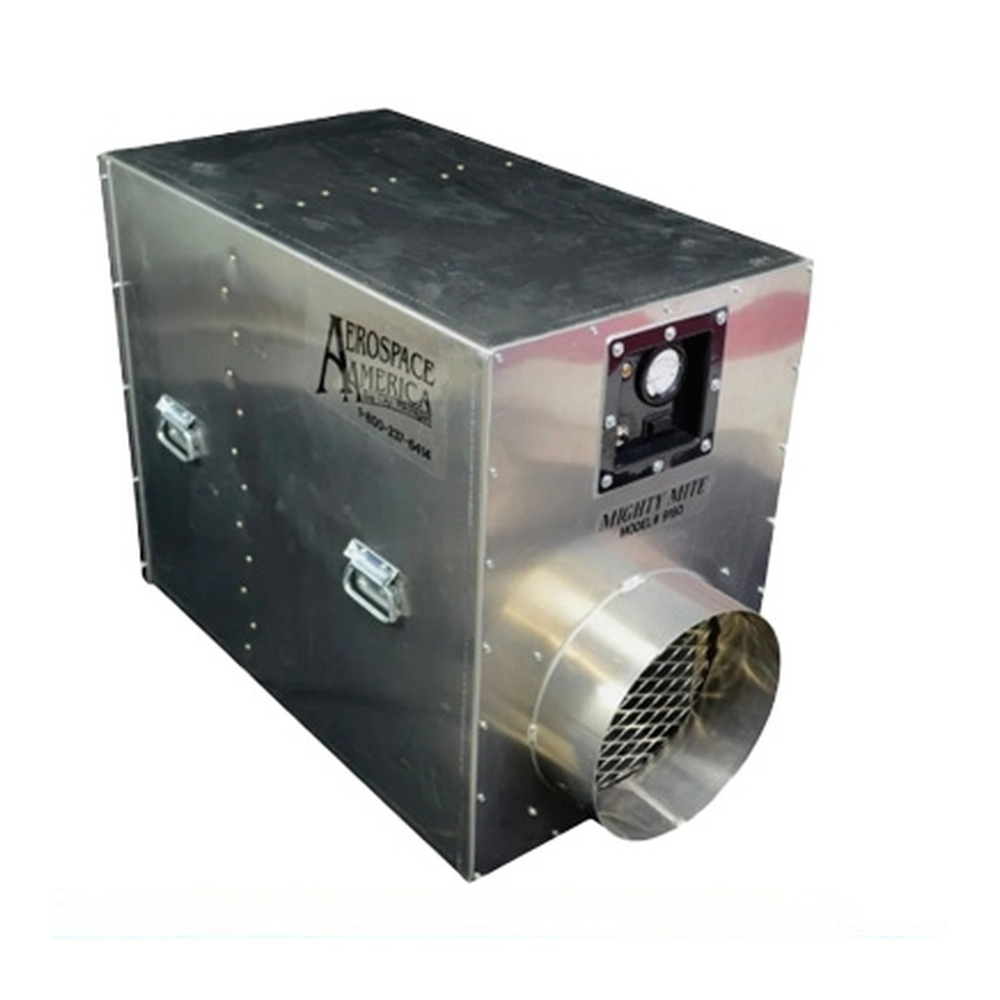

New Aerospace America Full Feature 1800 Air Scrubber
Our Take (from the SES Sales Team)
“The 1800 Mighty Mite Full Feature is built for tight spaces that still need big airflow. At 18 in wide, it fits through doorways and down hallways where a 26 in wide 2,000 CFM cabinet gets hung up, yet Aerospace rates it at 1,850 CFM on high and 1,200 CFM on low. The Full Feature panel is what sets this version apart: along with the Minihelic gauge, push-button circuit breaker and two-speed rocker switch, it has a red LED high-pressure warning light with an audible alarm, so the crew knows when the filters are loaded without checking the gauge. Many abatement and healthcare jobs require exactly that. It runs a 1.0 hp two-speed, thermally protected motor on 9.4 amps at 115 V, and rolls on heavy-duty casters with four handles for loading. The three filter stages are 24 x 16 in, with a HEPA final stage that gives it plenty of filter area for heavy dust. If you do not need the alarm, ask us about the standard Mighty Mite.”
Slim 1,850 CFM air scrubber with a full-filter alarm
The Aerospace America Aeroclean 1800 Mighty Mite Full Feature (model 9180FF) is a high-capacity HEPA air scrubber in a slim 18 in wide cabinet. A 1.0 hp two-speed motor and 2000 AMCA rated direct drive blower move 1,850 CFM on high and 1,200 CFM on low at 1.8 in running static pressure.
The Full Feature control panel adds a red LED high-pressure warning light with an audible alarm, for abatement, mold remediation and healthcare jobs that call for one. The cabinet is aircraft aluminum, made in Bay City, Michigan.
Condition: New.
What you get
Big airflow, slim cabinet, full-feature panel
Why 18 in wide matters
Features
Built for tight, demanding jobs
- ✓Red LED high-pressure warning light with audible alarm
- ✓Slim 18 in wide cabinet moves 1,850 CFM on high
- ✓Heavy-duty casters, two swivel and two rigid, with four handles
- ✓Slide-down door for quick filter access
- ✓Aircraft aluminum cabinet, made in the USA
Choosing a unit
How the 1800 Full Feature compares
| Aerospace unit | Airflow (high / low) | Speed control | Amp draw | Weight |
|---|---|---|---|---|
| 500 Variable (#9150) | 100–575 CFM | Variable | 2.1 A | 44 lb |
| 600EV (#9160) | 0–550 CFM | Variable | 1.67 A | 32 lb |
| 600 Mag (#9145) | 625 / 425 CFM | Two-speed | 9.0 A | 80 lb |
| Aero 1000V (#1000V) | Up to 1,000 CFM | Variable | 5.5 A | 70 lb |
| 1800 Full Feature (#9180FF) (this unit) | 1,850 / 1,200 CFM | Two-speed, filter alarm | 9.4 A | 120 lb |
| 2000 Turbo (#9100) | 2,500 / 2,100 CFM | Two-speed | 15 A | 116 lb |
Figures are from each unit’s Aerospace America spec sheet. Full Feature versions with a filter alarm are also offered for the 600EV, 600 Mag and 1800.
Specifications
Aeroclean 1800 Full Feature at a glance
| Models | Aeroclean 1800 Mighty Mite Full Feature |
|---|---|
| Airflow | 1,850 CFM high (52.4 m³/min); 1,200 CFM low (34.0 m³/min); at 1.8 in running static pressure |
| Power | 115 V, 9.4 running amps |
| Motor | 1.0 hp, two-speed, thermally protected |
| Blower | 2000 AMCA rated direct drive |
| 1st stage filter | 24 x 16 in pre-filter (1800-01) |
| 2nd stage filter | 24 x 16 in ring panel (1800-02) |
| 3rd stage filter | 24 x 16 in HEPA (1800-03) |
| Instrumentation | Minihelic pressure gauge, push-button circuit breaker, two-speed rocker switch, red LED high-pressure warning light with audible alarm |
| Exhaust | 12 in (30 cm) |
| Handles / casters | 4 handles; heavy-duty casters, 2 swivel and 2 rigid |
| Dimensions (L x W x H) | 33 x 18 x 26 in (84 x 46 x 66 cm) |
| Construction | Aircraft aluminum, made in the USA |
| Weight | 120 lb (54.4 kg) |
| Model Numbers | 9180FF (Aeroclean 1800 Mighty Mite Full Feature) |
Technical specs may include optional equipment that is not included with all units.
Questions
Aeroclean 1800 Full Feature: common questions
How much air does the Mighty Mite move?
Aerospace rates it at 1,850 CFM on high and 1,200 CFM on low, at 1.8 in of running static pressure.
What does the Full Feature panel add?
A red LED high-pressure warning light with an audible alarm. Aerospace’s manual describes it as indicating that the filters are full and need servicing.
Which replacement filters does it use?
Aerospace part 1800-01 (24 x 16 in pre-filter, case of 40), 1800-02 (24 x 16 in ring panel, case of 24) and 1800-03 (16 x 24 x 12 in HEPA). Pleated carbon (1800-004) and Carbon-Webb (1800-044) filters are available for odors.
How often do the filters need changing?
Aerospace America’s owner’s manual says to change the first-stage pre-filter daily when the unit runs around the clock, check the second-stage ring filter each time and change it weekly or as needed, and plan on replacing the HEPA filter about every 350 hours of use. The pressure gauge on the panel tells you when the HEPA is loading up.
What extension cord should I use?
Aerospace calls for 12 gauge or heavier extension cords, no longer than 100 ft for 1 hp and larger units. Plug each air scrubber directly into its own power source rather than into another unit.
Not sure the 1800 Mighty Mite Full Feature is the right size for your job?
Tell our team about the space, the containment and how long the job will run, and we will help you pick the right air scrubber and filters.
