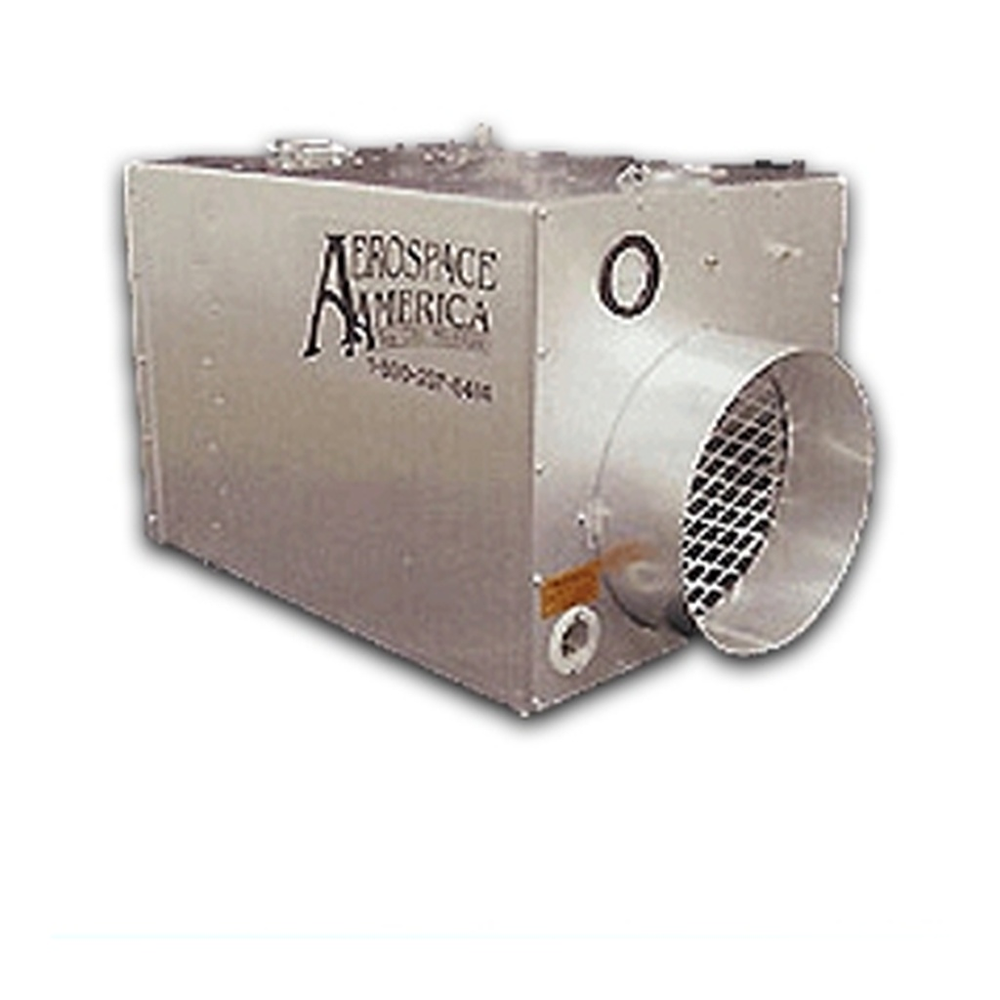

New Aerospace America “600 Mag” Air Scrubber
Our Take (from the SES Sales Team)
“The 600 Mag sits in a sweet spot in the Aerospace America lineup. It moves 625 CFM on high and 425 CFM on low, according to its spec sheet, on a 1.0 hp two-speed motor, yet it is still compact enough for one person to handle at 80 lb with casters and two top handles. That makes it a solid choice for restoration contractors working mid-size rooms, remodels and mold jobs where a 2,000 CFM unit is more machine than you need. The cabinet is aircraft-grade aluminum, so it stands up to being loaded and unloaded every day without the weight of steel. Filtration is three stages, all 16 x 16 in: a 1/2 in pre-filter, a 1 in secondary and a 6 in deep HEPA. The 12 in exhaust works with flex duct for negative air setups. One thing to plan for: it draws 9.0 amps at 110 V, so count your circuits before you set up several units. If your job spec calls for a filter alarm, the 600 Mag Full Feature is the same unit with an audible and visual alarm.”
A mid-size, two-speed HEPA air scrubber on casters

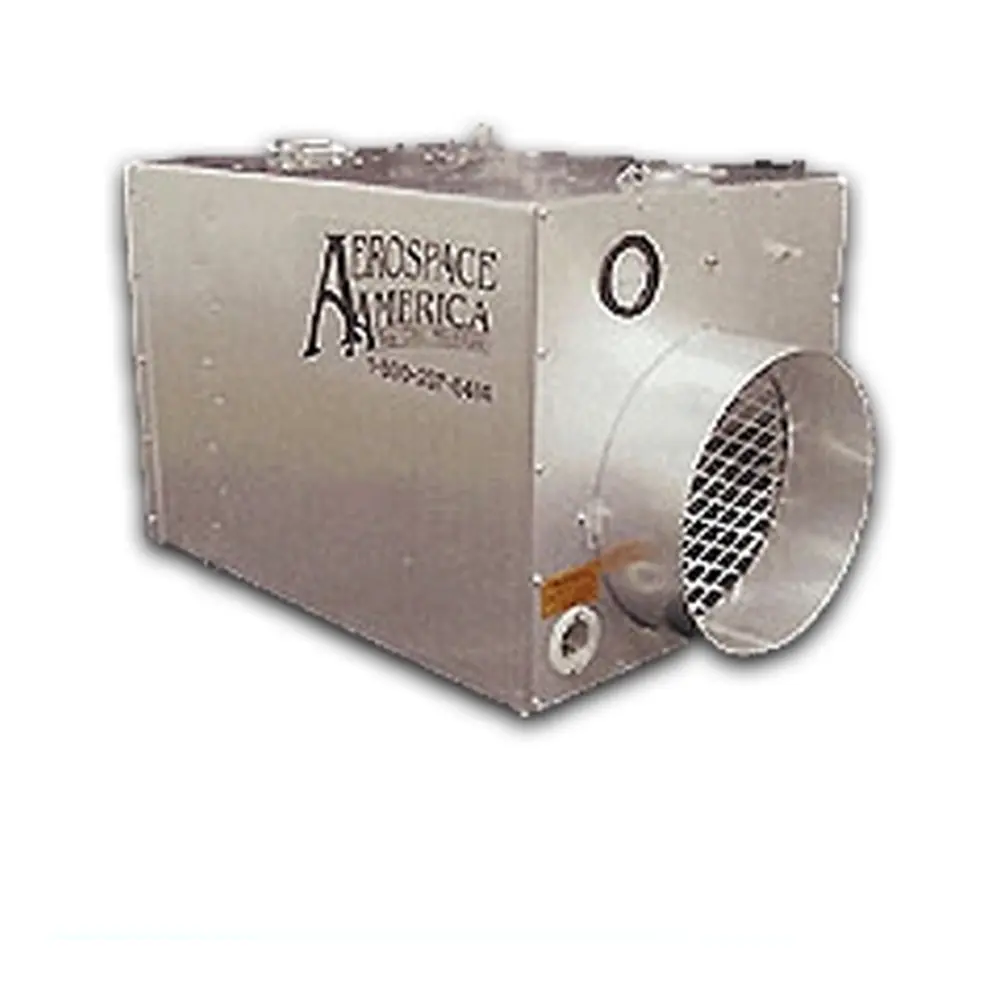

The Aerospace America Aeroclean 600 Mag (model 9145) is a two-speed HEPA air scrubber for restoration, remodeling, mold remediation and construction dust control. A 1.0 hp motor and direct drive blower move 625 CFM on high and 425 CFM on low through three stages of 16 x 16 in filters.
The cabinet is aircraft-grade aluminum, made in Bay City, Michigan, and rolls on two swivel and two rigid casters. A slide-down door gives quick access to the filters, and Aerospace lists all electrical components as UL listed or UL recognized.
Condition: New.
What you get
Two-speed power in a one-person package
Count your circuits
Features
Built for daily job-site use
- ✓Two-speed operation: 625 CFM high, 425 CFM low
- ✓Slide-down door for quick filter changes
- ✓12 in exhaust for flex duct and negative air setups
- ✓Two swivel and two rigid casters with two top handles
- ✓Aircraft-grade aluminum cabinet, made in the USA
Choosing a unit
How the 600 Mag compares
| Aerospace unit | Airflow (high / low) | Speed control | Amp draw | Weight |
|---|---|---|---|---|
| 500 Variable (#9150) | 100–575 CFM | Variable | 2.1 A | 44 lb |
| 600EV (#9160) | 0–550 CFM | Variable | 1.67 A | 32 lb |
| 600 Mag (#9145) (this unit) | 625 / 425 CFM | Two-speed | 9.0 A | 80 lb |
| Aero 1000V (#1000V) | Up to 1,000 CFM | Variable | 5.5 A | 70 lb |
| 2000 Turbo (#9100) | 2,500 / 2,100 CFM | Two-speed | 15 A | 116 lb |
Figures are from each unit’s Aerospace America spec sheet. Full Feature versions with a filter alarm are also offered for the 600EV, 600 Mag and 1800.
Specifications
Aeroclean 600 Mag at a glance
| Models | Aeroclean 600 Mag |
|---|---|
| Airflow | 625 CFM high (17.7 m³/min); 425 CFM low (12.0 m³/min) |
| Power | 110 V, 9.0 A |
| Motor | 1.0 hp, two-speed |
| Blower | 2000 rated direct drive |
| 1st stage filter | 16 x 16 x 1/2 in pre-filter (9145-01) |
| 2nd stage filter | 16 x 16 x 1 in secondary (9145-02) |
| 3rd stage filter | 16 x 16 x 6 in HEPA (9145-03) |
| Exhaust | 12 in (30 cm) |
| Sound level | 67–75 dB at 5 ft (1.5 m) |
| Handles / casters | 2 handles on top; 2 swivel and 2 rigid casters |
| Dimensions (L x W x H) | 31 x 18 x 20 in (79 x 46 x 51 cm) |
| Electrical | All components UL listed and UL recognized |
| Construction | Aircraft-grade aluminum, made in the USA |
| Weight | 80 lb (36.3 kg) |
| Model Numbers | 9145 (Aeroclean 600 Mag) |
Technical specs may include optional equipment that is not included with all units.
Questions
Aeroclean 600 Mag: common questions
How much air does the 600 Mag move?
Aerospace’s spec sheet rates it at 625 CFM on high and 425 CFM on low.
Which replacement filters does it use?
Aerospace part 9145-01 (16 x 16 in pre-filter, case of 40), 9145-02 (16 x 16 in ring panel, case of 24) and 9145-03 (16 x 16 x 6 in HEPA). A 16 x 16 x 2 in pleated carbon filter (9145-04) is available for odors.
How often do the filters need changing?
Aerospace America’s owner’s manual says to change the first-stage pre-filter daily when the unit runs around the clock, check the second-stage ring filter each time and change it weekly or as needed, and plan on replacing the HEPA filter about every 350 hours of use. The pressure gauge on the panel tells you when the HEPA is loading up.
What extension cord should I use?
Aerospace calls for 12 gauge or heavier extension cords, no longer than 100 ft for 1 hp and larger units. Plug each air scrubber directly into its own power source rather than into another unit.
Is there a version with a filter alarm?
Yes. The 600 Mag Full Feature (9145FF) is the same unit with a red high-pressure warning light and audible alarm.
Not sure the 600 Mag is the right size for your job?
Tell our team about the space, the containment and how long the job will run, and we will help you pick the right air scrubber and filters.
