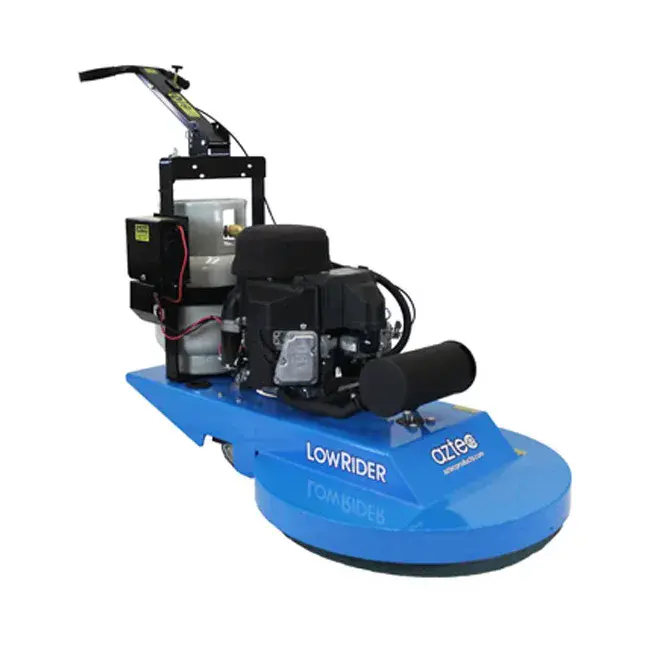

Aztec LowRider parts list and diagrams
Every parts line in Aztec's LowRider 21 in, 24 in and 27 in propane burnisher owner's manual, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Aztec's LowRider Owner's Manual (09-2025), for the 21 in, 24 in and 27 in LowRider propane burnisher with the Kawasaki FS481V PurePowerLPG engine. Checked .
New to your LowRider? Start here → Manuals (free sign-in) →
- Pad size
- 21 in (54 cm), 24 in (61 cm) or 27 in (68 cm)
- Pad speed
- 21 in: 2,092 rpm; 24 in: 1,850 rpm; 27 in: 1,700 rpm
- Engine
- Kawasaki FS481V PurePowerLPG, 603 cc, 18 hp, propane
- Profile height
- 3 3/4 in (9.5 cm) in the manual; 4 in (10 cm) on the spec sheet
- Productivity
- 21 in: 27,000 sq ft/hr (2,508 m²/h); 24 in: 30,000 sq ft/hr (2,787 m²/h); 27 in: 33,000 sq ft/hr (3,065 m²/h)
Wear parts most LowRider owners reorder
Aztec's maintenance schedule and warranty name pads, pulleys, belts and engine tune-up parts as wear items. These are the ones that fit every size; belts, pads and pad drivers are size-specific, so pick your size in the body assembly list.
Preventative Maintenance Kit for the FS481 engine
$131.83/EAFoam hat filter kw
$34.50/EAPre filter cleaner fs481
$8.09/EAElement air filter fs481
$25.40/EAFilter-oil fs481
$24.37/EASpark plug bpr4es
$5.50/EA10W30 Quart Oil
$19.92/EA4” tensioner pulley
$32.95/EA
Source: Aztec LowRider 21”, 24” & 27” Owner's Manual (09-2025), pages 22, 28, 30, 34 and 35. SES ref PF-55L5-HDY2
Your machine
How to tell which you have
- Measure the pad: the LowRider comes in 21 in (54 cm), 24 in (61 cm) and 27 in (68 cm) pad sizes. The bigger sizes are also longer and wider: 44 in, 47 in and 50 in (112, 120 and 127 cm) long, and 23.5 in, 26 in and 29 in (60, 66 and 74 cm) wide.
- Read the product ID: the middle number of Aztec's product ID is the pad size, for example 070-24-LR for the 24 in.
- Many parts fit all three: the size only changes the body assembly, belt, pulley, dust control plate, dust skirt, pad driver assembly and Aqua pads. The handle, fuel system and engine lists don't split by size.
- Older machines: if your serial number ends in 0002672 or lower, your LowRider takes a different wheel (156-6-213P). Aztec says the wheels and brackets are not interchangeable.
How to read this list
Our part numbers are the Aztec number with AZ in front, so Aztec 212-1 is AZ212-1. Each line shows the item number on the drawing. Lines tagged 21 in, 24 in or 27 in fit only that pad size. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

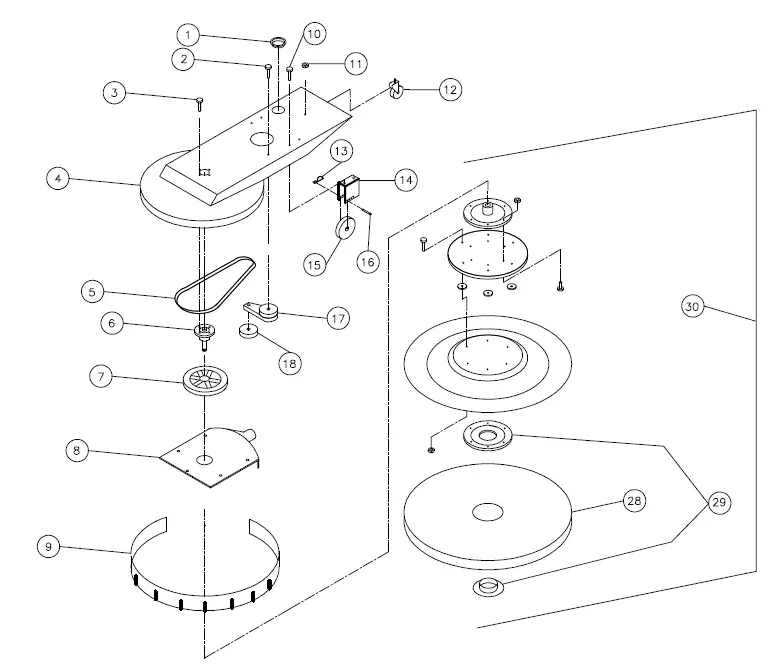

Aztec LowRider body assembly parts
The steel body, belt, spindle, pulleys, belt tensioner, dust control plate and skirt, wheels, caster, pad driver and pads. Lines tagged 21 in, 24 in or 27 in fit only that size. Manual pages 29, list 30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ625-9280K35Aztec 625-9280K35 | 1 | HOSE GROMMET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ164-10123Aztec 164-10123 | 1 | 3/8-16x2” BOLT | $1.21/EA |
| 3 | AZ164-10211Aztec 164-10211 | 4 | 1/2-13x1” BOLT | $1.08/EA |
| 4 | AZ370-21-5Aztec 370-21-5 | 1 | BODY ASSEMBLYFits LowRider 21 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ370-24-5Aztec 370-24-5 | 1 | BODY ASSEMBLYFits LowRider 24 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ370-27-5Aztec 370-27-5 | 1 | BODY ASSEMBLYFits LowRider 27 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ113-BX42Aztec 113-BX42 | 1 | BELTFits LowRider 21 in. | $39.05/EA |
| 5 | AZ113-BX49Aztec 113-BX49 | 1 | BELTFits LowRider 24 in. | $45.30/EA |
| 5 | AZ113-BX51Aztec 113-BX51 | 1 | BELTFits LowRider 27 in. | $50.35/EA |
| 6 | AZ011-6-2730Aztec 011-6-2730 | 1 | SPINDLE ASSEMBLY | $107.40/EA |
| 7 | AZ172-MB65*1Aztec 172-MB65*1 | 1 | PULLEYFits LowRider 21 in. | $57.72/EA |
| 7 | AZ011-6-2785Aztec 011-6-2785 | 1 | PULLEYFits LowRider 24 in. | $55.10/EA |
| 7 | AZ172-MB88*1Aztec 172-MB88*1 | 1 | PULLEYFits LowRider 27 in. | $79.86/EA |
| 8 | AZ370-21-6Aztec 370-21-6 | 1 | DUST CONTROL PLATEFits LowRider 21 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ370-24-6Aztec 370-24-6 | 1 | DUST CONTROL PLATEFits LowRider 24 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ370-27-6Aztec 370-27-6 | 1 | DUST CONTROL PLATEFits LowRider 27 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ070-21DC-SKIRTAztec 070-21DC-SKIRT | 1 | DUST SKIRT (DOES NOT INCLUDE HARDWARE)Fits LowRider 21 in. | $109.00/EA |
| 9 | AZ070-24DC-SKIRTAztec 070-24DC-SKIRT | 1 | DUST SKIRT (DOES NOT INCLUDE HARDWARE)Fits LowRider 24 in. | $109.00/EA |
| 9 | AZ070-27DC-SKIRTAztec 070-27DC-SKIRT | 1 | DUST SKIRT (DOES NOT INCLUDE HARDWARE)Fits LowRider 27 in. | $109.00/EA |
| 9A | AZ164-10007Aztec 164-10007 | 3 | DUST SKIRT HARDWARE: 1/4-20*3/4 HCSPLNot shown on the drawing. | $1.02/EA |
| 9A | AZ164-22831Aztec 164-22831 | 3 | DUST SKIRT HARDWARE: 1/4- STOVER LOK NUTNot shown on the drawing. | $1.01/EA |
| 9A | AZ164-20207Aztec 164-20207 | 3 | DUST SKIRT HARDWARE: 5/16 FENDER WASHERNot shown on the drawing. | $1.05/EA |
| 9A | AZ070-30Aztec 070-30 | 3 | DUST SKIRT HARDWARE: ALUMINUM SPACERNot shown on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | AZ164-10063Aztec 164-10063 | 4 | 5/16-18x1” BOLT | $1.17/EA |
| 11 | AZ164-22008Aztec 164-22008 | 1 | 1/2-13 HEX NUT | $1.07/EA |
| 12 | AZ011-6-2755Aztec 011-6-2755 | 1 | SWIVEL CASTER | $14.37/EA |
| 13 | AZ164-10131Aztec 164-10131 | 2 | WHEEL BOLT | $1.09/EA |
| 14 | AZ370-156-UAztec 370-156-U | 2 | WHEEL BRACKET | $34.83/EA |
| 15 | AZ156-6-213P-HAztec 156-6-213P-H | 2 | HEAVY DUTY 6” WHEEL W/BUSHING **If your LowRider serial number ends in 0002672 or lower, Aztec says you need a different wheel, 156-6-213P. The wheels and brackets are not interchangeable. | $38.27/EA |
| 16 | AZ164-22834Aztec 164-22834 | 2 | WHEEL LOCK NUT | $1.05/EA |
| 16 | AZ164-20155Aztec 164-20155 | 4 | WHEEL WASHER | $0.95/EA |
| 17 | AZ011-6-2795Aztec 011-6-2795 | 1 | BELT TENSIONER WITH 4” PULLEY | $75.93/EA |
| 18 | AZ011-6-2795AAztec 011-6-2795A | 1 | 4” TENSIONER PULLEY | $32.95/EA |
| 28 | AZ250-PT21-AAztec 250-PT21-A | 1 | AQUA PADS (5 PADS / CASE)Fits LowRider 21 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | AZ250-PT24-AAztec 250-PT24-A | 1 | AQUA PADS (5 PADS / CASE)Fits LowRider 24 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | AZ250-PT27-AAztec 250-PT27-A | 1 | AQUA PADS (5 PADS / CASE)Fits LowRider 27 in. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | AZ201-792455Aztec 201-792455 | 1 | BIG MOUTH PAD GRAB BLUE | $33.80/EA |
| 30 | AZ070-21-PDAztec 070-21-PD | 1 | PAD DRIVER ASSEMBLY*Fits LowRider 21 in. Burnishing pad not included. | $331.37/EA |
| 30 | AZ070-24-PDAztec 070-24-PD | 1 | PAD DRIVER ASSEMBLY*Fits LowRider 24 in. Burnishing pad not included. | $336.67/EA |
| 30 | AZ070-27-PDAztec 070-27-PD | 1 | PAD DRIVER ASSEMBLY*Fits LowRider 27 in. Burnishing pad not included. | $342.50/EA |

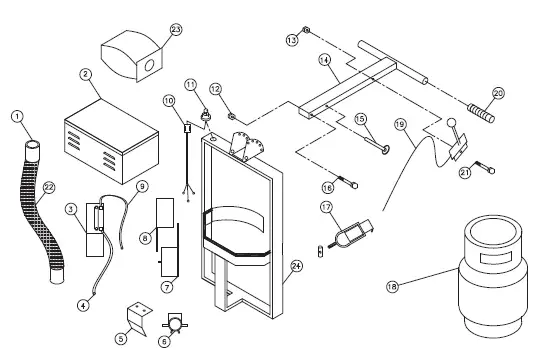

Aztec LowRider handle assembly parts
The handle, battery and battery box, starter solenoid and cables, key switch, throttle cable, propane cylinder, and the dust bag and hose. Manual page 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZS2-47-CUFFAztec S2-47-CUFF | 2 | HOSE CUFF | $3.34/EA |
| 2 | AZ370-27-10Aztec 370-27-10 | 1 | DUST BAG BOX ASSEMBLY | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ070-DC-BAGAztec 070-DC-BAG | 1 | EXTRA DUST BAG | $4.95/EA |
| 3 | AZ276-GTX14Aztec 276-GTX14 | 1 | 12V BATTERY | $155.07/EA |
| 4 | AZ153-6-16.5Aztec 153-6-16.5 | 2 | SOLENOID TO STARTER CABLE | $13.29/EA |
| 5 | AZ370-11-SCAztec 370-11-SC | 1 | SOLENOID COVER | $12.50/EA |
| 6 | AZ296-SS581Aztec 296-SS581 | 1 | STARTER SOLENOID | $39.95/EA |
| 7 | AZ370-11-2127BAztec 370-11-2127B | 1 | BATTERY BOX BOTTOM | $33.20/EA |
| 8 | AZ370-11-2127TAztec 370-11-2127T | 1 | BATTERY BOX TOP | $29.07/EA |
| 9 | AZ153-BC-1Aztec 153-BC-1 | 1 | BATTERY LEAD – BATTERY TO CONNECTOR | $19.75/EA |
| 9 | AZ153-BC-2Aztec 153-BC-2 | 1 | BATTERY LEAD – CONNECTOR TO SOLENOID | $19.75/EA |
| 10 | AZ011-762WHKAztec 011-762WHK | 1 | WIRE HARNESS | $43.75/EA |
| 11 | AZ312-308-0385Aztec 312-308-0385 | 1 | KEY SWITCH (INCLUDES KEY) | $27.72/EA |
| 11 | AZ196-3112932Aztec 196-3112932 | 1 | EXTRA IGNITION KEY | $5.25/EA |
| 12 | AZ164-22834Aztec 164-22834 | 1 | 3/8-16 LOK NUT | $1.05/EA |
| 13 | AZ164-14FNAztec 164-14FN | 1 | 1/4-20 FLANGE NUT | $1.01/EA |
| 14 | AZ370-27-25Aztec 370-27-25 | 1 | T-HANDLE | $75.75/EA |
| 15 | AZ625-98404A395Aztec 625-98404A395 | 1 | RELEASE PIN | $14.23/EA |
| 16 | AZ164-37C375HCS5ZAztec 164-37C375HCS5Z | 1 | 3/8-16x3 3/4 BOLT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ284-TB2-60Aztec 284-TB2-60 | 1 | TOGGLE + NUT | $28.13/EA |
| 18 | AZ293-20#STLMFAztec 293-20#STLMF | 1 | 20# LPG PROPANE CYLINDER WITH OPD | $349.00/EA |
| 19 | AZ212-1Aztec 212-1 | 1 | THROTTLE CABLE | $27.85/EA |
| 20 | AZ224-987319Aztec 224-987319 | 2 | HANDLE GRIPS | $5.75/EA |
| 21 | AZ164-25C375HCS5ZAztec 164-25C375HCS5Z | 1 | 1/2-20x3 3/4 BOLT | $1.14/EA |
| 22 | AZS2-47Aztec S2-47 | 3 FT | DUST HOSE (SOLD BY THE FOOT) | $2.83/EA |
| 23 | AZ070-DC-BAGAztec 070-DC-BAG | 1 | DUST BAG | $4.95/EA |
| 24 | AZ370-27-20Aztec 370-27-20 | 1 | HANDLE ASSEMBLY | Call to confirm part: 800-440-6723Call 800-440-6723 |

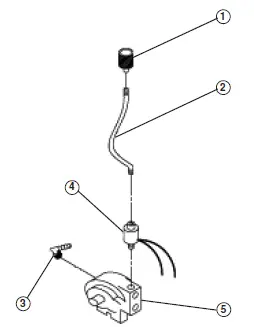

Aztec LowRider fuel system parts
The 12V fuel system: quick coupler, LPG hose, fitting, fuel lock-out and regulator. Manual page 32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ152-700Aztec 152-700 | 1 | QUICK COUPLER | $29.17/EA |
| 2 | AZ267-P5561-0410Aztec 267-P5561-0410 | 1 | LPG HOSE 18" | $57.00/EA |
| 3 | AZ166-62040-BAztec 166-62040-B | 1 | FUEL HOSE FITTING | $10.09/EA |
| 4 | AZ152-N3-0173-1Aztec 152-N3-0173-1 | 1 | FUEL LOK-OUT (12 VOLT) | $47.75/EA |
| 5 | AZ152-500Aztec 152-500 | 1 | FUEL REGULATOR (T60-E) | $222.17/EA |

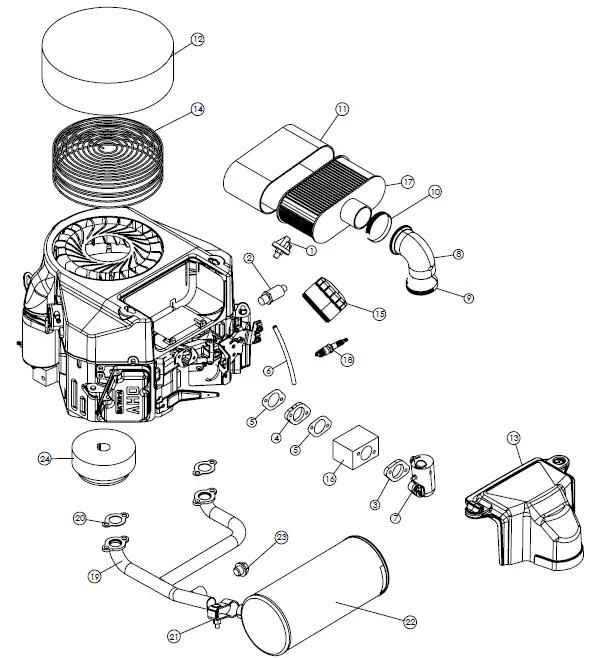

Aztec LowRider PurePowerLPG 603cc FS481V engine parts
The Kawasaki FS481V PurePowerLPG engine parts Aztec lists: filters, gaskets, intake, carburetor, spark plugs, muffler and clutch. Manual pages 33, list 34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ152-N3-0082Aztec 152-N3-0082 | 1 | OIL PRESSURE SWITCH 17HP | $76.05/EA |
| 2 | AZ312-504-0185Aztec 312-504-0185 | 1 | VALVE OIL DRAIN 14HP/17HP | $19.95/EA |
| 3 | AZ309-11061-7095Aztec 309-11061-7095 | 1 | GASKET AIR FILTER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ309-16073-7007Aztec 309-16073-7007 | 1 | INSULATOR CARB SPACER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ309-11061-7096Aztec 309-11061-7096 | 2 | INSULATOR CARB GASKET FS481 | $4.95/EA |
| 6 | AZ309-92192-7146Aztec 309-92192-7146 | 1 | VENT TUBE AIR CLEANER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ309-16060-7036Aztec 309-16060-7036 | 1 | PIPE INTAKE FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ309-92192-7164Aztec 309-92192-7164 | 1 | TUBE ELBOW AIR CLEANER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ309-92171-7010Aztec 309-92171-7010 | 1 | PIPE INTAKE CLAMP FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | AZ309-92173-7007Aztec 309-92173-7007 | 1 | HOSE CLAMP FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AZ309-11013-7046Aztec 309-11013-7046 | 1 | PRE FILTER CLEANER FS481 | $8.09/EA |
| 12 | AZ186-271964Aztec 186-271964 | 1 | FOAM HAT FILTER KW | $34.50/EA |
| 13 | AZ309-11011-7060Aztec 309-11011-7060 | 1 | AIR FILTER COVER FS481 | $45.30/EA |
| 13 | AZ309-92210-7038Aztec 309-92210-7038 | 2 | Air Filter Cover Wing Nut | $1.20/EA |
| 13 | AZ309-92055-7025Aztec 309-92055-7025 | 2 | Air Filter Cover O-Ring | $1.70/EA |
| 14 | AZ309-18540-603Aztec 309-18540-603 | 1 | DEBRIS SCREEN FS481 | $32.00/EA |
| 15 | AZ309-49065-7007Aztec 309-49065-7007 | 1 | FILTER-OIL FS481 | $24.37/EA |
| 16 | AZ152-CARBAztec 152-CARB | 1 | CARB (DOES NOT INCLUDE THROTTLE PLATE, SHAFT OR SEAL) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ309-11013-7049Aztec 309-11013-7049 | 1 | ELEMENT AIR FILTER FS481 | $25.40/EA |
| 18 | AZ309-92070-7004Aztec 309-92070-7004 | 2 | SPARK PLUG BPR4ES | $5.50/EA |
| 20 | AZ309-11060-7016Aztec 309-11060-7016 | 2 | EXHAUST GASKET, MANIFOLD FS481 | $3.18/EA |
| 22 | AZ152-603-BCAztec 152-603-BC | 1 | 1 PIECE CATALYTIC MUFFLER MANIFOLD | $445.00/EA |
| 23 | AZ164-M1815PAztec 164-M1815P | 1 | MANIFOLD PLUG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | AZ311-180007Aztec 311-180007 | 1 | CENTRIFUGAL CLUTCH | $327.82/EA |
Aztec LowRider engine preventative maintenance kit
Aztec's preventative maintenance kit for the FS481 engine and the six parts in it. Manual page 28.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AZ309-603-PHAztec 309-603-PH | 1 | Preventative Maintenance Kit for the FS481 engineComplete assembly. KIT. | $131.83/EA |
| – | AZ309-11013-7046Aztec 309-11013-7046 | 1 | Pre Filter (Foam Hat)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $8.09/EA |
| – | AZ309-11013-7049Aztec 309-11013-7049 | 1 | Air Filter (Paper Element)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $25.40/EA |
| – | AZ309-49065-7007Aztec 309-49065-7007 | 1 | Oil FilterPart of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $24.37/EA |
| – | AZ309-92070-7004Aztec 309-92070-7004 | 2 | Spark Plugs (NGK BPR4ES)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $5.50/EA |
| – | AZ119-Oil-QAztec 119-Oil-Q | 2 | 10W30 Quart OilPart of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $19.92/EA |
| – | AZ186-271964Aztec 186-271964 | 1 | Debris Filter (Foam Hat)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $34.50/EA |
New to your Aztec LowRider? Start here
Set up, run and look after your LowRider. Everything here comes from Aztec’s owner’s manual, rewritten in plain steps, with the parts you need linked to the list above.
1Check it before every start
- Park on a level surface. Turn the engine switch off and close the propane tank valve.
- Look around and under the machine and engine for oil leaks and damage. Make sure all shields and covers are in place and all nuts, bolts and screws are tight.
- Check the oil level and the air filter element (AZ309-11013-7049). Do the first oil change after the first 8 hours of use.
- Soap-test the tank, lines and connections every time you fill or connect the LPG cylinder (AZ293-20#STLMF). Repair any leak before you run the machine.
- Screw the tank coupler (AZ152-700) together by hand. Never use a tool on the tank connection.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 7, 10 and 11. SES ref PF-A5OX-EHVZ
2Change the pad
- Turn the engine off and close the propane tank valve. Never tilt the machine back while the engine is running.
- Tilt the machine back on a flat surface and secure it. Never tip it on its side.
- Unscrew the pad-centering ring, take off the old pad and center the new pad on the pad driver (AZ070-21-PD / AZ070-24-PD / AZ070-27-PD). Put the ring back on.
- Never flip a pad: keep the same side down for its whole life. The centering ring mark shows the down side. Don’t run a damaged or disintegrating pad; it causes excess vibration.
- Set the machine back down level before you start.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 11, 12 and 15. SES ref PF-A5OX-EHVZ
3Start burnishing
- Set the handle to a comfortable position and lock it with the pin.
- Open the LPG tank valve by turning it counterclockwise.
- Set the throttle to SLOW and turn the key to START. Don’t run the starter more than 10 seconds at a time.
- Once it starts, move the throttle to the speed you want. Follow the machine at a moderate walking pace and keep moving forward: staying in one spot for more than a few seconds burns the finish.
- To change pad pressure, move the wheels forward to take weight off the pad or backward to add weight.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 15 and 16. SES ref PF-A5OX-EHVZ
4Shut down, clean up and store
- Close the tank valve (turn it clockwise), then turn the key off. Take the key out whenever you leave the machine.
- Tilt the machine back, secure it and check for loose nuts and bolts. Tighten them as needed.
- Now and then, shake out the foam hat engine dust filter (AZ186-271964), rinse it with water and mild detergent, squeeze it out and let it air dry. A dirty dust filter can make the engine overheat.
- Clean the air filter, then set the machine back level.
- Let a hot engine cool at least 15 minutes before you load the machine on a vehicle. Take the propane tank off and store it outside in a secure, well-ventilated area.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 7, 8, 17 and 18. SES ref PF-A5OX-EHVZ
Aztec LowRider troubleshooting
Problems, likely causes and fixes from Aztec's troubleshooting pages. Turn the engine off and close the propane tank valve before any work.
| Likely cause | Fix | Part |
|---|---|---|
| Engine cranks but won’t start | ||
| Propane tank empty or shutoff valve closed | Refill the propane tank (AZ293-20#STLMF) or open the valve. | |
| Engine won’t start or starts hard | ||
| Fuel or vacuum line clogged, kinked or cut | Clear the line or replace it. | |
| Engine cranks but won’t start | ||
| Spark plug lead off, or a faulty ignition coil or kill switch | Reconnect the lead to the spark plug (AZ309-92070-7004). Replace a faulty coil or switch. | |
| Engine won’t start or starts hard | ||
| Faulty regulator | Replace the fuel regulator (AZ152-500). | |
| Engine starts hard | ||
| Throttle or choke set wrong, or low compression | Set the controls to the right position. For low compression, have a trained technician service the engine. | |
| Engine won’t crank | ||
| Battery run down (a key left ON drains it) | Charge or replace the battery (AZ276-GTX14). Turn the key off whenever the engine is off. | |
| Loose or faulty wires or connections, or a faulty key switch or starter control switch | Take the tank and battery box cover off. Tighten, repair or replace wires, clean corroded battery posts, and repair or replace a faulty key switch (AZ312-308-0385) or starter switch. | |
| Engine overheats | ||
| Air intake filter screen, dust filter or cooling fins clogged | Clean the foam hat dust filter (AZ186-271964) and clear the debris, or replace the filter. | |
| Low oil | Check the oil and add oil. | |
| Engine overheats, or exhaust or propane smell | ||
| Fuel, carburetor or regulator settings wrong | Have a trained technician service the engine. The fuel system is tamper-proof; for any fuel problem, contact an authorized service center. | |
| Exhaust or propane smell | ||
| Dirty air filter, or a loose fitting or clamp, or a cracked or cut hose | Replace the air filter (AZ309-11013-7049). Tighten or seal fittings, soap-test them, and replace any part that still bubbles. | |
| Frost on the LPG lines or regulator | ||
| Propane tank overfilled | Stop running the machine or damage will occur. Have the excess propane removed safely. The regulator may need to defrost before you restart. | |
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 11, 13, 17, 23 and 25. SES ref PF-DF5F-W4OP
Still stuck? Call 800-440-6723 and have your model and serial number ready. SES stocks Aztec parts and can help you find the cause.
Aztec LowRider maintenance schedule
Aztec's engine maintenance schedule, clean-up and belt steps. Turn the engine switch off and close the propane tank valve before any service. Aztec requires a dated maintenance record to keep the warranty.
| Task | How often | Part |
|---|---|---|
| Check the engine oil before you start the engine and add oil if needed. | Daily | |
| Check for loose or missing nuts and screws. | Daily | |
| Check for fuel and oil leaks. | Daily | |
| Check the battery electrolyte level. | Daily | |
| Check or clean the air intake screen. | Daily | |
| Check for loose nuts and bolts and tighten them. | After every use | |
| Clean the air filter, and clean the foam hat dust filter (AZ186-271964) now and then. | After every use | |
| Take the propane tank off and store it outside. | After every use | |
| Clean the air cleaner foam element (AZ309-11013-7046). | Every 25 hours | |
| Change the engine oil. Do the first change after 8 hours, then every 50 hours. Drain it warm through the oil drain valve (AZ312-504-0185). | Every 50 hours | |
| Clean the air cleaner paper element (AZ309-11013-7049). | Every 50 hours | |
| Change the oil filter (AZ309-49065-7007). Spin the new one on until the seal touches, then 3/4 turn more by hand. | Every 100 hours | |
| Replace the air cleaner paper element (AZ309-11013-7049). | Every 100 hours | |
| Clean and gap the spark plugs (AZ309-92070-7004): NGK BPR4ES, gap 0.028 in. | Every 100 hours | |
| Clean dust and dirt from the cylinder and cylinder head fins. | Every 100 hours | |
| Tighten nuts and screws. | Every 100 hours | |
| Clean the combustion chambers. | Every 300 hours | |
| Clean and adjust the valve clearance. Aztec’s chart also marks this once after the first 50 hours. | Every 300 hours | |
| Clean and lap the valve seating surface. | Every 300 hours | |
| Aztec says jobs that need special tools are best done by an authorized technician. Call SES service: 800-440-6723. | Every 300 hours | |
| Inspect the belt (AZ113-BX42 / AZ113-BX49 / AZ113-BX51) with the engine off and the tank valve closed. Replace it if it is worn, cracked or shredding. | As needed | |
| To replace it, hold the shaft on top of the body with a 3/4 in wrench and turn the pad driver counterclockwise to take it off. | As needed | |
| Turn the shaft with the wrench to work the old belt off the pad driver pulley and engine crank pulley. Check that the two pulleys line up. | As needed | |
| Fit the new belt on the engine crank pulley and pad driver pulley, then on the tension pulley (AZ011-6-2795A). Put the pad driver back on the shaft. | As needed | |
| Service more often if you run at sustained high load or high temperature, or in very wet or dusty conditions. | As needed |
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 15, 16, 17, 18, 19, 20, 21, 22 and 24. SES ref PF-5743-ANRF
Aztec LowRider specifications
From Aztec's owner's manual and the LowRider spec sheet.
| Pad size | 21 in (54 cm), 24 in (61 cm) or 27 in (68 cm) |
|---|---|
| Pad speed | 21 in: 2,092 rpm; 24 in: 1,850 rpm; 27 in: 1,700 rpm |
| Engine | Kawasaki FS481V PurePowerLPG, 603 cc, 18 hp, propane |
| Profile height | 3 3/4 in (9.5 cm) in the manual; 4 in (10 cm) on the spec sheet |
| Size (L × W × H) | 21 in: 44 × 23.5 × 36 in (112 × 60 × 92 cm); 24 in: 47 × 26 × 36 in (120 × 66 × 92 cm); 27 in: 50 × 29 × 36 in (127 × 74 × 92 cm) |
| Shipping weight | About 310 lb (141 kg), 320 lb (145 kg) and 330 lb (150 kg) for the 21 in, 24 in and 27 in |
| Productivity | 21 in: 27,000 sq ft/hr (2,508 m²/h); 24 in: 30,000 sq ft/hr (2,787 m²/h); 27 in: 33,000 sq ft/hr (3,065 m²/h) |
| Engine speed | About 3,400 rpm high idle, 1,500 rpm low idle |
| Clutch | Optional centrifugal clutch; disengages below 1,500 rpm |
| Propane cylinder | 20 lb (5 gal) vertical vapor-withdrawal cylinder with OPD; full tank no more than 48 lb gross |
| Engine oil | 10W30, API SF, SG, SH or SJ; 1.8 US qt (1.7 L) with the filter removed |
| Spark plugs | NGK BPR4ES, gap 0.028 in |
| Sound level | Less than 89 dB(A) (manual); 80 dB (spec sheet) |
| Warranty | Machine 1 year; engine 2 years (spec sheet: 2 years/500 hours) |
Sources: Aztec LowRider propane spec sheet (05-2026), page 1; Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 5, 11, 12, 13, 20, 21, 24, 33 and 35. SES ref PF-M6QA-KLK2
Aztec LowRider manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| LowRider owner's manualOwner's manual with parts lists, 35 pages | LowRider 21 in, 24 in and 27 in | 09-2025 (this page) | 1.4 MB | Sign in to view or downloadSign in to download |
| LowRider propane spec sheetSpecifications and productivity | LowRider 21 in, 24 in and 27 in | 05-2026 | 1.9 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Aztec LowRider parts questions
How do I change the pad on an Aztec LowRider?
Turn the engine off, close the tank valve and tilt the machine back. Unscrew the pad-centering ring, center the new pad on the pad driver and put the ring back on. Never flip a pad.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), page 11. SES ref PF-Z47U-HMOF
How often do I change the oil on a LowRider?
After the first 8 hours, then every 50 hours. Change the oil filter every 100 hours. The engine takes 1.8 US qt (1.7 L) with the filter removed.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 21 and 22. SES ref PF-Z47U-HMOF
How do I change the pad pressure on my LowRider?
Move the wheels. Forward takes weight off the pad and backward adds weight. You may need this for different floor finishes, or for aluminum versus steel propane tanks.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), page 16. SES ref PF-Z47U-HMOF
What propane tank does the LowRider use?
A 20 lb (5 gal) vertical vapor-withdrawal cylinder with an overfill protection device. Aztec says other cylinders, including liquid-withdrawal ones, are dangerous and void the warranty.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 5 and 14. SES ref PF-Z47U-HMOF
What is the difference between the 21 in, 24 in and 27 in LowRider?
Pad size, pad speed and some body parts. The 21 in runs 2,092 rpm, the 24 in 1,850 rpm and the 27 in 1,700 rpm, and each size has its own body, belt, pulley, dust plate, dust skirt, pad driver and pads. Pick your size above the parts list to see only your parts.
Sources: Aztec LowRider propane spec sheet (05-2026), page 1; Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), page 30. SES ref PF-Z47U-HMOF
Does an older LowRider take the same wheel?
Not always. If your serial number ends in 0002672 or lower, Aztec says you need a different wheel from the one in this list, and the wheels and brackets are not interchangeable.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), page 30. SES ref PF-Z47U-HMOF
Can I scrub floors with the LowRider?
No. Aztec says the LowRider is not designed for scrubbing. It is made for buffing and polishing VCT and concrete floors, and its low 3 3/4 in profile lets it reach under racks.
Source: Aztec LowRider 21”, 24” & 27” Owner’s Manual (09-2025), pages 12 and 15. SES ref PF-Z47U-HMOF
Notes on this parts list
Places where Aztec's drawings, parts lists and text disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Aztec prints a footnote under the body parts list: if your LowRider serial number ends in 0002672 or lower, you need a different wheel, 156-6-213P, and the wheels and brackets are not interchangeable. That number is not a line in the list, so it is not in the table on this page. Call us to confirm it.
- The 21 in and 27 in pulleys (body item 7) are printed as 172-MB65*1 and 172-MB88*1, with “*1” as part of the number. We show them as printed; call to confirm before ordering.
- The engine drawing (page 33) shows callouts 19 and 21, but the engine parts list on page 34 skips items 19 and 21. They are not on this page.
- The body drawing (page 29) numbers its callouts 1 to 18, then 28, 29 and 30. Items 19 to 27 are not used. The dust skirt hardware (item 9A: bolts, lock nuts, fender washers and spacers) has no callout on the drawing.
- Callout 29 on the body drawing has two leader lines, to parts above and below the pad. Aztec lists one line for item 29: BIG MOUTH PAD GRAB BLUE, quantity 1.
- 070-DC-BAG is listed twice in the handle list: as EXTRA DUST BAG under item 2 and as DUST BAG, item 23. 164-22834 is the WHEEL LOCK NUT in the body list and the 3/8-16 LOK NUT in the handle list.
- The footnote to item 30 calls it the “Pad Drive Assembly”; the line itself is PAD DRIVER ASSEMBLY. The burnishing pad is not included.
- The before-operation checklist (page 10) says to check the air filter element on “pg 32”. Page 32 is the fuel system; the air filter is on the engine pages 33 and 34.
- Starting the engine: pages 15 and 26 say to turn the key to START, while page 16 says to push the “START” button. The handle list includes a key switch with key.
- Pad removal: page 15 says to turn brushes clockwise to remove, while the belt steps on page 16 say to turn the pad driver counterclockwise to remove it. Page 11 says to unscrew the pad-centering ring to change a pad.
- The maintenance meter flashes every 25 hours as an oil reminder (page 19), but the oil-change steps and schedule (pages 21 and 22) say every 50 hours after the first 8. This page follows the schedule.
- The manual gives a 3 3/4 in profile (page 12); the spec sheet says 4 in (10 cm). The manual gives a sound level under 89 dB(A) (page 12); the spec sheet says 80 dB.
- The spec sheet lists the engine warranty as 2 years/500 hours; the owner's manual warranty page says 2 years from the engine manufacturer.
- Aztec names 186-271964 “FOAM HAT FILTER KW” in the engine list and “Debris Filter (Foam Hat)” in the maintenance kit, and 309-11013-7046 “PRE FILTER CLEANER” and “Pre Filter (Foam Hat)”. Both numbers are on this page as printed.
- Descriptions are copied as Aztec prints them, including footnote marks (* and **) and spellings such as 1/4- STOVER LOK NUT.
