Advance Spectrum 12H / 12P parts list and diagrams
Every line in Advance's Spectrum spare parts list, matched to our catalog with prices. One list covers eight Spectrum uprights: pick the 12H or the 12P and only its parts show. The 15 in, 18 in and dual-motor lines stay under Other Spectrum models.
Complete list: every line of the parts list in Advance Spectrum 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D Spare Parts List 823 0103 000 Rev. P06 (11-11), 71 printed part lines, with the parts numbered on its drawings, plus 1 newer part line from Nilfisk EzParts, Spectrum Body page (later than P06), item 4B. Checked .
New to your Spectrum 12H / 12P? Start here → Manuals (free sign-in) →
- Cleaning path
- 11.5 in (29.2 cm)
- Power cord
- 12H: 33 ft (10 m), 18/3, gray, detachable; 12P: 50 ft (15 m), 18/3, safety yellow
- Bag capacity
- 4.2 qt (4 L)
- Sound level
- 69 dBA
Maintenance and wear parts for the Spectrum 12H / 12P
Advance's recommended maintenance parts for the Spectrum 12H / 12P. Keep these on the shelf.
Hepa-filter. h13
$60.25/EAExhaust filter
$24.50/EAHolder pre filter kit
$13.76/EAHolder dust bag kit
$20.54/EAPre filter kit
$16.31/EADust bag 408x78 10-p
$20.61/EADust bag reuseable
$57.97/EA
Source: Advance Spectrum 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D Spare Parts List 823 0103 000 Rev. P06 (11-11), page 9. SES ref PF-VELK-B6NS
Your machine
How to tell which you have
- Spectrum 12H: model number 107402351, Detachable 33 ft (10 m) cord.
- Spectrum 12P: model number 9060107020, 50 ft (15 m) yellow cord.
- Other Spectrum models, 12S, 12D, 15S, 15P, 15D, 18D, non-US versions.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are the Advance number with AD in front. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

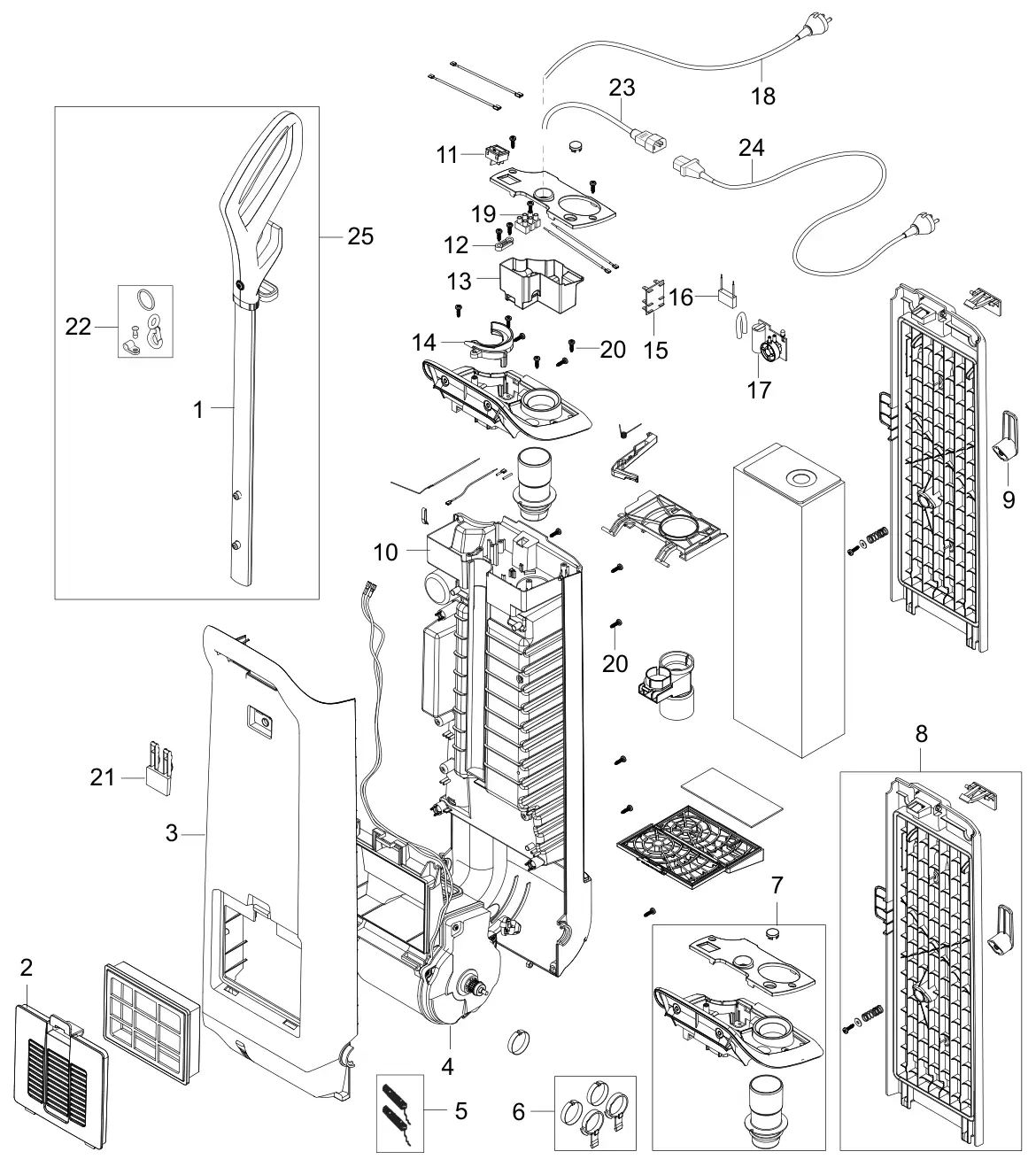

Advance Spectrum 12H / 12P body parts
The parts Advance numbers on its body drawing. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1470833500Advance 147 0833 500 | 1 | HANDLE COMPLETEFits Spectrum 12P, Other Spectrum models. For all spectrum models except 12H. | $55.01/EA |
| 2 | AD1470965500Advance 147 0965 500 | 1 | COVER EXHAUST FILTER.GREY | $29.16/EA |
| 3 | AD1470847500Advance 147 0847 500 | 1 | COVER BODY FRONT. GREY | $82.80/EA |
| 4 | AD1470864510Advance 147 0864 510 | 1 | MOTOR CASETTE 110-120V | $272.60/EA |
| 4 | AD107424303Advance 107424303 | 1 | MOTOR CASSETTE 120V W/O SHAFTNewer body version: Nilfisk EzParts' later Body page lists it as item 4B; not in the P06 printed list. | $146.74/EA |
| 5 | AD1471326500Advance 147 1326 500 | 1 | CARBON BRUSH KIT2 pcs. | $35.70/EA |
| 6 | AD1470927500Advance 147 0927 500 | 1 | JOINT BASE TO BODY W RING | $17.23/EA |
| 7 | AD1470842500Advance 147 0842 500 | 1 | COVER TOP KIT. GREY | $27.36/EA |
| 8 | AD1470857500Advance 147 0857 500 | 1 | LID CPL. GREY | $68.89/EA |
| 9 | AD1470852500Advance 147 0852 500 | 1 | HOOK FOR CORD | $17.23/EA |
| 10 | AD1470850500Advance 147 0850 500 | 1 | COVER BODY REAR | $145.67/EA |
| 11 | AD1405496510Advance 140 5496 510 | 1 | SWITCH UL KIT | $26.25/EA |
| 12 | AD0561014060Advance 056 1014 060 | 1 | ANTI-STRAIN CLIP BLACK | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AD1470843500Advance 147 0843 500 | 1 | ELECTRIC BOX | $17.23/EA |
| 14 | AD1471062500Advance 147 1062 500 | 1 | HOLDER TUBE | $17.23/EA |
| 15 | AD1407024500Advance 140 7024 500 | 1 | BOARD ANTI STATICFits Other Spectrum models. Not for US versions. | $32.92/EA |
| 16 | AD1408166010Advance 140 8166 010 | 1 | CAPACITORFits Other Spectrum models. Not for US versions. | $21.85/EA |
| 17 | AD1470987500Advance 147 0987 500 | 1 | BAG FULL DEVICE | $77.51/EA |
| 18 | AD1403859640Advance 140 3859 640 | 1 | CORD SET US/TW 15M YELLOW | $94.44/EA |
| 19 | AD82240100Advance 82240100 | 1 | TERMINAL BLOCK 3-POLEFor grounded versions. | $10.42/EA |
| 20 | AD1409214040Advance 140 9214 040 | 1 | SCREW PTK TORX 40x14MM FZBPacket contains 22 screws. | $8.80/EA |
| 21 | AD107401794Advance 107401794 | 1 | MUSTANG BUTTON BLACK | $27.36/EA |
| 22 | AD107403706Advance 107403706 | 1 | CORD RELIEF KIT 12HFits Spectrum 12H. 12H. | $22.37/EA |
| 23 | AD107403708Advance 107403708 | 1 | PIGTAIL SET US Spectrum 12HFits Spectrum 12H. 12H. | $27.36/EA |
| 24 | AD107403709Advance 107403709 | 1 | EXTENSION CORD Spectrum 12HFits Spectrum 12H. 12H. | $60.65/EA |
| 25 | AD107404752Advance 107404752 | 1 | HANDLE KIT WITH CORD RESTRAINTFits Spectrum 12H. For Spectrum 12H only. | $23.94/EA |

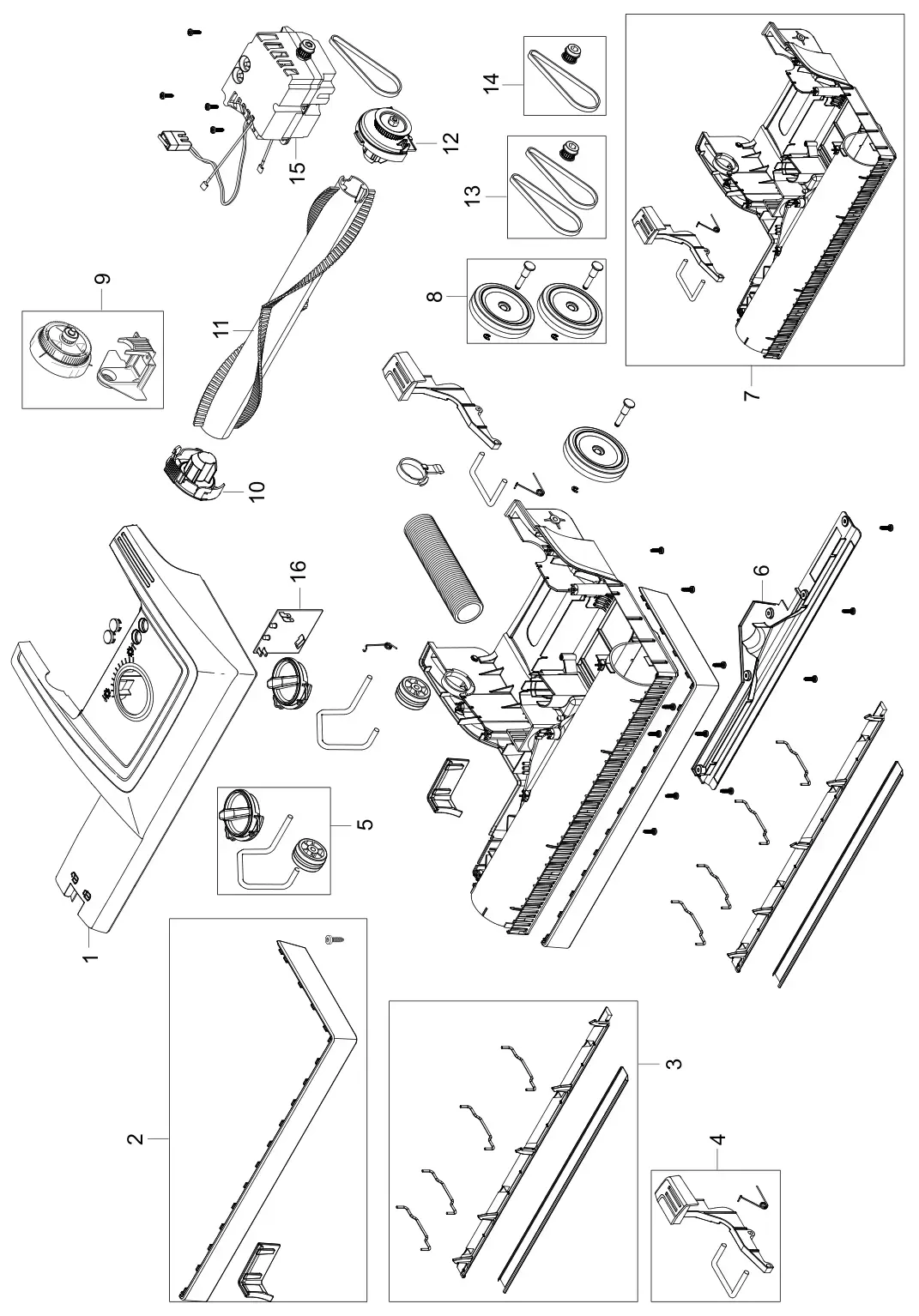

Advance Spectrum 12H / 12P base parts
The parts Advance numbers on its base drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1470924500Advance 147 0924 500 | 1 | COVER BRUSH HOUSE. GREY12”, Single. | $61.95/EA |
| 1 | AD1470924600Advance 147 0924 600 | 1 | COVER BRUSH HOUSE. GREYFits Other Spectrum models. 12”, Dual. | $61.95/EA |
| 1 | AD1470925500Advance 147 0925 500 | 1 | COVER BRUSH HOUSE.GREYFits Other Spectrum models. 15”, Single. | $65.14/EA |
| 1 | AD1470925600Advance 147 0925 600 | 1 | COVER BRUSH HOUSE. GREYFits Other Spectrum models. 15”, Dual. | $65.14/EA |
| 1 | AD1470926500Advance 147 0926 500 | 1 | COVER BRUSH HOUSE GREYFits Other Spectrum models. 18”, Dual. | $68.89/EA |
| 2 | AD107404751Advance 107404751 | 1 | BUMPER KIT 12HFits Spectrum 12H. SPECTRUM 12H. | $25.70/EA |
| 2 | AD1470886500Advance 147 0886 500 | 1 | BUMPER KIT 12 INCH/305 | $24.03/EA |
| 2 | AD1470889500Advance 147 0889 500 | 1 | BUMPER KIT 15 INCH/355Fits Other Spectrum models. | $24.03/EA |
| 2 | AD1470892500Advance 147 0892 500 | 1 | BUMPER KIT 18 INCH/455Fits Other Spectrum models. | $29.16/EA |
| 3 | AD1470992500Advance 147 0992 500 | 1 | SUPPORT BRUSH KIT 12INCH | $30.84/EA |
| 3 | AD1470992510Advance 147 0992 510 | 1 | SUPPORT BRUSH KIT 15INCHFits Other Spectrum models. | $32.48/EA |
| 3 | AD1470992520Advance 147 0992 520 | 1 | SUPPORT BRUSH KIT 18INCHFits Other Spectrum models. | $27.36/EA |
| 4 | AD1470935500Advance 147 0935 500 | 1 | PEDAL W SHAFT AND SPRING | $32.48/EA |
| 5 | AD1470901500Advance 147 0901 500 | 1 | ROLLER KIT | $34.91/EA |
| 6 | AD1470988500Advance 147 0988 500 | 1 | BRUSH SHOE 12 INCH/305 | $17.23/EA |
| 6 | AD1470989500Advance 147 0989 500 | 1 | BRUSH SHOE 15/355Fits Other Spectrum models. | $17.23/EA |
| 6 | AD1470990500Advance 147 0990 500 | 1 | BRUSH SHOE 18/455Fits Other Spectrum models. | $25.70/EA |
| 7 | AD1470885500Advance 147 0885 500 | 1 | CHASSIS 12 INCH /305 | $74.35/EA |
| 7 | AD1470888500Advance 147 0888 500 | 1 | CHASSIS 15 INCH/355Fits Other Spectrum models. | $75.85/EA |
| 7 | AD1470891500Advance 147 0891 500 | 1 | CHASSIS 18 INCH/455Fits Other Spectrum models. | $70.41/EA |
| 8 | AD1470898500Advance 147 0898 500 | 1 | WHEEL KIT | $53.48/EA |
| 9 | AD1470906500Advance 147 0906 500 | 1 | CLUTCH AND BEARING KIT | $70.41/EA |
| 10 | AD1470944500Advance 147 0944 500 | 1 | COVER | $27.36/EA |
| 11 | AD1470930500Advance 147 0930 500 | 1 | BRUSH 12 INCH/305 | $45.84/EA |
| 11 | AD1470930510Advance 147 0930 510 | 1 | BRUSH 15 INCH/355Fits Other Spectrum models. | $54.25/EA |
| 11 | AD1470930520Advance 147 0930 520 | 1 | BRUSH 18 INCH/455Fits Other Spectrum models. | $50.33/EA |
| 12 | AD1470913500Advance 147 0913 500 | 1 | BEARING | $43.38/EA |
| 13 | AD1470905500Advance 147 0905 500 | 1 | DRIVE BELT KIT | $72.07/EA |
| 14 | AD1470905510Advance 147 0905 510 | 1 | DRIVE BELT KIT DOUBLE MOTORFits Other Spectrum models. | $22.37/EA |
| 15 | AD1470984510Advance 147 0984 510 | 1 | MOTOR CASETTE 100-120VWith Circuit Board and Micro Switch. | $231.50/EA |
| 15A | AD1471170500Advance 147 1170 500 | 1 | MICRO SWITCH KITfor motor 147 0984 510. | $27.36/EA |
| 16 | AD107401947Advance 107401947 | 1 | PCB 120V KIT | $87.37/EA |
| 16 | AD107401946Advance 107401946 | 1 | PCB 230V KIT | Call to confirm part: 800-440-6723Call 800-440-6723 |

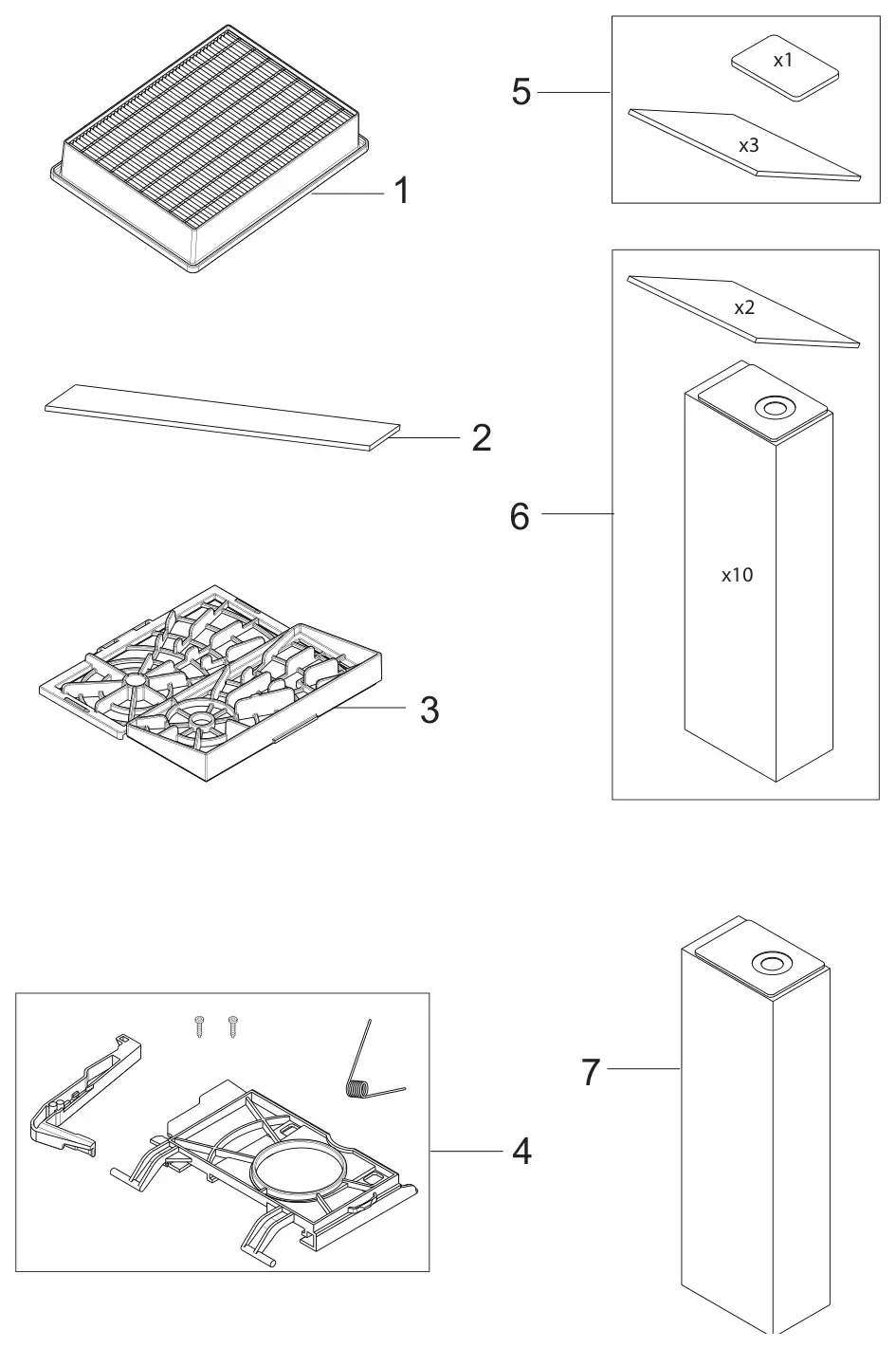

Advance Spectrum 12H / 12P filters parts
The parts Advance numbers on its filters drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471250600Advance 147 1250 600 | 1 | HEPA-FILTER. H13 | $60.25/EA |
| 2 | AD1470966500Advance 147 0966 500 | 1 | EXHAUST FILTER | $24.50/EA |
| 3 | AD1470958500Advance 147 0958 500 | 1 | HOLDER PRE FILTER KITWith 1 pre filter. | $13.76/EA |
| 4 | AD1470854500Advance 147 0854 500 | 1 | HOLDER DUST BAG KIT | $20.54/EA |
| 5 | AD1470960500Advance 147 0960 500 | 1 | PRE FILTER KIT1 x anti smell paper, 3 x pre-filters. | $16.31/EA |
| 6 | AD107413584Replaces Advance 147 1058 500 | 1 | DUST BAG 408X78 10-P10 bags, 2 pre-filters; replaces Advance 147 1058 500. | $20.61/EA |
| 7 | AD1471059500Advance 147 1059 500 | 1 | DUST BAG REUSEABLE | $57.97/EA |

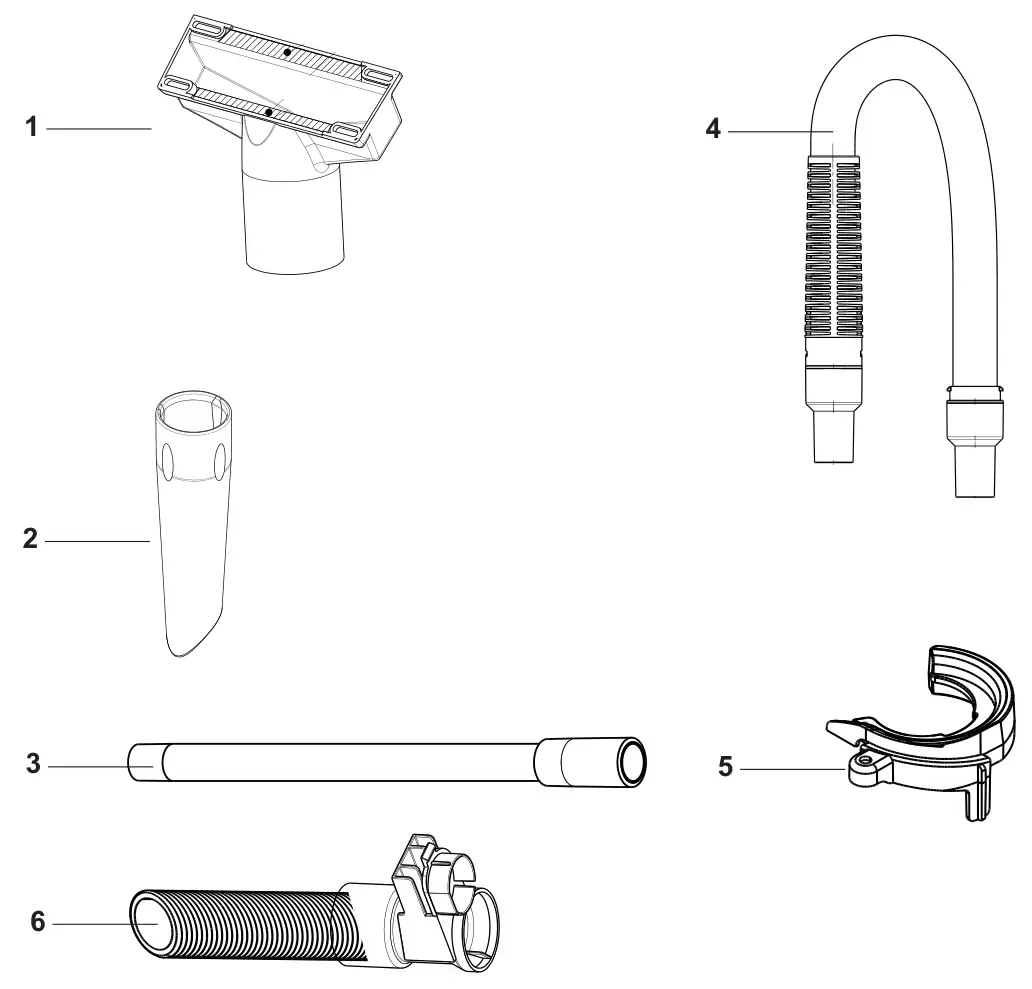

Advance Spectrum 12H / 12P nozzles and tube parts
The parts Advance numbers on its nozzles and tube drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471205500Advance 147 1205 500 | 1 | Upholstery nozzle Ø 35 mm | $20.54/EA |
| 2 | AD1471203500Advance 147 1203 500 | 1 | Crevice nozzle Ø 35 mmSoft. | $24.03/EA |
| 3 | AD1470851500Advance 147 0851 500 | 1 | Extension tube Ø 35 mm | $25.70/EA |
| 4 | AD1470950500Advance 147 0950 500 | 1 | Hose stretchable | $57.00/EA |
| 5 | AD1471062500Advance 147 1062 500 | 1 | Tube holderFor the extension tube. | $17.23/EA |
| 6 | AD1470919500Advance 147 0919 500 | 1 | Adapter, base to tube w.hoseHose from the base. | $29.16/EA |

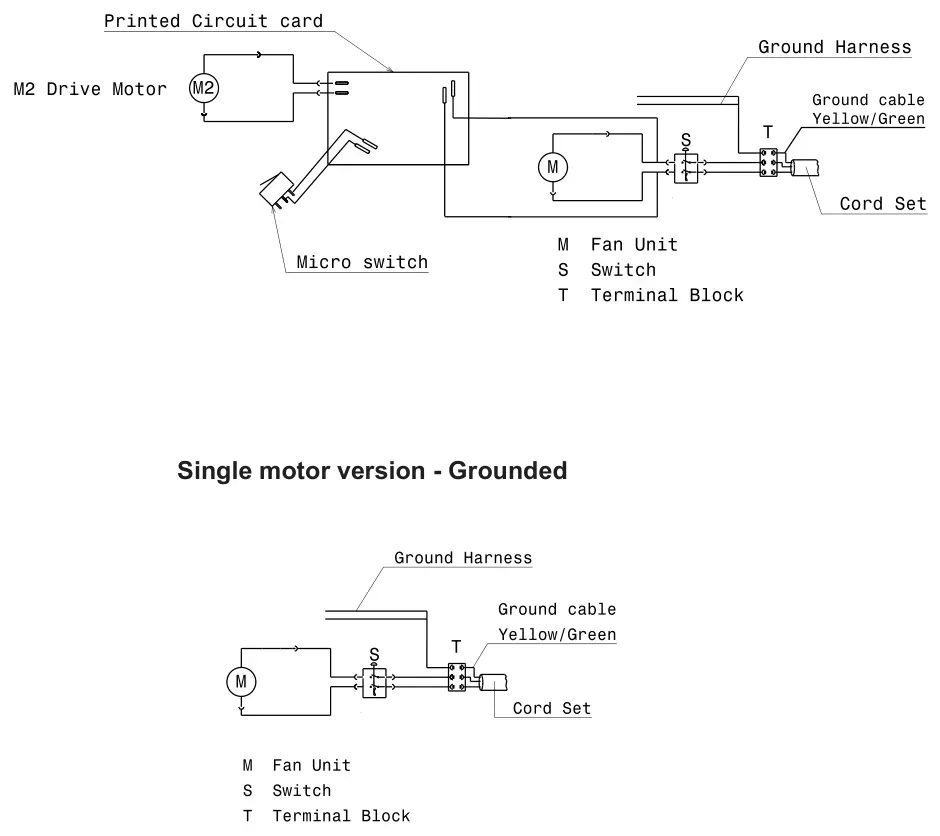

Advance Spectrum 12H / 12P wiring diagrams (single and double motor)
| What it shows | Wiring diagrams (single and double motor), as printed in the manual |
|---|---|
| Manual page | 2 |
New to your Advance Spectrum 12H / 12P? Start here
Set up, run and look after your Spectrum 12H or 12P, from Advance's instructions for use and the two model brochures, with the parts linked to the list above. Advance doesn't publish a use-and-care chart for the Spectrum, so the care steps come from the instructions for use.
1Put it together
- Take the vacuum out of its carton.
- Push the handle (AD107404752 / AD1470833500) into the opening at the top of the bag housing until the button snaps in.
- Loop the cord through the cord restraint. On the 12H, connect the pigtail (AD107403708) and the extension cord (AD107403709).
- Make sure a dust bag is in. A "no bag" clip keeps the dust lid from closing without one, and you should never run it without a bag.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 8. SES ref PF-QW2K-AOJX
2Start vacuuming
- Turn the lower cord hook (AD1470852500) to free the cord, and unwind all of it.
- Press the handle lock button and move the handle to a comfortable height.
- Run the cord through the hook and the anti-strain clip (AD0561014060), then plug it in.
- Turn the main power switch (AD1405496510) on: I is on, O is off.
- Step on the foot pedal (AD1470935500) and tilt the vacuum back. Always use the pedal to release the base, or you can damage the release mechanism.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), pages 5 and 9. SES ref PF-QW2K-AOJX
3Set the brush height
- On these single-motor models the brush (AD1470930500) turns whenever the vacuum is on.
- Stand in front of the machine and turn the height adjustment knob.
- Turn it left to lower the brush for short carpet.
- Turn it right to raise the brush for longer carpet.
Sources: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 9; Advance Spectrum 12H brochure, form L3246A (4-17), page 1; Advance Spectrum 12P & 15P brochure, form L3072A (7-17), page 1. SES ref PF-QW2K-AOJX
4Use the wand and tools
- Push the vacuum to its upright locked position. The brush lifts off the floor.
- Slide the wand (AD1470851500) out of its holder.
- The upholstery tool (AD1471205500) sits in the upper section behind the wand, and the crevice tool (AD1471203500) in the lower section.
- Fit a tool on the end of the wand, or take the hose (AD1470950500) off the wand and fit the tool there.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 10. SES ref PF-QW2K-AOJX
Advance Spectrum 12H / 12P troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Restricted Airflow light is on | ||
| The dust bag is full | Unplug it and change the dust bag (AD107413584). | |
| The tube, hose or a tool is blocked | Unplug it and check the wand (AD1470851500), hose (AD1470950500) and tools for a clog. | |
| Light comes on before the bag is full | ||
| Very fine dust is coating the inside of the bag | Change the dust bag (AD107413584). | |
| Debris has built up between the brush and the bag | Unplug it and check the path from the brush to the bag for debris. | |
| Not cleaning well, light is off | ||
| The dust bag is full | Open the dust housing, check the bag and replace it if it is full. Clean the bag housing if needed. | |
| Dust lid won't close | ||
| No dust bag, or the bag isn't fitted right | Fit a bag in the bag holder (AD1470854500) and check that the "no bag" clip is to the left. | |
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), pages 8, 9, 11 and 13. SES ref PF-OFO2-N4SM
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Advance Spectrum 12H / 12P maintenance schedule
Advance's maintenance schedule for the Spectrum 12H / 12P.
| Task | How often | Part |
|---|---|---|
| Unplug the power cord. | After every use | |
| If it wasn't cleaning well and the Restricted Airflow light was off, check the dust bag. Replace it if it is full and clean the bag housing if needed. | After every use | |
| Wind up the cord, starting at the machine end, and hang it on the hooks on the dust lid and the handle. | After every use | |
| Remove carpet fibers and debris from the brush (AD1470930500) and the brush housing. | After every use | |
| Store the vacuum indoors in a clean, dry place. | After every use | |
| Change the paper dust bag (AD107413584) whenever the Bag Full light comes on. Empty a reusable bag (AD1471059500) the same way. | As needed | |
| Clean or replace the motor pre-filter (AD1470960500) every fifth time you change the bag, more often in very dusty places. You can wash it in warm water: let it dry completely first. | As needed | |
| Replace the deodorizer pad in the pre-filter holder (AD1470958500) when it stops working. | As needed | |
| Clean the brush (AD1470930500) or replace it when it is worn. | As needed | |
| Replace the HEPA filter (AD1471250600) or the exhaust filter (AD1470966500) once or twice a year, depending on use. | Once a year | |
| The HEPA filter can't be cleaned or washed. Replace it when it clogs, and never touch the filter media. | Once a year | |
| Check the cord for damage, especially if it was crushed, shut in a door or run over. | Now and then | |
| Don't use the vacuum if the cord shows any damage. Replace it with the same type of cord the machine came with. | Now and then |
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), pages 5, 11, 12 and 13. SES ref PF-RSYS-VUYM
Advance Spectrum 12H / 12P specifications
From Advance's documents for the Spectrum 12H / 12P.
| Model numbers | 12H: 107402351; 12P: 9060107020 |
|---|---|
| Voltage | 110–120V, 50–60 Hz (brochures: 120V, 60 Hz, 9 A) |
| Rated power | 12H: 1,000 W; 12P: 1,200 W. The 12P brochure lists 1,000 W. |
| Suction and airflow | 92 in water lift, 93 CFM |
| Brush speed | 2,800 rpm |
| Cleaning path | 11.5 in (29.2 cm) |
| Bag capacity | 4.2 qt (4 L) |
| Filtration | 2-ply paper bag, motor protection filter, certified HEPA exhaust filter |
| Power cord | 12H: 33 ft (10 m), 18/3, gray, detachable; 12P: 50 ft (15 m), 18/3, safety yellow |
| Sound level | 69 dBA |
| Size (L × W × H) | 13 × 12 × 44 in (33 × 30 × 113 cm) |
| Weight | 12H: 17 lb (7.7 kg); 12P: 18.7 lb (8.5 kg). The brochures list 19.3 lb and 19.8 lb with the cord. |
Sources: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 7; Advance Spectrum 12H brochure, form L3246A (4-17), page 2; Advance Spectrum 12P & 15P brochure, form L3072A (7-17), page 2. SES ref PF-TWQZ-YCA3
Advance Spectrum 12H / 12P manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Spare parts listAdvance 823 0103 000 Rev. P06 (11-11), 12 pages | Spectrum 12H / 12P | Rev. P06 (11-11) | 12 pages | Sign in to view or downloadSign in to download |
| Instructions for useAdvance 823 0102 020 edition E (2011), 36 pages, English, French, Spanish | Spectrum 12H / 12P | 36 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance Spectrum 12H / 12P parts questions
What's the difference between the Advance Spectrum 12H and 12P?
The cord and a few parts. The 12H has a detachable 33 ft (10 m) gray cord with a pigtail and its own handle and bumper kits; the 12P has a 50 ft (15 m) safety yellow cord. Advance's instructions for use rate the 12H at 1,000 W and the 12P at 1,200 W.
Sources: Advance Spectrum 12H brochure, form L3246A (4-17), page 2; Advance Spectrum 12P & 15P brochure, form L3072A (7-17), page 2; Advance spare parts list 823 0103 000 Rev. P06 (11-11), pages 5 and 7; Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 7. SES ref PF-34XJ-7KW6
Can I vacuum wet carpet with the Spectrum 12H or 12P?
No. Advance says the Spectrum is for dry use only: don't use it on wet floors or carpet, outdoors, or to pick up water or other liquids.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 5. SES ref PF-34XJ-7KW6
Why is the Restricted Airflow light on on my Spectrum?
The bag is full, or the tube, hose or a tool is blocked. If it comes on before the bag is full, fine dust may be coating the bag, so change it, or debris may be stuck between the brush and the bag.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 9. SES ref PF-34XJ-7KW6
How often do I change the filters on a Spectrum 12P?
Clean or replace the motor pre-filter every fifth bag change, more often in dusty places. Replace the HEPA or exhaust filter once or twice a year. The HEPA filter can't be washed.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), pages 12 and 13. SES ref PF-34XJ-7KW6
Can I use an extension cord with the Spectrum 12P?
Yes, within Advance's limits: a 12 gauge, three-wire cord with three-prong plugs, no more than 50 ft (15 m) long.
Source: Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 6. SES ref PF-34XJ-7KW6
Which dust bags fit the Spectrum 12H and 12P?
Both use the same bags: a 10-pack of paper bags that also has 2 pre-filters, or a reusable bag. Never run the vacuum without a bag.
Sources: Advance spare parts list 823 0103 000 Rev. P06 (11-11), page 9; Advance Spectrum instructions for use 823 0102 020 edition E (2011), page 8. SES ref PF-34XJ-7KW6
