Advance SC6000 parts list and diagrams
Every part number in Advance's SC6000 rider scrubber parts list for the 34D, 36C and 40D, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Advance's SC6000 Parts List, form 56042639 (REV H, 2/2016, revised 2/2020), for the SC6000 34D, 36C and 40D. Checked .
New to your SC6000? Start here → Manuals (free sign-in) →
- Cleaning path
- 36C: 36 in (91.4 cm); 34D: 34 in (86.3 cm); 40D: 40 in (101.6 cm)
- Scrub brushes
- 36C: two cylindrical brushes, 7.1 in (18 cm) across and 35.58 in (90.4 cm) long; 34D: two disc brushes, 17 in (43 cm); 40D: two disc brushes, 20 in (51 cm)
- Solution and recovery tanks
- 50 gal (190 L) each
- Brush speed
- 36C: 760 rpm; 34D and 40D: 250 rpm
- Batteries
- 36 V, 420 Ah (C20) maximum
Wear parts most SC6000 owners reorder
Advance's maintenance schedule has you check and replace squeegee blades, side blades, the solution filter and the vacuum motor brushes. These are the ones on the parts list.
Squeegee Blade Kit-Linatex J
$141.34/EASqueegee Blade Kit-Linatex K
$147.57/EASqueegee Blade Kit-PU J
$297.76/EASqueegee Blade Kit-PU K
$270.67/EASide Blade Kit-Linatex
$188.85/EASide Blade Kit-PU
$298.49/EAScreen-Filter
Call to confirm part: 800-440-6723Filter-Vacuum Inlet
$7.29/EAVacuum Motor Brush Kit
$17.46/EA
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E), pages 30, 34 and 36; Advance SC6000 Parts List, form 56042639 (REV H), pages 62, 63, 64 and 65. SES ref PF-W3BB-FG5O
Your machine
How to tell which you have
- Read the nameplate: the model number and serial number are on the nameplate on the steering column. Advance lists the SC6000 36C as model 56116000, the 40D as 56116001 and the 34D as 56116002.
- Disc or cylindrical: the 36C scrubs with two cylindrical brushes and has a hopper. The 34D and 40D scrub with two disc brushes, 17 in (43 cm) on the 34D and 20 in (51 cm) on the 40D.

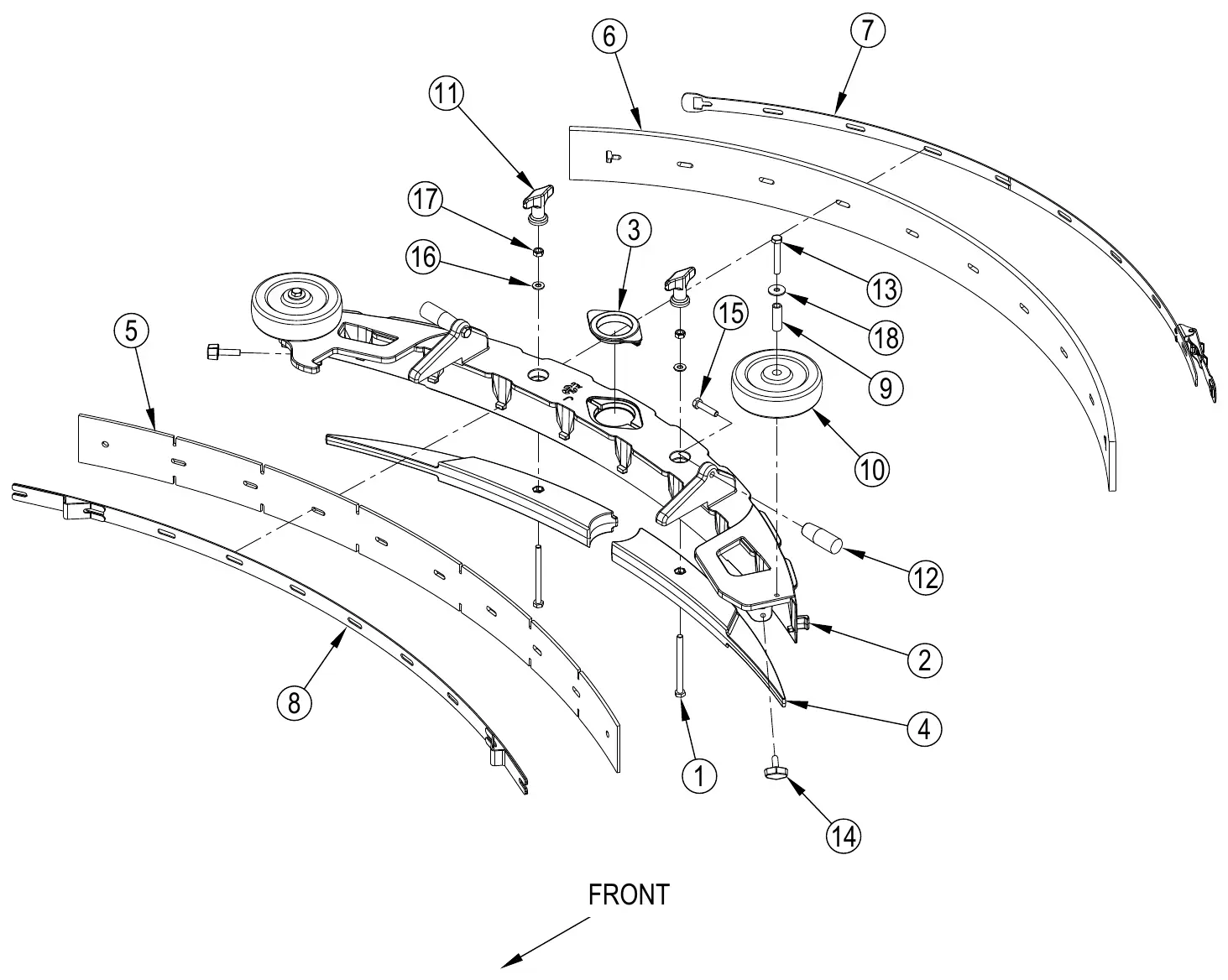

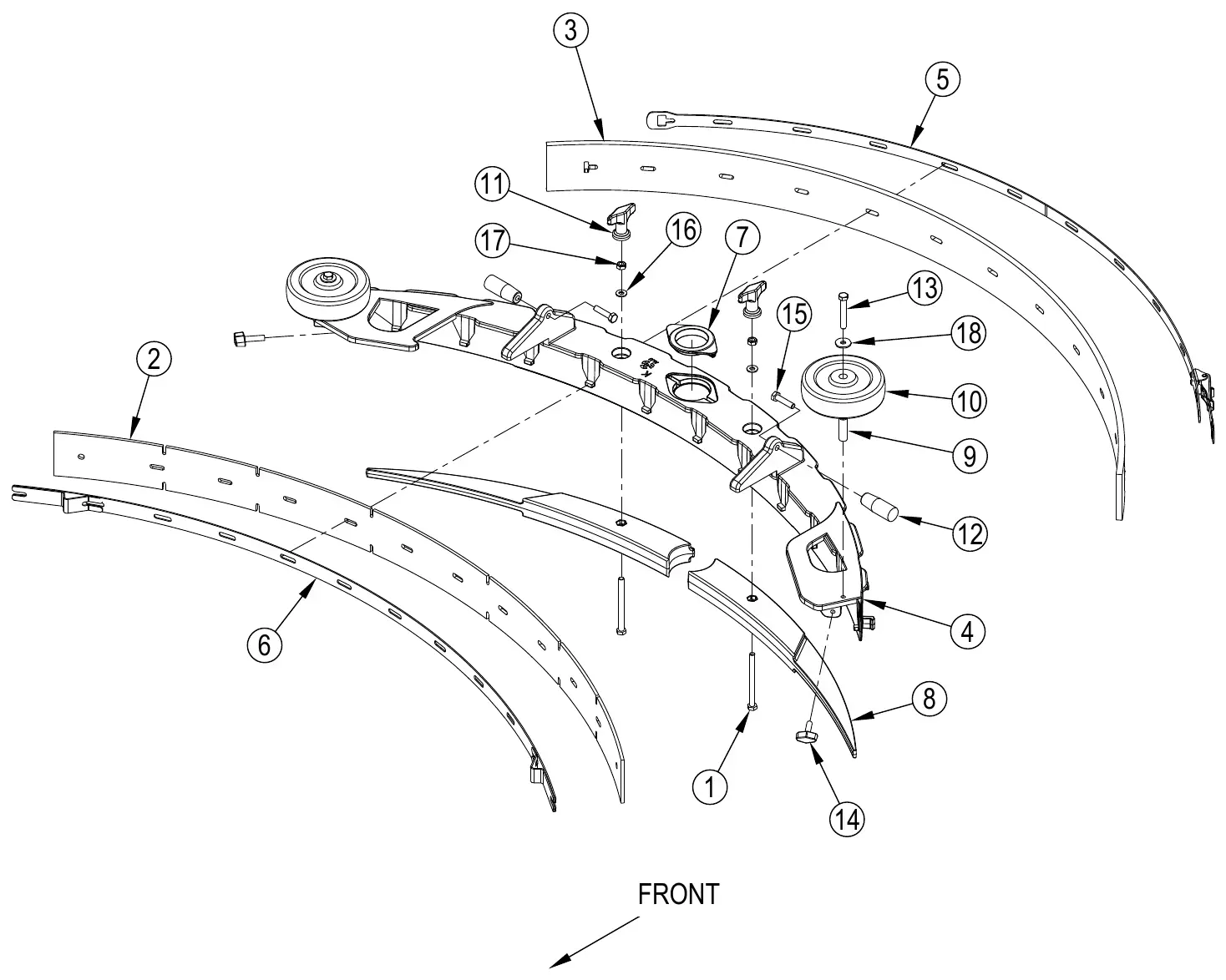

- Squeegee J or K: the 34D uses squeegee J. The 36C and 40D use squeegee K.
- Check the serial number: the control system is listed twice, for machines built before serial number 3510173102367 and after serial number 3510173102366.
- Brake pedal: a brake pedal on the machine means it has the mechanical brake.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 56116704 is AD56116704. Each line shows the item number on the drawing. Lines Advance prints with no part number are sold only inside the kit named on that line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

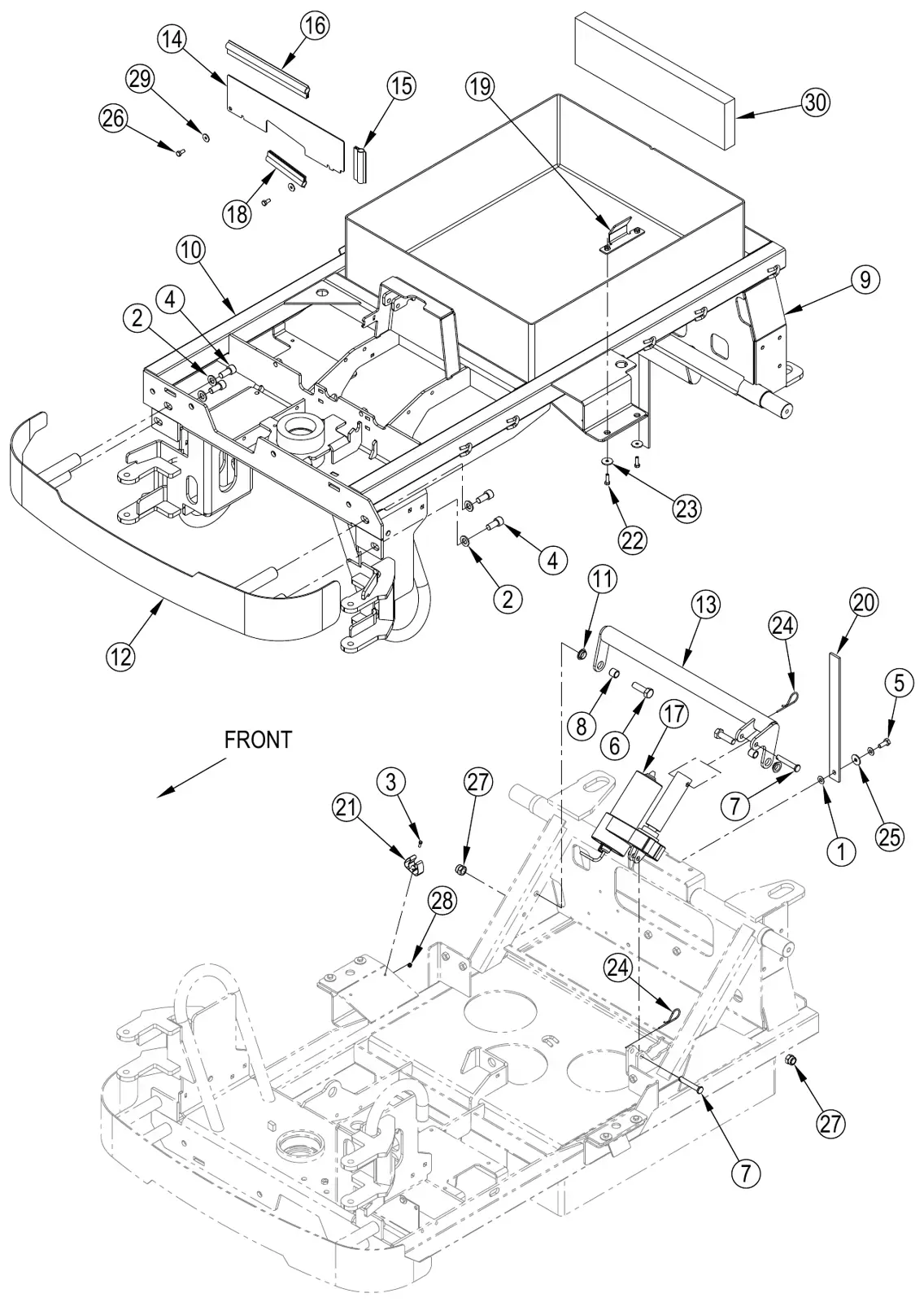

Advance SC6000 chassis system parts
The battery tray, chassis weldment, bumper, squeegee lift arm and actuator, electrical wall panel and the kits that hold their hardware. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Washer M8Included in Static Strap Kit 56116874. | Not sold separately. Order Static Strap Kit (AD56116874) |
| 2 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 13x24Included in Bumper Kit 56116872. | Not sold separately. Order Bumper Kit (AD56116872) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Screw M4x12 Hex Hd F/ThdIncluded in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 4 | Not sold separatelyAdvance no number printed | 4 | Screw Soc. Hd M12x25Included in Bumper Kit 56116872. | Not sold separately. Order Bumper Kit (AD56116872) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Screw M8x20 Hex Hd F/ThdIncluded in Static Strap Kit 56116874. | Not sold separately. Order Static Strap Kit (AD56116874) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Scr M12x40 Hex 10.9 Iso4017Included in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 7 | Not sold separatelyAdvance no number printed | 2 | Pin-Clevis .375 X 2.25Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 8 | Not sold separatelyAdvance no number printed | 2 | Bushing-12.5x16x14.48mmIncluded in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 9 | AD56116171Advance 56116171 | 1 | Tray-Battery | $189.43/EA |
| 10 | No number printedAdvance no number printed | 1 | Chassis WeldmentNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-16x18x6mmIncluded in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 12 | Not sold separatelyAdvance no number printed | 1 | Bumper WeldmentIncluded in Bumper Kit 56116872. | Not sold separately. Order Bumper Kit (AD56116872) |
| 13 | AD56116501Advance 56116501 | 1 | Lift Arm Weldment-Squeegee | $123.91/EA |
| 14 | Not sold separatelyAdvance no number printed | 1 | Panel-Electrical WallIncluded in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Panel Kit-Electrical Wall (AD56118047) |
| 15 | Not sold separatelyAdvance no number printed | 1 | Edge TrimIncluded in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Panel Kit-Electrical Wall (AD56118047) |
| 16 | Not sold separatelyAdvance no number printed | 1 | Edge TrimIncluded in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Panel Kit-Electrical Wall (AD56118047) |
| 17 | AD56116781Advance 56116781 | 1 | Actuator-Squeegee (M6) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | Not sold separatelyAdvance no number printed | 1 | Trim SealIncluded in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Panel Kit-Electrical Wall (AD56118047) |
| 19 | AD56116930Advance 56116930 | 2 | Bracket-Crossbar Mount | $33.79/EA |
| 20 | Not sold separatelyAdvance no number printed | 1 | Strap,Static, 12.5”Included in Static Strap Kit 56116874. | Not sold separately. Order Static Strap Kit (AD56116874) |
| 21 | AD56601598Advance 56601598 | 1 | Hose Clip | $10.30/EA |
| 22 | Not sold separatelyAdvance no number printed | 4 | Screw M6x20 Hex Hd F/Thd Ss ISO4017Included in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 23 | Not sold separatelyAdvance no number printed | 4 | Washer Flat Xl 6.6x24.0x2.0 SsIncluded in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 24 | Not sold separatelyAdvance no number printed | 2 | Hair Pin Cotter A2,5Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 25 | Not sold separatelyAdvance no number printed | 1 | Washer 8x24x2 Uni6593 SsIncluded in Static Strap Kit 56116874. | Not sold separately. Order Static Strap Kit (AD56116874) |
| 26 | Not sold separatelyAdvance no number printed | 2 | Screw M6x14 Hex Hd F/Thd SsIncluded in Hardware Kit-Chassis 56116873. Included in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 27 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc M12 S.S.Included in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 28 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M4 SsIncluded in Hardware Kit-Chassis 56116873. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 29 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 6x18x1.5 – SsIncluded in Hardware Kit-Chassis 56116873. Included in Panel Kit-Electrical Wall 56118047. | Not sold separately. Order Hardware Kit-Chassis (AD56116873) |
| 30 | AD56601708Advance 56601708 | 1 | Battery Spacer | $11.69/EA |
| – | AD56116872Advance 56116872 | 1 | Bumper KitService kit K1. Contains items 2, 4, 12. | $364.02/EA |
| – | AD56116873Advance 56116873 | 1 | Hardware Kit-ChassisService kit K2. Contains items 3, 6, 8, 11, 22, 23, 26, 27, 28, 29. | $43.38/EA |
| – | AD56118038Advance 56118038 | 1 | Hardware Kit-ActuatorService kit K3. Contains items 7, 24. | $68.96/EA |
| – | AD56118047Advance 56118047 | 1 | Panel Kit-Electrical WallService kit K4. Contains items 14, 15, 16, 18, 26, 29. | $104.96/EA |
| – | AD56116874Advance 56116874 | 1 | Static Strap KitService kit K5. Contains items 1, 5, 20, 25. | $88.73/EA |

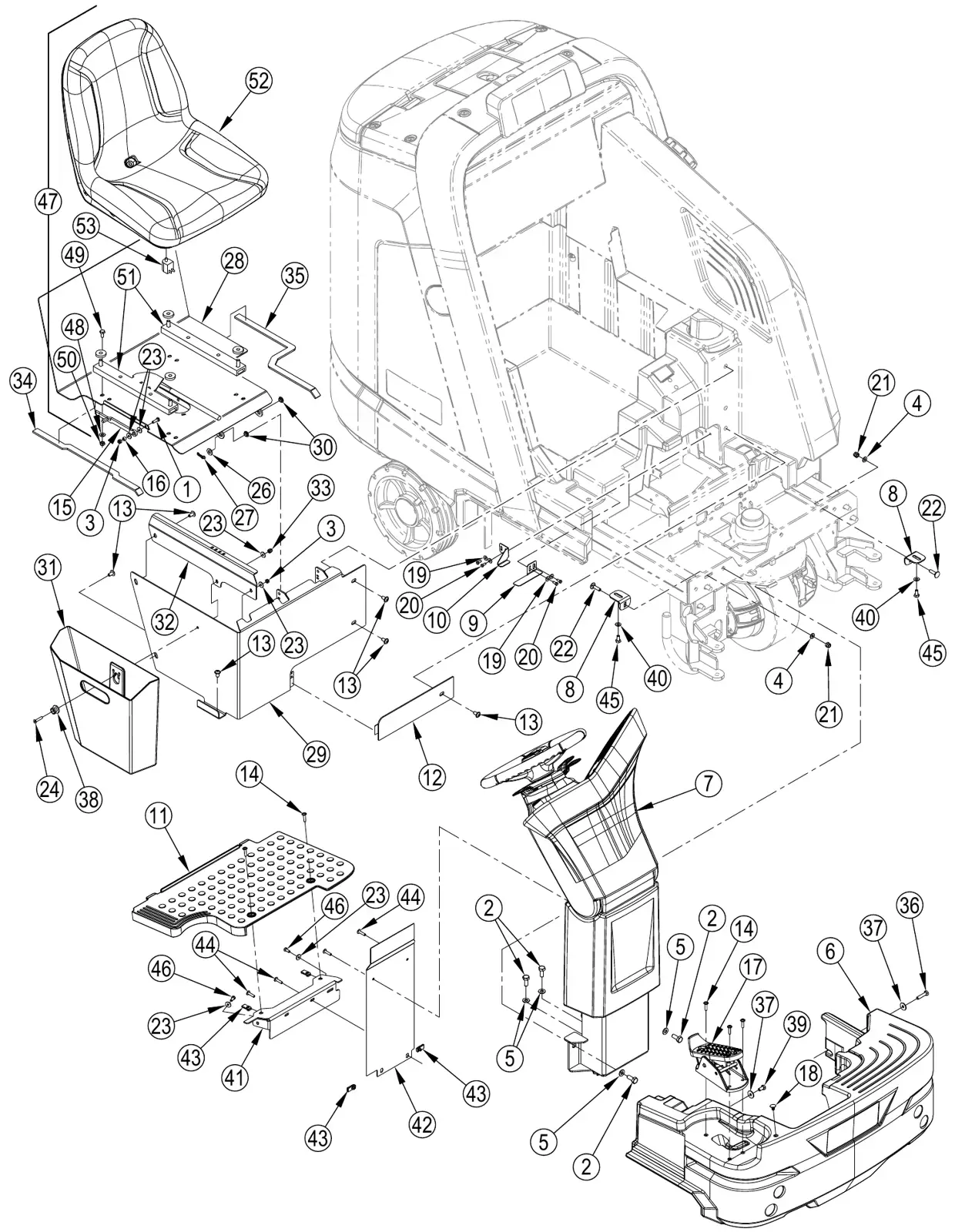

Advance SC6000 control system before serial number 3510173102367 parts
Steering column mounting, floor and actuator panels, seat mounts, seat prop rod and foot pedal for machines built before serial number 3510173102367. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedAdvance no number printed | 1 | Screw Hex Hd Uni-5739 M6x20Included in Prop Rod Kit 56118051. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | No number printedAdvance no number printed | 4 | Screw M10x25 Hex Hd F/ThdIncluded in Hardware Kit-Lower Column 56118568. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | No number printedAdvance no number printed | 2 | Nut Hex Nyl Loc Thin M6 SSIncluded in Prop Rod Kit 56118051. Included in Hardware Kit-Seat Area 56116915. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 5 | No number printedAdvance no number printed | 4 | Washer, Flat 10,5x21Included in Hardware Kit-Lower Column 56118568. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AD56116088Advance 56116088 | 1 | Tank-Front Floor | $799.75/EA |
| 7 | No number printedAdvance no number printed | 1 | Steering Column Assembly (See pages 11 and 13)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | Not sold separatelyAdvance no number printed | 2 | Bracket-MountingIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Clip-Floor Plate-RightIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Clip-Floor Plate-LeftIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 11 | AD56116779Advance 56116779 | 1 | Floor Panel Assembly | $189.43/EA |
| 12 | AD56116792Advance 56116792 | 1 | Actuator Panel Weldment | $31.05/EA |
| 13 | Not sold separatelyAdvance no number printed | 6 | Screw M8x16 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 14 | Not sold separatelyAdvance no number printed | 5 | Screw M6x20 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 15 | No number printedAdvance no number printed | 1 | Bar-Seat PropIncluded in Prop Rod Kit 56118051. Only used in machines built before serial number 3510173102367. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedAdvance no number printed | 1 | Bushing-.256x.393x.265inIncluded in Prop Rod Kit 56118051. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AD56118157Advance 56118157 | 1 | Foot Pedal Assembly (A11) TSB-FC-2017-053 | $454.36/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | Clip, PanelIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 19 | Not sold separatelyAdvance no number printed | 4 | Washer Flat Xl 5.5x15.0x1.6 SsIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 20 | Not sold separatelyAdvance no number printed | 4 | Screw M5x12 Hex Hd F/ThdIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 21 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc M8 SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 22 | Not sold separatelyAdvance no number printed | 2 | Screw M8x30 CarriageIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 23 | Not sold separatelyAdvance no number printed | 6 | Washer Plain M6x18 SsIncluded in Hardware Kit-Floor Tank 56116901. Included in Prop Rod Kit 56118051. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Screw Flat Socket Head M6x30.0Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Washer, Flat 10,5x21Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 1/4x 3/8Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 28 | AD56116538Advance 56116538 | 1 | Seat Mount Weldment | $843.44/EA |
| 29 | AD56116656Advance 56116656 | 1 | Seat Mount Weldment | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 30 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-10x12x5mmIncluded in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 31 | AD56116748Advance 56116748 | 1 | Waste Bin-Seat Mount | $50.01/EA |
| 32 | AD56116791Advance 56116791 | 1 | Bracket-Seat | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | Not sold separatelyAdvance no number printed | 1 | Nut, Cap M6 Uni 5721Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 34 | AD56116849Advance 56116849 | 1 | Gasket-Adhesive 5x20x450mm | $16.09/EA |
| 35 | AD56116850Advance 56116850 | 1 | Gasket-Adhesive 5x20x550mm | $16.09/EA |
| 36 | Not sold separatelyAdvance no number printed | 1 | Screw M8x35 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 37 | Not sold separatelyAdvance no number printed | 2 | Washer 8x24x2 Uni6593 SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 38 | Not sold separatelyAdvance no number printed | 1 | Lug, Brush DriverIncluded in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 39 | Not sold separatelyAdvance no number printed | 1 | Screw M8x16 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 40 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 41 | AD56116642Advance 56116642 | 1 | Bracket-Floor Plate | $51.38/EA |
| 42 | AD56116747Advance 56116747 | 1 | Cover-Steering Column | $129.54/EA |
| 43 | Not sold separatelyAdvance no number printed | 4 | U-Nut-Long M6Included in Hardware Kit-Floor Plate 56116903. Included in Hardware Kit-Lower Column 56118568. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 44 | Not sold separatelyAdvance no number printed | 4 | Screw M6x20 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Floor Plate 56116903. Included in Hardware Kit-Lower Column 56118568. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 45 | Not sold separatelyAdvance no number printed | 2 | Screw M8x16 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 46 | Not sold separatelyAdvance no number printed | 2 | Screw M6x14 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 47 | AD56116600Advance 56116600 | 1 | Standard Seat Kit (48-53) | $364.02/EA |
| 48 | AD56001939Advance 56001939 | 4 | Wsh, Flt Sae 5/16 | $11.33/EA |
| 49 | AD56002035Advance 56002035 | 4 | Scr-Hex 5/16-18 X .62 | $12.85/EA |
| 50 | AD56002826Advance 56002826 | 4 | Nut, Hex Nyl Loc-Thin 5/16-18 | $13.07/EA |
| 51 | AD56109300Advance 56109300 | 1 | Slide Kit, No Studs | $80.22/EA |
| 52 | AD56383292Advance 56383292 | 1 | Seat-11.25in Mount | $378.03/EA |
| 53 | AD7-82-00050Advance 7-82-00050 | 1 | Switch Seat (S1) | $21.85/EA |
| – | AD56116901Advance 56116901 | 1 | Hardware Kit-Floor TankService kit K3. Contains items 4, 8, 14, 18, 21, 22, 23, 36, 37, 39, 40, 45, 46. | $41.86/EA |
| – | AD56116903Advance 56116903 | 1 | Hardware Kit-Floor PlateService kit K4. Contains items 9, 10, 19, 20, 43, 44. | $29.53/EA |
| – | AD56118568Advance 56118568 | 1 | Hardware Kit-Lower ColumnService kit K7. Contains items 2, 5, 43, 44. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56118051Advance 56118051 | 1 | Prop Rod KitService kit K8. Contains items 1, 3, 15, 16, 23. Only used in machines built before serial number 3510173102367. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56116915Advance 56116915 | 1 | Hardware Kit-Seat AreaService kit K9. Contains items 3, 13, 24, 26, 27, 30, 33, 38. | $29.53/EA |
| – | AD56116366Advance 56116366 | 1 | Dulexe Seat KitService kit K10. For machines built before serial number 3510173102367; contains a gas spring. | $1,170.58/EA |

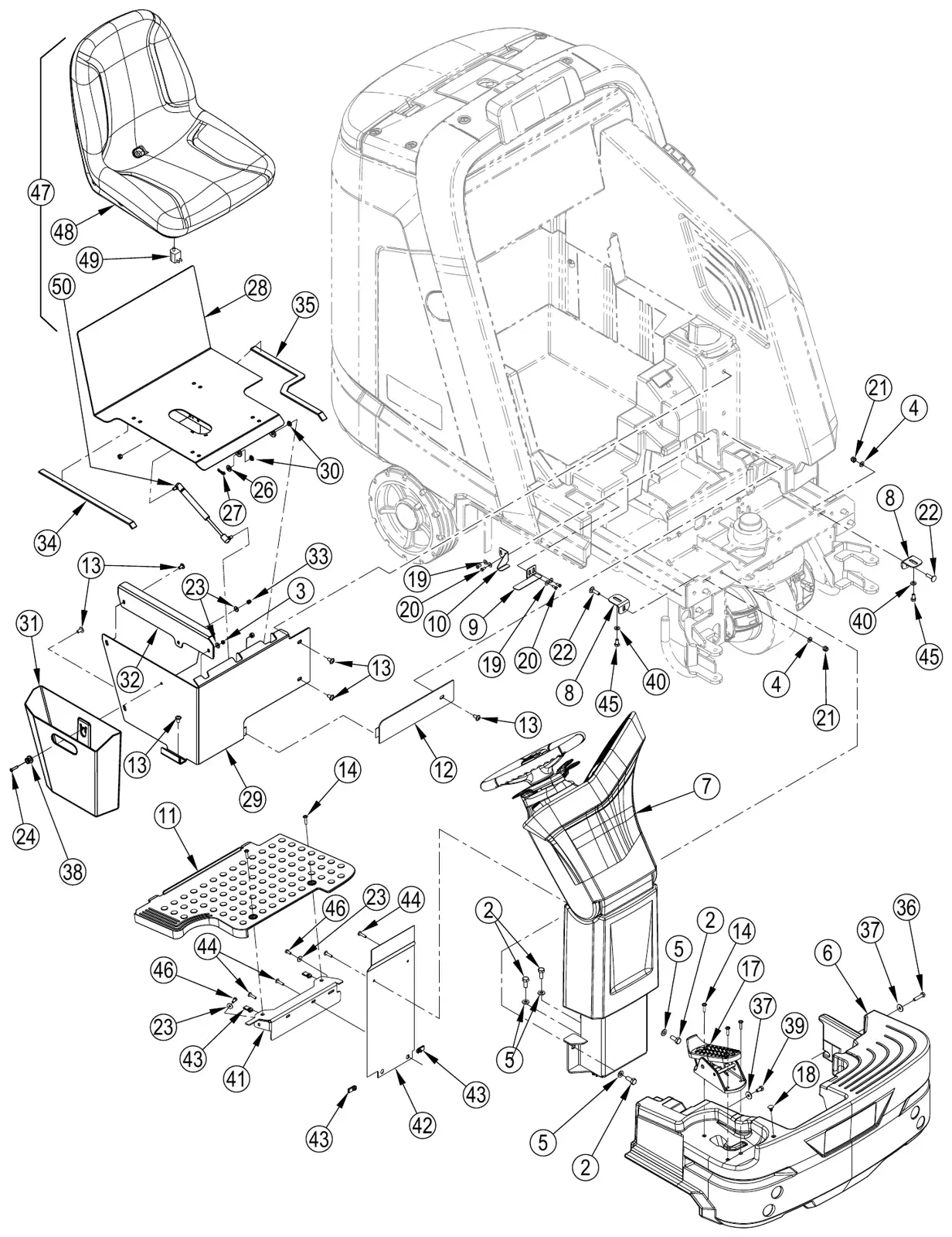

Advance SC6000 control system after serial number 3510173102366 parts
The same control group for machines built after serial number 3510173102366. The seat and prop rod parts differ from the earlier list. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | Not sold separatelyAdvance no number printed | 4 | Screw M10x25 Hex Hd F/ThdIncluded in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Nut Hex Nyl Loc Thin M6 SSIncluded in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 10,5x21Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 6 | AD56116088Advance 56116088 | 1 | Tank-Front Floor | $799.75/EA |
| 7 | No number printedAdvance no number printed | 1 | Steering Column Assembly (See pages 11 and 13)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | Not sold separatelyAdvance no number printed | 2 | Bracket-MountingIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Clip-Floor Plate-RightIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Clip-Floor Plate-LeftIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 11 | AD56116779Advance 56116779 | 1 | Floor Panel Assembly | $189.43/EA |
| 12 | AD56116792Advance 56116792 | 1 | Actuator Panel Weldment | $31.05/EA |
| 13 | Not sold separatelyAdvance no number printed | 6 | Screw M8x16 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 14 | Not sold separatelyAdvance no number printed | 5 | Screw M6x20 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 17 | AD56118157Advance 56118157 | 1 | Foot Pedal Assembly (A11) TSB-FC-2017-053 | $454.36/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | Clip, PanelIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 19 | Not sold separatelyAdvance no number printed | 4 | Washer Flat Xl 5.5x15.0x1.6 SsIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 20 | Not sold separatelyAdvance no number printed | 4 | Screw M5x12 Hex Hd F/ThdIncluded in Hardware Kit-Floor Plate 56116903. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 21 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc M8 SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 22 | Not sold separatelyAdvance no number printed | 2 | Screw M8x30 CarriageIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 23 | Not sold separatelyAdvance no number printed | 6 | Washer Plain M6x18 SsIncluded in Hardware Kit-Floor Tank 56116901. Included in Prop Rod Kit 56118051. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Screw Flat Socket Head M6x30.0Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Washer, Flat 10,5x21Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 1/4x 3/8Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 28 | AD56118150Advance 56118150 | 1 | Seat Mount Weldment | $530.78/EA |
| 29 | AD56118148Advance 56118148 | 1 | Seat Mount Weldment | $254.81/EA |
| 30 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-10x12x5mmIncluded in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 31 | AD56116748Advance 56116748 | 1 | Waste Bin-Seat Mount | $50.01/EA |
| 32 | AD56118149Advance 56118149 | 1 | Bracket-Seat | $45.74/EA |
| 33 | Not sold separatelyAdvance no number printed | 1 | Nut, Cap M6 Uni 5721Included in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 34 | AD56116849Advance 56116849 | 1 | Gasket-Adhesive 5x20x450mm | $16.09/EA |
| 35 | AD56116850Advance 56116850 | 1 | Gasket-Adhesive 5x20x550mm | $16.09/EA |
| 36 | Not sold separatelyAdvance no number printed | 1 | Screw M8x35 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 37 | Not sold separatelyAdvance no number printed | 2 | Washer 8x24x2 Uni6593 SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 38 | Not sold separatelyAdvance no number printed | 1 | Lug, Brush DriverIncluded in Hardware Kit-Seat Area 56116915. | Not sold separately. Order Hardware Kit-Seat Area (AD56116915) |
| 39 | Not sold separatelyAdvance no number printed | 1 | Screw M8x16 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 40 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Included in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 41 | AD56116642Advance 56116642 | 1 | Bracket-Floor Plate | $51.38/EA |
| 42 | AD56116747Advance 56116747 | 1 | Cover-Steering Column | $129.54/EA |
| 43 | Not sold separatelyAdvance no number printed | 4 | U-Nut-Long M6Included in Hardware Kit-Floor Plate 56116903. Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 44 | Not sold separatelyAdvance no number printed | 4 | Screw M6x20 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Floor Plate 56116903. Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Floor Plate (AD56116903) |
| 45 | Not sold separatelyAdvance no number printed | 2 | Screw M8x16 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 46 | Not sold separatelyAdvance no number printed | 2 | Screw M6x14 Hex Hd F/Thd SsIncluded in Hardware Kit-Floor Tank 56116901. | Not sold separately. Order Hardware Kit-Floor Tank (AD56116901) |
| 47 | AD56116600Advance 56116600 | 1 | Standard Seat Kit (48-50) | $364.02/EA |
| 48 | AD56383292Advance 56383292 | 1 | Seat-11.25in Mount | $378.03/EA |
| 49 | AD7-82-00050Advance 7-82-00050 | 1 | Switch Seat (S1) | $21.85/EA |
| 50 | AD56118099Advance 56118099 | 1 | Spring-GasThe gas spring is standard in machines built after serial number 3510173102366. | $742.04/EA |
| – | AD56116901Advance 56116901 | 1 | Hardware Kit-Floor TankService kit K3. Contains items 4, 8, 14, 18, 21, 22, 23, 36, 37, 39, 40, 45, 46. | $41.86/EA |
| – | AD56116903Advance 56116903 | 1 | Hardware Kit-Floor PlateService kit K4. Contains items 9, 10, 19, 20, 43, 44. | $29.53/EA |
| – | AD56118168Advance 56118168 | 1 | Hardware Kit-Lower ColumnService kit K7. Contains items 2, 5, 43, 44. | $55.65/EA |
| – | AD56118051Advance 56118051 | 1 | Prop Rod KitService kit K8. Contains item 23. Not used in machines built after serial number 3510173102366. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56116915Advance 56116915 | 1 | Hardware Kit-Seat AreaService kit K9. Contains items 3, 13, 24, 26, 27, 30, 33, 38. | $29.53/EA |
| – | AD56118147Advance 56118147 | 1 | Dulexe Seat Kit No Prop RodService kit K10. Used only on machines built after serial number 3510173102366. | Call to confirm part: 800-440-6723Call 800-440-6723 |

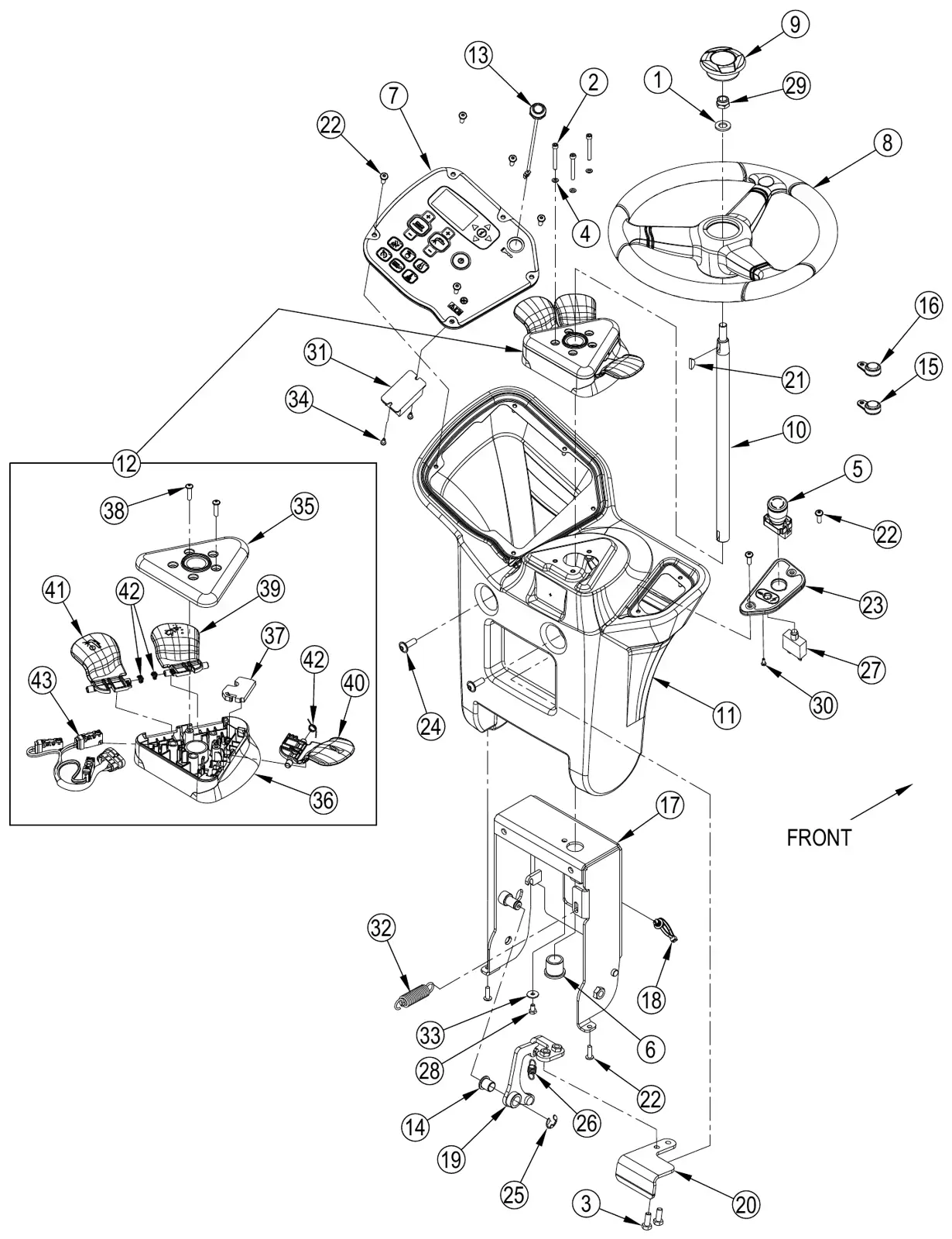

Advance SC6000 control system-upper column assembly parts
The upper steering column: steering wheel and shaft, emergency disconnect, control board box, membrane panel, smart keys, 10 amp breaker, paddles and the column tilt kit. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Washer, Flat 13x24Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 2 | Not sold separatelyAdvance no number printed | 3 | Screw Soc. Hd M5x40Included in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/ThdIncluded in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 4 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 5,3x10Included in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 5 | AD56104247Advance 56104247 | 1 | Emergency Disconnect (S2) | $78.84/EA |
| 6 | AD56104407Advance 56104407 | 1 | Bearing-Flange | $10.30/EA |
| 7 | AD56118166Advance 56118166 | 1 | Pcb Box Assembly | $1,939.86/EA |
| – | AD56118170Advance 56118170 | 1 | Membrane Panel AssemblyPrinted under item 7 with no item number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AD56116102Advance 56116102 | 1 | Wheel-Steering | $240.12/EA |
| 9 | AD56116122Advance 56116122 | 1 | Cap-Steering Wheel | $7.29/EA |
| 10 | AD56116165Advance 56116165 | 1 | Shaft-Steering-Upper 20mm | $100.68/EA |
| 11 | AD56116312Advance 56116312 | 1 | Shroud-Steering Column-Upper | $494.93/EA |
| 12 | No number printedAdvance no number printed | 1 | Paddle Assembly (35-43)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AD56116477Advance 56116477 | 1 | Ibutton-Probe | $74.61/EA |
| 14 | Not sold separatelyAdvance no number printed | 1 | Bearing-Flange-14x16x17mmIncluded in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 15 | AD56116518Advance 56116518 | 1 | Smart Key-User (A10) | $42.89/EA |
| 16 | AD56116519Advance 56116519 | 1 | Smart Key-Supervisor | $53.28/EA |
| 17 | AD56116580Advance 56116580 | 1 | Steering Column Weldment-Upper | $240.12/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | Cable Tie MountIncluded in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 19 | Not sold separatelyAdvance no number printed | 1 | Lever Weldment-TiltIncluded in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 20 | Not sold separatelyAdvance no number printed | 1 | Handle-Tilt LeverIncluded in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 21 | Not sold separatelyAdvance no number printed | 1 | Key-Wdf 5x7.5x19 Uni6606Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 22 | Not sold separatelyAdvance no number printed | 9 | Screw M6x20 Wn1451 Black ZnIncluded in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 23 | AD56116802Advance 56116802 | 1 | Mounting Panel-E-Stop Breaker | $112.65/EA |
| 24 | Not sold separatelyAdvance no number printed | 2 | Screw M8x25 Iso7380-2 Flg Blk ZN TSB-FC-2017-044Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 25 | Not sold separatelyAdvance no number printed | 1 | Washer-Retaining 12mm Din6799Included in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Spring-Extension-0.50x1.25inIncluded in Column Tilt Kit 56118066. | Not sold separately. Order Column Tilt Kit (AD56118066) |
| 27 | AD56507644Advance 56507644 | 1 | Circuit Breaker, 10 Amp (CB1) | $23.35/EA |
| 28 | Not sold separatelyAdvance no number printed | 1 | Screw M6x10 Hex Hd F/Thd SsIncluded in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M12Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Scr, Pan Phil M3.5x10Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 31 | AD40892AAdvance 40892A | 1 | Relay Dpdt 36vdc (K1) | $82.06/EA |
| 32 | AD56116846Advance 56116846 | 1 | Spring-Extension 0.75x3.00In | $10.30/EA |
| 33 | Not sold separatelyAdvance no number printed | 1 | Washer Flat Xl 6x18x1.5Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 34 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10Included in Hardware Kit-Upper Column 56118052. | Not sold separately. Order Hardware Kit-Upper Column (AD56118052) |
| 35 | Not sold separatelyAdvance no number printed | 1 | Housing-Paddle-CoverIncluded in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 36 | Not sold separatelyAdvance no number printed | 1 | Housing-PaddleIncluded in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 37 | Not sold separatelyAdvance no number printed | 1 | Plate-Blank-PaddleIncluded in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 38 | Not sold separatelyAdvance no number printed | 2 | Screw Ejot Delta Pt50x18wn1451Included in Paddle Housing Kit 56116914. | Not sold separately. Order Paddle Housing Kit (AD56116914) |
| 39 | Not sold separatelyAdvance no number printed | 1 | Paddle-Boost Of PowerIncluded in Paddle Kit 56116913. | Not sold separately. Order Paddle Kit (AD56116913) |
| 40 | Not sold separatelyAdvance no number printed | 1 | Paddle-HornIncluded in Paddle Kit 56116913. | Not sold separately. Order Paddle Kit (AD56116913) |
| 41 | Not sold separatelyAdvance no number printed | 1 | Paddle-SolutionIncluded in Paddle Kit 56116913. | Not sold separately. Order Paddle Kit (AD56116913) |
| 42 | Not sold separatelyAdvance no number printed | 3 | Spring-Torsion .33in-135degIncluded in Paddle Kit 56116913. | Not sold separately. Order Paddle Kit (AD56116913) |
| 43 | AD56116529Advance 56116529 | 1 | Harness-Paddle | $211.28/EA |
| – | AD56116913Advance 56116913 | 1 | Paddle KitService kit K1. Contains items 39, 40, 41, 42. | $70.45/EA |
| – | AD56116914Advance 56116914 | 1 | Paddle Housing KitService kit K2. Contains items 2, 4, 35, 36, 37, 38. | $57.03/EA |
| – | AD56118052Advance 56118052 | 1 | Hardware Kit-Upper ColumnService kit K6. Contains items 1, 18, 21, 22, 24, 28, 29, 30, 33, 34. | $37.93/EA |
| – | AD56118066Advance 56118066 | 1 | Column Tilt KitService kit K10. Contains items 3, 14, 19, 20, 25, 26. | $182.30/EA |

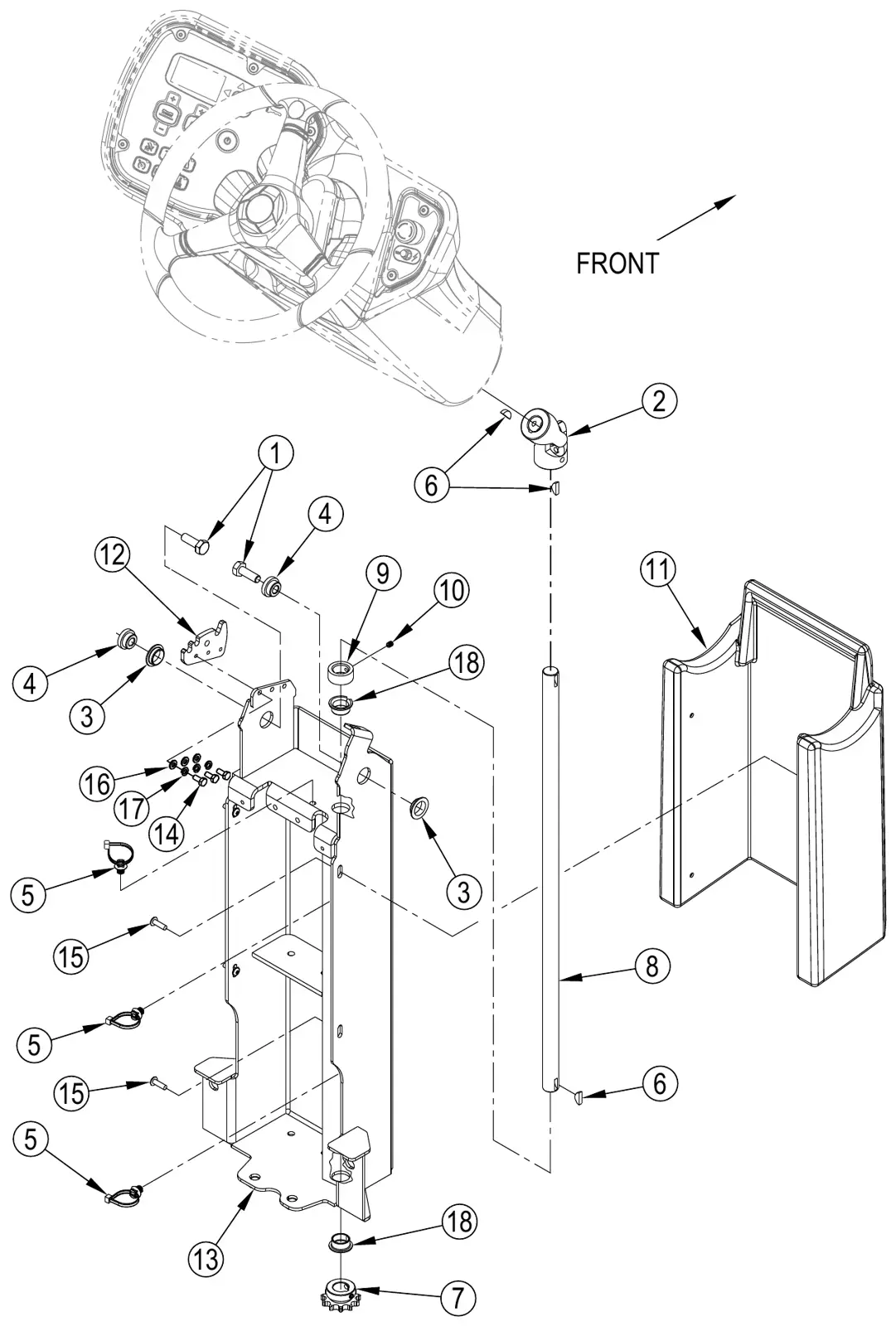

Advance SC6000 control system-lower column assembly parts
The lower steering column: steering shaft, universal joint, sprocket, bearings, tilt adjustment plate, shroud and column weldment. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Screw M10x30 Hex Hd F/Thd ISO417Included in Hardware Kit-Column 56116904. Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Column (AD56116904) |
| 2 | AD56116169Advance 56116169 | 1 | Joint-Universal | $182.30/EA |
| 3 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-20x23x7mmIncluded in Hardware Kit-Column 56116904. Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Column (AD56116904) |
| 4 | Not sold separatelyAdvance no number printed | 3 | Bushing-Flange-10x20x12mmIncluded in Hardware Kit-Column 56116904. | Not sold separately. Order Hardware Kit-Column (AD56116904) |
| 5 | Not sold separatelyAdvance no number printed | 3 | Cable Tie MountIncluded in Hardware Kit-Column 56116904. | Not sold separately. Order Hardware Kit-Column (AD56116904) |
| 6 | Not sold separatelyAdvance no number printed | 3 | Key-Wdf 5x7.5x19 Uni6606Included in Hardware Kit-Column 56116904. Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Column (AD56116904) |
| 7 | AD56104269Advance 56104269 | 1 | Sprocket-11 Tooth | $27.44/EA |
| 8 | AD56116163Advance 56116163 | 1 | Shaft-Steering-Lower-20mm | $103.43/EA |
| 9 | Not sold separatelyAdvance no number printed | 1 | Collar-Shaft-20x32x14mmIncluded in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Scr-Soc-Set Cup M6x8 Iso4029Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 11 | AD56116278Advance 56116278 | 1 | Shroud-Steering Column-Lower | $327.34/EA |
| 12 | AD56116323Advance 56116323 | 1 | Plate-Tilt Adjustment | $10.30/EA |
| 13 | AD56116570Advance 56116570 | 1 | Steering Column Weldment-Lower | $421.71/EA |
| 14 | Not sold separatelyAdvance no number printed | 3 | Screw M6x14 Hex Hd F/Thd IS04017 TSB-FC-2017-065Included in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 15 | Not sold separatelyAdvance no number printed | 4 | Screw M6x20 Wn1451 Black ZnIncluded in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| 16 | AD33023396Replaces Advance 33005913 | 3 | Washer, Plain M6 x 12 IS07089Also in Hardware Kit-Column 56116904. Also in Hardware Kit-Lower Column 56118168; replaces Advance 33005913. | $48.62/EA |
| 17 | AD33005851Advance 33005851 | 3 | Washer, Split Lock d.6Also in Hardware Kit-Column 56116904. | $10.30/EA |
| 18 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-20x23x12-BronzeIncluded in Hardware Kit-Lower Column 56118168. | Not sold separately. Order Hardware Kit-Lower Column (AD56118168) |
| – | AD56116904Advance 56116904 | 1 | Hardware Kit-ColumnService kit K5. Contains items 1, 3, 4, 5, 6, 16, 17. | $53.48/EA |
| – | AD56118168Advance 56118168 | 1 | Hardware Kit-Lower ColumnService kit K7. Contains items 1, 3, 6, 9, 10, 14, 15, 16, 18. | $55.65/EA |

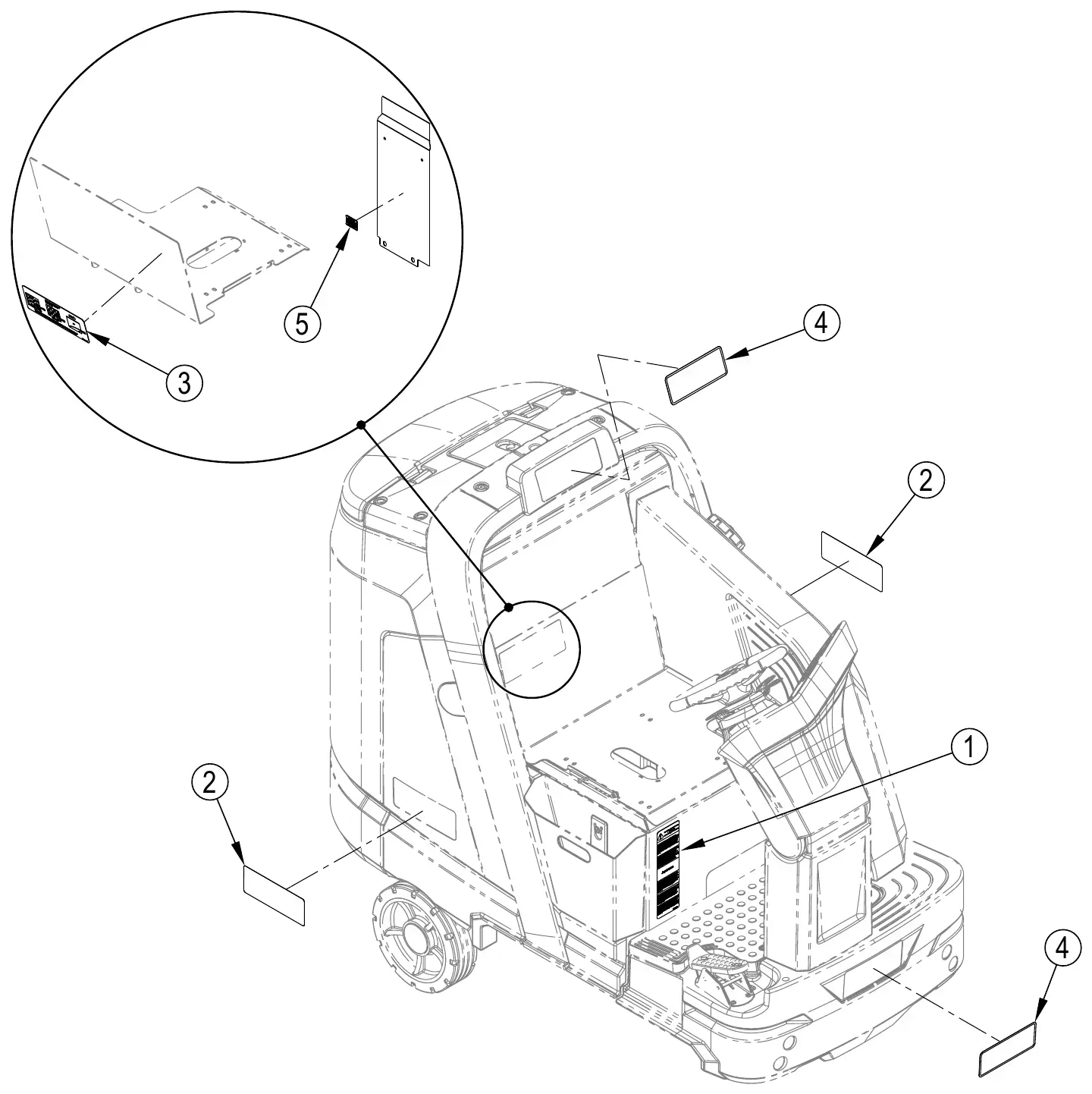

Advance SC6000 decal system parts
The machine decals: caution, SC6000 name, battery wiring and Prop 65 decals, and the decal kit. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Decal, CautionPrinted under item None with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Decal-SC6000-AdvancePrinted under item 1 with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| – | Not sold separatelyAdvance no number printed | 2 | Decal-SC6000-Ecoflex-AdvancePrinted under item 2 with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Decal-Battery Wiring 36VPrinted under item 2 with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Decal Advance Rectangular 210x83Printed under item 3 with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Decal, Prop 65Printed under item 4 with no item number. Included in Decal Kit-America 56118068. | Not sold separately. Order Decal Kit-America (AD56118068) |
| – | AD56118068Advance 56118068 | 1 | Decal Kit-AmericaService kit K1. Contains items 1, 2, 3, 4, 5. | $119.22/EA |

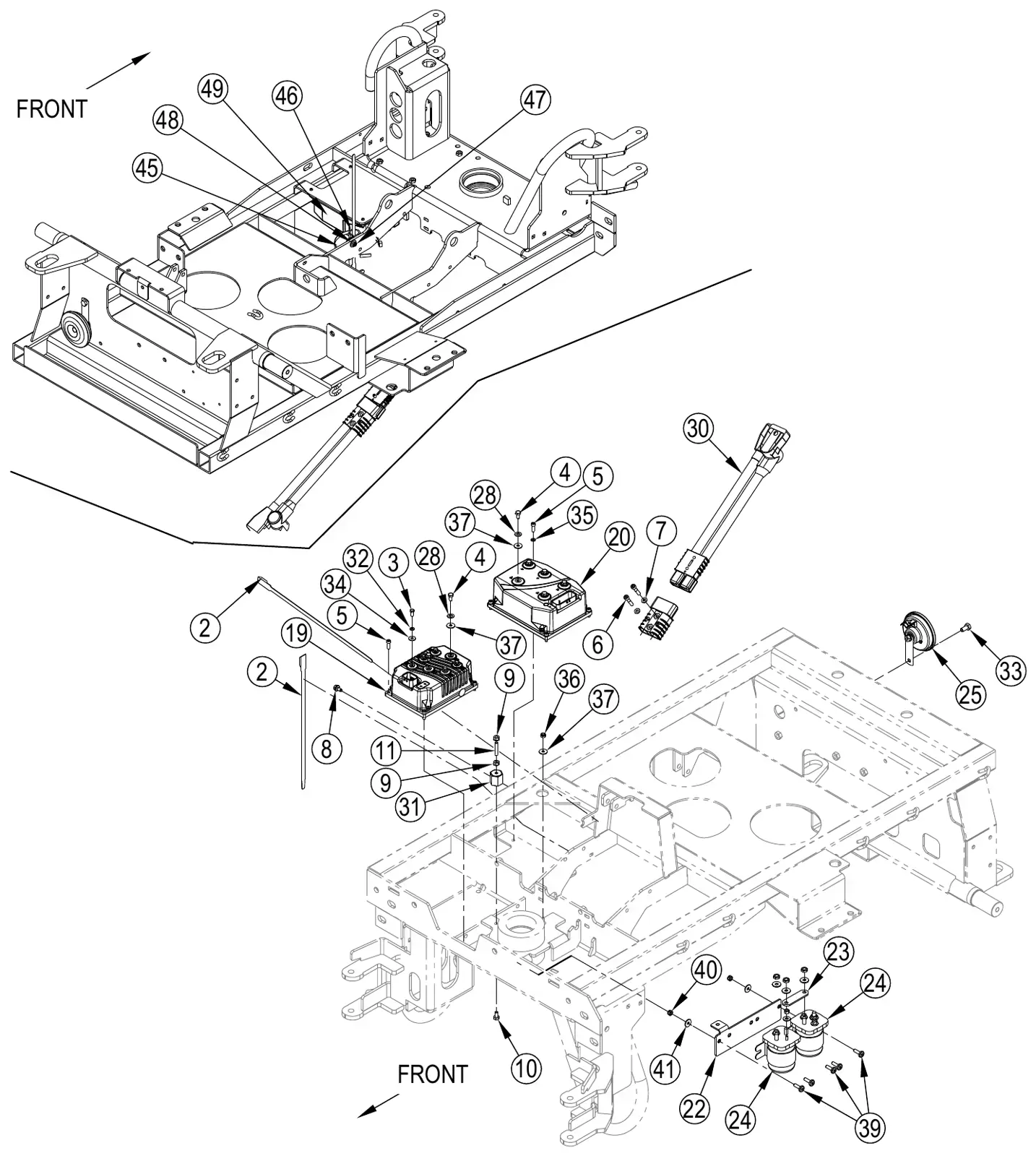

Advance SC6000 electrical system parts
Main and traction harnesses, 150 amp fuse, power module, speed control, contactors, horn, cables and the battery harness. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 29 | Clamp 290x4.8Not shown on the drawing (item printed in brackets). Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Clamp 9x350Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 3 | Not sold separatelyAdvance no number printed | 5 | Screw M5x12 Hex Hd F/ThdIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 4 | Not sold separatelyAdvance no number printed | 7 | Screw M6x12 Hex Hd F/ThdIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 5 | Not sold separatelyAdvance no number printed | 8 | Screw Soc. Hd M5x16 SSIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Screw Soc. Hd M6x30Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 7 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 6,4x12,5Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Screw Thread Rolling M6x12Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 9 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex W/ Shprf 1/4-20Included in Electrical Mount Kit 56118049. | Not sold separately. Order Electrical Mount Kit (AD56118049) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Scr- Hex Ss 1/4-20 X .50Included in Electrical Mount Kit 56118049. | Not sold separately. Order Electrical Mount Kit (AD56118049) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Stud, 1/4-20Included in Electrical Mount Kit 56118049. | Not sold separately. Order Electrical Mount Kit (AD56118049) |
| 12 | AD56116050Advance 56116050 | 1 | Harness-MainNot shown on the drawing (item printed in brackets). | $3,707.25/EA |
| – | AD56115432Advance 56115432 | 1 | Fuse-150 AmpNot shown on the drawing (printed [ ]). | $18.96/EA |
| 13 | Not sold separatelyAdvance no number printed | 1 | Harness-TractionNot shown on the drawing (item printed in brackets). Included in Traction Harness Kit 56118180. | Not sold separately. Order Traction Harness Kit (AD56118180) |
| 14 | AD56116061Advance 56116061 | 1 | Cable-Speed Controller-RedNot shown on the drawing (item printed in brackets). | $29.53/EA |
| 15 | AD56116062Advance 56116062 | 1 | Cable-Speed Controller-BlackNot shown on the drawing (item printed in brackets). | $17.46/EA |
| 16 | AD56116063Advance 56116063 | 1 | Cable-Power Module-RedNot shown on the drawing (item printed in brackets). | $39.43/EA |
| 17 | AD56116064Advance 56116064 | 1 | Cable-Power Module-BlackNot shown on the drawing (item printed in brackets). | $21.85/EA |
| 18 | AD56116065Advance 56116065 | 1 | Harness-Machine PowerNot shown on the drawing (item printed in brackets). | $320.34/EA |
| 19 | AD56116087Advance 56116087 | 1 | Module-High Power (E3) TSB-FC-2017-048 | $2,108.45/EA |
| 20 | AD56116131Advance 56116131 | 1 | Speed Control (E4) | $3,344.05/EA |
| 21 | No number printedAdvance no number printed | 1 | Contactor Assembly (Power Module K2, / Speed Controller K3)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | AD56116300Advance 56116300 | 1 | Plate-Contactor Mounting | $45.74/EA |
| 23 | AD56116345Advance 56116345 | 1 | Bus Bar-Contactor | $11.69/EA |
| 24 | AD56303198Advance 56303198 | 2 | Contactor 36v Type 4 (K2, K3) | $182.30/EA |
| 25 | AD56116375Advance 56116375 | 1 | Horn-36v (H1) | $52.74/EA |
| 26 | AD56116396Advance 56116396 | 1 | Harness-Vacuum FloatNot shown on the drawing (item printed in brackets). | $112.65/EA |
| 27 | Not sold separatelyAdvance no number printed | 7 | Cable Tie MountNot shown on the drawing (item printed in brackets). Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 28 | Not sold separatelyAdvance no number printed | 7 | Washer Int Lock M6 Din6798jssIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 29 | AD56116909Advance 56116909 | 1 | Harness-Seat SwitchNot shown on the drawing (item printed in brackets). | $29.53/EA |
| 30 | AD56116977Advance 56116977 | 1 | Harness Assembly-Battery | $429.39/EA |
| 31 | Not sold separatelyAdvance no number printed | 1 | Electrical MountIncluded in Electrical Mount Kit 56118049. | Not sold separately. Order Electrical Mount Kit (AD56118049) |
| 32 | Not sold separatelyAdvance no number printed | 5 | Washer, Ext. Shprf Ø 5 SSIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 33 | Not sold separatelyAdvance no number printed | 1 | Screw M8x16 Hex Hd F/Thd SSIncluded in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 34 | Not sold separatelyAdvance no number printed | 5 | Washer Flat Xl 5.5x15.0x1.6ssIncluded in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Controllers (AD56116926) |
| 35 | ADL08241500Advance L08241500 | 4 | Washer, Flat 5.3x10x1 SS | $5.91/EA |
| 36 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M6ssIncluded in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 37 | Not sold separatelyAdvance no number printed | 8 | Washer Flat Xl 6x18x1.5 -SSIncluded in Hardware Kit-Electrical 56116992. Included in Hardware Kit-Controllers 56116926. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 38 | Not sold separatelyAdvance no number printed | 15 | Tie, Cable 4.8x430Not shown on the drawing (item printed in brackets). Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 39 | Not sold separatelyAdvance no number printed | 5 | Scr, Pan Phil M6x20Included in Hardware Kit-Contactor Assembly 56116993. | Not sold separately. Order Hardware Kit-Contactor Assembly (AD56116993) |
| 40 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SSIncluded in Hardware Kit-Contactor Assembly 56116993. | Not sold separately. Order Hardware Kit-Contactor Assembly (AD56116993) |
| 41 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 6x18x1.5 – SSIncluded in Hardware Kit-Contactor Assembly 56116993. | Not sold separately. Order Hardware Kit-Contactor Assembly (AD56116993) |
| 42 | AD56409485Advance 56409485 | 5 | Cable Assembly 1 x 15.00 | $45.74/EA |
| 43 | AD2-00-05173Advance 2-00-05173 | 5 | Bat Terminal Cover (BLK) | $13.07/EA |
| 44 | AD2-00-05171Advance 2-00-05171 | 5 | Bat Terminal Cover (RED) | $11.69/EA |
| 45 | AD56477613Advance 56477613 | 1 | Tie, Cable | $13.07/EA |
| 46 | AD56496276Advance 56496276 | 1 | Clamp, Hose Support | $10.30/EA |
| 47 | ADL08603682Advance L08603682 | 2 | Nut, Lock Hex M6 Low SS IS010511 | $11.33/EA |
| 48 | No number printedAdvance no number printed | 1 | Screw, M5 x 20, Hex Head F/THD SS ISO4017No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 49 | ADL08603689Advance L08603689 | 10 | Washer, Plain M6 xx 18 SS IS07093 | $11.69/EA |
| – | AD56118049Advance 56118049 | 1 | Electrical Mount KitService kit K1. Contains items 9, 10, 11, 31. | $68.96/EA |
| – | AD56116992Advance 56116992 | 1 | Hardware Kit-ElectricalService kit K2. Contains items [1], 2, 6, 7, 8, [27], 33, 36, 37, [38]. | $122.52/EA |
| – | AD56116926Advance 56116926 | 1 | Hardware Kit-ControllersService kit K3. Contains items 3, 4, 5, 28, 32, 34, 37. | $17.46/EA |
| – | AD56116993Advance 56116993 | 1 | Hardware Kit-Contactor AssemblyService kit K4. Contains items 39, 40, 41. | $17.46/EA |
| – | AD56118180Advance 56118180 | 1 | Traction Harness KitService kit K5. Contains item [13]. | $349.17/EA |

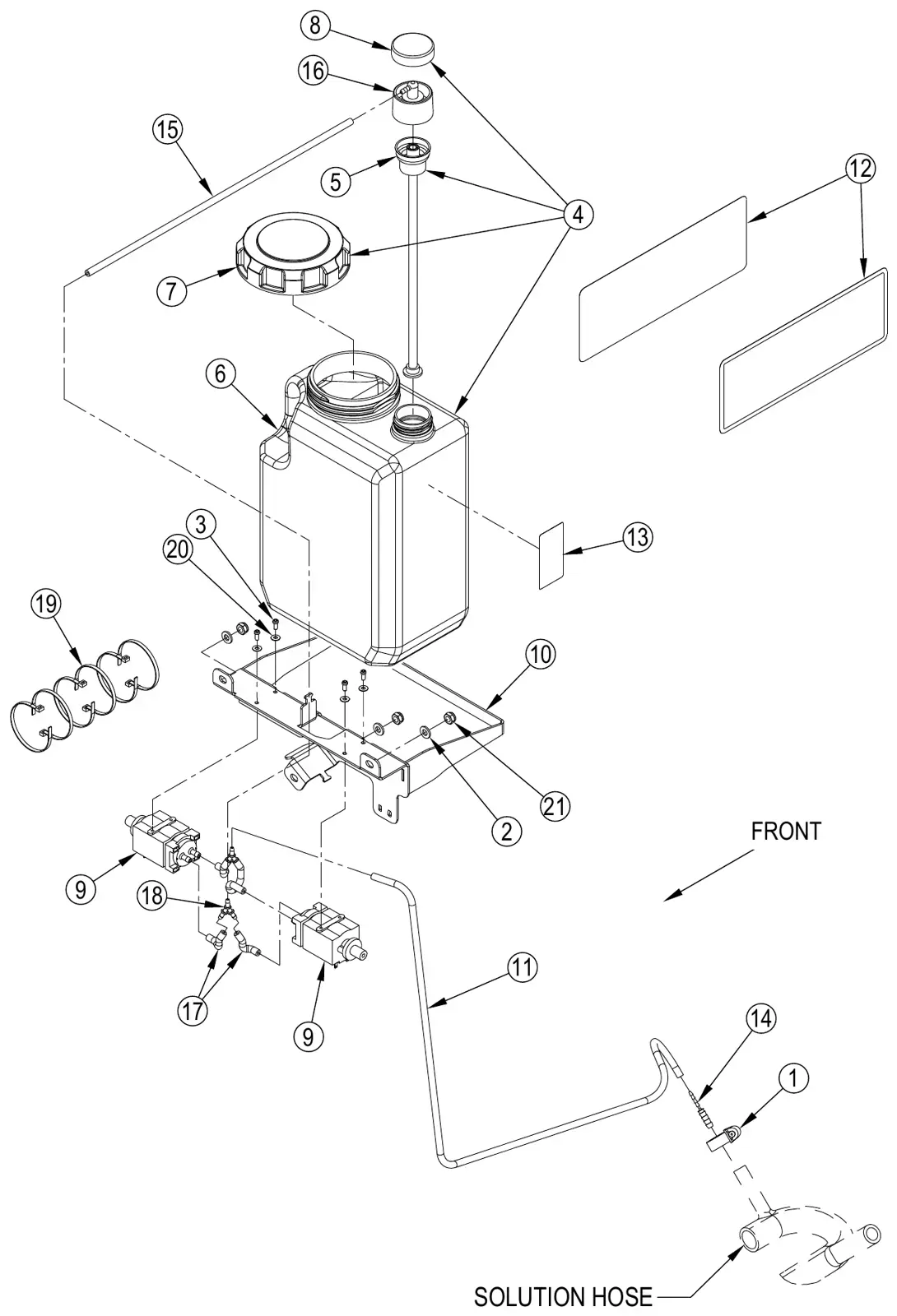

Advance SC6000 ecoflex assembly parts
The EcoFlex detergent system: bottles, dry break insert and caps, detergent pump, bracket and the hose, hardware and decal kits. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Clamp Hose 8-16/9 Din3017Included in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 2 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 6,4x12,5Included in Hardware Kit-Ecoflex 56116941. | Not sold separately. Order Hardware Kit-Ecoflex (AD56116941) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Scr-Torx Self Thd M3x7 PlasticIncluded in Hardware Kit-Ecoflex 56116941. | Not sold separately. Order Hardware Kit-Ecoflex (AD56116941) |
| 4 | AD56104190Advance 56104190 | 1 | EcoFlex Bottle Assy | $196.45/EA |
| 5 | AD56104189Advance 56104189 | 1 | Insert-Dry Break | $5.91/EA |
| 6 | AD56104408Advance 56104408 | 1 | Chemical Bottle Assembly | $82.53/EA |
| 7 | AD9100001512Advance 9100001512 | 1 | Cap Plastic F Chemical Tank | $7.29/EA |
| 8 | AD56315690Advance 56315690 | 1 | Cap, 38mm Buttress | $13.07/EA |
| 9 | AD56110742Advance 56110742 | 2 | Pump, Detergent, 12v (M8, M9) | $276.66/EA |
| 10 | AD56116726Advance 56116726 | 1 | Bracket Weldment | $65.52/EA |
| 11 | Not sold separatelyAdvance no number printed | 1 | Hose 1/8 Id X 32 LgIncluded in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Decal-SC6000-Ecoflex-AdvanceIncluded in Decal Kit-Ecoflex 56116999. | Not sold separately. Order Decal Kit-Ecoflex (AD56116999) |
| 13 | Not sold separatelyAdvance no number printed | 1 | Decal-Chemical RatioIncluded in Decal Kit-Ecoflex 56116999. | Not sold separately. Order Decal Kit-Ecoflex (AD56116999) |
| 14 | Not sold separatelyAdvance no number printed | 1 | Reducer,BarbIncluded in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 15 | Not sold separatelyAdvance no number printed | 1 | Hose,Chem Resistant, 14Included in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 16 | AD56315523Advance 56315523 | 1 | Cap Dry Break 1/8 Barb | $32.42/EA |
| 17 | Not sold separatelyAdvance no number printed | 4 | Hose, Chem Resistant. 2.00Included in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 18 | Not sold separatelyAdvance no number printed | 2 | Fitting, Y, Barb, .125Included in Hose Kit-Ecoflex 56116940. | Not sold separately. Order Hose Kit-Ecoflex (AD56116940) |
| 19 | Not sold separatelyAdvance no number printed | 6 | Clamp BlackIncluded in Hardware Kit-Ecoflex 56116941. | Not sold separately. Order Hardware Kit-Ecoflex (AD56116941) |
| 20 | AD9100001912Advance 9100001912 | 4 | Washer Plain M4x9ss Iso7089 10 | $53.48/EA |
| 21 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M6 SsIncluded in Hardware Kit-Ecoflex 56116941. | Not sold separately. Order Hardware Kit-Ecoflex (AD56116941) |
| – | AD56116999Advance 56116999 | 1 | Decal Kit-EcoflexService kit K1. Contains items 12, 13. | $47.12/EA |
| – | AD56116940Advance 56116940 | 1 | Hose Kit-EcoflexService kit K2. Contains items 1, 11, 14, 15, 17, 18. | $320.34/EA |
| – | AD56116941Advance 56116941 | 1 | Hardware Kit-EcoflexService kit K3. Contains items 2, 3, 19, 21. | $11.69/EA |

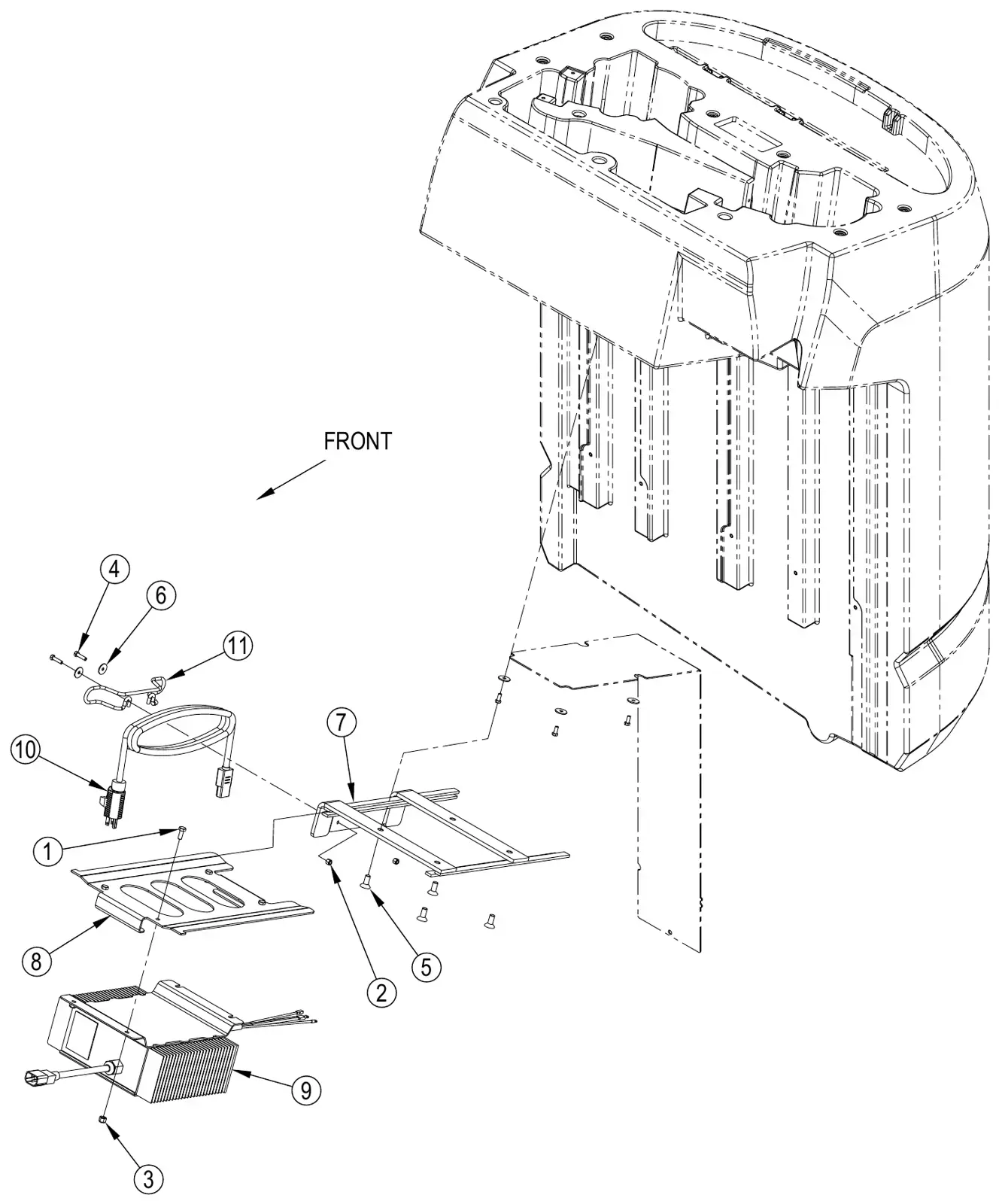

Advance SC6000 onboard charger assembly parts
The 36 V onboard battery charger, its mount, bracket, cord and hardware kit. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | Scr, Hex Thd To Hd M6-1 X 16mmIncluded in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Nut-Hex Nyl Loc M5-0.8Included in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Nut-Hex Nyl Loc M6-1Included in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Scr-Hex M5-0.8 X 20mmIncluded in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Scr-Flt Soc M8-1.25 X 20mmIncluded in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Wsh-Flt Ss .204 X .750 X .050Included in Hardware Kit-Onboard Charger 56116947. | Not sold separately. Order Hardware Kit-Onboard Charger (AD56116947) |
| 7 | AD56116628Advance 56116628 | 1 | Mount Weldt-Onboard Charger | $141.48/EA |
| 8 | AD56116631Advance 56116631 | 1 | Bracket-Onboard Charger Mount | $106.33/EA |
| 9 | AD56315774Advance 56315774 | 1 | Charger-On Board 36v (E1) | $1,287.69/EA |
| 10 | AD56383385Advance 56383385 | 1 | Cord Charger Yellow Us | $28.12/EA |
| 11 | AD9095149000Advance 9095149000 | 1 | Cable Support | $4.83/EA |
| – | AD56116947Advance 56116947 | 1 | Hardware Kit-Onboard ChargerService kit K1. Contains items 1, 2, 3, 4, 5, 6. | $11.69/EA |

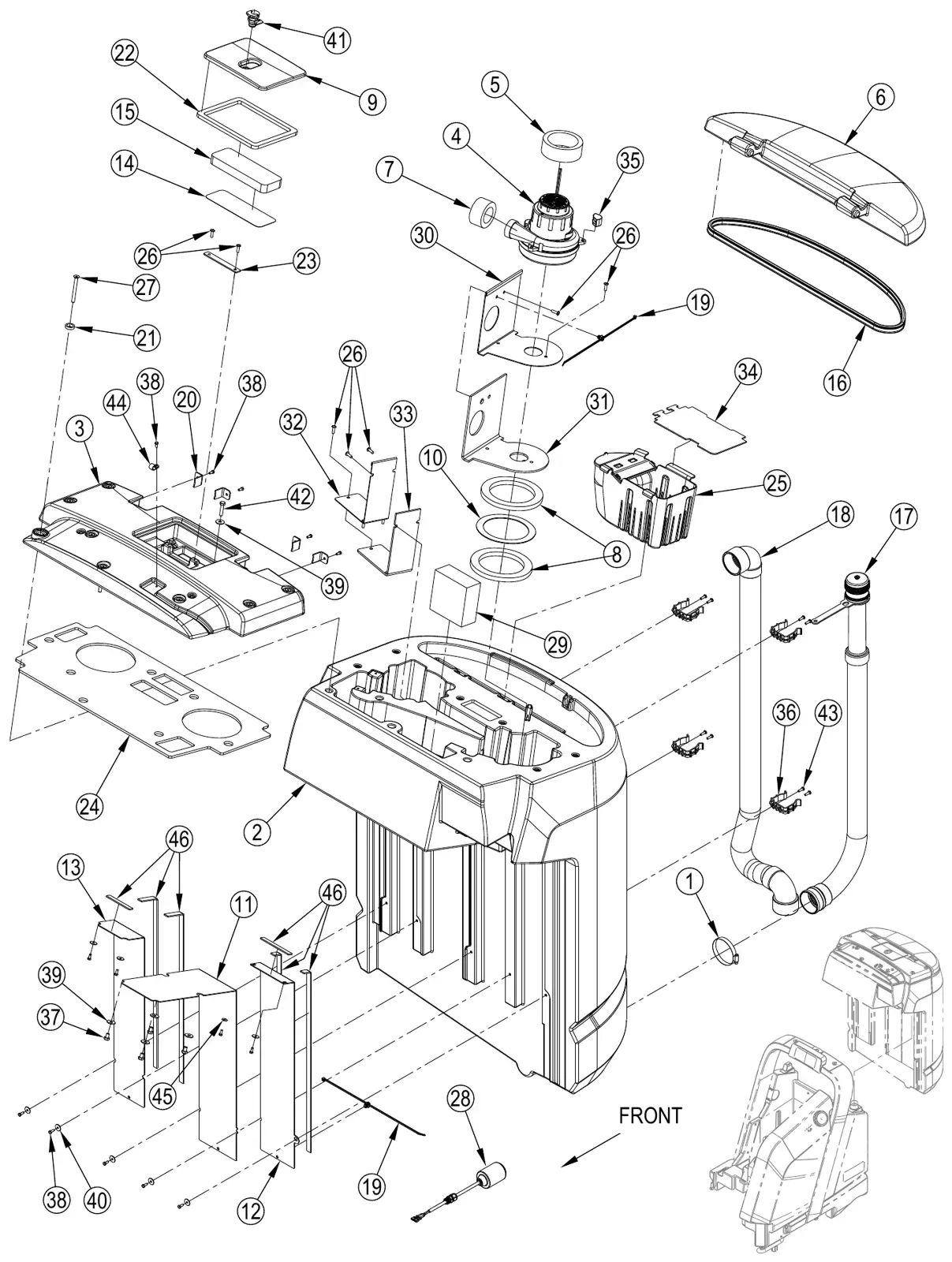

Advance SC6000 recovery system parts
The recovery tank, vacuum motor and covers, filters, seals, drain and squeegee hoses, float switch, debris tray and the service kits for them. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD33003458Advance 33003458 | 1 | Clamp, Hose 8/62-82 W2 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AD56116093Advance 56116093 | 1 | Tank-Recovery | $3,344.05/EA |
| 3 | AD56116104Advance 56116104 | 1 | Cover-Vacuum Motor | $392.85/EA |
| 4 | AD56116105Advance 56116105 | 1 | Motor-Vacuum 36vdc (M4) | $298.49/EA |
| – | AD56116107Advance 56116107 | 1 | Vacuum Motor Brush KitPrinted under item 4 with no item number. | $17.46/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | Seal-InletIncluded in Vacuum Motor Seal Kit 56116922. | Not sold separately. Order Vacuum Motor Seal Kit (AD56116922) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Cover-Recovery TankIncluded in Shut-Off Plate Kit-Single 56116989. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 7 | Not sold separatelyAdvance no number printed | 1 | Seal-ExhaustIncluded in Vacuum Motor Seal Kit 56116922. | Not sold separately. Order Vacuum Motor Seal Kit (AD56116922) |
| 8 | Not sold separatelyAdvance no number printed | 2 | Seal-Vacuum Motor InletIncluded in Vacuum Motor Seal Kit 56116922. | Not sold separately. Order Vacuum Motor Seal Kit (AD56116922) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Cover-FilterIncluded in Filter Cover Kit 56116990. | Not sold separately. Order Filter Cover Kit (AD56116990) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Plate-Gasket MountIncluded in Vacuum Motor Seal Kit 56116922. | Not sold separately. Order Vacuum Motor Seal Kit (AD56116922) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Panel-ExhaustIncluded in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 12 | Not sold separatelyAdvance no number printed | 1 | Panel-Vacuum Motor ExhaustIncluded in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 13 | Not sold separatelyAdvance no number printed | 1 | Panel-Vacuum Exhaust-DualIncluded in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 14 | AD56116392Advance 56116392 | 1 | Screen-FilterAlso in Filter Cover Kit 56116990. | $39.43/EA |
| 15 | AD56116394Advance 56116394 | 1 | Filter-Vacuum InletAlso in Filter Cover Kit 56116990. | $7.29/EA |
| 16 | AD56116486-SPReplaces Advance 56116486 | 1 | Seal-Recovery Coverreplaces Advance 56116486. | $37.87/EA |
| 17 | AD56116500Advance 56116500 | 1 | Drain Hose Assembly | $125.28/EA |
| 18 | AD56116537Advance 56116537 | 1 | Squeegee Hose Assembly | $189.43/EA |
| 19 | Not sold separatelyAdvance no number printed | 2 | Cable Tie-MountIncluded in Panel Kit-Recovery Tank 56116920. Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 20 | Not sold separatelyAdvance no number printed | 4 | Retainer-HingeIncluded in Door Retainer Kit 56116921. | Not sold separately. Order Door Retainer Kit (AD56116921) |
| 21 | Not sold separatelyAdvance no number printed | 8 | Washer-Cosmetic-Ss-M8Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Hardware Kit-Recovery System (AD56116991) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Gasket-Vacuum Filter CoverIncluded in Filter Cover Kit 56116990. | Not sold separately. Order Filter Cover Kit (AD56116990) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Catch-CoverIncluded in Filter Cover Kit 56116990. | Not sold separately. Order Filter Cover Kit (AD56116990) |
| 24 | AD56116698Advance 56116698 | 1 | Gasket-Vacuum Cover | $182.30/EA |
| 25 | AD56116722Advance 56116722 | 1 | Debris Tray Assembly | $31.05/EA |
| 26 | Not sold separatelyAdvance no number printed | 10 | Screw M6x20 Wn1451 Black ZnIncluded in Shut-Off Plate Kit-Single 56116989. Included in Filter Cover Kit 56116990. Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 27 | Not sold separatelyAdvance no number printed | 8 | Screw M8x80 Din7991 Ss BlackIncluded in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Hardware Kit-Recovery System (AD56116991) |
| 28 | AD56116842Advance 56116842 | 1 | Switch-Float Mechanical 120v | $92.18/EA |
| 29 | AD56118005Advance 56118005 | 1 | Seal-Vacuum BlockAlso in Shut-Off Plate Kit-Single 56116989. | $25.70/EA |
| 30 | Not sold separatelyAdvance no number printed | 1 | Plate-SealIncluded in Shut-Off Plate Kit-Single 56116989. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 31 | Not sold separatelyAdvance no number printed | 1 | Gasket-Seal VacuumIncluded in Shut-Off Plate Kit-Single 56116989. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 32 | Not sold separatelyAdvance no number printed | 1 | Plate-Seal VacuumIncluded in Shut-Off Plate Kit-Single 56116989. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 33 | Not sold separatelyAdvance no number printed | 1 | Gasket-VacuumIncluded in Shut-Off Plate Kit-Single 56116989. | Not sold separately. Order Shut-Off Plate Kit-Single (AD56116989) |
| 34 | AD56118017Advance 56118017 | 1 | Flap-Debris Tray | $40.81/EA |
| 35 | Not sold separatelyAdvance no number printed | 3 | Mount, VibrationIncluded in Vacuum Motor Seal Kit 56116922. | Not sold separately. Order Vacuum Motor Seal Kit (AD56116922) |
| 36 | Not sold separatelyAdvance no number printed | 4 | Clamp, PlasticIncluded in Hose Clip Kit 56116988. | Not sold separately. Order Hose Clip Kit (AD56116988) |
| 37 | Not sold separatelyAdvance no number printed | 4 | Screw M8x12 Hex Hd F/Thd SsIncluded in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 38 | Not sold separatelyAdvance no number printed | 14 | Screw M5x12 Hex Hd F/ThdIncluded in Panel Kit-Recovery Tank 56116920. Included in Door Retainer Kit 56116921. Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 39 | Not sold separatelyAdvance no number printed | 6 | Washer 8x24x2 Uni6593 SsIncluded in Panel Kit-Recovery Tank 56116920. Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 40 | Not sold separatelyAdvance no number printed | 9 | Washer Flat Xl 5.5x20.0x1.6Included in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 41 | AD1464896000Advance 1464896000 | 1 | Latch With Fold AwayAlso in Filter Cover Kit 56116990. | $27.75/EA |
| 42 | Not sold separatelyAdvance no number printed | 2 | Screw M8x35 Hex Hd F/Thd SsIncluded in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Hardware Kit-Recovery System (AD56116991) |
| 43 | Not sold separatelyAdvance no number printed | 8 | Scr,Pan Phil M5x16 SsIncluded in Hose Clip Kit 56116988. | Not sold separately. Order Hose Clip Kit (AD56116988) |
| 44 | Not sold separatelyAdvance no number printed | 1 | Clamp, Cable Ø12.7Included in Hardware Kit-Recovery System 56116991. | Not sold separately. Order Hardware Kit-Recovery System (AD56116991) |
| 45 | Not sold separatelyAdvance no number printed | 1 | WasherIncluded in Panel Kit-Recovery Tank 56116920. | Not sold separately. Order Panel Kit-Recovery Tank (AD56116920) |
| 46 | No number printedAdvance no number printed | 1 | Gasket Adhesive 15x3 -SkeinNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56116920Advance 56116920 | 1 | Panel Kit-Recovery TankService kit K1. Contains items 11, 12, 13, 19, 37, 38, 39, 40, 45. | $269.64/EA |
| – | AD56116988Advance 56116988 | 1 | Hose Clip KitService kit K2. Contains items 36, 43. | $45.74/EA |
| – | AD56116921Advance 56116921 | 1 | Door Retainer KitService kit K3. Contains items 20, 38. | $39.43/EA |
| – | AD56116989Advance 56116989 | 1 | Shut-Off Plate Kit-SingleService kit K4. Contains items 6, 26, 29, 30, 31, 32, 33. | $276.66/EA |
| – | AD56116922Advance 56116922 | 1 | Vacuum Motor Seal KitService kit K5. Contains items 5, 7, 8, 10, 35. | $225.98/EA |
| – | AD56116990Advance 56116990 | 1 | Filter Cover KitService kit K6. Contains items 9, 14, 15, 22, 23, 26, 41. | $225.98/EA |
| – | AD56116991Advance 56116991 | 1 | Hardware Kit-Recovery SystemService kit K7. Contains items 19, 21, 26, 27, 38, 39, 42, 44. | $95.04/EA |

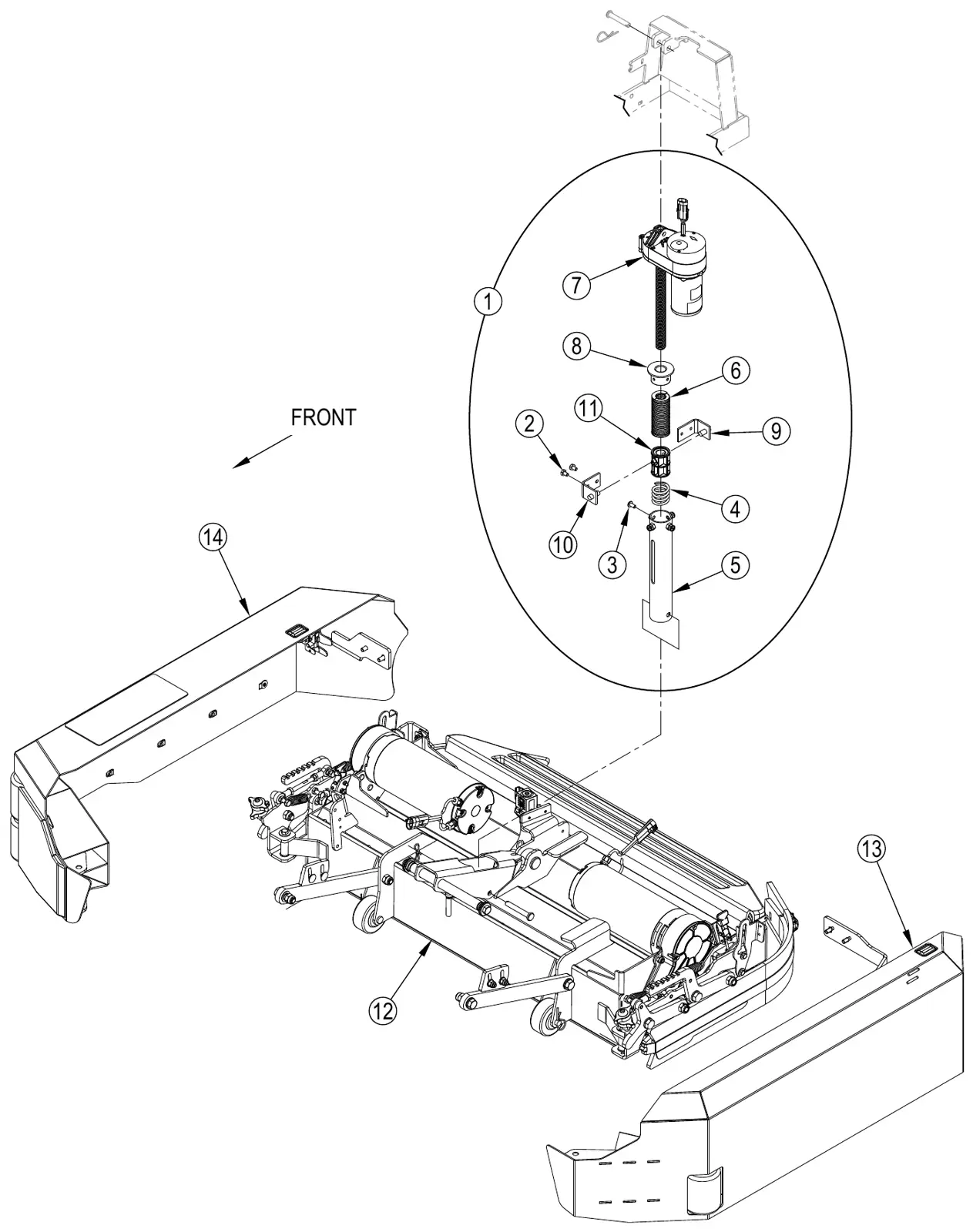

Advance SC6000 scrub system-cylindrical parts
The 36C cylindrical scrub group: deck lift actuator, spring housing kit and the deck and door assemblies. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedAdvance no number printed | 1 | Cyl Deck Lift Actuator Assy (M7)Fits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | Not sold separatelyAdvance no number printed | 2 | Scr, Hex Thd Form 1/4-20 X0.38Fits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil Thd Form 1/4-20x .50Fits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Spring-Compression 1.40x1.40inFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Spring Housing WeldmentFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Spring-Compression-1.44x3.50 InFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 7 | AD56118182Advance 56118182 | 1 | Actuator-Deck-36vFits SC6000 36C. Also in Spring Housing Kit-Actuator 56118048. | $319.67/EA |
| 8 | Not sold separatelyAdvance no number printed | 1 | Spring Housing GuideFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Nut RetainerFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Nut RetainerFits SC6000 36C. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 11 | AD56388520Advance 56388520 | 1 | Nut, PlasticFits SC6000 36C. Also in Spring Housing Kit-Actuator 56118048. | $18.96/EA |
| 12 | No number printedAdvance no number printed | 1 | Cylindrical Scrub Assembly-36cFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | No number printedAdvance no number printed | 1 | Door Assembly-Left-40d/36cFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | No number printedAdvance no number printed | 1 | Door Assembly-Right-36cFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56118048Advance 56118048 | 1 | Spring Housing Kit-ActuatorFits SC6000 36C. Service kit K1. Contains items 2, 3, 4, 5, 6, 7, 8, 9, 10, 11. | $254.81/EA |

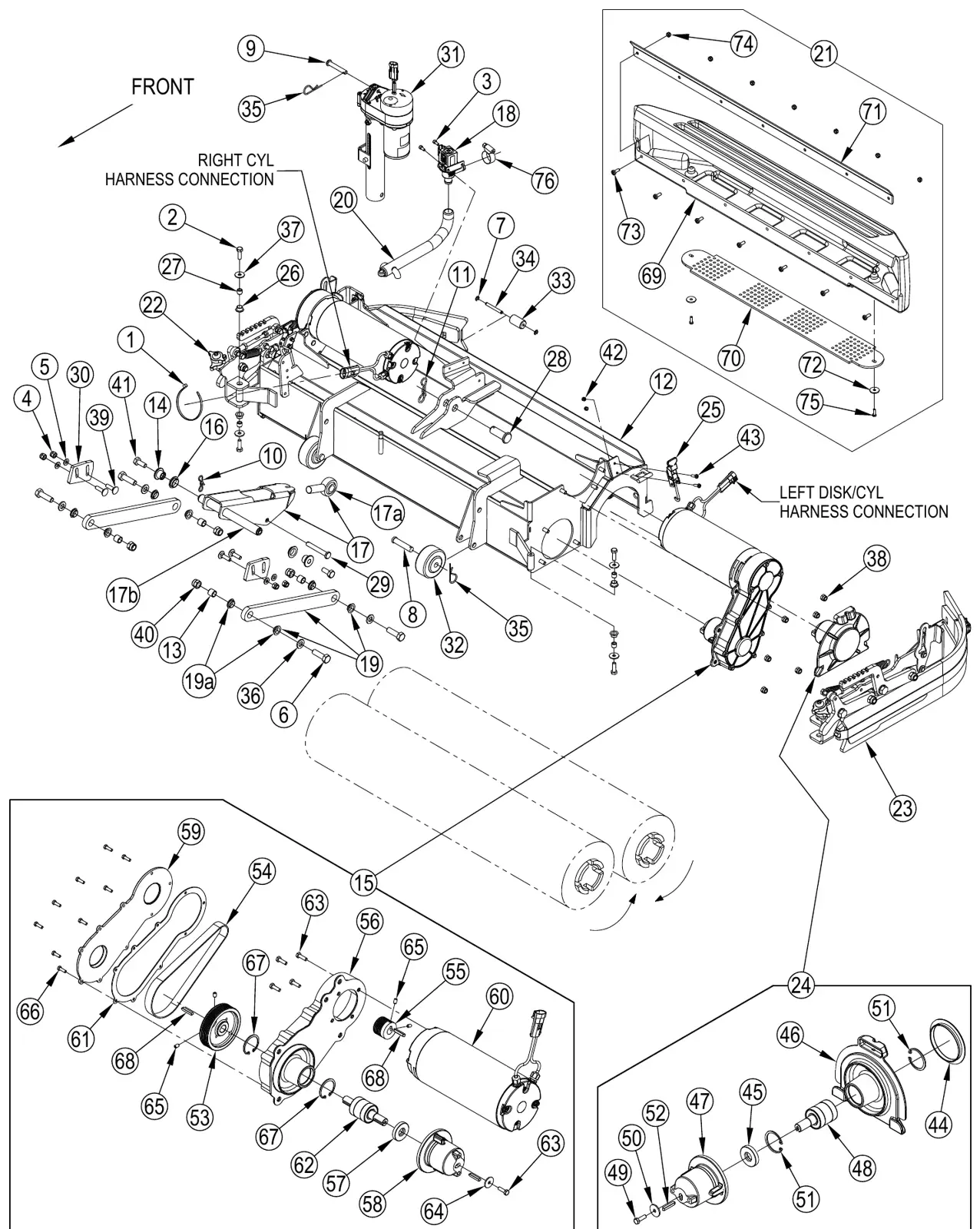

Advance SC6000 scrub system-cylindrical-deck assembly parts
The 36C cylindrical scrub deck: deck weldment, drive housing, lift and trailing arms, hopper, idler, solution hose and the deck kits. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Clamp 290x4.8Fits SC6000 36C. Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 2 | Not sold separatelyAdvance no number printed | 4 | Screw M8x25 Hex Hd F/Thd SsFits SC6000 36C. Included in Pivot Hardware Kit-Both Sides 56116876. | Not sold separately. Order Pivot Hardware Kit-Both Sides (AD56116876) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Screw Soc. Hd M5x12 SsFits SC6000 36C. Included in Solenoid Valve Kit 56116875. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| 4 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc Hvy M8Fits SC6000 36C. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 8.4x16x1.6Fits SC6000 36C. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 6 | Not sold separatelyAdvance no number printed | 4 | Scr M12x40 Hex 10.9 Iso4017Fits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 7 | Not sold separatelyAdvance no number printed | 4 | Ring, Ret Ext Type E Reinf. 0.25 DiaFits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 8 | Not sold separatelyAdvance no number printed | 2 | Clevis PinFits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis .375 X 2.25Fits SC6000 36C. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 7/16 - 1/2Fits SC6000 36C. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Pin-Bow Tie Cotter 3/4Fits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 12 | AD56116069Advance 56116069 | 1 | Cylindrical Scrub Deck Weldt TSB-FC-2017-031Fits SC6000 36C. | $2,980.71/EA |
| 13 | Not sold separatelyAdvance no number printed | 4 | Bushing-12.5x16x14.48mmFits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Bushing-Lift Arm PivotFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 15 | No number printedAdvance no number printed | 2 | Cylindrical Drive Housing Assy (53-68)Fits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-20x23x7mmFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Deck Lift Arm AssemblyFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 17a | Not sold separatelyAdvance no number printed | 1 | Rod End-Spherical-18mm-MaleFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 17b | Not sold separatelyAdvance no number printed | 1 | Lift Arm WeldmentFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 18 | Not sold separatelyAdvance no number printed | 1 | Valve-Solenoid-36vdc (L1)Fits SC6000 36C. Included in Solenoid Valve Kit 56116875. Included in Solenoid Seal Kit (for #56116248) 56116891. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| 19 | Not sold separatelyAdvance no number printed | 2 | Deck Trailing Arm AssemblyFits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 19a | Not sold separatelyAdvance no number printed | 8 | Bearing-Flange-16x18x6mmFits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 20 | AD56116468Advance 56116468 | 1 | Hose-Solution Feed-CylindricalFits SC6000 36C. | $43.68/EA |
| 21 | AD56116483Advance 56116483 | 1 | Hopper Assembly-36in (69-75)Fits SC6000 36C. | $658.97/EA |

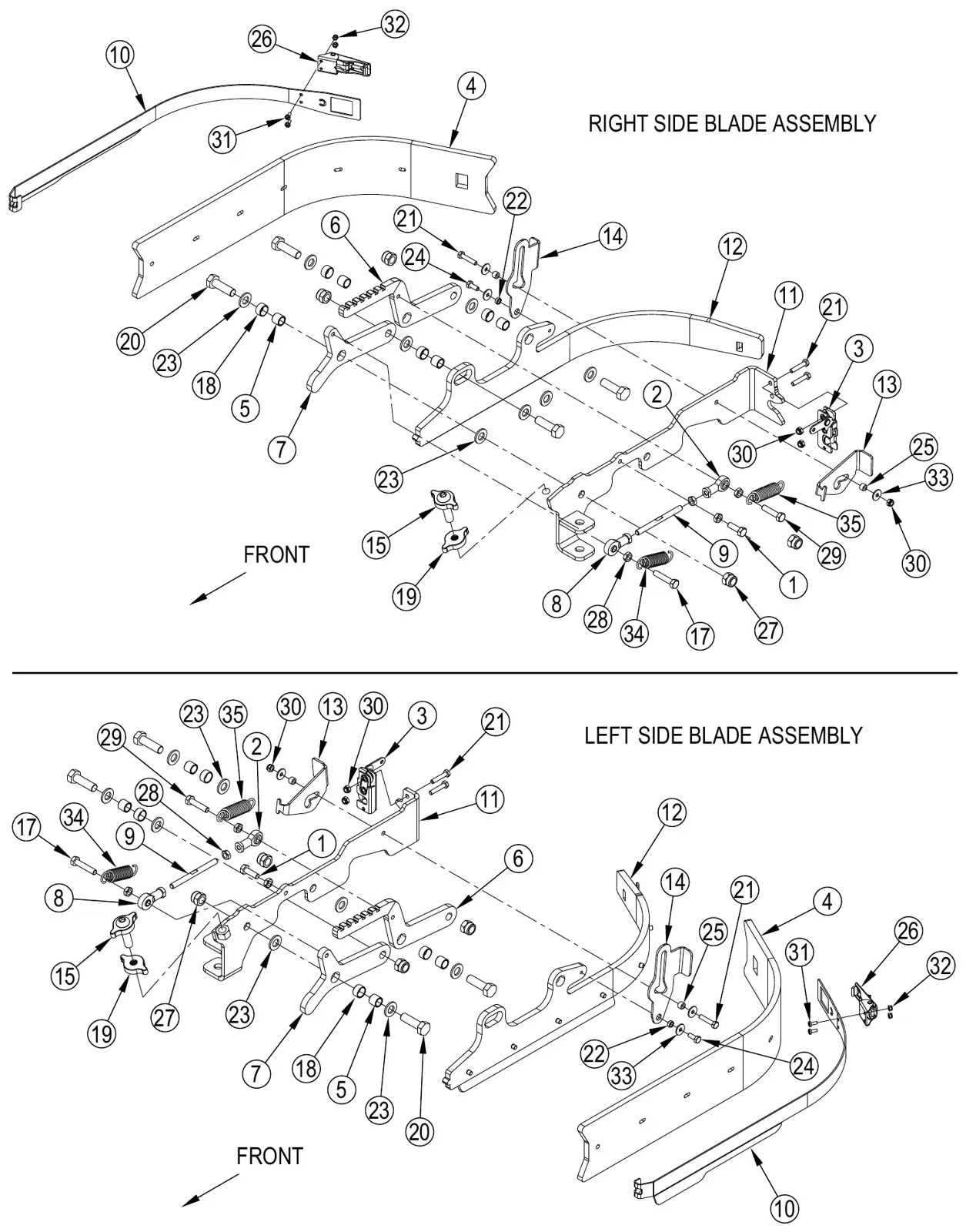

| 22 | AD56116523Advance 56116523 | 1 | Side Blade Assembly-Right (pages 26-27)Fits SC6000 36C. | $1,526.96/EA |
| 23 | AD56116524Advance 56116524 | 1 | Side Blade Assembly-Left (pages 26-27)Fits SC6000 36C. | $1,526.96/EA |
| 24 | No number printedAdvance no number printed | 2 | Idler Assembly (44-52)Fits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | Not sold separatelyAdvance no number printed | 2 | Latch-DrawFits SC6000 36C. Included in Latch Kit-Both Sides 56116877. | Not sold separately. Order Latch Kit-Both Sides (AD56116877) |
| 26 | Not sold separatelyAdvance no number printed | 4 | Bearing-Flange-12x14x9mmFits SC6000 36C. Included in Pivot Hardware Kit-Both Sides 56116876. | Not sold separately. Order Pivot Hardware Kit-Both Sides (AD56116876) |
| 27 | Not sold separatelyAdvance no number printed | 4 | BushingFits SC6000 36C. Included in Pivot Hardware Kit-Both Sides 56116876. | Not sold separately. Order Pivot Hardware Kit-Both Sides (AD56116876) |
| 28 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 18x50 Iso2341-BFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 10x70 Iso2341-BFits SC6000 36C. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 30 | Not sold separatelyAdvance no number printed | 2 | Plate-StopFits SC6000 36C. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 31 | No number printedAdvance no number printed | 1 | Cyl Deck Lift Actuator Assy (M7) (pages 22-23)Fits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | Not sold separatelyAdvance no number printed | 2 | Wheel 3.00 X 1.25Fits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 33 | Not sold separatelyAdvance no number printed | 2 | Roller, RearFits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 34 | Not sold separatelyAdvance no number printed | 2 | PinFits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 35 | Not sold separatelyAdvance no number printed | 3 | Hair Pin Cotter A2,5Fits SC6000 36C. Included in Roller Kit-Cylindrical Deck 56116880. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Roller Kit-Cylindrical Deck (AD56116880) |
| 36 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 13.0x24.0x2.5 SsFits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 37 | Not sold separatelyAdvance no number printed | 4 | Washer 8x24x2 Uni6593 SsFits SC6000 36C. Included in Pivot Hardware Kit-Both Sides 56116876. | Not sold separately. Order Pivot Hardware Kit-Both Sides (AD56116876) |
| 38 | Not sold separatelyAdvance no number printed | 12 | Nut, Hex Nyl Loc M8 SsFits SC6000 36C. Included in Drive Housing Kit 56116886. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 39 | Not sold separatelyAdvance no number printed | 4 | Screw M8x30 CarriageFits SC6000 36C. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 40 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 36C. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 41 | Not sold separatelyAdvance no number printed | 2 | Screw M10x25 Hex Hd F/ThdFits SC6000 36C. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 42 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc Thin M5 SsFits SC6000 36C. Included in Latch Kit-Both Sides 56116877. | Not sold separately. Order Latch Kit-Both Sides (AD56116877) |
| 43 | Not sold separatelyAdvance no number printed | 4 | Scr-Soc Hd-Low Prfl-M5x16-ZncFits SC6000 36C. Included in Latch Kit-Both Sides 56116877. | Not sold separately. Order Latch Kit-Both Sides (AD56116877) |
| 44 | AD56116032Advance 56116032 | 1 | Cap-HubFits SC6000 36C. | $8.80/EA |
| 45 | Not sold separatelyAdvance no number printed | 1 | Seal-OilFits SC6000 36C. Included in Idler Housing Kit 56116889. | Not sold separately. Order Idler Housing Kit (AD56116889) |
| 46 | Not sold separatelyAdvance no number printed | 1 | Housing-Cylindrical Deck IdlerFits SC6000 36C. Included in Idler Housing Kit 56116889. | Not sold separately. Order Idler Housing Kit (AD56116889) |
| 47 | Not sold separatelyAdvance no number printed | 1 | Lug-Cylindrical Deck DriveFits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 48 | Not sold separatelyAdvance no number printed | 1 | Shaft Assembly-IdlerFits SC6000 36C. Included in Idler Housing Kit 56116889. | Not sold separately. Order Idler Housing Kit (AD56116889) |
| 49 | Not sold separatelyAdvance no number printed | 1 | Screw M6x20 Hex Hd F/Thd SsFits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 50 | Not sold separatelyAdvance no number printed | 1 | Washer Flat Xl 6.6x24.0x2.0 SsFits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 51 | Not sold separatelyAdvance no number printed | 2 | Ring D 40 Uni7437Fits SC6000 36C. Included in Idler Housing Kit 56116889. | Not sold separately. Order Idler Housing Kit (AD56116889) |
| 52 | Not sold separatelyAdvance no number printed | 1 | Key 5x5x30 Din6885Fits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 53 | Not sold separatelyAdvance no number printed | 1 | Sheave 95mm-8 RibFits SC6000 36C. Included in Sheave Kit 56116887. | Not sold separately. Order Sheave Kit (AD56116887) |
| 54 | Not sold separatelyAdvance no number printed | 1 | Belt-Self Tension-8 RibFits SC6000 36C. Included in Belt Kit-Both Sides 56116885. | Not sold separately. Order Belt Kit-Both Sides (AD56116885) |
| 55 | Not sold separatelyAdvance no number printed | 1 | Sheave 1.50in-8 RibFits SC6000 36C. Included in Sheave Kit 56116887. | Not sold separately. Order Sheave Kit (AD56116887) |
| 56 | Not sold separatelyAdvance no number printed | 1 | Housing-Cylindrical DriveFits SC6000 36C. Included in Drive Housing Kit 56116886. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 57 | Not sold separatelyAdvance no number printed | 1 | Seal-OilFits SC6000 36C. Included in Drive Housing Kit 56116886. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 58 | Not sold separatelyAdvance no number printed | 1 | Lug-Cylindrical Deck DriveFits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 59 | Not sold separatelyAdvance no number printed | 1 | Cover-Belt HousingFits SC6000 36C. Included in Drive Cover Kit-Both Sides 56116888. | Not sold separately. Order Drive Cover Kit-Both Sides (AD56116888) |
| 60 | AD56116159Advance 56116159 | 1 | Motor-36vdc-1900rpm-1hp (M1, M2)Fits SC6000 36C. | $1,599.51/EA |
| – | AD56422152Advance 56422152 | 1 | Kit, Wheel Drive BrushesFits SC6000 36C. Not shown on the drawing (printed [ ]). | $160.57/EA |
| 61 | Not sold separatelyAdvance no number printed | 1 | Gasket-Cyl Drive HousingFits SC6000 36C. Included in Drive Cover Kit-Both Sides 56116888. | Not sold separately. Order Drive Cover Kit-Both Sides (AD56116888) |
| 62 | Not sold separatelyAdvance no number printed | 1 | Shaft Assembly-BrushFits SC6000 36C. Included in Drive Housing Kit 56116886. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 63 | Not sold separatelyAdvance no number printed | 5 | Screw M6x20 Hex Hd F/Thd SsFits SC6000 36C. Included in Drive Housing Kit 56116886. Included in Hub Kit 56116890. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 64 | Not sold separatelyAdvance no number printed | 1 | Washer Flat Xl 6.6x24.0x2.0 SsFits SC6000 36C. Included in Hub Kit 56116890. | Not sold separately. Order Hub Kit (AD56116890) |
| 65 | Not sold separatelyAdvance no number printed | 4 | Scr-Soc-Set Cup M6x8 Iso4029Fits SC6000 36C. Included in Sheave Kit 56116887. | Not sold separately. Order Sheave Kit (AD56116887) |
| 66 | Not sold separatelyAdvance no number printed | 9 | Screw M5x16 Hex Hd F/Thd SsFits SC6000 36C. Included in Drive Cover Kit-Both Sides 56116888. | Not sold separately. Order Drive Cover Kit-Both Sides (AD56116888) |
| 67 | Not sold separatelyAdvance no number printed | 2 | Ring D 40 Uni7437Fits SC6000 36C. Included in Drive Housing Kit 56116886. | Not sold separately. Order Drive Housing Kit (AD56116886) |
| 68 | Not sold separatelyAdvance no number printed | 3 | Key 5x5x30 Din6885Fits SC6000 36C. Included in Hub Kit 56116890. Included in Sheave Kit 56116887. | Not sold separately. Order Hub Kit (AD56116890) |
| 69 | No number printedAdvance no number printed | 1 | Hopper-36 InchFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 70 | Not sold separatelyAdvance no number printed | 1 | Screen-Hopper-36inFits SC6000 36C. Included in Hopper Floor Kit 56116879. | Not sold separately. Order Hopper Floor Kit (AD56116879) |
| 71 | No number printedAdvance no number printed | 1 | Threshold-Hopper-36inFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 72 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 6.6x24.0x2.0 SsFits SC6000 36C. Included in Hopper Floor Kit 56116879. | Not sold separately. Order Hopper Floor Kit (AD56116879) |
| 73 | No number printedAdvance no number printed | 7 | Scr, Pan Phil M6x16 SsFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 74 | No number printedAdvance no number printed | 7 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 36C. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 75 | Not sold separatelyAdvance no number printed | 2 | Scr,Pan Phil M5x16 SsFits SC6000 36C. Included in Hopper Floor Kit 56116879. | Not sold separately. Order Hopper Floor Kit (AD56116879) |
| 76 | Not sold separatelyAdvance no number printed | 1 | Clamp, Hose 15-24 Size8Fits SC6000 36C. Included in Solenoid Valve Kit 56116875. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| – | AD56116881Advance 56116881 | 1 | Lift Arm Kit-CenterFits SC6000 36C. Service kit K1. Contains items 11, 14, 16, 17, 17a, 17b, 28, 41. | $342.18/EA |
| – | AD56116882Advance 56116882 | 1 | Trailing Arm KitFits SC6000 36C. Service kit K2. Contains items 6, 13, 19, 19a, 36, 40. | $290.81/EA |
| – | AD56116928Advance 56116928 | 1 | Stop Kit-Both SidesFits SC6000 36C. Service kit K10. Contains items 4, 5, 30, 39. | $56.51/EA |
| – | AD56118038Advance 56118038 | 1 | Hardware Kit-ActuatorFits SC6000 36C. Service kit K13. Contains items 9, 10, 29, 35. | $68.96/EA |
| – | AD56116875Advance 56116875 | 1 | Solenoid Valve KitFits SC6000 36C. Service kit K16. Contains items 3, 18, 76. | $225.98/EA |
| – | AD56118185Advance 56118185 | 1 | Solenoid Seal Kit (for #56116875)Fits SC6000 36C. Service kit K34. Revised or new since last update (printed #). | $52.05/EA |
| – | AD56116891Advance 56116891 | 1 | Solenoid Seal Kit (for #56116248)Fits SC6000 36C. Service kit K17. Contains item 18. | $61.27/EA |
| – | AD56116877Advance 56116877 | 1 | Latch Kit-Both SidesFits SC6000 36C. Service kit K18. Contains items 25, 42, 43. | $125.32/EA |
| – | AD56116879Advance 56116879 | 1 | Hopper Floor KitFits SC6000 36C. Service kit K19. Contains items 70, 72, 75. | $104.54/EA |
| – | AD56116880Advance 56116880 | 1 | Roller Kit-Cylindrical DeckFits SC6000 36C. Service kit K20. Contains items 7, 8, 32, 33, 34, 35. | $189.43/EA |
| – | AD56116885Advance 56116885 | 1 | Belt Kit-Both SidesFits SC6000 36C. Service kit K21. Contains item 54. | $137.23/EA |
| – | AD56116886Advance 56116886 | 1 | Drive Housing KitFits SC6000 36C. Service kit K22. Contains items 38, 56, 57, 62, 63, 67. | $325.33/EA |
| – | AD56116890Advance 56116890 | 1 | Hub KitFits SC6000 36C. Service kit K23. Contains items 47, 49, 50, 52, 58, 63, 64, 68. | $162.58/EA |
| – | AD56116887Advance 56116887 | 1 | Sheave KitFits SC6000 36C. Service kit K24. Contains items 53, 55, 65, 68. | $269.64/EA |
| – | AD56116888Advance 56116888 | 1 | Drive Cover Kit-Both SidesFits SC6000 36C. Service kit K25. Contains items 59, 61, 66. | $102.07/EA |
| – | AD56116889Advance 56116889 | 1 | Idler Housing KitFits SC6000 36C. Service kit K26. Contains items 45, 46, 48, 51. | $232.96/EA |
| – | AD56116876Advance 56116876 | 1 | Pivot Hardware Kit-Both SidesFits SC6000 36C. Service kit K29. Contains items 2, 26, 27, 37. | $42.32/EA |
| – | AD56116992Advance 56116992 | 1 | Hardware Kit-ElectricalFits SC6000 36C. Service kit K30. Contains item 1. | $122.52/EA |

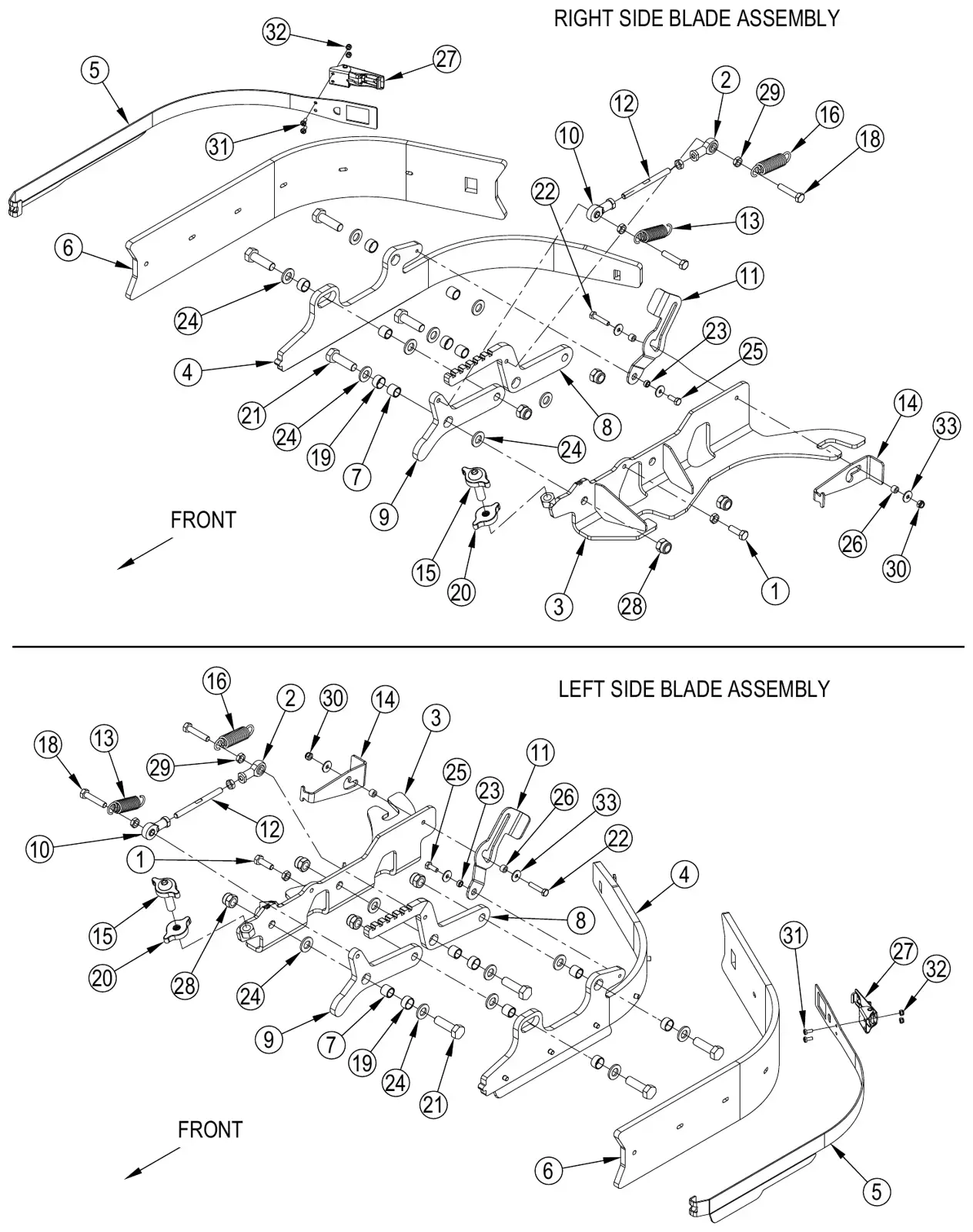

Advance SC6000 scrub system-cylindrical-side blade assemblies parts
The 36C right and left side blade assemblies: arms, mount and support weldments, latches, straps and the blade kits. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116523Advance 56116523 | 1 | Side Blade Assembly-RightFits SC6000 36C. Right side blade assembly list. | $1,526.96/EA |
| 1 | Not sold separatelyAdvance no number printed | 1 | Screw M8x25 Hex Hd F/Thd SsFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Joint M8Fits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 36C. Right side blade assembly list. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-LinatexFits SC6000 36C. Right side blade assembly list. Included in Side Blade Kit-Linatex 56116706. | Not sold separately. Order Side Blade Kit-Linatex (AD56116706) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-PUFits SC6000 36C. Right side blade assembly list. Optional, not included (printed *). Included in Side Blade Kit-PU 56116709. | Not sold separately. Order Side Blade Kit-PU (AD56116709) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Bushing-Sleeve-.507x.625x.527Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 6 | AD56116233Advance 56116233 | 1 | Arm-Side Blade-RearFits SC6000 36C. Right side blade assembly list. | $44.75/EA |
| 7 | AD56116234Advance 56116234 | 1 | Arm-Side Blade-FrontFits SC6000 36C. Right side blade assembly list. | $31.05/EA |
| 8 | Not sold separatelyAdvance no number printed | 1 | Rod End-M8-LhFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Rod-ThreadedFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Strap-Cyl Side Blade-RightFits SC6000 36C. Right side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 11 | AD56116525Advance 56116525 | 1 | Side Blade Mount Weldt-RightFits SC6000 36C. Right side blade assembly list. | $182.30/EA |
| 12 | AD56116652Advance 56116652 | 1 | Side Blade Support Weldt-RightFits SC6000 36C. Right side blade assembly list. | $421.71/EA |
| 13 | AD56116660Advance 56116660 | 1 | Clip-Spring Adjustment-RightFits SC6000 36C. Right side blade assembly list. | $24.72/EA |
| 14 | AD56116662Advance 56116662 | 1 | Latch-Double Scrub-RightFits SC6000 36C. Right side blade assembly list. | $29.53/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Knob AssemblyFits SC6000 36C. Right side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Screw M8x40 Uni5739 SSFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 18 | Not sold separatelyAdvance no number printed | 4 | Bearing, .719 X .625 X .375Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 19 | Not sold separatelyAdvance no number printed | 1 | KnobFits SC6000 36C. Right side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 20 | Not sold separatelyAdvance no number printed | 4 | Screw M12x40 A2 Din93Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 21 | Not sold separatelyAdvance no number printed | 3 | Screw M6x30 Hex Hd F/Thd SSFits SC6000 36C. Right side blade assembly list. Included in Latch Kit 56116979. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Latch Kit (AD56116979) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Spacer 6.5x10x4.5Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 23 | Not sold separatelyAdvance no number printed | 8 | Washer, Flat 13.0x24.0x2.5 SSFits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Screw M6x16 Hex Hd F/Thd SSFits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 25 | Not sold separatelyAdvance no number printed | 2 | Spacer 6.1 X 10 X 6.5Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Latch SqueegeeFits SC6000 36C. Right side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 27 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 28 | Not sold separatelyAdvance no number printed | 4 | Nut Hex M8 Uni5589 SsFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Screw M8x35 Hex Hd F/Thd SSFits SC6000 36C. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 30 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M6 SSFits SC6000 36C. Right side blade assembly list. Included in Latch Kit 56116979. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Latch Kit (AD56116979) |
| 31 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SsFits SC6000 36C. Right side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 32 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M4 SSFits SC6000 36C. Right side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 33 | Not sold separatelyAdvance no number printed | 3 | Washer Flat Xl 6x18x1.5 – SSFits SC6000 36C. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 34 | AD56116239Advance 56116239 | 1 | Spring-Extension-0.75x2.96inFits SC6000 36C. Right side blade assembly list. | $14.70/EA |
| 35 | AD56116846Advance 56116846 | 1 | Spring-Extension 0.75x3.00InFits SC6000 36C. Right side blade assembly list. | $10.30/EA |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 36C. Service kit K4. Contains items 3, 21, 30. | $205.95/EA |
| – | AD56116981Advance 56116981 | 1 | Level Adjust Kit-Side WiperFits SC6000 36C. Service kit K8. Contains items 1, 2, 8, 9, 17, 28, 29. | $121.15/EA |
| – | AD56116983Advance 56116983 | 1 | Knob Kit-Side WiperFits SC6000 36C. Service kit K9. Contains items 15, 19. | $53.48/EA |
| – | AD56116982Advance 56116982 | 1 | Hardware Kit-Side WiperFits SC6000 36C. Service kit K12. Contains items 1, 5, 18, 20, 21, 22, 23, 24, 25, 27, 28, 30, 33. | $86.55/EA |
| – | AD56116706Advance 56116706 | 1 | Side Blade Kit-LinatexFits SC6000 36C. Service kit K14. Contains item 4. | $188.85/EA |
| – | AD56116709Advance 56116709 | 1 | Side Blade Kit-PUFits SC6000 36C. Service kit K15. Contains item *. | $298.49/EA |
| – | AD56116984Advance 56116984 | 1 | Strap Kit-Both Sides-CylindricalFits SC6000 36C. Service kit K27. Contains items 10, 26, 31, 32. | $487.93/EA |
| – | AD56116524Advance 56116524 | 1 | Side Blade Assembly-LeftFits SC6000 36C. Left side blade assembly list. | $1,526.96/EA |
| 1 | Not sold separatelyAdvance no number printed | 1 | Screw M8x25 Hex Hd F/Thd SsFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Joint M8Fits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 36C. Left side blade assembly list. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-LinatexFits SC6000 36C. Left side blade assembly list. Included in Side Blade Kit-Linatex 56116706. | Not sold separately. Order Side Blade Kit-Linatex (AD56116706) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-PUFits SC6000 36C. Left side blade assembly list. Optional, not included (printed *). Included in Side Blade Kit-PU 56116709. | Not sold separately. Order Side Blade Kit-PU (AD56116709) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Bushing-Sleeve-.507x.625x.527Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 6 | AD56116233Advance 56116233 | 1 | Arm-Side Blade-RearFits SC6000 36C. Left side blade assembly list. | $44.75/EA |
| 7 | AD56116234Advance 56116234 | 1 | Arm-Side Blade-FrontFits SC6000 36C. Left side blade assembly list. | $31.05/EA |
| 8 | Not sold separatelyAdvance no number printed | 1 | Rod End-M8-LhFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Rod-ThreadedFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Strap-Cyl Side Blade-LeftFits SC6000 36C. Left side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 11 | AD56116526Advance 56116526 | 1 | Side Blade Mount Weldt-LeftFits SC6000 36C. Left side blade assembly list. | $182.30/EA |
| 12 | AD56116653Advance 56116653 | 1 | Side Blade Support Weldt-LeftFits SC6000 36C. Left side blade assembly list. | $399.87/EA |
| 13 | AD56116661Advance 56116661 | 1 | Clip-Spring Adjustment-LeftFits SC6000 36C. Left side blade assembly list. | $24.72/EA |
| 14 | AD56116663Advance 56116663 | 1 | Latch-Double Scrub-LeftFits SC6000 36C. Left side blade assembly list. | $29.53/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Knob AssemblyFits SC6000 36C. Left side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Screw M8x40 Uni5739 SSFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 18 | Not sold separatelyAdvance no number printed | 4 | Bearing, .719 X .625 X .375Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 19 | Not sold separatelyAdvance no number printed | 1 | KnobFits SC6000 36C. Left side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 20 | Not sold separatelyAdvance no number printed | 4 | Screw M12x40 A2 Din93Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 21 | Not sold separatelyAdvance no number printed | 3 | Screw M6x30 Hex Hd F/Thd SSFits SC6000 36C. Left side blade assembly list. Included in Latch Kit 56116979. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Latch Kit (AD56116979) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Spacer 6.5x10x4.5Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 23 | Not sold separatelyAdvance no number printed | 8 | Washer, Flat 13.0x24.0x2.5 SSFits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Screw M6x16 Hex Hd F/Thd SSFits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 25 | Not sold separatelyAdvance no number printed | 2 | Spacer 6.1 X 10 X 6.5Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Latch SqueegeeFits SC6000 36C. Left side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 27 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 28 | Not sold separatelyAdvance no number printed | 4 | Nut Hex M8 Uni5589 SsFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Screw M8x35 Hex Hd F/Thd SSFits SC6000 36C. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 30 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M6 SSFits SC6000 36C. Left side blade assembly list. Included in Latch Kit 56116979. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Latch Kit (AD56116979) |
| 31 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SsFits SC6000 36C. Left side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 32 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M4 SSFits SC6000 36C. Left side blade assembly list. Included in Strap Kit-Both Sides-Cylindrical 56116984. | Not sold separately. Order Strap Kit-Both Sides-Cylindrical (AD56116984) |
| 33 | Not sold separatelyAdvance no number printed | 3 | Washer Flat Xl 6x18x1.5 – SSFits SC6000 36C. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 34 | AD56116239Advance 56116239 | 1 | Spring-Extension-0.75x2.96inFits SC6000 36C. Left side blade assembly list. | $14.70/EA |
| 35 | AD56116846Advance 56116846 | 1 | Spring-Extension 0.75x3.00InFits SC6000 36C. Left side blade assembly list. | $10.30/EA |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 36C. Service kit K4. Contains items 3, 21, 30. | $205.95/EA |
| – | AD56116981Advance 56116981 | 1 | Level Adjust Kit-Side WiperFits SC6000 36C. Service kit K8. Contains items 1, 2, 8, 9, 17, 28, 29. | $121.15/EA |
| – | AD56116983Advance 56116983 | 1 | Knob Kit-Side WiperFits SC6000 36C. Service kit K9. Contains items 15, 19. | $53.48/EA |
| – | AD56116982Advance 56116982 | 1 | Hardware Kit-Side WiperFits SC6000 36C. Service kit K12. Contains items 1, 5, 18, 20, 21, 22, 23, 24, 25, 27, 28, 30, 33. | $86.55/EA |
| – | AD56116706Advance 56116706 | 1 | Side Blade Kit-LinatexFits SC6000 36C. Service kit K14. Contains item 4. | $188.85/EA |
| – | AD56116709Advance 56116709 | 1 | Side Blade Kit-PUFits SC6000 36C. Service kit K15. Contains item *. | $298.49/EA |
| – | AD56116984Advance 56116984 | 1 | Strap Kit-Both Sides-CylindricalFits SC6000 36C. Service kit K27. Contains items 10, 26, 31, 32. | $487.93/EA |
Advance SC6000 scrub system-cylindrical-right door assembly parts
The 36C right scrub deck door: door weldment, latch, striker, skid plates and the door kits. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | Ejot 3.5x8 Wn1411Fits SC6000 36C. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/ThdFits SC6000 36C. Included in Striker Kit-Right 56116899. Included in Striker Kit-Right-Cylindrical 56118096. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Fits SC6000 36C. Included in Striker Kit-Right 56116899. Included in Striker Kit-Right-Cylindrical 56118096. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Shaft Ring D.12Fits SC6000 36C. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 36C. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 6 | AD56118092Advance 56118092 | 1 | Door Weldment-Right-36cFits SC6000 36C. Replaces Right Door Weldment 56116419 in production. To replace 56116419 order Door Weldment Kit 56118094, which replaces the door and striker. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-34dFits SC6000 36C. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-Front-36cFits SC6000 36C. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Pin-Door RollerFits SC6000 36C. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Door Striker Weldment-RightFits SC6000 36C. Included in Striker Kit-Right 56116899. Striker Kit 56116899 has been replaced in production with Striker Kit 56118096. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Striker Weldment-Door-Rt-36cFits SC6000 36C. Printed under item 10 with no item number; alternative to the line above. Included in Striker Kit-Right-Cylindrical 56118096. | Not sold separately. Order Striker Kit-Right-Cylindrical (AD56118096) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Handle-LatchFits SC6000 36C. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 12 | AD56116720Advance 56116720 | 1 | Mat-DoorFits SC6000 36C. | $23.35/EA |
| 13 | Not sold separatelyAdvance no number printed | 4 | Washer-TabFits SC6000 36C. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Wheel, RollerFits SC6000 36C. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Screw M6x30 Hex Hd F/Thd SsFits SC6000 36C. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 36C. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 36C. Service kit K4. Contains items 5, 11, 15, 16. | $205.95/EA |
| – | AD56116980Advance 56116980 | 1 | Roller Kit-Both DoorsFits SC6000 36C. Service kit K5. Contains items 4, 9, 14. | $254.81/EA |
| – | AD56116899Advance 56116899 | 1 | Striker Kit-RightFits SC6000 36C. Service kit K6. Contains items 2, 3, 10. Striker Kit 56116899 has been replaced in production with Striker Kit 56118096. | $91.42/EA |
| – | AD56116900Advance 56116900 | 1 | Skid Plate KitFits SC6000 36C. Service kit K7. Contains items 1, 7, 8, 13. | $167.59/EA |
| – | AD56118096Advance 56118096 | 1 | Striker Kit-Right-CylindricalFits SC6000 36C. Service kit K8. Contains items 2, 3. | $57.03/EA |
Advance SC6000 scrub system-left door assembly-36C and 40D parts
The left scrub deck door for the 36C and 40D: door weldment, latch, striker, handle and roller kit. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/ThdFits SC6000 36C, SC6000 40D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Fits SC6000 36C, SC6000 40D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 36C, SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 7/16 - 1/2Fits SC6000 36C, SC6000 40D. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 5 | AD56116416Advance 56116416 | 1 | Door Weldment-Left-40d/36cFits SC6000 40D, SC6000 36C. | $698.37/EA |
| 6 | Not sold separatelyAdvance no number printed | 1 | Door Striker Weldment-LeftFits SC6000 36C, SC6000 40D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 7 | Not sold separatelyAdvance no number printed | 1 | Handle-LatchFits SC6000 36C, SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 12x120 Iso2341-BFits SC6000 36C, SC6000 40D. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Wheel, RollerFits SC6000 36C, SC6000 40D. Included in Roller Kit-Both Doors 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 10 | Not sold separatelyAdvance no number printed | 2 | Screw M6x30 Hex Hd F/Thd SsFits SC6000 36C, SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 11 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 36C, SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| – | AD56116898Advance 56116898 | 1 | Striker Kit-LeftFits SC6000 36C, SC6000 40D. Service kit K3. Contains items 1, 2, 6. | $130.92/EA |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 36C, SC6000 40D. Service kit K4. Contains items 3, 7, 10, 11. | $205.95/EA |
| – | AD56116980Advance 56116980 | 1 | Roller Kit-Both DoorsFits SC6000 36C, SC6000 40D. Service kit K5. Contains items 4, 8, 9. | $254.81/EA |
Advance SC6000 scrub system-disc parts
The 34D and 40D disc scrub group: deck lift actuator, spring housing kit and the deck and door assemblies. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedAdvance no number printed | 1 | Cyl Deck Lift Actuator Assy (M7)Fits SC6000 34D, SC6000 40D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | Not sold separatelyAdvance no number printed | 2 | Scr, Hex Thd Form 1/4-20 X0.38Fits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil Thd Form 1/4-20x .50Fits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Spring-Compression 1.40x1.40inFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Spring Housing WeldmentFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Spring-Compression-1.44x3.50 InFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 7 | AD56118182Advance 56118182 | 1 | Actuator-Deck-36vFits SC6000 34D, SC6000 40D. Also in Spring Housing Kit-Actuator 56118048. | $319.67/EA |
| 8 | Not sold separatelyAdvance no number printed | 1 | Spring Housing GuideFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Nut RetainerFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Nut RetainerFits SC6000 34D, SC6000 40D. Included in Spring Housing Kit-Actuator 56118048. | Not sold separately. Order Spring Housing Kit-Actuator (AD56118048) |
| 11 | AD56388520Advance 56388520 | 1 | Nut, PlasticFits SC6000 34D, SC6000 40D. Also in Spring Housing Kit-Actuator 56118048. | $18.96/EA |
| 12 | No number printedAdvance no number printed | 1 | Disc Deck Assembly-34dFits SC6000 34D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | No number printedAdvance no number printed | 1 | Disc Deck Assembly-40dFits SC6000 40D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | No number printedAdvance no number printed | 1 | Door Assembly-Left-34dFits SC6000 34D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | No number printedAdvance no number printed | 1 | Door Assembly-Right-34dFits SC6000 34D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedAdvance no number printed | 1 | Door Assembly-Left-40d/36c (see pages 30-31)Fits SC6000 40D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedAdvance no number printed | 1 | Door Assembly-Right-40dFits SC6000 40D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56118048Advance 56118048 | 1 | Spring Housing Kit-ActuatorFits SC6000 34D, SC6000 40D. Service kit K1. Contains items 2, 3, 4, 5, 6, 7, 8, 9, 10, 11. | $254.81/EA |
Advance SC6000 scrub system-disc-deck assembly parts
The 34D and 40D disc scrub deck: deck weldment, brush drive gearmotors, lift arms, click-on assemblies, brush plates, solution hose and the deck kits. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Pin D.16Fits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Clamp 290x4.8Fits SC6000 34D, SC6000 40D. Included in Hardware Kit-Electrical 56116992. | Not sold separately. Order Hardware Kit-Electrical (AD56116992) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Screw Soc. Hd M5x12 SSFits SC6000 34D, SC6000 40D. Included in Solenoid Valve Kit 56116875. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Screw Soc. Hd M8x35 SSFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| 5 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc Hvy M8Fits SC6000 34D, SC6000 40D. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 6 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 8.4x16x1.6Fits SC6000 34D, SC6000 40D. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 7 | Not sold separatelyAdvance no number printed | 2 | Screw M12x40 Hex Hd F/Thd - 12kFits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 8 | Not sold separatelyAdvance no number printed | 9 | Rivet, Nylon Tree Push-In (.25)Fits SC6000 34D, SC6000 40D. Included in Rivet Kit 56118050. | Not sold separately. Order Rivet Kit (AD56118050) |
| 9 | Not sold separatelyAdvance no number printed | 2 | Key, Square .25 X 1.44Fits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis .375 X 2.25Fits SC6000 34D, SC6000 40D. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 7/16 - 1/2Fits SC6000 34D, SC6000 40D. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Pin-Bow Tie Cotter 5/8Fits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 13 | Not sold separatelyAdvance no number printed | 1 | Pin-Bow Tie Cotter 3/4Fits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Bushing-12.5x16x14.48mmFits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Bushing-Lift Arm PivotFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-20x23x7mmFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 17 | AD56116201Advance 56116201 | 1 | Scrub Deck Weldment-34dFits SC6000 34D. | $989.19/EA |
| 17 | AD56116200Advance 56116200 | 1 | Scrub Deck Weldment-40dFits SC6000 40D. Printed under item 17 with no item number; same item, other build. | $974.35/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | Deck Lift Arm AssemblyFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 18a | Not sold separatelyAdvance no number printed | 1 | Rod End-Spherical-18mm-MaleFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 18b | Not sold separatelyAdvance no number printed | 1 | Lift Arm WeldmentFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 19 | AD56116212Advance 56116212 | 2 | Spacer-MotorFits SC6000 34D, SC6000 40D. | $33.79/EA |
| 20 | AD56116213Advance 56116213 | 2 | Gearmotor-36vdc-250rpm-1.0hp (M1, M2)Fits SC6000 34D, SC6000 40D. | $1,744.56/EA |
| – | AD56422152Advance 56422152 | 1 | Kit, Wheel Drive BrushesFits SC6000 34D, SC6000 40D. Not shown on the drawing (printed [ ]). | $160.57/EA |
| 21 | AD56116214Advance 56116214 | 1 | Side Blade Assembly-Right (pages 36-37)Fits SC6000 34D, SC6000 40D. | $1,293.99/EA |
| 22 | AD56116215Advance 56116215 | 1 | Side Blade Assembly-Left (pages 36-37)Fits SC6000 34D, SC6000 40D. | $1,424.90/EA |
| 23 | Not sold separatelyAdvance no number printed | 1 | Valve-Solenoid-36vdc (L1)Fits SC6000 34D, SC6000 40D. Included in Solenoid Valve Kit 56116875. Included in Solenoid Seal Kit (for #56116248) 56116891. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| 24 | AD56116249Advance 56116249 | 1 | Hose-Solution Feed-DiscFits SC6000 34D, SC6000 40D. | $45.74/EA |
| 25 | AD56118191Advance 56118191 | 1 | Blade-Front-34d-LinardFits SC6000 34D. | $88.60/EA |
| 25 | AD56118188Advance 56118188 | 1 | Blade-Front-40d-LinardFits SC6000 40D. Printed under item 25 with no item number; same item, other build. | $78.84/EA |
| 26 | Not sold separatelyAdvance no number printed | 2 | Deck Trailing Arm AssemblyFits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 26a | Not sold separatelyAdvance no number printed | 8 | Bearing-Flange-16x18x6mmFits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 27 | AD56116545Advance 56116545 | 2 | Knob-M12-LobeFits SC6000 34D, SC6000 40D. | $24.72/EA |
| 28 | AD56116755Advance 56116755 | 2 | Click-On Assembly-34dFits SC6000 34D. | $196.45/EA |
| 28 | AD56116756Advance 56116756 | 2 | Click-On Assembly-40dFits SC6000 40D. Printed under item 28 with no item number; same item, other build. | $196.45/EA |
| 29 | Not sold separatelyAdvance no number printed | 2 | BushingFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 18x50 Iso2341-BFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 31 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 10x70 Iso2341-BFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 32 | Not sold separatelyAdvance no number printed | 8 | Scr Hex M6x30 Ss W/Thd LckFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| 33 | Not sold separatelyAdvance no number printed | 2 | Plate-StopFits SC6000 34D, SC6000 40D. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 34 | No number printedAdvance no number printed | 1 | Actuator Assembly-Complete (pages 32-33) (M7)Fits SC6000 34D, SC6000 40D. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | AD56601276Advance 56601276 | 1 | Brush Plate AssyFits SC6000 34D, SC6000 40D. | $121.15/EA |
| 36 | AD56601384Advance 56601384 | 1 | Brush Plate AssyFits SC6000 34D, SC6000 40D. | $121.15/EA |
| 37 | Not sold separatelyAdvance no number printed | 1 | Hair Pin Cotter A2,5Fits SC6000 34D, SC6000 40D. Included in Hardware Kit-Actuator 56118038. | Not sold separately. Order Hardware Kit-Actuator (AD56118038) |
| 38 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 13.0x24.0x2.5 SSFits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 39 | Not sold separatelyAdvance no number printed | 4 | Screw M8x30 Carriage Iso8677Fits SC6000 34D, SC6000 40D. Included in Stop Kit-Both Sides 56116928. | Not sold separately. Order Stop Kit-Both Sides (AD56116928) |
| 40 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 34D, SC6000 40D. Included in Trailing Arm Kit 56116882. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Trailing Arm Kit (AD56116882) |
| 41 | Not sold separatelyAdvance no number printed | 2 | Screw M10x25 Hex Hd F/ThdFits SC6000 34D, SC6000 40D. Included in Lift Arm Kit-Center 56116881. | Not sold separately. Order Lift Arm Kit-Center (AD56116881) |
| 42 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc Thin M6 SSFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| 43 | Not sold separatelyAdvance no number printed | 1 | Clamp, Hose 15-24 Size8Fits SC6000 34D, SC6000 40D. Included in Solenoid Valve Kit 56116875. | Not sold separately. Order Solenoid Valve Kit (AD56116875) |
| 44 | Not sold separatelyAdvance no number printed | 2 | Screw M12x30 Iso4017 SsFits SC6000 34D, SC6000 40D. Included in Hardware Kit-Disc Deck 56116994. | Not sold separately. Order Hardware Kit-Disc Deck (AD56116994) |
| – | AD56116881Advance 56116881 | 1 | Lift Arm Kit-CenterFits SC6000 34D, SC6000 40D. Service kit K1. Contains items 13, 15, 16, 18, 18a, 18b, 30, 41. | $342.18/EA |
| – | AD56116882Advance 56116882 | 1 | Trailing Arm KitFits SC6000 34D, SC6000 40D. Service kit K2. Contains items 1, 7, 12, 14, 26, 26a, 38, 40. | $290.81/EA |
| – | AD56116928Advance 56116928 | 1 | Stop Kit-Both SidesFits SC6000 34D, SC6000 40D. Service kit K10. Contains items 5, 6, 33, 39. | $56.51/EA |
| – | AD56116982Advance 56116982 | 1 | Hardware Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K12. | $86.55/EA |
| – | AD56118038Advance 56118038 | 1 | Hardware Kit-ActuatorFits SC6000 34D, SC6000 40D. Service kit K13. Contains items 10, 11, 31, 37. | $68.96/EA |
| – | AD56116875Advance 56116875 | 1 | Solenoid Valve KitFits SC6000 34D, SC6000 40D. Service kit K16. Contains items 3, 23, 43. | $225.98/EA |
| – | AD56118185Advance 56118185 | 1 | Solenoid Seal Kit (for #56116875)Fits SC6000 34D, SC6000 40D. Service kit K34. Revised or new since last update (printed #). | $52.05/EA |
| – | AD56116891Advance 56116891 | 1 | Solenoid Seal Kit (for #56116248)Fits SC6000 34D, SC6000 40D. Service kit K17. Contains item 23. | $61.27/EA |
| – | AD56118050Advance 56118050 | 1 | Rivet KitFits SC6000 34D, SC6000 40D. Service kit K30. Contains item 8. | $16.09/EA |
| – | AD56116994Advance 56116994 | 1 | Hardware Kit-Disc DeckFits SC6000 34D, SC6000 40D. Service kit K32. Contains items 4, 9, 29, 32, 40, 42, 44. | $64.01/EA |
| – | AD56116992Advance 56116992 | 1 | Hardware Kit-ElectricalFits SC6000 34D, SC6000 40D. Service kit K33. Contains item 2. | $122.52/EA |
Advance SC6000 scrub system-disc-side blade assemblies parts
The 34D and 40D right and left side blade assemblies: arms, mount and support weldments, latches, straps and the blade kits. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116214Advance 56116214 | 1 | Side Blade Assembly-RightFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $1,293.99/EA |
| 1 | Not sold separatelyAdvance no number printed | 1 | Screw M8x25 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Joint M8Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 3 | AD56116216Advance 56116216 | 1 | Side Blade Mount Weldment-RtFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $160.57/EA |
| 4 | AD56116222Advance 56116222 | 1 | Side Blade Support Weldt-RightFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $283.67/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | Strap-Side Blade-RightFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-LinatexFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Side Blade Kit-Linatex 56116706. | Not sold separately. Order Side Blade Kit-Linatex (AD56116706) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-PUFits SC6000 34D, SC6000 40D. Right side blade assembly list. Optional, not included (printed *). Included in Side Blade Kit-PU 56116709. | Not sold separately. Order Side Blade Kit-PU (AD56116709) |
| 7 | Not sold separatelyAdvance no number printed | 4 | Bushing-Sleeve-.507x.625x.527Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 8 | AD56116233Advance 56116233 | 1 | Arm-Side Blade-RearFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $44.75/EA |
| 9 | AD56116234Advance 56116234 | 1 | Arm-Side Blade-FrontFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $31.05/EA |
| 10 | Not sold separatelyAdvance no number printed | 1 | Rod End-M8-LhFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 11 | AD56116236Advance 56116236 | 1 | Latch-Double Scrub-RightFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $36.67/EA |
| 12 | Not sold separatelyAdvance no number printed | 1 | Rod-ThreadedFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 13 | AD56116239Advance 56116239 | 1 | Spring-Extension-0.75x2.96inFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $14.70/EA |
| 14 | AD56116240Advance 56116240 | 1 | Clip-Spring AdjustmentFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $31.05/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Knob AssemblyFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 16 | AD56116846Advance 56116846 | 1 | Spring-Extension 0.75x3.00inFits SC6000 34D, SC6000 40D. Right side blade assembly list. | $10.30/EA |
| 18 | Not sold separatelyAdvance no number printed | 2 | Screw M8x40 Uni5739 SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 19 | Not sold separatelyAdvance no number printed | 4 | Bearing, .719 X .625 X .375Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 20 | Not sold separatelyAdvance no number printed | 1 | KnobFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Knob Kit-Side Wiper 56116983. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 21 | Not sold separatelyAdvance no number printed | 4 | Screw M12x40 A2 Din93Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Screw M6x30 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Spacer 6.5x10x4.5Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 24 | Not sold separatelyAdvance no number printed | 8 | Washer, Flat 13.0x24.0x2.5 SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 25 | Not sold separatelyAdvance no number printed | 1 | Screw M6x16 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 26 | Not sold separatelyAdvance no number printed | 2 | Spacer 6.1 X 10 X 6.5Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Latch SqueegeeFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 28 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 29 | Not sold separatelyAdvance no number printed | 4 | Nut Hex M8 Uni5589 SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M6 SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 31 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SsFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 32 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M4 SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 33 | Not sold separatelyAdvance no number printed | 3 | Washer Flat Xl 6x18x1.5 - SSFits SC6000 34D, SC6000 40D. Right side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| – | AD56116981Advance 56116981 | 1 | Level Adjust Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K8. Contains items 1, 2, 10, 12, 18, 29. | $121.15/EA |
| – | AD56116983Advance 56116983 | 1 | Knob Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K9. Contains items 15, 20. | $53.48/EA |
| – | AD56116982Advance 56116982 | 1 | Hardware Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K12. Contains items 1, 7, 18, 19, 20, 21, 22, 23, 24, 25, 26, 28, 29, 30, 33. | $86.55/EA |
| – | AD56116706Advance 56116706 | 1 | Side Blade Kit-LinatexFits SC6000 34D, SC6000 40D. Service kit K14. Contains item 6. | $188.85/EA |
| – | AD56116709Advance 56116709 | 1 | Side Blade Kit-PUFits SC6000 34D, SC6000 40D. Service kit K15. Contains item *. | $298.49/EA |
| – | AD56116929Advance 56116929 | 1 | Strap Kit-Both Sides-DiscFits SC6000 34D, SC6000 40D. Service kit K31. Contains items 5, 27, 31, 32. | $211.28/EA |
| – | AD56116215Advance 56116215 | 1 | Side Blade Assembly-LeftFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $1,424.90/EA |
| 1 | Not sold separatelyAdvance no number printed | 1 | Screw M8x25 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Joint M8Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 3 | AD56116217Advance 56116217 | 1 | Side Blade Mount Weldment-LeftFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $160.57/EA |
| 4 | AD56116223Advance 56116223 | 1 | Side Blade Support Weldt-LeftFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $276.66/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | Strap-Side Blade-LeftFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-LinatexFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Side Blade Kit-Linatex 56116706. | Not sold separately. Order Side Blade Kit-Linatex (AD56116706) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Deck-PUFits SC6000 34D, SC6000 40D. Left side blade assembly list. Optional, not included (printed *). Included in Side Blade Kit-PU 56116709. | Not sold separately. Order Side Blade Kit-PU (AD56116709) |
| 7 | Not sold separatelyAdvance no number printed | 4 | Bushing-Sleeve-.507x.625x.527Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 8 | AD56116233Advance 56116233 | 1 | Arm-Side Blade-RearFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $44.75/EA |
| 9 | AD56116234Advance 56116234 | 1 | Arm-Side Blade-FrontFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $31.05/EA |
| 10 | Not sold separatelyAdvance no number printed | 1 | Rod End-M8-LhFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 11 | AD56116237Advance 56116237 | 1 | Latch-Double Scrub-LeftFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $36.67/EA |
| 12 | Not sold separatelyAdvance no number printed | 1 | Rod-ThreadedFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 13 | AD56116239Advance 56116239 | 1 | Spring-Extension-0.75x2.96inFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $14.70/EA |
| 14 | AD56116240Advance 56116240 | 1 | Clip-Spring AdjustmentFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $31.05/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Knob AssemblyFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Knob Kit-Side Wiper 56116983. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 16 | AD56116846Advance 56116846 | 1 | Spring-Extension 0.75x3.00inFits SC6000 34D, SC6000 40D. Left side blade assembly list. | $10.30/EA |
| 18 | Not sold separatelyAdvance no number printed | 2 | Screw M8x40 Uni5739 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 19 | Not sold separatelyAdvance no number printed | 4 | Bearing, .719 X .625 X .375Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 20 | Not sold separatelyAdvance no number printed | 1 | KnobFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Knob Kit-Side Wiper 56116983. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Knob Kit-Side Wiper (AD56116983) |
| 21 | Not sold separatelyAdvance no number printed | 4 | Screw M12x40 A2 Din93Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Screw M6x30 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Spacer 6.5x10x4.5Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 24 | Not sold separatelyAdvance no number printed | 8 | Washer, Flat 13.0x24.0x2.5 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 25 | Not sold separatelyAdvance no number printed | 1 | Screw M6x16 Hex Hd F/Thd SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 26 | Not sold separatelyAdvance no number printed | 2 | Spacer 6.1 X 10 X 6.5Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Latch SqueegeeFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 28 | Not sold separatelyAdvance no number printed | 4 | Nut, Hex Nyl Loc M12 S.S.Fits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 29 | Not sold separatelyAdvance no number printed | 4 | Nut Hex M8 Uni5589 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Level Adjust Kit-Side Wiper 56116981. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Level Adjust Kit-Side Wiper (AD56116981) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M6 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| 31 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 32 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M4 SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Strap Kit-Both Sides-Disc 56116929. | Not sold separately. Order Strap Kit-Both Sides-Disc (AD56116929) |
| 33 | Not sold separatelyAdvance no number printed | 3 | Washer Flat Xl 6 x 18 x 1.5 - SSFits SC6000 34D, SC6000 40D. Left side blade assembly list. Included in Hardware Kit-Side Wiper 56116982. | Not sold separately. Order Hardware Kit-Side Wiper (AD56116982) |
| – | AD56116981Advance 56116981 | 1 | Level Adjust Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K8. Contains items 1, 2, 10, 12, 18, 29. | $121.15/EA |
| – | AD56116983Advance 56116983 | 1 | Knob Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K9. Contains items 15, 20. | $53.48/EA |
| – | AD56116982Advance 56116982 | 1 | Hardware Kit-Side WiperFits SC6000 34D, SC6000 40D. Service kit K12. Contains items 1, 7, 18, 19, 20, 21, 22, 23, 24, 25, 26, 28, 29, 30, 33. | $86.55/EA |
| – | AD56116706Advance 56116706 | 1 | Side Blade Kit-LinatexFits SC6000 34D, SC6000 40D. Service kit K14. Contains item 6. | $188.85/EA |
| – | AD56116709Advance 56116709 | 1 | Side Blade Kit-PUFits SC6000 34D, SC6000 40D. Service kit K15. Contains item *. | $298.49/EA |
| – | AD56116929Advance 56116929 | 1 | Strap Kit-Both Sides-DiscFits SC6000 34D, SC6000 40D. Service kit K31. Contains items 5, 27, 31, 32. | $211.28/EA |
Advance SC6000 scrub system-disc-right door assembly-34D parts
The 34D right scrub deck door: door weldment, latch, striker, skid plates and the door kits. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | Ejot 3.5x8 Wn1411Fits SC6000 34D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/Thd Iso4017Fits SC6000 34D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Fits SC6000 34D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Shaft Ring D.12Fits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 6 | AD56116417Advance 56116417 | 1 | Door Weldment-Right-34dFits SC6000 34D. | $698.37/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-34dFits SC6000 34D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-Front-34dFits SC6000 34D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Pin-Door RollerFits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Door Striker Weldment-RightFits SC6000 34D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Handle-LatchFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 12 | AD56116465Advance 56116465 | 1 | Mat-DoorFits SC6000 34D. | $16.09/EA |
| 13 | Not sold separatelyAdvance no number printed | 4 | Washer-TabFits SC6000 34D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Wheel, RollerFits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Screw M6x30 Hex Hd F/Thd Ss Iso4017Fits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 34D. Service kit K4. Contains items 5, 11, 15, 16. | $205.95/EA |
| – | AD56116980Advance 56116980 | 1 | Roller Kit-Both SidesFits SC6000 34D. Service kit K5. Contains items 4, 9, 14. | $254.81/EA |
| – | AD56116899Advance 56116899 | 1 | Striker Kit-RightFits SC6000 34D. Service kit K6. Contains items 2, 3, 10. | $91.42/EA |
| – | AD56116900Advance 56116900 | 1 | Skid Plate KitFits SC6000 34D. Service kit K7. Contains items 1, 7, 8, 13. | $167.59/EA |
Advance SC6000 scrub system-disc-left door assembly-34D parts
The 34D left scrub deck door: door weldment, latch, striker, handle and the door kits. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/ThdFits SC6000 34D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Fits SC6000 34D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Pin- Bow-Tie Cotter 7/16 - 1/2Fits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 5 | AD56116418Advance 56116418 | 1 | Door Weldment-Left-34dFits SC6000 34D. | $668.85/EA |
| 6 | Not sold separatelyAdvance no number printed | 1 | Handle-LatchFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 7 | Not sold separatelyAdvance no number printed | 1 | Door Striker Weldment-LeftFits SC6000 34D. Included in Striker Kit-Left 56116898. | Not sold separately. Order Striker Kit-Left (AD56116898) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Pin-Clevis 12x120 Iso2341-BFits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Wheel, RollerFits SC6000 34D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 10 | Not sold separatelyAdvance no number printed | 2 | Screw M6x30 Hex Hd F/Thd SsFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 11 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 12 | Not sold separatelyAdvance no number printed | 1 | Scr, Pan Phil M6x12Fits SC6000 34D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| – | AD56116898Advance 56116898 | 1 | Striker Kit-LeftFits SC6000 34D. Service kit K3. Contains items 1, 2, 7. | $130.92/EA |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 34D. Service kit K4. Contains items 3, 6, 10, 11, 12. | $205.95/EA |
| – | AD56116980Advance 56116980 | 1 | Roller Kit-Both SidesFits SC6000 34D. Service kit K5. Contains items 4, 8, 9. | $254.81/EA |
Advance SC6000 scrub system-disc-right door assembly-40D parts
The 40D right scrub deck door: door weldment, latch, striker, skid plates and the door kits. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | Ejot 3.5x8 Wn1411Fits SC6000 40D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Screw M8x20 Hex Hd F/ThdFits SC6000 40D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8.4x16x1.6Fits SC6000 40D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Shaft Ring D.12Fits SC6000 40D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Latch RotaryFits SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 6 | AD56116415Advance 56116415 | 1 | Door Weldment-Right-40dFits SC6000 40D. | $676.53/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-34dFits SC6000 40D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Skid Plate-Right-Front-36cFits SC6000 40D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Pin-Door RollerFits SC6000 40D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Door Striker Weldment-RightFits SC6000 40D. Included in Striker Kit-Right 56116899. | Not sold separately. Order Striker Kit-Right (AD56116899) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Handle-LatchFits SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 12 | AD56116720Advance 56116720 | 1 | Mat-DoorFits SC6000 40D. | $23.35/EA |
| 13 | Not sold separatelyAdvance no number printed | 4 | Washer-TabFits SC6000 40D. Included in Skid Plate Kit 56116900. | Not sold separately. Order Skid Plate Kit (AD56116900) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Wheel, RollerFits SC6000 40D. Included in Roller Kit-Both Sides 56116980. | Not sold separately. Order Roller Kit-Both Doors (AD56116980) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Screw M6x30 Hex Hd F/Thd SsFits SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M6 SsFits SC6000 40D. Included in Latch Kit 56116979. | Not sold separately. Order Latch Kit (AD56116979) |
| – | AD56116979Advance 56116979 | 1 | Latch KitFits SC6000 40D. Service kit K4. Contains items 5, 11, 15, 16. | $205.95/EA |
| – | AD56116980Advance 56116980 | 1 | Roller Kit-Both SidesFits SC6000 40D. Service kit K5. Contains items 4, 9, 14. | $254.81/EA |
| – | AD56116899Advance 56116899 | 1 | Striker Kit-RightFits SC6000 40D. Service kit K6. Contains items 2, 3, 10. | $91.42/EA |
| – | AD56116900Advance 56116900 | 1 | Skid Plate KitFits SC6000 40D. Service kit K7. Contains items 1, 7, 8, 13. | $167.59/EA |
Advance SC6000 solution system parts
The solution tank and level sensor, filter bracket, ball valve, cap, hoses, filter parts and the drain hose, filter and hardware kits. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | O-Ring 5X20 Metric NBR 70SHIncluded in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 2 | AD56116083Advance 56116083 | 1 | Tank-Solution | $2,834.97/EA |
| 3 | AD56116101Advance 56116101 | 1 | Cross Bar | $465.40/EA |
| 4 | AD56116372Advance 56116372 | 1 | Sensor-Solution Level (S7) | $290.81/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | Hose-DrainIncluded in Drain Hose Kit 56116923. | Not sold separately. Order Drain Hose Kit (AD56116923) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Washer-Cosmetic-Ss-M8Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 7 | AD56116658Advance 56116658 | 1 | Bracket-Filter Mount | $8.80/EA |
| 8 | AD56116664Advance 56116664 | 1 | Hose-20x26x52mm | $5.91/EA |
| 9 | AD56116666Advance 56116666 | 1 | Panel-Cover | $59.88/EA |
| 10 | AD56116721Advance 56116721 | 1 | Grommet-.59x.78x.62 | $5.91/EA |
| 11 | AD56116759Advance 56116759 | 1 | Valve-Ball- 5/8x3/4in Brb | $182.30/EA |
| 12 | AD56116763Advance 56116763 | 1 | Solution Cap Assembly | $104.96/EA |
| – | AD56116683Advance 56116683 | 1 | Gasket-Solution CapNot shown on the drawing (printed [ ]). | $5.91/EA |
| 13 | AD56116790Advance 56116790 | 1 | Support-Seat | $52.74/EA |
| 14 | Not sold separatelyAdvance no number printed | 2 | Screw M8x80 Din7991 Ss BlackIncluded in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 15 | AD56116931Advance 56116931 | 1 | Seal-Tank Gap | $7.29/EA |
| 16 | AD56116934Advance 56116934 | 1 | Hose-Manifold Assembly | $114.00/EA |
| 17 | Not sold separatelyAdvance no number printed | 1 | Clip-Drain HoseIncluded in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 18 | Not sold separatelyAdvance no number printed | 1 | Cap, Pipe Ght NylonIncluded in Drain Hose Kit 56116923. | Not sold separately. Order Drain Hose Kit (AD56116923) |
| 19 | Not sold separatelyAdvance no number printed | 1 | Washer-RubberIncluded in Drain Hose Kit 56116923. | Not sold separately. Order Drain Hose Kit (AD56116923) |
| 20 | Not sold separatelyAdvance no number printed | 1 | Barb, Adapter 3/4 X 3/4ghtIncluded in Drain Hose Kit 56116923. | Not sold separately. Order Drain Hose Kit (AD56116923) |
| 21 | Not sold separatelyAdvance no number printed | 9 | Screw M8x16 Hex Hd F/Thd Ss Iso4017Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 22 | Not sold separatelyAdvance no number printed | 2 | Screw M8x80 Hex Hd F/Thd Iso4017Included in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 23 | Not sold separatelyAdvance no number printed | 4 | Washer Flat Xl 8.5x36.0x3.0Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 24 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 5.5x15.0x1.6 SsIncluded in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 25 | Not sold separatelyAdvance no number printed | 9 | Screw M5x12 Hex Hd F/Thd Iso4017Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 26 | Not sold separatelyAdvance no number printed | 5 | Washer 8x24x2 Uni6593 SsIncluded in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 27 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc M8 SsIncluded in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 28 | Not sold separatelyAdvance no number printed | 2 | Elbow Ø20Included in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Filter WaterIncluded in Filter Kit 56118174. | Not sold separately. Order Filter Kit (AD56118174) |
| 30 | AD9097943000Advance 9097943000 | 1 | Gasket | $10.30/EA |
| 31 | AD9097944000Advance 9097944000 | 1 | Screen-Filter | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | AD9097945000Advance 9097945000 | 1 | Cap with Seal-Solution Filter | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | Not sold separatelyAdvance no number printed | 1 | Clamp Cable D.16Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 34 | Not sold separatelyAdvance no number printed | 2 | Clamp, Cable Ø12.7Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Hardware Kit-Solution System (AD56116925) |
| 35 | Not sold separatelyAdvance no number printed | 6 | Clamp, Hose 15-24 Size8Included in Drain Hose Kit 56116923. Included in Filter Kit 56118174. Included in Hardware Kit-Solution System 56116925. | Not sold separately. Order Drain Hose Kit (AD56116923) |
| – | AD56116923Advance 56116923 | 1 | Drain Hose KitService kit K1. Contains items 5, 18, 19, 20, 35. | $106.33/EA |
| – | AD56118174Advance 56118174 | 1 | Filter KitService kit K2. Contains items 1, 17, 22, 27, 28, 29, 35. | $104.54/EA |
| – | AD56116925Advance 56116925 | 1 | Hardware Kit-Solution SystemService kit K3. Contains items 6, 14, 21, 23, 24, 25, 26, 33, 34, 35. | $73.23/EA |
Advance SC6000 squeegee system parts
The squeegee mount, arm, casters, springs and the squeegee assemblies for both squeegee sizes. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | Countersunk Screw M4x12Included in Squeegee Wear Plate Kit 56116895. | Not sold separately. Order Squeegee Wear Plate Kit (AD56116895) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Nut-Hex 220x1.5 Iso8673 8.8Included in Squeegee Mount Rod End Kit 56116896. | Not sold separately. Order Squeegee Mount Rod End Kit (AD56116896) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Thin M8Included in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Screw M10x45 Hex Hd F/Thd Ss Iso4017Included in Hardware Kit-Squeegee 56116893. | Not sold separately. Order Hardware Kit-Squeegee (AD56116893) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Rod End-20mmIncluded in Squeegee Mount Rod End Kit 56116896. | Not sold separately. Order Squeegee Mount Rod End Kit (AD56116896) |
| 6 | AD56116393Advance 56116393 | 1 | Mount-Squeegee | $167.59/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Pin-Squeegee TiltIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 8 | AD56116398Advance 56116398 | 1 | Squeegee Arm Weldment | $378.03/EA |
| 9 | AD56116399Advance 56116399 | 1 | Squeegee Assembly-J 34D Disc ModelFits SC6000 34D. Includes Linard and Linatex rubber blades. | $1,990.90/EA |
| 9 | AD56116400Advance 56116400 | 1 | Squeegee Assembly-K 36C Cylindrical Model & 40D Disc ModelFits SC6000 36C, SC6000 40D. Printed under item 9 with no item number; alternative to the line above. Includes Linard and Linatex rubber blades. | $1,890.30/EA |
| 10 | Not sold separatelyAdvance no number printed | 1 | Wear Plate-SqueegeeIncluded in Squeegee Wear Plate Kit 56116895. | Not sold separately. Order Squeegee Wear Plate Kit (AD56116895) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Spacer-Squeegee TiltIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Bearing-Flange-14x16x17mmIncluded in Hardware Kit-Squeegee 56116893. | Not sold separately. Order Hardware Kit-Squeegee (AD56116893) |
| 13 | Not sold separatelyAdvance no number printed | 2 | BushingIncluded in Hardware Kit-Squeegee 56116893. | Not sold separately. Order Hardware Kit-Squeegee (AD56116893) |
| 14 | AD56116545Advance 56116545 | 2 | Knob-M12-Lobe | $24.72/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Knob-M8-Lobe ShortIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 16 | Not sold separatelyAdvance no number printed | 1 | Washer-Bevel-8.2x20x0.7x1.35mmIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Screw M20x1.5x30 Uni5740 SSIncluded in Squeegee Mount Rod End Kit 56116896. | Not sold separately. Order Squeegee Mount Rod End Kit (AD56116896) |
| 18 | Not sold separatelyAdvance no number printed | 1 | Tilt Rod AssemblyIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 19 | AD56116907Advance 56116907 | 2 | Caster Assembly | $314.73/EA |
| 20 | AD56116974Advance 56116974 | 2 | Spring-Extension | $23.35/EA |
| 21 | Not sold separatelyAdvance no number printed | 2 | Nut Hex Hvy M8Included in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 22 | Not sold separatelyAdvance no number printed | 2 | Nut M10 Hex Loc Thin Ss Iso 10511Included in Hardware Kit-Squeegee 56116893. | Not sold separately. Order Hardware Kit-Squeegee (AD56116893) |
| 23 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8x17x1.6 SSIncluded in Squeegee Tilt Adjuster Kit 56116894. | Not sold separately. Order Squeegee Tilt Adjuster Kit (AD56116894) |
| 24 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 10x30x2.5-SSIncluded in Hardware Kit-Squeegee 56116893. | Not sold separately. Order Hardware Kit-Squeegee (AD56116893) |
| – | AD56116894Advance 56116894 | 1 | Squeegee Tilt Adjuster KitService kit K1. Contains items 3, 7, 11, 15, 16, 18, 21, 23. | $99.32/EA |
| – | AD56116895Advance 56116895 | 1 | Squeegee Wear Plate KitService kit K2. Contains items 1, 10. | $20.54/EA |
| – | AD56116896Advance 56116896 | 1 | Squeegee Mount Rod End KitService kit K3. Contains items 2, 5, 17. | $182.30/EA |
| – | AD56116893Advance 56116893 | 1 | Hardware Kit-SqueegeeService kit K6. Contains items 4, 12, 13, 22, 24. | $39.43/EA |
Advance SC6000 squeegee system-squeegee assy J-34D parts
Squeegee J, used on the 34D: the squeegee body, seal, blades, straps, wheels and the knob and roller kits. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Scr-Hex Thd/Hd Ss 5/16-18x3.75Fits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 2 | AD56116378Advance 56116378 | 1 | Squeegee-JFits SC6000 34D. | $283.67/EA |
| 3 | AD56116388Advance 56116388 | 1 | Seal-SqueegeeFits SC6000 34D. | $10.30/EA |
| 4 | AD56116491Advance 56116491 | 2 | Insert-Squeegee Airflow-JFits SC6000 34D. | $64.01/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee Fr-Linard-JFits SC6000 34D. Included in Squeegee Blade Kit-Linatex J 56116704. All squeegee blade kits include both front and rear squeegee blades. | Not sold separately. Order Squeegee Blade Kit-Linatex J (AD56116704) |
| 6 | AD56116493Advance 56116493 | 1 | Blade-Squeegee- Linatex -Rr-JFits SC6000 34D. Also in Squeegee Blade Kit-Linatex J 56116704. All squeegee blade kits include both front and rear squeegee blades. | $108.65/EA |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee-PU J-FrontFits SC6000 34D. Optional, not included (printed *). Included in Squeegee Blade Kit-PU J 56116707. All squeegee blade kits include both front and rear squeegee blades. | Not sold separately. Order Squeegee Blade Kit-PU J (AD56116707) |
| – | AD56116702Advance 56116702 | 1 | Blade-Squeegee-PU J-RearFits SC6000 34D. Optional, not included (printed *). Also in Squeegee Blade Kit-PU J 56116707. All squeegee blade kits include both front and rear squeegee blades. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD56116497Advance 56116497 | 1 | Squeegee Strap Assembly-Rr-JFits SC6000 34D. | $132.86/EA |
| 8 | AD56116498Advance 56116498 | 1 | Squeegee Strap Weldment-Fr-JFits SC6000 34D. | $204.13/EA |
| 9 | Not sold separatelyAdvance no number printed | 2 | Bushing-.344x.500x1.56inFits SC6000 34D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 10 | Not sold separatelyAdvance no number printed | 2 | Wheel 5.00 X 1.50Fits SC6000 34D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 11 | Not sold separatelyAdvance no number printed | 2 | Nut ThumbFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Handle LeverFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 13 | Not sold separatelyAdvance no number printed | 2 | Screw M8x55 Hex Hd F/Thd Ss Iso4017Fits SC6000 34D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Knob M8x30 Stainless SteelFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Screw Me8x40 Uni5739 SsFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8x17x1.6 SsFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 17 | Not sold separatelyAdvance no number printed | 2 | Nut Self L. 5/16 Unc SsFits SC6000 34D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 18 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl Uni-6593 8x24Fits SC6000 34D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| – | AD56116911Advance 56116911 | 1 | Squeegee Roller Kit-BothFits SC6000 34D. Service kit K4. Contains items 9, 10, 13, 18. | $132.37/EA |
| – | AD56116912Advance 56116912 | 1 | Squeegee Knob KitFits SC6000 34D. Service kit K5. Contains items 1, 11, 12, 14, 15, 16, 17. | $112.65/EA |
| – | AD56116704Advance 56116704 | 1 | Squeegee Blade Kit-Linatex JFits SC6000 34D. Service kit K7. Contains items 5, 6. | $141.34/EA |
| – | AD56116707Advance 56116707 | 1 | Squeegee Blade Kit-PU JFits SC6000 34D. Service kit K9. Contains items *, *. | $297.76/EA |
Advance SC6000 squeegee system-squeegee assy K-36C and 40D parts
Squeegee K, used on the 36C and 40D: the squeegee body, seal, blades, straps, wheels and the knob and roller kits. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Scr-Hex Thd/Hd Ss 5/16-18x3.75Fits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee-Linard K-FrFits SC6000 36C, SC6000 40D. Included in Squeegee Blade Kit-Linatex K 56116705. All squeegee blade kits include both front and rear squeegee blades. | Not sold separately. Order Squeegee Blade Kit-Linatex K (AD56116705) |
| 3 | AD56116376Advance 56116376 | 1 | Blade-Squeegee-Linatex -Rr-KFits SC6000 36C, SC6000 40D. Also in Squeegee Blade Kit-Linatex K 56116705. All squeegee blade kits include both front and rear squeegee blades. | $135.85/EA |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee-PU K-FrontFits SC6000 36C, SC6000 40D. Optional, not included (printed *). Included in Squeegee Blade Kit-PU K 56116708. All squeegee blade kits include both front and rear squeegee blades. | Not sold separately. Order Squeegee Blade Kit-PU K (AD56116708) |
| – | AD56116700Advance 56116700 | 1 | Blade-Squeegee-PU K-RearFits SC6000 36C, SC6000 40D. Optional, not included (printed *). Also in Squeegee Blade Kit-PU K 56116708. All squeegee blade kits include both front and rear squeegee blades. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AD56116379Advance 56116379 | 1 | Squeegee-KFits SC6000 36C, SC6000 40D. | $333.06/EA |
| 5 | AD56116381Advance 56116381 | 1 | Squeegee Strap Assembly-Rr-KFits SC6000 36C, SC6000 40D. | $247.82/EA |
| 6 | AD56116382Advance 56116382 | 1 | Squeegee Strap Weldment-Fr-KFits SC6000 36C, SC6000 40D. | $174.60/EA |
| 7 | AD56116388Advance 56116388 | 1 | Seal-SqueegeeFits SC6000 36C, SC6000 40D. | $10.30/EA |
| 8 | AD56116492Advance 56116492 | 2 | Insert-Squeegee Airflow-KFits SC6000 36C, SC6000 40D. | $84.49/EA |
| 9 | Not sold separatelyAdvance no number printed | 2 | Bushing-.344x.500x1.56inFits SC6000 36C, SC6000 40D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 10 | Not sold separatelyAdvance no number printed | 2 | Wheel 5.00 X 1.50Fits SC6000 36C, SC6000 40D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 11 | Not sold separatelyAdvance no number printed | 2 | Nut ThumbFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Handle LeverFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 13 | Not sold separatelyAdvance no number printed | 2 | Screw M8x55 Hex Hd F/Thd Ss Iso4017Fits SC6000 36C, SC6000 40D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Knob M8x30 Stainless SteelFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Screw M8x40 Uni5739 SsFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 16 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 8x17x1.6 SsFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 17 | Not sold separatelyAdvance no number printed | 2 | Nut Self L. 5/16 Unc SsFits SC6000 36C, SC6000 40D. Included in Squeegee Knob Kit 56116912. | Not sold separately. Order Squeegee Knob Kit (AD56116912) |
| 18 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl Uni-6593 8x24Fits SC6000 36C, SC6000 40D. Included in Squeegee Roller Kit-Both 56116911. | Not sold separately. Order Squeegee Roller Kit-Both (AD56116911) |
| – | AD56116911Advance 56116911 | 1 | Squeegee Roller Kit-BothFits SC6000 36C, SC6000 40D. Service kit K4. Contains items 9, 10, 13, 18. | $132.37/EA |
| – | AD56116912Advance 56116912 | 1 | Squeegee Knob KitFits SC6000 36C, SC6000 40D. Service kit K5. Contains items 1, 11, 12, 14, 15, 16, 17. | $112.65/EA |
| – | AD56116705Advance 56116705 | 1 | Squeegee Blade Kit-Linatex KFits SC6000 36C, SC6000 40D. Service kit K8. Contains items 2, 3. | $147.57/EA |
| – | AD56116708Advance 56116708 | 1 | Squeegee Blade Kit-PU KFits SC6000 36C, SC6000 40D. Service kit K10. Contains items *, *. | $270.67/EA |
Advance SC6000 wheel system parts
The drive wheel with its brake, coupler, bearing and motor parts, the spindle plate, and the steering chain, spindle bearing and rear wheel kits. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Screw M10x25 Hex Hd F/ThdIncluded in Bearing Kit-Rear Wheel 56116033. Included in Rear Wheel Kit 56116919. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Bearing Kit-Rear Wheel (AD56116033) |
| 2 | Not sold separatelyAdvance no number printed | 4 | Screw M10x35 Hex Hd F/ThdIncluded in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Hardware Kit-Wheel System (AD56116917) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Pin Cotter 3 X 50 Iso 1324Included in Spindle Bearing Kit 56116918. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Wheel-Rear-Pu 12x3.5inIncluded in Rear Wheel Kit 56116919. | Not sold separately. Order Rear Wheel Kit (AD56116919) |
| 4a | Not sold separatelyAdvance no number printed | 2 | Bearing-Ball-1.378x2.835x.669Included in Bearing Kit-Rear Wheel 56116033. | Not sold separately. Order Bearing Kit-Rear Wheel (AD56116033) |
| 4b | Not sold separatelyAdvance no number printed | 1 | Seal-OilIncluded in Bearing Kit-Rear Wheel 56116033. | Not sold separately. Order Bearing Kit-Rear Wheel (AD56116033) |
| 5 | AD56116032Advance 56116032 | 2 | Cap-HubAlso in Bearing Kit-Rear Wheel 56116033. Also in Rear Wheel Kit 56116919. | $8.80/EA |
| 6 | AD56116305Advance 56116305 | 1 | Spindle Plate Weldment | $843.44/EA |
| 7 | AD56118189Advance 56118189 | 1 | Wheel-Drive-12in (M11)Revised or new since last update (printed #). | $3,993.11/EA |
| 7a | AD56118190Advance 56118190 | 1 | Wheel-Drive 12inRevised or new since last update (printed #). | $1,900.32/EA |
| 7b | AD56116806Advance 56116806 | 1 | Cover-Drive Coupler | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7c | AD56116807Advance 56116807 | 1 | Drive Coupler | $152.73/EA |
| 7d | AD56116809Advance 56116809 | 1 | Bearing-Drive Wheel | $196.45/EA |
| 7e | AD56118156Advance 56118156 | 1 | Parking Brake | $647.00/EA |
| 7f | AD56116811Advance 56116811 | 1 | Cover-Brake | $33.79/EA |
| 7g | AD56116812Advance 56116812 | 1 | Cover-Terminal | $33.79/EA |
| 7h | AD56118177Advance 56118177 | 1 | Drive Motor Encoder Kit | $1,890.30/EA |
| 7i | AD56412321Advance 56412321 | 1 | Shaft Seal-Drive Motor | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7j | AD56118178Advance 56118178 | 1 | Motor Screw Kit | $24.46/EA |
| 7k | AD56422174Advance 56422174 | 1 | Tire Puller Kit | $451.27/EA |
| 8 | Not sold separatelyAdvance no number printed | 1 | Washer-22x44x8mmIncluded in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Chain-RollerIncluded in Steering Chain Kit 56116916. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Chain Tensioner WeldmentIncluded in Steering Chain Kit 56116916. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Chain Guide WeldmentIncluded in Steering Chain Kit 56116916. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 12 | AD56116936Advance 56116936 | 1 | Bracket-Wire Guide | $29.53/EA |
| 13 | AD56483135Advance 56483135 | 1 | Cap, GreaseAlso in Spindle Bearing Kit 56116918. | $36.68/EA |
| 14 | Not sold separatelyAdvance no number printed | 1 | Bearing, CupIncluded in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 15 | Not sold separatelyAdvance no number printed | 1 | Bearing, ConeIncluded in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 16 | Not sold separatelyAdvance no number printed | 1 | Bearing, ConeIncluded in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Bearing, CupIncluded in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 18 | Not sold separatelyAdvance no number printed | 1 | Seal-Shaft-88.9x63.5x9.5Included in Spindle Bearing Kit 56116918. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 19 | Not sold separatelyAdvance no number printed | 5 | Screw M6x20 Hex Hd F/Thd Ss ISO4017Included in Steering Chain Kit 56116916. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 20 | Not sold separatelyAdvance no number printed | 1 | Washer Flat Xl 6.6x24.0x2.0 SsIncluded in Steering Chain Kit 56116916. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 21 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 11.0x40.0x3.0Included in Bearing Kit-Rear Wheel 56116033. Included in Rear Wheel Kit 56116919. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Bearing Kit-Rear Wheel (AD56116033) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Nut Hex M20x1.5 Uni5594Included in Spindle Bearing Kit 56116918. Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Spindle Bearing Kit (AD56116918) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Nut Hex M6 Uni5589 SsIncluded in Steering Chain Kit 56116916. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M6 SsIncluded in Steering Chain Kit 56116916. | Not sold separately. Order Steering Chain Kit (AD56116916) |
| 25 | Not sold separatelyAdvance no number printed | 1 | Clamp, Hose SupportIncluded in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Hardware Kit-Wheel System (AD56116917) |
| 26 | Not sold separatelyAdvance no number printed | 6 | Screw M6x20 Hex Hd F/Thd Ss ISO4017Included in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Hardware Kit-Wheel System (AD56116917) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Washer Flat Xl 6x18x1.5 – SsIncluded in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Hardware Kit-Wheel System (AD56116917) |
| 28 | Not sold separatelyAdvance no number printed | 1 | Bracket AlginmentIncluded in Hardware Kit-Wheel System 56116917. | Not sold separately. Order Hardware Kit-Wheel System (AD56116917) |
| – | AD56116916Advance 56116916 | 1 | Steering Chain KitService kit K1. Contains items 9, 10, 11, 19, 20, 23, 24. | $291.18/EA |
| – | AD56116918Advance 56116918 | 1 | Spindle Bearing KitService kit K2. Contains items 3, 8, 13, 14, 15, 16, 17, 18, 22. | $545.61/EA |
| – | AD56116033Advance 56116033 | 1 | Bearing Kit-Rear WheelService kit K3. Contains items 1, 4a, 4b, 5, 21. | $107.69/EA |
| – | AD56116919Advance 56116919 | 1 | Rear Wheel KitService kit K4. Contains items 1, 4, 5, 21. | $541.64/EA |
| – | AD56116917Advance 56116917 | 1 | Hardware Kit-Wheel SystemService kit K5. Contains items 1, 2, 3, 19, 20, 21, 22, 25, 26, 27, 28. | $27.75/EA |
Advance SC6000 ladder diagram component key parts
Advance's ladder diagram component key: each electrical component with its code and part number. The ladder diagrams are not reproduced here. Manual page 57.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| A1 | No number printedAdvance no number printed | 1 | Telematics Module (Optional)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| A10 | AD56116518Advance 56116518 | 1 | Smart Key | $42.89/EA |
| A11 | AD56118157Advance 56118157 | 1 | Foot Pedal | $454.36/EA |
| BT1 | N/A as printedAdvance N/A | 1 | Battery 36VDCNot sold separately (printed N/A). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| CB1 | AD56507644Advance 56507644 | 1 | 10amp Breaker | $23.35/EA |
| E1 | AD56315774Advance 56315774 | 1 | Battery Charger (Optional) | $1,287.69/EA |
| E2 | AD56118166Advance 56118166 | 1 | Main Control Board AssyRevised or new since last update (printed #). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| E3 | AD56116087Advance 56116087 | 1 | Power Module | $2,108.45/EA |
| E4 | AD56116131Advance 56116131 | 1 | Wheel Drive Controller | Call to confirm part: 800-440-6723Call 800-440-6723 |
| F1 | AD56115432Advance 56115432 | 1 | 150 Amp Fuse | $18.96/EA |
| H1 | AD56116375Advance 56116375 | 1 | Horn | $52.74/EA |
| H2 | AD56116374Advance 56116374 | 1 | Back-Up Alarm (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| J3 | AD56116601Advance 56116601 | 1 | USB (Optional) | $261.96/EA |
| K1 | AD40892AAdvance 40892A | 1 | Main Relay | $82.06/EA |
| K2 | AD56303198Advance 56303198 | 1 | Power Module Contactor | $182.30/EA |
| K3 | AD56303198Advance 56303198 | 1 | Speed Controller Contactor | $182.30/EA |
| L1 | AD56118184Advance 56118184 | 1 | Solenoid Valve | $95.04/EA |
| L2 | AD56397216Advance 56397216 | 1 | Valve-Solenoid-36VDC (Optional) | $167.59/EA |
| LP1 | AD56383032Advance 56383032 | 1 | Headlight (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| LP2 | AD56383032Advance 56383032 | 1 | Headlight (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| LP3 | AD56116353Advance 56116353 | 1 | Beacon, Flashing (Optional) | $320.34/EA |
| M1 | AD56116159Advance 56116159 | 1 | Motor, Right Brush Disc | $1,599.51/EA |
| M2 | AD56116159Advance 56116159 | 1 | Motor, Left Brush Disc | $1,599.51/EA |
| M3 | AD56116761Advance 56116761 | 1 | Side Sweep (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M4 | AD56116105Advance 56116105 | 1 | Motor, Vacuum 1 | $298.49/EA |
| M5 | AD56116105Advance 56116105 | 1 | Motor, Vacuum 2 (Optional) | $298.49/EA |
| M6 | AD56116781Advance 56116781 | 1 | Squeegee Actuator | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M7 | No number printedAdvance no number printed | 1 | Deck ActuatorNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M8 | AD56110742Advance 56110742 | 1 | Detergent Pump | $276.66/EA |
| M9 | AD56110742Advance 56110742 | 1 | Detergent Pump | $276.66/EA |
| M10 | AD56116767Advance 56116767 | 1 | Dust Guard Pump/ Wash Pump (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M11 | AD56118189Replaces Advance 56116309 | 1 | Drive Motorreplaces Advance 56116309. | $3,993.11/EA |
| S1 | AD7-82-00050Advance 7-82-00050 | 1 | SW, Seat | $21.85/EA |
| S2 | AD56104247Advance 56104247 | 1 | SW, Emergency | $78.84/EA |
| S3 | AD56104405Advance 56104405 | 1 | SW, Horn | Call to confirm part: 800-440-6723Call 800-440-6723 |
| S4 | AD56104405Advance 56104405 | 1 | SW, Bop | Call to confirm part: 800-440-6723Call 800-440-6723 |
| S5 | AD56104405Advance 56104405 | 1 | SW, Solution | Call to confirm part: 800-440-6723Call 800-440-6723 |
| S6 | AD56116842Advance 56116842 | 1 | Switch, Float | $92.18/EA |
| S7 | AD56116372Advance 56116372 | 1 | Level Sensor | $290.81/EA |
| S8 | AD56116784Advance 56116784 | 1 | Side Sweep (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC6000 options and accessories parts
The optional accessory kits Advance lists, from overhead guards and seat kits to smart keys. Manual page 62.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116152Advance 56116152 | 1 | Overhead Guard KitAccessory. Optional, not included (printed *). | $2,240.31/EA |
| – | AD56116280Advance 56116280 | 1 | Side Sweep KitAccessory. Optional, not included (printed *). | $969.65/EA |
| – | AD56116351Advance 56116351 | 1 | Back-Up Alarm KitAccessory. Optional, not included (printed *). | $219.23/EA |
| – | AD56116352Advance 56116352 | 1 | Beacon KitAccessory. Optional, not included (printed *). | $301.67/EA |
| – | AD56116355Advance 56116355 | 1 | Vacuum Wand KitAccessory. Optional, not included (printed *). | $981.05/EA |
| – | AD56116357Advance 56116357 | 1 | On Board Charger KitAccessory. Optional, not included (printed *). | $969.55/EA |
| – | AD56116358Advance 56116358 | 1 | Solution Auto Fill KitAccessory. Optional, not included (printed *). | $384.65/EA |
| – | AD56116359Advance 56116359 | 1 | Bumper Kit-Heavy Duty-FrontAccessory. Optional, not included (printed *). | $839.66/EA |
| – | AD56118297Replaces Advance 56116361 | 1 | Squeegee Guard KitAccessory. Optional, not included (printed *); replaces Advance 56116361. | $1,017.49/EA |
| – | AD56116364Advance 56116364 | 1 | Foot Guard KitAccessory. Optional, not included (printed *). | $201.50/EA |
| – | AD56116366Advance 56116366 | 1 | Deluxe Seat KitAccessory. Optional, not included (printed *). The Deluxe Seat Kit 56116366 contains a gas spring for machines built before serial number 3510173102367. | $1,170.58/EA |
| – | AD56116370Advance 56116370 | 1 | Dual Vacuum Motor KitAccessory. Optional, not included (printed *). | $768.71/EA |
| – | AD56116371Advance 56116371 | 1 | Headlight KitAccessory. Optional, not included (printed *). | $402.40/EA |
| – | AD56116512Advance 56116512 | 1 | Wash Hose KitAccessory. Optional, not included (printed *). | $1,040.58/EA |
| – | AD56116513Advance 56116513 | 1 | Dust Guard KitAccessory. Optional, not included (printed *). | $1,053.35/EA |
| – | AD56116517Advance 56116517 | 1 | EcoFlex KitAccessory. Optional, not included (printed *). | $2,326.02/EA |
| – | AD56116576Advance 56116576 | 1 | Weight Kit-Steering ColumnAccessory. Optional, not included (printed *). | $901.81/EA |
| – | AD56116600Advance 56116600 | 1 | Seat Kit-StandardAccessory. Optional, not included (printed *). | $364.02/EA |
| – | AD56116614Advance 56116614 | 1 | Battery Watering Kit-36VAccessory. Optional, not included (printed *). | $372.59/EA |
| – | AD56116615Advance 56116615 | 1 | Battery Watering AssemblyAccessory. Optional, not included (printed *). | $138.74/EA |
| – | AD56116619Advance 56116619 | 1 | Mop Holder KitAccessory. Optional, not included (printed *). | $113.92/EA |
| – | AD56116686Advance 56116686 | 1 | Overhead Guard Kit-ShortAccessory. Optional, not included (printed *). | $3,728.80/EA |
| – | AD56116731Advance 56116731 | 1 | TRACKCLEAN SC6000 KitAccessory. Optional, not included (printed *). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56116856Advance 56116856 | 1 | USB Kit TSB-FC-2017-033Accessory. Optional, not included (printed *). | $277.10/EA |
| – | AD56118147Advance 56118147 | 1 | Deluxe Seat Kit – No Prop RodAccessory. Optional, not included (printed *). The Deluxe Seat Kit 56118147-No Prop Rod kit is used only on machines built after serial number 3510173102366. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56383189Advance 56383189 | 1 | Arm Rest Kit-R/H OnlyAccessory. Optional, not included (printed *). | $90.04/EA |
| – | AD56383455Advance 56383455 | 1 | Seat Belt Kit-Standard SeatAccessory. Optional, not included (printed *). | $443.61/EA |
| – | AD56601410Advance 56601410 | 1 | Drain Hose ExtensionAccessory. Optional, not included (printed *). | $76.28/EA |
| – | AD56118079Advance 56118079 | 1 | Decal-ES KitAccessory. Optional, not included (printed *). | $413.80/EA |
| – | AD56116600Advance 56116600 | 1 | Seat Kit-StandardOption. | $364.02/EA |
| – | AD56116518Advance 56116518 | 1 | Smart Key-UserOption. | $42.89/EA |
| – | AD56116519Advance 56116519 | 1 | Smart Key-SupervisorOption. | $53.28/EA |
| – | AD56044693Advance 56044693 | 1 | Literature Pack ADVANCEOption. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC6000 options and accessories (continued): kits and brushes parts
Squeegee blade kits, side blade kits, disc and cylindrical brushes and the side sweep broom. Manual page 63.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116704Advance 56116704 | 1 | Squeegee Blade Kit-Linatex JFits SC6000 34D. 34D Squeegee Blade Kits for 56116378. All squeegee blade kits include both front and rear squeegee blades. | $141.34/EA |
| – | AD56116707Advance 56116707 | 1 | Squeegee Blade Kit-PU JFits SC6000 34D. 34D Squeegee Blade Kits for 56116378. Optional, not included (printed *). All squeegee blade kits include both front and rear squeegee blades. | $297.76/EA |
| – | AD56116705Advance 56116705 | 1 | Squeegee Blade Kit- Linatex KFits SC6000 36C, SC6000 40D. 36C & 40D Squeegee Blade Kits for 56116379. All squeegee blade kits include both front and rear squeegee blades. | $147.57/EA |
| – | AD56116708Advance 56116708 | 1 | Squeegee Blade Kit-PU KFits SC6000 36C, SC6000 40D. 36C & 40D Squeegee Blade Kits for 56116379. Optional, not included (printed *). All squeegee blade kits include both front and rear squeegee blades. | $270.67/EA |
| – | AD56116706Advance 56116706 | 1 | Side Blade Kit- LinatexScrub System Side Blade Kits for Cylindrical and Disc Decks. | $188.85/EA |
| – | AD56116709Advance 56116709 | 1 | Side Blade Kit-PUScrub System Side Blade Kits for Cylindrical and Disc Decks. Optional, not included (printed *). | $298.49/EA |
| – | AD56505780Advance 56505780 | 2 | Pad Holder-17 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $264.99/EA |
| – | AD56505781Advance 56505781 | 2 | Disc Brush-17 Magnagrit 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $408.60/EA |
| – | AD56505782Advance 56505782 | 2 | Disc Brush-17 Dynagrit 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $290.97/EA |
| – | AD56505783Advance 56505783 | 2 | Disc Brush-17 Aglite 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $236.02/EA |
| – | AD56505784Advance 56505784 | 2 | Disc Brush-17 Prolene 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $94.59/EA |
| – | AD56505785Advance 56505785 | 2 | Disc Brush-17 Prolite 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $88.51/EA |
| – | AD56505786Advance 56505786 | 2 | Disc Brush-17 Union Mix 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $113.81/EA |
| – | AD56505787Advance 56505787 | 2 | Disc Brush-17 Midgrit 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $256.79/EA |
| – | AD56505788Advance 56505788 | 2 | Disc Brush-17 Midlite 3 LugFits SC6000 34D. 34D Disc Scrub Brushes. Optional, not included (printed *). | $241.48/EA |
| – | AD56505790Advance 56505790 | 2 | Pad Holder-20 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $147.99/EA |
| – | AD56505791Advance 56505791 | 2 | Disc Brush-20 Magnagrit 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $464.05/EA |
| – | AD56505792Advance 56505792 | 2 | Disc Brush-20 Dyna Grit 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $339.23/EA |
| – | AD56505793Advance 56505793 | 2 | Disc Brush-20 Aglite 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $388.40/EA |
| – | AD56505794Advance 56505794 | 2 | Disc Brush-20 Prolene 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $123.37/EA |
| – | AD56505795Advance 56505795 | 2 | Disc Brush-20 Prolite 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $207.86/EA |
| – | AD56505796Advance 56505796 | 2 | Disc Brush-20 Union Mix 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $189.43/EA |
| – | AD56505797Advance 56505797 | 2 | Disc Brush-20 Midgrit 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $320.04/EA |
| – | AD56505798Advance 56505798 | 2 | Disc Brush-20 Midlite 3 LugFits SC6000 40D. 40D Disc Scrub Brushes. Optional, not included (printed *). | $368.18/EA |
| – | AD56116043Advance 56116043 | 2 | Brush-Cyl-Hard Nyl-Natural-7inFits SC6000 36C. 36C Cylindrical Scrub Brushes. Optional, not included (printed *). | $241.63/EA |
| – | AD56116044Advance 56116044 | 2 | Brush-Cyl-180 Grit-Blue-7inFits SC6000 36C. 36C Cylindrical Scrub Brushes. Optional, not included (printed *). | $380.84/EA |
| – | AD56116045Advance 56116045 | 2 | Brush-Cyl-80 Grit-Black-7inFits SC6000 36C. 36C Cylindrical Scrub Brushes. Optional, not included (printed *). | $380.84/EA |
| – | AD56116046Advance 56116046 | 2 | Brush-Cyl-Soft Nyl-Yellow-7inFits SC6000 36C. 36C Cylindrical Scrub Brushes. Optional, not included (printed *). | $380.84/EA |
| – | AD56116047Advance 56116047 | 2 | Brush-Cyl-Polypro-Red-7inFits SC6000 36C. 36C Cylindrical Scrub Brushes. Optional, not included (printed *). | $205.31/EA |
| – | AD56116858Advance 56116858 | 1 | Poly BroomSide Sweep Brush. Optional, not included (printed *). | $40.81/EA |
Advance SC6000 recommended spare parts: wear items
Advance's recommended wear spares: brushes, the side sweep broom and the side blade and squeegee blade kits. Manual page 64.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56505780Advance 56505780 | Brush Pad HolderFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $264.99/EA | |
| – | AD56505790Advance 56505790 | Brush Pad HolderFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $147.99/EA | |
| – | AD56505781Advance 56505781 | MagnaGritFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $408.60/EA | |
| – | AD56505791Advance 56505791 | MagnaGritFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $464.05/EA | |
| – | AD56505782Advance 56505782 | DynaGritFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $290.97/EA | |
| – | AD56505792Advance 56505792 | DynaGritFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $339.23/EA | |
| – | AD56505783Advance 56505783 | AgLiteFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $236.02/EA | |
| – | AD56505793Advance 56505793 | AgLiteFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $388.40/EA | |
| – | AD56505784Advance 56505784 | ProleneFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $94.59/EA | |
| – | AD56505794Advance 56505794 | ProleneFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $123.37/EA | |
| – | AD56505785Advance 56505785 | ProLiteFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $88.51/EA | |
| – | AD56505795Advance 56505795 | ProLiteFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $207.86/EA | |
| – | AD56505786Advance 56505786 | Union MixFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $113.81/EA | |
| – | AD56505796Advance 56505796 | Union MixFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $189.43/EA | |
| – | AD56505787Advance 56505787 | MidGritFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $256.79/EA | |
| – | AD56505797Advance 56505797 | MidGritFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $320.04/EA | |
| – | AD56505788Advance 56505788 | MidLite GritFits SC6000 34D. Wear item. Brushes: Disc Scrub Brushes. | $241.48/EA | |
| – | AD56505798Advance 56505798 | MidLite GritFits SC6000 40D. Wear item. Brushes: Disc Scrub Brushes. | $368.18/EA | |
| – | AD56116046Advance 56116046 | Soft NylonFits SC6000 36C. Wear item. Brushes: Cylindrical Scrub Brushes. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56116043Advance 56116043 | Hard NylonFits SC6000 36C. Wear item. Brushes: Cylindrical Scrub Brushes. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56116047Advance 56116047 | ProleneFits SC6000 36C. Wear item. Brushes: Cylindrical Scrub Brushes. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56116044Advance 56116044 | 180 GritFits SC6000 36C. Wear item. Brushes: Cylindrical Scrub Brushes. | $380.84/EA | |
| – | AD56116045Advance 56116045 | 80 GritFits SC6000 36C. Wear item. Brushes: Cylindrical Scrub Brushes. | $380.84/EA | |
| – | AD56116858Advance 56116858 | Poly BroomFits SC6000 36C. Wear item. Brooms: Side Sweep. | $40.81/EA | |
| – | AD56116706Advance 56116706 | Kit, Linatex Side BladeFits SC6000 34D. Wear item. Deck Blades: Disc Deck Blade Kits. | $188.85/EA | |
| – | AD56116709Advance 56116709 | Kit, Polyurethane Side BladeFits SC6000 34D. Wear item. Deck Blades: Disc Deck Blade Kits. | $298.49/EA | |
| – | AD56116706Advance 56116706 | Kit, Linatex Side BladeFits SC6000 40D. Wear item. Deck Blades: Disc Deck Blade Kits. | $188.85/EA | |
| – | AD56116709Advance 56116709 | Kit, Poyurethane Side BladeFits SC6000 40D. Wear item. Deck Blades: Disc Deck Blade Kits. | $298.49/EA | |
| – | AD56116706Advance 56116706 | Kit, Linatex Side BladeFits SC6000 36C. Wear item. Deck Blades: Cylindrical Deck Blade Kits. | $188.85/EA | |
| – | AD56116709Advance 56116709 | Kit, Polyurethane Side BladeFits SC6000 36C. Wear item. Deck Blades: Cylindrical Deck Blade Kits. | $298.49/EA | |
| – | AD56116704Advance 56116704 | Kit, Linatex Squeegee BladeFits SC6000 34D. Wear item. Rear Squeegee Blades: Squeegee Blade Kits. | $141.34/EA | |
| – | AD56116707Advance 56116707 | Kit, Polyurethane Squeegee BladeFits SC6000 34D. Wear item. Rear Squeegee Blades: Squeegee Blade Kits. | $297.76/EA | |
| – | AD56116705Advance 56116705 | Kit, Linatex Squeegee BladeFits SC6000 36C, SC6000 40D. Wear item. Rear Squeegee Blades: Squeegee Blade Kits. | $147.57/EA | |
| – | AD56116708Advance 56116708 | Kit, Polyurethane Squeegee BladeFits SC6000 36C, SC6000 40D. Wear item. Rear Squeegee Blades: Squeegee Blade Kits. | $270.67/EA |
Advance SC6000 recommended spare parts: periodic service items and spares
Advance's recommended periodic service spares, grouped by system and marked Class O (ordinary) or Class E (extra-ordinary) maintenance. Manual page 65.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116781Advance 56116781 | Actuator-SqueegeeClass E, extra-ordinary maintenance. Chassis. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56118157Advance 56118157 | Foot Pedal AssyClass E, extra-ordinary maintenance. Control System. | $454.36/EA | |
| – | AD56116056Advance 56116056 | Membrane Panel AssemblyClass E, extra-ordinary maintenance. Control System. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56118166Advance 56118166 | Main Control Board AssemblyClass E, extra-ordinary maintenance. Revised or new since last update (printed #). Control System. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56116477Advance 56116477 | Ibutton-ProbeClass E, extra-ordinary maintenance. Control System. | $74.61/EA | |
| – | AD56116518Advance 56116518 | Smart Key-UserClass O, ordinary maintenance. Control System. | $42.89/EA | |
| – | AD56116519Advance 56116519 | Smart Key-SupervisorClass O, ordinary maintenance. Control System. | $53.28/EA | |
| – | AD56507644Advance 56507644 | Circuit Breaker 10 AmpClass E, extra-ordinary maintenance. Control System. | $23.35/EA | |
| – | AD40892AAdvance 40892A | Relay Dpdt 36vdcClass E, extra-ordinary maintenance. Control System. | $82.06/EA | |
| – | AD7-82-00050Advance 7-82-00050 | Switch SeatClass E, extra-ordinary maintenance. Control System. | $21.85/EA | |
| – | AD56317072Advance 56317072 | Gas SpringClass E, extra-ordinary maintenance. Control System. | $57.03/EA | |
| – | AD56116087Advance 56116087 | Module-High PowerClass E, extra-ordinary maintenance. Electrical System. | $2,108.45/EA | |
| – | AD56116131Advance 56116131 | Speed ControlClass E, extra-ordinary maintenance. Electrical System. | $3,344.05/EA | |
| – | AD56115432Advance 56115432 | Fuse-150 AmpClass O, ordinary maintenance. Electrical System. | $18.96/EA | |
| – | AD56303198Advance 56303198 | Contactor 36v Type 4Class O, ordinary maintenance. Electrical System. | $182.30/EA | |
| – | AD56116500Advance 56116500 | Drain Hose AssemblyClass O, ordinary maintenance. Recovery System. | $125.28/EA | |
| – | AD56116537Advance 56116537 | Squeegee Hose AssemblyClass O, ordinary maintenance. Recovery System. | $189.43/EA | |
| – | AD56116698Advance 56116698 | Gasket-Vacuum CoverClass O, ordinary maintenance. Recovery System. | $182.30/EA | |
| – | AD56116722Advance 56116722 | Debris Tray AssemblyClass O, ordinary maintenance. Recovery System. | $31.05/EA | |
| – | AD56116842Advance 56116842 | Switch-Float Mechanical 120vClass E, extra-ordinary maintenance. Recovery System. | $92.18/EA | |
| – | AD56116392Advance 56116392 | Screen-FilterClass O, ordinary maintenance. Recovery System. | $39.43/EA | |
| – | AD56116394Advance 56116394 | Filter-Vacuum InletClass O, ordinary maintenance. Recovery System. | $7.29/EA | |
| – | AD56116104Advance 56116104 | Cover-Vacuum MotorClass O, ordinary maintenance. Recovery System. | $392.85/EA | |
| – | AD56118005Advance 56118005 | Seal-Vacuum BlockClass O, ordinary maintenance. Recovery System. | $25.70/EA | |
| – | AD56116105Advance 56116105 | Motor-Vacuum 36vdcClass O, ordinary maintenance. Recovery System. | $298.49/EA | |
| – | AD56116107Advance 56116107 | Vacuum Motor Brush KitClass O, ordinary maintenance. Recovery System. | $17.46/EA | |
| – | AD56116486-SPReplaces Advance 56116486 | Seal-Recovery CoverClass O, ordinary maintenance. Recovery System; replaces Advance 56116486. | $37.87/EA | |
| – | AD33003458Advance 33003458 | Clamp 60-80Class O, ordinary maintenance. Recovery System. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56116105Advance 56116105 | Motor-Vacuum 36vdcClass O, ordinary maintenance. Recovery System. | $298.49/EA | |
| – | AD56116107Advance 56116107 | Vacuum Motor Brush KitClass O, ordinary maintenance. Recovery System. | $17.46/EA | |
| – | AD56116922Advance 56116922 | Vacuum Motor Seal KitClass O, ordinary maintenance. Recovery System. | $225.98/EA | |
| – | AD56118308Replaces Advance 56118041 | Actuator Assembly-Heavy Duty (All)Class O, ordinary maintenance. Scrub System; replaces Advance 56118041. | $224.55/EA | |
| – | AD56116159Advance 56116159 | Motor-36vdc-1900rpm-1hp (36C)Fits SC6000 36C. Class E, extra-ordinary maintenance. Scrub System. | $1,599.51/EA | |
| – | AD56422152Advance 56422152 | Kit Wheel Drive Brushes (All)Class O, ordinary maintenance. Scrub System. | $160.57/EA | |
| – | AD56116032Advance 56116032 | Cap-HubClass E, extra-ordinary maintenance. Scrub System. | $8.80/EA | |
| – | AD56116545Advance 56116545 | Knob-M12-Lobe Disc (34D, 40D)Fits SC6000 34D, SC6000 40D. Class O, ordinary maintenance. Scrub System. | $24.72/EA | |
| – | AD56116213Advance 56116213 | Gearmotor-36vdc-250rpm-1.0hp Disc (34D, 40D)Fits SC6000 34D, SC6000 40D. Class E, extra-ordinary maintenance. Scrub System. | $1,744.56/EA | |
| – | AD56601276Advance 56601276 | Brush Plate Assembly Disc (34D, 40D)Fits SC6000 34D, SC6000 40D. Class O, ordinary maintenance. Scrub System. | $121.15/EA | |
| – | AD56601384Advance 56601384 | Brush Plate Assembly Disc (34D, 40D)Fits SC6000 34D, SC6000 40D. Class O, ordinary maintenance. Scrub System. | $121.15/EA | |
| – | AD56116979Advance 56116979 | Latch KitClass O, ordinary maintenance. Scrub System. | $205.95/EA | |
| – | AD56116983Advance 56116983 | Knob Kit-Side WiperClass O, ordinary maintenance. Scrub System (continued). | $53.48/EA | |
| – | AD56116929Advance 56116929 | Disk Strap Kit-Both Sides Disc (34D, 40D)Fits SC6000 34D, SC6000 40D. Class O, ordinary maintenance. Scrub System (continued). | $211.28/EA | |
| – | AD56116877Advance 56116877 | Latch Kit-Both Sides (36C)Fits SC6000 36C. Class O, ordinary maintenance. Scrub System (continued). | $125.32/EA | |
| – | AD56116885Advance 56116885 | Belt Kit-Both Sides (36C)Fits SC6000 36C. Class E, extra-ordinary maintenance. Scrub System (continued). | $137.23/EA | |
| – | AD56116890Advance 56116890 | Hub Kit (36C)Fits SC6000 36C. Class E, extra-ordinary maintenance. Scrub System (continued). | $162.58/EA | |
| – | AD56116887Advance 56116887 | Sheave Kit (36C)Fits SC6000 36C. Class E, extra-ordinary maintenance. Scrub System (continued). | $269.64/EA | |
| – | AD56116889Advance 56116889 | Idler Housing Kit (36C)Fits SC6000 36C. Class E, extra-ordinary maintenance. Scrub System (continued). | $232.96/EA | |
| – | AD56116984Advance 56116984 | Cylinder Strap Kit-Both Sides (36C)Fits SC6000 36C. Class O, ordinary maintenance. Scrub System (continued). | $487.93/EA | |
| – | AD56116759Advance 56116759 | Valve-Ball-5/8x3/4in BrbClass E, extra-ordinary maintenance. Solution System. | $182.30/EA | |
| – | AD9097944000Advance 9097944000 | Filter Net Ss 50 Mesh ForClass O, ordinary maintenance. Solution System. | $23.01/EA | |
| – | AD9097945000Advance 9097945000 | Cap With Seal-Solution FilterClass E, extra-ordinary maintenance. Solution System. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD9097943000Advance 9097943000 | Gasket For Water FilterClass O, ordinary maintenance. Solution System. | $10.30/EA | |
| – | AD56104408Advance 56104408 | Chemical Bottle AssyClass O, ordinary maintenance. Solution System. | $82.53/EA | |
| – | AD56110742Advance 56110742 | Pump Detergent 12vClass E, extra-ordinary maintenance. Solution System. | $276.66/EA | |
| – | AD9100001512Advance 9100001512 | Cap Plastic F Chemical TankClass O, ordinary maintenance. Solution System. | $7.29/EA | |
| – | AD56315523Advance 56315523 | Cap Dry Break 1/8 BarbClass O, ordinary maintenance. Solution System. | $32.42/EA | |
| – | AD56116923Advance 56116923 | Drain Hose KitClass O, ordinary maintenance. Solution System. | $106.33/EA | |
| – | AD56118174Replaces Advance 56116924 | Filter KitClass O, ordinary maintenance. Solution System; replaces Advance 56116924. | $104.54/EA | |
| – | AD56116875Advance 56116875 | Solenoid Valve KitClass O, ordinary maintenance. Solution System. | $225.98/EA | |
| – | AD56118185Advance 56118185 | Solenoid Seal Kit (for #56118184)Class O, ordinary maintenance. Revised or new since last update (printed #). Solution System. | $52.05/EA | |
| – | AD56116891Advance 56116891 | Solenoid Seal Kit (for #56116248)Class O, ordinary maintenance. Solution System. | $61.27/EA | |
| – | AD56116545Advance 56116545 | Knob-M12-LobeClass E, extra-ordinary maintenance. Squeegee System. | $24.72/EA | |
| – | AD56116907Advance 56116907 | Caster AssemblyClass O, ordinary maintenance. Squeegee System. | $314.73/EA | |
| – | AD56116894Advance 56116894 | Squeegee Tilt Adjuster KitClass O, ordinary maintenance. Squeegee System. | $99.32/EA | |
| – | AD56116912Advance 56116912 | Squeegee Knob Kit-BothClass E, extra-ordinary maintenance. Squeegee System. | $112.65/EA | |
| – | AD56116784Advance 56116784 | Sensor-ProximityClass E, extra-ordinary maintenance. Sweep System. | $240.12/EA | |
| – | AD56116761Advance 56116761 | Gear Motor-Sweep-RightClass E, extra-ordinary maintenance. Sweep System. | $858.13/EA | |
| – | AD56116897Advance 56116897 | Carbon Brushes KitClass O, ordinary maintenance. Sweep System. | $18.96/EA | |
| – | AD1463960000Advance 1463960000 | Clamp With PinClass O, ordinary maintenance. Sweep System. | $11.69/EA | |
| – | AD56483135Advance 56483135 | Cap GreaseClass E, extra-ordinary maintenance. Wheel & Brake System. | $36.68/EA | |
| – | AD56116032Advance 56116032 | Cap-HubClass E, extra-ordinary maintenance. Wheel & Brake System. | $8.80/EA | |
| – | AD56116809Advance 56116809 | Bearing-Drive WheelClass O, ordinary maintenance. Wheel & Brake System. | $196.45/EA | |
| – | AD56116811Advance 56116811 | Cover-BrakeClass E, extra-ordinary maintenance. Wheel & Brake System. | $33.79/EA | |
| – | AD56116916Advance 56116916 | Steering Chain KitClass E, extra-ordinary maintenance. Wheel & Brake System. | $291.18/EA | |
| – | AD56116918Advance 56116918 | Spindle Bearing KitClass E, extra-ordinary maintenance. Wheel & Brake System. | $545.61/EA | |
| – | AD56116033Advance 56116033 | Bearing Kit-Rear WheelClass E, extra-ordinary maintenance. Wheel & Brake System. | $107.69/EA | |
| – | AD56116919Advance 56116919 | Rear Wheel KitClass E, extra-ordinary maintenance. Wheel & Brake System. | $541.64/EA | |
| – | AD56116917Advance 56116917 | Hardware Kit-Wheel SystemClass E, extra-ordinary maintenance. Wheel & Brake System. | $27.75/EA |
New to your Advance SC6000? Start here
Set up, run and look after your SC6000. Everything here comes from Advance’s Instructions for Use, rewritten in plain steps, with the parts you need linked to the list above.
1Fill the tank and fit the squeegee
- Fill the solution tank with no more than 50 gal (190 L) of cleaning solution. Do not fill it above 2 in (5 cm) from the bottom of the solution fill.
- Mix water with the right cleaning chemical for the job and follow the dilution directions on the chemical label. Use only low-foaming, non-flammable liquid detergent made for machines. Keep the water at or below 130 °F (54.4 °C).
- Check that the squeegee seal (AD56116388) is clean and in place on the squeegee assembly. Lift the squeegee by its handles, slide it onto the squeegee mount and tighten the thumb nuts.
- Connect the squeegee hose (AD56116537) to the squeegee mount.
- Lower the squeegee and move ahead a little. The rear blade must touch the floor evenly across its whole width and bend over slightly. If it does not, adjust the angle and height.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 20 and 21. SES ref PF-7T5L-I56O
2Install the brushes
- Raise the scrub deck and turn the power switch off. Unlatch and swing open both scrub deck side doors.
- On a disc machine (34D or 40D), loosen the large knob on each side blade assembly, slide the assembly forward a little and take it off the deck. Lift each brush or pad holder, line up its lugs with the holes in the mounting plate and turn it to lock. Turn the outside edge of the brush toward the front of the machine.
- To use the automatic Brush Install feature instead, slide each brush under the deck until it touches both legs of the guide bar. Turn the machine on with the scrub system off and the machine in neutral, press the Brush Install switch and wait for the sequence to finish. Keep your hands and feet out from under the deck.
- On the cylindrical machine (36C), unlatch and swing open both side blade assemblies. Unhook the latch on top of each idler assembly and remove it. Slide the brush into the housing, lift slightly, then push and turn until the tabs on the drive hub seat in the notches in the brush.
- Put each idler assembly back with its tabs inside the weldment and secure it with the latch. Reinstall the side blade assemblies on a disc machine, then close the blade assemblies and the side doors.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 18 and 19. SES ref PF-7T5L-I56O
3Check, start and drive
- Check that the batteries are fully charged, the machine has no damage, the brushes and squeegee are installed, the solution tank is full and the recovery tank is empty. Report any damage to your supervisor.
- If your machine has a brake pedal, press it. The pedal must feel firm. If it reaches the end of its travel in the slot, do not operate the machine. Report the defect to service personnel right away.
- Adjust the seat and the steering column tilt. Place the magnetic SmartKey on the SmartKey reader and press the power switch.
- Read the battery indicator and the hour meter. Press the front of the drive pedal to go forward or the rear of the pedal to reverse. Change speed by changing the pressure on the pedal.
- Release the drive pedal to stop. In an emergency only, press the emergency stop switch to stop all machine functions. Turn it clockwise to reset.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 3 and 27. SES ref PF-7T5L-I56O
4Scrub and empty the recovery tank
- Press and hold the solution switch for 5 seconds to wet the floor. Do this before you press the One-Touch Scrub switch.
- Press the One-Touch Scrub switch once for regular scrub. Press the scrub pressure increase switch once for heavy scrub or twice for extreme scrub.
- Drive forward in a straight line at a normal walking speed and overlap each path by 2 to 3 in (50 to 75 mm). Keep the machine moving while the brushes turn, or you can damage the floor.
- Press the One-Touch Scrub switch once when you want to stop or when the recovery tank is full. The brushes and solution stop and the deck raises.
- At a designated disposal site, pull the recovery tank drain hose (AD56116500) from its rear storage area and remove the plug. Hold the end of the hose above the water level in the tank so the waste water cannot rush out. Refill the solution tank and keep scrubbing.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), page 28. SES ref PF-7T5L-I56O
Questions about your SC6000? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance SC6000 troubleshooting
Problems, likely causes and fixes from Advance's general machine troubleshooting page. Turn the power switch off and remove the magnetic key before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Reverse or replace the squeegee blades (AD56116704 / AD56116705). | |
| Squeegee out of adjustment | Adjust it so the blades touch the floor evenly across the whole width. | |
| Recovery tank full | Empty the recovery tank. | |
| Recovery tank drain hose leak | Secure the drain hose cap or replace the drain hose (AD56116500). | |
| Recovery tank cover gasket leak | Replace the gasket or seat the cover properly. | |
| Squeegee seal clogged or missing | Clean or replace the squeegee seal (AD56116388). | |
| Poor scrubbing performance | ||
| Worn brush or pad | Rotate or replace the brushes. | |
| Inadequate solution flow or no solution | ||
| Solution lines, valves, filter or trough clogged | Flush the lines and trough and clean the solution filter (AD9097944000). | |
| Machine does not power ON | ||
| Machine battery connector disconnected | Reset the emergency stop switch and reconnect the battery connectors. | |
| Tripped 10 amp circuit breaker (CB1) | Check for an electrical short circuit and reset the circuit breaker (AD56507644). | |
| Blown 150 amp main fuse | Replace the main fuse (AD56115432). | |
| No detergent flow (EcoFlex models only) | ||
| Empty detergent cartridge | Fill the detergent cartridge. | |
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 34 and 38. SES ref PF-IOVY-B3VG
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance SC6000 maintenance schedule
Advance's maintenance schedule, After Use steps and lubrication page. Turn the power switch off and remove the magnetic key before any service. Advance says to refer to its Service Manual for more detail.
| Task | How often | Part |
|---|---|---|
| Charge the batteries. | Daily | |
| Check and clean the tanks and hoses. | Daily | |
| Check, clean and rotate the brushes or pads. | Daily | |
| Check and clean the squeegee. Reverse or replace the squeegee blades (AD56116704 / AD56116705) if they are cut, torn, wavy or worn. | Daily | |
| Empty and clean the debris catch tray (AD56116722) in the recovery tank. Check and clean the vacuum motor foam filters. | Daily | |
| On a cylindrical machine, clean the hopper. Take the DustGuard spray nozzles off and soak them overnight in clean white vinegar or a calcium and lime remover. | Daily | |
| Empty the solution tank through its drain hose and rinse the tank with clean water. | After every use | |
| Empty the recovery tank and rinse it with clean water. Check the recovery and vacuum hoses and replace any that are kinked or damaged. | After every use | |
| Remove the brushes or pad holders. Rinse them in warm water and hang them up to dry. | After every use | |
| Remove the squeegee, rinse it in warm water and put it back on the mount or hang it from the back of the recovery tank. | After every use | |
| Plug in the battery charger and let it finish a full charging sequence. | After every use | |
| If your machine has the mechanical brake, check the pedal. It must feel firm. If it reaches the end of its travel in the slot, do not operate the machine and report it. | Weekly | |
| On wet lead-acid batteries, check the water level in each cell after charging. Use distilled or demineralized water and do not overfill. | Weekly | |
| Inspect the scrub housing blades. Reverse or replace the side blades (AD56116706) as a set if all edges are nicked, torn or worn beyond adjustment. | Weekly | |
| Inspect and clean the solution filter (AD9097944000). On a cylindrical machine, clean the solution trough. | Weekly | |
| On EcoFlex machines, purge the detergent system with a cartridge of clean warm water. | Weekly | |
| Pump a small amount of grease into each grease fitting until it seeps out around the bearings: squeegee caster wheel axle and pivot, steering wheel shaft universal joint, steering chain, and the threads of the squeegee mount angle adjustment knob. | Monthly | |
| Apply light machine oil or synthetic lubricant spray to the side blade down stop adjustment threads. | Monthly | |
| Have Advance check the vacuum motor carbon brushes (AD56116107) after 1,200 recovery hours and replace the motor after 2,000 recovery hours. Call SES service: 800-440-6723. | Yearly |
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 23, 27, 30, 31, 32, 34 and 36. SES ref PF-KW2X-2WK4
Advance SC6000 specifications
From the technical specifications and solution flow rates in Advance's Instructions for Use.
| Cleaning path | 36C: 36 in (91.4 cm); 34D: 34 in (86.3 cm); 40D: 40 in (101.6 cm) |
|---|---|
| Scrub brushes | 36C: two cylindrical brushes, 7.1 in (18 cm) across and 35.58 in (90.4 cm) long; 34D: two disc brushes, 17 in (43 cm); 40D: two disc brushes, 20 in (51 cm) |
| Brush speed | 36C: 760 rpm; 34D and 40D: 250 rpm |
| Hopper (36C only) | 744 in³ (12.2 L) |
| Solution and recovery tanks | 50 gal (190 L) each |
| Solution flow | Fixed Flow mode, full tank, bars 1 to 3: 36C and 34D 0.70, 0.84 and 1.00 gal/min (2.6, 3.1 and 3.7 L/min); 40D 0.84, 1.00 and 1.50 gal/min (3.1, 3.7 and 5.6 L/min). Override flow, all models: 2.50 gal/min (9.4 L/min) maximum |
| Batteries | 36 V, 420 Ah (C20) maximum |
| Transport speed | Forward 5.6 mph (9.0 km/h) maximum; reverse 2.6 mph (4.2 km/h) maximum |
| Size (L × W × H) | Length 70 in (178 cm); height 62.3 in (158 cm); width 46 in (117 cm) for 36C and 40D, 39 in (99 cm) for 34D |
| Width with squeegee | 36C and 40D: 48.5 in (123 cm), squeegee K; 34D: 43 in (109 cm), squeegee J |
| Weight | Gross vehicle weight 2,359 lb (1,070 kg); transportation weight 1,784 lb (810 kg) |
| Slope | Without mechanical brake: 7% (4°) for scrubbing and transport. With mechanical brake: 12.2% (7°) scrubbing, 18.5% (10.5°) transport |
| Minimum aisle turn width | 79.5 in (202 cm) |
| Sound pressure level | 69 dB(A), uncertainty 3.0 dB(A) |
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 20, 42, 43 and 44. SES ref PF-ARSZ-7YMP
Advance SC6000 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| SC6000 parts listParts list with drawings, 72 pages | SC6000 34D, 36C and 40D | REV H (2/2016, revised 2/2020) (this page) | 11.7 MB | Sign in to view or downloadSign in to download |
| SC6000 instructions for useOperator manual in English, Spanish and French, 134 pages | SC6000 34D, 36C and 40D, with and without mechanical brake | Rev E (4/2016, revised 10/2022) | 24.6 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC6000 parts questions
How do I tell which Advance SC6000 I have, the 34D, 36C or 40D?
Read the model number on the nameplate on the steering column. The 36C has cylindrical brushes. The 34D and 40D have disc brushes, 17 in (43 cm) on the 34D and 20 in (51 cm) on the 40D. Pick your model above the parts list.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 5 and 43. SES ref PF-O44V-2JCU
Does my Advance SC6000 have the mechanical brake?
Look for a brake pedal. If the machine has one, it has the mechanical brake. Advance says this covers machines built after serial number 3510224200761 and earlier machines that have the rear wheel brake kit installed.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), page 3. SES ref PF-O44V-2JCU
How do I purge the detergent system on an SC6000 EcoFlex?
Remove the cartridge and turn the machine on. Hold the solution and detergent switches for 2 seconds and release them when the purge indicator shows. The purge takes 20 seconds. For the weekly purge, connect a cartridge of clean warm water first.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), page 23. SES ref PF-O44V-2JCU
How do I reverse or replace the squeegee blades on the SC6000?
Each blade has 4 working edges. Raise the squeegee, unsnap the latch, remove the tension strap and slip the rear blade off the alignment pins. Turn it so a clean edge faces the front, or replace it if all 4 edges are nicked, torn or worn to a large radius.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), page 34. SES ref PF-O44V-2JCU
How much solution does the SC6000 hold, and how fast does it flow?
The solution tank holds 50 gal (190 L). In Fixed Flow mode with a full tank, the 36C and 34D flow 0.70 to 1.00 gal/min (2.6 to 3.7 L/min) on bars 1 to 3. The 40D flows 0.84 to 1.50 gal/min (3.1 to 5.6 L/min).
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 20 and 42. SES ref PF-O44V-2JCU
How often should I check the water in the SC6000 batteries?
After charging, at least once a week. Use distilled or demineralized water and fill each cell to the level indicator, or to .39 in (10 mm) over the top of the separators. Do not overfill.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), page 32. SES ref PF-O44V-2JCU
How steep a slope can the SC6000 handle?
Without the mechanical brake, 7% (4°) for scrubbing and transport. With it, 12.2% (7°) for scrubbing and 18.5% (10.5°) for transport. Drive straight up or down and do not turn on an incline.
Source: Advance SC6000 Instructions for Use, form 56091161 (rev E, 4/2016, revised 10/2022), pages 4, 43 and 44. SES ref PF-O44V-2JCU
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The control system is listed twice: before serial number 3510173102367 and after serial number 3510173102366. Check your serial number to pick the list. The two lists also differ in the seat and prop rod parts.
- The electrical drawing (page 16) has no callout for items 1, 12 to 18, 21, 26, 27, 29 and 38, and none for items 42 to 44 although Advance prints those without brackets. The lines are listed, but there is no hotspot for them. Item 21 is a group line with no number.
- Advance prints Filter Kit 56118174 on the solution list (page 47) and Filter Kit 56116924 on the recommended spares list (page 65). Both numbers are on this page as printed. Call us to confirm which fits your machine.
- Solenoid Seal Kit 56118185 is printed as “for #56116875” on the disc deck list (page 37) and as “for #56118184” on the spares list (page 65). Number 56118184 appears nowhere else.
- The control lists print Pcb Box Assembly 56118166 with Membrane Panel Assembly 56118170 under item 7. The spares list calls 56118166 Main Control Board Assembly and gives Membrane Panel Assembly as 56116056, which is not in the control lists.
- The control lists mention a gas spring but print no gas spring line. The spares list gives Gas Spring 56317072.
- Number 33003458 is printed as “Clamp, Hose 8/62-82 W2” on the recovery list and as “Clamp 60-80” on the spares list.
- The spares list also includes sweep system parts (proximity sensor, right gear motor, carbon brushes kit, clamp with pin) and a heavy duty actuator assembly that are not on any drawing in this manual.
- Page pointers inside the lists do not match the pages they name. The cylindrical deck list sends the side blade assemblies to “pages 26-27” (the deck itself) and the actuator to “pages 22-23” (the recovery system). The disc deck list sends side blades to “pages 36-37” (the deck itself) and the actuator to “pages 32-33”. The disc scrub list sends the left door to “pages 30-31”. Use the section names on this page instead.
- The right door lists print Skid Plate-Right-34d on the 36C and 40D pages and Skid Plate-Right-Front-36c on the 40D page. They stay under the model of the section they are printed in. All three use Skid Plate Kit 56116900.
- The control system “before” list skips item 25.
- Descriptions are copied as Advance prints them, including its spellings (for example Dulexe, Poyurethane and Alginment).
- Advance prints the same item number with two part numbers on some lines (deck weldment, front blade, click-on assembly, squeegee assembly). They are listed as separate lines for each model.
