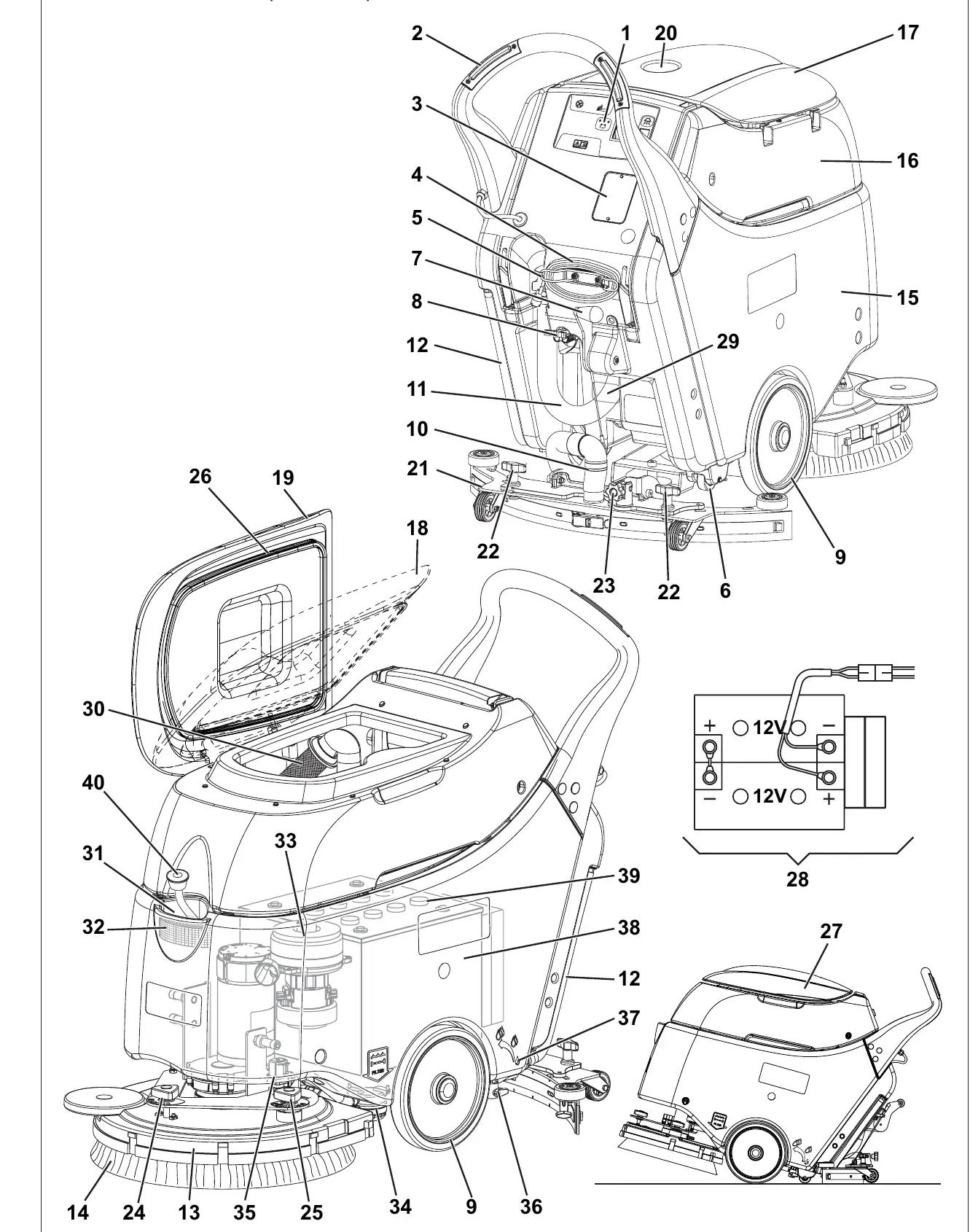

Advance SC450 parts list and diagrams
Every part number in Advance's SC450 parts list, current 4/14 revision and the older 08/2012 edition, with the list's drawings and the troubleshooting, maintenance and specs from the SC450 instructions for use and service manual. Each part number links to that part in our store.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Online manuals: OperatorĀ· Service
Complete list: every parts line in Advance's SC450 Parts List, form 9099603000, in both editions: 8/12 revised 4/14 (the current one) and 08/2012, for the SC450 20B battery scrubber-dryer, model 9087331020 (the 4/14 cover also names 9087371020). Checked .
New to your SC450? Start here ā Manuals (free sign-in) ā How to use PartFinder (3-min video) ā
- Cleaning width
- 20 in (530 mm) brush or pad
- Squeegee width
- 30 in (760 mm)
- Solution tank
- 10.5 US gal (40 L)
- Recovery tank
- 11.9 US gal (45 L)
- Batteries
- 24 V: two 12 V batteries; standard 70 Ah C5, about 2 hours of run time
Wear parts for the SC450
Advance's recommended spare parts page lists these under Normal wear: the vacuum motor carbon brushes, the squeegee blades, the 20 in Prolene brush, the brush motor carbon brushes and the splash guard. Keep them on the shelf.
- No photo yet
Carbon brush
$18.96/EA Blades non marking 740mm/29 kit
$48.07/EARoller bumper kit
$300.36/EA- No photo yet
Splash guard kit 530mm/21
$239.04/EA - No photo yet
Carbon brushes w/holder kit
Source: Advance SC450 Parts List, form 9099603000 (8/12, revised 4/14), page 26. SES ref PF-O5R2-KXOCāāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āā ā āā āāāāāāāāāāāāāāāāāāāā
Your machine
How to tell which you have
- Parts list edition: the 4/14 revision ("8/12 Revised 4/14" on its pages) is Advance's current list and fits the machines the 08/2012 list covers. Pick 08/2012 only to see the list as first printed. If you are not sure, use 4/14.
- Handlebar: the current handlebar has two brush push-buttons (SW3 and SW4 on the wiring diagram, instructions for use pages 8 and 10). The old handlebar has a single push-button switch; the 4/14 list marks its parts "A: for old handle bar model with one switch" (parts list page 9).
- Brush motor: machines up to serial number 3510134507872 have the Leroy Somer GM462200 brush motor, with its own carbon brush kit (parts list page 15). The serial number is on the plate on the machine (instructions for use page 2).
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 9099922000 is AD9099922000. Where Advance prints spaces inside a number (909 5371 000), our part number drops them (AD9095371000). Where Advance has replaced the printed number, the line shows the current number and says replaces Advance with the printed one. The Item column matches the numbers on the drawing. Many hardware lines print no part number: Advance sells them in the hardware kits printed at the foot of each list (K1, K2 ...), so the line names and links its kit. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

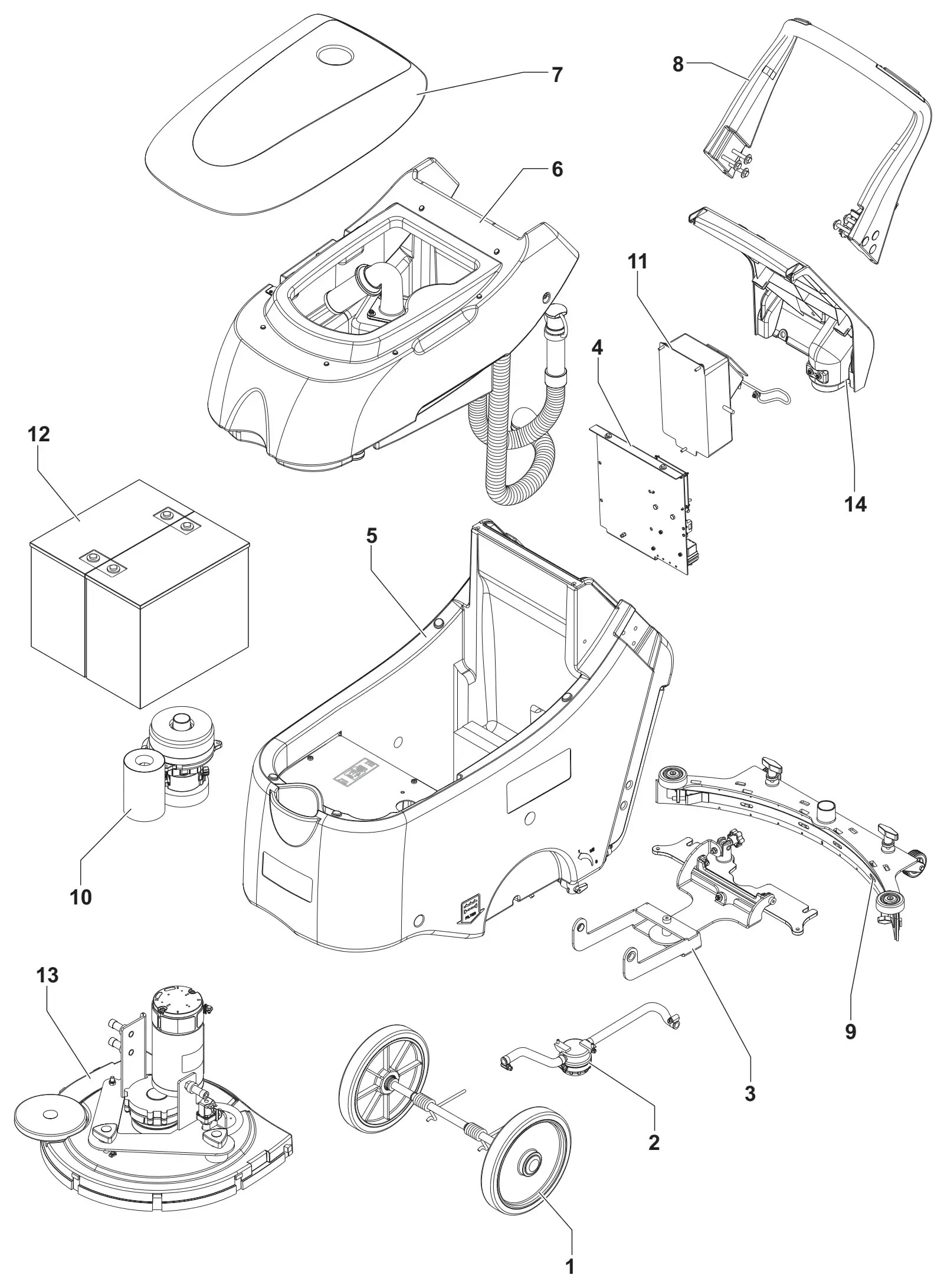

Advance SC450 General view (parts list 4/14)
The parts Advance numbers on its general view (parts list 4/14) drawing. Manual pages 2, list 3.āāāā āā ā āāāāāāāāāā āāāāā āāāāāāāāāāāā ā āāā ā āāā āāāā āāā āāāāā āāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Wheels assembly Ā· no part number | ||
| 2 | 1 | Solution system assembly Ā· no part number | ||
| 3 | 1 | Squeegee holder assembly Ā· no part number | ||
| 4 | 1 | Electronic box assembly Ā· no part number | ||
| 5 | 1 | Solution tank assembly Ā· no part number | ||
| 6 | 1 | Recovery tank assembly Ā· no part number | ||
| 7 | 1 | Cover tank assembly Ā· no part number | ||
| 8 | 1 | Handle bar assembly Ā· no part number | ||
| 9 | 1 | Squeegee assembly Ā· no part number | ||
| 10 | 1 | Vacuum assembly Ā· no part number | ||
| 11 | 1 | Charger assembly Ā· no part number | ||
| 12 | 1 | Batteries Ā· no part numberOptional. i | ||
| 13 | 1 | Brush deck assembly Ā· no part number | ||
| 14 | 1 | Control panel assembly Ā· no part number |

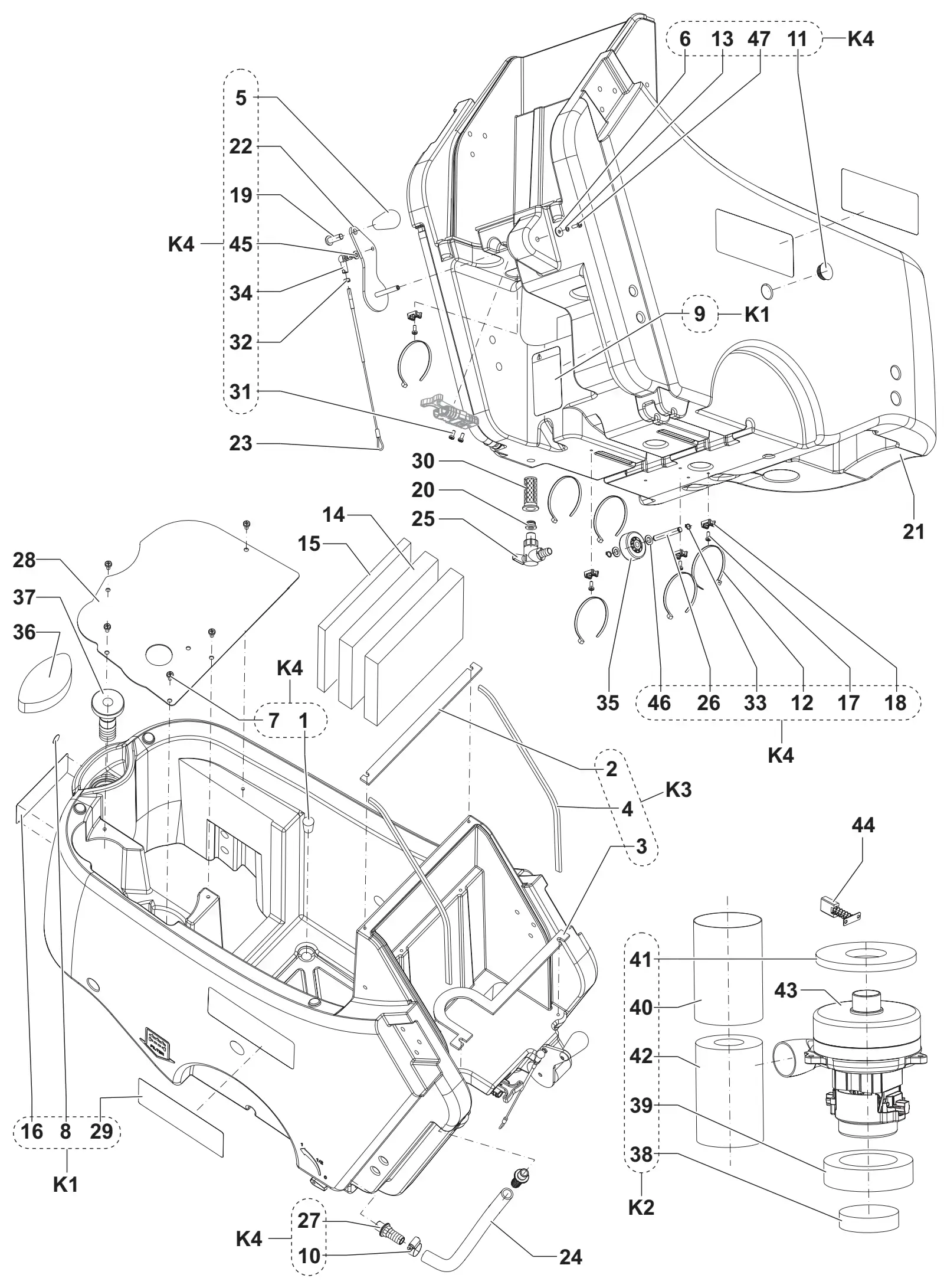

Advance SC450 Solution tank (parts list 4/14)
The parts Advance numbers on its solution tank (parts list 4/14) drawing. Manual pages 4, list 5.āāāā āā ā āāāāāāāāāā āāāāāāā āāā āāāāāāā ā āāāāāā āāāā ā āāā ā āāāāā āāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Cap black Ā· no part number | In kit K4 ā | |
| 2 | 1 | Gasket Ā· no part number | In kit K3 ā | |
| 3 | 1 | Gasket Ā· no part number | In kit K3 ā | |
| 4 | 2 | Gasket adhesive l.960mm Ā· no part number | In kit K3 ā | |
| 5 | AD9096621000 | 1 | KNOBAlso included in HARDWARE SOLUTION TANK KIT 9099312000 (K4). | $20.54/EA |
| 6 | 1 | Washer 6x18 uni6592 Ā· no part number | In kit K4 ā | |
| 7 | 5 | Screw m6x12 uni7687 Ā· no part number | In kit K4 ā | |
| 8 | 1 | Decal water faucet Ā· no part number | In kit K1 ā | |
| 9 | 1 | Decal warning Ā· no part number | In kit K1 ā | |
| 10 | 1 | Clamp 12/ 16-27 Ā· no part number | In kit K4 ā | |
| 11 | 2 | Cap. black Ā· no part number | In kit K4 ā | |
| 12 | 4 | Tie cable 4.8x200 black Ā· no part number | In kit K4 ā | |
| 13 | 1 | Washer m5 uni1751b Ā· no part number | In kit K4 ā | |
| 14 | AD1460668000 | 2 | PANEL INSULATING | $13.07/EA |
| 15 | AD1456094000 | 1 | ISOLANT PANEL | $7.84/EA |
| 16 | 1 | Decal nilfisk rectangular Ā· no part number | In kit K1 ā | |
| 17 | 4 | Screw m5x12 uni7687 ss Ā· no part number | In kit K4 ā | |
| 18 | 4 | Holder.flat tie Ā· no part number | In kit K4 ā | |
| 19 | 1 | Screw m10x30 iso7380 Ā· no part number | In kit K4 ā | |
| 20 | AD9095286000 | 1 | GASKET | $10.98/EA |
| 21 | AD9099251000 | 1 | TANK SOLUTION | $1,265.14/EA |
| 22 | 1 | Lever squeegee lifting Ā· no part number | In kit K4 ā | |
| 23 | AD9099258000 | 1 | CABLE SQUEEGEE LIFTING | $18.89/EA |
| 24 | AD9099261000 | 1 | HOSE SOLUTION | $8.80/EA |
| 25 | AD9099513000 | 1 | VALVE ELBOW 90. D.13MM | $70.45/EA |
| 26 | 1 | Pin wheel Ā· no part number | In kit K4 ā | |
| 27 | 2 | Holder rubber d.16 g3/8 Ā· no part number | In kit K4 ā | |
| 28 | AD9100002261Replaces Advance 9100000168 | 1 | PLATE VACUUM MOTOR | $107.69/EA |
| 29 | 2 | Decal nilfisk sc450 Ā· no part number | In kit K1 ā | |
| 30 | AD9100001353Replaces Advance 9096916000 | 1 | FILTER SOLUTION TANKOptional. | $33.79/EA |
| 31 | 2 | Screw m3x20 uni7687 Ā· no part number | In kit K4 ā | |
| 32 | 1 | Nut hex m6 uni5588 Ā· no part number | In kit K4 ā | |
| 33 | 2 | Ring d 9 uni7435 Ā· no part number | In kit K4 ā | |
| 34 | 1 | Ball joint m6 din7180 Ā· no part number | In kit K4 ā | |
| 35 | AD9099953000 | 1 | WHEEL D.50 | $29.53/EA |
| 36 | AD9099561000 | 1 | SPONGE WATER ENTRANCE | $10.42/EA |
| 37 | AD9100000703Replaces Advance 9097290000 | 1 | HOSE FILLINGOptional. | $50.01/EA |
| 38 | AD9096672000 | 1 | FILTERAlso included in GASKETS VACUUM MOTOR KIT 9099310000 (K2). | $11.28/EA |
| 39 | 1 | Gasket vacuum motor Ā· no part number | In kit K2 ā | |
| 40 | 1 | Sheath d.48 Ā· no part number | In kit K2 ā | |
| 41 | 1 | Gasket vacuum motor Ā· no part number | In kit K2 ā | |
| 42 | 1 | Pipe.acoustic insulation Ā· no part number | In kit K2 ā | |
| 43 | AD9099922000 | 1 | MOTOR VACUUM 330W 24V KIT | $334.36/EA |
| 44 | AD9095371000 | 2 | CARBON BRUSH | $18.96/EA |
| 45 | 1 | Washer m6 uni1751b Ā· no part number | In kit K4 ā | |
| 46 | 2 | Washer 10x21x1 nylon Ā· no part number | In kit K4 ā | |
| 47 | 1 | Screw m5x16 uni7687 Ā· no part number | In kit K4 ā | |
| K1 | AD9099856000 | 1 | DECAL SC450 ADVANCE KITIncludes items 8, 9, 16, 29. | $64.01/EA |
| K2 | AD9099310000 | 1 | GASKETS VACUUM MOTOR KITIncludes items 39, 40, 41, 42. | $103.43/EA |
| K3 | AD9099311000 | 1 | GASKETS KITIncludes items 2, 3, 4. | $24.72/EA |
| K4 | AD9100000768Replaces Advance 9099312000 | 1 | HARDWARE SOLUTION TANK KITIncludes items 1, 6, 7, 10, 11, 12, 13, 17, 18, 19, 22, 26, 27, 31, 32, 33, 34, 45, 46, 47. | $17.46/EA |

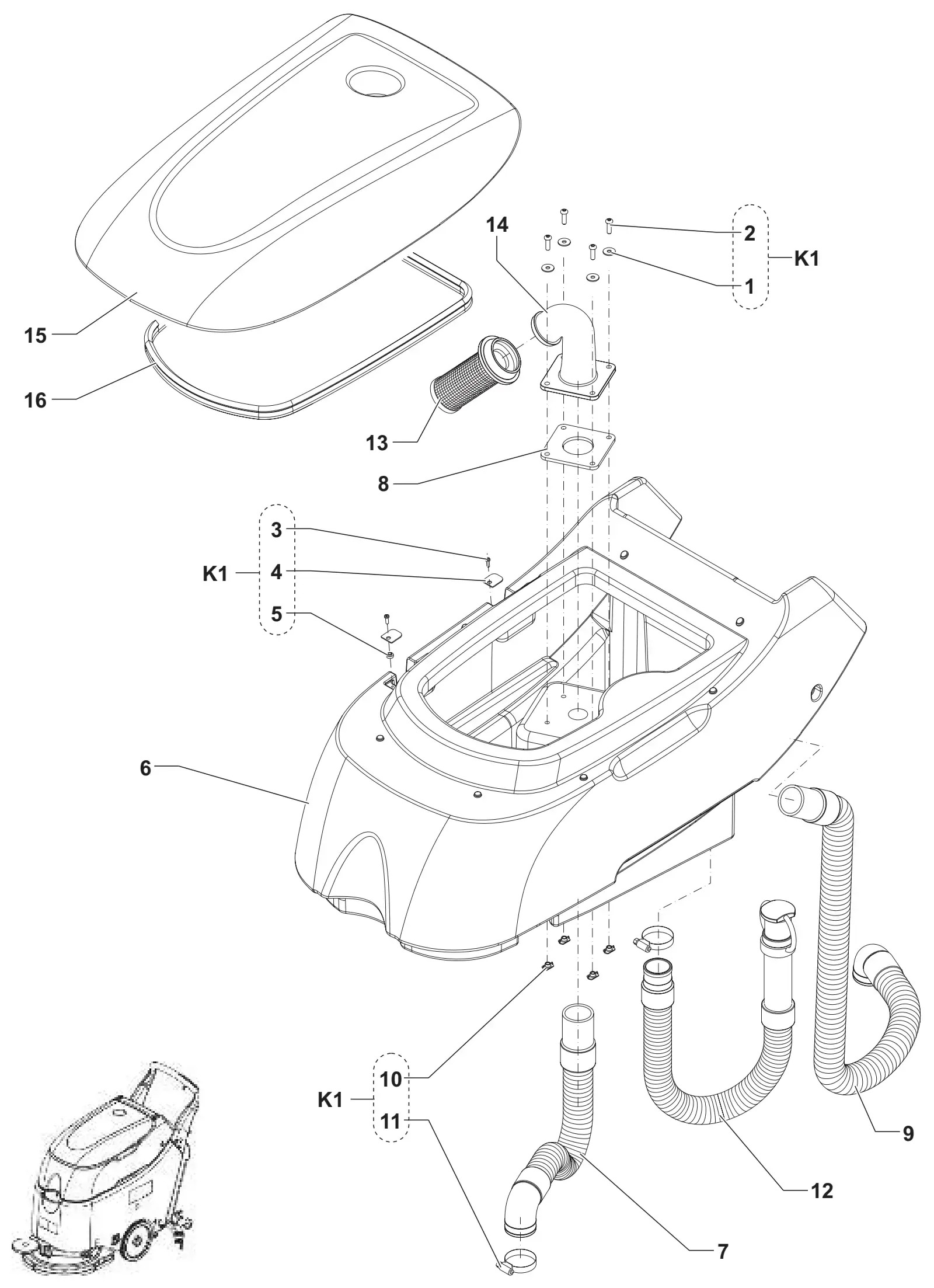

Advance SC450 Recovery tank (parts list 4/14)
The parts Advance numbers on its recovery tank (parts list 4/14) drawing. Manual pages 6, list 7.āāāā āā ā āāāāāāāāāā āāāāā āāāāāāāāāāāā ā āāāā āāāāā āāā ā āāāāāā āāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 4 | WASHER 6.4x12x1 NYLON Ā· no part number | In kit K1 ā | |
| 2 | 4 | Screw m6x20 iso7380 ss Ā· no part number | In kit K1 ā | |
| 3 | 2 | Screw cyl hd selfl 3.9x12 Ā· no part number | In kit K1 ā | |
| 4 | 2 | Plate tank cover Ā· no part number | In kit K1 ā | |
| 5 | 1 | Bush flanged Ā· no part number | In kit K1 ā | |
| 6 | AD9099252000 | 1 | TANK RECOVERY | $283.67/EA |
| 7 | AD9099255000 | 1 | HOSE VACUUM MOTOR | $48.62/EA |
| 8 | AD9100000912Replaces Advance 9099276000 | 1 | GASKET FLOAT CAGE HOLDER | $8.80/EA |
| 9 | AD9100000642Replaces Advance 9099281000 | 1 | HOSE SUCTION | $54.26/EA |
| 10 | 4 | Nut jaw m6x6 inox ss Ā· no part number | In kit K1 ā | |
| 11 | 2 | Clamp 14/32-52 Ā· no part number | In kit K1 ā | |
| 12 | AD9099692000 | 1 | HOSE DRAIN KIT | $66.90/EA |
| 13 | AD9099559000 | 1 | FLOAT SHUT OFF | $27.36/EA |
| 14 | AD9099558000 | 1 | ELBOW FLOAT HOLDER | $15.57/EA |
| 15 | AD9099253000 | 1 | COVER TANK | $174.60/EA |
| 16 | AD9099342000Replaces Advance 9099342000 | 1 | GASKET BULB RUBBER L.1350MM PKD | $23.35/EA |
| K1 | AD9099313000 | 1 | HARDWARE RECOVERY TANK KITIncludes items 1, 2, 3, 4, 5, 10, 11. | $40.81/EA |

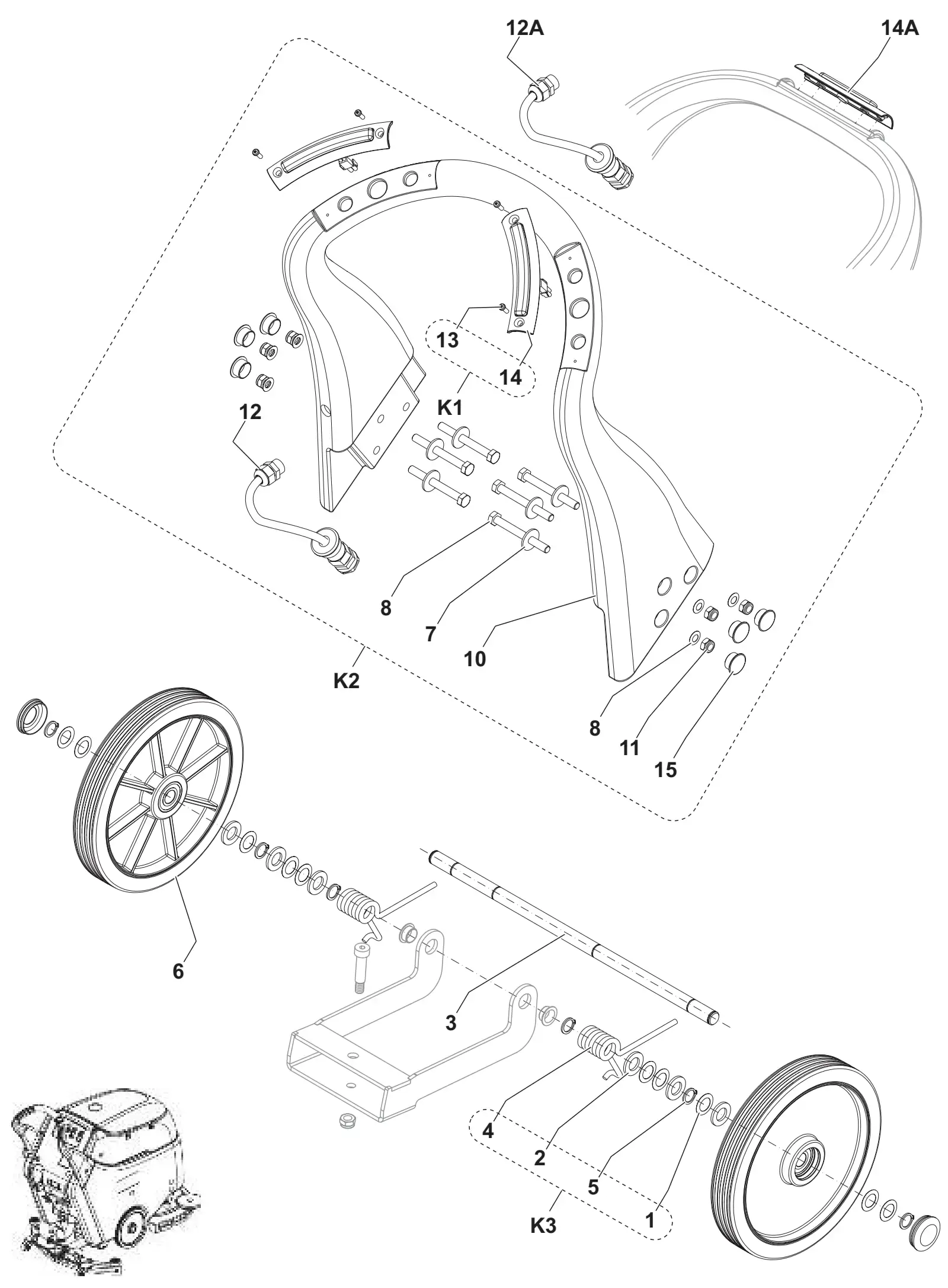

Advance SC450 Handle bar and wheels (parts list 4/14)
The parts Advance numbers on its handle bar and wheels (parts list 4/14) drawing. Manual pages 8, list 9.āāāā āā ā āāāāāāāāāā āāāāāāāā āāā āāāāāā ā āāāāāāā ā āāāāāāā āāā āā ā āāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 10 | Belleville washer 17.3x27.7x0.4 din2093 Ā· no part number | In kit K3 ā | |
| 2 | 6 | Washer 17x30x3 flat iso 7089 Ā· no part number | In kit K3 ā | |
| 3 | AD9099256000 | 1 | SHAFT WHEELS | $27.75/EA |
| 4 | 2 | Spring squeegee pushing Ā· no part number | In kit K3 ā | |
| 5 | 6 | Ring d 17 uni743 Ā· no part number | In kit K3 ā | |
| 6 | AD9100002138Replaces Advance 9099270000 | 2 | WHEEL D.254 | $107.69/EA |
| 7 | 6 | Washer 8x24x2 flat iso7093 Ā· no part number | In kit K2 ā | |
| 8 | 6 | Belleville washer 8.2x15.8x0.35 din2093 Ā· no part number | In kit K2 ā | |
| 9 | 6 | Screw m8x75 uni5739 Ā· no part number | In kit K2 ā | |
| 10 | AD9100000564 | 1 | HANDLE BAR GREY PKDAlso included in HANDLE BAR GREY KIT 9100000425 (K2). | $119.65/EA |
| 11 | 6 | Nut self l. m8 uni7474 Ā· no part number | In kit K2 ā | |
| 12 | AD9100000565 | 1 | HARNESS HANDLE BAR PKD Also included in HANDLE BAR GREY KIT 9100000425 (K2). | $76.09/EA |
| 12A | AD9099285000 | 1 | HARNESS HANDLE BAR FOR OLD HANDLE BAR MODEL WITH ONE SWITCH. | $48.62/EA |
| 13 | 4 | Screw cyl hd selfl 3.9x12 Ā· no part number | In kit K1 ā | |
| 14 | 2 | Switch cpl black f handle bar Ā· no part number | In kit K1 ā | |
| 14A | AD11178A | 1 | SWITCH HANDLE ASSY FOR OLD HANDLE BAR MODEL WITH ONE SWITCH. | $54.10/EA |
| 15 | 6 | Cap d.18.5/d.24mm black Ā· no part number | In kit K2 ā | |
| K1 | AD9100000466 | 1 | SWITCHES CPL BLACK F HANDLE BAR KIT Also included in HANDLE BAR GREY KIT 9100000425 (K2). Includes items 13, 14. | $160.57/EA |
| K2 | AD9100000425 | 1 | HANDLE BAR GREY KITIncludes items 7, 8, 9, 11, 15. | $342.18/EA |
| ā | AD9100000465Advance 9100000465 | 1 | INSTRUCTIONS INSTALL. KIT 9100000425 | |
| K3 | AD9100000566 | 1 | HARDWARE WHEELS KITIncludes items 1, 2, 4, 5. | $88.73/EA |

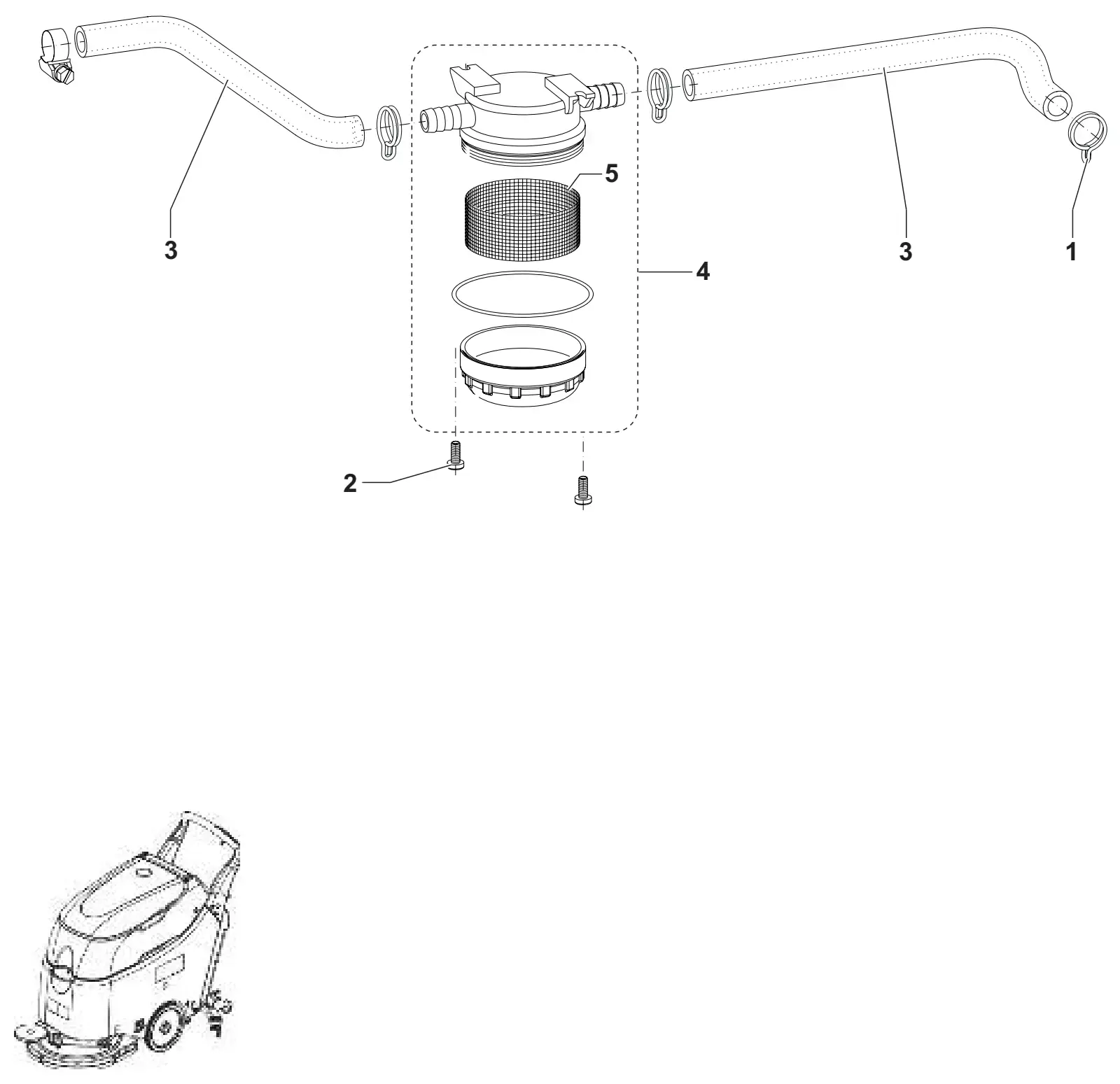

Advance SC450 Solution system (parts list 4/14)
The parts Advance numbers on its solution system (parts list 4/14) drawing. Manual pages 10, list 11.āāāā āā ā āāāāāāāāāā āāāāāāā ā āā ā āāāāāā ā āāāāāā ā āāāā āā ā āā āāāāā āāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000511 | 1 | CLAMPS F SOLUTION SYSTEM KIT | $23.35/EA |
| 2 | AD9095009000 | 2 | SCREW M5X12 UNI7687 SS | $11.69/EA |
| 3 | AD9099337000 | 1 | HOSE D.12 KIT | $17.46/EA |
| 4 | AD9100000860Replaces Advance 9100000362 | 1 | FILTER WATER | $35.50/EA |
| 5 | AD9100000861Replaces Advance 9099481000 | 1 | NET WATER FILTER REINFORCED | $32.34/EA |

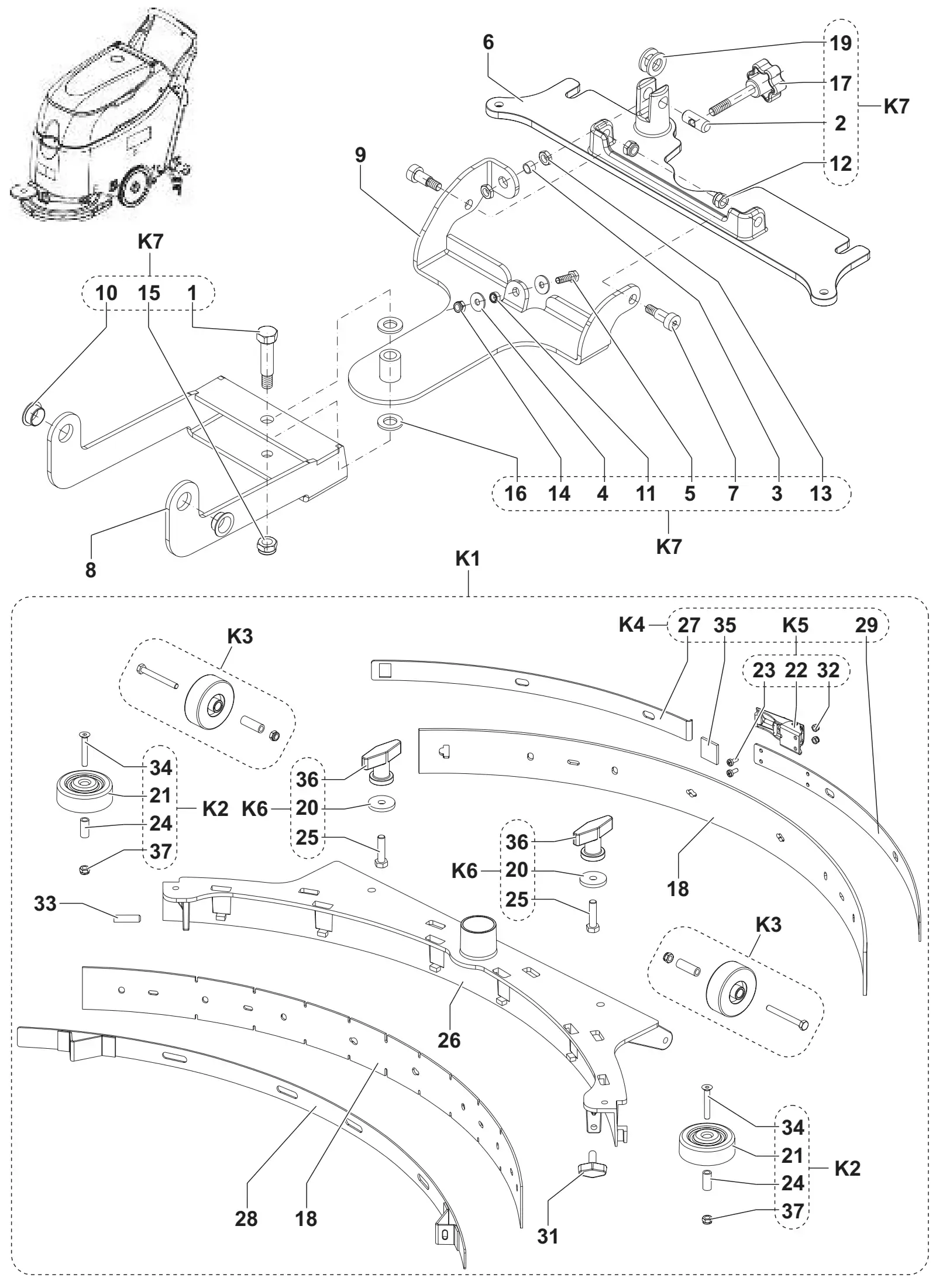

Advance SC450 Squeegee system (parts list 4/14)
The parts Advance numbers on its squeegee system (parts list 4/14) drawing. Manual pages 12, list 13.āāāā āā ā āāāāāāāāāā āāāāāāāāāāā āāāāāā ā āāāāāāāāāā āāāāā ā āā āāā ā ā āā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Pin for squeegee holder Ā· no part number | In kit K7 ā | |
| 2 | 1 | Pin support Ā· no part number | In kit K7 ā | |
| 3 | 1 | Spacer 8x10x7 Ā· no part number | In kit K7 ā | |
| 4 | 2 | Washer 6x18x1.5 uni6593 ss Ā· no part number | In kit K7 ā | |
| 5 | 1 | Screw m6x20 uni5739 ss Ā· no part number | In kit K7 ā | |
| 6 | AD56384513Replaces Advance 909 6045 000 | 1 | SUPPORT. SQUEEGEE | $154.15/EA |
| 7 | 2 | Screw 10x16 m8 iso7379 12.9 geomet 320 a Ā· no part number | In kit K7 ā | |
| 8 | AD9100000509 | 1 | SUPPORT FRONT F SQUEEGEE PKD | $88.73/EA |
| 9 | AD9100000510 | 1 | SUPPORT REAR F SQEEGEE PKD | $129.54/EA |
| 10 | 2 | Bushing flanged gfm-1719-09 Ā· no part number | In kit K7 ā | |
| 11 | 1 | Spacer 6.5x10x5 Ā· no part number | In kit K7 ā | |
| 12 | 2 | Nut self l. m8 uni7474 Ā· no part number | In kit K7 ā | |
| 13 | 2 | Nut hex m8 uni5589 Ā· no part number | In kit K7 ā | |
| 14 | 1 | Nut self l. m6 uni7474 ss Ā· no part number | In kit K7 ā | |
| 15 | 1 | Nut self l. m10 uni7474 Ā· no part number | In kit K7 ā | |
| 16 | 2 | Washer 12x24 uni6592 nylon Ā· no part number | In kit K7 ā | |
| 17 | 1 | HANDWHEEL M8x55 Ā· no part number | In kit K7 ā | |
| 18 | AD9100000279 | 1 | BLADES NON MARKING 740MM/29 KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). | $48.07/EA |
| 18 | AD9096858000 | 1 | BLADES PU KIT 740MM/29Optional. Includes items 18, 19 (Squeegee system (parts list 08/2012)). | $73.28/EA |
| 19 | 1 | Washer 15x25 nylon uni6592 Ā· no part number | In kit K7 ā | |
| 20 | 2 | Washer.rubber Ā· no part number | In kit K6 ā | |
| 21 | 2 | Roller bumper Ā· no part number | In kit K2 ā | |
| 22 | 1 | Latch squeegee Ā· no part number | In kit K5 ā | |
| 23 | 2 | Screw m4x10 uni7687 ss Ā· no part number | In kit K5 ā | |
| 24 | 2 | Spacer 6.3x9.5x21 Ā· no part number | In kit K2 ā | |
| 25 | 2 | Screw hex thd 5/16x1-1/4 unc Ā· no part number | In kit K6 ā | |
| 26 | AD9096044000 | 1 | WELDMENT.SQUEEGEE TOOLAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). | $231.50/EA |
| 27 | 1 | Strap.squeegee left rear Ā· no part number | In kit K4 ā | |
| 28 | AD9096055000 | 1 | STRAP.SQUEEGEE FRONTAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). | $48.04/EA |
| 29 | 1 | Strap.squeegee right rear Ā· no part number | In kit K4 ā | |
| 30 | 2 | Wheel 60x20 with bushing Ā· no part number | In kit K3 ā | |
| 31 | AD9100000791Replaces Advance 909 6551 000 | 1 | KNOB M8X30 SSAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). | $23.35/EA |
| 32 | 2 | Screw m6x55 uni5739 ss Ā· no part number | In kit K5 ā | |
| 33 | AD9096600000 | 1 | SCREW GRUB M8X30 UNI5929 SSAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). | $12.50/EA |
| 34 | 2 | Screw m6x40 uni5933 Ā· no part number | In kit K2 ā | |
| 35 | 1 | Spacer. rubber Ā· no part number | In kit K4 ā | |
| 36 | 2 | Nut thumb squeegee fixing Ā· no part number | In kit K6 ā | |
| 37 | 2 | Nut self l. m6 uni7474 ss Ā· no part number | In kit K2 ā | |
| K1 | AD9096851000Advance 909 6851 000 | 1 | SQUEEGEE CPL ALU 760MM/30 KIT | |
| K2 | AD9096884000 | 1 | ROLLER BUMPER SQUEEG.KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). Includes items 21, 24, 34, 37. | $96.42/EA |
| K3 | AD9096883000 | 1 | WHEELS SQUEEGEE 60X20MM KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). Includes item 30. | $112.65/EA |
| K4 | AD9096882000 | 1 | HARDWARE SQU.BLADE FIXING KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). Includes items 27, 29, 35. | $160.57/EA |
| K5 | AD9096394000 | 1 | LATCH SQUEEGEE KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). Includes items 22, 23, 32. | $83.12/EA |
| K6 | AD9097637000 | 1 | SQUEEGEE FIXING KITAlso included in SQUEEGEE CPL ALU 760MM/30 KIT 909 6851 000 (K1). Includes items 20, 25, 36. | $36.42/EA |
| K7 | AD9099322000 | 1 | HARDWARE SQUEEGEE SUPPORT KITIncludes items 1, 2, 3, 4, 5, 7, 10, 11, 12, 13, 14, 15, 16, 17, 19. | $54.26/EA |

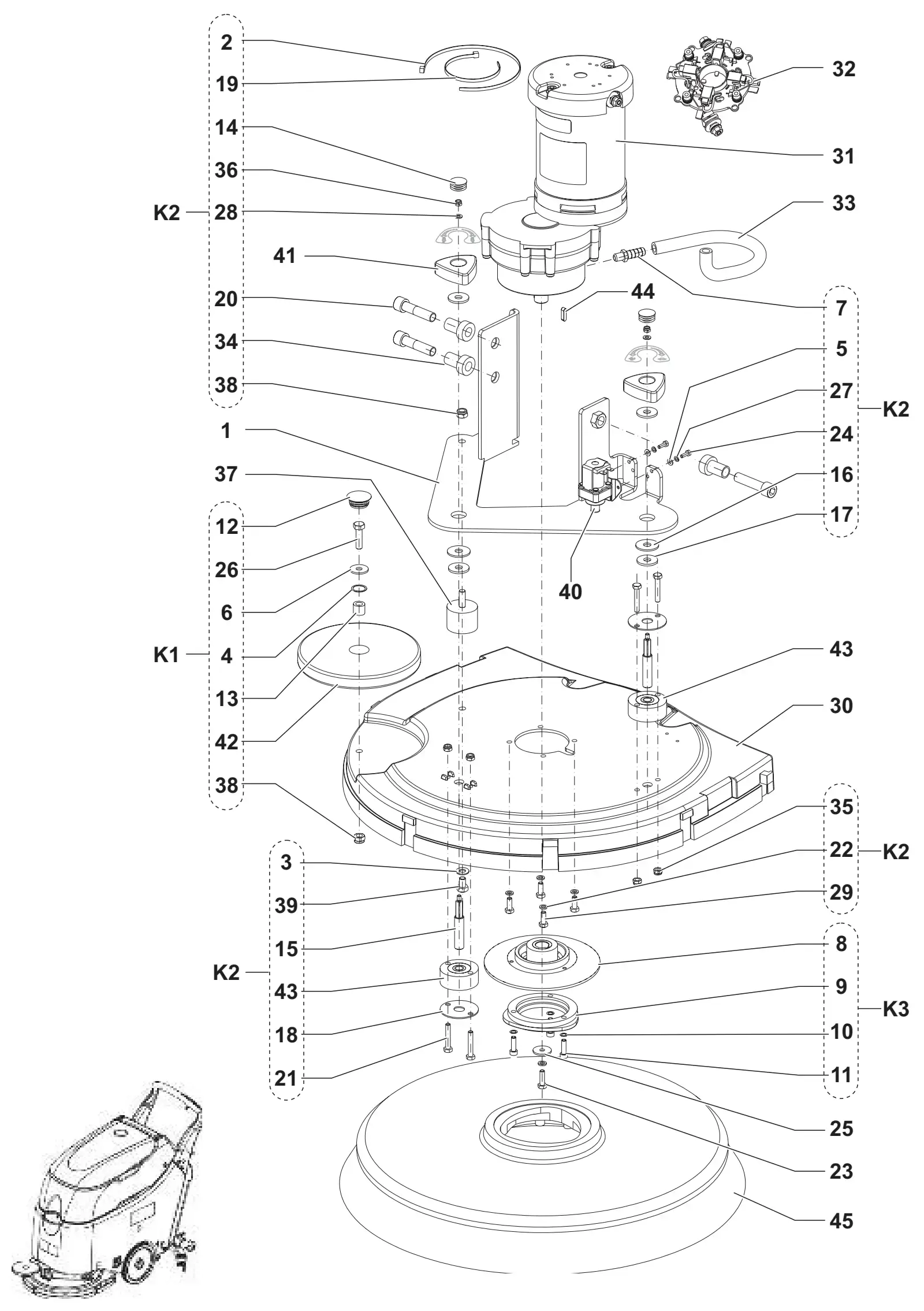

Advance SC450 Brush deck (parts list 4/14)
The parts Advance numbers on its brush deck (parts list 4/14) drawing. Manual pages 14, list 15.āāāā āā ā āāāāāāāāāā āāāāāā āāāāā āāāāāā ā āāāāāāā āāāāā āāā āā ā ā āāāāā ā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000572 | 1 | PLATE BLACK BRUSH DECK HOLDER PKD | $99.32/EA |
| 2 | 1 | TIE CABLE 4.8x200 BLACK Ā· no part number | In kit K2 ā | |
| 3 | 1 | Washer m8 uni8842a ss Ā· no part number | In kit K2 ā | |
| 4 | 1 | Washer 15 Ā· no part number | In kit K1 ā | |
| 5 | 2 | Washer m4 uni6592 ss Ā· no part number | In kit K2 ā | |
| 6 | 1 | Washer 8x24x2 flat iso7093 Ā· no part number | In kit K1 ā | |
| 7 | 1 | Holder rubber 1/4 d.10 Ā· no part number | In kit K2 ā | |
| 8 | ADL08812306 | 1 | HUB BRUSH R.GEARMOTOR RIGHTAlso included in HUB BRUSH R.GEARMOTOR RIGHT L08812589 (K3). | $74.61/EA |
| 9 | ADL08812480 | 1 | HUB.BRUSHAlso included in HUB BRUSH R.GEARMOTOR RIGHT L08812589 (K3). | $36.67/EA |
| 10 | 3 | Washer nord lock m6 din25201 Ā· no part number | In kit K3 ā | |
| 11 | 3 | Screw m6x20 uni5931 ss Ā· no part number | In kit K3 ā | |
| 12 | 1 | Cap. black Ā· no part number | In kit K1 ā | |
| 13 | 1 | Spacer 9x15x13 Ā· no part number | In kit K1 ā | |
| 14 | 2 | Cap for knob Ā· no part number | In kit K2 ā | |
| 15 | 2 | Pin plate fixing Ā· no part number | In kit K2 ā | |
| 16 | 2 | Washer 10x30x2 Ā· no part number | In kit K2 ā | |
| 17 | 4 | Washer 9.5x27x2.5 Ā· no part number | In kit K2 ā | |
| 18 | 2 | Plate.vibration damping Ā· no part number | In kit K2 ā | |
| 19 | 1 | Tie cable 4.8x430 white Ā· no part number | In kit K2 ā | |
| 20 | 3 | Screw m12x50 uni5931 ss Ā· no part number | In kit K2 ā | |
| 21 | 4 | Screw m6x35 uni5739 ss Ā· no part number | In kit K2 ā | |
| 22 | 5 | Washer m6 uni8842a ss Ā· no part number | In kit K2 ā | |
| 23 | AD1450492000Replaces Advance 145 0492 000 | 1 | SCREW M6X25 UNI5739 SS | $9.58/EA |
| 24 | 2 | Screw m4x10 uni7687 ss Ā· no part number | In kit K2 ā | |
| 25 | AD1450493000Advance 145 0493 000 | 1 | WASHER 6.6X24X2 UNI6593 SS | |
| 26 | 1 | Screw m8x30 uni5739 ss Ā· no part number | In kit K1 ā | |
| 27 | 2 | Washer m4 uni1751b Ā· no part number | In kit K2 ā | |
| 28 | 2 | Washer 5x10 uni6592 ss. Ā· no part number | In kit K2 ā | |
| 29 | 4 | Screw m6x16 uni5739 ss Ā· no part number | In kit K2 ā | |
| 30 | AD9096042000 | 1 | DECK BRUSH | $182.30/EA |
| 31 | AD9100000454Advance 9100000454 | 1 | REDUCTION GEARMOTOR 480W 24V KIT | |
| 32 | AD9100000421Advance 9100000421 | 1 | CARBON BRUSHES W/HOLDER KIT | |
| 32A | AD9095380000 | 1 | CARBON BRUSHES W/HOLDER KIT 4PCS FOR OLD MODEL LEROY SOMER GM462200 - UP TO SN 3510134507872. | $458.25/EA |
| 33 | AD9099341000 | 1 | HOSE POLYESTER REINF. D.10 L.250 KIT | $10.30/EA |
| 34 | 3 | Bushing flanged Ā· no part number | In kit K2 ā | |
| 35 | 4 | Nut self l. m6 uni7474 ss Ā· no part number | In kit K2 ā | |
| 36 | 2 | Nut selflocking low m5 uni7474 ss Ā· no part number | In kit K2 ā | |
| 37 | AD9100000868Replaces Advance 9097184000 | 1 | VIBRATION DAMPING M8 | $47.12/EA |
| 38 | 2 | Nut selflocking low m8 uni7474 ss Ā· no part number | In kit K1 ā | |
| 39 | 1 | Screw m8x12 uni5739 ss Ā· no part number | In kit K2 ā | |
| 40 | AD9099563000 | 1 | SOLENOID VALVE 24V | $30.84/EA |
| 41 | ADL08812203 | 2 | KNOB | $12.85/EA |
| 42 | 1 | Roller bumper Ā· no part number | In kit K1 ā | |
| 43 | ADL08812213 | 2 | BUFFERAlso included in HUB BRUSH KIT 9099326000 (K2). | $27.19/EA |
| 44 | AD1466147000Replaces Advance 145 9774 000 | 1 | KEY 5X5X20 UNI6604A | $47.12/EA |
| 45 | ADL08837025 | 1 | ROLLER BUMPER KIT | $300.36/EA |
| K1 | AD9096887000 | 1 | HARDWARE BRUSH DECK KITIncludes items 4, 6, 12, 13, 26, 38, 42. | $15.02/EA |
| K2 | AD9099326000 | 1 | HUB BRUSH KITIncludes items 2, 3, 5, 7, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 28, 29, 34, 35, 36, 38, 39. | $119.65/EA |
| K3 | ADL08812589 | 1 | HUB BRUSH R.GEARMOTOR RIGHTIncludes items 10, 11. | $112.65/EA |

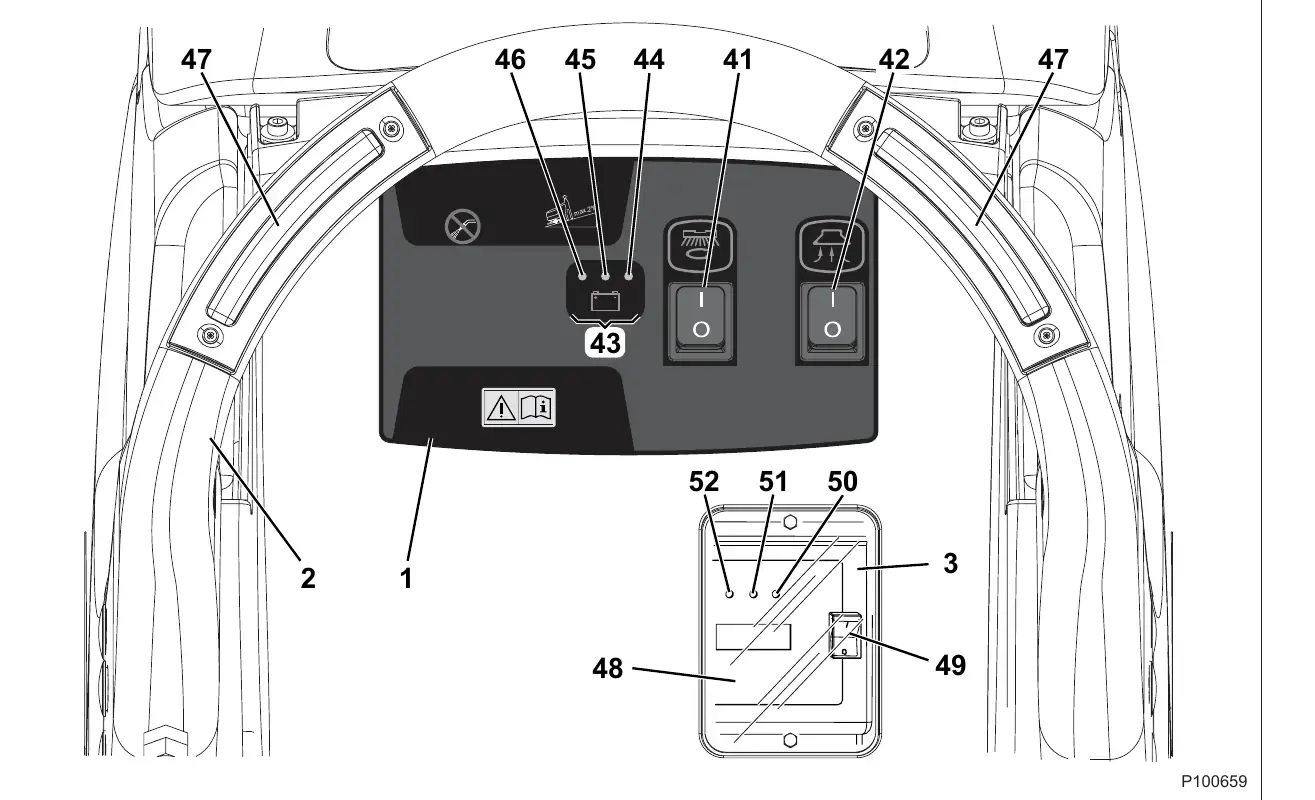

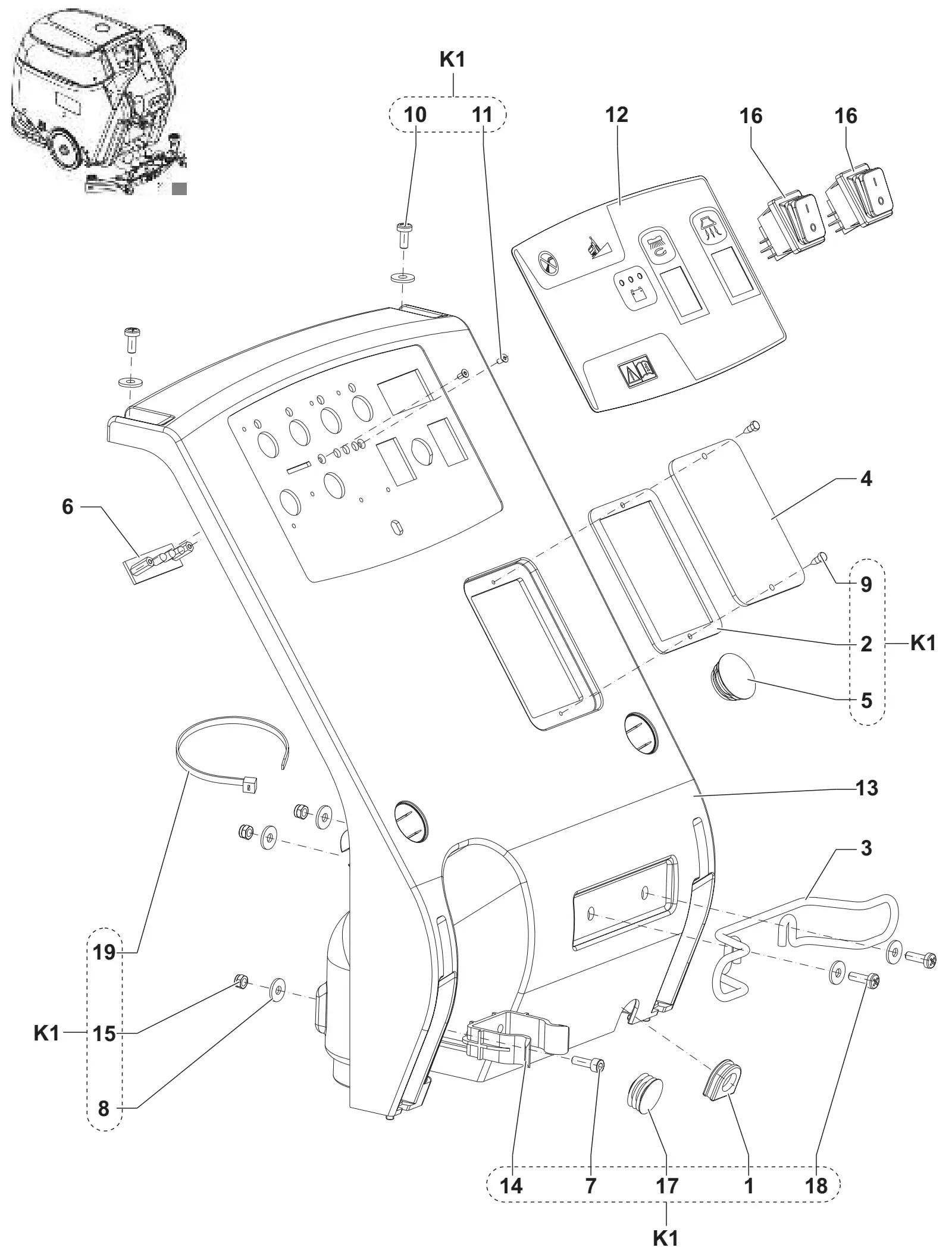

Advance SC450 Control panel (parts list 4/14)
The parts Advance numbers on its control panel (parts list 4/14) drawing. Manual pages 16, list 17.āāāā āā ā āāāāāāāāāā āāāā ā āāāāāāāāāāāā ā āāāāāāā ā āāāāāāāā āā ā āā āāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Grommet Ā· no part number | In kit K1 ā | |
| 2 | 1 | Gasket Ā· no part number | In kit K1 ā | |
| 3 | AD1466317000Replaces Advance 909 5149 000 | 1 | SUPPORT CABLE | $106.33/EA |
| 4 | AD9100001064Replaces Advance 909 5313 000 | 1 | PLATE INSPECTION TRANSP. | $18.96/EA |
| 5 | 1 | Cap. black Ā· no part number | In kit K1 ā | |
| 6 | ADL08812909 | 1 | BOARD. LED | $59.88/EA |
| 7 | 1 | Screw m5x16 uni5931 ss Ā· no part number | In kit K1 ā | |
| 8 | 9 | Washer 5x15x1.2 uni6593 ss Ā· no part number | In kit K1 ā | |
| 9 | 2 | Screw 3.9x9.5 uni6950 thd form Ā· no part number | In kit K1 ā | |
| 10 | 4 | Screw m5x12 uni5931 ss Ā· no part number | In kit K1 ā | |
| 11 | 2 | Screw m3x6 uni7688 Ā· no part number | In kit K1 ā | |
| 12 | AD9099271000Advance 9099271000 | 1 | DECAL CONTROL PANEL BA | |
| 13 | AD9099279000Advance 9099279000 | 1 | COVER BOX ELECTRIC COMP. | |
| 14 | 1 | Clamp.hose d.50 Ā· no part number | In kit K1 ā | |
| 15 | 3 | Nut self l. m5 uni7474 Ā· no part number | In kit K1 ā | |
| 16 | AD107404540 | 2 | SWITCH 0-1 DOUBLE POLE SET | $11.69/EA |
| 17 | 1 | Cap for knob Ā· no part number | In kit K1 ā | |
| 18 | 2 | Screw m5x16 uni7687 Ā· no part number | In kit K1 ā | |
| 19 | 1 | Tie, cable 3,6x140 Ā· no part number | In kit K1 ā | |
| K1 | AD9099327000 | 1 | HARDWARE CONTROL PANEL BA KITIncludes items 1, 2, 5, 7, 8, 9, 10, 11, 14, 15, 17, 18, 19. | $33.79/EA |

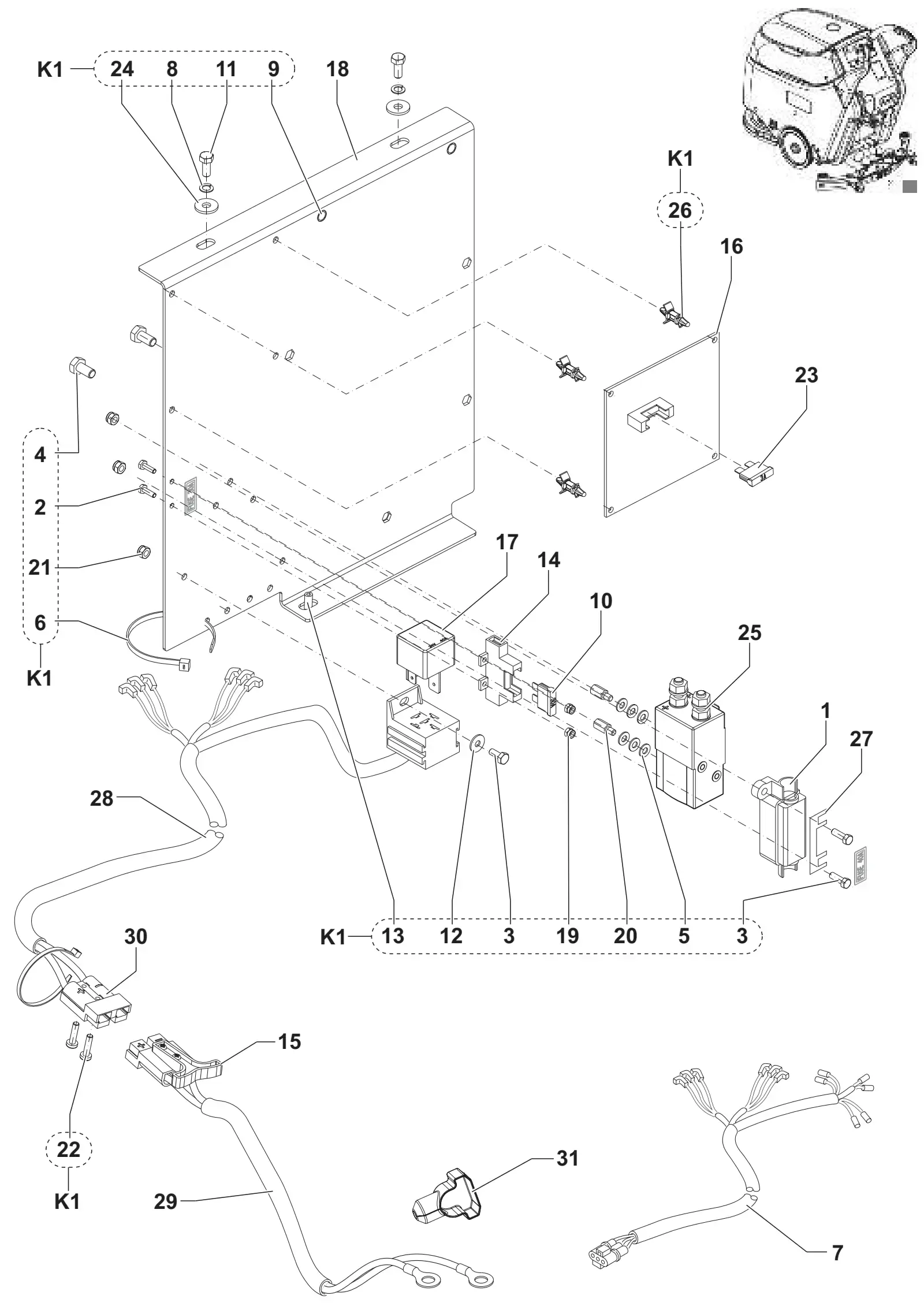

Advance SC450 Electrical components (parts list 4/14)
The parts Advance numbers on its electrical components (parts list 4/14) drawing. Manual pages 18, list 19.āāāā āā ā āāāāāāāāāā āāāāāāā āāāāāāāāāā ā āā āāāā ā āāāāāāāāāāā āāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1458046000 | 1 | HOLDER FUSE | $31.05/EA |
| 2 | 2 | Screw m3x10 uni5739 Ā· no part number | In kit K1 ā | |
| 3 | 3 | Screw m4x12 uni5739 Ā· no part number | In kit K1 ā | |
| 4 | 2 | Screw m4x8 uni5739 Ā· no part number | In kit K1 ā | |
| 5 | 6 | Washer m4 uni6592 Ā· no part number | In kit K1 ā | |
| 6 | 2 | TIE CABLE 3.6x140 BLACK Ā· no part number | In kit K1 ā | |
| 7 | AD9099268000 | 1 | HARNESS MACHINE | $196.45/EA |
| 8 | 2 | Washer m5 uni1751b Ā· no part number | In kit K1 ā | |
| 9 | 3 | Hex insert m5 Ā· no part number | In kit K1 ā | |
| 10 | AD1458513000 | 1 | FUSE BLADE 30A UL | $11.69/EA |
| 11 | 2 | Screw m5x12 uni5739 Ā· no part number | In kit K1 ā | |
| 12 | 1 | Washer 4x12 uni6593 Ā· no part number | In kit K1 ā | |
| 13 | 1 | Screw grub m5x12 uni5929 Ā· no part number | In kit K1 ā | |
| 14 | AD1467035000Replaces Advance 146 0660 000 | 1 | HOLDER FUSE THERMOPL. UL 94-V0 | $36.67/EA |
| 15 | AD9100000885Replaces Advance 1464116000 | 1 | HANDLE RED PLASTIC SB 120 | $26.25/EA |
| 16 | AD9099967000 | 1 | CARD ELECTRONIC KIT | $225.98/EA |
| 17 | AD9096622000 | 1 | RELAY 24V 40A | $33.79/EA |
| 18 | AD9096498000 | 1 | SUPPORT ELECTRIC COMP. | $51.38/EA |
| 19 | 2 | Nut self l. m3 uni7474 Ā· no part number | In kit K1 ā | |
| 20 | 2 | Spacer m4 l10 Ā· no part number | In kit K1 ā | |
| 21 | 3 | Nut self l. m4 uni7474 Ā· no part number | In kit K1 ā | |
| 22 | 2 | Screw m5x20 uni7687 Ā· no part number | In kit K1 ā | |
| 23 | AD1459852000 | 1 | FUSE BLADE 5A UL | $4.39/EA |
| 24 | 2 | Washer 5x15x1.5 uni6593 Ā· no part number | In kit K1 ā | |
| 25 | AD1460719000 | 1 | SWITCH ELECTROMAGNETIC 24V | $174.60/EA |
| 26 | 4 | Spacer plastic Ā· no part number | In kit K1 ā | |
| 27 | AD1453824000 | 1 | FUSE STRIP 40A | $11.69/EA |
| 28 | AD9099291000Advance 9099291000 | 1 | HARNESS ELECTRIC COMP. BOX | |
| 29 | AD9095955000 | 1 | HARNESS BATTERY | $211.28/EA |
| 30 | AD9100002248Replaces Advance 9098761000 | 2 | CONNECTOR 50A RED | $32.42/EA |
| 31 | ADL08812093Advance L08812093 | 4 | BOOT.BATTERY CLAMPS BLACK | |
| K1 | AD9099328000 | 1 | HARDWARE ELECTRIC COMP. KITIncludes items 2, 3, 4, 5, 6, 8, 9, 11, 12, 13, 19, 20, 21, 22, 24, 26. | $27.75/EA |

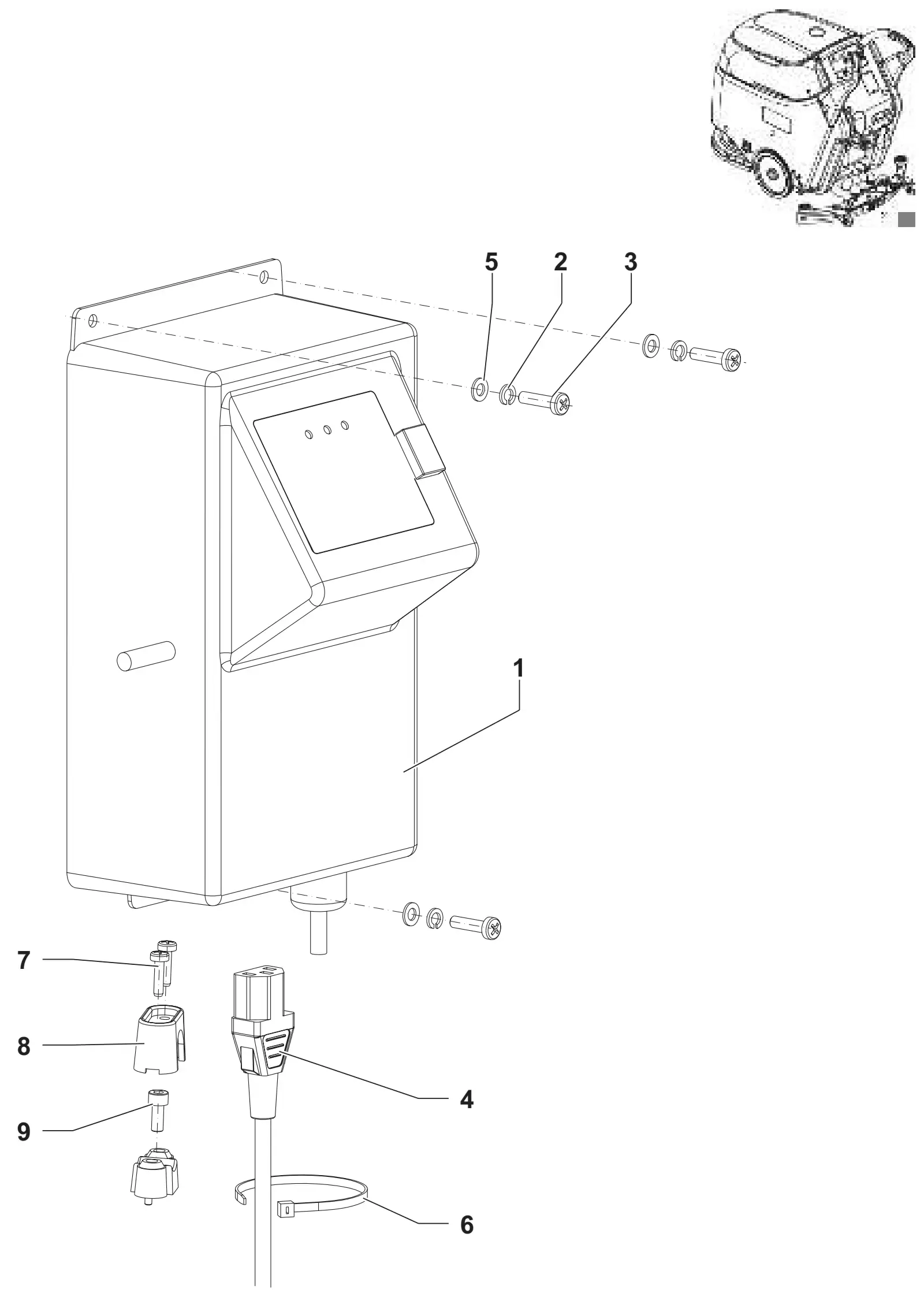

Advance SC450 Battery charger (parts list 4/14)
The parts Advance numbers on its battery charger (parts list 4/14) drawing. Manual pages 20, list 21.āāāā āā ā āāāāāāāāāā āāāāāāāāāā āāāāāāā ā āāāā ā āāāāā āāā āā ā āāāāāāāā ā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098296000 | 1 | CHARGER BATTERY ON BOARD | $1,190.78/EA |
| 2 | 3 | Washer m5 uni1751b Ā· no part number | ||
| 3 | 3 | Screw m5x20 uni7687 Ā· no part number | ||
| 4 | AD9096914000 | 1 | CABLE EXTENSION US | $27.19/EA |
| 5 | 3 | Washer m5 uni6592 Ā· no part number | ||
| 6 | 1 | Tie, cable 3,6x140 Ā· no part number | ||
| 7 | 2 | Screw cyl hd 4x16 self l. Ā· no part number | ||
| 8 | ADL08338600Advance L08338600 | 1 | CAP BRACKET | |
| 9 | 1 | Screw soc hd Ā· no part number |

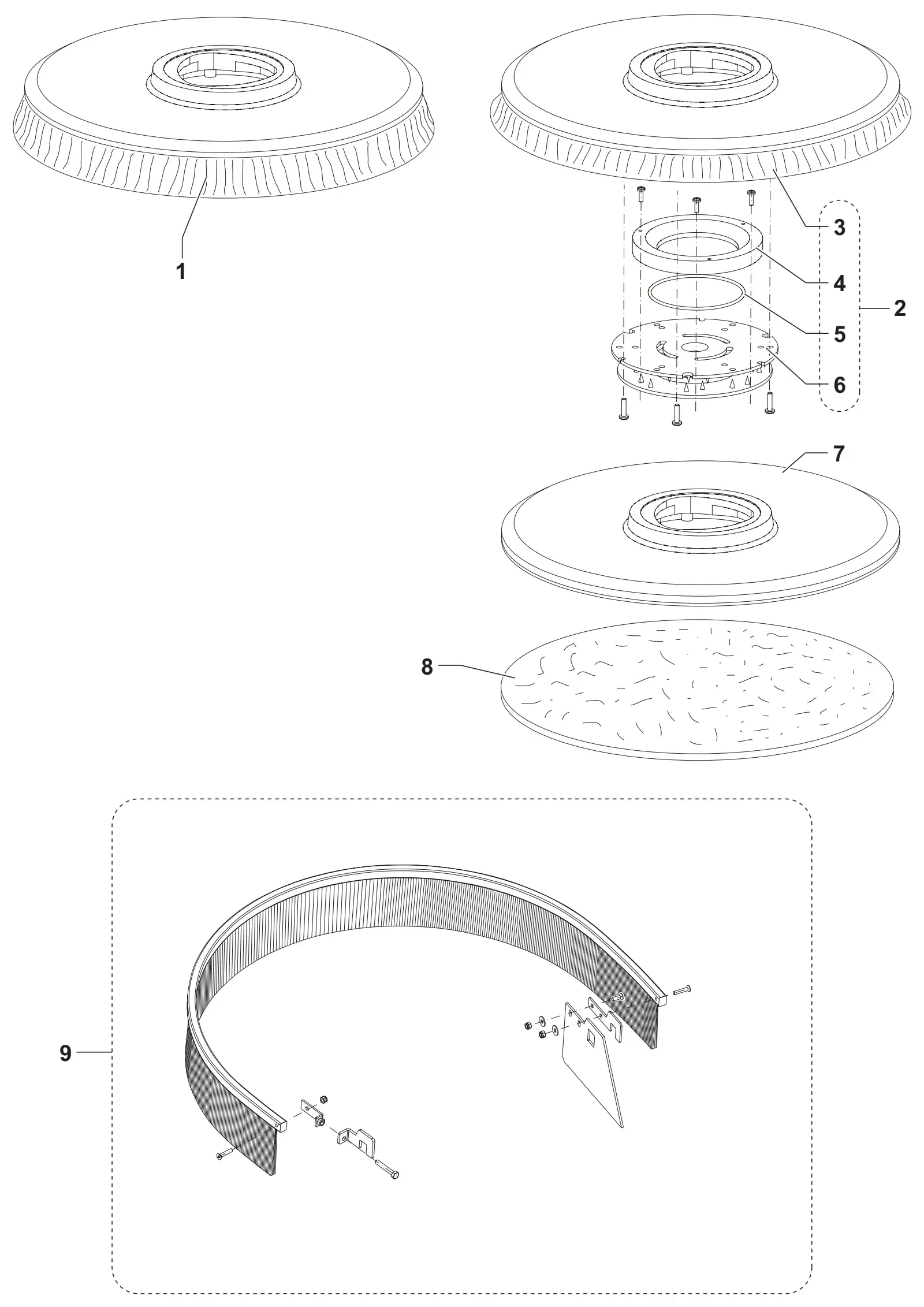

Advance SC450 Accessories (parts list 4/14)
The parts Advance numbers on its accessories (parts list 4/14) drawing. Manual pages 22, list 23.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āā āāāāāāāāā āāāāā āāāāāāā ā ā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | ADL08837025 | 1 | BRUSH D.530MM/20INCH PROLENE PPL BLUEOptional. | $300.36/EA |
| 1 | ADL08837026 | 1 | BRUSH PROLITE 530MMOptional. | $159.03/EA |
| 1 | ADL08837027 | 1 | BRUSH UNION MIX 530MMOptional. | $281.37/EA |
| 1 | ADL08837065 | 1 | BRUSH MAGNA GRIT 46 530MMOptional. | $636.99/EA |
| 1 | ADL08837066 | 1 | BRUSH DYNA GRIT 80 530MMOptional. | $565.35/EA |
| 2 | ADL08837018 | 1 | PAD HOLDER 530MM.Optional. | $245.40/EA |
| 3 | 1 | Pad holder d.485 ppl1 Ā· no part number | ||
| 4 | ADL08603966 | 1 | RING NYLON | $23.35/EA |
| 5 | ADL08603965 | 1 | O-RING 2.62X82.22 -3325-NBR 40SH | $13.76/EA |
| 6 | AD56505195Replaces Advance L08837030 | 1 | RETAINER PAD | $30.34/EA |
| 7 | ADL08837018Replaces Advance 9099671000 | 1 | PAD HOLDER 21 530MM | $245.40/EA |
| 8 | AD10001961Advance 10001961 | 1 | PAD 21 530MM ECO BLACK5PCSOptional. | |
| 8 | AD10001962Advance 10001962 | 1 | PAD 21 530MM ECO BLUE 5PCSOptional. | |
| 8 | AD10001963Advance 10001963 | 1 | PAD 21 530MM ECO BROWN 5PCSOptional. | |
| 8 | AD10001964Advance 10001964 | 1 | PAD 21 530MM ECO GREEN 5PCSOptional. | |
| 8 | AD10001965Advance 10001965 | 1 | PAD 21 530MM ECO RED 5PCSOptional. | |
| 8 | AD10001966Advance 10001966 | 1 | PAD 21 530MM ECO WHITE 5PCSOptional. | |
| 8 | AD10002352Advance 10002352 | 1 | PAD 21 533MM ECO BRILLIANCE RED 2PCSOptional. | |
| 8 | AD10002354Advance 10002354 | 1 | PAD 21 533MM ECO BRILLIANCE YELLOW 2PCSOptional. | |
| 8 | AD10002355Advance 10002355 | 1 | PAD 21 533MM ECO BRILLIANCE GREEN 2PCSOptional. | |
| 9 | AD9096736000 | 1 | SPLASH GUARD KIT 530MM/21Optional. | $239.04/EA |
| ā | AD9096745000Advance 909 6745 000 | 1 | INSTRUCTIONS INSTALL. SPL.GUARD KIT |

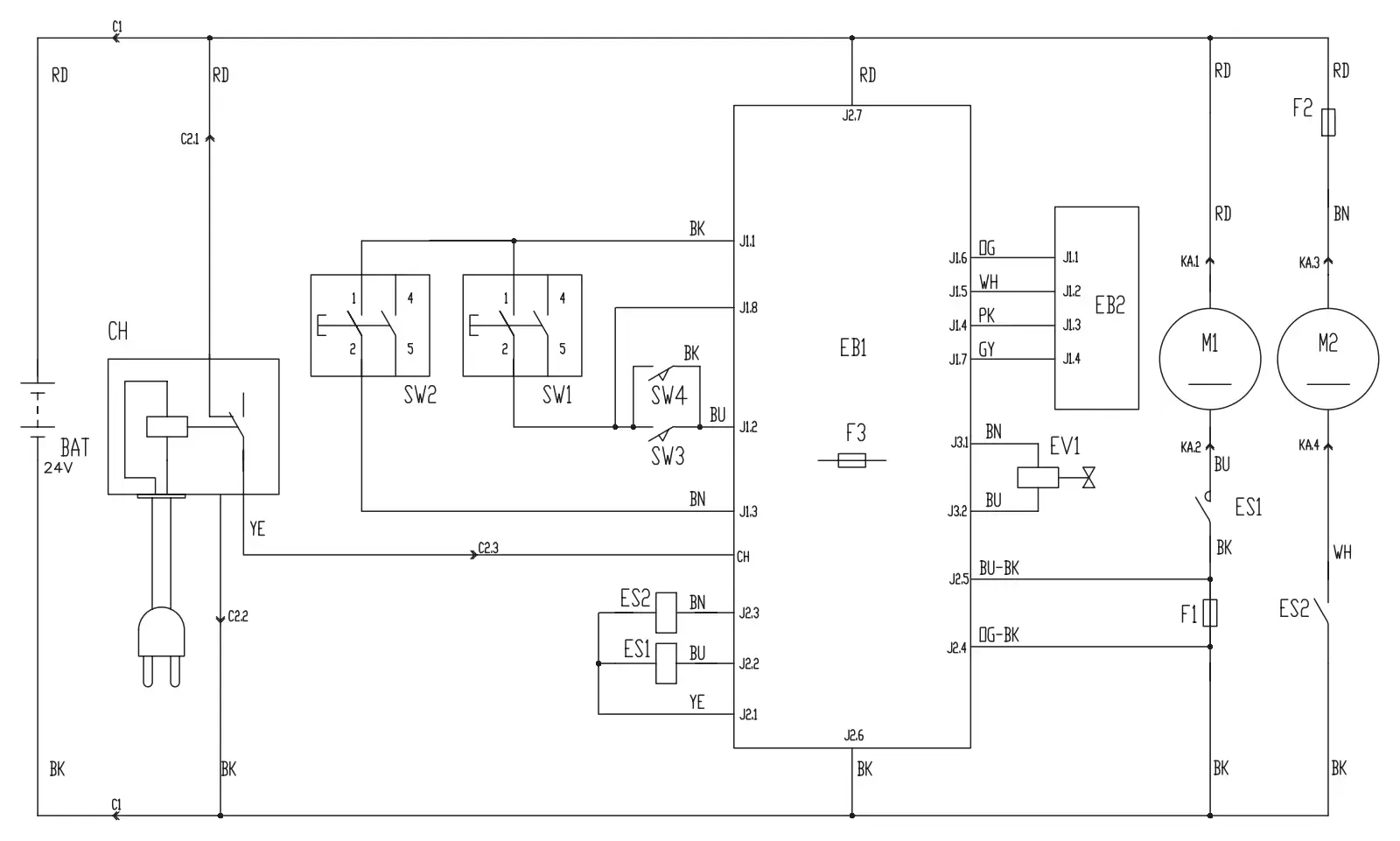

Advance SC450 Wiring diagram key (parts list 4/14)
The parts Advance numbers on its wiring diagram key (parts list 4/14) drawing. Manual pages 24, list 25.āāāā āā ā āāāāāāāāāā āāāāāāā āāā āāāāāāā ā āāāā āāāāāāā āāāāāāāāāāāāāā
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| C1 | AD9100002248Replaces Advance 9098761000 | CONNECTOR 50A RED | $32.42/EA | |
| CH | AD9100003437Replaces Advance 9098297000 | CHARGER BATTERY 24V 13A 100/240VAC EUi | $423.01/EA | |
| EB1 | AD9099967000 | CARD ELECTRONIC KIT | $225.98/EA | |
| EB2 | ADL08812909 | BOARD. LED | $59.88/EA | |
| ES1 | AD1460719000 | SWITCH ELECTROMAGNETIC 24V | $174.60/EA | |
| ES2 | AD9096622000 | RELAY 24V 40A | $33.79/EA | |
| EV1 | AD9099563000 | SOLENOID VALVE 24V | $30.84/EA | |
| F1 | AD1453824000 | FUSE STRIP 40A | $11.69/EA | |
| F2 | AD1458513000 | FUSE BLADE 30A UL | $11.69/EA | |
| F3 | AD1459852000 | FUSE BLADE 5A UL | $4.39/EA | |
| M1 | AD9100000454Advance 9100000454 | REDUCTION GEARMOTOR 480W 24V KIT | ||
| M2 | AD9099922000 | MOTOR VACUUM 330W 24V KIT | $334.36/EA | |
| SW1, SW2 | AD107404540 | SWITCH 0-1 DOUBLE POLE SET | $11.69/EA | |
| SW3, SW4 | AD9100000466 | SWITCHES CPL BLACK F HANDLE BAR KIT Includes items 13, 14 (Handle bar and wheels (parts list 4/14)). | $160.57/EA | |
| SW3 | AD11178A | SWITCH HANDLE ASSY FOR OLD HANDLE BAR MODEL WITH ONE SWITCH. | $54.10/EA |
Advance SC450 Recommended spare parts: normal wear (parts list 4/14)
Recommended spare parts: normal wear (parts list 4/14) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāāāāāā āāāāāāāā ā āāā āāā āā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| ā | AD9100000279 | Qty on machine: 1 | BLADES NON MARKING 740MM/29 KIT | $48.07/EA | |
| ā | ADL08837025 | Qty on machine: 1 | BRUSH D.530MM/20INCH PROLENE PPL BLUE | $300.36/EA | |
| ā | AD9095371000 | Qty on machine: 1 | CARBON BRUSH | $18.96/EA | |
| ā | AD9100000421Advance 9100000421 | Qty on machine: 1 | CARBON BRUSHES W/HOLDER KIT | ||
| ā | AD9096736000 | Qty on machine: 1 | SPLASH GUARD KIT 530MM/21 | $239.04/EA |
Advance SC450 Recommended spare parts: ordinary maintenance (parts list 4/14)
Recommended spare parts: ordinary maintenance (parts list 4/14) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāāā āāāāāāāāāāāā ā āāāāāāāā ā āāāāā āāā āā āāāāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| ā | AD9099922000 | Qty on machine: 1 | MOTOR VACUUM 330W 24V KIT | $334.36/EA | ||
| ā | AD9099255000 | Qty on machine: 1 | HOSE VACUUM MOTOR | $48.62/EA | ||
| ā | AD9100000642Replaces Advance 9099281000 | Qty on machine: 1 | HOSE SUCTION | $54.26/EA | ||
| ā | AD9099692000 | Qty on machine: 1 | HOSE DRAIN KIT | $66.90/EA | ||
| ā | AD9100002138Replaces Advance 9099270000 | Qty on machine: 2 | WHEEL D.254 | $107.69/EA | ||
| ā | AD9100000868Replaces Advance 9097184000 | Qty on machine: 1 | VIBRATION DAMPING M8 | $47.12/EA | ||
| ā | AD9099310000 | Qty on machine: 1 | GASKETS VACUUM MOTOR KITIncludes items 39, 40, 41, 42 (Solution tank (parts list 4/14)). | $103.43/EA | ||
| ā | AD9099513000 | Qty on machine: 1 | VALVE ELBOW 90. D.13MM | $70.45/EA | ||
| ā | AD9099258000 | Qty on machine: 1 | CABLE SQUEEGEE LIFTING | $18.89/EA | ||
| ā | AD9099953000 | Qty on machine: 1 | WHEEL D.50 | $29.53/EA | ||
| ā | AD9099342000Replaces Advance 9099342000 | Qty on machine: 1 | GASKET BULB RUBBER L.1350MM PKD | $23.35/EA | ||
| ā | AD9100000860Replaces Advance 9100000362 | Qty on machine: 1 | FILTER WATER | $35.50/EA | ||
| ā | AD9100000861Replaces Advance 9099481000 | Qty on machine: 1 | NET WATER FILTER REINFORCED | $32.34/EA | ||
| ā | AD9100000454Advance 9100000454 | Qty on machine: 1 | REDUCTION GEARMOTOR 480W 24V KIT | |||
| ā | AD9099563000 | Qty on machine: 1 | SOLENOID VALVE 24V | $30.84/EA | ||
| ā | ADL08837018Replaces Advance 9099671000 | Qty on machine: 1 | PAD HOLDER 21 530MM | $245.40/EA | ||
| ā | AD9099311000 | Qty on machine: 1 | GASKETS KITIncludes items 2, 3, 4 (Solution tank (parts list 4/14)). | $24.72/EA |
Advance SC450 Recommended spare parts: extra-ordinary maintenance (parts list 4/14)
Recommended spare parts: extra-ordinary maintenance (parts list 4/14) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāā āāāāā āā āāāāāā ā āāāāā ā āāā āā āāāāāāāāāā āāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| ā | AD9100003437Replaces Advance 9098297000 | Qty on machine: 1 | CHARGER BATTERY 24V 13A 100/240VAC EUi | $423.01/EA | ||
| ā | AD9100000466 | Qty on machine: 1 | SWITCHES CPL BLACK F HANDLE BAR KITIncludes items 13, 14 (Handle bar and wheels (parts list 4/14)). | $160.57/EA | ||
| ā | AD9099271000Advance 9099271000 | Qty on machine: 1 | DECAL CONTROL PANEL BA | |||
| ā | AD107404540 | Qty on machine: 2 | SWITCH 0-1 DOUBLE POLE SET | $11.69/EA | ||
| ā | AD11178A | Qty on machine: 1 | SWITCH HANDLE ASSY | $54.10/EA | ||
| ā | AD1458513000 | Qty on machine: 1 | FUSE BLADE 30A UL | $11.69/EA | ||
| ā | AD9099967000 | Qty on machine: 1 | CARD ELECTRONIC KIT | $225.98/EA | ||
| ā | AD9096622000 | Qty on machine: 1 | RELAY 24V 40A | $33.79/EA | ||
| ā | AD1460719000 | Qty on machine: 1 | SWITCH ELECTROMAGNETIC 24V | $174.60/EA | ||
| ā | AD1453824000 | Qty on machine: 1 | FUSE STRIP 40A | $11.69/EA | ||
| ā | AD9099291000Advance 9099291000 | Qty on machine: 1 | HARNESS ELECTRIC COMP. BOX | |||
| ā | AD9100002248Replaces Advance 9098761000 | Qty on machine: 2 | CONNECTOR 50A RED | $32.42/EA | ||
| ā | AD9099268000 | Qty on machine: 1 | HARNESS MACHINE | $196.45/EA | ||
| ā | AD1459852000 | Qty on machine: 1 | FUSE BLADE 5A UL | $4.39/EA | ||
| ā | AD9096887000 | Qty on machine: 1 | ROLLER BUMPER KITIncludes items 4, 6, 12, 13, 26, 38, 42 (Brush deck (parts list 4/14)). | $15.02/EA |
Advance SC450 Optional parts (parts list 4/14)
Optional parts (parts list 4/14) from Advance's parts list. Manual page 27.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āā āāāā āāāāā āāāā āāāā āā āāā ā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| ā | AD9100001353Replaces Advance 9096916000 | Qty on machine: 1 | FILTER SOLUTION TANK | $33.79/EA | |
| ā | ADL08837026 | Qty on machine: 1 | BRUSH PROLITE 530MM | $159.03/EA | |
| ā | ADL08837027 | Qty on machine: 1 | BRUSH UNION MIX 530MM | $281.37/EA | |
| ā | ADL08837065 | Qty on machine: 1 | BRUSH MAGNA GRIT 46 530MM | $636.99/EA | |
| ā | ADL08837066 | Qty on machine: 1 | BRUSH DYNA GRIT 80 530MM | $565.35/EA | |
| ā | ADL08603966 | Qty on machine: 1 | RING NYLON | $23.35/EA | |
| ā | AD56505195Replaces Advance L08837030 | Qty on machine: 1 | RETAINER PAD | $30.34/EA | |
| ā | AD10001965Advance 10001965 | Qty on machine: 1 | PAD 21 530MM ECO RED 5PCS | ||
| ā | AD9100000703Replaces Advance 9097290000 | Qty on machine: 1 | HOSE FILLING | $50.01/EA | |
| ā | AD9096858000 | Qty on machine: 1 | BLADES PU KIT 740MM/29Includes items 18, 19 (Squeegee system (parts list 08/2012)). | $73.28/EA | |
| ā | ADL08837018 | Qty on machine: 1 | PAD HOLDER 530MM. | $245.40/EA | |
| ā | ADL08603965 | Qty on machine: 1 | O-RING 2.62X82.22 -3325-NBR 40SH | $13.76/EA | |
| ā | ADL08837018Replaces Advance 9099671000 | Qty on machine: 1 | PAD HOLDER 21 530MM | $245.40/EA | |
| ā | AD10001962Advance 10001962 | Qty on machine: 1 | PAD 21 530MM ECO BLUE 5PCS | ||
| ā | AD10001963Advance 10001963 | Qty on machine: 1 | PAD 21 530MM ECO BROWN 5PCS | ||
| ā | AD10001964Advance 10001964 | Qty on machine: 1 | PAD 21 530MM ECO GREEN 5PCS | ||
| ā | AD10001966Advance 10001966 | Qty on machine: 1 | PAD 21 530MM ECO WHITE 5PCS | ||
| ā | AD10002352Advance 10002352 | Qty on machine: 1 | PAD 21 533MM ECO BRILLIANCE RED 2PCS | ||
| ā | AD10002354Advance 10002354 | Qty on machine: 1 | PAD 21 533MM ECO BRILLIANCE YELLOW 2PCS | ||
| ā | AD10002355Advance 10002355 | Qty on machine: 1 | PAD 21 533MM ECO BRILLIANCE GREEN 2PCS | ||
| ā | AD9096736000 | Qty on machine: 1 | SPLASH GUARD KIT 530MM/21 | $239.04/EA |
Advance SC450 General view (parts list 08/2012)
The parts Advance numbers on its general view (parts list 08/2012) drawing. Manual pages 2, list 3.āāāā āā ā āāāāāāāāāā āāāāāāā āāāāāāāāāā ā āāā ā āāāāā āāāā āāāāāāāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Wheels assembly Ā· no part number | ||
| 2 | 1 | Solution system assembly Ā· no part number | ||
| 3 | 1 | Squeegee holder assembly Ā· no part number | ||
| 4 | 1 | Electronic box assembly Ā· no part number | ||
| 5 | 1 | Fresh tank assembly Ā· no part number | ||
| 6 | 1 | Recovery tank assembly Ā· no part number | ||
| 7 | 1 | Cover tank assembly Ā· no part number | ||
| 8 | 1 | Handle bar assembly Ā· no part number | ||
| 9 | 1 | Squeegee assembly Ā· no part number | ||
| 10 | 1 | Vacuum assembly Ā· no part number | ||
| 11 | 1 | Charger assembly Ā· no part number | ||
| 12 | 1 | Batteries Ā· no part numberOptional. i | ||
| 13 | 1 | Brush deck assembly Ā· no part number | ||
| 14 | 1 | Cover panel assembly Ā· no part number | ||
| 15 | AD1456094000 | 1 | ISOLANT PANEL | $7.84/EA |
Advance SC450 Solution tank (parts list 08/2012)
The parts Advance numbers on its solution tank (parts list 08/2012) drawing. Manual pages 4, list 5.āāāā āā ā āāāāāāāāāā āāāāāāā āāāā āāāāāā ā āā ā āāā āā āā āā āāā āāāā āā ā āāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Cap black Ā· no part number | In kit K4 ā | |
| 2 | 1 | Gasket Ā· no part number | In kit K3 ā | |
| 3 | 1 | Gasket Ā· no part number | In kit K3 ā | |
| 4 | 2 | Gasket l=960 Ā· no part number | In kit K3 ā | |
| 5 | 1 | Knob Ā· no part number | In kit K4 ā | |
| 6 | 1 | Washer 6x18 uni6592 Ā· no part number | In kit K4 ā | |
| 7 | 5 | Screw m6x12 uni7687 Ā· no part number | In kit K4 ā | |
| 8 | 1 | Decal water faucet Ā· no part number | In kit K1 ā | |
| 9 | 1 | Warning label Ā· no part number | In kit K1 ā | |
| 10 | 1 | Clamp 12/ 16-27 Ā· no part number | In kit K4 ā | |
| 11 | 2 | Cap black,tank locking Ā· no part number | In kit K4 ā | |
| 12 | 4 | Clamp black 4,8x200 Ā· no part number | In kit K4 ā | |
| 13 | 1 | Washer m5 uni1751b Ā· no part number | In kit K4 ā | |
| 14 | AD1460668000 | 2 | PANEL INSULATING H=30 | $13.07/EA |
| 15 | 1 | Screw m5x16 uni7687 Ā· no part number | In kit K4 ā | |
| 16 | 1 | Decal advance rectangular Ā· no part number | In kit K1 ā | |
| 17 | 4 | SCREW, PAN PHIL M5x12 SS Ā· no part number | In kit K4 ā | |
| 18 | 4 | Holder,flat tie Ā· no part number | In kit K4 ā | |
| 19 | 1 | Screw m10x30 iso7380 Ā· no part number | In kit K4 ā | |
| 20 | AD9095286000 | GASKET | $10.98/EA | |
| 21 | AD9099251000 | 1 | FRESH WATER TANK | $1,265.14/EA |
| 22 | 1 | Squeegee lift lever Ā· no part number | In kit K4 ā | |
| 23 | AD9099258000 | 1 | SQUEEGEE LIFT ROPE | $18.89/EA |
| 24 | AD9099261000 | 1 | SOLUTION HOSE ĆI=16 | $8.80/EA |
| 25 | AD9099513000 | 1 | VALVE ELBOW 90Ā° | $70.45/EA |
| 26 | 1 | Pin for transport wheel Ā· no part number | In kit K4 ā | |
| 27 | 2 | Hose barb g3/8ā Ćøi11.5 Ā· no part number | In kit K4 ā | |
| 28 | AD9100002261Replaces Advance 9099275000 | 1 | VACUUM-MOTOR PLATE | $107.69/EA |
| 29 | 2 | Decal āmachine nameā Ā· no part number | In kit K1 ā | |
| 30 | AD9100001353Replaces Advance 9096916000 | 1 | FILTER SOLUTION TANKOptional. | $33.79/EA |
| 31 | 2 | Screw m3x20 uni7687 Ā· no part number | In kit K4 ā | |
| 32 | 1 | Nut hex m6 uni5588 Ā· no part number | In kit K4 ā | |
| 33 | 2 | Ring d 9 uni7435 Ā· no part number | In kit K4 ā | |
| 34 | 1 | Ball joint m6 din 71802 Ā· no part number | In kit K4 ā | |
| 35 | AD9099953000Replaces Advance 9099560000 | 1 | WHEEL 2ā | $29.53/EA |
| 36 | AD9099561000 | 1 | SPONGE FOR WATER | $10.42/EA |
| 37 | AD9100000703Replaces Advance 9097290000 | 1 | HOSE FILLINGOptional. | $50.01/EA |
| 38 | AD9096672000 | 1 | VACUUM FUN FILTERAlso included in SPONGE KIT 9099310000 (K2). | $11.28/EA |
| 39 | 1 | Vacuum motor gasket Ā· no part number | In kit K2 ā | |
| 40 | 1 | Sheath d.48 Ā· no part number | In kit K2 ā | |
| 41 | 1 | Vacuum motor gasket Ā· no part number | In kit K2 ā | |
| 42 | 1 | Acoustic insulation pipe Ā· no part number | In kit K2 ā | |
| 43 | AD9099922000 | 1 | VACUUM MOTOR 330W 24V KIT (M2) | $334.36/EA |
| 44 | AD9095371000 | 2 | CARBON BRUSH | $18.96/EA |
| 45 | 1 | Washer, split lock d.6 Ā· no part number | In kit K4 ā | |
| 46 | 2 | WASHER NYLON 10x21x1 Ā· no part number | In kit K4 ā | |
| K1 | AD9099856000 | 1 | DECAL KIT SC450Includes items 8, 9, 16, 29. | $64.01/EA |
| K2 | AD9099310000 | 1 | SPONGE KITIncludes items 39, 40, 41, 42. | $103.43/EA |
| K3 | AD9099311000 | 1 | GASKET KITIncludes items 2, 3, 4. | $24.72/EA |
| K4 | AD9100000768Replaces Advance 9099312000 | 1 | SOLUTION TANK HW KITNot shown on the drawing. Includes items 1, 5, 6, 7, 10, 11, 12, 13, 15, 17, 18, 19, 22, 26, 27, 31, 32, 33, 34, 45, 46. | $17.46/EA |
Advance SC450 Recovery tank (parts list 08/2012)
The parts Advance numbers on its recovery tank (parts list 08/2012) drawing. Manual pages 6, list 7.āāāā āā ā āāāāāāāāāā āāāāāāāāā ā āāāāāāā ā āāāāāāāāāāāāā āāāā āā āā āāā ā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 4 | WASHER 6.4X12x1 NYLON Ā· no part number | In kit K1 ā | |
| 2 | 4 | SCREW, BUTTON SOC M6x20 Ā· no part number | In kit K1 ā | |
| 3 | 2 | Screw cyl hd selfl 3,9x12 Ā· no part number | In kit K1 ā | |
| 4 | 2 | Plate, tank cover Ā· no part number | In kit K1 ā | |
| 5 | 1 | Bush flanged Ā· no part number | In kit K1 ā | |
| 6 | AD9099252000 | 1 | RECOVERY TANK | $283.67/EA |
| 7 | AD9099255000 | 1 | VACUUM MOTOR HOSE | $48.62/EA |
| 8 | AD9100000912Replaces Advance 9099276000 | 1 | GASKET FLOAT CAGE HOLDER | $8.80/EA |
| 9 | AD9100000642Replaces Advance 9099281000 | 1 | SQUEEGEE HOSE | $54.26/EA |
| 10 | 4 | NUT DRIVIN 6x6 SS Ā· no part number | In kit K1 ā | |
| 11 | 2 | Clamp hose 10/25-45 serflex Ā· no part number | In kit K1 ā | |
| 12 | AD9099692000 | 1 | HOSE DRAIN KIT | $66.90/EA |
| 13 | AD9099559000 | 1 | FLOAT SHUT OFF | $27.36/EA |
| 14 | AD9099558000 | 1 | ELBOW ADAPTOR FLOAT | $15.57/EA |
| 15 | AD9099253000 | 1 | TANK COVER | $174.60/EA |
| 16 | AD9100000819Replaces Advance 9099342000 | 1 | GASKET | $13.07/EA |
| K1 | AD9099313000 | 1 | RECOVERY TANK HW KITNot shown on the drawing. Includes items 1, 2, 3, 4, 5, 10, 11. | $40.81/EA |
Advance SC450 Handle bar and wheels (parts list 08/2012)
The parts Advance numbers on its handle bar and wheels (parts list 08/2012) drawing. Manual pages 8, list 9.āāāā āā ā āāāāāāāāāā āāāā āāā āā āā āāāāāā ā āāāāāāāāāāāāāāāāā āāā ā āā āā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedAdvance no number printed | 10 | BELLEVILLE WASHER 17.3X27.7X0.4Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 2 | No number printedAdvance no number printed | 6 | WASHER M16 UNI6592Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 3 | AD9099256000 | 1 | WHEEL SHAFT | $27.75/EA |
| 4 | No number printedAdvance no number printed | 2 | PUSH SQUEEGEE SPRINGIncluded in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 5 | No number printedAdvance no number printed | 6 | RING D 17 UNI7436Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 6 | AD9100002138Replaces Advance 9099270000 | 2 | WHEEL Ć10āX33 | $107.69/EA |
| 7 | No number printedAdvance no number printed | 6 | WASHER 8X24 UNI6592Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 8 | No number printedAdvance no number printed | 6 | BELLEVILLE WASHER 15,8 X 8,2 X 0,35Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 9 | No number printedAdvance no number printed | 6 | SCREW, HEX THD TO HD M8x75Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 10 | AD9100000425Replaces Advance 9099254000 | 1 | HANDLE BAR | $342.18/EA |
| 11 | No number printedAdvance no number printed | 6 | NUT SELF L. M8 UNI7474Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 12 | AD9099286000Advance 9099286000 | 1 | HARNESS HANDLEBAR | |
| 13 | No number printedAdvance no number printed | 2 | SCREW CYL HD 4X16 SELF L. PLASIncluded in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| 14 | AD11178A | 1 | SWITCH (SW3) | $54.10/EA |
| 15 | No number printedAdvance no number printed | 6 | BLACK CAP D.18,5/24Included in HANDLE BAR AND WHEELS HW KIT 9099315000 (K1); no number printed. | |
| K1 | AD9099315000Advance 9099315000 | 1 | HANDLE BAR AND WHEELS HW KITNot shown on the drawing. |
Advance SC450 Solution system (parts list 08/2012)
The parts Advance numbers on its solution system (parts list 08/2012) drawing. Manual pages 10, list 11.āāāā āā ā āāāāāāāāāā āāāāā ā āāāā āāāāāāā ā āāā āāāāāāāāāāāā āāāāāāā ā āā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000511Replaces Advance 33003496 | 4 | CLAMP, HOSE 09/12-22 | $23.35/EA |
| 3 | AD9095009000 | 2 | SCREW M5X12 SS UNI7687 | $11.69/EA |
| 4 | AD9099337000 | 2 | HOSE DI.12 KIT | $17.46/EA |
| 5 | AD9100000860Replaces Advance 9097404000 | 1 | FILTER WATER | $35.50/EA |
| 6 | AD9100000860Replaces Advance 909 5215 000 | 1 | NET & GASKET WATER FILTER | $35.50/EA |
Advance SC450 Squeegee system (parts list 08/2012)
The parts Advance numbers on its squeegee system (parts list 08/2012) drawing. Manual pages 12, list 13.āāāā āā ā āāāāāāāāāā āāāāāā āā āā āāāāāāā ā āāā ā ā āāāāāāāāā āāāāāāā āāā ā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Screw,shoulder Ćø12x40 m10 iso7379 Ā· no part number | In kit K8 ā | |
| 2 | 1 | Squeegee support pin Ā· no part number | In kit K8 ā | |
| 3 | 1 | Spacer 8x10x7 Ā· no part number | In kit K8 ā | |
| 4 | 2 | Washer 6x18x1,5 uni6593 Ā· no part number | In kit K8 ā | |
| 5 | 1 | Screw m6x20 uni5739 Ā· no part number | In kit K8 ā | |
| 6 | AD56384513Replaces Advance 909 6045 000 | 1 | SQUEEGEE SUPPORT | $154.15/EA |
| 7 | 2 | Screw,shoulder Ćø10x16 m8 Ā· no part number | In kit K8 ā | |
| 8 | AD9100000509Replaces Advance 9099249000 | 1 | FRONT SQUEEGEE SUPPORT | $88.73/EA |
| 9 | AD9100000510Replaces Advance 9099250000 | 1 | REAR SQUEEGEE SUPPORT | $129.54/EA |
| 10 | 2 | Bearing with flange Ā· no part number | In kit K8 ā | |
| 11 | 1 | Spacer 6,5x10x4,5 Ā· no part number | In kit K8 ā | |
| 12 | 2 | Nut, hex nyl loc thin m8 Ā· no part number | In kit K8 ā | |
| 13 | 2 | Nut hex low m8 Ā· no part number | In kit K8 ā | |
| 14 | 1 | Nut self l. m6 uni7474 Ā· no part number | In kit K8 ā | |
| 15 | 1 | Nut self l. m10 uni7473 Ā· no part number | In kit K8 ā | |
| 16 | 4 | Washer nylon 13x24 Ā· no part number | In kit K8 ā | |
| 17 | 1 | Handwheel m8x55 Ā· no part number | In kit K8 ā | |
| 18 | 1 | Front blade squeegee Ā· no part number | In kit K6 ā | |
| 19 | 1 | Rear blade squeegee Ā· no part number | In kit K6 ā | |
| 20 | 2 | Rubber washer Ā· no part number | In kit K7 ā | |
| 21 | 2 | Wheel 2,5ā Ā· no part number | In kit K2 ā | |
| 22 | 1 | Squeegee latch Ā· no part number | In kit K4 ā | |
| 23 | 2 | Screw m4x10 uni7687 Ā· no part number | In kit K4 ā | |
| 24 | 2 | Spacer 6,3x9,5x21 Ā· no part number | In kit K2 ā | |
| 25 | 2 | Screw 5/16"x1" unc Ā· no part number | In kit K7 ā | |
| 26 | Not sold separatelyAdvance no number printed | 1 | SQUEEGEEIncluded in KIT SQUEEGEE 909 6851 000 (K1); no number printed. | |
| 27 | 1 | Squeegee left rear strap Ā· no part number | In kit K4 ā | |
| 28 | Not sold separatelyAdvance no number printed | 1 | SQUEEGEE FRONT STRAPIncluded in KIT SQUEEGEE 909 6851 000 (K1); no number printed. | |
| 29 | 1 | Squeegee right rear strap Ā· no part number | In kit K4 ā | |
| 30 | 2 | Wheel 60x20 (with spacer) Ā· no part number | In kit K3 ā | |
| 31 | Not sold separatelyAdvance no number printed | 1 | KNOB M8X30 SSIncluded in KIT SQUEEGEE 909 6851 000 (K1); no number printed. | |
| 32 | 2 | Screw m6x55 uni5739 Ā· no part number | In kit K3 ā | |
| 33 | Not sold separatelyAdvance no number printed | 1 | SCREW GRUB M8X30 UNI5929Included in KIT SQUEEGEE 909 6851 000 (K1); no number printed. | |
| 34 | 2 | Screw m6x40 uni5933 Ā· no part number | In kit K2 ā | |
| 35 | 1 | Rubber spacer Ā· no part number | In kit K4 ā | |
| 36 | 2 | Nut thumb,squeegee fixing Ā· no part number | In kit K7 ā | |
| 37 | 4 | Nut self l. m6 uni7474 Ā· no part number | In kit K2 ā | |
| 38 | 2 | Nut self l. m4 uni7474 Ā· no part number | In kit K4 ā | |
| 39 | 1 | WASHER FLAT 15x25 NYLON Ā· no part number | In kit K8 ā | |
| K1 | AD9096851000 | 1 | KIT SQUEEGEE | $625.17/EA |
| K2 | AD9096884000 | 1 | KIT SQUEEGEE BUMPER ROLLERAlso included in KIT SQUEEGEE 909 6851 000 (K1). Includes items 21, 24, 34, 37. | $96.42/EA |
| K3 | AD9096883000 | 1 | KIT SQUEEGEE WHEELAlso included in KIT SQUEEGEE 909 6851 000 (K1). Includes items 30, 32. | $112.65/EA |
| K4 | AD9096882000 | 1 | KIT FIXING SQUEEGEEAlso included in KIT SQUEEGEE 909 6851 000 (K1). Includes items 22, 23, 27, 29, 35, 38. | $160.57/EA |
| K5 | AD9096394000 | 1 | KIT LATCH FOR SQUEEGEEAlso included in KIT SQUEEGEE 909 6851 000 (K1). Includes items 22, 23, 32 (Squeegee system (parts list 4/14)). | $83.12/EA |
| K6 | AD9100000279Replaces Advance 909 6860 000 | 1 | BLADE RUBBER KIT 740MM/29āNot shown on the drawing; Also included in KIT SQUEEGEE 909 6851 000 (K1). | $48.07/EA |
| K6 | AD9096858000 | 1 | BLADE PU KIT 740MM/29āOptional; Not shown on the drawing. Includes items 18, 19. | $73.28/EA |
| K7 | AD9097637000 | 1 | SQUEEGEE FIXING KITAlso included in KIT SQUEEGEE 909 6851 000 (K1). Includes items 20, 25, 36. | $36.42/EA |
| K8 | AD9099322000 | 1 | SQUEEGEE SUPPORT HW KITNot shown on the drawing. Includes items 1, 2, 3, 4, 5, 7, 10, 11, 12, 13, 14, 15, 16, 17, 39. | $54.26/EA |
Advance SC450 Brush deck (parts list 08/2012)
The parts Advance numbers on its brush deck (parts list 08/2012) drawing. Manual pages 14, list 15.āāāā āā ā āāāāāāāāāā āāāā ā āāāāāāāāāāāā ā āāāāāā āāāā āāā ā āā āāāāāāā āā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000572Replaces Advance 9099259000 | 1 | PLATE,DECK BRUSH HOLDER | $99.32/EA |
| 2 | 1 | WASHER, FLAT 17x30 Ā· no part number | In kit K2 ā | |
| 3 | 2 | Washer, ext. Ā· no part number | In kit K2 ā | |
| 4 | 1 | Washer Ā· no part number | In kit K1 ā | |
| 5 | 2 | Washer m4 ss uni6592 Ā· no part number | In kit K2 ā | |
| 6 | 1 | Washer 8x24x2 Ā· no part number | In kit K1 ā | |
| 7 | 1 | Holder rubber 1/4ā tubo d.10 Ā· no part number | In kit K2 ā | |
| 8 | ADL08812306 | 1 | HUB,BRUSH RIGHT | $74.61/EA |
| 9 | ADL08812480 | 1 | BRUSH HUB | $36.67/EA |
| 10 | 3 | Washer m6 Ā· no part number | In kit K2 ā | |
| 11 | 3 | Screw m6x20 uni5931 Ā· no part number | In kit K2 ā | |
| 12 | 1 | Black cap Ā· no part number | In kit K1 ā | |
| 13 | 1 | Spacer 9x15x13 Ā· no part number | In kit K1 ā | |
| 14 | 2 | Cap for knob Ā· no part number | In kit K2 ā | |
| 15 | 2 | Plate fixing pin Ā· no part number | In kit K2 ā | |
| 16 | 2 | Rubber washer10x30x2 Ā· no part number | In kit K2 ā | |
| 17 | 4 | Washer 9,5x27x2,5 Ā· no part number | In kit K2 ā | |
| 18 | 2 | Vibration damping plate Ā· no part number | In kit K2 ā | |
| 19 | ADL08837025 | 1 | BRUSH 530 PROLENE | $300.36/EA |
| 20 | 3 | Screw m12x50 uni5931 Ā· no part number | In kit K2 ā | |
| 21 | 4 | Screw m6x35 uni5739 Ā· no part number | In kit K2 ā | |
| 22 | 4 | Washer m6 uni8842a Ā· no part number | In kit K2 ā | |
| 23 | AD1450492000Replaces Advance 145 0492 000 | 1 | SCREW M6X25 UNI5931 | $9.58/EA |
| 24 | 2 | SCREW, PAN PHIL M4x10 SS Ā· no part number | In kit K2 ā | |
| 25 | AD1450493000Advance 145 0493 000 | 1 | WASHER 6.6X24X2 UNI6593 | |
| 26 | 1 | Screw hex hd m8x30 ss Ā· no part number | In kit K1 ā | |
| 27 | 2 | Washer, split lock d.4 Ā· no part number | In kit K2 ā | |
| 28 | 1 | WASHER, FLAT 5.3x10x1 SS Ā· no part number | In kit K2 ā | |
| 29 | 4 | Screw m6x16 uni5739 Ā· no part number | In kit K2 ā | |
| 30 | AD9096042000 | 1 | BRUSH DECK 530 | $182.30/EA |
| 31 | AD9096546000Advance 909 6546 000 | 1 | REDUCTION GEARMOTOR 480W 24V (M1) | |
| 32 | AD9095380000 | 1 | KIT CARBON BRUSH (4PCS) | $458.25/EA |
| 33 | AD9099341000 | 1 | HOSE DI.10 L=250 MM | $10.30/EA |
| 34 | 3 | Flanged bushing Ā· no part number | In kit K2 ā | |
| 35 | 4 | Nut self l. m6 uni7474 ss Ā· no part number | In kit K2 ā | |
| 36 | 2 | Nut selflocking low m5 ss Ā· no part number | In kit K2 ā | |
| 37 | AD9100000868Replaces Advance 9097184000 | 1 | VIBRATION DAMPING M8 60SH | $47.12/EA |
| 38 | 2 | Nut selflocking low m8 ss Ā· no part number | In kit K1 ā | |
| 39 | 1 | Screw m8x12 uni5739 Ā· no part number | In kit K2 ā | |
| 40 | AD9099563000 | 1 | SOLENOID VALVE 24V (EV1) | $30.84/EA |
| 41 | ADL08812203 | 2 | KNOB | $12.85/EA |
| 42 | 1 | Bumper roller Ā· no part number | In kit K1 ā | |
| 43 | 2 | Buffer Ā· no part number | In kit K2 ā | |
| 44 | 1 | Tie, cable 4,8x200 Ā· no part number | In kit K2 ā | |
| 45 | 1 | Tie, cable 4,8x430 Ā· no part number | In kit K2 ā | |
| K1 | AD9096887000 | 1 | BUMPER ROLLER KITIncludes items 4, 6, 12, 13, 26, 38, 42. | $15.02/EA |
| K2 | AD9099326000 | 1 | BRUSH DECK HW KITNot shown on the drawing. Includes items 2, 3, 5, 7, 10, 11, 14, 15, 16, 17, 18, 20, 21, 22, 24, 27, 28, 29, 34, 35, 36, 38, 39, 43, 44, 45. | $119.65/EA |
Advance SC450 Cover panel (parts list 08/2012)
The parts Advance numbers on its cover panel (parts list 08/2012) drawing. Manual pages 16, list 17.āāāā āā ā āāāāāāāāāā āāāā āāāāāāāāāāāāā ā āā ā āāāāāāāāāā āāāāāāāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | 1 | Grommet Ā· no part number | In kit K1 ā | |
| 2 | 1 | Gasket Ā· no part number | In kit K1 ā | |
| 3 | AD1466317000Replaces Advance 909 5149 000 | 1 | CABLE SUPPORT | $106.33/EA |
| 4 | AD9100001064Replaces Advance 909 5313 000 | 1 | PLATE INSPECTION TRANSP. | $18.96/EA |
| 5 | 1 | Plug Ćø25 Ā· no part number | In kit K1 ā | |
| 6 | ADL08812909 | 1 | LED BOARD (EB2) | $59.88/EA |
| 7 | 1 | Screw m5x16 ss Ā· no part number | In kit K1 ā | |
| 8 | 9 | Washer 5x15 ss Ā· no part number | In kit K1 ā | |
| 9 | 2 | Screw hex thd form Ā· no part number | In kit K1 ā | |
| 10 | 4 | Screw m5x12 ss Ā· no part number | In kit K1 ā | |
| 11 | 2 | Screw m3x6 uni7688 Ā· no part number | In kit K1 ā | |
| 12 | AD9099271000Advance 9099271000 | 1 | CONTROL PANEL DECAL | |
| 13 | AD9099279000Advance 9099279000 | 1 | ELECTRONIC COMPONENTS COVER | |
| 14 | 1 | Hose clamp Ā· no part number | In kit K1 ā | |
| 15 | 3 | Nut, hex nyl loc thin m5 Ā· no part number | In kit K1 ā | |
| 16 | AD107404540Replaces Advance 909 5584 000 | 2 | SWITCH (SW1-2) | $11.69/EA |
| 17 | 1 | Cap Ā· no part number | In kit K1 ā | |
| 18 | 1 | Clamp, plastic cable Ā· no part number | In kit K1 ā | |
| 19 | 2 | Screw,pan phil thd form Ā· no part number | In kit K1 ā | |
| 20 | 2 | Screw m5x16 uni7687 Ā· no part number | In kit K1 ā | |
| 21 | 1 | Tie, cable 3,6x140 Ā· no part number | In kit K1 ā | |
| K1 | AD9099327000 | 1 | COVER PANEL HW KITNot shown on the drawing. Includes items 1, 2, 5, 7, 8, 9, 10, 11, 14, 15, 17, 18, 19, 20, 21. | $33.79/EA |
Advance SC450 Electrical components (parts list 08/2012)
The parts Advance numbers on its electrical components (parts list 08/2012) drawing. Manual pages 18, list 19.āāāā āā ā āāāāāāāāāā āāāāāāāā āā ā āāāāāā ā āāāāā ā āāāāāāāāā āāāāāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1458046000 | 1 | HOLDER FUSE | $31.05/EA |
| 2 | 2 | Screw m3x10 uni5739 Ā· no part number | In kit K1 ā | |
| 3 | 3 | Screw, hex thd to hd m4x12 Ā· no part number | In kit K1 ā | |
| 4 | 2 | SCREW, HEX THD TO HD M4x8 Ā· no part number | In kit K1 ā | |
| 5 | 6 | WASHER, FLAT 4,3x9 Ā· no part number | In kit K1 ā | |
| 6 | 2 | Clamp 3,6x140 Ā· no part number | In kit K1 ā | |
| 7 | AD9099268000 | 1 | HARNESS MACHINE | $196.45/EA |
| 8 | 2 | Washer m5 uni1751b Ā· no part number | In kit K1 ā | |
| 9 | 3 | Hex insert m5 Ā· no part number | In kit K1 ā | |
| 10 | AD1458513000 | 1 | BLADE FUSE 30A (F1) | $11.69/EA |
| 11 | 2 | Screw m5x12 uni5739 Ā· no part number | In kit K1 ā | |
| 12 | 1 | Washer 4x12 uni6593 Ā· no part number | In kit K1 ā | |
| 13 | 1 | Screw grub m5x12 uni5929 Ā· no part number | In kit K1 ā | |
| 14 | AD1467035000Replaces Advance 146 0660 000 | 1 | HOLDER FUSE | $36.67/EA |
| 15 | AD9100000885Replaces Advance 1464116000 | 1 | HANDLE RED PLASTIC FOR CONNECTOR | $26.25/EA |
| 16 | AD9099967000Replaces Advance 909 5098 000 | 1 | ELECTRONIC CARD (EB1) | $225.98/EA |
| 17 | AD9096622000 | 1 | RELAY, 24V 40A (ES2) | $33.79/EA |
| 18 | AD9096498000 | 1 | ELECTRONIC SUPPORT | $51.38/EA |
| 19 | 2 | Nut self l. m3 uni7474 Ā· no part number | In kit K1 ā | |
| 20 | 2 | Standoff, hex male/female Ā· no part number | In kit K1 ā | |
| 21 | 3 | Nut self l. m4 uni7474 Ā· no part number | In kit K1 ā | |
| 22 | 2 | SCREW PAN PHIL M5x20 Ā· no part number | In kit K1 ā | |
| 23 | AD1459852000 | 1 | FUSE BLADE 5A | $4.39/EA |
| 24 | 2 | Washer 5x15x1,5 uni6593 Ā· no part number | In kit K1 ā | |
| 25 | AD1460719000 | 1 | CONTACTOR 24V (ES1) | $174.60/EA |
| 26 | 4 | Plastic spacer Ā· no part number | In kit K1 ā | |
| 27 | AD1453824000 | 1 | FUSE 40A (F2) | $11.69/EA |
| 28 | AD9099291000Advance 9099291000 | 1 | HARNESS ELECTRIC BOX | |
| 29 | AD9095955000 | 1 | HARNESS BATTERY | $211.28/EA |
| 30 | AD9100002248Replaces Advance 9098761000 | 2 | CONNECTOR (C1) | $32.42/EA |
| 31 | ADL08812093Advance L08812093 | 1 | BOOT.BATTERY CLAMPS BLACK | |
| K1 | AD9099328000 | 1 | ELEC. COMPONENTS HW KITNot shown on the drawing. Includes items 2, 3, 4, 5, 6, 8, 9, 11, 12, 13, 19, 20, 21, 22, 24, 26. | $27.75/EA |
Advance SC450 Battery charger (parts list 08/2012)
The parts Advance numbers on its battery charger (parts list 08/2012) drawing. Manual pages 20, list 21.āāāā āā ā āāāāāāāāāā āāāāāāāāāā ā āāāāāā ā āāāāāāāāā ā āāā ā ā āāā āāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098296000 | 1 | BATTERY CHARGER 24V 13A (CH)i | $1,190.78/EA |
| 2 | 3 | Washer m5 uni1751b Ā· no part number | ||
| 3 | 3 | Screw m5x20 uni7687 Ā· no part number | ||
| 4 | AD9096914000 | 1 | CABLE EXTENSION US (C2) | $27.19/EA |
| 5 | 3 | Washer m5 uni6592 Ā· no part number | ||
| 6 | 1 | Tie, cable 3,6x140 Ā· no part number | ||
| 7 | 2 | Screw cyl hd 4x16 self l. plastofast2 Ā· no part number | ||
| 8 | ADL08338600Advance L08338600 | 1 | CAP BRACKET | |
| 9 | 1 | Viti tcei/scr, soc hd Ā· no part number |
Advance SC450 Accessories (parts list 08/2012)
The parts Advance numbers on its accessories (parts list 08/2012) drawing. Manual pages 22, list 23.āāāā āā ā āāāāāāāāāā āāāāā āā āā āāāāāāāā ā āā āāāāāā āāāāāāā āā āāāāāāāā
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | ADL08837025 | 1 | BRUSH PROLENE | $300.36/EA |
| 1 | ADL08837026 | 1 | BRUSH PROLITEOptional. | $159.03/EA |
| 1 | ADL08837027 | 1 | BRUSH UNION MIXOptional. | $281.37/EA |
| 1 | ADL08837065 | 1 | BRUSH MAGNA GRIT 46Optional. | $636.99/EA |
| 1 | ADL08837066 | 1 | BRUSH DYNA GRIT 80Optional. | $565.35/EA |
| 2 | ADL08837018 | 1 | PAD HOLDER KITOptional. | $245.40/EA |
| 3 | ADL08837018Replaces Advance L08812466 | 1 | PAD HOLDER | $245.40/EA |
| 3 | ADL08837018Replaces Advance 9099671000 | 1 | PAD HOLDER GRIP 21ā | $245.40/EA |
| 4 | ADL08603966 | 1 | RING NYLON | $23.35/EA |
| 5 | ADL08603965 | 1 | SEAL O-RING | $13.76/EA |
| 6 | AD56505195Replaces Advance L08837030 | 1 | RETAINER PAD | $30.34/EA |
| 7 | AD10001961Advance 10001961 | 1 | PAD 21 530MM ECO BLACK5PCSOptional. | |
| 7 | AD10001962Advance 10001962 | 1 | PAD 21 530MM ECO BLUE 5PCSOptional. | |
| 7 | AD10001963Advance 10001963 | 1 | PAD 21 530MM ECO BROWN 5PCSOptional. | |
| 7 | AD10001964Advance 10001964 | 1 | PAD 21 530MM ECO GREEN 5PCSOptional. | |
| 7 | AD10001965Advance 10001965 | 1 | PAD 21 530MM ECO RED 5PCSOptional. | |
| 7 | AD10001966Advance 10001966 | 1 | PAD 21 530MM ECO WHITE 5PCSOptional. | |
| 7 | AD10002352Advance 10002352 | 1 | PAD 21 533MM DIAMOND LINE RED 2PCSOptional. | |
| 7 | AD10002354Advance 10002354 | 1 | PAD 21 533MM DIAMOND LINE YELLOW 2PCSOptional. | |
| 7 | AD10002355Advance 10002355 | 1 | PAD 21 533MM DIAMOND LINE GREEN 2PCSOptional. | |
| 8 | AD9096736000 | 1 | SPLASH GUARD 20ā KITOptional. | $239.04/EA |
| ā | AD9096745000Advance 909 6745 000 | 1 | INSTRUCTIONS INSTALLATION |
Advance SC450 Wiring diagram key (parts list 08/2012)
The parts Advance numbers on its wiring diagram key (parts list 08/2012) drawing. Manual pages 24, list 25.āāāā āā ā āāāāāāāāāā āāāāā āā āā āāāāāāāā ā āāāāāāāāāāāāāāāāāāāāāā āā ā
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| C1 | AD9100002248Replaces Advance 9098761000 | BATTERY CONNECTOR | $32.42/EA | |
| C2 | AD9100000790Replaces Advance 909 5633 000 | MAIN CHARGER CONNECTOR | ||
| CH | AD9100003437Replaces Advance 9098297000 | BATTERY CHARGER (OPT)i | $423.01/EA | |
| EB1 | AD9099967000Replaces Advance 909 5098 000 | MAIN ELECTRONIC BOARD | $225.98/EA | |
| EB2 | ADL08812909 | LED BOARD | $59.88/EA | |
| ES1 | AD1460719000 | BRUSH MOTOR ELECTROM. SWITCH | $174.60/EA | |
| ES2 | AD9096622000 | VACUUM MOTOR ELECTROM. SWITCH | $33.79/EA | |
| EV1 | AD9099921000Advance 9099921000 | ELECTROVALVE WATER | ||
| F1 | AD1458513000 | BRUSH DECK FUSE 30A | $11.69/EA | |
| F2 | AD1453824000 | VACUUM MOTOR FUSE 40A | $11.69/EA | |
| F3 | AD1459852000 | LOW POWER CIRCUIT FUSE 5A | $4.39/EA | |
| M1 | AD9096546000Advance 909 6546 000 | DISC BRUSH MOTOR | ||
| M2 | AD9099922000 | VACUUM MOTOR | $334.36/EA | |
| SW1 | AD107404540Replaces Advance 909 5584 000 | BRUSH SWITCH | $11.69/EA | |
| SW2 | AD107404540Replaces Advance 909 5584 000 | VACUUM SWITCH | $11.69/EA | |
| SW3 | AD11178A | HANDLE BAR SWITCH | $54.10/EA |
Advance SC450 Recommended spare parts: normal wear (parts list 08/2012)
Recommended spare parts: normal wear (parts list 08/2012) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāāāā āā āāā āāāāāā ā āāāāā āāāāāāā āāāāāāāā āāāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| ā | AD9100000279Replaces Advance 909 6860 000 | Qty on machine: 1 | BLADE SQUEEGEE KIT | $48.07/EA | |
| ā | ADL08837025 | Qty on machine: 1 | BRUSH 530 PROLENE | $300.36/EA | |
| ā | AD9095371000 | Qty on machine: 1 | CARBON BRUSH KIT | $18.96/EA | |
| ā | AD9095380000 | Qty on machine: 1 | KIT CARBON BRUSH (4PCS) | $458.25/EA | |
| ā | AD9096736000 | Qty on machine: 1 | SPLASH GUARD 20ā KIT | $239.04/EA |
Advance SC450 Recommended spare parts: ordinary maintenance (parts list 08/2012)
Recommended spare parts: ordinary maintenance (parts list 08/2012) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāāā ā āāāā ā āāāāāā ā āāāāā ā āāāā ā āāā āāāā ā āā āāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| ā | AD9099922000 | Qty on machine: 1 | VACUUM MOTOR 330W 24V KIT (M2) | $334.36/EA | ||
| ā | AD9099255000 | Qty on machine: 1 | VACUUM MOTOR HOSE | $48.62/EA | ||
| ā | AD9100000642Replaces Advance 9099281000 | Qty on machine: 1 | SQUEEGEE HOSE | $54.26/EA | ||
| ā | AD9099692000 | Qty on machine: 1 | DRAIN HOSE KIT | $66.90/EA | ||
| ā | AD9100000819Replaces Advance 9099342000 | Qty on machine: 1 | GASKET RECOVERY TANK COVER | $13.07/EA | ||
| ā | AD9100002138Replaces Advance 9099270000 | Qty on machine: 2 | WHEEL Ć10āX33 | $107.69/EA | ||
| ā | AD9100000868Replaces Advance 9097184000 | Qty on machine: 1 | VIBRATION DAMPING M8 60SH | $47.12/EA | ||
| ā | AD9099310000 | Qty on machine: 1 | GASKET VACUUM MOTOR KITIncludes items 39, 40, 41, 42 (Solution tank (parts list 08/2012)). | $103.43/EA | ||
| ā | AD9099258000 | Qty on machine: 1 | SQUEEGEE LIFT ROPE | $18.89/EA | ||
| ā | AD9099953000Replaces Advance 9099560000 | Qty on machine: 1 | WHEEL 2ā | $29.53/EA | ||
| ā | AD9100000860Replaces Advance 9097404000 | Qty on machine: 1 | FILTER WATER | $35.50/EA | ||
| ā | AD9100000860Replaces Advance 909 5215 000 | Qty on machine: 1 | NET & GASKET WATER FILTER | $35.50/EA | ||
| ā | AD9096546000Advance 909 6546 000 | Qty on machine: 1 | REDUCTION GEARMOTOR 480W 24V (M1) | |||
| ā | AD9099563000 | Qty on machine: 1 | SOLENOID VALVE 24V (EV1) | $30.84/EA | ||
| ā | ADL08837018 | Qty on machine: 1 | PAD HOLDER KIT | $245.40/EA | ||
| ā | AD9099311000 | Qty on machine: 1 | GASKET ELECTRICAL COVER KITIncludes items 2, 3, 4 (Solution tank (parts list 08/2012)). | $24.72/EA |
Advance SC450 Recommended spare parts: extra-ordinary maintenance (parts list 08/2012)
Recommended spare parts: extra-ordinary maintenance (parts list 08/2012) from Advance's parts list. Manual page 26.āāāā āā ā āāāāāāāāāā āāāāā ā āāāā āāāāāāā ā āāā ā āāāā āāāā ā āāāāā āā āāāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| ā | AD9100003437Replaces Advance 9098297000 | Qty on machine: 1 | BATTERY CHARGER 24V 13A (CH)i | $423.01/EA | ||
| ā | AD11178A | Qty on machine: 1 | SWITCH (SW3) | $54.10/EA | ||
| ā | AD9099271000Advance 9099271000 | Qty on machine: 1 | CONTROL PANEL DECAL | |||
| ā | AD107404540Replaces Advance 909 5584 000 | Qty on machine: 2 | SWITCH (SW1-SW2) | $11.69/EA | ||
| ā | AD1458513000 | Qty on machine: 1 | BLADE FUSE 30A (F1) | $11.69/EA | ||
| ā | AD9099967000Replaces Advance 909 5098 000 | Qty on machine: 1 | ELECTRONIC CARD (EB1) | $225.98/EA | ||
| ā | AD9096622000 | Qty on machine: 1 | RELAY, 24V 40A (ES2) | $33.79/EA | ||
| ā | AD1460719000 | Qty on machine: 1 | CONTACTOR 24V (ES1) | $174.60/EA | ||
| ā | AD1453824000 | Qty on machine: 1 | FUSE 40A (F2) | $11.69/EA | ||
| ā | AD9099291000Advance 9099291000 | Qty on machine: 1 | HARNESS ELECTRIC BOX | |||
| ā | AD9100002248Replaces Advance 9098761000 | Qty on machine: 2 | CONNECTOR SB50 RED (C1) | $32.42/EA | ||
| ā | AD9099268000 | Qty on machine: 1 | HARNESS MACHINE | $196.45/EA | ||
| ā | AD1459852000 | Qty on machine: 1 | FUSE BLADE 5A | $4.39/EA | ||
| ā | AD9096887000 | Qty on machine: 1 | BUMPER ROLLER KITIncludes items 4, 6, 12, 13, 26, 38, 42 (Brush deck (parts list 08/2012)). | $15.02/EA |
Advance SC450 Optional parts (parts list 08/2012)
Optional parts (parts list 08/2012) from Advance's parts list. Manual page 27.āāāā āā ā āāāāāāāāāā āāāāāāā ā ā āā āāāāāā ā āāā ā ā āāāāā āāā āāā āāāāā āāāā
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| ā | AD9100001353Replaces Advance 9096916000 | Qty on machine: 1 | FILTER SOLUTION TANK | $33.79/EA | |
| ā | ADL08837026 | Qty on machine: 1 | BRUSH PROLITE | $159.03/EA | |
| ā | ADL08837027 | Qty on machine: 1 | BRUSH UNION MIX | $281.37/EA | |
| ā | ADL08837028 | Qty on machine: 1 | BRUSH MIDLITE GRIT | $636.07/EA | |
| ā | ADL08837029 | Qty on machine: 1 | BRUSH MID GRIT 240 | $399.92/EA | |
| ā | ADL08837065 | Qty on machine: 1 | BRUSH MAGNA GRIT 46 | $636.99/EA | |
| ā | ADL08837066 | Qty on machine: 1 | BRUSH DYNA GRIT 80 | $565.35/EA | |
| ā | ADL08837067 | Qty on machine: 1 | BRUSH AGLITE GRIT 500 | $477.04/EA | |
| ā | AD9100000703Replaces Advance 9097290000 | Qty on machine: 1 | HOSE FILLING | $50.01/EA | |
| ā | AD9096858000 | Qty on machine: 1 | BLADE PU KIT 740MM/29āIncludes items 18, 19 (Squeegee system (parts list 08/2012)). | $73.28/EA | |
| ā | ADL08837018 | Qty on machine: 1 | PAD HOLDER KIT | $245.40/EA |
New to your Advance SC450? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your Advance SC450 battery scrubber-dryer. Everything here comes from Advance's instructions for use and service manual, rewritten in plain steps, with the parts linked to the list above. Advance says scheduled and extraordinary maintenance should be done by qualified personnel or an authorized service center; SES is one: call 800-440-6723.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
1Batteries and battery type
- The SC450 runs on two 12 V batteries (24 V), connected as the diagram on the machine shows. Advance says they must be installed by qualified personnel, because wrong connections can badly damage the electrical parts.
- The machine leaves the factory set for GEL batteries. For wet (lead acid) batteries, disconnect the red battery connector, take off the side panel and turn the microswitch to WET. Don't move the switch next to it.
- On machines with the on-board charger (AD9098296000), open its data window and set the selector to WET or GEL to match the batteries.
- Fit the batteries with the shims against the rear wall of the compartment so the machine balances, then charge them before the first run.
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 11 and 12; Advance SC450 service manual, form 9099600000 (11-12, revised 4-14), pages 35 and 36. SES ref PF-L3FH-JDGEāāāā āā ā āāāāāāāāāā āāāāāāāāāāā āāāāāā ā āā ā āāāā āāāā ā āāāāāāāāāā āāā
2Fit the brush or pad and the squeegee
- With both panel switches off, lift the deck with the handlebar and set the brush or the pad holder (ADL08837018) under it.
- Lower the deck, turn on the brush switch and hold the brush push-button for a few seconds so the brush locks onto the hub. Repeat if it doesn't catch.
- Fit the squeegee with its two handwheels and connect the vacuum hose (AD9100000642) to it.
- Use the balance handwheel so the rear blade touches the floor along its whole length and the front blade sits just off the floor.
Source: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), page 13. SES ref PF-L3FH-JDGEāāāā āā ā āāāāāāāāāā āāāāāāāāāāā āāāāāā ā āā ā āāāā āāāā ā āāāāāāāāāā āāā
3Start, scrub and stop
- Fill the solution tank through the filler neck with a low-foam scrubber detergent at the dilution on its label, water no hotter than 104 Ā°F (40 Ā°C). Leave a few inches at the top.
- Lower the squeegee with its lever and set the solution lever: ECO gives a steady 0.10 gal/min (0.4 L/min) for about 90 minutes; turning it further allows up to 0.42 gal/min (1.6 L/min).
- Turn on the brush and vacuum switches, press the brush push-button and walk the machine forward. Release the push-button whenever you stop, so the brush doesn't mark the floor.
- To stop: release the push-button, turn off both switches, lift the squeegee and tip the machine back onto its rear wheel to park it.
Source: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 14 and 15. SES ref PF-L3FH-JDGEāāāā āā ā āāāāāāāāāā āāāāāāāāāāā āāāāāā ā āā ā āāāā āāāā ā āāāāāāāāāā āāā
4Charge after every shift
- Charge at the end of each shift, or when the yellow or red battery light comes on. Don't keep scrubbing on flat batteries: it shortens their life.
- Wet batteries only: take off the recovery tank, check the fluid level and top up through the caps. Charge in a well-ventilated area away from flames, and don't smoke.
- Plug the charger cable into a wall outlet that matches the machine's data plate. Every machine function cuts off while the charger is plugged in.
- When the charger's green light comes on, unplug the cable, wind it on its holder and refit the recovery tank.
Source: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 15 and 19. SES ref PF-L3FH-JDGEāāāā āā ā āāāāāāāāāā āāāāāāāāāāā āāāāāā ā āā ā āāāā āāāā ā āāāāāāāāāā āāā
Advance SC450 troubleshooting
Problems, likely causes and fixes from Advance's instructions for use and service manual. Steps marked service center are for qualified technicians; SES is an Advance service center.
| Likely cause | Fix | Part |
|---|---|---|
| Nothing runs and no light comes on | ||
| The red battery connector is unplugged | Plug it back in. | |
| The charger cable is plugged into the wall | Unplug it: the machine cuts off every function while the charger is connected. | |
| The batteries are flat | Charge them fully, and check the charge at least once a week. | |
| A worn battery or a loose, corroded cable | Clean and tighten the connections and check each battery's resting voltage (service center). | |
| The 5 A electronic board fuse F3 is open | Replace the 5 A fuse (AD1459852000). | |
| All three battery lights flash and the brush stops | ||
| The brush motor is overloaded, often by a brush too aggressive for the floor | Turn both switches off and on again to reset, then change to a softer brush such as the Prolite (ADL08837026), or a pad. | |
| String or debris is wound around the brush hub | Take off the brush and clean the hub. | |
| The brush does not turn | ||
| The brush deck fuse F1 is blown | Replace the 40 A fuse (AD1453824000) once the motor has cooled. | |
| The brush push-button on the handlebar is broken | Replace the switch (service center): the two-switch handlebar kit (AD9100000466), or on the old one-switch handlebar the switch assembly (AD11178A). | |
| Worn brush motor carbon brushes | Replace all four as a set: carbon brushes with holders (AD9100000421) (service center). | AD9100000421CARBON BRUSHES W/HOLDER KIT |
| The brush motor contactor ES1 is faulty | Replace the contactor (AD1460719000) (service center). | |
| The brush motor has failed | A technician checks the motor current (2 to 3 A at 24 V with the brush removed) and replaces the gearmotor (AD9100000454) if it is out of range. | AD9100000454REDUCTION GEARMOTOR 480W 24V KIT |
| The brush doesn't clean well | ||
| The bristles are worn down | Replace the brush, for example the Prolene brush (ADL08837025). | |
| The vacuum motor does not turn on | ||
| The vacuum fuse F2 is blown | Replace the 30 A fuse (AD1458513000). | |
| The vacuum switch on the panel is broken | Replace the switch (AD107404540) (service center). | |
| Worn vacuum motor carbon brushes | Replace both carbon brushes (AD9095371000) (service center). | |
| The vacuum motor relay ES2 is faulty | Replace the relay (AD9096622000) (service center). | |
| The vacuum motor has failed | A technician checks the motor current (13 to 17 A at 24 V) and replaces the vacuum motor (AD9099922000) if it is out of range. | |
| Water left on the floor or weak pickup | ||
| The recovery tank is full and the float has shut off the vacuum | Empty the recovery tank. If the float sticks, clean it or replace the float (AD9099559000). | |
| A vacuum hose is off the squeegee, split or clogged | Reconnect or clear it, or replace the squeegee hose (AD9100000642) or the vacuum motor hose (AD9099255000). | |
| The vacuum grid in the recovery tank is clogged | Take out the grid and wash it. | |
| The tank cover isn't seated, or its gasket is dirty or damaged | Close the cover properly, and clean or replace the cover gasket (AD9099342000). | |
| The squeegee is dirty or the blades are worn, cut or torn | Clean the squeegee and turn or replace the blades (AD9100000279). | |
| The vacuum motor filter is dirty | Clean or replace the filter (AD9096672000). | |
| The vacuum motor gaskets are damaged | Replace them: vacuum motor gasket kit (AD9099310000) (service center). | |
| The squeegee springs have weakened | Replace the springs, sold in the wheels hardware kit (AD9100000566) (service center). | |
| The squeegee leaves streaks | ||
| Debris is caught under the blades | Lift the squeegee and clear it. | |
| The blades are worn, chipped or torn | Turn the rear blade to a fresh corner, or replace the blades (AD9100000279). | |
| The squeegee isn't balanced | Adjust it with the balance handwheel. | |
| Little or no solution reaches the brush | ||
| The solution filter is clogged | Unscrew the clear cover under the machine and wash the strainer (AD9100000861). | |
| The optional tank filter is clogged | Clean the tank filter (AD9100001353). | |
| Debris in the tank or the solution hoses | Flush the tank and the hoses (AD9099337000). | |
| The solution valve EV1 is faulty or its wiring is open | Repair the connection or replace the solenoid valve (AD9099563000) (service center). | |
| The 5 A fuse F3 is open | Replace the 5 A fuse (AD1459852000). | |
| Solution keeps flowing with the machine off | ||
| Dirt or scale holds the solution valve EV1 open | Clean the valve's inner gaskets, or replace the valve (AD9099563000) (service center). | |
| The machine runs away, drags or pulls to one side | ||
| The deck's travel settings don't suit this floor or brush | Stop the machine. Turn the speed handwheel counter-clockwise for faster travel or clockwise for slower, and turn the straight-line handwheel until it tracks straight. | |
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), page 24; Advance SC450 service manual, form 9099600000 (11-12, revised 4-14), pages 41, 49, 50, 66, 67, 85 and 94. SES ref PF-TGQW-NARDāāāā āā ā āāāāāāāāāā āāāāāāāā ā āā āāāāāā ā āāāāāāāāāāāāā āā āāāā āāāāā ā
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Advance SC450 maintenance schedule
Advance's scheduled maintenance table for the SC450. Turn both panel switches off and disconnect the red battery connector before any maintenance.
| Task | How often | Part |
|---|---|---|
| Charge the batteries. | Daily, after use | |
| Clean the squeegee and check both blades for cuts and tears. | Daily, after use | |
| Clean the brush or pad, and replace it when the bristles or the pad are worn. | Daily, after use | |
| Drain and rinse both tanks, wash the vacuum grid and float, and check the recovery tank cover gasket (AD9099342000). The gasket is what lets the tank hold vacuum. | Daily, after use | |
| Check the squeegee blades: turn the rear blade to a fresh corner, and replace the blades (AD9100000279) when every edge is worn. | Weekly | |
| Clean the solution filter under the machine: the filter (AD9100000860) and its strainer (AD9100000861). | Weekly | |
| Check the fluid level in wet batteries. | Weekly | |
| Check the brush motor carbon brushes and replace all four as a set when worn: carbon brushes with holders (AD9100000421). | Yearly (service center) | AD9100000421CARBON BRUSHES W/HOLDER KIT |
| Check the vacuum motor's two carbon brushes (AD9095371000) and replace both together. A carbon brush is worn when it has less than 0.12 in (3 mm) of travel left. | Yearly (service center) |
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 18, 19, 20, 21 and 22; Advance SC450 service manual, form 9099600000 (11-12, revised 4-14), pages 51 and 68. SES ref PF-FA7M-NZEFāāāā āā ā āāāāāāāāāā āāāā ā āāā āāāāāāāāā ā āā āāāāā āā āāāāāā āāāāāāāāāā
Advance SC450 specifications
From the technical data in Advance's SC450 instructions for use and service manual.
| Model | Advance SC450 20B, model 9087331020 (parts list 4/14 also names 9087371020) |
|---|---|
| Cleaning width | 20 in (530 mm) brush or pad |
| Squeegee width | 30 in (760 mm) |
| Solution tank | 10.5 US gal (40 L) |
| Recovery tank | 11.9 US gal (45 L) |
| Solution flow | 0.10 to 0.42 gal/min (0.4 to 1.6 L/min); ECO 0.10 gal/min (0.4 L/min) |
| Brush motor | 0.64 hp (480 W), 154 rpm |
| Brush pressure | 66 lb (30 kg) with a full tank and the squeegee down |
| Vacuum motor | 0.44 hp (330 W), water lift 43.3 in H2O (1,100 mm H2O) |
| Batteries | 24 V: two 12 V batteries; standard 70 Ah C5, about 2 hours of run time |
| Battery compartment | 13.7 x 13.7 x 11.8 in (350 x 350 x 300 mm), width x length x height |
| Charger | On-board, 100 to 240 V AC |
| Total current draw | 34 A (0.8 kW) |
| Dimensions | 46.4 in long, 22 in wide without the squeegee, 41.7 in high (1,180 x 559 x 1,060 mm) |
| Front wheels | 10 in (254 mm) on a fixed axle |
| Weight | 167 lb (76 kg) without batteries and with empty tanks; 419 lb (190 kg) full with batteries; shipping 227 lb (103 kg) |
| Maximum working slope | 2% |
| Sound level at the operator | 68 dB(A), plus or minus 3 dB(A) |
| Water protection | IPX4 |
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), page 9; Advance SC450 service manual, form 9099600000 (11-12, revised 4-14), page 18. SES ref PF-NJ2W-BG23āāāā āā ā āāāāāāāāāā āāāā āā āāā āā āāāāāā ā āāāā ā ā āā ā āā āā āāāāāāāāāāāā
Advance SC450 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.āāāā āā ā āāāāāāāāāā āāāāāāāā ā āāāāāāāā ā āāāāā ā āāā āāāāā ā āā ā ā ā āāāāā
Online manuals
Read the SC450 manuals in your browser, with clickable part numbers. No sign-in needed.
- SC450 operator manual, free to read
- SC450 service manual, free to read
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESSC450 parts list, 4/14Parts list with exploded drawings, wiring key, recommended and optional parts, 30 pages | SC450 models 9087331020 and 9087371020 | Form 9099603000, 8/12 revised 4/14 (this page) | 1.9 MB | Sign in to view or downloadSign in to download |
| PDFby SESSC450 parts list, 08/2012The same parts list as first printed, 30 pages | SC450 model 9087331020 | Form 9099603000, 08/2012 (older edition, on this page) | 2.8 MB | Sign in to view or downloadSign in to download |
| PDFby SESSC450 instructions for useOperator manual in English, Spanish, French and Portuguese, 100 pages | SC450 | Form 9099602000, 8/12 revised 4/14 | 5.8 MB | Sign in to view or downloadSign in to download |
| PDFby SESSC450 service manualService manual for the battery and cable versions, 99 pages | SC450 9087331020 | Form 9099600000, 11-12 revised 4-14 | 8.4 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC450 parts questions
Which brushes and pads fit the SC450?
Advance lists 20 in (530 mm) brushes in Prolene, Prolite and Union Mix, and Magna Grit and Dyna Grit abrasive brushes. For pads, fit the 20 in pad holder with its pad retainer. Advance's brush chart in the instructions for use matches each brush to floor types. If the brush motor overloads and the three battery lights flash, change to a less aggressive brush or a pad.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Sources: Advance SC450 parts list, form 9099603000 (8/12, revised 4/14), pages 23 and 27; Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 13 and 15. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
How often should I replace the squeegee blades?
Check them every week. When the front corner of the rear blade wears, turn the blade over to use a fresh corner. Replace the blades when every edge is worn, or sooner if they are cut or torn. Advance also offers polyurethane blades as an option.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 18 and 20; Advance SC450 parts list, form 9099603000 (8/12, revised 4/14), page 27. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
Which fuses does the SC450 use?
Three fuses sit behind a side panel by the recovery drain hose: F1, the brush deck fuse, 40 A; F2, the vacuum fuse, 30 A; and F3, 5 A for the electronic board and the solution valve. Disconnect the red battery connector first, and replace a fuse only after the part that blew it has cooled.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Sources: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), page 23; Advance SC450 service manual, form 9099600000 (11-12, revised 4-14), page 40. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
Can I use wet batteries instead of gel?
Yes. The machine is set at the factory for GEL batteries. For wet (lead acid) batteries, turn the microswitch behind the side panel to WET, and set the on-board charger's selector to WET. Wet batteries need their fluid level checked weekly and should be charged with the recovery tank off, in a well-ventilated area.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Source: Advance SC450 instructions for use, form 9099602000 (8/12, revised 4/14), pages 12, 18 and 19. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
What is the difference between the 4/14 and 08/2012 parts lists?
Both are Advance form 9099603000 for the SC450. The 4/14 revision is the current one: it adds the newer two-switch handlebar, the current brush gearmotor and its carbon brushes, and corrects the brush and vacuum fuse ratings. Pick the edition under Your machine; if you're not sure, the 4/14 list is the one to use.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Sources: Advance SC450 parts list, form 9099603000 (8/12, revised 4/14), pages 9, 15 and 25; Advance SC450 parts list, form 9099603000 (08/2012), pages 9, 15 and 25. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
How do I tell which brush motor my SC450 has?
The 4/14 parts list gives a separate carbon brush kit for the old Leroy Somer GM462200 motor, fitted up to serial number 3510134507872. Later machines use the current gearmotor and its own carbon brush kit. Check the serial number plate, or call 800-440-6723 with the serial number and we'll confirm.āāāā āā ā āāāāāāāāāā āāāāāāāāāāāāāāāāā ā āāāā ā āāāāā āāāāāāāāāāāāāāā
Source: Advance SC450 parts list, form 9099603000 (8/12, revised 4/14), page 15. SES ref PF-V3SI-L5H5āāāā āā ā āāāāāāāāāā āāāāā āāā āā āāāāāāā ā āāāā āāāā ā āāāā ā ā āāāā āāāāā ā
Notes on this parts list
Places where Advance's parts lists need a word of explanation, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.āāāā āā ā āāāāāāāāāā āāāāāāāāāā āāāāāāā ā āāāāā āā āā ā āāāā āā āāāā āā āāā
- Advance revised the SC450 parts list in April 2014 (8/12 revised 4/14). That revision is the current one and comes first on this page. The 08/2012 edition is kept for reference: pick it under Your machine to see its lists. Lines the two editions share have the same part numbers.
- Most hardware lines (screws, washers, caps, ties) print no part number. Advance sells them in the hardware kits printed at the foot of each list (K1, K2 ...): each such line names its kit and links to it. A line in two kits (printed K1-K2) names both.
- The general view (first list) names the machine's main assemblies with no part numbers; their parts are in the sections that follow.
- The wiring diagram key prints a dash for the 24 V batteries (and on the 4/14 list for the main charger connector C2): there is nothing to order, so those keys are left off. Keys printed around one number (SW1 and SW2, SW3 and SW4) are one line.
- The 08/2012 wiring key gives the brush deck fuse F1 as 30 A and the vacuum motor fuse F2 as 40 A. The 4/14 list, the instructions for use and the service manual give F1 40 A and F2 30 A. The 08/2012 lines are shown as printed; the owner's guide follows 4/14.
- The 08/2012 wiring key gives EV1 (water solenoid valve) as 9099921000 and C2 (main charger connector) as 909 5633 000, while its brush deck list gives the solenoid valve as 9099563000 (EV1) and its charger list the US extension cable as C2. Both are shown as printed; the 4/14 list gives EV1 as 9099563000.
- The 08/2012 solution system list numbers its items 1, 3, 4, 5 and 6 (no item 2), and item 6, the water filter net, has no number on its drawing. The lines are shown as printed.
- On the 4/14 brush deck list, item 45 reads L08837025 ROLLER BUMPER KIT, but L08837025 is the 20 in Prolene brush (recommended parts page 26, accessories page 23), and callout 45 points at the brush. The line is shown as printed.
- Handlebar and brush motor lines the 4/14 list prints for one version only (items 12, 14, K1 and 12A, 14A on the handlebar list, 32 and 32A on the brush deck list, SW3 and SW4 on the wiring key) are tagged for that version under Your machine. The 08/2012 list prints the one-switch handlebar and the Leroy Somer motor's carbon brush kit only.
