| Models | U.S. Products Pegasus Pro 500H DV/DC |
| Heater | 1750 W in-line, on/off switch |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motors | Two 5.7 in 3-stage, top-mounted in parallel |
| Airflow | 200 CFM |
| Water Lift | 100 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | Dual ball float |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A per cord |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Weight | 108 lb |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Model Numbers | 05-10037 (machine only) |
Technical specs may include optional equipment that is not included with all units.

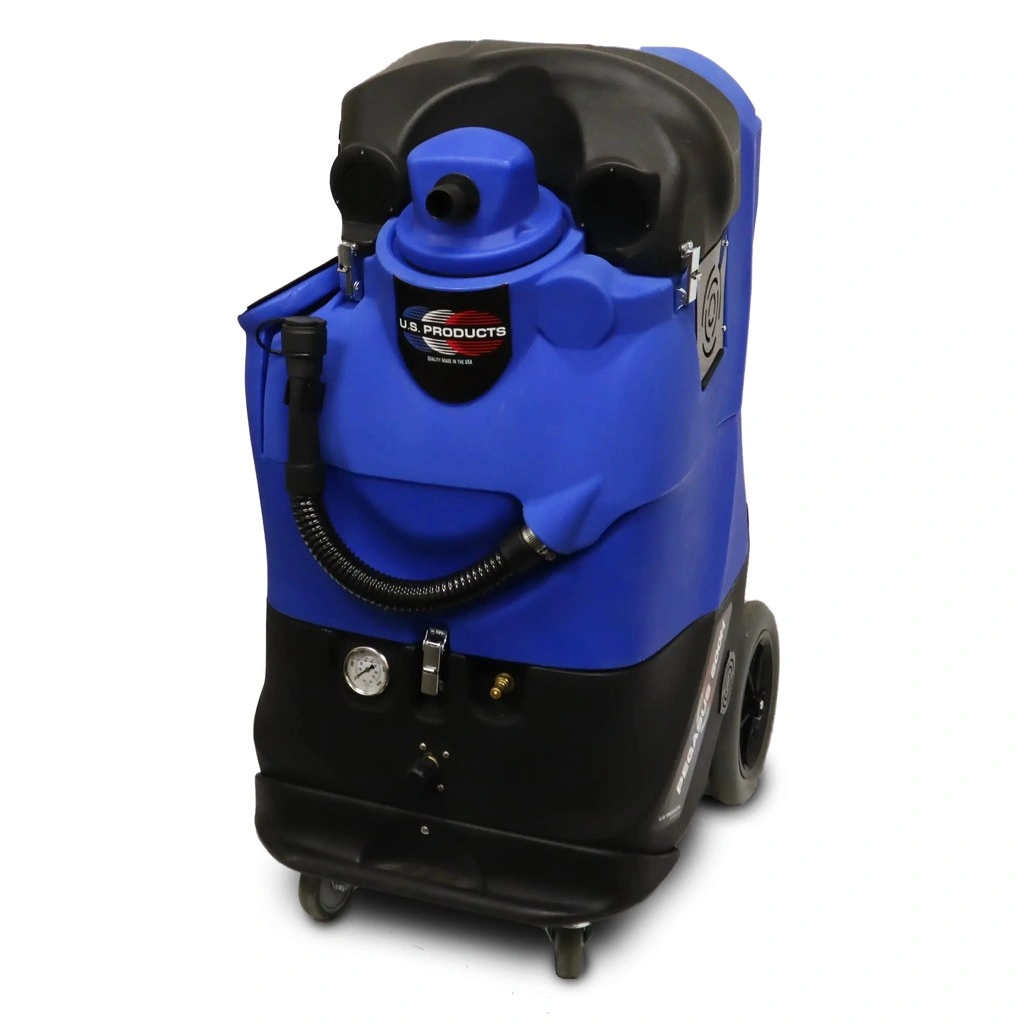

New U.S. Products Pegasus Pro 500H DV/DC Heated Carpet Extractor
Our Take (from the SES Sales Team)
“The Pegasus Pro 500H is the heated member of U.S. Products' Pro 500 family, aimed at carpet cleaning contractors and in-house crews who switch between carpet and upholstery on the same job. It pairs a 1750-watt in-line heater with a pump you can set anywhere from 50 to 500 PSI, so one machine can run a carpet wand or turn down for fabric.
Recovery comes from two top-mounted 3-stage vacuum motors in parallel, rated at 200 CFM and 100 inches of lift. The tanks hold 12 gallons of solution and 12.5 of recovery, the whole unit weighs 108 pounds, and U.S. Products builds it with either a 1.5-inch or 2-inch vacuum inlet to match the hose you run. This listing is the machine only, so plan on your own wand and hose.
Two things to know. Each 15-amp cord needs its own circuit, and the heater holds only a little water, so short spray strokes keep the solution hot. If you don't need heat, the Pro 500C DV/DC has the same vacuum package without the heater.”
Heated, dual-vac, dual-cord portable extractor for carpet and upholstery.
The Pegasus Pro 500H DV/DC is a heated, dual-vac, dual-cord portable carpet extractor from U.S. Products. Its 1750 W in-line heater has its own switch, so crews can clean hot or cold, and the piston pump's pressure unloader sets spray pressure anywhere from 50 to 500 PSI. A gauge on the front of the machine reads spraying pressure.
Two 5.7 in, 3-stage vacuum motors are top-mounted in parallel and rated at 200 CFM with 100 in of lift; each has its own ball float and check valve. The 12 gal solution and 12.5 gal recovery tanks sit in a 32 x 24 x 38.5 in body weighing 108 lb, on 12 in non-marking rear wheels and 4 in front casters. Vacuum inlet options are 1.5 in or 2.0 in.
Includes:
- Pegasus Pro 500H extractor
- Two 25 ft power cords
- Priming hose
Not included: Wand and hose set, sold separately
Features:
- 1750 W in-line heater with its own on/off switch
- 50-500 PSI piston pump with pressure unloader
- Two 3-stage vacuum motors, 200 CFM and 100 in of lift
- Two 25 ft 12/3 cords at 15 A each
- Available with a 1.5 in or 2.0 in vacuum inlet
